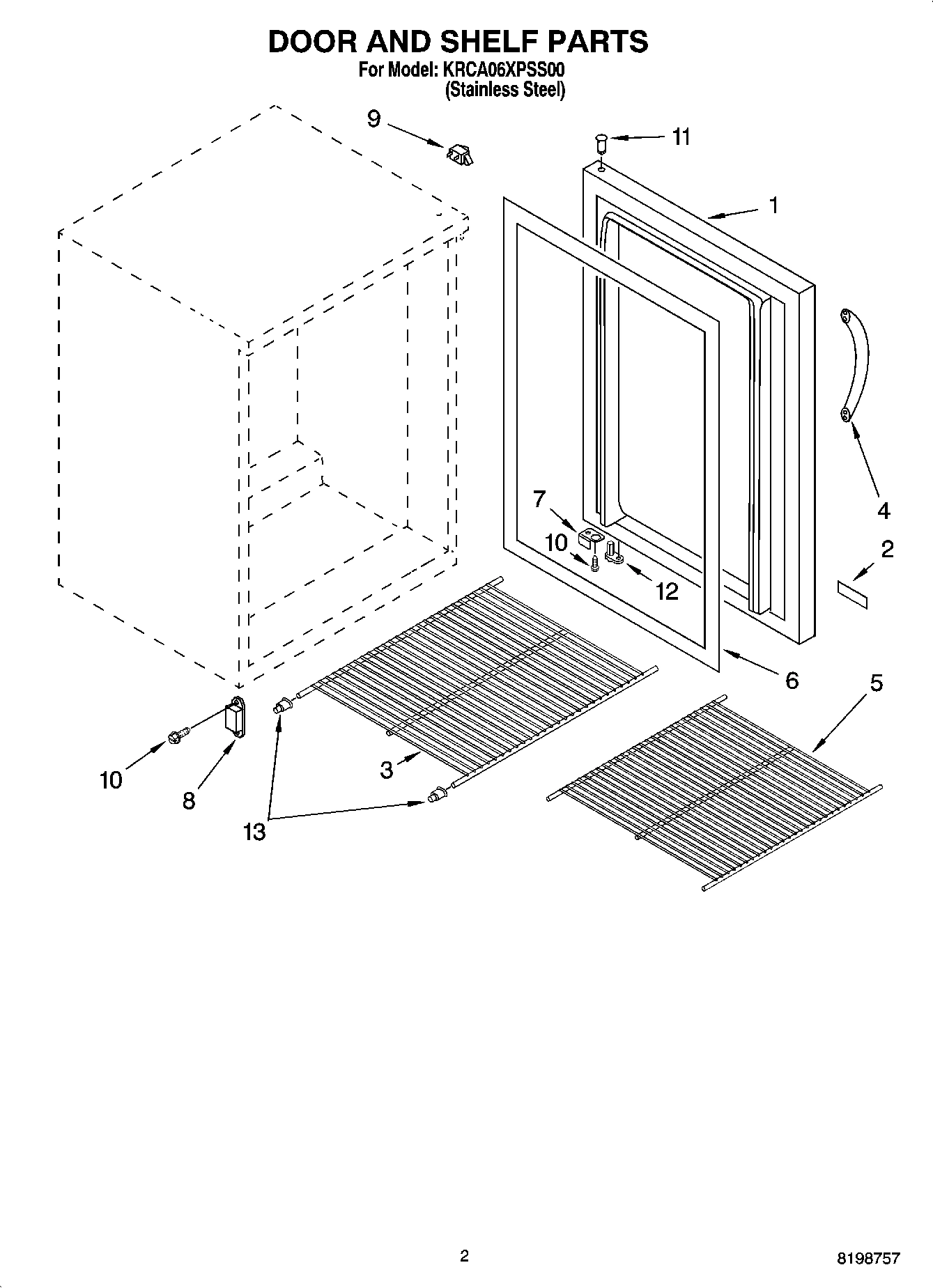

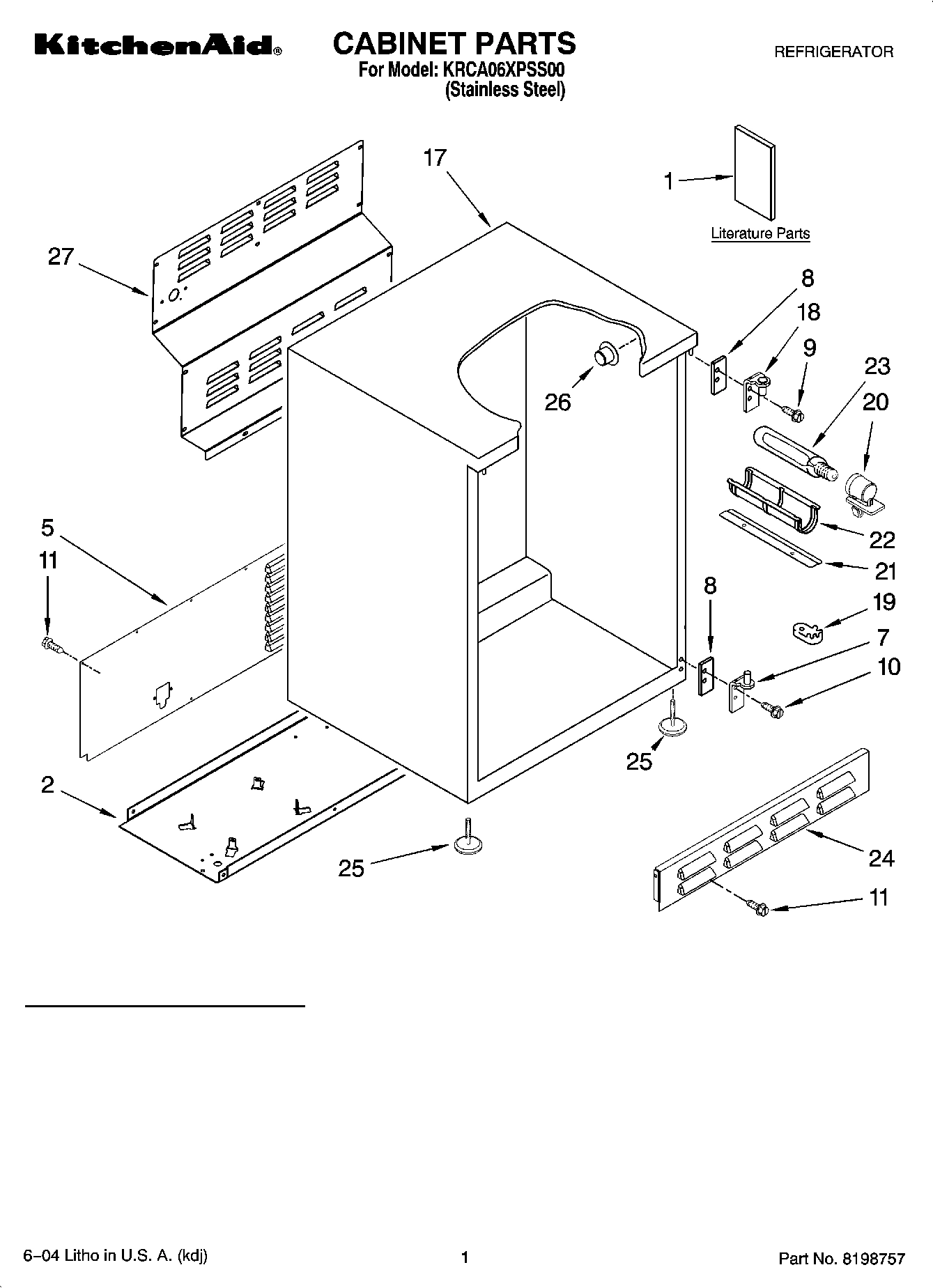

Model Whirlpool KRCA06XPSS00 REFRIGERATOR – Common Parts & Diagrams

1
Door Assembly (Includes Gasket)
Door Assembly (Includes Gasket) WPL 2303611 Contact Us For Availability
View on Model
2
Nameplate
Nameplate WPL 2217214B Contact Us For Availability
View on Model
3
Shelf, Wire-Short
Shelf, Wire-Short WPL 2303628 Contact Us For Availability
View on Model
3
Panel, Evap Fan
Panel, Evap Fan WPL 2303616 Contact Us For Availability
View on Model
4
Handle, Door (Not Serviced, Order 1)
Handle, Door (Not Serviced, Order 1) WPL ARI89406A7 Contact Us For Availability
View on Model
4
Bracket, Mounting
Bracket, Mounting WPL 2303629 Contact Us For Availability
View on Model
5
Bracket, Front
Bracket, Front WPL 2214979 Contact Us For Availability
View on Model
5
Shelf, Wire-Long
Shelf, Wire-Long WPL 2303627 Contact Us For Availability
View on Model
6
Gasket, Door
Gasket, Door WPL 2303676 Contact Us For Availability
View on Model
6
Wire Harness, Evap Fan
Wire Harness, Evap Fan WPL 2187869 Contact Us For Availability
View on Model
7
Bracket, Door Stop
Bracket, Door Stop WPL 2303752 Contact Us For Availability
View on Model
8
THERMOSTAT
THERMOSTAT WPL 2303662 Contact Us For Availability
View on Model
8
Latch, Magnetic
Latch, Magnetic WPL 2303677 Contact Us For Availability
View on Model
12
Clip, Compressor
Clip, Compressor WPL 2163787 Contact Us For Availability
View on Model
13
Caster Kit (4)
Caster Kit (4) WPL 4396337 Contact Us For Availability
View on Model
13
CLEANER, STAINLESS STEEL (12 OZ)
CLEANER, STAINLESS STEEL (12 OZ) WPL 8171420 Contact Us For Availability
View on Model
13
OPTIONAL PARTS NOT ILLUSTRATED
OPTIONAL PARTS NOT ILLUSTRATED WPL ARI89407A7 Contact Us For Availability
View on Model
13
Compressor (Includes 9, 10, 11 & 28)
Compressor (Includes 9, 10, 11 & 28) WPL 2303680 Contact Us For Availability
View on Model
16
Blade, Fan (Condenser)
Blade, Fan (Condenser) WPL 2190685 Contact Us For Availability
View on Model
17
Cabinet (Not A Serviceable Part)
Cabinet (Not A Serviceable Part) WPL ARI89405A9 Contact Us For Availability
View on Model
18
Hinge Asm, Top
Hinge Asm, Top WPL 2303655 Contact Us For Availability
View on Model
18
Bracket, Fan Mounting
Bracket, Fan Mounting WPL 2303740 Contact Us For Availability
View on Model
19
Plate, Mounting
Plate, Mounting WPL 2210750 Contact Us For Availability
View on Model
21
Bracket, Light Cover
Bracket, Light Cover WPL 2303626 Contact Us For Availability
View on Model
21
Drain Pan, Evaporator
Drain Pan, Evaporator WPL 2303618 Contact Us For Availability
View on Model
22
Cover, Light
Cover, Light WPL 2303651 Contact Us For Availability
View on Model
22
Strain Relief
Strain Relief WPL 9872015 Contact Us For Availability
View on Model
23
Drain Pan
Drain Pan WPL 2303619 Contact Us For Availability
View on Model
24
Panel, Unit
Panel, Unit WPL 2303608 Contact Us For Availability
View on Model
24
Cover, Condenser Fan
Cover, Condenser Fan WPL 2303732 Contact Us For Availability
View on Model
25
Screw
Screw WPL 8533833 Contact Us For Availability
View on Model
26
Support Block
Support Block WPL 2201185 Contact Us For Availability
View on Model
26
Knob, Thermostat
Knob, Thermostat WPL 2303721 Contact Us For Availability
View on Model
27
Panel, Evaporator
Panel, Evaporator WPL 2303621 Contact Us For Availability
View on Model
30
Washer (4)
Washer (4) WPL 2303749 Contact Us For Availability
View on Model
32
Tube, Process
Tube, Process WPL 2155648 Contact Us For Availability
View on Model
33
Tube, Condenser Out
Tube, Condenser Out WPL 2303634 Contact Us For Availability
View on Model
34
Tube, Suction Lower
Tube, Suction Lower WPL 2303632 Contact Us For Availability
View on Model
37
REFRIGERANT CHARGE 4.75 (R-134)
REFRIGERANT CHARGE 4.75 (R-134) WPL ARI89408A5 Contact Us For Availability
View on Model
