Model Whirlpool KPDJ630Y0 – Common Parts & Diagrams

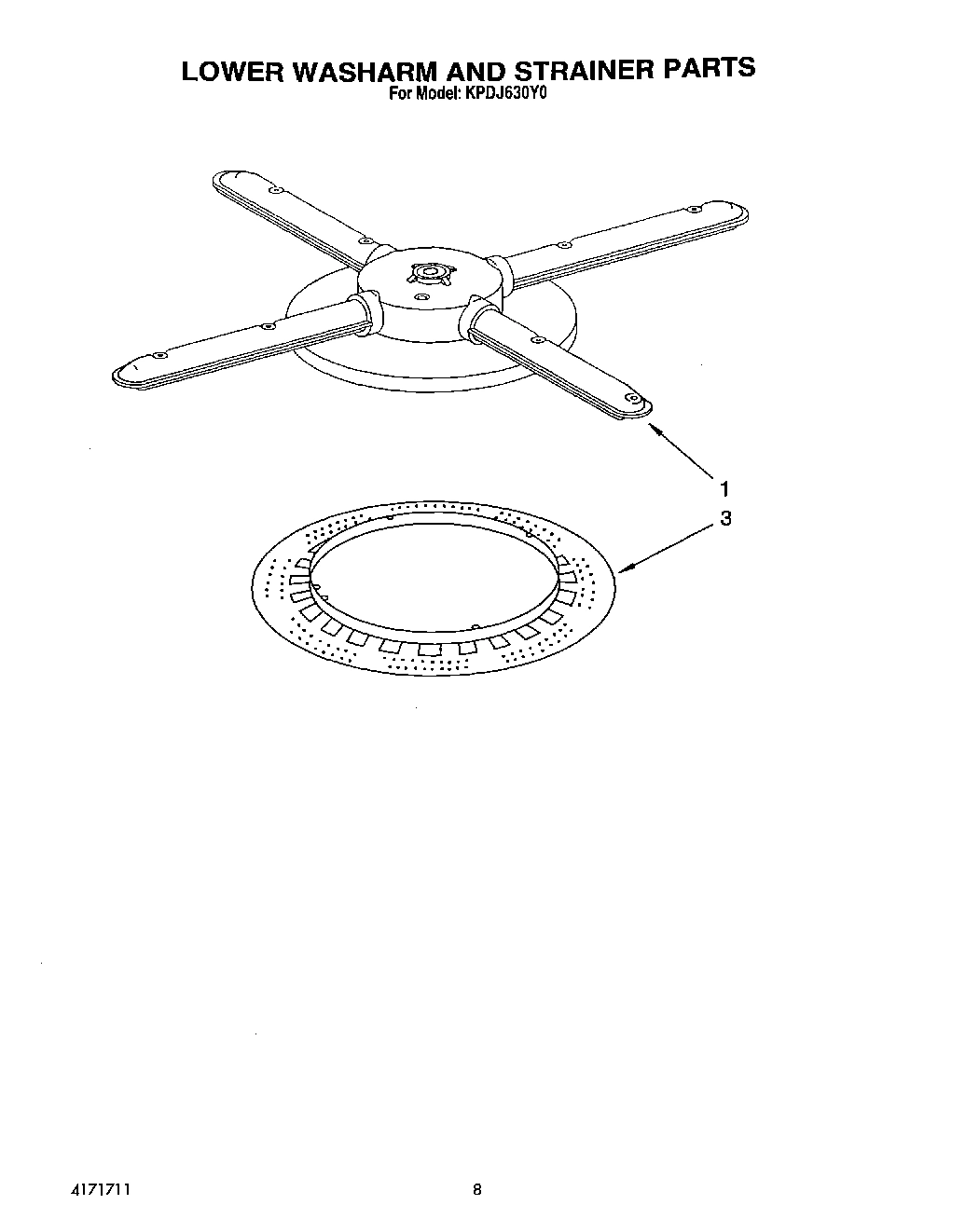

06 - LOWER WASHARM AND STRAINER

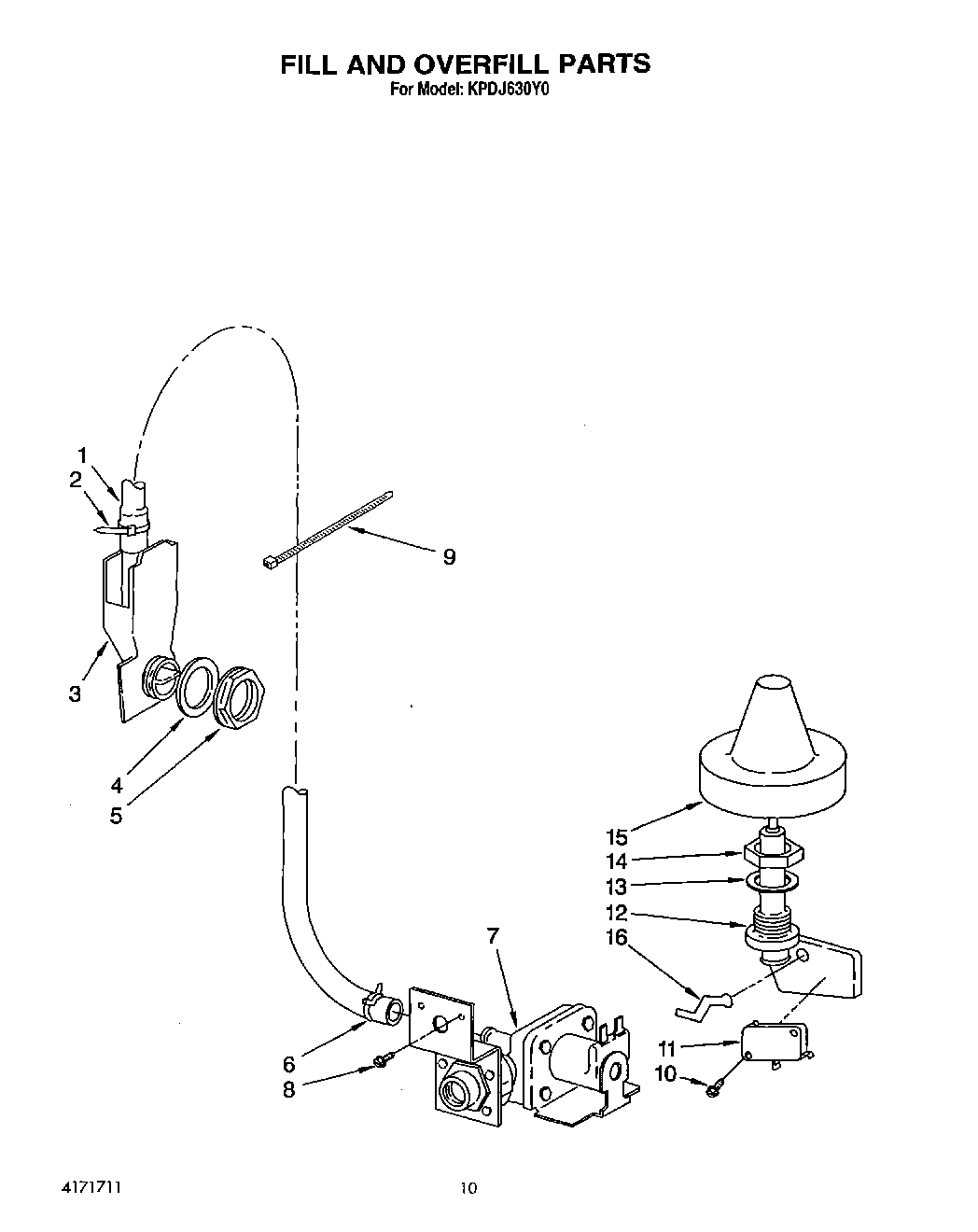

08 - FILL AND OVERFILL
03 - BLOWER
05 - PUMP AND MOTOR
14 - CASTER UNIT
15 - TOP AND PANEL
04 - CONTROL PANEL, LIT/OPTIONAL
11 - UPPER RACK AND TRACK
07 - HEATER
09 - UPPER WASH AND RINSE
16 - FILL HOSE AND CORD
02 - DOOR AND PANEL
13 - DOOR AND LATCH
10 - FRAME AND TANK
12 - LOWER RACK
Common parts from model Whirlpool KPDJ630Y0
Golden Harvest WPL 261890 Contact Us For Availability
Golden Harvest (Uncut) WPL 261891 Contact Us For Availability
Toast WPL 285365 Contact Us For Availability
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
Platinum (Uncut) WPL 285368 Contact Us For Availability
Leveler (Thinner) WPL 350941 Contact Us For Availability
Insulation Kit (Kit Includes Tub, Kickboard, WPL 4171179 Contact Us For Availability
WPL 675506 WPL 675506 Contact Us For Availability
WPL 72112 WPL 72112 Contact Us For Availability
WPL 799832 WPL 799832 Contact Us For Availability
WPL 978883 WPL 978883 Contact Us For Availability
WPL LIT4171711 WPL LIT4171711 Contact Us For Availability
WPL LIT9741065 WPL LIT9741065 Contact Us For Availability
WPL LIT9741183 WPL LIT9741183 Contact Us For Availability
WPL LIT9741254 WPL LIT9741254 Contact Us For Availability
WPL LIT9741381 WPL LIT9741381 Contact Us For Availability
1
Bracket, Rear Caster (L.H.) WPL 4162973 Contact Us For Availability
1
Insulator, Latch WPL 4171130 Contact Us For Availability
1
Upper Rack Assembly (Includes Items 2, 3, 5, WPL 4171572 Contact Us For Availability
1
Tube & Connector Assembly WPL 9740307 Contact Us For Availability
1
Screw, 10-16 X 1/2 WPL 4159388 Contact Us For Availability
1
Screw WPL 4162215 Contact Us For Availability
1
Cover, Wiring Harness WPL 4161659 Contact Us For Availability
1
Short Frame Assembly (Includes Items 2, 18, 1 WPL 4171627 Contact Us For Availability
1
Lower Rack Assembly (Includes Items 2, 3 & 5) WPL 4171638 Contact Us For Availability
2
Axle, Lower Rack WPL 4162321 Contact Us For Availability
2
Screw, 10-16 x 1/2 WPL 9740980 Contact Us For Availability
2
Wood Top & Insulation Assembly (Includes Item WPL 4162841 Contact Us For Availability
2
Anchor, Cancel Spring WPL 4171120 Contact Us For Availability
2
Nut, Roller WPL 4161226 Contact Us For Availability
2
Hook, Heater Element WPL 4163549 Contact Us For Availability
2
Connector, Vertical Conduit WPL 9740763 Contact Us For Availability
2
Clamp, Hose WPL 4162104 Contact Us For Availability
2
Upper Mounting Panel Assembly (Includes Upper WPL 4171622 Contact Us For Availability
2
Washer WPL 4159513 Contact Us For Availability
3
Door Seal Assembly (Includes Item 4) WPL 4161631 Contact Us For Availability
3
Strainer (Coarse) WPL 9741049 Contact Us For Availability
3
Caster, Rear (2) WPL 4160607 Contact Us For Availability
3
Screw, 10-13 X 3/4 WPL 4159472 Contact Us For Availability
3
Bearing & Spacer, Rack Roller WPL 4171288 Contact Us For Availability
3
Washer WPL 4159477 Contact Us For Availability
3
Conduit, Vertical WPL 4162655 Contact Us For Availability
3
Washer Kit WPL 4160964 Contact Us For Availability
3
Filler (Upper Panel) WPL 4162733 Contact Us For Availability
3
Screw, 10-16 X 3/8 WPL 3369139 Contact Us For Availability
4
Roller, Upper Rack Track WPL 4161607 Contact Us For Availability
4
Plate, Sound Barrier WPL 4171310 Contact Us For Availability
4
Rivet WPL 4159169 Contact Us For Availability
4
Washer, Sealing WPL 4160051 Contact Us For Availability
4
Retainer, Conduit WPL 4162609 Contact Us For Availability
4
Screw, 6 X 1/4 WPL 4159439 Contact Us For Availability
4
Latch Mechanism Assembly WPL 4171578 Contact Us For Availability
4
Clip, Seal WPL 4161608 Contact Us For Availability
5
Bumper, Lower Rack WPL 4171555 Contact Us For Availability
5
Bracket, Side Panel Mounting (2) WPL 4161676 Contact Us For Availability
5
Bar, Guide WPL 4161755 Contact Us For Availability
5
Spring, Switch Cancel WPL 4163257 Contact Us For Availability
5
Screw, 10-16 X 5/8 WPL 4159428 Contact Us For Availability
5
Washer WPL 4159567 Contact Us For Availability
5
Retainer, Manifold WPL 4171540 Contact Us For Availability
5
Gasket, Seal WPL 4160378 Contact Us For Availability
5
Side Trim (Upper Panel) WPL 4162685 Contact Us For Availability
5
Insulation, Switch WPL 4162145 Contact Us For Availability
5
Bumper, Door WPL 4161626 Contact Us For Availability
6
Endcap (Guide Bar) (R.H.) WPL 4161756 Contact Us For Availability
6
Endcap (Guide Bar) (L.H.) WPL 4161757 Contact Us For Availability
6
Bracket, Program Switch WPL 4163256 Contact Us For Availability
6
Track, Rack WPL 4162442 Contact Us For Availability
6
Washer WPL 4159583 Contact Us For Availability
6
Manifold, Upper Arm WPL 4171541 Contact Us For Availability
6
Screw, 6-20 X 3/8 (4) WPL 4159412 Contact Us For Availability
6
Side Trim (Lower Panel) WPL 4171624 Contact Us For Availability
6
Inner Door Assembly WPL 4162508 Contact Us For Availability
7
Screw, 10-13 X 3/4 (2) WPL 4159473 Contact Us For Availability
7
Thermostat WPL 9741196 Contact Us For Availability
7
Housing, Power Cord WPL 4161098 Contact Us For Availability
7
Grommet, Panel WPL 4162735 Contact Us For Availability
7
Insulation, Inner Door WPL 4163577 Contact Us For Availability
7
Clip, Retainer WPL 9740303 Contact Us For Availability
8
Switch, Program WPL 9741191 Contact Us For Availability
8
Bracket, Thermostat WPL 9741192 Contact Us For Availability
8
Bearing, Arm (Bottom) WPL 4162625 Contact Us For Availability
8
Elbow, Tube Fitting WPL 4162393 Contact Us For Availability
8
Lower Mounting Panel Assembly (Includes Upper WPL 4171623 Contact Us For Availability
8
Screw & Washer Assembly WPL 9740922 Contact Us For Availability
9
Bracket, L.H. Door Stop WPL 4161592 Contact Us For Availability
9
Seal, Moisture WPL 9740767 Contact Us For Availability
9
Washer WPL 9741062 Contact Us For Availability
9
Bearing, Arm (Top) WPL 4162491 Contact Us For Availability
9
Coupler (Includes Item 5) WPL 9741368 Contact Us For Availability
9
Filler (Lower Panel) WPL 4162734 Contact Us For Availability
9
Actuator, Interlock Switch WPL 4171197 Contact Us For Availability
10
Lock Washer WPL 4159494 Contact Us For Availability
10
Support, Front Caster Bracket (R.H.) WPL 4162971 Contact Us For Availability
10
Washer WPL 9740979 Contact Us For Availability
10
Screw, 6-32 X 3/8 WPL 4159432 Contact Us For Availability
10
Washer, Cup WPL 718817 Contact Us For Availability
10
Wash/Rinse Arm Assembly WPL 9740878 Contact Us For Availability
10
Fill Hose Assy. WPL 4163283 Contact Us For Availability
10
Plug Button WPL 9740847 Contact Us For Availability
10
Lock Nut WPL 4159115 Contact Us For Availability
11
Bearing, Door Stop Insert WPL 4160355 Contact Us For Availability
11
Screw, 10-16 x 3/8 WPL 4159421 Contact Us For Availability
11
Side Panel (L.H.) (White) WPL 4171662 Contact Us For Availability
11
Side Panel (L.H.) (Almond) WPL 4171664 Contact Us For Availability
11
Spring, Door Interlock WPL 4163571 Contact Us For Availability
11
Locknut WPL 718829 Contact Us For Availability
11
Roller, Rack Track WPL 9740963 Contact Us For Availability
11
Clip, Arm Guard WPL 4171542 Contact Us For Availability
11
Housing, Hose Coupler WPL 4161097 Contact Us For Availability
11
Keeper, Latch WPL 4160092 Contact Us For Availability
12
Screw, 10-16 X 5/16 (8) WPL 4171147 Contact Us For Availability
12
Screw. Track Roller WPL 9740964 Contact Us For Availability
12
Element, Heater WPL 9740416 Contact Us For Availability
12
Screw, 6-20 X 5/8 (2) WPL 4159419 Contact Us For Availability
12
Trim, Panel (Upper & Lower) WPL 4171625 Contact Us For Availability
12
Vapor Barrier, Inner Door (Includes Item No. WPL 4162949 Contact Us For Availability
13
Bumper, Rack Track WPL 4171547 Contact Us For Availability
13
Kickboard WPL 4162968 Contact Us For Availability
13
Washer (8) WPL 4159569 Contact Us For Availability
13
Switch, Interlock WPL 4160658 Contact Us For Availability
13
Grommet, Heater Element WPL 4162521 Contact Us For Availability
13
Screw WPL 4161737 Contact Us For Availability
13
Channel, Evaporation WPL 9740868 Contact Us For Availability
13
Bracket, Spring Mounting (L.H.) WPL 4161957 Contact Us For Availability
13
Bracket, Spring Mounting (R.H.) WPL 4161958 Contact Us For Availability
14
Tube (Manifold to Receiver) WPL 4171544 Contact Us For Availability
14
Panel Insert Kits (Stainless Steel) WPL 4169400 Contact Us For Availability
14
Outlet, Pump (Includes Item 13) WPL 9740683 Contact Us For Availability
14
Screw, 10-16 X 3/8 WPL 4159411 Contact Us For Availability
14
Stud, Bumper Retaining WPL 4160423 Contact Us For Availability
14
Washer, Heater Element WPL 4163554 Contact Us For Availability
14
Clamp, Hose WPL 4160698 Contact Us For Availability
14
Panel Insert Kits (White/Black OPTIONAL KITS) WPL 4162833 Contact Us For Availability
14
Panel Insert Kits (Harvest Gold/Almond) WPL 4162834 Contact Us For Availability
14
Panel Insert Kits (Fresh Avocado/ Coffee) WPL 4162835 Contact Us For Availability
14
Panel Insert Kits (Almond/White) WPL 4162836 Contact Us For Availability
14
Panel Insert Kits (Platinum/Toast) WPL 4169402 Contact Us For Availability
14
Panel Insert Kits (Sand/Onyx Black) WPL 4169403 Contact Us For Availability
14
Panel Insert Kits (Silver/Onyx Black) WPL 4169404 Contact Us For Availability
14
Panel Insert Kits (Harvest Gold/Onyx Black) WPL 4171096 Contact Us For Availability
14
Panel Insert Kits (Almond/Black) WPL 4171534 Contact Us For Availability
14
Screw, 7-19 x 1/2 WPL 9741257 Contact Us For Availability
15
Screw & Washer Assembly WPL 4163263 Contact Us For Availability
15
Bumper, Upper Rack WPL 4162048 Contact Us For Availability
15
Nut, Heater Element WPL 718537 Contact Us For Availability
15
Guard, Arm WPL 4171543 Contact Us For Availability
16
Bracket, R.H. Door Stop WPL 4161594 Contact Us For Availability
16
Screw, 6-20 X 3/8 WPL 4169384 Contact Us For Availability
16
Screw, 10-13 X 3/4 (2) WPL 4159474 Contact Us For Availability
16
Clip, Wash Arm Guard WPL 4171551 Contact Us For Availability
16
Washer WPL 4162624 Contact Us For Availability
16
Bracket, Hose Anchor WPL 4162966 Contact Us For Availability
16
Support, Lower Panel WPL 9741276 Contact Us For Availability
17
Pump & Motor Assembly (Includes Item 16) WPL 9740665 Contact Us For Availability
17
Barrier, Front Panel WPL 4162967 Contact Us For Availability
17
Panel, Rear (White) WPL 4162961 Contact Us For Availability
17
Panel, Rear (Almond) WPL 4162962 Contact Us For Availability
17
Spacer, End Cap (R.H.) WPL 4171124 Contact Us For Availability
17
Track, Adjustable (L.H.) WPL 4171289 Contact Us For Availability
17
Track, Adjustable (R.H.) WPL 4171290 Contact Us For Availability
17
Arm, Receiver WPL 4171545 Contact Us For Availability
17
Washer, Trim WPL 4159913 Contact Us For Availability
17
Screw, 10-32 X 1/2 WPL 4162151 Contact Us For Availability
18
Bushing, Grind WPL 302707 Contact Us For Availability
18
End Cap, Caster Trim (R.H.) WPL 9741177 Contact Us For Availability
18
Bracket, Rear Panel Anchor WPL 9740998 Contact Us For Availability
18
End Cap (R.H.) WPL 4171575 Contact Us For Availability
18
Screw, 6-20 x 3/8 WPL 4159408 Contact Us For Availability
18
Washer WPL 4162452 Contact Us For Availability
18
Frame Assembly (L.H.) WPL 4171620 Contact Us For Availability
19
Bracket, R.H. Hinge WPL 4161587 Contact Us For Availability
19
Trim, Front Caster WPL 4161942 Contact Us For Availability
19
Side Panel (R.H.) (White) WPL 4171661 Contact Us For Availability
19
Side Panel (R.H.) (Almond) WPL 4171663 Contact Us For Availability
19
Washer WPL 4159593 Contact Us For Availability
19
Cross Frame, Rear WPL 4162867 Contact Us For Availability
20
Sleeve, Drain Impeller WPL 302705 Contact Us For Availability
20
Bracket, Front Caster (2) WPL 4161753 Contact Us For Availability
20
Screw, 8-32 X 1/4 WPL 4159283 Contact Us For Availability
20
Wire Tie WPL 4162935 Contact Us For Availability
20
Sleeve, Actuator Spacer WPL 9740120 Contact Us For Availability
21
Screw, 10-16 X 1/2 (8) WPL 4159393 Contact Us For Availability
21
Rackstop (R.H.) WPL 4171291 Contact Us For Availability
21
Rackstop (L.H.) WPL 4171292 Contact Us For Availability
21
Cord Reel Assy. (Incls. Item 25) WPL 4163055 Contact Us For Availability
21
Pin, Hinge WPL 4161563 Contact Us For Availability
21
Frame Assembly (R.H.) WPL 4171619 Contact Us For Availability
22
Seal, Drain Cover WPL 302704 Contact Us For Availability
22
Caster, Front (2) WPL 4161735 Contact Us For Availability
22
Lift, Receiver (R.H.) WPL 4171293 Contact Us For Availability
22
Lift, Receiver (L.H.) WPL 4171294 Contact Us For Availability
22
Screw, 10-16 X 1/2 WPL 4159389 Contact Us For Availability
22
Clip, Hinge Pin Retaining WPL 4161585 Contact Us For Availability
22
Screw, 1/4-20 x 1/2 WPL 4159443 Contact Us For Availability
23
Cover, Drain (Includes Item 33) (Also Order I WPL 302723 Contact Us For Availability
23
Lockwasher (2) WPL 4159486 Contact Us For Availability
23
Rivet WPL 4159166 Contact Us For Availability
23
Bracket, Cord Reel Mounting WPL 4162964 Contact Us For Availability
23
Screw WPL 9740851 Contact Us For Availability
23
Cross Frame, Front WPL 4161368 Contact Us For Availability
24
Jam Nut (2) WPL 4171591 Contact Us For Availability
25
Base, Pump (Includes Items 24, 33 & 34) (Also WPL 9740671 Contact Us For Availability
25
End Cap, Caster Trim (L.H.) WPL 9741176 Contact Us For Availability
25
Clip, Grounding (Front Panel) WPL 4162043 Contact Us For Availability
25
Strap, Retaining WPL 4162103 Contact Us For Availability
25
Screw, 8-18 x 1/2 WPL 9741365 Contact Us For Availability
25
Foot, Leveling WPL 4162911 Contact Us For Availability
26
Support, Front Caster Bracket (L.H.) WPL 4162970 Contact Us For Availability
26
Guide, Locking WPL 4161214 Contact Us For Availability
27
Baffle, Lower WPL 4161295 Contact Us For Availability
27
Bracket, Rear Caster (R.H.) WPL 4163575 Contact Us For Availability
27
Button, Program Switch (6) WPL 4163239 Contact Us For Availability
27
Spacer WPL 4160888 Contact Us For Availability
27
Screw, 10-32 X 3/8 WPL 4159372 Contact Us For Availability
28
Motor (Includes Items 24 & 27) (Also Order It WPL 3369330 Contact Us For Availability
28
Bracket, Panel Reinforcement WPL 4163245 Contact Us For Availability
28
Enclosure, Elec. Supply WPL 4161369 Contact Us For Availability
29
Screw (4) WPL 3369331 Contact Us For Availability
29
Screw, 6-20 x 3/8 WPL 4159446 Contact Us For Availability
30
Pump Seal Kit (Includes Items 12, 13, 22 & 36 WPL 675703 Contact Us For Availability
30
Trim, Handle WPL 4163255 Contact Us For Availability
30
Detergent Dispenser & Gasket Assembly (115 V. WPL 9740170 Contact Us For Availability
31
Tool, Pump Centering WPL 303918 Contact Us For Availability
32
Handle, Latch WPL 4163243 Contact Us For Availability
32
Washer (Rubber) WPL 4159594 Contact Us For Availability
32
Tank (Serviced Complete with Frame) WPL 9741372 Contact Us For Availability
33
Screw, 10-32 x 5/8 WPL 9741328 Contact Us For Availability
33
Protector, Edge WPL 4171215 Contact Us For Availability
34
Fill Hole Plug Assembly (Includes Item 35) WPL 4171221 Contact Us For Availability
34
Clip, Harness Guide WPL 4163372 Contact Us For Availability
34
Relay, Start WPL 304658 Contact Us For Availability
35
Connector, Overhead WPL 4161605 Contact Us For Availability
35
Screw, 8-18 X 3/8 WPL 4159349 Contact Us For Availability
35
Wiring Harness (Main) WPL 9741043 Contact Us For Availability
35
Washer, Fill Hole Plug WPL 4162496 Contact Us For Availability
35
Screw, 8-18 x 1-1/4 WPL 4159403 Contact Us For Availability
36
Nut, Rinse Agent Dispenser WPL 4171300 Contact Us For Availability
37
Gasket, Rinse Agent Dispenser WPL 4161545 Contact Us For Availability
38
Rinse Agent Dispensing Valve WPL 9741234 Contact Us For Availability
39
Bracket, L.H. Hinge WPL 4161589 Contact Us For Availability
39
Control Panel WPL 9741135 Contact Us For Availability
41
Spacer, End Cap (L.H.) WPL 4171125 Contact Us For Availability
41
Vapor Barrier, Corner (2) WPL 4162950 Contact Us For Availability
42
End Cap (L.H.) WPL 4171576 Contact Us For Availability
44
Timer Assembly (115 V., 60 Hz.) WPL 9740863 Contact Us For Availability
47
Clip, Endcap (2) WPL 4171127 Contact Us For Availability
48
Knob, Timer WPL 4171119 Contact Us For Availability
× ![]()
