Model Whirlpool KPDC610S1 – Common Parts & Diagrams
05 - LOWER WASHARM AND STRAINER
07 - FILL AND OVERFILL

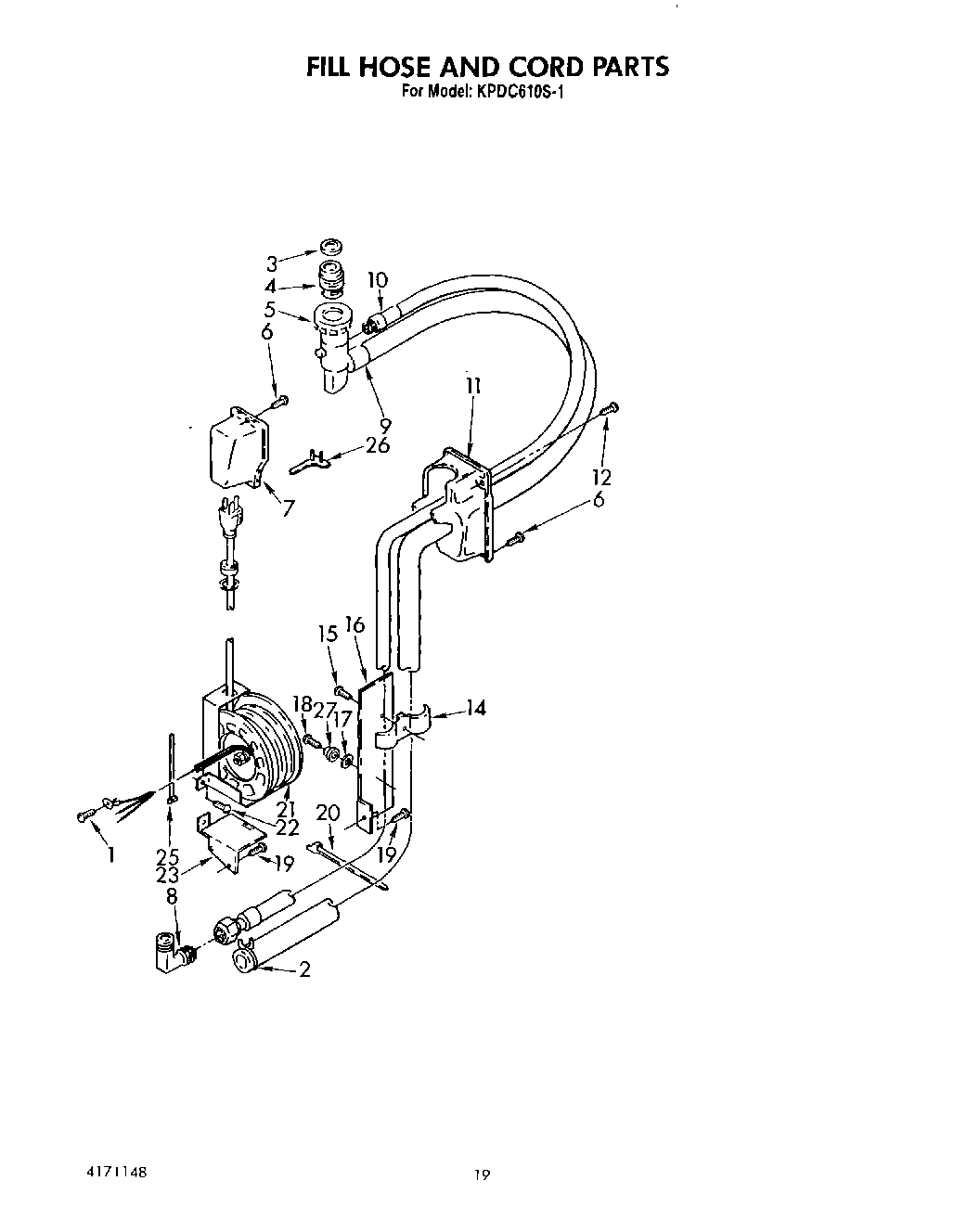

15 - FILL HOSE AND CORD

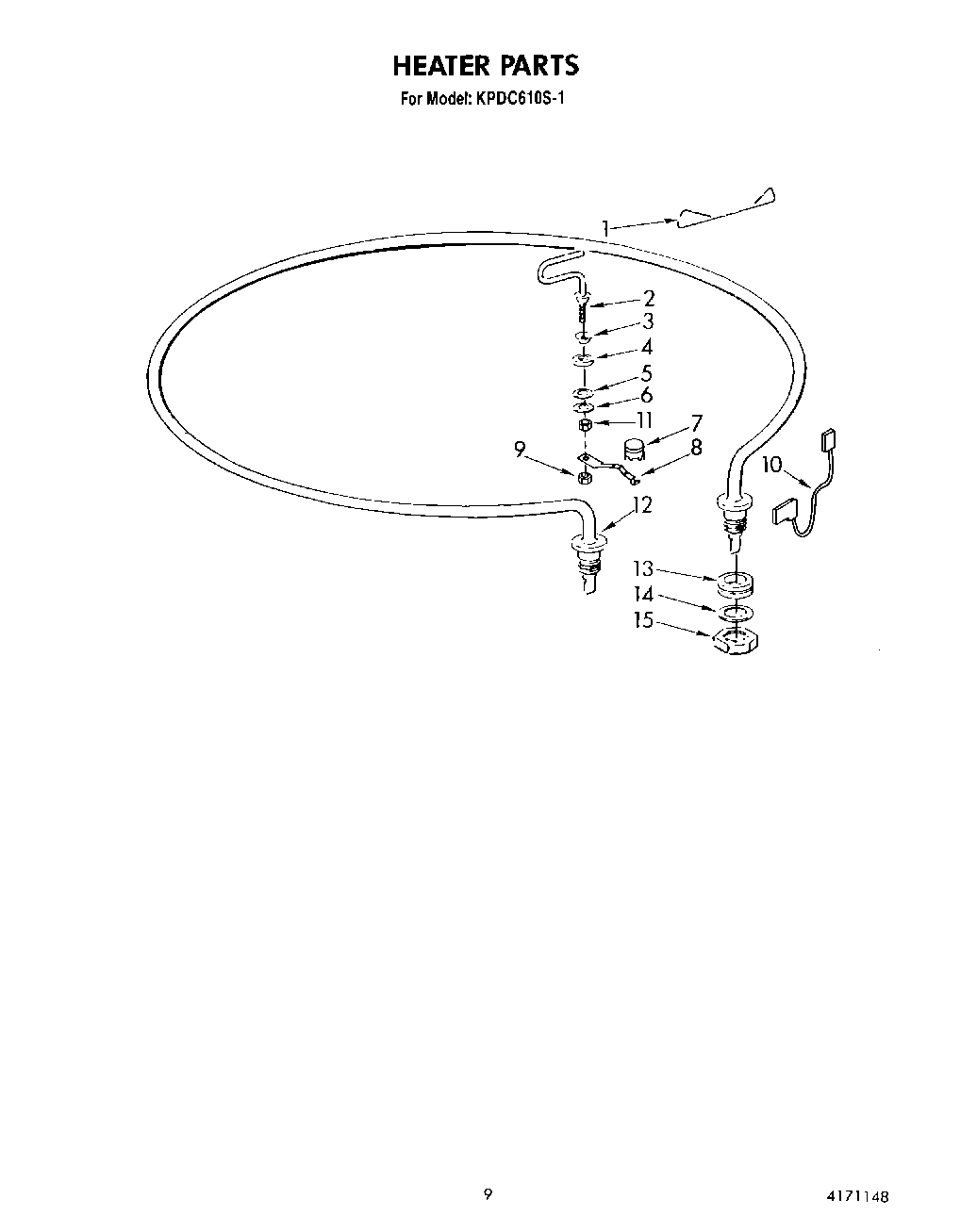

06 - HEATER

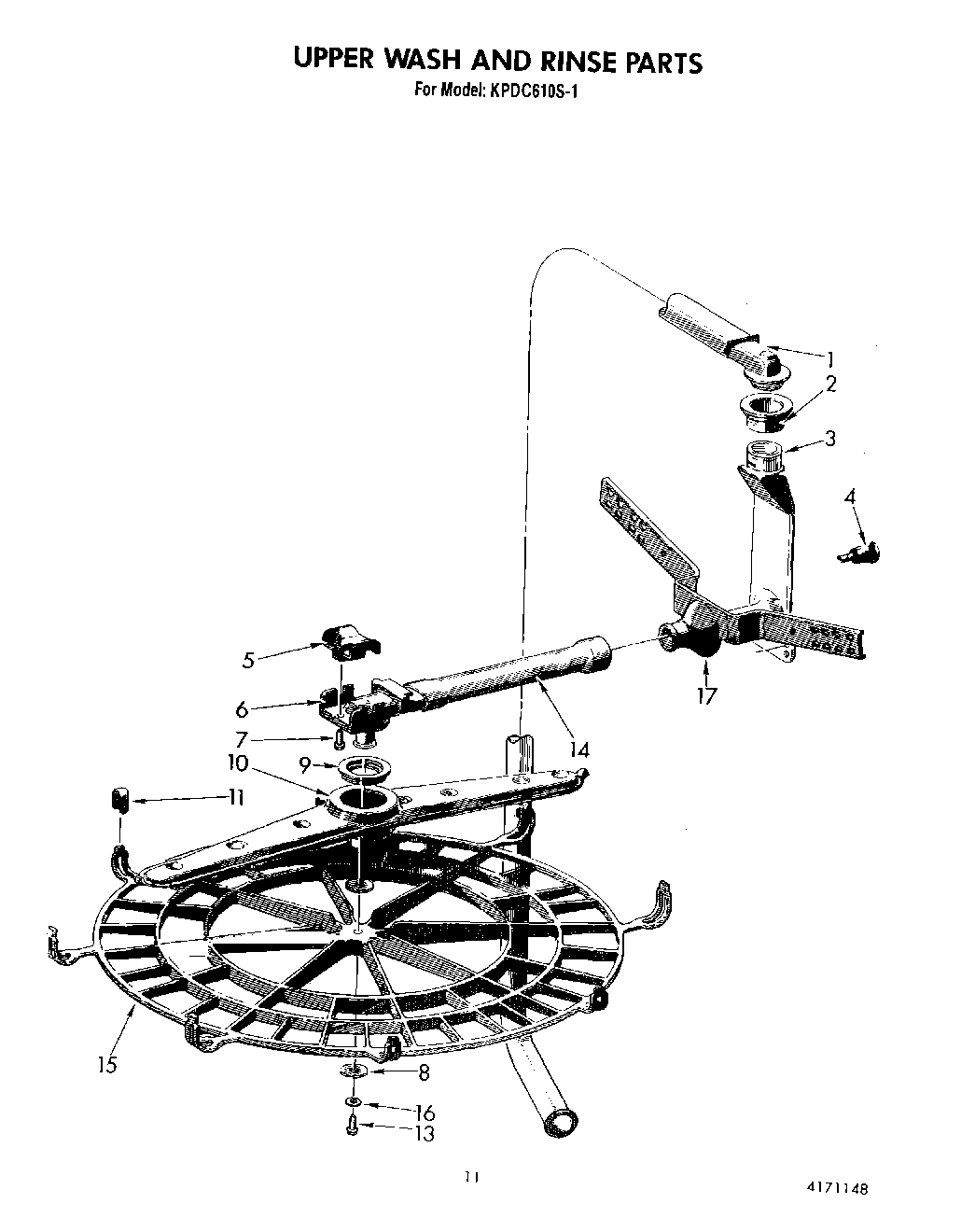

08 - UPPER WASH AND RINSE

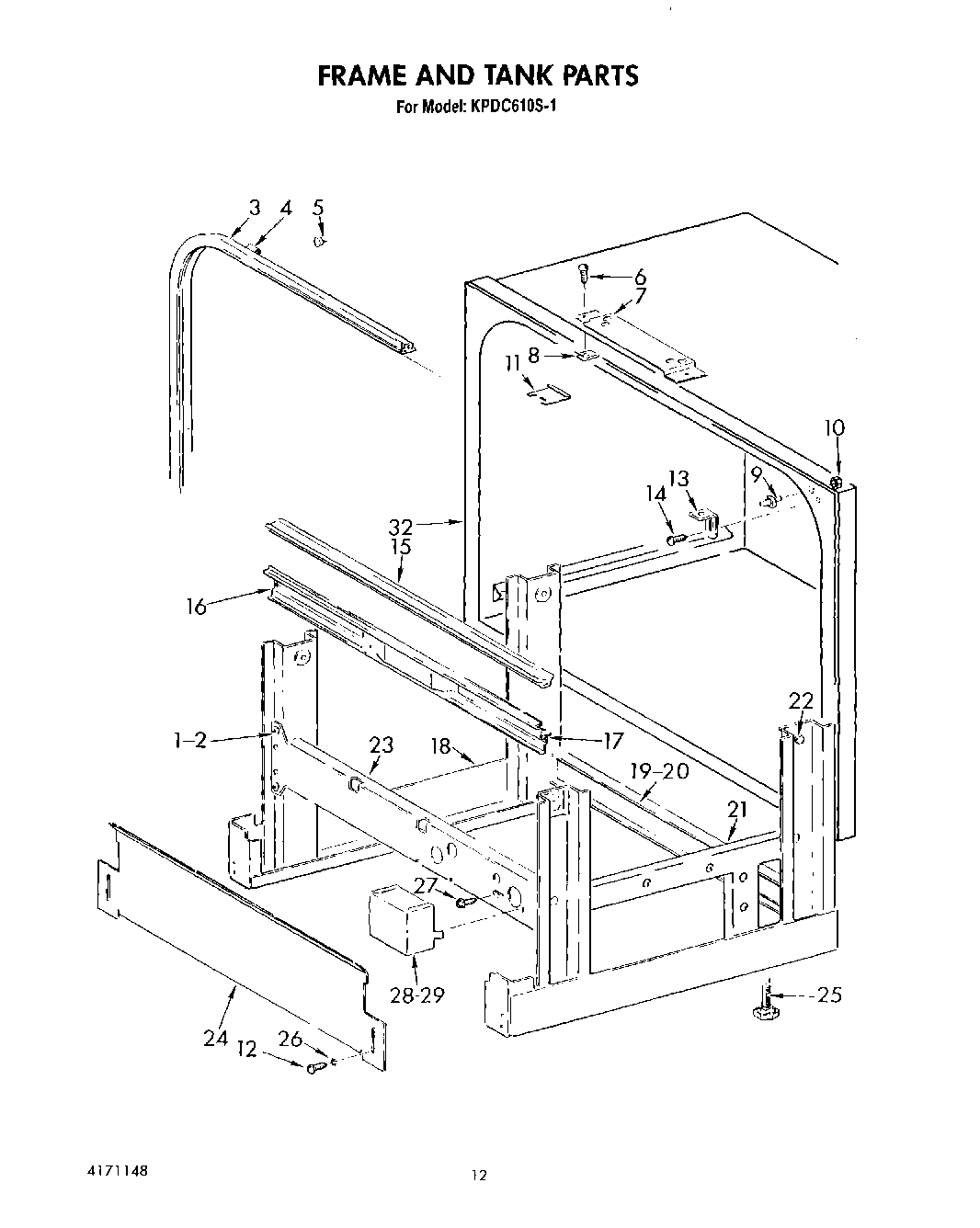

09 - FRAME AND TANK

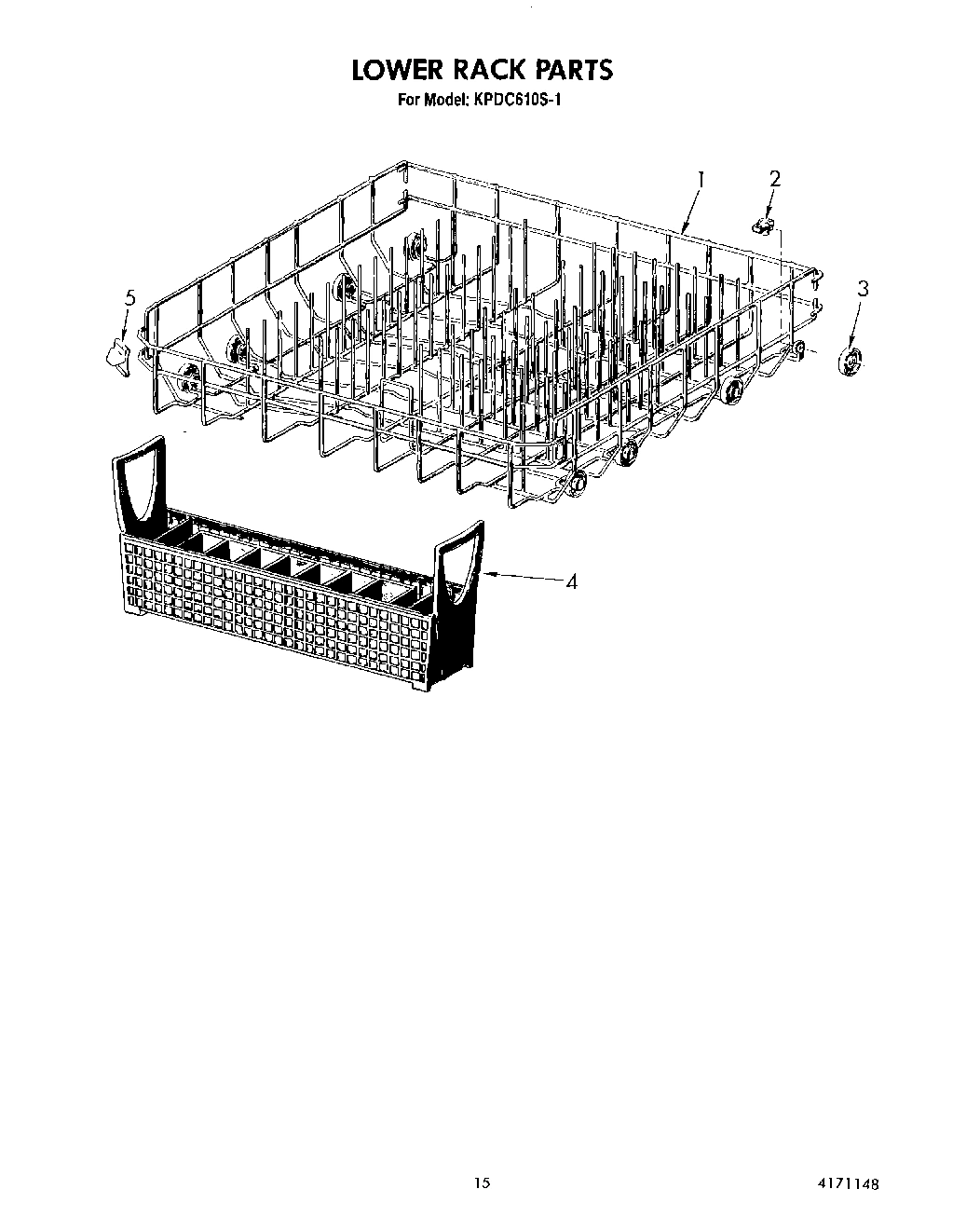

11 - LOWER RACK

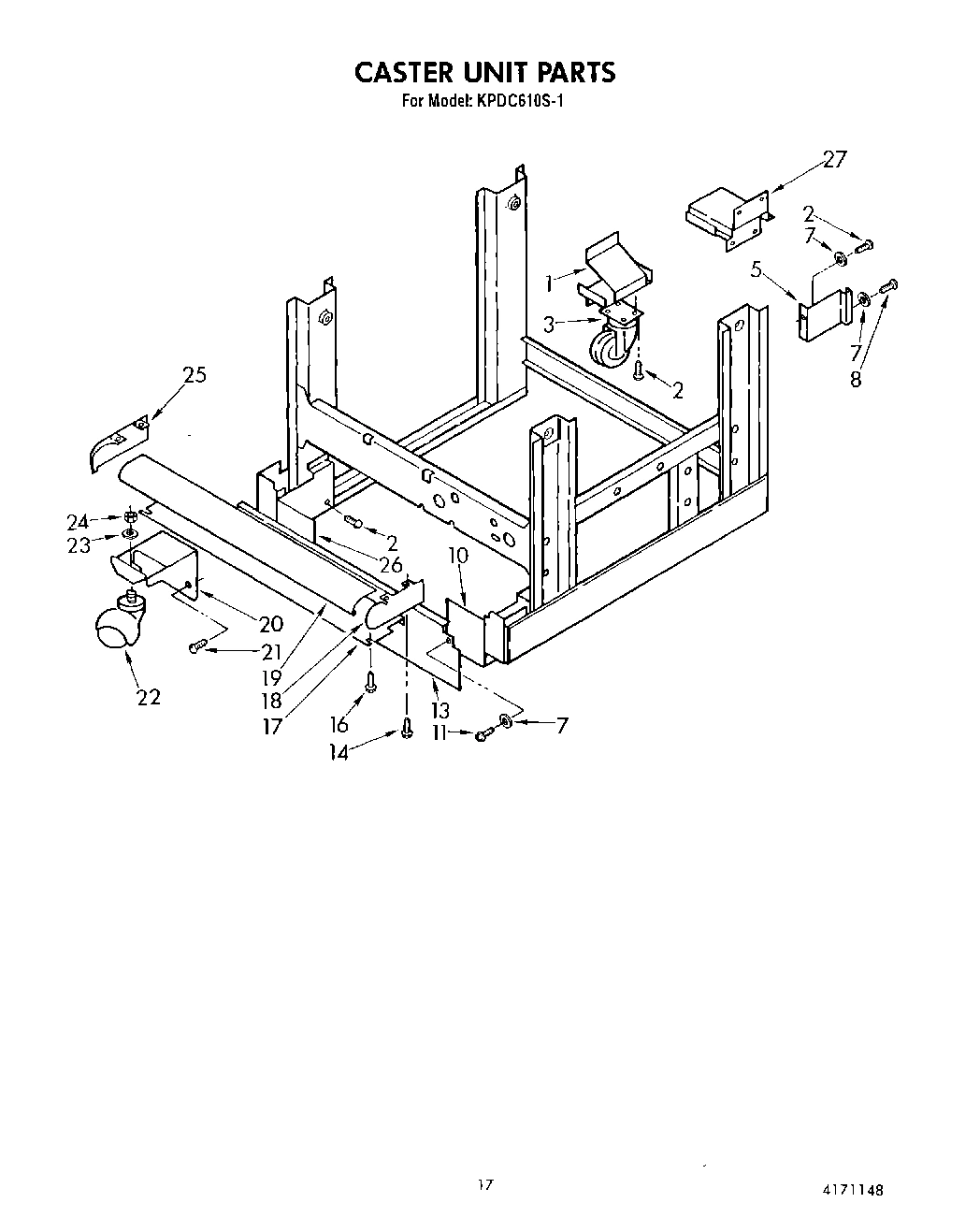

13 - CASTER UNIT

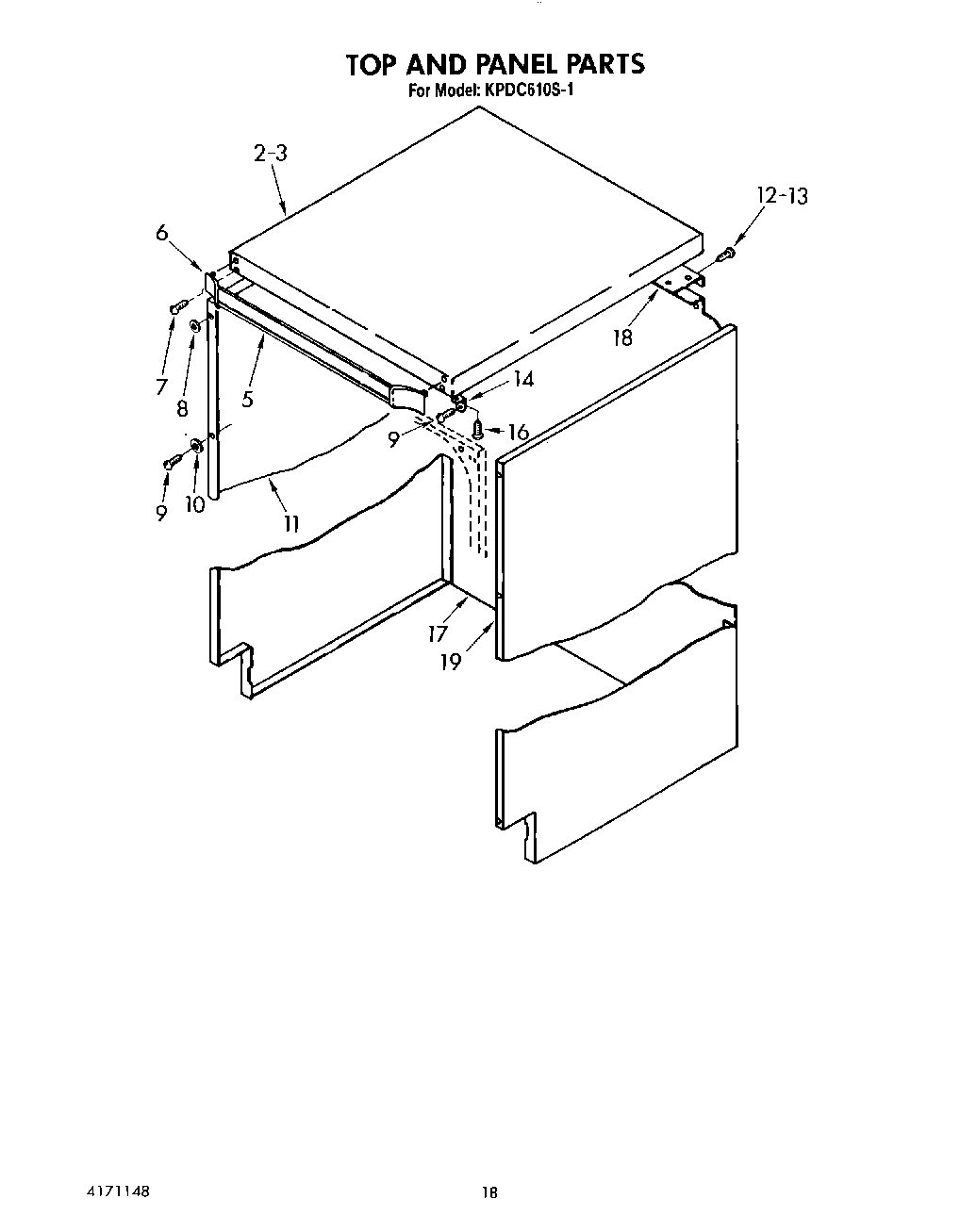

14 - TOP AND PANEL

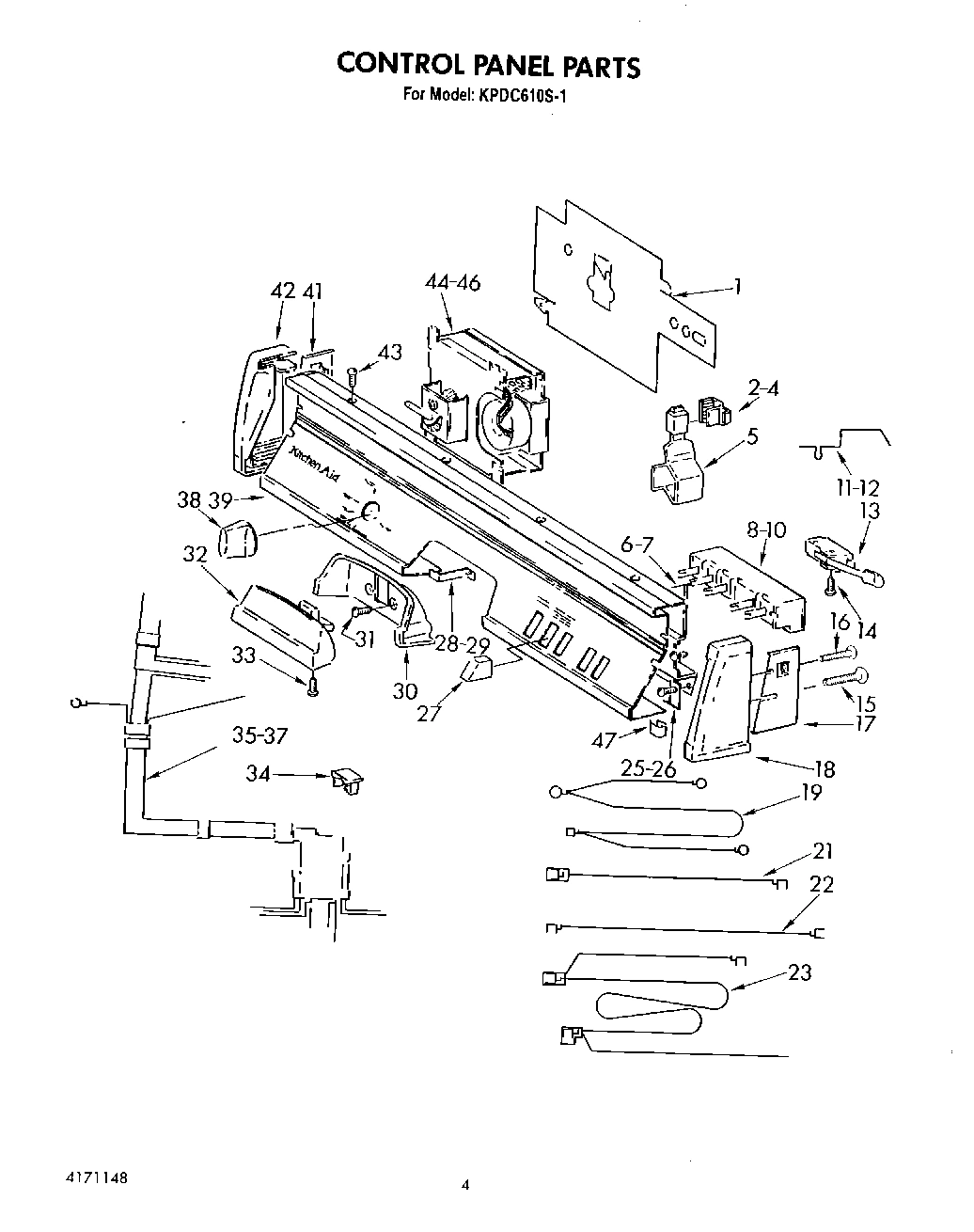

03 - CONTROL PANEL, LIT/OPTIONAL

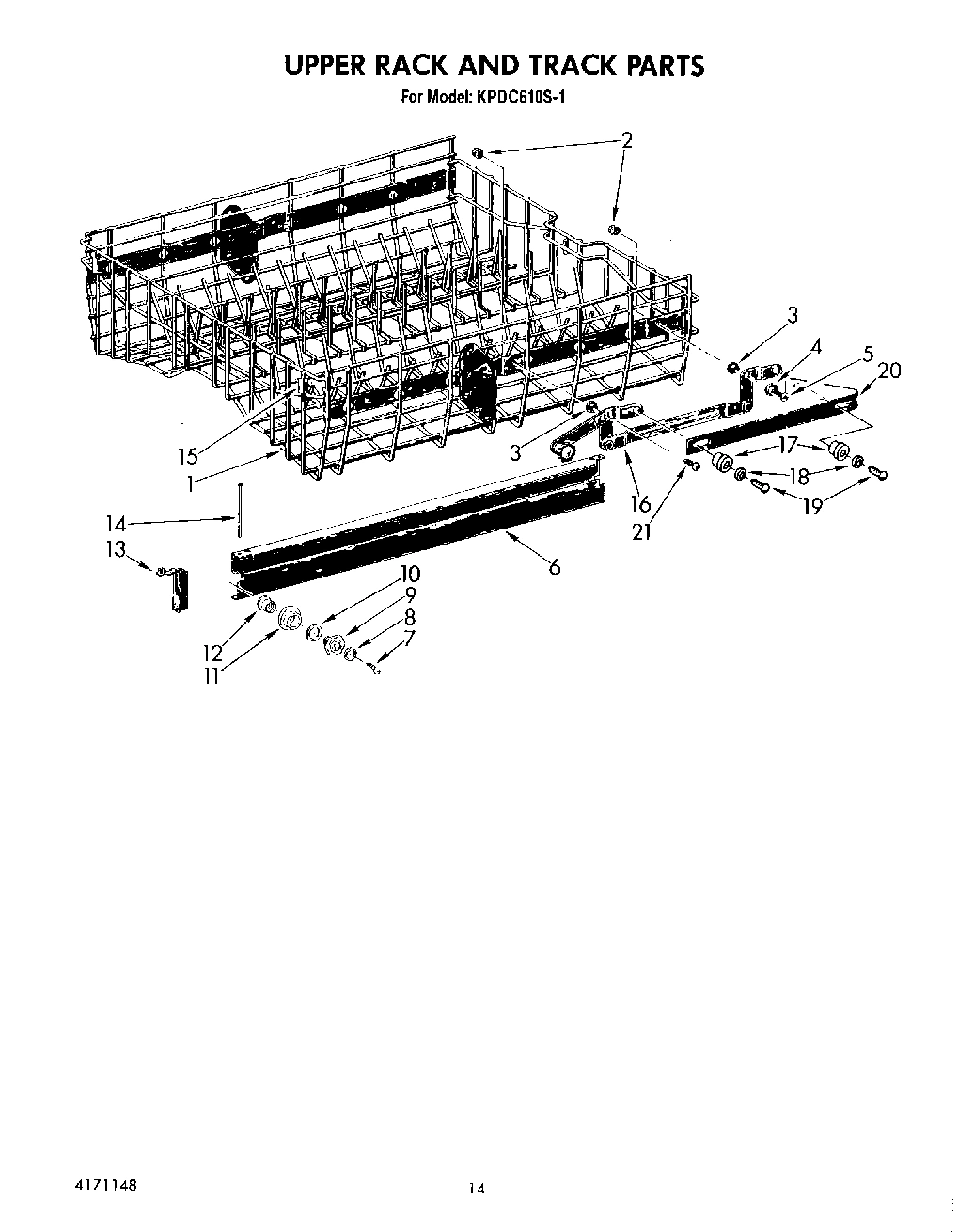

10 - UPPER RACK AND TRACK

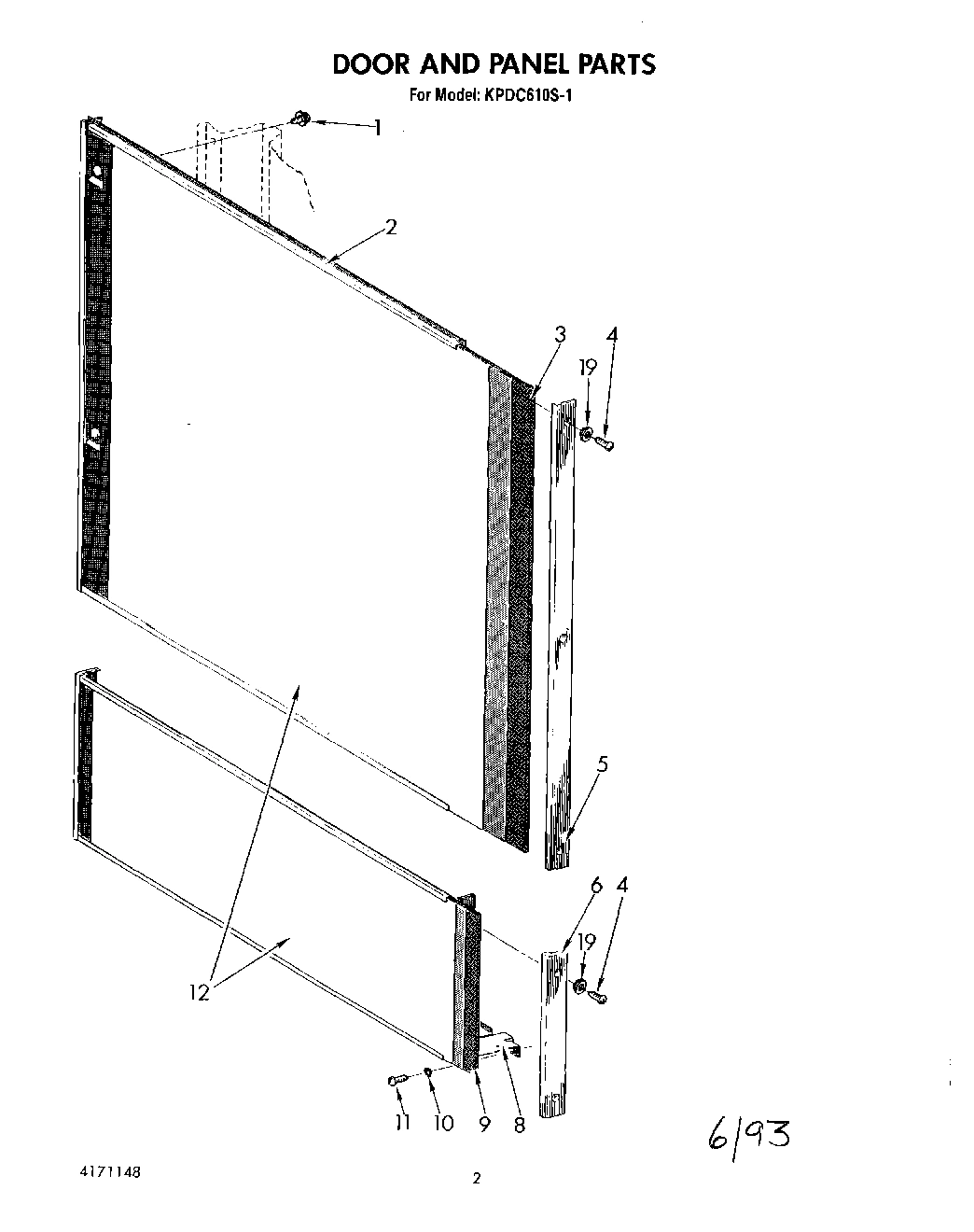

01 - DOOR PANEL

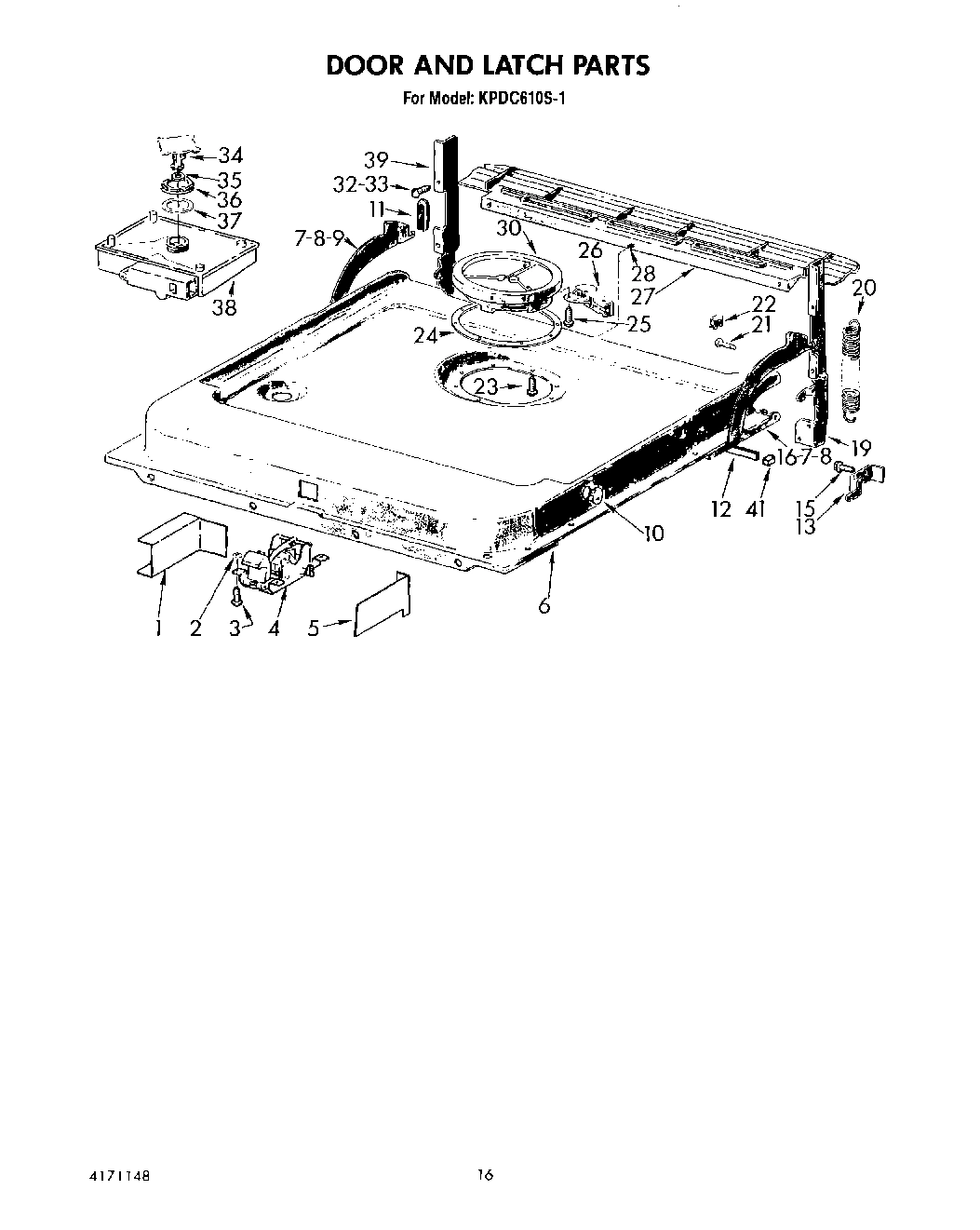

12 - DOOR AND LATCH

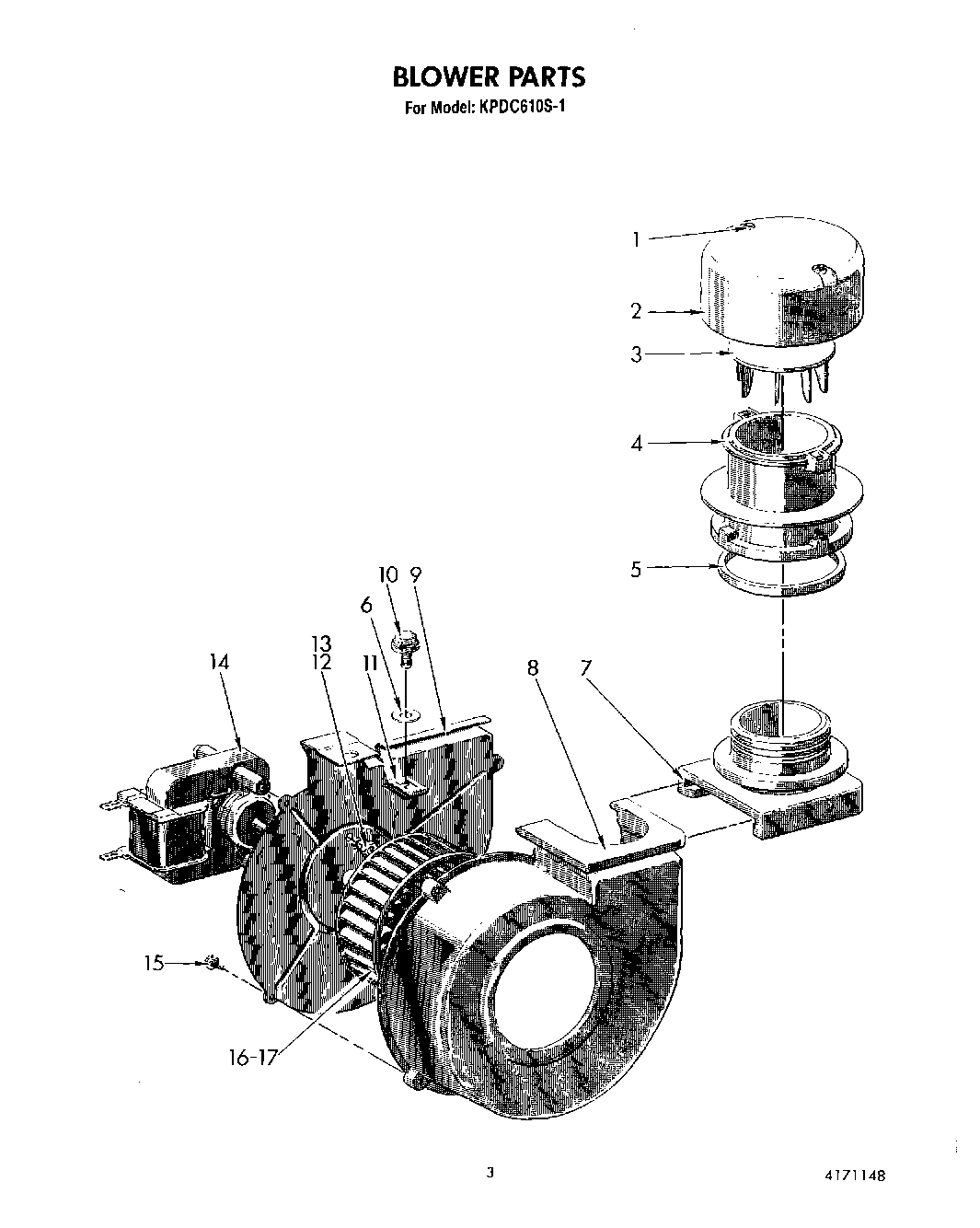

02 - BLOWER

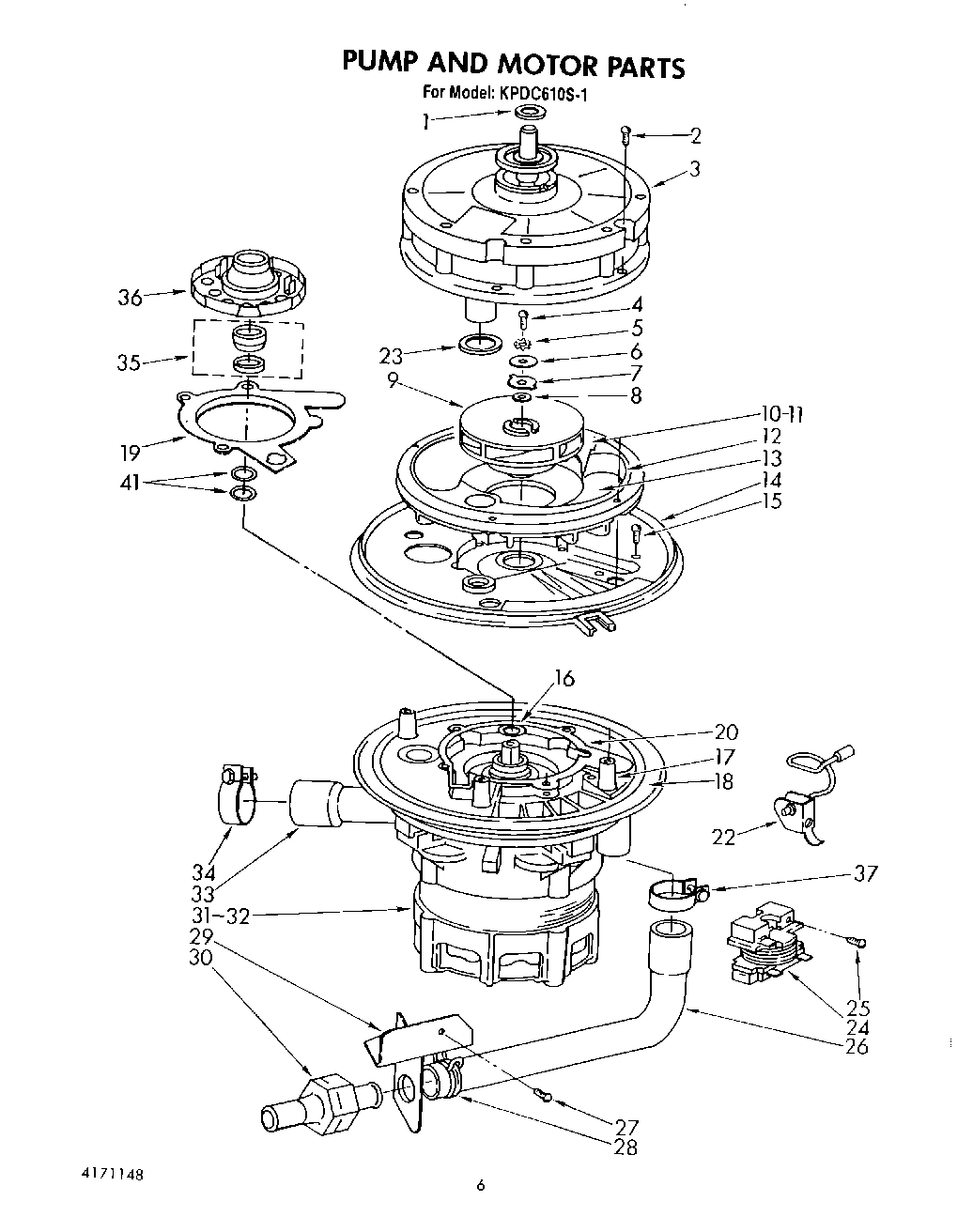

04 - PUMP AND MOTOR
Common parts from model Whirlpool KPDC610S1
Golden Harvest WPL 261890 Contact Us For Availability
Golden Harvest (Uncut) WPL 261891 Contact Us For Availability
Toast WPL 285365 Contact Us For Availability
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
Platinum (Uncut) WPL 285368 Contact Us For Availability
WPL 350941 WPL 350941 Contact Us For Availability
WPL 4171179 WPL 4171179 Contact Us For Availability
WPL 675476 WPL 675476 Contact Us For Availability
WPL 675506 WPL 675506 Contact Us For Availability
WPL 72112 WPL 72112 Contact Us For Availability
WPL 799640 WPL 799640 Contact Us For Availability
WPL 978883 WPL 978883 Contact Us For Availability
WPL LIT4171136 WPL LIT4171136 Contact Us For Availability
WPL LIT4171139 WPL LIT4171139 Contact Us For Availability
WPL LIT4171148 WPL LIT4171148 Contact Us For Availability
WPL LIT4177284 WPL LIT4177284 Contact Us For Availability
WPL LIT4177722 WPL LIT4177722 Contact Us For Availability
1
Spring, Heater Retainer WPL 4163619 Contact Us For Availability
1
Tube & Connector Assembly WPL 4162664 Contact Us For Availability
1
Short Frame Assembly (Includes Items 2, 18, 1 WPL 4162908 Contact Us For Availability
1
Lower Rack Assembly (Includes Items 2 & 3) WPL 4161654 Contact Us For Availability
1
Bracket, Rear Caster (L.H.) WPL 4162973 Contact Us For Availability
1
Insulator, Latch WPL 4171130 Contact Us For Availability
1
Upper Rack Assembly (Includes Items 2, 3, 4, WPL 4162523 Contact Us For Availability
1
Screw WPL 4162215 Contact Us For Availability
1
Cover, Wiring Harness WPL 4161659 Contact Us For Availability
1
Screw, 6-32 X 7/8 WPL 4159436 Contact Us For Availability
1
Washer WPL 4162892 Contact Us For Availability
2
Axle, Lower Rack WPL 4162321 Contact Us For Availability
2
Hook, Heater Element WPL 4163549 Contact Us For Availability
2
Connector, Vertical Conduit WPL 4162723 Contact Us For Availability
2
Wood Top & Insulation Assembly (Includes Item WPL 4162841 Contact Us For Availability
2
Anchor, Cancel Spring WPL 4171120 Contact Us For Availability
2
Nut, Roller WPL 4161226 Contact Us For Availability
2
xUpper Mounting Panel Assembly WPL ARI89384A4 Contact Us For Availability
2
Washer WPL 4159513 Contact Us For Availability
2
Cap, Air Inlet WPL 4162482 Contact Us For Availability
3
Door Seal Assembly (Includes Item 4) WPL 4161631 Contact Us For Availability
3
Washer WPL 4159477 Contact Us For Availability
3
Conduit, Vertical WPL 4162655 Contact Us For Availability
3
Caster, Rear (2) WPL 4160607 Contact Us For Availability
3
Screw, 10-13 X 3/4 WPL 4159472 Contact Us For Availability
3
Bearing & Spacer, Rack Roller WPL 4162457 Contact Us For Availability
3
xFiller (Upper Panel) WPL ARI89385A1 Contact Us For Availability
3
Damper, Air Inlet WPL 4162485 Contact Us For Availability
3
Wash Pump Top (Includes Items 1 & 23) WPL 4163521 Contact Us For Availability
4
Washer, Sealing WPL 4160051 Contact Us For Availability
4
Retainer, Conduit WPL 4162609 Contact Us For Availability
4
Clip, Seal WPL 4161608 Contact Us For Availability
4
Rivet WPL 4159169 Contact Us For Availability
4
Washer WPL 4162452 Contact Us For Availability
4
Screw, 6 X 1/4 WPL 4159439 Contact Us For Availability
4
Latch Mechanism Assembly WPL 4161613 Contact Us For Availability
4
Tube, Air Inlet WPL 4162483 Contact Us For Availability
4
Screw, 10-32 WPL 4162918 Contact Us For Availability
5
Washer WPL 4159567 Contact Us For Availability
5
Retainer, Manifold WPL 4171540 Contact Us For Availability
5
Bumper, Door WPL 4161626 Contact Us For Availability
5
Bumper, Lower Rack WPL 4162575 Contact Us For Availability
5
Bracket, Side Panel Mounting (2) WPL 4161676 Contact Us For Availability
5
Bar, Guide WPL 4161755 Contact Us For Availability
5
Spring, Switch Cancel WPL 4163257 Contact Us For Availability
5
Side Trim (Upper Panel) WPL 4162685 Contact Us For Availability
5
Insulation, Switch WPL 4162145 Contact Us For Availability
5
Seal, Air Inlet WPL 4162481 Contact Us For Availability
5
Lock Washer WPL 4159500 Contact Us For Availability
6
Screw, 6-20 X 3/8 (4) WPL 4159412 Contact Us For Availability
6
Washer WPL 4159583 Contact Us For Availability
6
Manifold, Upper Arm WPL 4162466 Contact Us For Availability
6
Endcap (Guide Bar) (R.H.) WPL 4161756 Contact Us For Availability
6
Endcap (Guide Bar) (L.H.) WPL 4161757 Contact Us For Availability
6
Bracket, Program Switch WPL 4163256 Contact Us For Availability
6
Track, Rack WPL 4162442 Contact Us For Availability
6
Side Trim (Lower Panel) WPL 4162686 Contact Us For Availability
6
Inner Door Assembly WPL 4162508 Contact Us For Availability
6
Spacer, Blower Mounting WPL 4162615 Contact Us For Availability
6
Washer, Spring (Impeller) WPL 4160297 Contact Us For Availability
7
Housing, Power Cord WPL 4161098 Contact Us For Availability
7
Thermostat WPL 4163589 Contact Us For Availability
7
Protector, Upper Water Inlet WPL 4161699 Contact Us For Availability
7
Screw, 10-13 X 3/4 (2) WPL 4159473 Contact Us For Availability
7
Screw, 10-16 X 3/8 WPL 4159466 Contact Us For Availability
7
Support, Blower WPL 4162484 Contact Us For Availability
7
Washer, Impeller WPL 4162917 Contact Us For Availability
8
Elbow, Tube Fitting WPL 4162393 Contact Us For Availability
8
Bracket, Thermostat WPL 4163552 Contact Us For Availability
8
Bearing, Arm (Bottom) WPL 4162625 Contact Us For Availability
8
Speed Nut WPL 4162174 Contact Us For Availability
8
Switch, Program WPL 4163547 Contact Us For Availability
8
Gasket, Rack Stud WPL 4162943 Contact Us For Availability
8
xLower Mounting Panel Assembly WPL ARI89386A5 Contact Us For Availability
8
Screw, 10-32 x 5/16 WPL 4159275 Contact Us For Availability
8
Housing, Blower WPL 4162487 Contact Us For Availability
8
``O`` Ring WPL 4159826 Contact Us For Availability
9
Bracket, L.H. Door Stop WPL 4161592 Contact Us For Availability
9
Coupler (Includes Item 5) WPL 4160779 Contact Us For Availability
9
Screw, 10-16 X 1/2 WPL 4159389 Contact Us For Availability
9
Nut WPL 4159107 Contact Us For Availability
9
Bearing, Arm (Top) WPL 4162491 Contact Us For Availability
9
Actuator, Interlock Switch WPL 4163574 Contact Us For Availability
9
Stud, Rack Roller WPL 4162945 Contact Us For Availability
9
xFiller (Lower Panel) WPL ARI89387A1 Contact Us For Availability
9
Plate, Motor Mounting WPL 4162486 Contact Us For Availability
9
Wash Impeller Assembly WPL 4162921 Contact Us For Availability
10
Fill Hose Assy. WPL 4163283 Contact Us For Availability
10
Lead, Thermostat WPL 4163592 Contact Us For Availability
10
Wash/Rinse Arm Assembly WPL 9740878 Contact Us For Availability
10
Lock Nut WPL 4159115 Contact Us For Availability
10
Lock Washer WPL 4159494 Contact Us For Availability
10
Support, Front Caster Bracket (R.H.) WPL 4162971 Contact Us For Availability
10
Screw, 6-32 X 3/8 WPL 4159432 Contact Us For Availability
10
Washer, Roller Spacing WPL 4162947 Contact Us For Availability
10
Plug Button WPL 4159121 Contact Us For Availability
10
Screw, Blower Retainer WPL 4162524 Contact Us For Availability
10
Plate, Air Inlet Cover WPL 4162952 Contact Us For Availability
11
Bearing, Door Stop Insert WPL 4160355 Contact Us For Availability
11
Housing, Hose Coupler WPL 4161097 Contact Us For Availability
11
Locknut WPL 4179107 Contact Us For Availability
11
Clip, Arm Guard WPL 4162501 Contact Us For Availability
11
Keeper, Latch WPL 4160092 Contact Us For Availability
11
Screw, 10-16 x 3/8 WPL 4159421 Contact Us For Availability
11
Side Panel (L.H.) (White) WPL 4162975 Contact Us For Availability
11
Side Panel (L.H.) (White) WPL 4162977 Contact Us For Availability
11
Side Panel (L.H.) (Almond) WPL 4162979 Contact Us For Availability
11
Spring, Door Interlock WPL 4163571 Contact Us For Availability
11
Roller, Rack Track WPL 4162944 Contact Us For Availability
11
Speednut, Type ``U`` WPL 4162903 Contact Us For Availability
11
Gasket, Cover Plate WPL 4162953 Contact Us For Availability
12
Panel Insert Kits (Stainless Steel (Optional) WPL 4169400 Contact Us For Availability
12
Screw, 6-20 X 5/8 (2) WPL 4159419 Contact Us For Availability
12
Element, Heater WPL 4171118 Contact Us For Availability
12
Screw, 10-16 X 5/16 (8) WPL 4171147 Contact Us For Availability
12
Bushing, Rack Roller WPL 4162946 Contact Us For Availability
12
Panel Insert Kits (Fresh Avocado/Coffee (Opti WPL 4162835 Contact Us For Availability
12
Panel Insert Kits (Almond/White) WPL 4162836 Contact Us For Availability
12
Panel Insert Kits (Platinum/Toast (Optional)) WPL 4169402 Contact Us For Availability
12
Panel Insert Kits (Sand/Onyx Black (Optional) WPL 4169403 Contact Us For Availability
12
Panel Insert Kits (Silver/Onyx Black (Optiona WPL 4169404 Contact Us For Availability
12
Panel Insert Kits (Harvest Gold/Onyx Black) WPL 4171096 Contact Us For Availability
12
Vapor Barrier, Inner Door (Includes Item No. WPL 4162949 Contact Us For Availability
12
Nut, 6-32 Hex WPL 4159071 Contact Us For Availability
12
Lower Pump Housing (Includes Items 13 & 23) WPL 4162929 Contact Us For Availability
13
Grommet, Heater Element WPL 4162521 Contact Us For Availability
13
Screw WPL 4161737 Contact Us For Availability
13
Kickboard WPL 4162968 Contact Us For Availability
13
Washer (8) WPL 4159569 Contact Us For Availability
13
Switch, Interlock WPL 4160658 Contact Us For Availability
13
Bumper, Rack Track WPL 4162084 Contact Us For Availability
13
Bracket, Spring Mounting (L.H.) WPL 4161957 Contact Us For Availability
13
Bracket, Spring Mounting (R.H.) WPL 4161958 Contact Us For Availability
13
Lockwasher WPL 4159491 Contact Us For Availability
13
Seal, Wash Pump Ring WPL 4162919 Contact Us For Availability
14
Clamp, Hose WPL 4160698 Contact Us For Availability
14
Washer, Heater Element WPL 4163554 Contact Us For Availability
14
Tube (Manifold to Receiver) WPL 4161617 Contact Us For Availability
14
Screw, 10-16 X 3/8 WPL 4159411 Contact Us For Availability
14
Screw 6-32 X 7/8 WPL 4159353 Contact Us For Availability
14
Stud, Bumper Retaining WPL 4160423 Contact Us For Availability
14
Motor, Blower WPL 4162564 Contact Us For Availability
14
Fine Strainer WPL 4162933 Contact Us For Availability
15
Nut, Heater Element WPL 4163556 Contact Us For Availability
15
Guard, Arm WPL 4162469 Contact Us For Availability
15
Channel, Evaporation WPL 4162306 Contact Us For Availability
15
Screw & Washer Assembly WPL 4163263 Contact Us For Availability
15
Bumper, Upper Rack WPL 4162048 Contact Us For Availability
15
Screw, 6 X 1/2 WPL 4171131 Contact Us For Availability
16
Bracket, R.H. Door Stop WPL 4161594 Contact Us For Availability
16
Bracket, Hose Anchor WPL 4162966 Contact Us For Availability
16
Washer WPL 4162624 Contact Us For Availability
16
Support, Evaporation Channel WPL 4161564 Contact Us For Availability
16
Screw, 6-20 X 3/8 WPL 4169384 Contact Us For Availability
16
Screw, 10-13 X 3/4 (2) WPL 4159474 Contact Us For Availability
16
Track, Adjustable (L.H.) WPL 4161652 Contact Us For Availability
16
Track, Adjustable (R.H.) WPL 4161653 Contact Us For Availability
16
Blower Wheel Assembly (Includes Item 17) WPL 4162499 Contact Us For Availability
16
``O`` Ring WPL 4159827 Contact Us For Availability
17
Roller, Upper Rack Track WPL 4161607 Contact Us For Availability
17
Washer, Trim WPL 4159913 Contact Us For Availability
17
Arm, Receiver WPL 4161581 Contact Us For Availability
17
Barrier, Front Panel WPL 4162967 Contact Us For Availability
17
Panel, Rear (White) WPL 4162961 Contact Us For Availability
17
Panel, Rear (Almond) WPL 4162962 Contact Us For Availability
17
Panel, Rear (Harvest Tone) WPL 4162963 Contact Us For Availability
17
Spacer, End Cap (R.H.) WPL 4171124 Contact Us For Availability
17
Retaining Ring WPL 4162489 Contact Us For Availability
17
Motor Mounting Plate (Incls. Items 18 & 35) WPL 4162932 Contact Us For Availability
18
Frame Assembly (L.H.) WPL 4162910 Contact Us For Availability
18
End Cap, Caster Trim (R.H.) WPL 4161943 Contact Us For Availability
18
Bracket, Rear Panel Anchor WPL 4162965 Contact Us For Availability
18
End Cap (R.H.) WPL 4171122 Contact Us For Availability
18
Washer WPL 4159593 Contact Us For Availability
18
Gasket, Motor Mounting Plate WPL 4161497 Contact Us For Availability
19
Bracket, R.H. Hinge WPL 4161587 Contact Us For Availability
19
Cross Frame, Rear WPL 4162867 Contact Us For Availability
19
Trim, Front Caster WPL 4161942 Contact Us For Availability
19
Side Panel (R.H.) (White) WPL 4162974 Contact Us For Availability
19
Side Panel (R.H.) (Almond) WPL 4162976 Contact Us For Availability
19
Side Panel (R.H.) (Harvest Tone) WPL 4162978 Contact Us For Availability
19
Wiring Harness (Grounding) WPL 4163558 Contact Us For Availability
19
Screw, 8-32 X 1/4 WPL 4159283 Contact Us For Availability
19
Screw, 8-32 x 1/2 WPL 4159299 Contact Us For Availability
19
Drain Pump Top Assembly WPL 4162924 Contact Us For Availability
20
Wire Tie WPL 4162935 Contact Us For Availability
20
Sleeve, Actuator Spacer WPL 4159178 Contact Us For Availability
20
Bracket, Front Caster (2) WPL 4161753 Contact Us For Availability
20
Lift, Receiver (L.H.) WPL 4161629 Contact Us For Availability
20
Lift, Receiver (R.H.) WPL 4161630 Contact Us For Availability
20
Gasket, Drain Pump WPL 4163050 Contact Us For Availability
21
Cord Reel (Includes Item 25) WPL 4161946 Contact Us For Availability
21
Frame Assembly (R.H.) WPL 4163604 Contact Us For Availability
21
Screw, 10-16 X 1/2 (8) WPL 4159393 Contact Us For Availability
21
Lead (Fill Control To Valve) WPL 4163471 Contact Us For Availability
21
Screw, 10 X 5/8 WPL 4159428 Contact Us For Availability
21
Pin, Hinge WPL 4161563 Contact Us For Availability
22
Screw, 1/4-20 x 1/2 WPL 4159443 Contact Us For Availability
22
Caster, Front (2) WPL 4161735 Contact Us For Availability
22
Lead Assembly (Interlock Switch to Program Sw WPL 4162614 Contact Us For Availability
22
Clip, Hinge Pin Retaining WPL 4161585 Contact Us For Availability
22
Motor Clamp Assembly WPL 4161986 Contact Us For Availability
23
Bracket, Cord Reel Mounting WPL 4162964 Contact Us For Availability
23
Cross Frame, Front WPL 4161368 Contact Us For Availability
23
Lockwasher (2) WPL 4159486 Contact Us For Availability
23
Wiring Harness (Lower Common) WPL 4163557 Contact Us For Availability
23
Screw WPL 4162113 Contact Us For Availability
23
Gasket, Venturi WPL 4162916 Contact Us For Availability
24
Kick Board WPL 4161580 Contact Us For Availability
24
Jam Nut (2) WPL 4159089 Contact Us For Availability
24
Gasket, Detergent Dispenser WPL 4161619 Contact Us For Availability
24
Start Relay Kit (Includes Item 25) WPL 4171129 Contact Us For Availability
25
Strap, Retaining WPL 4162103 Contact Us For Availability
25
Foot, Leveling WPL 4162911 Contact Us For Availability
25
End Cap, Caster Trim (L.H.) WPL 4161944 Contact Us For Availability
25
Clip, Grounding (Front Panel) WPL 4162043 Contact Us For Availability
25
Screw, 8-18 x 1-1/4 WPL 4159403 Contact Us For Availability
26
Guide, Locking WPL 4161214 Contact Us For Availability
26
Support, Front Caster Bracket (L.H.) WPL 4162970 Contact Us For Availability
26
Tube - Flexible (Drain) WPL 4163151 Contact Us For Availability
27
Baffle, Lower WPL 4161295 Contact Us For Availability
27
Spacer WPL 4160888 Contact Us For Availability
27
Screw, 10-32 X 3/8 WPL 4159372 Contact Us For Availability
27
Bracket, Rear Caster (R.H.) WPL 4163575 Contact Us For Availability
27
Button, Program Switch (6) WPL 4163240 Contact Us For Availability
28
Enclosure, Elec. Supply WPL 4161369 Contact Us For Availability
28
Bracket, Panel Reinforcement WPL 4163245 Contact Us For Availability
28
Clamp, Hose (.937`` Dia.) WPL 4161508 Contact Us For Availability
29
Screw, 6-20 x 3/8 WPL 4159446 Contact Us For Availability
29
Bracket, Check Valve WPL 4163305 Contact Us For Availability
30
Trim, Handle WPL 4163255 Contact Us For Availability
30
Detergent Dispenser & Gasket Assy. (115 V., 6 WPL 4161309 Contact Us For Availability
30
Check Valve Assembly WPL 4162920 Contact Us For Availability
31
Motor, Seal & Gasket Kit (Incls. Items 18, 24 WPL 4163523 Contact Us For Availability
32
Tank (Serviced Complete with Frame) WPL 9740987 Contact Us For Availability
32
Handle, Latch WPL 4163243 Contact Us For Availability
32
Washer (Rubber) WPL 4159594 Contact Us For Availability
32
Screw, 1/4-20 x 1 WPL 4159235 Contact Us For Availability
33
Screw, 10-32 X 1/2 WPL 4162151 Contact Us For Availability
33
Screw, 10-32 x 5/8 WPL 4159225 Contact Us For Availability
33
Connectoe, Overhead WPL 4161605 Contact Us For Availability
34
Clip, Harness Guide WPL 4163372 Contact Us For Availability
34
Fill Hole Plug Assembly (Includes Item 35) WPL 4162536 Contact Us For Availability
34
Clamp, Hose (1.468`` Dia.) WPL 4162031 Contact Us For Availability
35
Wiring Harness (Main) WPL 4163559 Contact Us For Availability
35
Washer, Fill Hole Plug WPL 4162496 Contact Us For Availability
35
Shaft Seal WPL 4163366 Contact Us For Availability
36
Nut, Rinse Agent Dispenser WPL 4161667 Contact Us For Availability
36
Cutter WPL 4163042 Contact Us For Availability
37
Screw, 8-18 X 3/8 WPL 4159349 Contact Us For Availability
37
Gasket, Rinse Agent Dispenser WPL 4161545 Contact Us For Availability
38
Knob, Timer WPL 4171119 Contact Us For Availability
38
Rinse Agent Dispensing Valve WPL 4162522 Contact Us For Availability
39
Bracket, L.H. Hinge WPL 4161589 Contact Us For Availability
39
Control Panel WPL 9741132 Contact Us For Availability
41
Spacer, End Cap (L.H.) WPL 4171125 Contact Us For Availability
41
Vapor Barrier, Corner (2) WPL 4162950 Contact Us For Availability
41
Shim Washer Kit WPL 4163634 Contact Us For Availability
42
End Cap (L.H.) WPL 4171123 Contact Us For Availability
43
Screw, 6-20 x 3/8 WPL 4159408 Contact Us For Availability
44
Timer Assembly (115 V., 60 Hz.) WPL 4163550 Contact Us For Availability
47
Clip, Endcap (2) WPL 4171127 Contact Us For Availability
NI
Grommet, Panel WPL 4162735 Contact Us For Availability
× ![]()
