Model Whirlpool KODE900HSS00 WALL OVEN, ELECTRIC, DOUBLE, 30 INCH – Common Parts & Diagrams

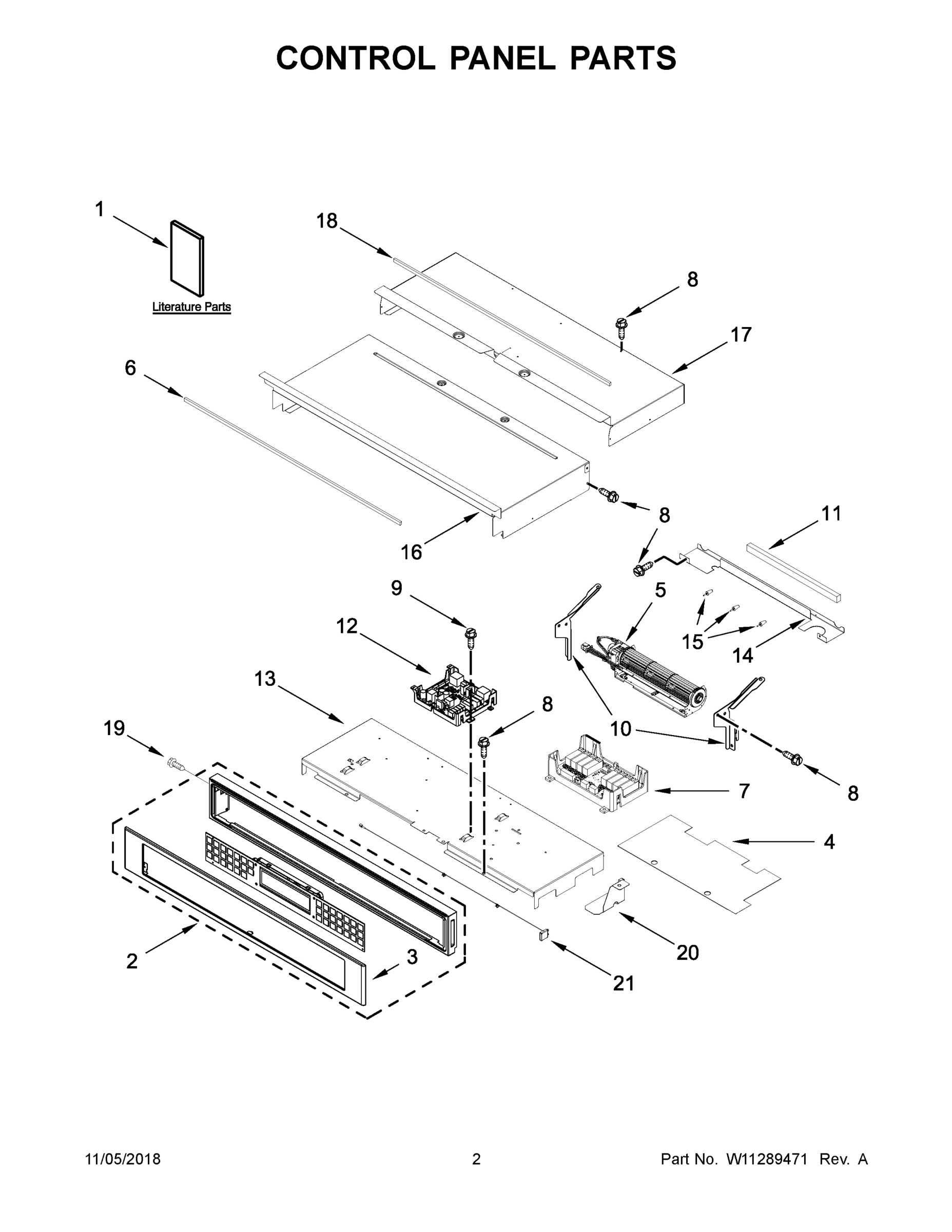

02 - CONTROL PANEL PARTS

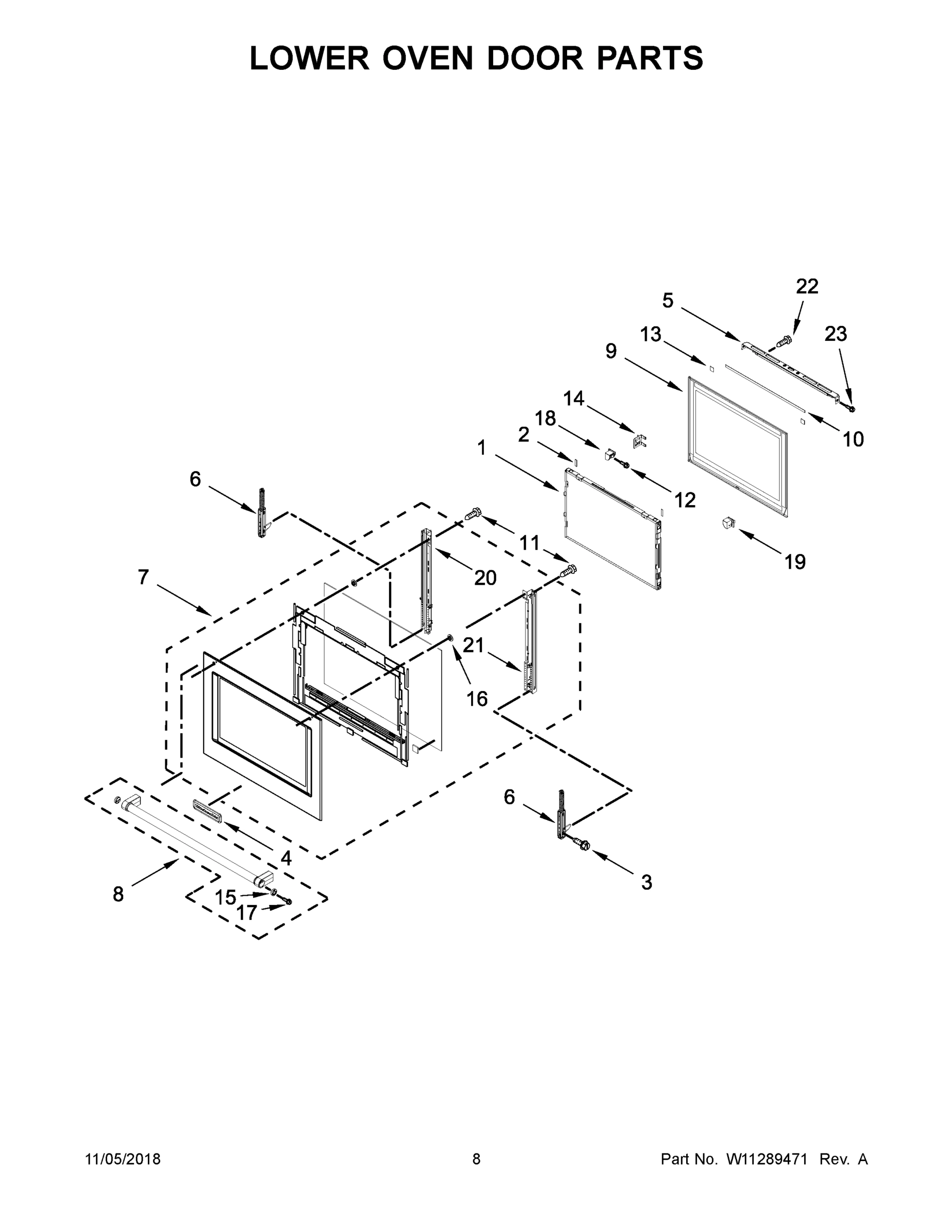

05 - LOWER OVEN DOOR PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)
01 - COVER SHEET
03 - OVEN PARTS
07 - POWERED ACCESSORY PARTS
04 - UPPER OVEN DOOR PARTS
06 - INTERNAL OVEN PARTS
Common parts from model Whirlpool KODE900HSS00 WALL OVEN, ELECTRIC, DOUBLE, 30 INCH
1
DUCT, CHASSIS BACK (UPPER) WPL W10318196 Contact Us For Availability
1
STEAMER, POWER ACCESSORY WPL W10862029 Contact Us For Availability
2
LID, STEAMER WPL W10862032 Contact Us For Availability
3
SKIN, CONTROL PANEL (STAINLESS) WPL W10588740 Contact Us For Availability
3
TRAY, HIDDEN BAKE WPL W10318198 Contact Us For Availability
3
PAN, STEAMER PERFORATED WPL W10862031 Contact Us For Availability
3A
SKIN, CONTROL PANEL (BLACK STAINLESS) WPL W10776407 Contact Us For Availability
4
PAN, STEAMER WATER WPL W10862030 Contact Us For Availability
4
SCREW WPL 7101P43460 Contact Us For Availability
5
STONE, BAKING WPL W10862028 Contact Us For Availability
5
VENT, TOP METAL WPL W11280091 Contact Us For Availability
5
SCREW WPL 7101P42660 Contact Us For Availability
6
CROSSBAR, HIDDEN BAKE TRAY WPL W10282957 Contact Us For Availability
6
PLATE, GRILL WPL W10862027 Contact Us For Availability
7
UNIT, HEATING WPL W10866323 Contact Us For Availability
9
DEFLECTOR, BLOWER WPL W10904163 Contact Us For Availability
9
RACK, POWERED ACCESSORY WPL W10823215 Contact Us For Availability
11
GASKET WPL W10739089 Contact Us For Availability
12
COVER, VENT EXHAUST WPL W10616810 Contact Us For Availability
13A
SIDE, CHASSIS (RIGHT) WPL W10318190 Contact Us For Availability
14
SHIELD, BROIL FRONT WPL W10588738 Contact Us For Availability
14
CHASSIS, BACK DIVIDER WPL W10655465 Contact Us For Availability
14
SCREW WPL 7101P42760 Contact Us For Availability
15
BUMPER WPL W10351295 Contact Us For Availability
17
CHASSIS, COVER TOP BACK 30" WPL W10904156 Contact Us For Availability
17
RAIL, DOOR SIDE (LEFT) WPL W11355410 Contact Us For Availability
18
RAIL, DOOR SIDE (RIGHT) WPL W11355411 Contact Us For Availability
20
ASSEMBLY, BOTTOM VENT (STAINLESS) WPL W11348369 Contact Us For Availability
21
BRACKET, DOOR (LEFT) WPL W10581831 Contact Us For Availability
23
COVER, CONNECTOR WPL W10903893 Contact Us For Availability
24
PLATE, CAVITY BACKER WPL W11307587 Contact Us For Availability
25
SCREW WPL W11236393 Contact Us For Availability
32
DUCT, CHASSIS BACK (LOWER) WPL W10542857 Contact Us For Availability
33
BASE, VENT EXHAUST WPL W10616809 Contact Us For Availability
34
BRACKET, U-SHAPE WPL W11101011 Contact Us For Availability
36
VENT, TOP 30" WPL W10283036 Contact Us For Availability
38
BRACKET, SIDE COVER (LEFT) WPL W10863234 Contact Us For Availability
38A
BRACKET, SIDE COVER (RIGHT) WPL W10863233 Contact Us For Availability
39
SHIELD, SLOW CLOSE HINGE WPL W11034940 Contact Us For Availability
40
SPACER, CENTER WPL W10834286 Contact Us For Availability
41
HAT BRACKET, REAR WPL W11104066 Contact Us For Availability
42
GASKET, FOAM (243MM) WPL W11224618 Contact Us For Availability
43
ANGLE, BOTTOM DUCT CORNER (LH) WPL W11124808 Contact Us For Availability
44
ANGLE, BOTTOM DUCT CORNER (RH) WPL W11124807 Contact Us For Availability
45
GASKET, RUBBER ( WPL W11162062 Contact Us For Availability
46
WPL W11050176 WPL W11050176 Contact Us For Availability
47
WPL W11050177 WPL W11050177 Contact Us For Availability
48
WPL W11225775 WPL W11225775 Contact Us For Availability
48A
WPL W11232071 WPL W11232071 Contact Us For Availability
49
WPL W11218824 WPL W11218824 Contact Us For Availability
50
WPL W11096843 WPL W11096843 Contact Us For Availability
51
WPL W11224619 WPL W11224619 Contact Us For Availability
52
WPL W11045086 WPL W11045086 Contact Us For Availability
54
WPL W11050172 WPL W11050172 Contact Us For Availability
55
WPL W11050173 WPL W11050173 Contact Us For Availability
56
WPL W11096841 WPL W11096841 Contact Us For Availability
57
WPL W11096842 WPL W11096842 Contact Us For Availability
NI
ACCESSORIES, CLEANER, STAINLESS STEEL WPL W10355016 Contact Us For Availability
NI
PAINT, SPRAY (BLACK) WPL 285006 Contact Us For Availability
NI
ACCESSORIES, RACK, BROILER PAN & ROASTING WPL W10123240 Contact Us For Availability
NI
PAINT, SPRAY (GRAY PRIMER) WPL 350938 Contact Us For Availability
NI
HARNESS, CONSOLE WPL W11233570 Contact Us For Availability
NI
BRACKET, HARNESS WPL W10655464 Contact Us For Availability
NI
SIGNAL, HARNESS WPL W11158088 Contact Us For Availability
NI
WPL NP WPL NP Contact Us For Availability
× ![]()
