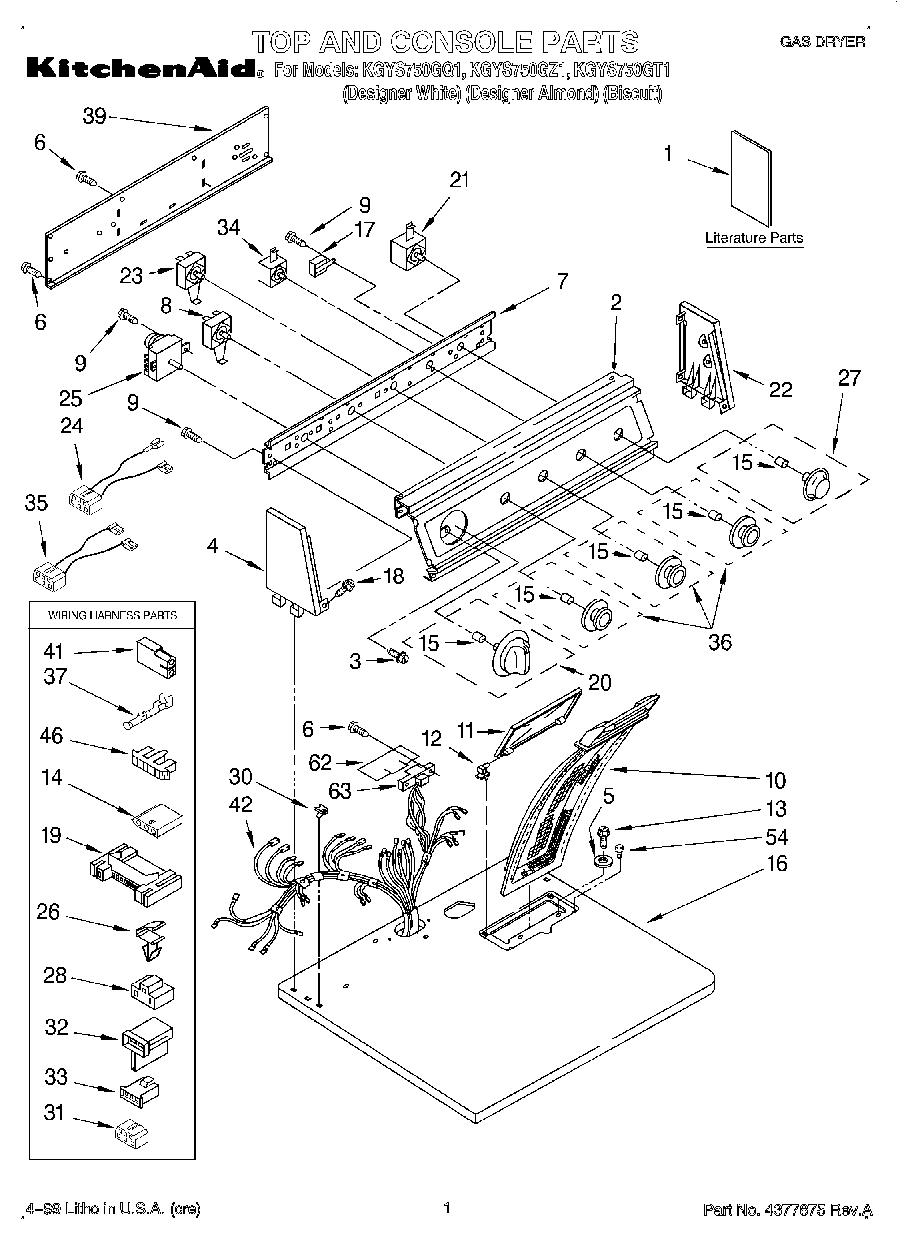

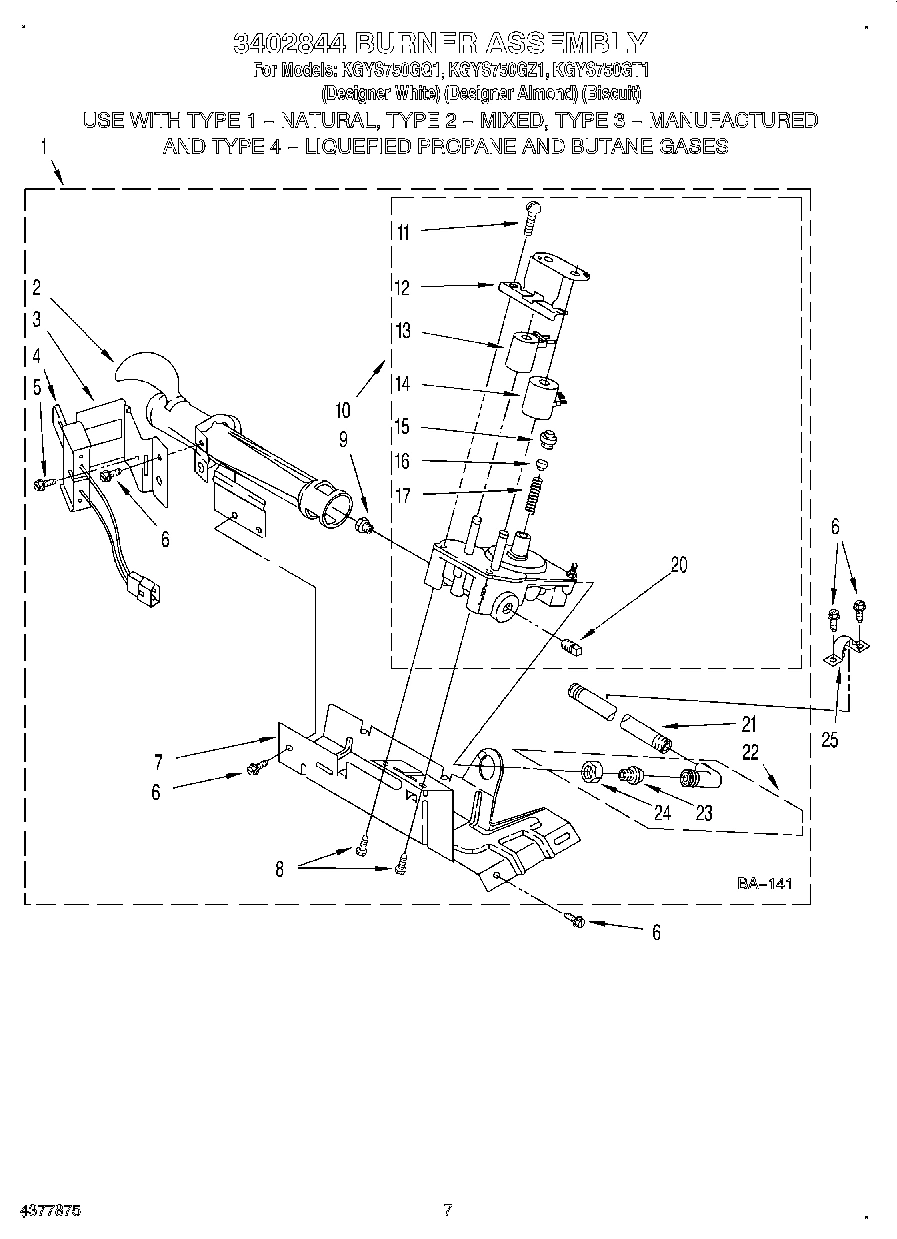

Model Whirlpool KGYS750GQ1 GAS DRYER – Common Parts &amp; Diagrams

2

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $3.33

3

3400859 Whirlpool Screw Backorder WPL 3400859 $9.13

3

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $31.76

4

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $71.57

4

WP3388703 Whirlpool Washer Backorder WPL WP3388703 $4.36

5

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $24.80

5

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

6

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $8.49

7

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $12.25

8

8066086 Whirlpool Plug Backorder WPL 8066086 $4.76

9

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $10.76

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $12.90

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

10

WP3406107 Whirlpool Dryer Door Switch In Stock WPL WP3406107 $24.66

10

WP349639 Whirlpool Lint Filter In Stock WPL WP349639 $19.80

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $18.21

11

WP8577230 Whirlpool Housing In Stock WPL WP8577230 $67.15

12

279771 Whirlpool Clip Backorder WPL 279771 $6.20

12

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $6.71

13

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.33

14

279980 Whirlpool Box In Stock WPL 279980 $128.96

14

3936144 Whirlpool Connector Backorder WPL 3936144 $10.76

15

W11050897 Whirlpool Dryer High Limit Thermost In Stock WPL W11050897 $7.10

15

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $4.70

15

WP694424 Whirlpool Limiter In Stock WPL WP694424 $13.40

16

49621 Whirlpool Leveling Feet In Stock WPL 49621 $3.22

16

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

16

WP8066049 Whirlpool Funnel Assembly Backorder WPL WP8066049 $55.13

17

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $51.99

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42

18

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

19

3395683 Whirlpool Connector Backorder WPL 3395683 $33.67

19

W11700522 Whirlpool Socket Backorder WPL W11700522 $29.48

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $5.60

20

WP18776 Whirlpool Lock In Stock WPL WP18776 $11.20

20

Knob, Timer (White) WPL 3405299 Contact Us For Availability

20

Seal, Blower WPL 3394196 Contact Us For Availability

21

WP3398094 Whirlpool Push To Start Switch In Stock WPL WP3398094 $45.66

21

Panel, Front (Almond) WPL 3395198 Contact Us For Availability

21

Panel, Front (Biscuit) WPL 3977243 Contact Us For Availability

22

W11415783 Whirlpool Seal In Stock WPL W11415783 $7.98

22

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

23

279220 Whirlpool Clip In Stock WPL 279220 $12.76

23

3977373 Whirlpool Bracket Backorder WPL 3977373 $70.28

23

WP3399639 Whirlpool Switch In Stock WPL WP3399639 $33.03

3397695 Whirlpool Wire Harness Backorder WPL 3397695 $30.25

3401695 Whirlpool Wire Harness Backorder WPL 3401695 $30.25

WP3389441 Whirlpool Door Catch In Stock WPL WP3389441 $4.52

Nut, Compression WPL 233076 Contact Us For Availability

25

W10906683 Whirlpool Door Seal In Stock WPL W10906683 $35.43

25

WP3976570 Whirlpool Timer In Stock WPL WP3976570 $146.23

26

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $10.76

26

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $8.66

26

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $3.70

27

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

3401144 Whirlpool Connector Backorder WPL 3401144 $7.89

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.46

WP8066056 Whirlpool Door Hinge In Stock WPL WP8066056 $44.19

WP8066057 Whirlpool Door Hinge In Stock WPL WP8066057 $33.45

29

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $7.32

29

W11398682 Whirlpool Bracket Backorder WPL W11398682 $20.90

30

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

33

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $3.10

34

3399638 Whirlpool Switch Backorder WPL 3399638 $46.99

35

WP695737 Whirlpool Door Backorder WPL WP695737 $108.35

36

WP3393549 Whirlpool Door Assembly Backorder WPL WP3393549 $83.93

36

Door, Front (Almond) WPL 3393550 Contact Us For Availability

36

Door, Front (Biscuit) WPL 3977241 Contact Us For Availability

WP348721 Whirlpool Handle In Stock WPL WP348721 $46.54

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

Handle, Door (Biscuit) WPL 3977242 Contact Us For Availability

Handle, Door (Almond) WPL 690271 Contact Us For Availability

38

W11035878 Whirlpool Bearing and Seal In Stock WPL W11035878 $45.51

40

W11222083 Whirlpool Power Cord Backorder WPL W11222083 $39.98

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $5.34

Plug-Panel Front (White) WPL 3394975 Contact Us For Availability

Plug, Front Panel (Almond) WPL 3394976 Contact Us For Availability

Plug, Front Panel (Biscuit) WPL 3394978 Contact Us For Availability

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $44.50

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $33.12

44

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $14.74

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

46

WPL 3397269 WPL 3397269 Contact Us For Availability

47

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

48

W10828905 Whirlpool Bulkhead OS1 Backorder WPL W10828905 $119.21

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $3.70

53

W11226088 Whirlpool Lens Assembly In Stock WPL W11226088 $12.68

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $9.64

57

WP348780 Whirlpool Base In Stock WPL WP348780 $38.94

58

3400500 Whirlpool Screw In Stock WPL 3400500 $9.59

59

WP8066184 Whirlpool Dryer Motor Pulley In Stock WPL WP8066184 $23.68

62

279441 Whirlpool Front Bearing Ring In Stock WPL 279441 $45.04

62

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $91.50

3391885 Whirlpool Connector Backorder WPL 3391885 $30.25

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $20.04

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.62

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $3.33

WPL 799344 WPL 799344 Contact Us For Availability

64

W11684613 Whirlpool Bracket Backorder WPL W11684613 $7.96

64

WP3404162 Whirlpool Clamp In Stock WPL WP3404162 $3.70

65

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

66

W10612022 Whirlpool Felt Seal In Stock WPL W10612022 $24.49

67

W10899578 Whirlpool Dryer Drum Assembly In Stock WPL W10899578 $133.14

68

WP692490 Whirlpool Drum Baffle Backorder WPL WP692490 $53.07

69

WP3403636 Whirlpool Drum Baffle Backorder WPL WP3403636 $47.56

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $4.70

81

279366 Whirlpool Sensor Kit In Stock WPL 279366 $55.02

83

Clip, Sensor (2) WPL 3394231 Contact Us For Availability

90

WP348859 Whirlpool Electrode Assembly Backorder WPL WP348859 $2.51

91

WP348860 Whirlpool Electrode Backorder WPL WP348860 $2.51

92

WP298877 Whirlpool Washer Backorder WPL WP298877 $13.32
