Model Alliance KGD499*-3058 Dryer – Common Parts & Diagrams

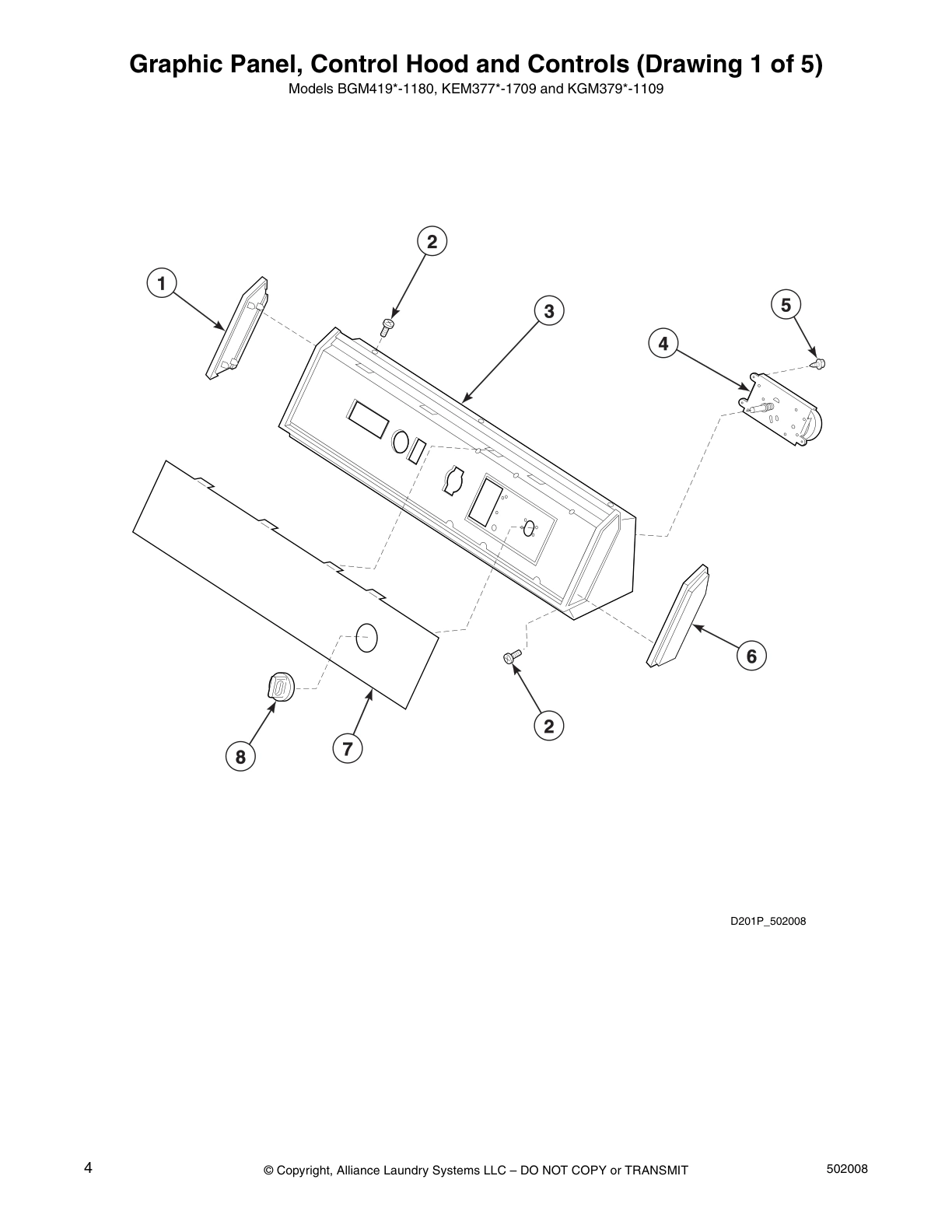

Graphic Panel, Control Hood and Controls (Drawing 1 of 5)

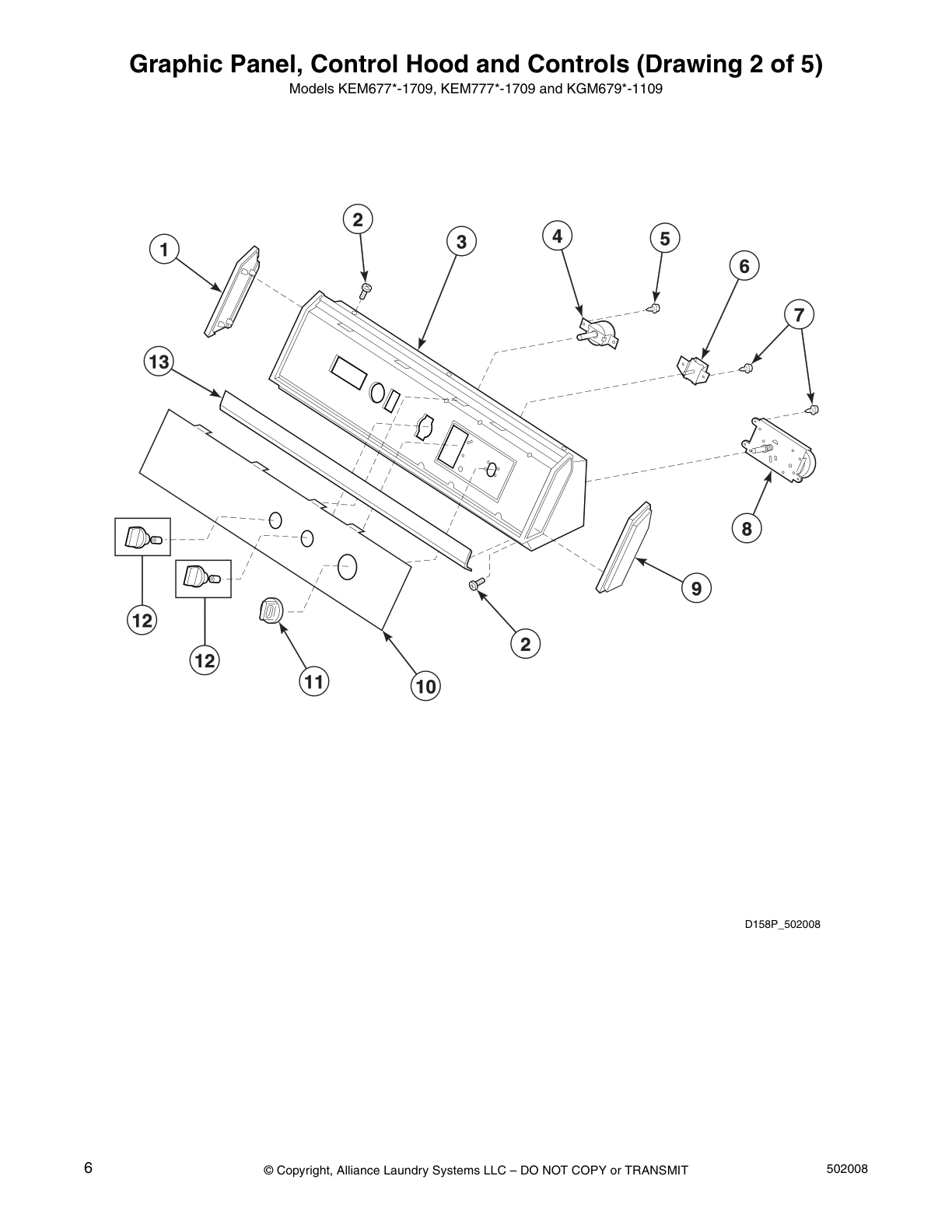

Graphic Panel, Control Hood and Controls (Drawing 2 of 5)
Graphic Panel, Control Hood and Controls (Drawing 3 of 5)
Graphic Panel, Control Hood and Controls (Drawing 4 of 5)
Motor, Exhaust Fan and Belt
Cabinet Top and Control Hood Rear Panel
Loading Door
Lower Access Panel, Front Panel and Seal
Front Bulkhead, Air Duct, Felt Seal and Cylinder
Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block
Heater Box Assembly - Electric Models
Heater Box Assembly - Gas Models
Gas Valve, Igniter and Gas Conversion Kits - 50 Hertz Gas Models
Gas Valve, Igniter and Gas Conversion Kits - 60 Hertz Gas Models
Cabinet, Exhaust Duct and Base
Rear Cabinet
Power Cord and Terminals (Drawing 1 of 2)
Power Cord and Terminals (Drawing 2 of 2)
Motor Connection Block, Terminals and Terminal Extractor Tool
Common parts from model Alliance KGD499*-3058 Dryer
2
Nut SPQ 31752 Contact Us For Availability
3
Terminal Extractor Tool SPQ 00255 Contact Us For Availability
4
SPQ 00188 SPQ 00188 Contact Us For Availability
17
Thermostat SPQ 510060 Contact Us For Availability
18
Drum Light Lamp SPQ 502140P Contact Us For Availability
× ![]()
