Model Alliance KG5009-1102 Dryer – Common Parts & Diagrams

Control Panel and Controls - 2 Cycle and 5 Cycle Timer Models

Control Panel and Controls - 1 Cycle Timer Models

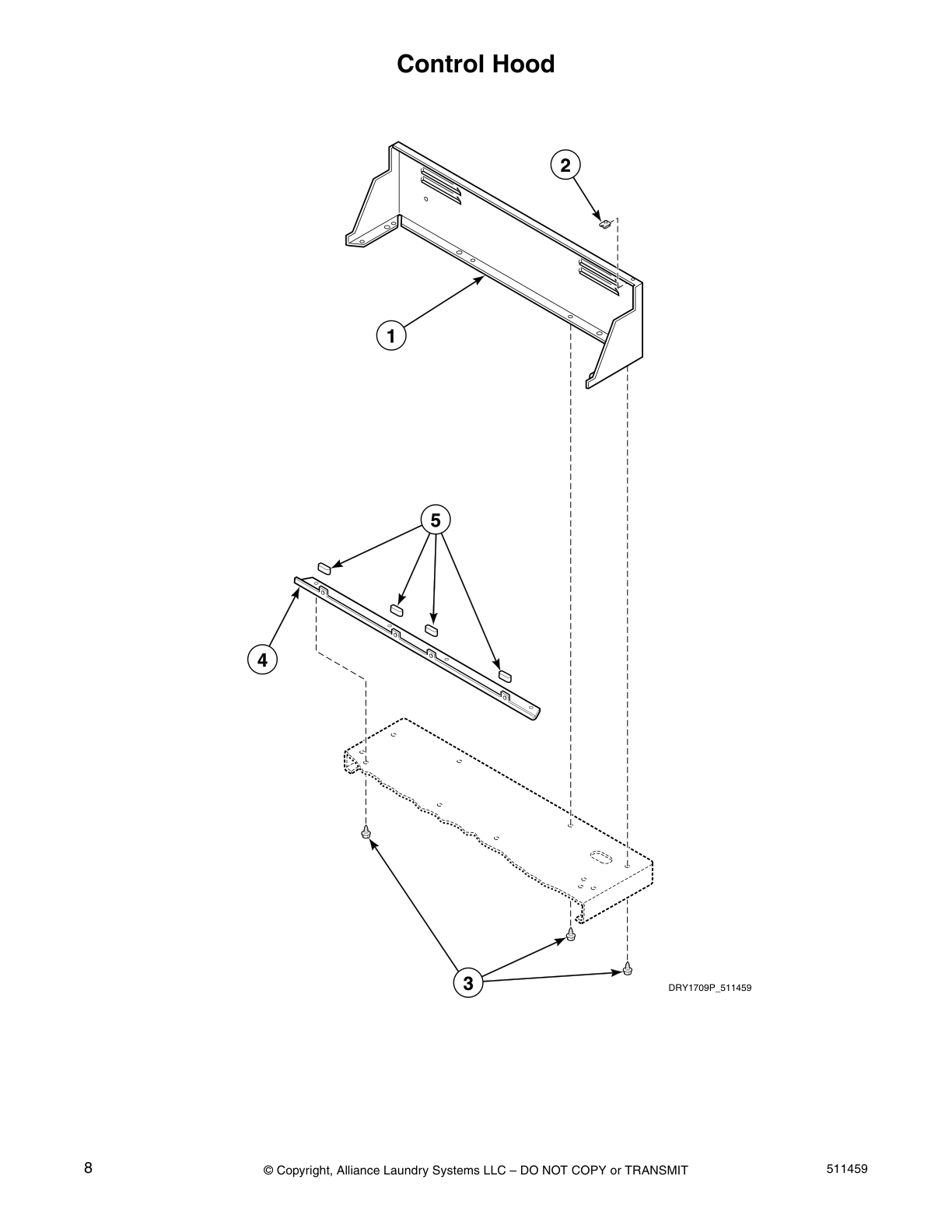

Control Hood

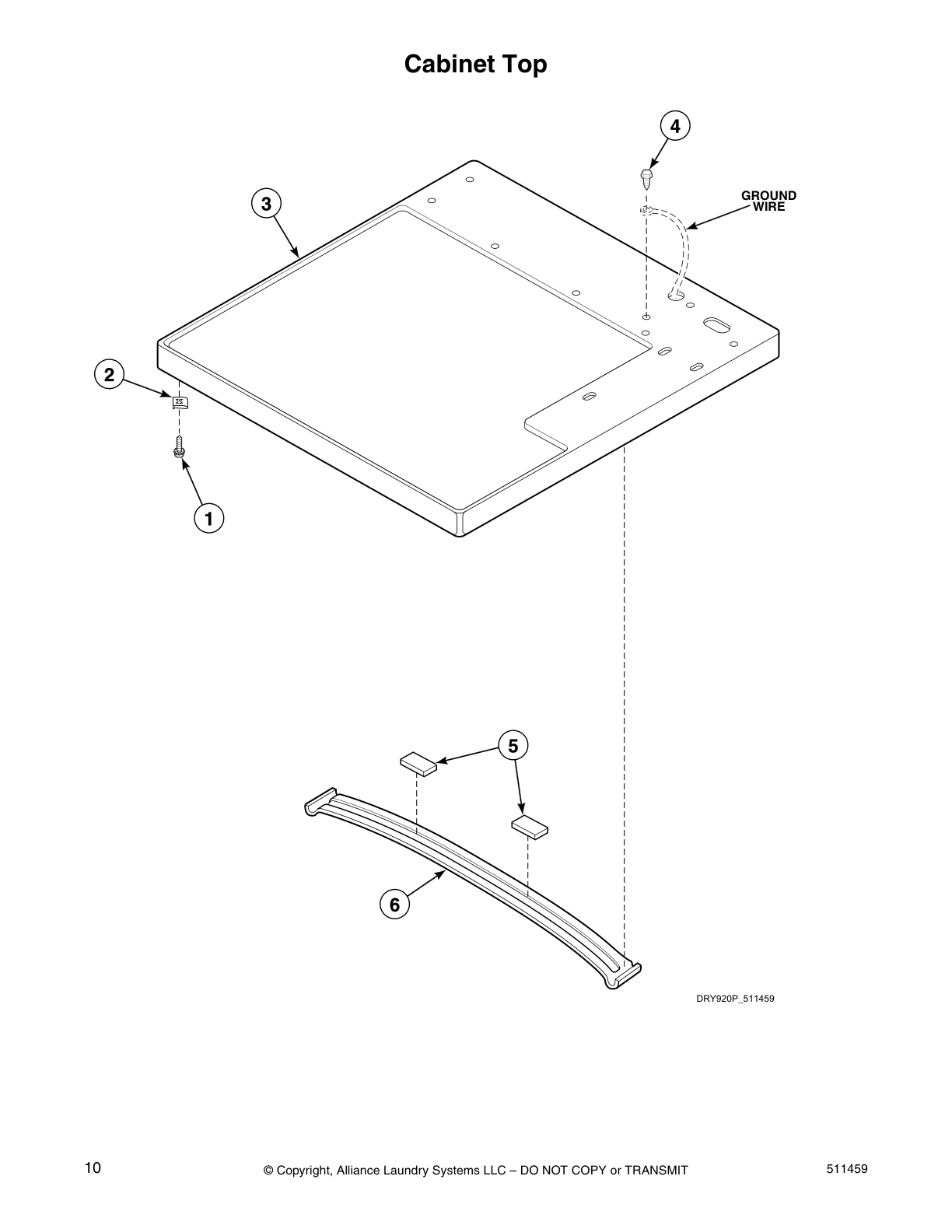

Cabinet Top

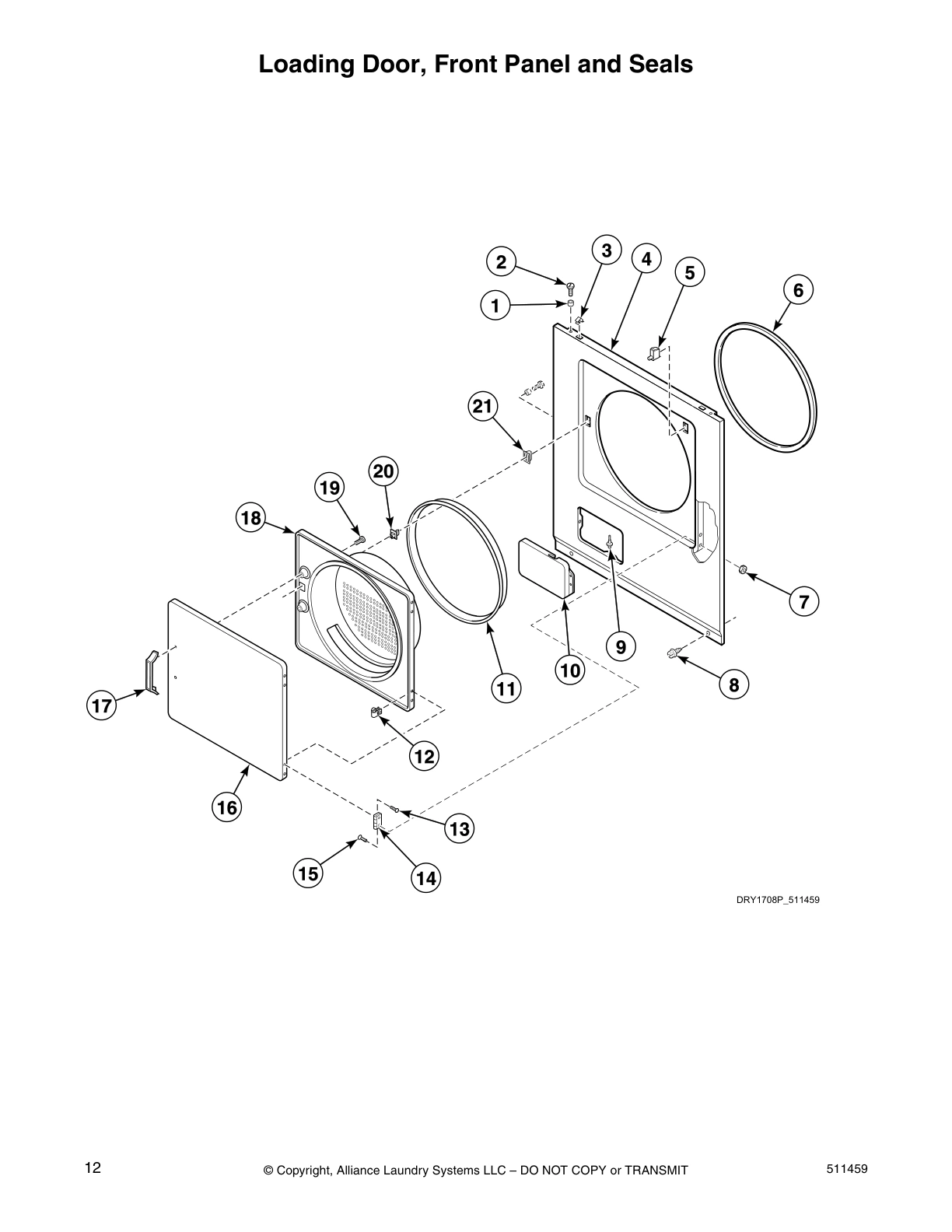

Loading Door, Front Panel and Seals

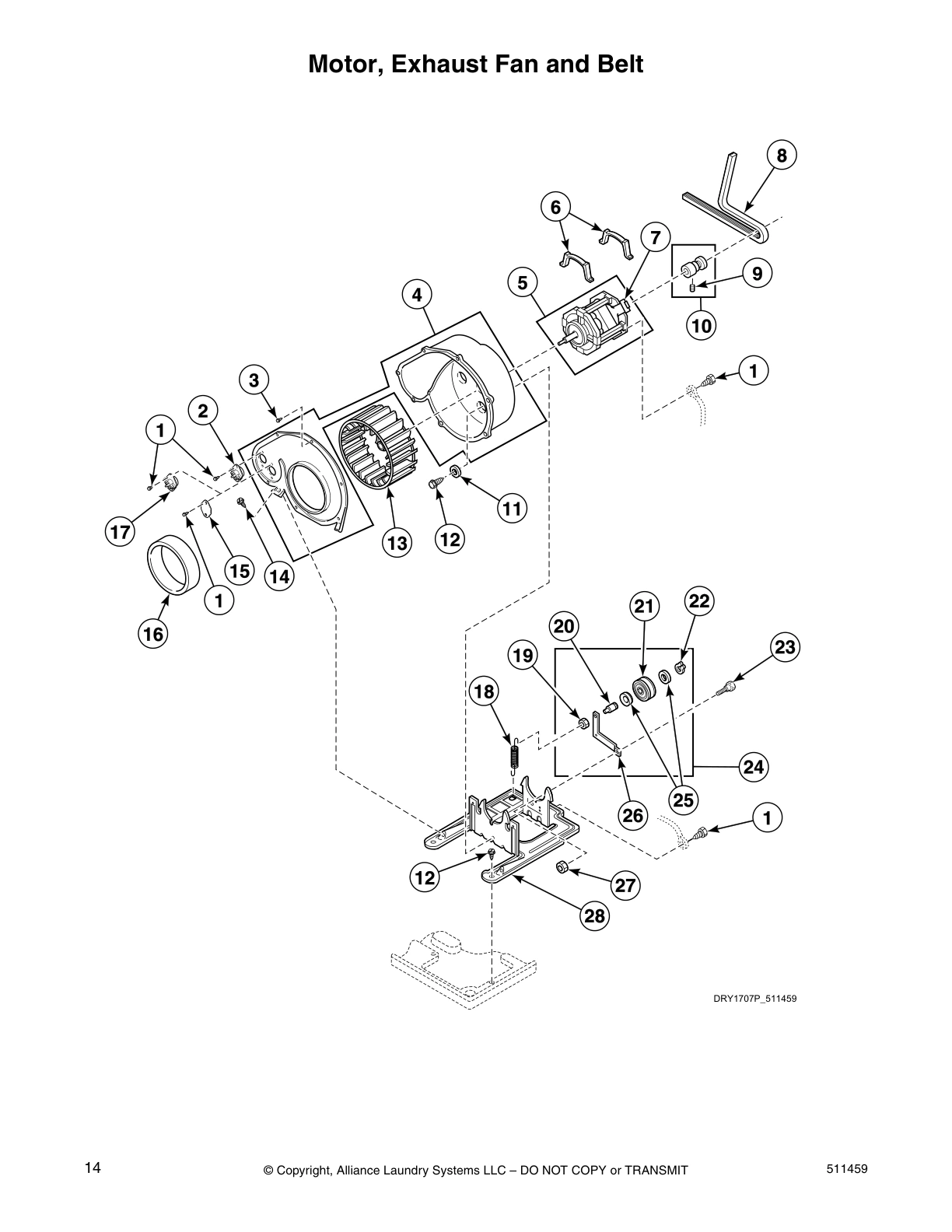

Motor, Exhaust Fan and Belt

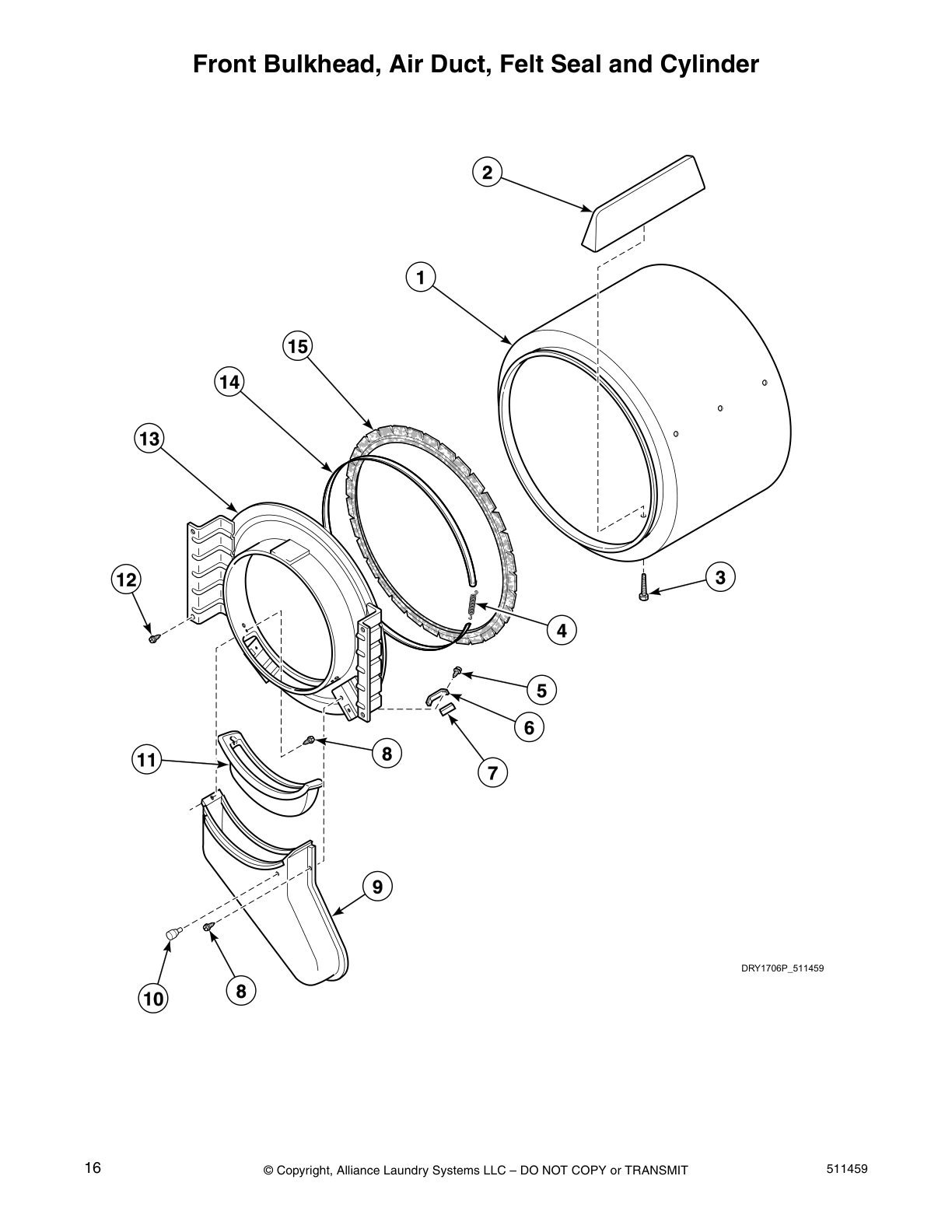

Front Bulkhead, Air Duct, Felt Seal and Cylinder

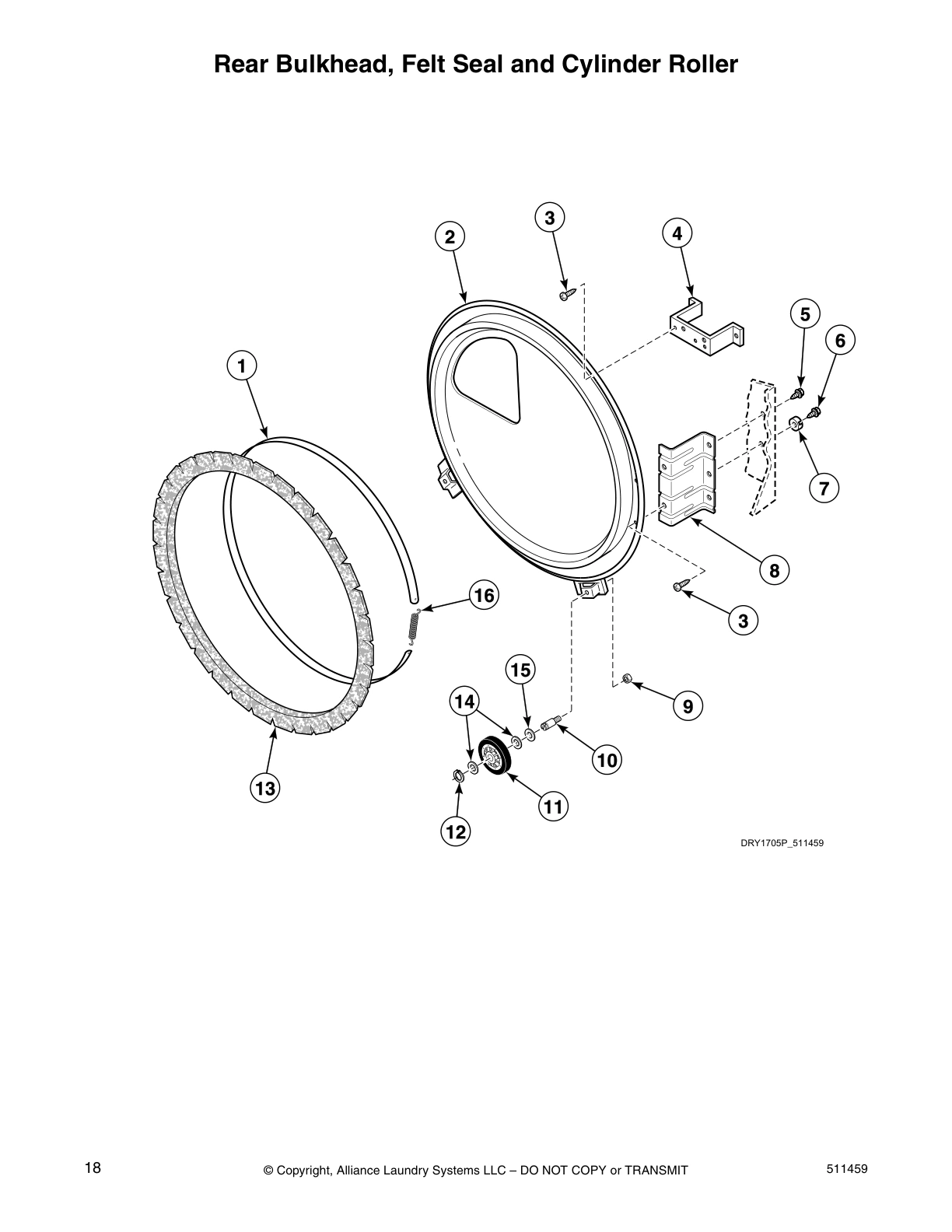

Rear Bulkhead, Felt Seal and Cylinder Roller

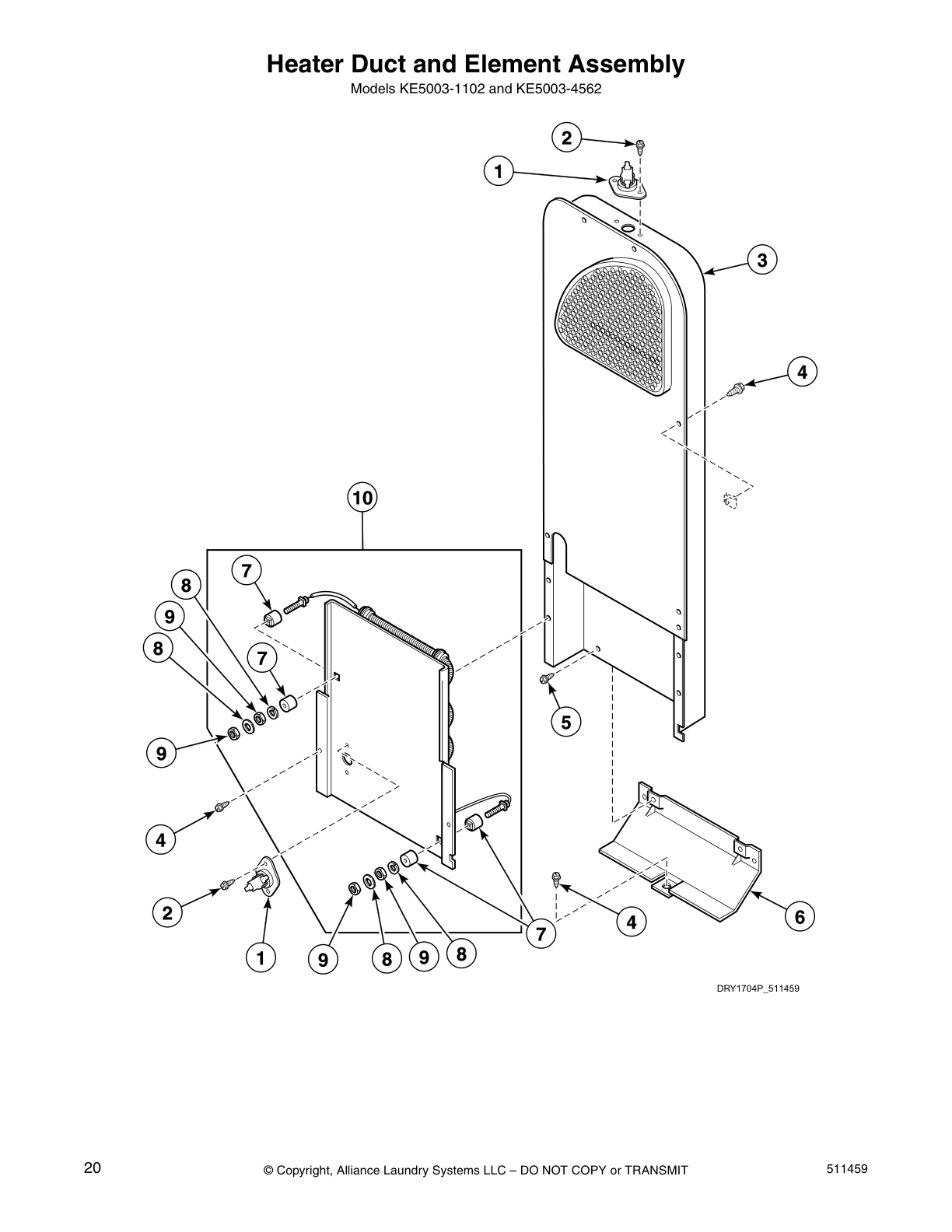

Heater Duct and Element Assembly

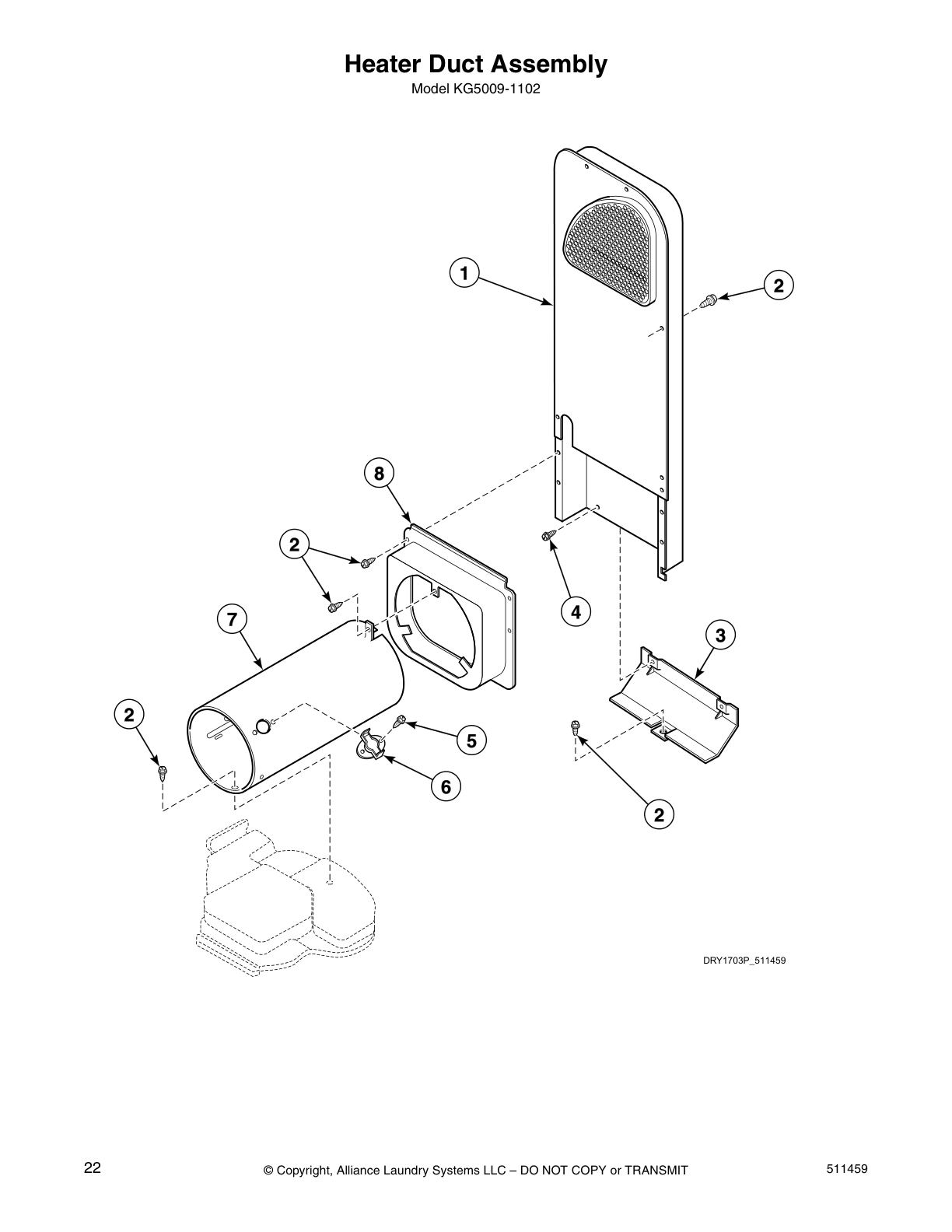

Heater Duct Assembly

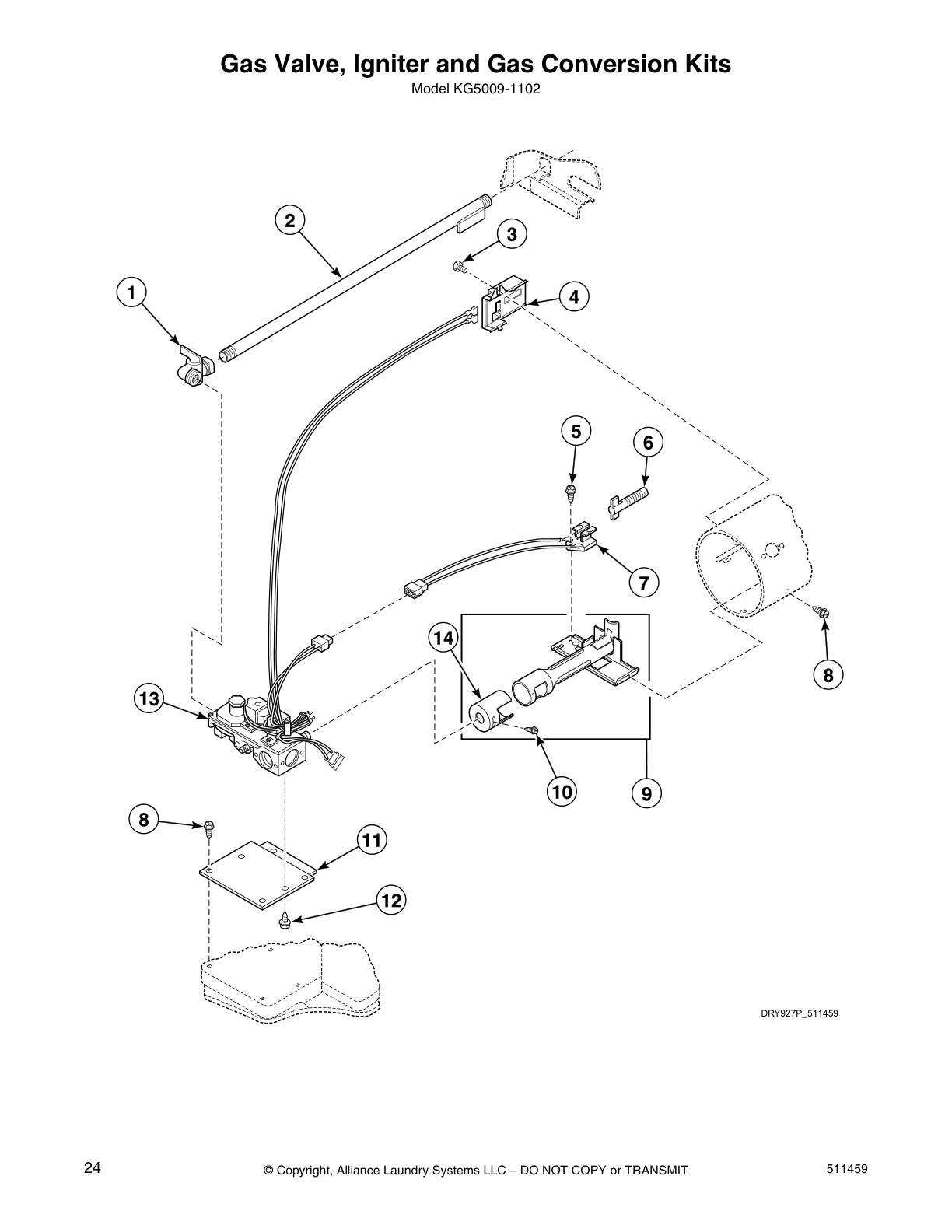

Gas Valve, Igniter and Gas Conversion Kits

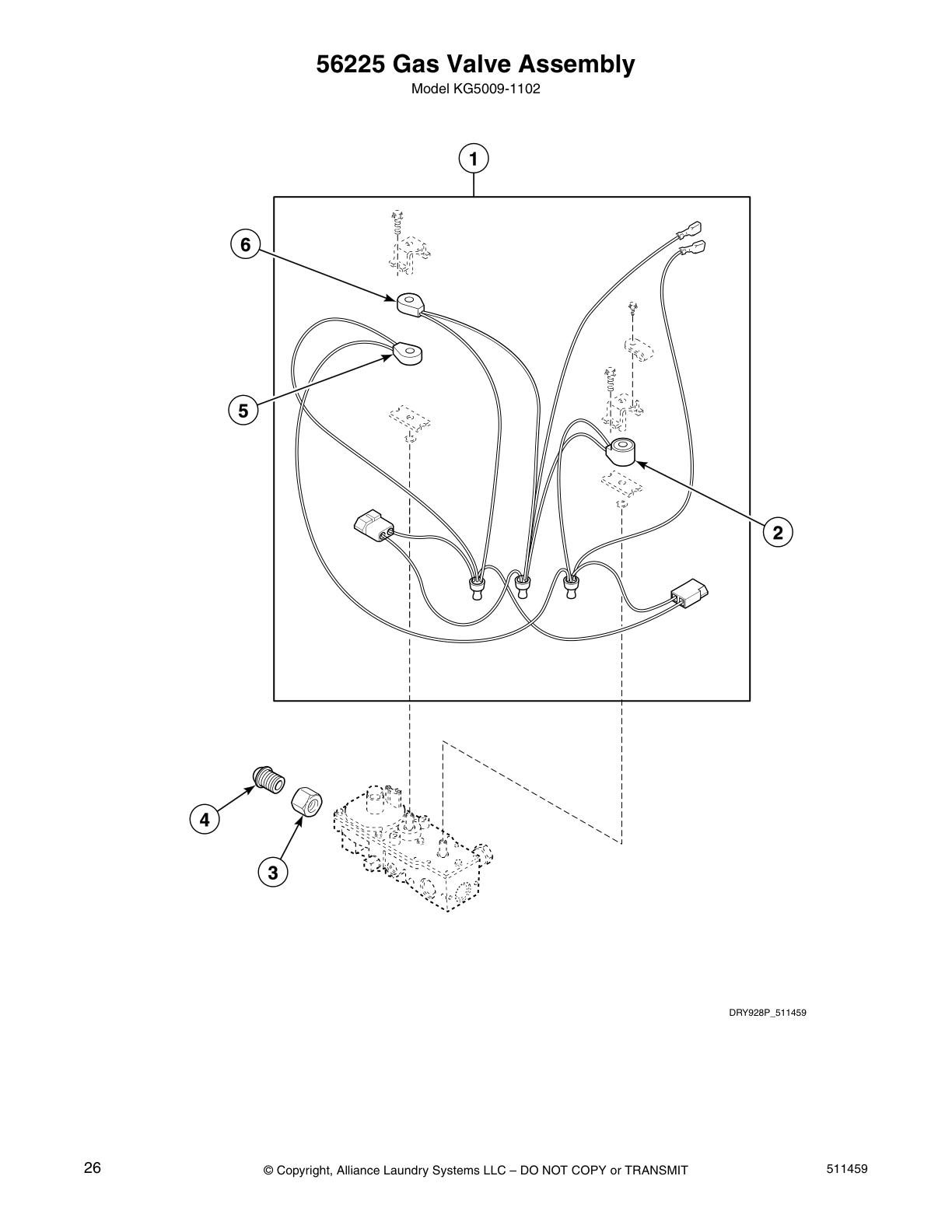

56225 Gas Valve Assembly

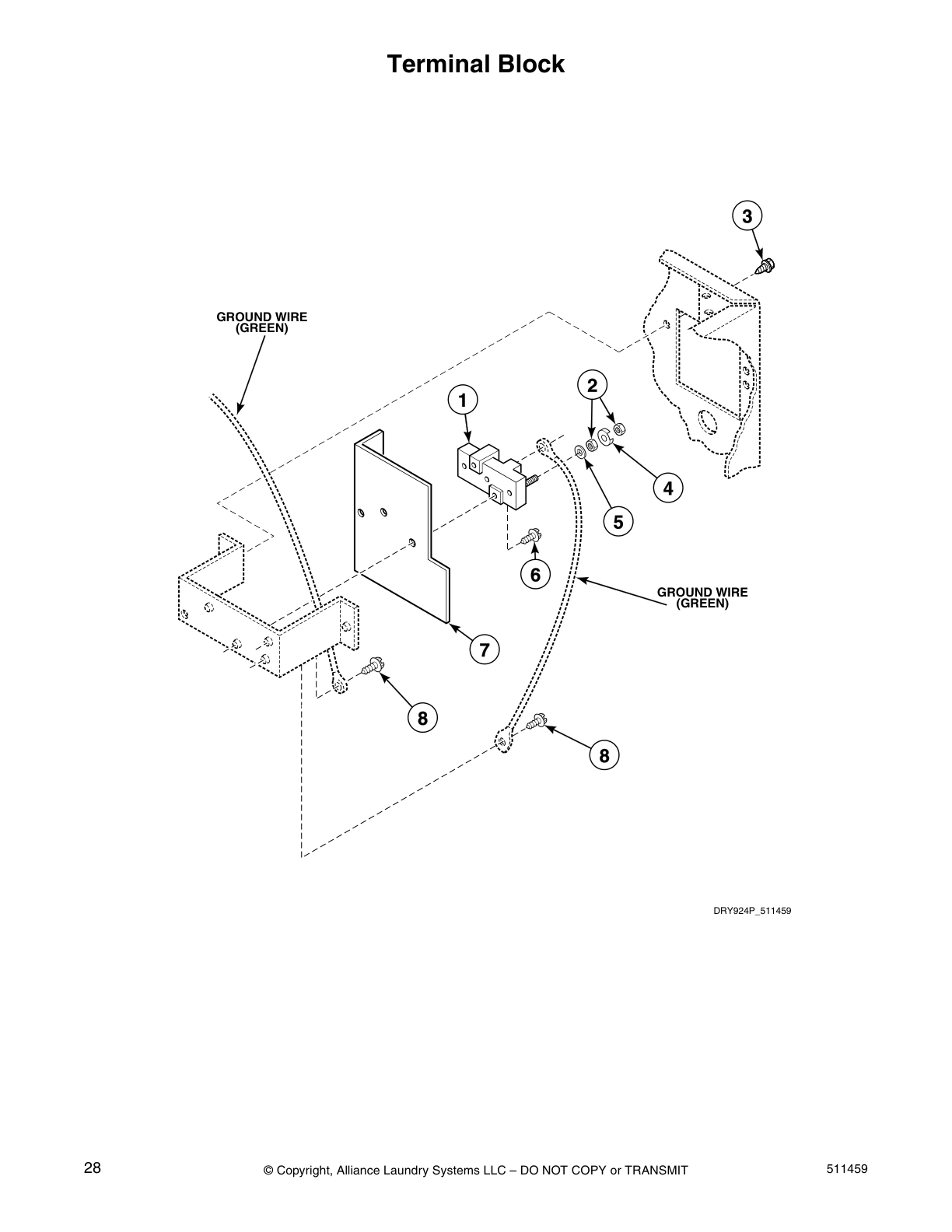

Terminal Block

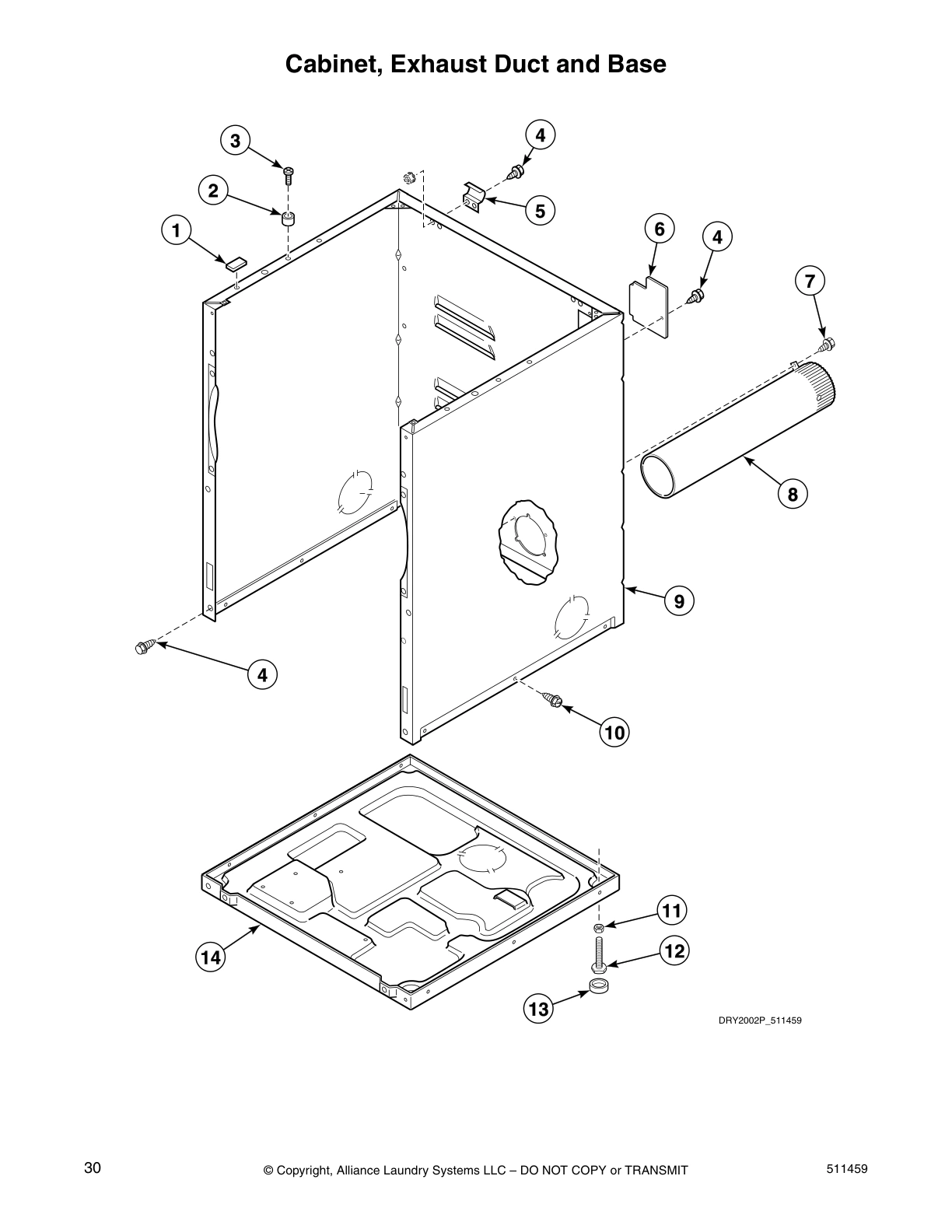

Cabinet, Exhaust Duct and Base

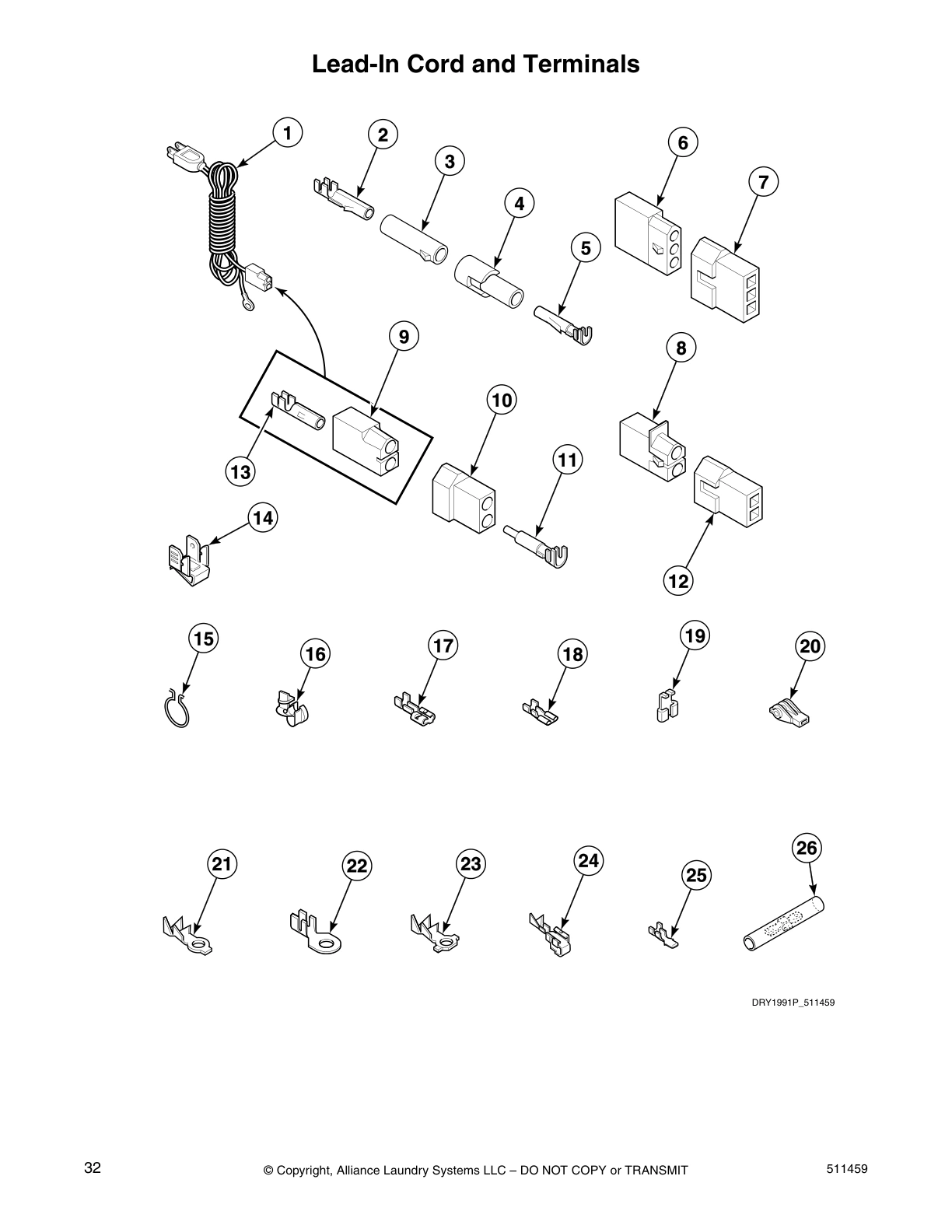

Lead-In Cord and Terminals

Common parts from model Alliance KG5009-1102 Dryer

23008 Speed Queen Screw,HEX WA HD SEMS 10-24 In Stock SPQ 23008 $4.70

View on Model

56128 Speed Queen Bumper Pad Backorder SPQ 56128 $4.70

View on Model

56222 Speed Queen Lead-In Cord 65-3 Wire Backorder SPQ 56222 $19.05

View on Model

Coil Assembly Kit SPQ 56225A Contact Us For Availability

View on Model

36020 Speed Queen U-Type Nut #10-24 Backorder SPQ 36020 $4.70

View on Model

56079 Speed Queen Locator Panel In Stock SPQ 56079 $4.70

View on Model

56225D Speed Queen 115V/60Hz Secondary Coil Backorder SPQ 56225D $37.28

View on Model

23962 Speed Queen Screw Tap HXWAHD 8B-18X 3 In Stock SPQ 23962 $2.38

View on Model

28835 Speed Queen Washer Clip In Stock SPQ 28835 $4.70

View on Model

39733 Speed Queen Screw TAP 10BX5/8 #8PN HD In Stock SPQ 39733 $4.70

View on Model

62588 Speed Queen Tapping Screw 10BT-12 X 1 Backorder SPQ 62588 $4.70

View on Model

D510705P Speed Queen Heater Duct Assembly Backorder SPQ D510705P $63.28

View on Model

Fabric Selector Switch SPQ 91176 Contact Us For Availability

View on Model

D510213 Speed Queen Sensor In Stock SPQ D510213 $51.97

View on Model

55882 Speed Queen Switch Assembly In Stock SPQ 55882 $41.76

View on Model

489P3 Speed Queen High Limit Thermostat In Stock SPQ 489P3 $24.36

View on Model

61380P Speed Queen Front Panel Seal Backorder SPQ 61380P $25.86

View on Model

56058 Speed Queen Felt Pad Backorder SPQ 56058 $4.70

View on Model

D510101 Speed Queen Heat Duct Shroud Backorder SPQ D510101 $23.37

View on Model

D510149P Speed Queen Burner Assembly Packaged Backorder SPQ D510149P $37.53

View on Model

52909 Speed Queen Tap-HXWAHD 10B-16X.5 Screw Backorder SPQ 52909 $4.70

View on Model

61376P Speed Queen Dryer Lint Filter Screen R In Stock SPQ 61376P $45.46

View on Model

61379P Speed Queen White Door Seal Backorder SPQ 61379P $26.88

View on Model

52947 Speed Queen Hex Nut 15/32-32 Backorder SPQ 52947 $1.54

View on Model

D503661 Speed Queen Induction Hex Screw 10-16 Backorder SPQ D503661 $1.87

View on Model

52864 Speed Queen Flat Head Screw, 8AB-18 x 5 Backorder SPQ 52864 $1.19

View on Model

D510139P Speed Queen Blower Fan Assembly In Stock SPQ D510139P $43.02

View on Model

D501086 Speed Queen Screw Tap SLSERHXWAHD8B-1 Backorder SPQ D501086 $4.70

View on Model

38384 Speed Queen Strain Relief Backorder SPQ 38384 $1.81

View on Model

52310 Speed Queen Spring Backorder SPQ 52310 $13.52

View on Model

56065 Speed Queen Seal In Stock SPQ 56065 $9.57

View on Model

Door Strike SPQ 61925 Contact Us For Availability

View on Model

D510185 Speed Queen Idler Spring In Stock SPQ D510185 $1.99

View on Model

56156 Speed Queen Serrated Nut 3/8-16 In Stock SPQ 56156 $4.70

View on Model

D510181 Speed Queen Dryer Metal Door Strike In Stock SPQ D510181 $2.85

View on Model

D510142P Speed Queen Dryer Idler Pulley Wheel In Stock SPQ D510142P $10.76

View on Model

D510177 Speed Queen Dryer Door Catch Assembly In Stock SPQ D510177 $5.71

View on Model

Molex Receptacle SPQ 00110 Contact Us For Availability

View on Model

23748 Speed Queen Washer Retaining Ring In Stock SPQ 23748 $4.70

View on Model

1 Circuit Plug SPQ 00111 Contact Us For Availability

View on Model

D511227 Speed Queen Motor Mount & Idler Assem Backorder SPQ D511227 $120.27

View on Model

3 Circuit Receptacle SPQ 00114 Contact Us For Availability

View on Model

00139 Speed Queen Male Terminal Tab 1/4 Backorder SPQ 00139 $0.60

View on Model

52549 Speed Queen Washer 3/4" Washer/Dryer In Stock SPQ 52549 $2.85

View on Model

21091 Speed Queen Connector Backorder SPQ 21091 $4.70

View on Model

52566 Speed Queen Hex Nut 1/4-20 Jam UNC ZNC In Stock SPQ 52566 $4.70

View on Model

SPQ 510060 SPQ 510060 Contact Us For Availability

View on Model
