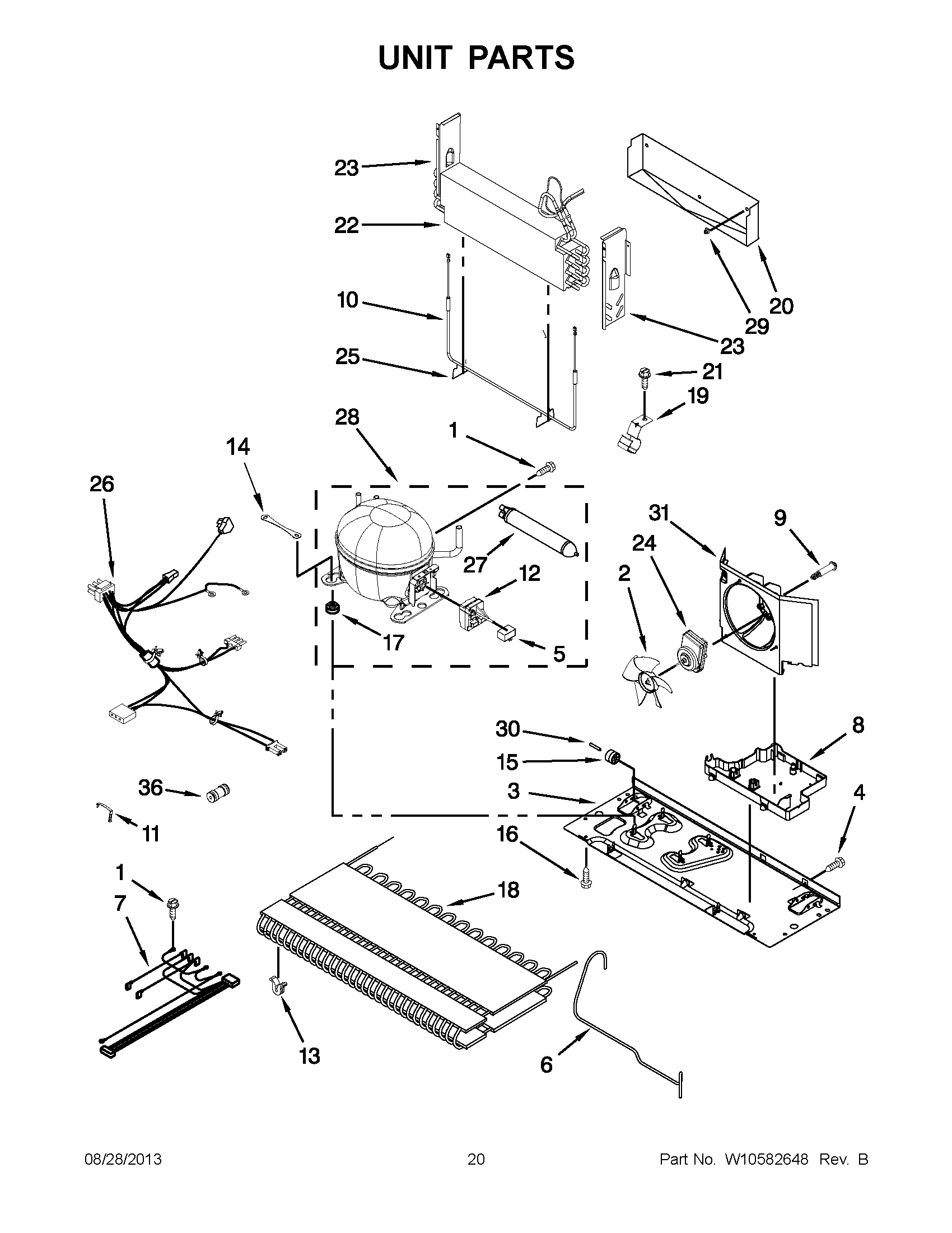

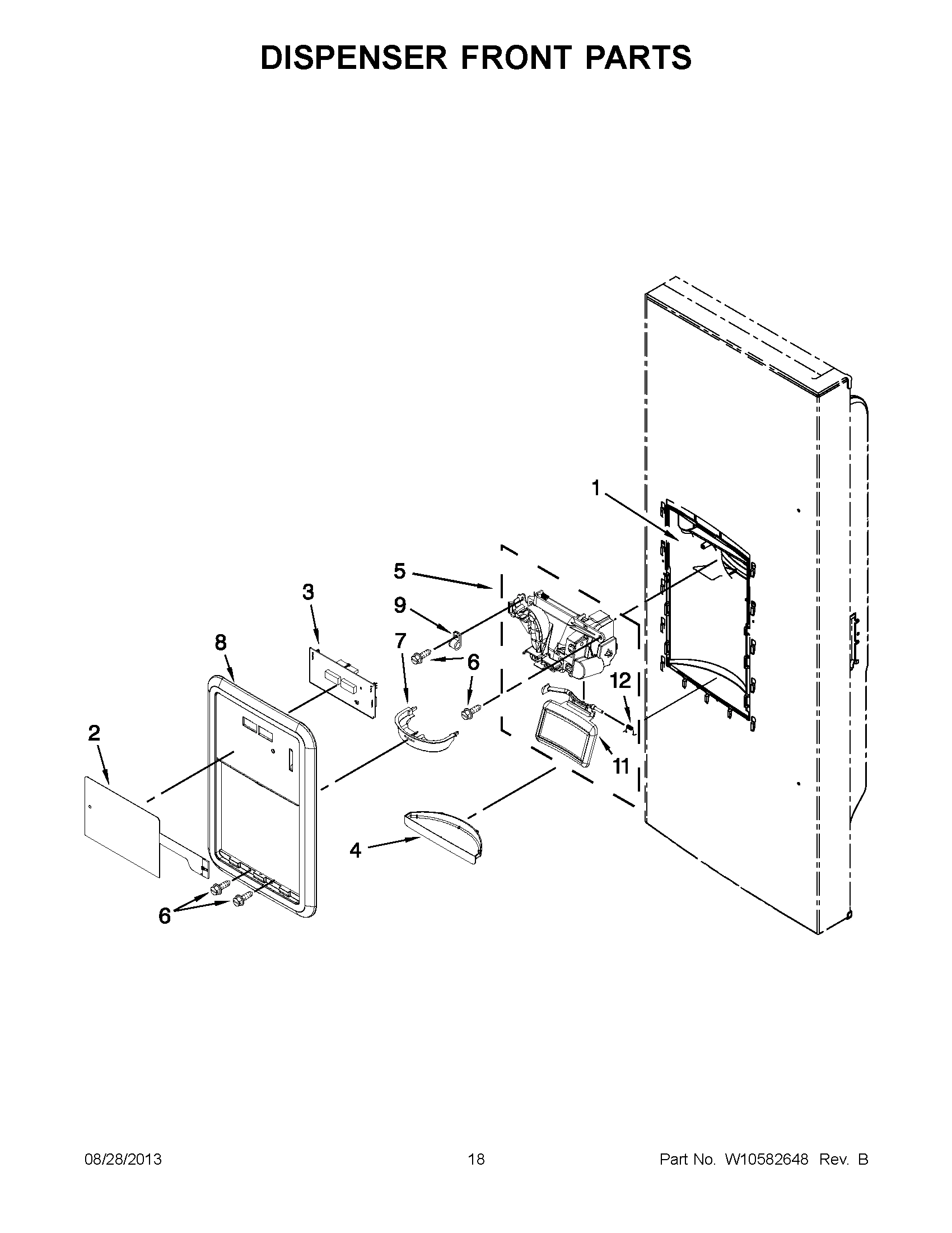

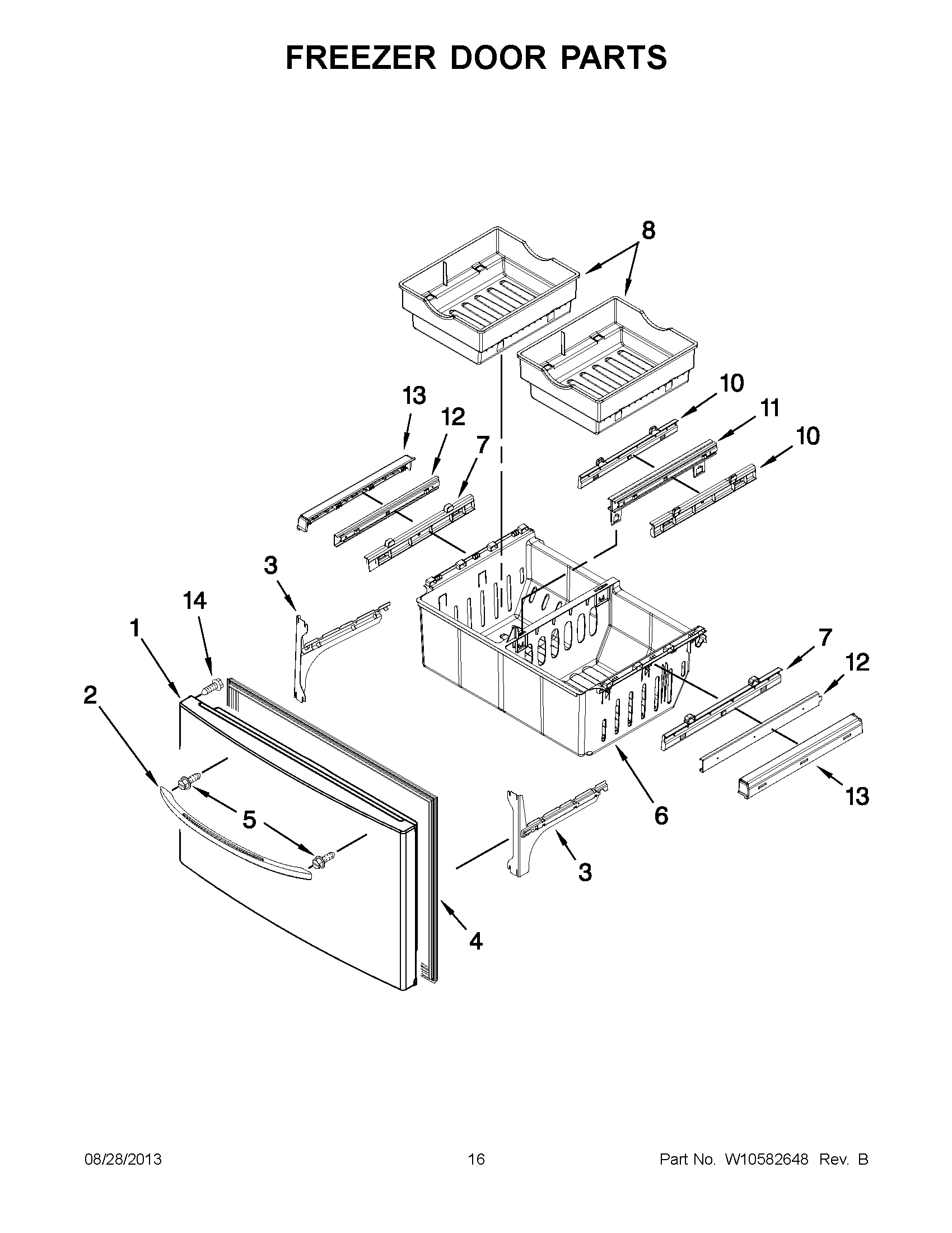

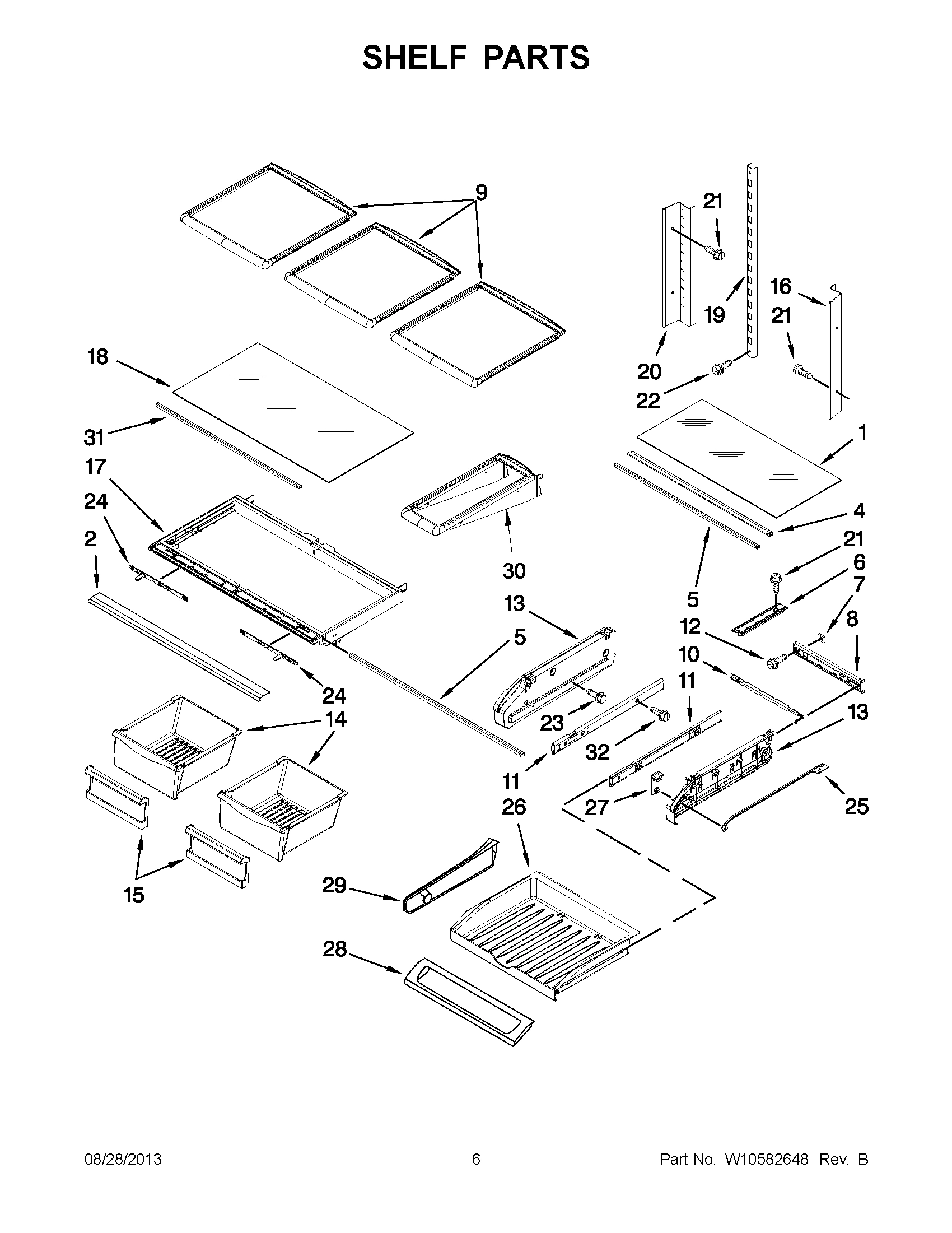

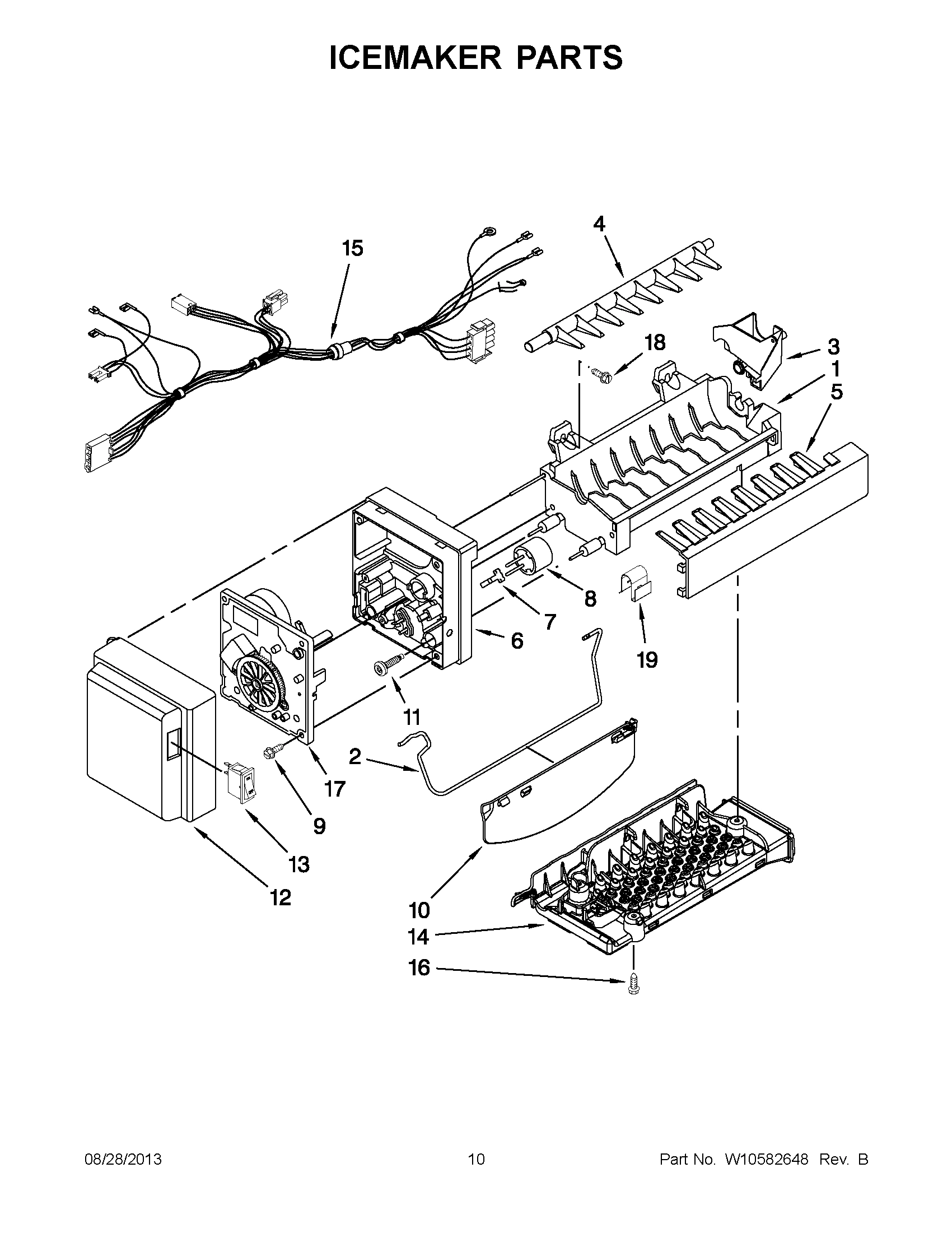

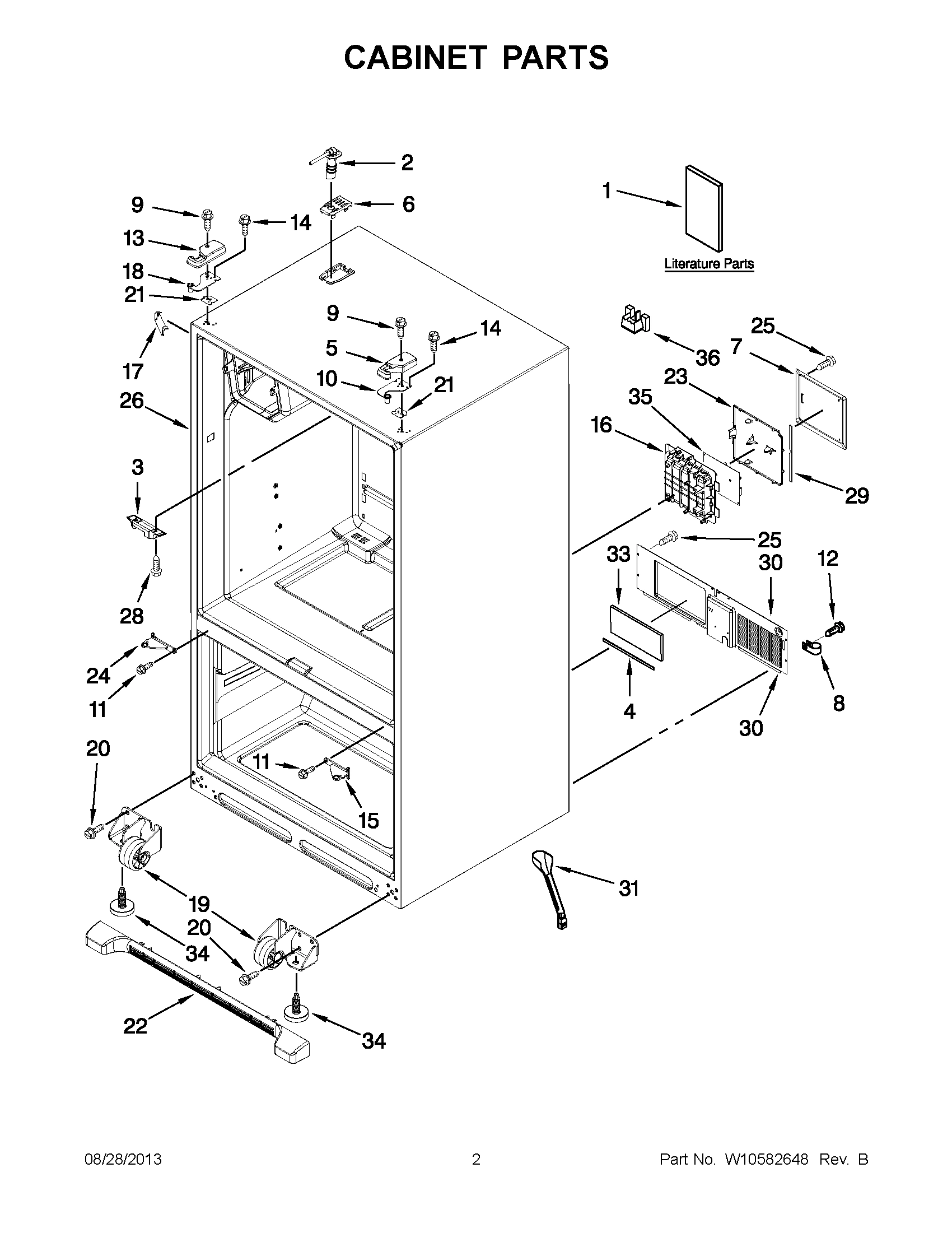

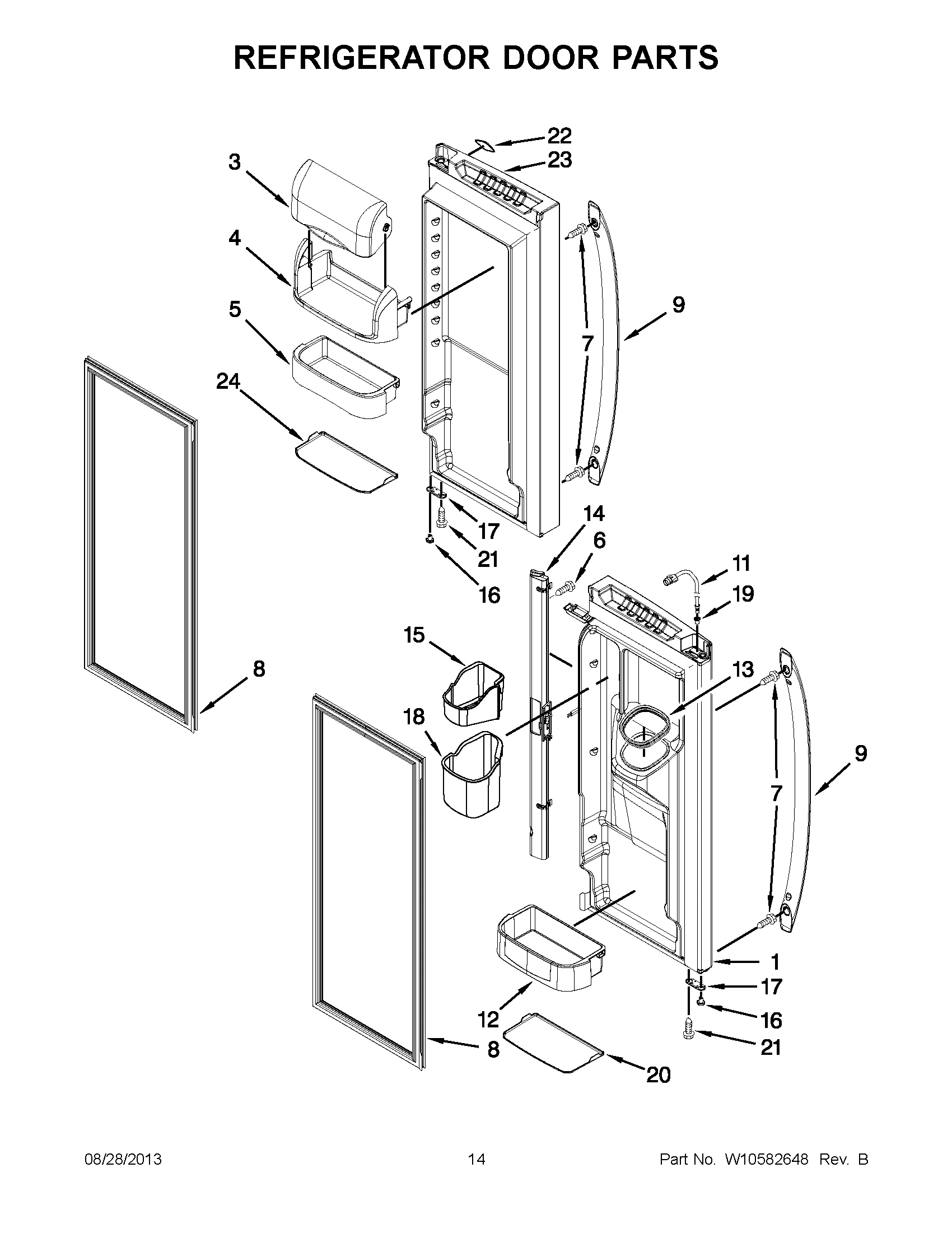

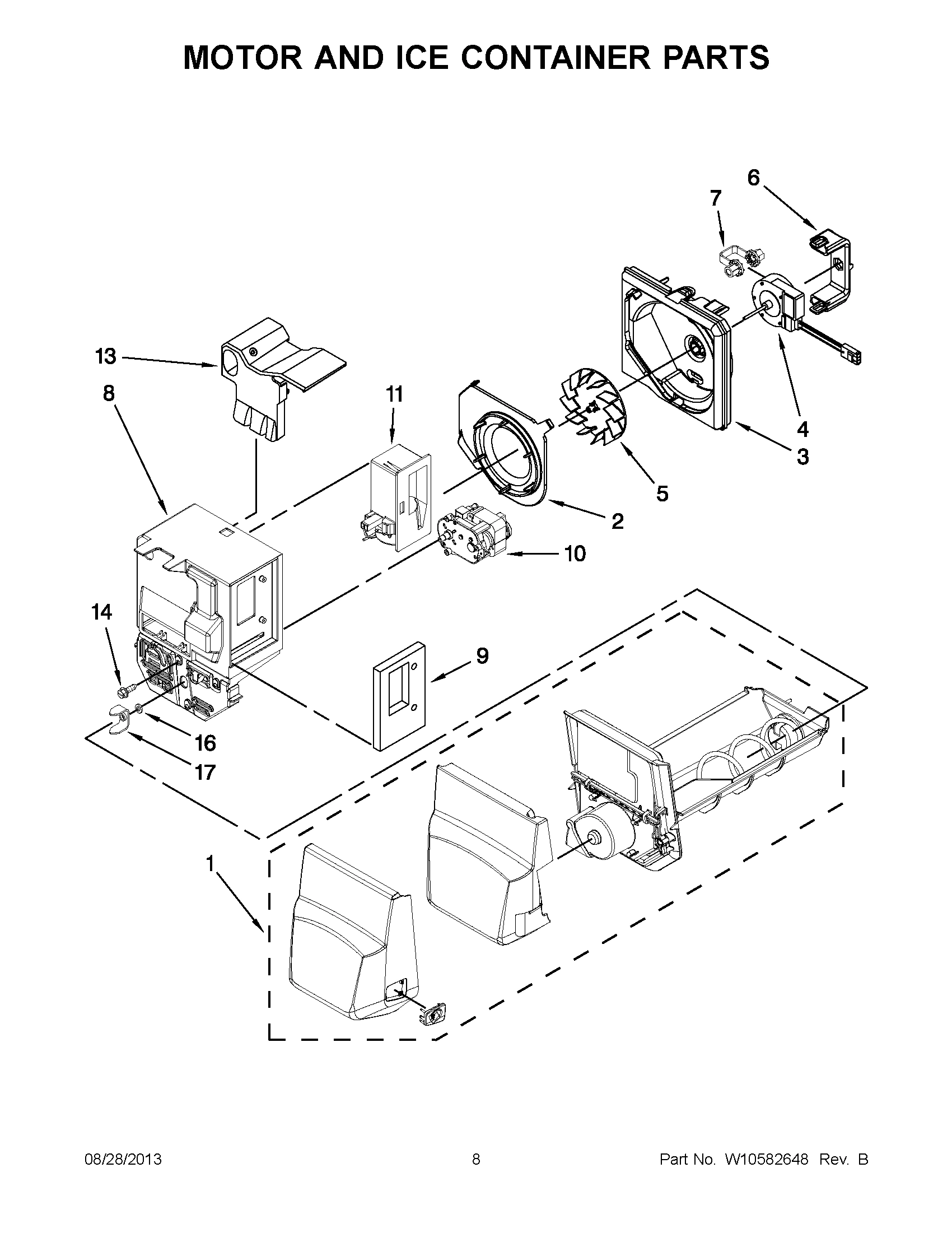

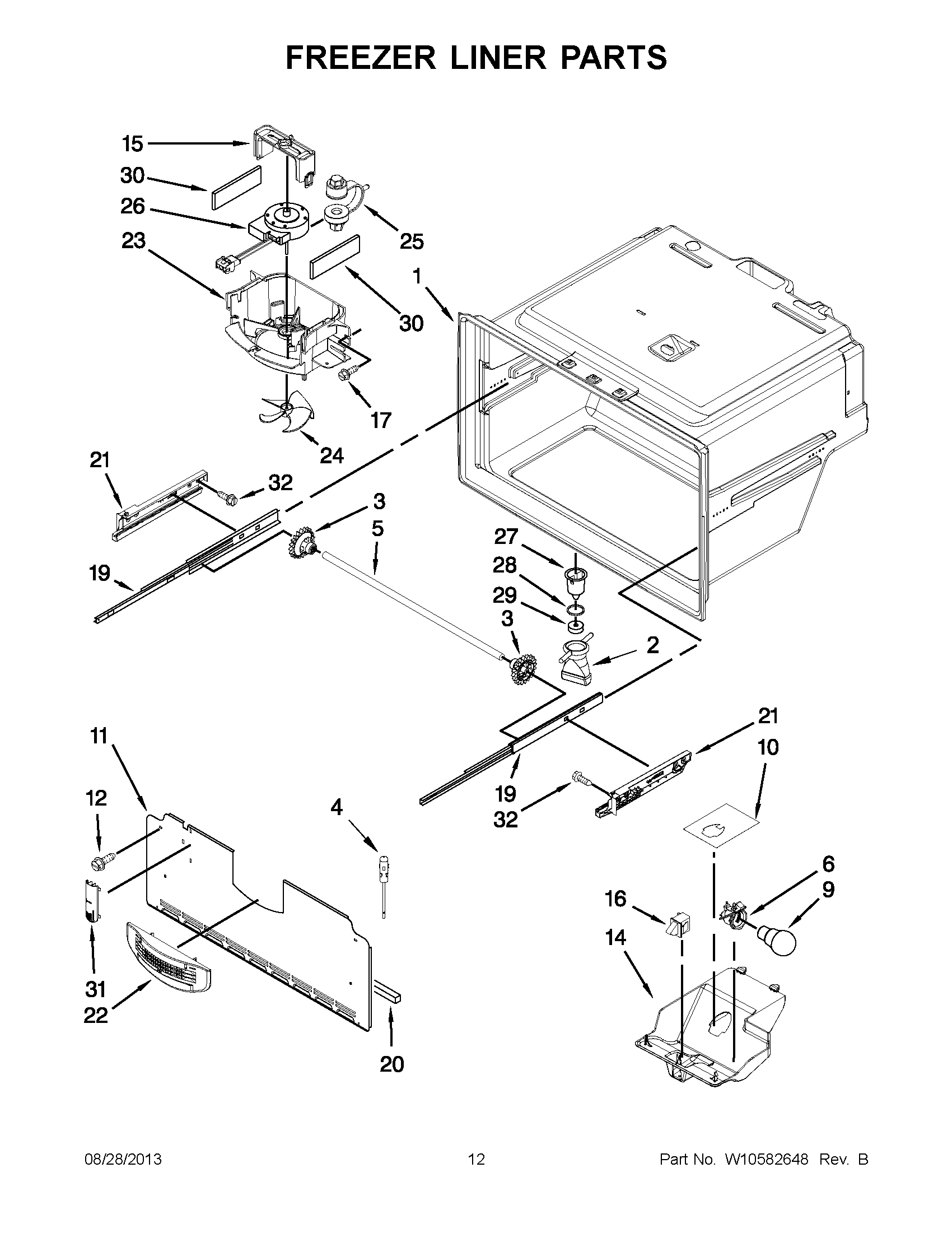

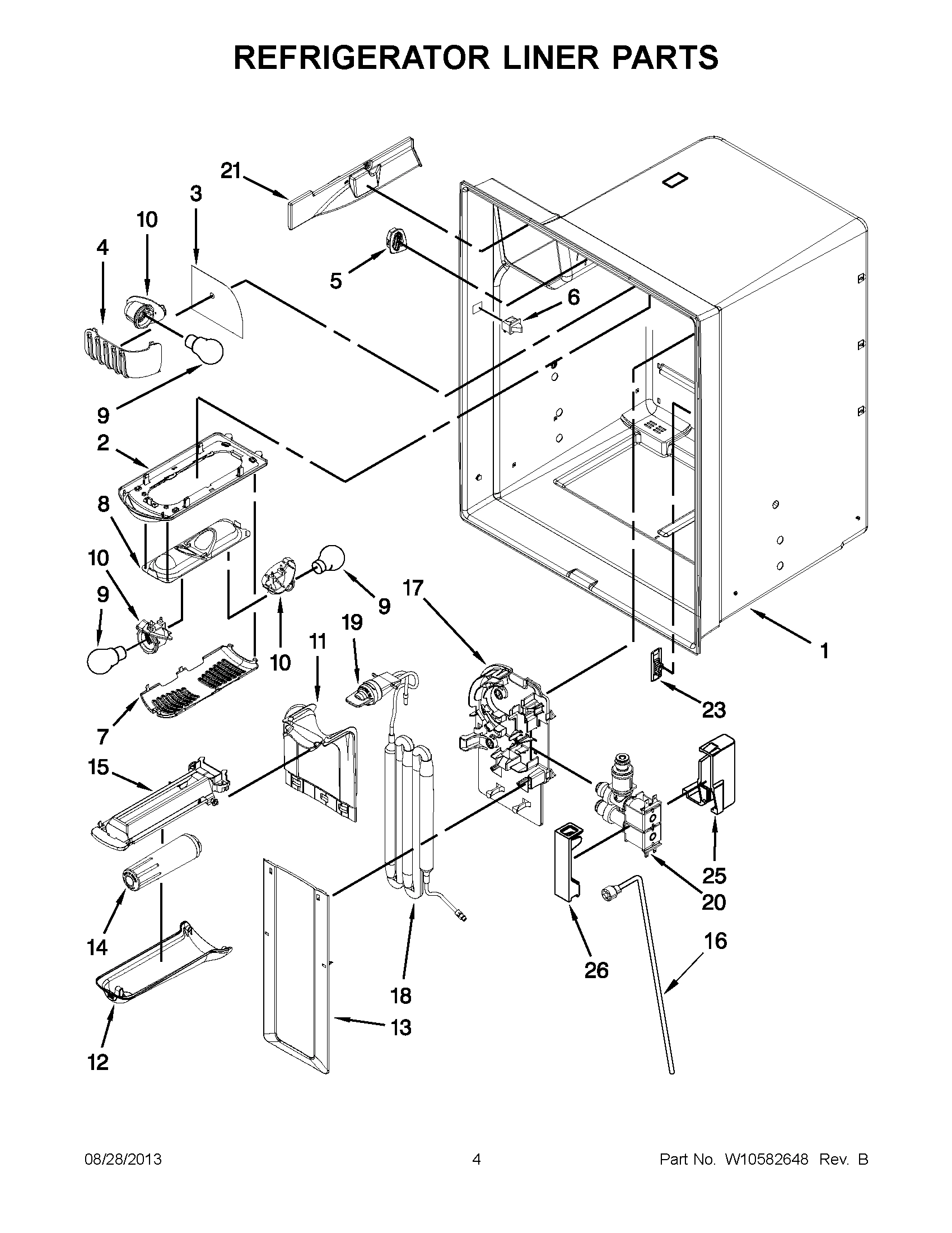

Model Whirlpool KFIS20XVMS11 REFRIGERATOR – Common Parts &amp; Diagrams

1

WPW10300025 Whirlpool Refrigerator Ice Mold Backorder WPL WPW10300025 $90.86

1

WPW10324088 Whirlpool Refrigerator Ice Bin Backorder WPL WPW10324088 $218.52

2

W10121282 Whirlpool Refrigerator Insert Backorder WPL W10121282 $10.16

2

W10464777 Whirlpool Refrigerator Housing Backorder WPL W10464777 $14.51

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $35.43

2

WPW10175514 Whirlpool Refrigerator Shut-Off A Backorder WPL WPW10175514 $42.71

3

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $8.86

3

W10121281 Whirlpool Refrigerator Shroud Backorder WPL W10121281 $26.21

3

W10327050 Whirlpool Refrigerator Cup Fill Backorder WPL W10327050 $33.65

3

W11727651 Whirlpool Plate Assembly Backorder WPL W11727651 $39.55

3

WPW10330994 Whirlpool Refrigerator Bracket Backorder WPL WPW10330994 $54.13

3

WPW10330995 Whirlpool Refrigerator Bracket Backorder WPL WPW10330995 $108.21

3

LCD CONTROL ASSEMBLY WPL 13053103SP Contact Us For Availability

4

12921801 Whirlpool Refrigerator Light Cover Backorder WPL 12921801 $10.76

4

B5759655 Whirlpool Refrigerator Gasket In Stock WPL B5759655 $7.69

4

W10318914 Whirlpool Refrigerator Ejector Arm Backorder WPL W10318914 $13.89

4

W11210956 Whirlpool Refrigerator Shelf Trim Backorder WPL W11210956 $11.42

4

WPW10162697 Whirlpool Refrigerator Motor Backorder WPL WPW10162697 $113.74

4

SUMP, DISPENSER (STAINLESS) WPL W10448627 Contact Us For Availability

5

W11028221 Whirlpool Refrigerator Shaft In Stock WPL W11028221 $11.31

5

WP13005705 Whirlpool Refrigerator Chute Backorder WPL WP13005705 $181.70

5

WPW10119841 Whirlpool Cantilever Bin In Stock WPL WPW10119841 $44.91

5

WPW10122563 Whirlpool Refrigerator Stripper A Backorder WPL WPW10122563 $32.68

5

WPW10123444K Whirlpool Refrigerator Wheel Backorder WPL WPW10123444K $30.40

5

WPW10350564 Whirlpool Refrigerator Freezer Ca In Stock WPL WPW10350564 $42.93

6

W10165970 Whirlpool Refrigerator Clip Backorder WPL W10165970 $28.80

6

WPW10233569 Whirlpool Refrigerator Tube Backorder WPL WPW10233569 $43.19

7

12961602 Whirlpool Refrigerator Wire Cover Backorder WPL 12961602 $39.14

7

Grommet, Fan Motor WPL W10151687 Contact Us For Availability

8

12656202 Whirlpool Refrigerator Housing Backorder WPL 12656202 $52.78

8

W10356558 Whirlpool Refrigerator Divider Backorder WPL W10356558 $35.78

8

W10443023 Whirlpool Refrigerator Housing Backorder WPL W10443023 $37.83

8

W10830055 Whirlpool Refrigerator Door Gasket In Stock WPL W10830055 $124.35

8

FACADE, DISPENSER (STAINLESS) WPL W10310691 Contact Us For Availability

9

W10001240 Whirlpool Refrigerator Screw Backorder WPL W10001240 $5.65

9

W10829281 Whirlpool Refrigerator Screw Backorder WPL W10829281 $5.01

9

WP67006341 Whirlpool Refrigerator Gasket In Stock WPL WP67006341 $3.70

9

WPW10314517K Whirlpool Refrigerator Handle Backorder WPL WPW10314517K $120.76

W11469652 Whirlpool Refrigerator Shield Backorder WPL W11469652 $10.76

W11592374 Whirlpool Refrigerator Top Door Hin Backorder WPL W11592374 $10.07

W11671282 Whirlpool Refrigerator Ice Auger Mo In Stock WPL W11671282 $65.49

WP12729123 Whirlpool Refrigerator Heater In Stock WPL WP12729123 $75.66

WPW10351019 Whirlpool Refrigerator Extension In Stock WPL WPW10351019 $27.03

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W10235358 Whirlpool Refrigerator Glide Backorder WPL W10235358 $142.79

W10275942 Whirlpool Refrigerator Water Tube Backorder WPL W10275942 $43.13

W10308421 Whirlpool Refrigerator Evaporator C Backorder WPL W10308421 $102.86

W11661170 Whirlpool Clip Backorder WPL W11661170 $4.39

WPW10127427 Whirlpool Refrigerator Control In Stock WPL WPW10127427 $65.37

WPW10185233 Whirlpool Refrigerator Pad In Stock WPL WPW10185233 $34.95

WPW10235370 Whirlpool Refrigerator Glide In Stock WPL WPW10235370 $108.35

12

WPW10119846 Whirlpool Refrigerator Door Bin S In Stock WPL WPW10119846 $46.57

12

WPW10235368 Whirlpool Refrigerator Glide Backorder WPL WPW10235368 $134.64

12

WPW10448874 Whirlpool Start Device In Stock WPL WPW10448874 $64.18

W11676504 Whirlpool Insert Assembly Backorder WPL W11676504 $12.77

WP12656018 Whirlpool Drawer Support In Stock WPL WP12656018 $28.22

WP12656105 Whirlpool Drawer Support In Stock WPL WP12656105 $30.91

WP2313326 Whirlpool Refrigerator Switch Backorder WPL WP2313326 $7.94

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.51

W10236396 Whirlpool Refrigerator Strap Backorder WPL W10236396 $7.81

W11434460 Whirlpool Refrigerator Housing Backorder WPL W11434460 $12.39

WPW10312691 Whirlpool Refrigerator Air Baffle In Stock WPL WPW10312691 $116.63

15

67006325 Whirlpool Filter Base Bracket In Stock WPL 67006325 $41.96

15

W10312698 Whirlpool Refrigerator Wire Harness Backorder WPL W10312698 $112.21

16

W11378860 Whirlpool Refrigerator Spacer In Stock WPL W11378860 $6.19

16

WP12028505AP Whirlpool Closing Cam In Stock WPL WP12028505AP $29.12

16

WPW10444032 Whirlpool Refrigerator Waterline Backorder WPL WPW10444032 $41.36

17

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $3.70

17

WP63052-2 Whirlpool Refrigerator Impeller In Stock WPL WP63052-2 $28.80

17

WPW10334463 Whirlpool Refrigerator Bracket Backorder WPL WPW10334463 $25.27

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

W11346622 Whirlpool Water Tank Assembly In Stock WPL W11346622 $88.82

W11592375 Whirlpool Door Hinge Backorder WPL W11592375 $10.07

WPW10346415 Whirlpool Refrigerator Condenser Backorder WPL WPW10346415 $152.87

12996601 Whirlpool Refrigerator Bushing Clip Backorder WPL 12996601 $6.92

W10273464 Whirlpool Refrigerator Ladder Backorder WPL W10273464 $11.03

W11395888 Whirlpool Refrigerator Bypass Filte In Stock WPL W11395888 $24.32

W11658403 Whirlpool Slide In Stock WPL W11658403 $74.88

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

WPW10515762 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515762 $37.39

WPW10515763 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515763 $37.73

W10251966 Whirlpool Refrigerator Ladder Backorder WPL W10251966 $28.80

W11510594 Whirlpool Refrigerator Mat Backorder WPL W11510594 $10.43

W11547653 Whirlpool Refrigerator Drip Tray Backorder WPL W11547653 $29.39

WPW10312696 Whirlpool Water Inlet Valve In Stock WPL WPW10312696 $113.26

12999501 Whirlpool Refrigerator Hinge Shim In Stock WPL 12999501 $33.89

12999502 Whirlpool Refrigerator Hinge Shim Backorder WPL 12999502 $34.28

13033601 Whirlpool Refrigerator Wire Cover Backorder WPL 13033601 $28.80

W10857648 Whirlpool Refrigerator Bracket Backorder WPL W10857648 $40.37

W10858097 Whirlpool Refrigerator Bracket Backorder WPL W10858097 $40.35

22

W11536253 Whirlpool Refrigerator Evaporator Backorder WPL W11536253 $105.14

22

WPW10243391 Whirlpool Refrigerator Nameplate Backorder WPL WPW10243391 $26.90

23

12987301 Whirlpool Refrigerator Cover Backorder WPL 12987301 $7.91

23

W10296536 Whirlpool Refrigerator Cover Backorder WPL W10296536 $34.66

24

W10917988 Whirlpool Refrigerator Door Hinge Backorder WPL W10917988 $35.52

24

W11613295 Whirlpool Condenser Motor In Stock WPL W11613295 $50.00

25

W10118193 Whirlpool Refrigerator Cover Backorder WPL W10118193 $28.80

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $59.77

25

W11686675 Whirlpool Screw Backorder WPL W11686675 $8.11

26

W10118194 Whirlpool Refrigerator Cover Backorder WPL W10118194 $28.80

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $13.98

28

W10854958 Whirlpool Refrigerator Screw Backorder WPL W10854958 $2.71

30

WPW10270394 Whirlpool Refrigerator Back Cover Backorder WPL WPW10270394 $77.72

31

W11556315 Whirlpool Shroud Backorder WPL W11556315 $27.80

31

WP12227304WD Whirlpool Refrigerator Drawer Su Backorder WPL WP12227304WD $43.13

33

INSULATION WPL 12820505 Contact Us For Availability

34

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $3.70

36

WP12777701 Whirlpool Refrigerator Filler Bloc Backorder WPL WP12777701 $4.15

36

WPW10334458 Whirlpool Refrigerator Connector Backorder WPL WPW10334458 $8.62

100

WPW10300024 Whirlpool Ice Maker In Stock WPL WPW10300024 $122.14

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS WPL 978029 Contact Us For Availability

MISCELLANEOUS, KIT, FOAM SLAB (30`` X 32 1/2` WPL 876029 Contact Us For Availability

MISCELLANEOUS, TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

TORX SCREW WRENCH TORX KEY WPL 1117510 Contact Us For Availability

MISCELLANEOUS, CORK, SEALER CLEANER, STAINLES WPL 20000008 Contact Us For Availability

MISCELLANEOUS, CEMENT, ALUMILASTIC (11/4 OZ.) WPL 542639 Contact Us For Availability
