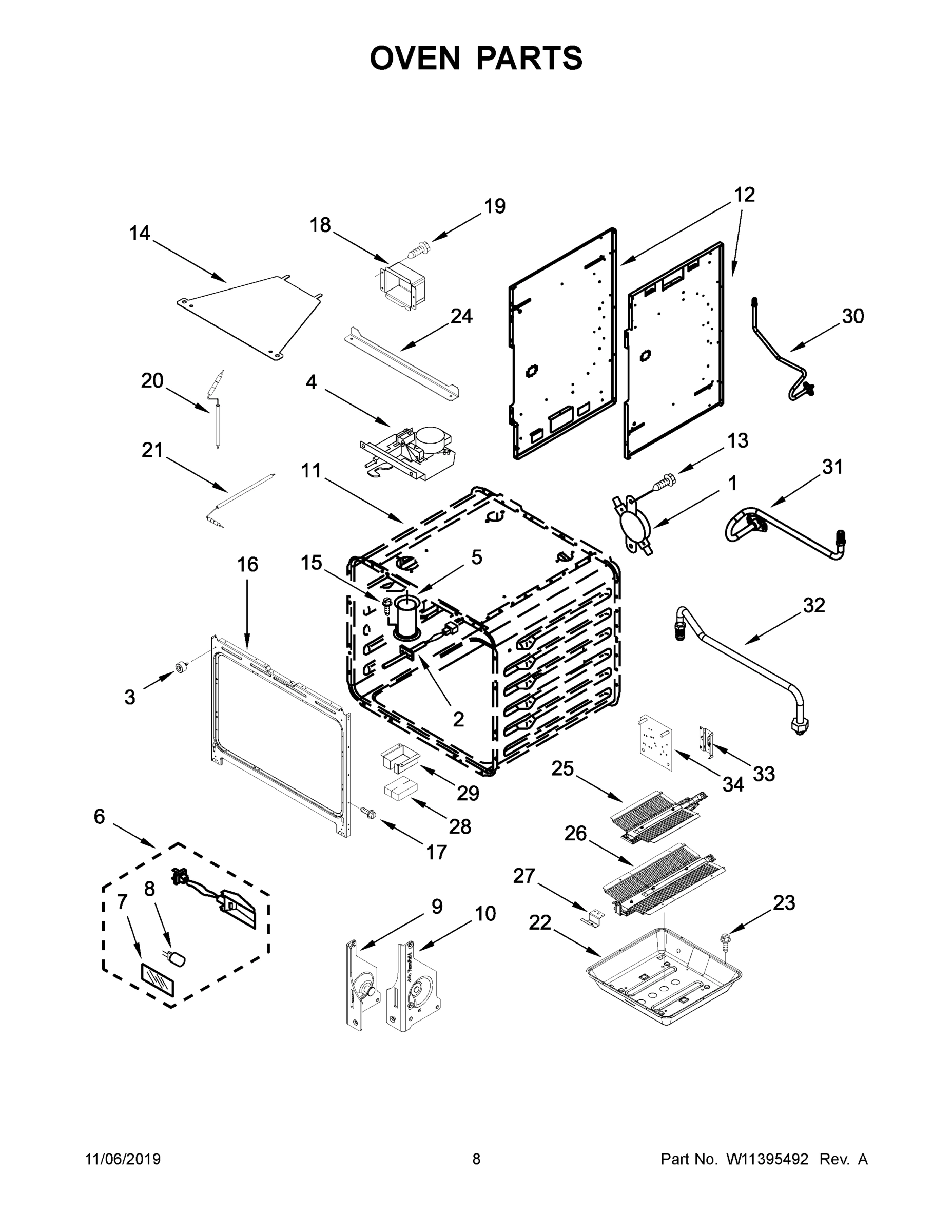

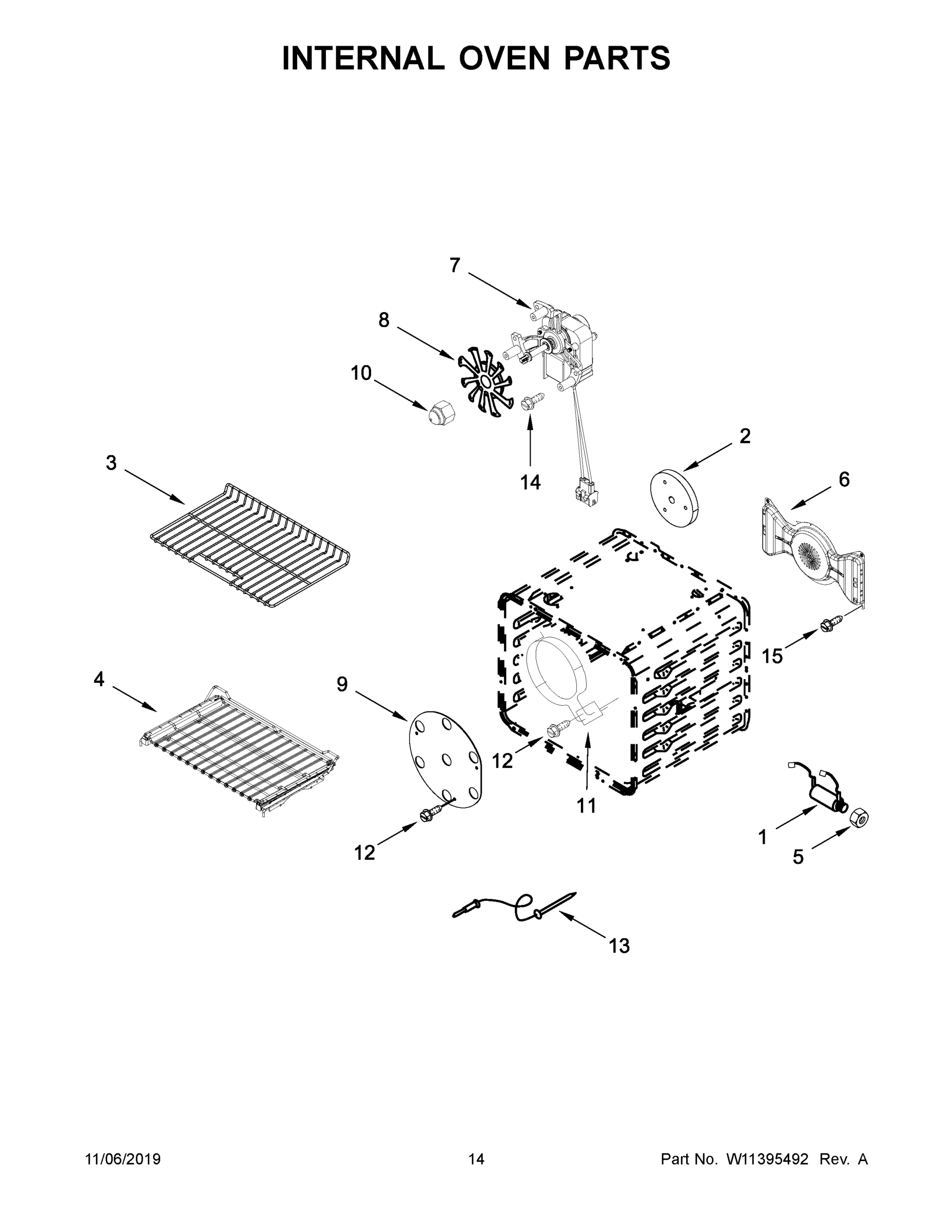

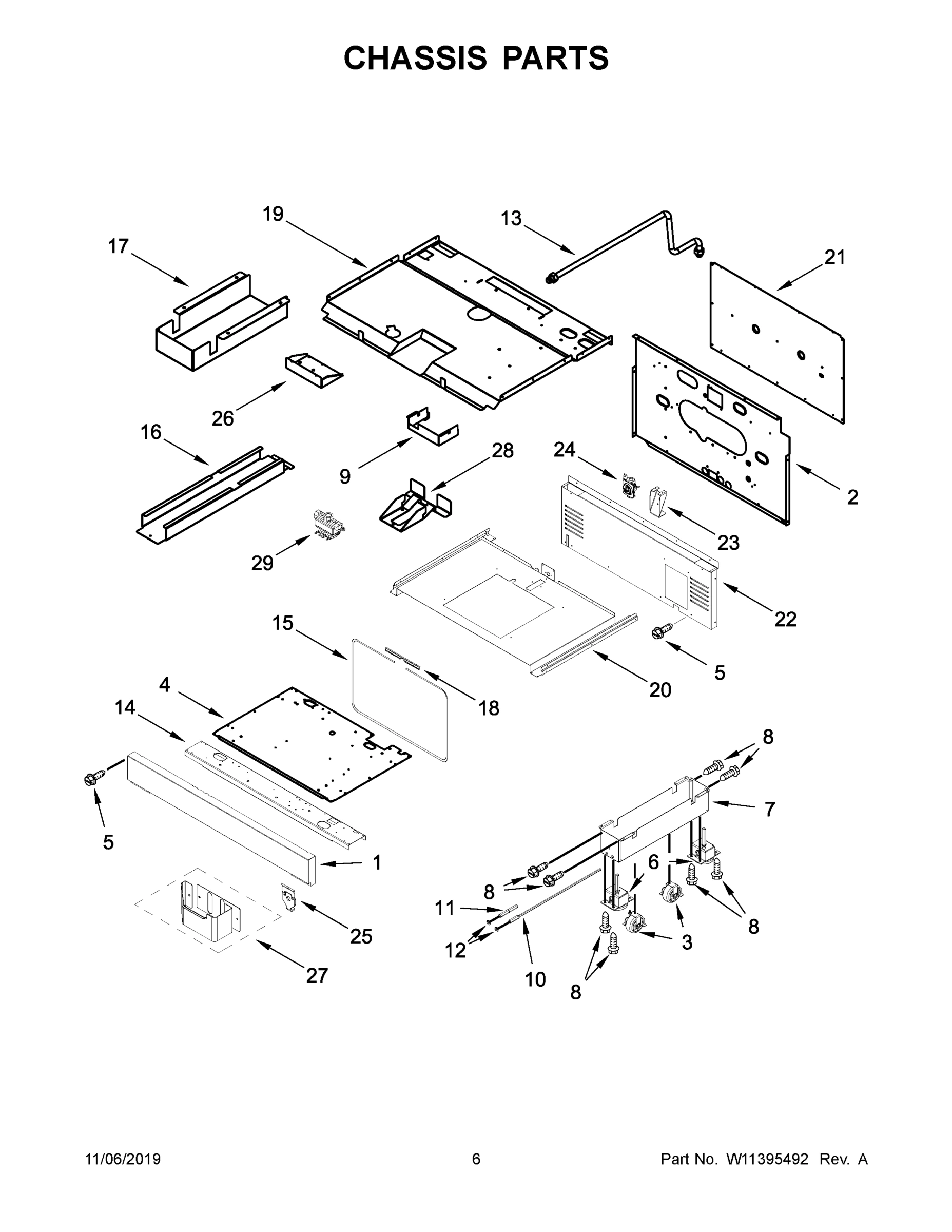

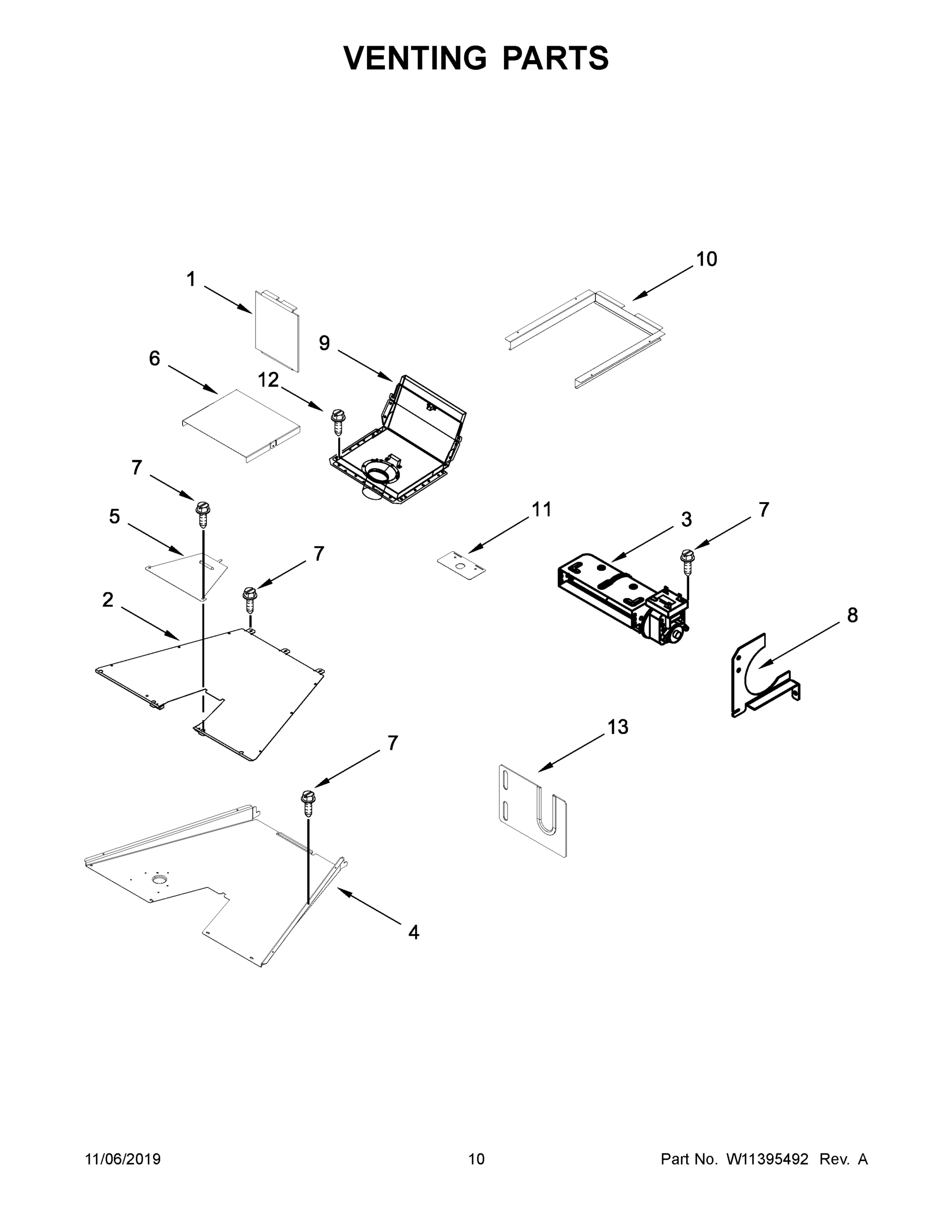

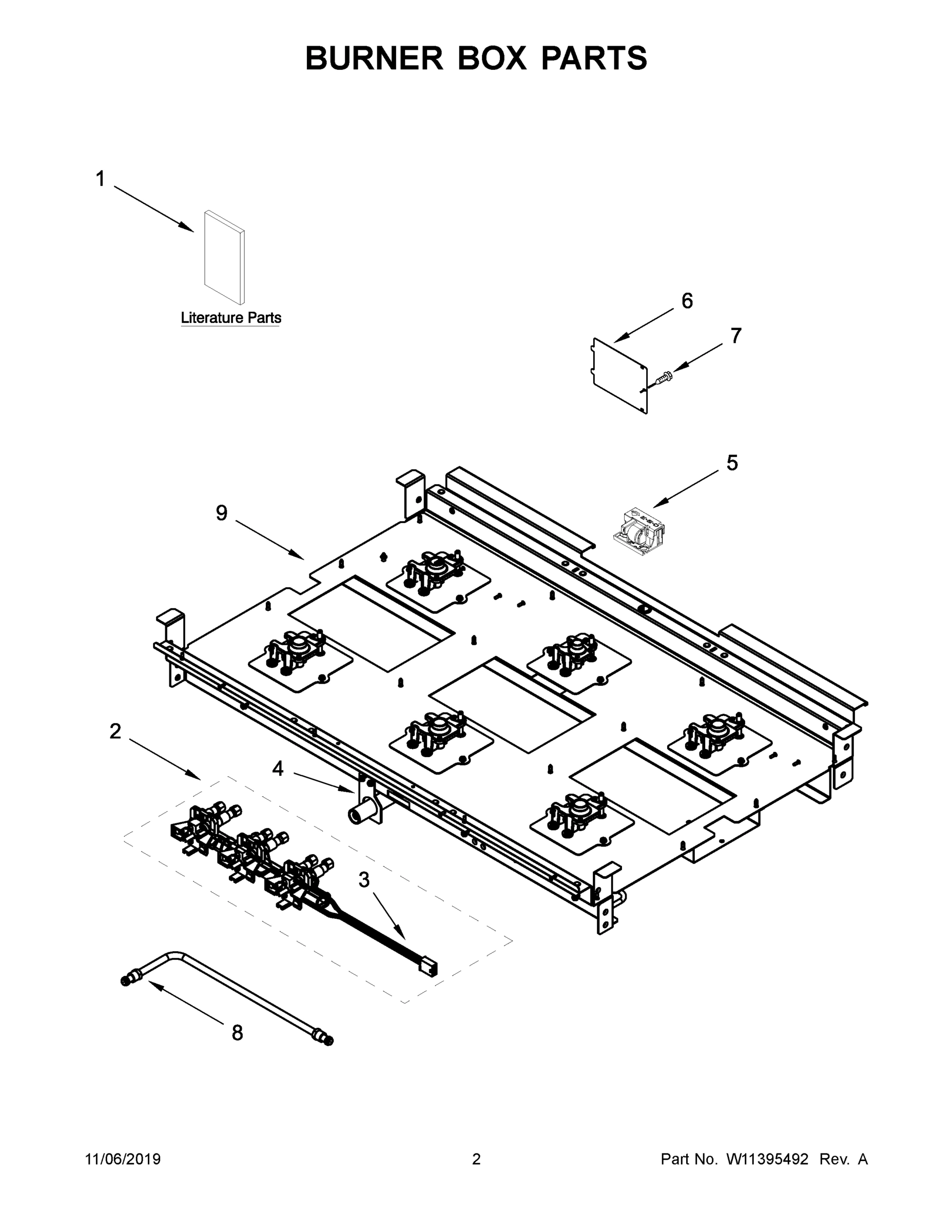

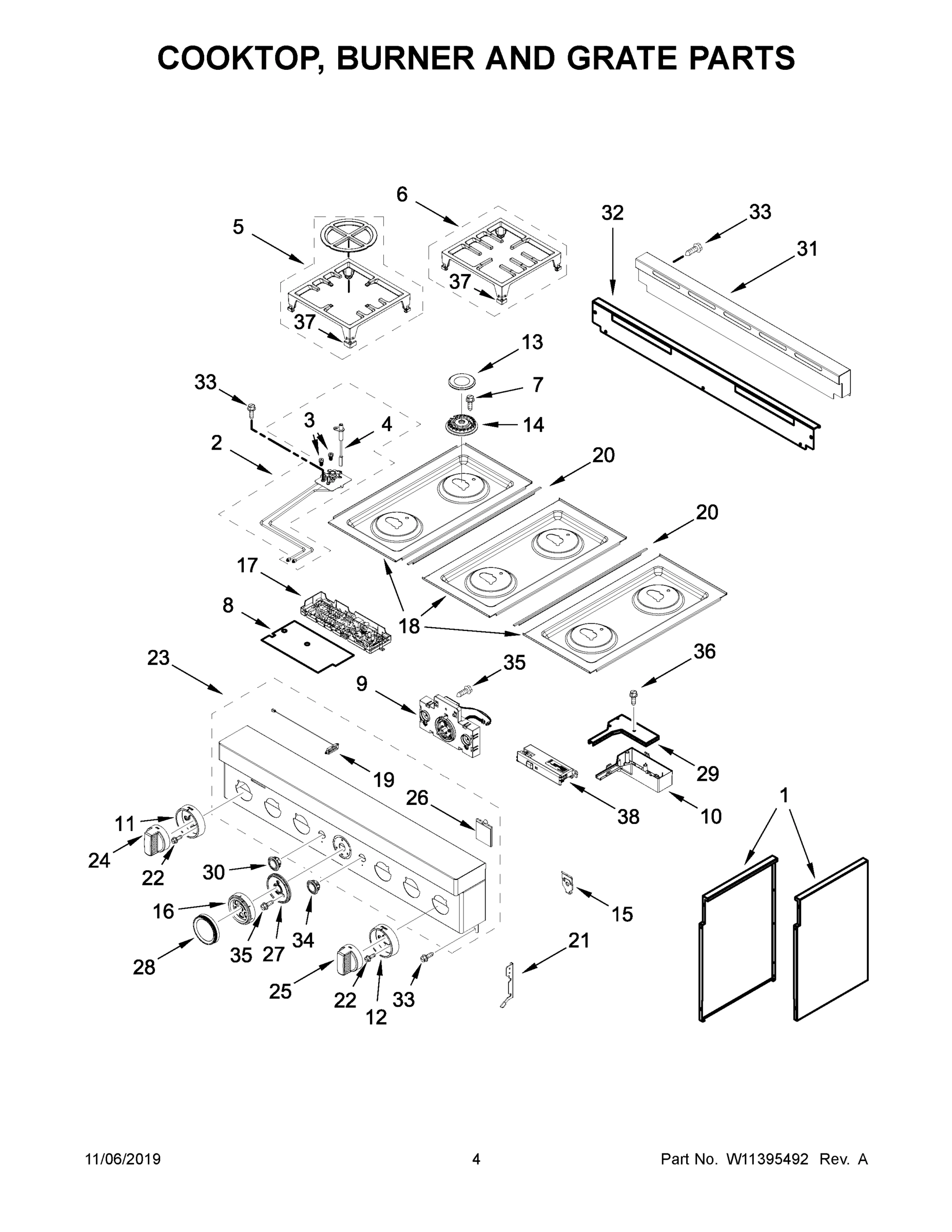

Model Whirlpool KFGC506JYP00 RANGE/OVEN, GAS, COMMERCIAL-STYLE, 36 INCH – Common Parts &amp; Diagrams

1

WP4450249 Whirlpool Thermostat Backorder WPL WP4450249 $77.29

1

INSULATION, CHIMNEY WPL W10246087 Contact Us For Availability

1

GUIDE, USE AND CARE WPL W11177370 Contact Us For Availability

1

KICKPLATE WPL W11394789 Contact Us For Availability

1A

INSTRUCTIONS, INSTALLATION WPL W11177374 Contact Us For Availability

1B

GUIDE, INTERNET CONNECTIVITY WPL W11184759 Contact Us For Availability

1C

DIAGRAM, WIRING WPL W11202388 Contact Us For Availability

1D

SHEET, TECH WPL W11202292 Contact Us For Availability

1E

GUIDE, QUICK START WPL W11364680 Contact Us For Availability

2

W10859573 Whirlpool Range Oven Temperature Se In Stock WPL W10859573 $68.99

2

W11384736 Whirlpool Manifold Backorder WPL W11384736 $114.20

2

W11688331 Whirlpool Insulation Backorder WPL W11688331 $16.05

2

W11688507 Whirlpool Insulation Backorder WPL W11688507 $9.10

2

VENT, COOLING TOP (30") WPL W11105221 Contact Us For Availability

2

BACK, CHASSIS WPL W11324988 Contact Us For Availability

2A

W11384739 Whirlpool Manifold Backorder WPL W11384739 $114.20

2E

W11384765 Whirlpool Orifice Holder Backorder WPL W11384765 $39.64

3

W10822069 Whirlpool Oven Rack Backorder WPL W10822069 $63.13

3

W10903729 Whirlpool Wire Harness Backorder WPL W10903729 $66.70

3

W11248652 Whirlpool Blower In Stock WPL W11248652 $120.33

3

W11334153 Whirlpool Door Glass Backorder WPL W11334153 $57.67

3

W11643164 Whirlpool Orifice Spud Backorder WPL W11643164 $34.59

3

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $15.79

3A

W11672510 Whirlpool Spud Orifice Backorder WPL W11672510 $34.57

3B

W11661909 Whirlpool Range Orifice Spud Backorder WPL W11661909 $34.57

3C

W10892438 Whirlpool Orifice Spud Backorder WPL W10892438 $37.39

4

W11095572 Whirlpool Duct Backorder WPL W11095572 $90.59

4

W11194820 Whirlpool Retainer Backorder WPL W11194820 $57.47

4

W11320153 Whirlpool Mounting Bracket Backorder WPL W11320153 $39.36

4

W11496903 Whirlpool Oven Rack Backorder WPL W11496903 $209.37

4

W11573760 Whirlpool Surface Igniter In Stock WPL W11573760 $7.61

4

VENT, COOLING BOTTOM (30") WPL W11091676 Contact Us For Availability

4A

W11628654 Whirlpool Surface Igniter Backorder WPL W11628654 $18.68

4B

W11114379 Whirlpool Appliance Surface Igniter Backorder WPL W11114379 $23.46

5

W11319687 Whirlpool Spark Module In Stock WPL W11319687 $90.36

5

W11380124 Whirlpool Burner Grate In Stock WPL W11380124 $99.69

5

W11568941 Whirlpool Door Hinge Assembly In Stock WPL W11568941 $58.64

5

SCREW WPL 7101P42660 Contact Us For Availability

5

PLATE, COOLING LATCH WPL W11109518 Contact Us For Availability

6

W10115843 Whirlpool Access Cover Backorder WPL W10115843 $6.62

6

W10859931 Whirlpool Foot Level Backorder WPL W10859931 $43.97

6

W11380128 Whirlpool Burner Grate Backorder WPL W11380128 $99.69

6

W11568813 Whirlpool Door Hinge In Stock WPL W11568813 $43.65

6

RETAINER, INSULATION WPL W10246086 Contact Us For Availability

7

W10169756 Whirlpool Light Lens Backorder WPL W10169756 $26.48

7

W10908710 Whirlpool Mounting Bracket Backorder WPL W10908710 $75.57

7

W11194814 Whirlpool Window Frame Backorder WPL W11194814 $122.09

7

W11643628 Whirlpool Screw Backorder WPL W11643628 $9.59

7A

W11678580 Whirlpool Screw Backorder WPL W11678580 $8.11

8

W11320149 Whirlpool Insulator Backorder WPL W11320149 $66.93

8

W11712404 Whirlpool Screw Backorder WPL W11712404 $8.11

8

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

8

WPW10169757 Whirlpool Light Bulb In Stock WPL WPW10169757 $27.72

8

BRACKET, BLOWER MOUNT WPL W11047754 Contact Us For Availability

8

TUBE, MANIFOLD SUPPLY (LEFT) WPL W10892073 Contact Us For Availability

8A

TUBE, MANIFOLD SUPPLY (RIGHT) WPL W10892334 Contact Us For Availability

9

W10261523 Whirlpool Plate Backorder WPL W10261523 $25.82

9

W10340579 Whirlpool Exhaust Vent Backorder WPL W10340579 $151.92

9

W10920281 Whirlpool Screw Backorder WPL W10920281 $2.95

9

W11394661-includeCORE Whirlpool W11394661 Ref Backorder WPL W11394661-includeCORE $274.60

9

CABINET, APPLIANCE MANAGER WPL W11369237 Contact Us For Availability

W10115869 Whirlpool Shaft Backorder WPL W10115869 $41.50

COVER, WIFI OUTER WPL W11205795 Contact Us For Availability

DUCT, PRIMARY AIR (30") WPL W10145363 Contact Us For Availability

ASSEMBLY, OUTER DOOR (INCLUDES HANDLE) WPL W11389315 Contact Us For Availability

W10115793 Whirlpool Shaft Backorder WPL W10115793 $32.08

W10115855 Whirlpool Support Bracket Backorder WPL W10115855 $26.21

W11380145 Whirlpool Knob Bezel In Stock WPL W11380145 $32.04

ASSEMBLY, DOOR HANDLE WPL W11221411 Contact Us For Availability

489504 Whirlpool Oven Ring Backorder WPL 489504 $4.85

W11380146 Whirlpool Knob Bezel Backorder WPL W11380146 $32.04

WP3400805 Whirlpool Screw Assembly Backorder WPL WP3400805 $2.51

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

BRACKET, HANDLE WPL W11197830 Contact Us For Availability

W10839793 Whirlpool Refrigerator Nameplate In Stock WPL W10839793 $22.77

W11344538 Whirlpool Surface Burner Cap In Stock WPL W11344538 $83.08

W11364214 Whirlpool Gas Tubing Backorder WPL W11364214 $37.95

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $55.46

COVER, CHANNEL WPL W11106956 Contact Us For Availability

14

W11344539 Whirlpool Burner Head In Stock WPL W11344539 $43.70

14

WPW10276043 Whirlpool Screw Backorder WPL WPW10276043 $2.51

14

SUPPORT, CHANNEL WPL W11087493 Contact Us For Availability

14A

W11344742 Whirlpool Burner Head In Stock WPL W11344742 $46.32

14B

W11344746 Whirlpool Burner Head Backorder WPL W11344746 $46.32

15

W11368841SI Whirlpool Range Medallion Backorder WPL W11368841SI $134.94

15

W11676901 Whirlpool Range Gasket Backorder WPL W11676901 $25.44

16

W10162096 Whirlpool Screw Backorder WPL W10162096 $9.59

16

W11050145 Whirlpool HVAC Air Duct Backorder WPL W11050145 $58.75

16

W11548479 Whirlpool Knob Backorder WPL W11548479 $83.77

W11169708 Whirlpool Screw Backorder WPL W11169708 $9.59

W11193480 Whirlpool Screw Backorder WPL W11193480 $9.59

W11394663-includeCORE Whirlpool W11394663 Ref Backorder WPL W11394663-includeCORE $274.60

CHANNEL, WIRE WPL W11368831 Contact Us For Availability

18

W11344755 Whirlpool Cooktop Backorder WPL W11344755 $60.09

18

W11362015 Whirlpool Retainer Backorder WPL W11362015 $57.47

18A

W11344757 Whirlpool Cooktop Backorder WPL W11344757 $60.09

18B

W11344761 Whirlpool Cooktop Backorder WPL W11344761 $60.09

19

W11318855 Whirlpool Antenna Backorder WPL W11318855 $107.97

19

TOP, CHASSIS WPL W11324985 Contact Us For Availability

20

W10271524 Whirlpool Trim Top Backorder WPL W10271524 $88.85

20

CHASSIS, BOTTOM WPL W11040801 Contact Us For Availability

21

W10130760 Whirlpool Bracket Mounting Backorder WPL W10130760 $26.21

21

W11103333 Whirlpool Rear Cover Backorder WPL W11103333 $53.05

21A

W10130759 Whirlpool Mounting Bracket Backorder WPL W10130759 $26.21

22

W11674763 Whirlpool Screw Backorder WPL W11674763 $8.11

22

PANEL, BACK BOTTOM WPL W11034133 Contact Us For Availability

23

W11320155 Whirlpool Mounting Bracket Backorder WPL W11320155 $39.36

23

W11385637 Whirlpool Control Panel Backorder WPL W11385637 $278.47

23

WP12992902 Whirlpool Refrigerator Screw Backorder WPL WP12992902 $4.58

24

W11193822 Whirlpool Regulator Backorder WPL W11193822 $108.40

24

W11380561 Whirlpool Knob Backorder WPL W11380561 $41.30

25

W11318207 Whirlpool Clip Assembly Backorder WPL W11318207 $4.61

25

W11380562 Whirlpool Knob Assembly Backorder WPL W11380562 $41.30

25

W11643161 Whirlpool Oven Burner Backorder WPL W11643161 $63.82

26

W10896366 Whirlpool Light Indicator Backorder WPL W10896366 $39.51

26

W11661180 Whirlpool Burner Broiler Backorder WPL W11661180 $60.20

26

DRAWER, APPLIANCE MANAGER WPL W11106341 Contact Us For Availability

27

W11199181 Whirlpool Foot Cover Backorder WPL W11199181 $54.37

27

WPL W10913810 WPL W10913810 Contact Us For Availability

27A

W11199178 Whirlpool Foot Cover Assembly Backorder WPL W11199178 $54.37

28

W11190223 Whirlpool Bracket Assembly Backorder WPL W11190223 $39.36

28

W11385692 Whirlpool Knob Backorder WPL W11385692 $75.86

29

W11239228 Whirlpool Gas Valve Backorder WPL W11239228 $120.72

29

WPL W11205794 WPL W11205794 Contact Us For Availability

30

W11241511 Whirlpool Push Button Backorder WPL W11241511 $24.16

31

W11476245 Whirlpool Trim Top Backorder WPL W11476245 $178.41

32

W10323250 Whirlpool Top Trim Backorder WPL W10323250 $61.00

34

W11241510 Whirlpool Push Button Backorder WPL W11241510 $25.40

34

WPW10511278 Whirlpool Spark Module In Stock WPL WPW10511278 $130.22

35

WP3400814 Whirlpool Screw Backorder WPL WP3400814 $2.91

36

WPL 7101P62460 WPL 7101P62460 Contact Us For Availability

37

W11550692 Whirlpool Bumper In Stock WPL W11550692 $6.73

38

W11234290 Whirlpool Electronic Control Board Backorder WPL W11234290 $75.33

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $9.59

W10123240 Whirlpool Broil Pan and Roasting Ra Backorder WPL W10123240 $72.40

W10160195 Whirlpool Cover Backorder WPL W10160195 $160.20

W10216179 Whirlpool Wok Ring In Stock WPL W10216179 $22.05

W10285449 Whirlpool Backsplash Backorder WPL W10285449 $484.00

W10355051 Whirlpool Cooktop Cleaner Affresh ( In Stock WPL W10355051 $5.93

W10624584 Whirlpool Power Cord Backorder WPL W10624584 $71.21

W10780278 Whirlpool Wire Harness Backorder WPL W10780278 $41.63

W11200307 Whirlpool Wire Harness Backorder WPL W11200307 $167.94

W11200325 Whirlpool Wire Harness Backorder WPL W11200325 $75.77

W11317791 Whirlpool Wire Harness Backorder WPL W11317791 $75.77

W11368841BN Whirlpool Medallion Backorder WPL W11368841BN $88.69

W11368841CF Whirlpool Range Medallion Backorder WPL W11368841CF $88.69

W11368841NE Whirlpool Medallion Backorder WPL W11368841NE $131.86

W11368841RE Whirlpool Range Commercial-Style Backorder WPL W11368841RE $83.26

W11446236 Whirlpool Wire Harness Backorder WPL W11446236 $9.31

W11446239 Whirlpool Wire Harness Backorder WPL W11446239 $9.33

W11502161 Whirlpool Conversion Kit In Stock WPL W11502161 $24.91

W11544575 Whirlpool Anti-Tip Bracket Backorder WPL W11544575 $19.47

WP3400968 Whirlpool Nut Backorder WPL WP3400968 $3.70

FOLLOWING PARTS NOT ILLUSTRATED WPL NP Contact Us For Availability

SCREW, ANTI-TIP KIT WPL 7101P48560 Contact Us For Availability

HARNESS, COOKTOP WPL W11200332 Contact Us For Availability

ACCESSORY PARTS, STAINLESS STEEL CLEANER & PO WPL 4396920 Contact Us For Availability

ACCESSORY PARTS, BACKSPLASH (ADJUSTABLE) WPL 8284755 Contact Us For Availability

ACCESSORY PARTS, KIT, HIGH ALTITUDE WPL W11238043 Contact Us For Availability

ACCESSORY PARTS, MEDALLION, HANDLE (BLACK ANO WPL W11368841BO Contact Us For Availability

ACCESSORY PARTS, MEDALLION, HANDLE (DARK BLUE WPL W11368841DD Contact Us For Availability

ACCESSORY PARTS, MEDALLION, HANDLE (MARSCAPON WPL W11368841MP Contact Us For Availability
