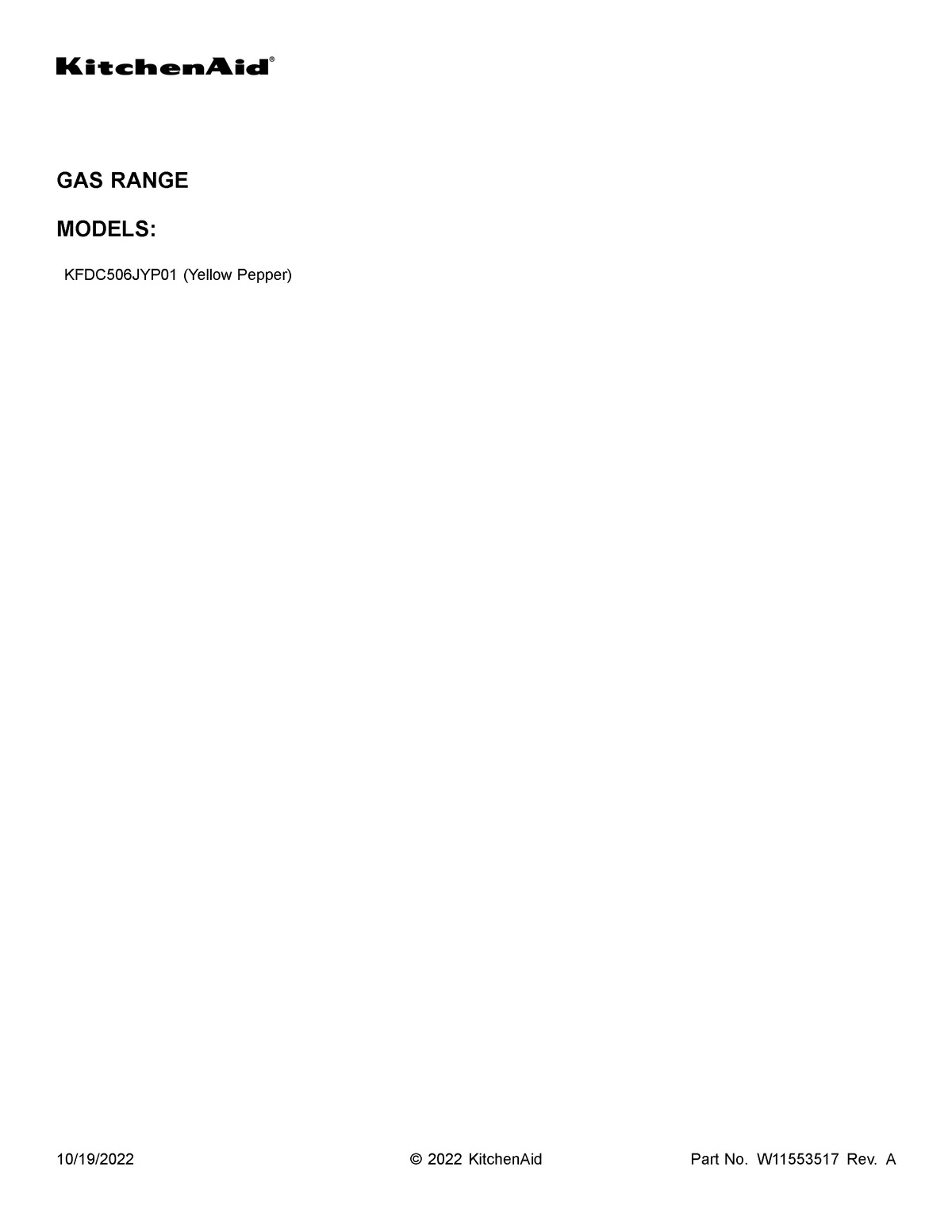

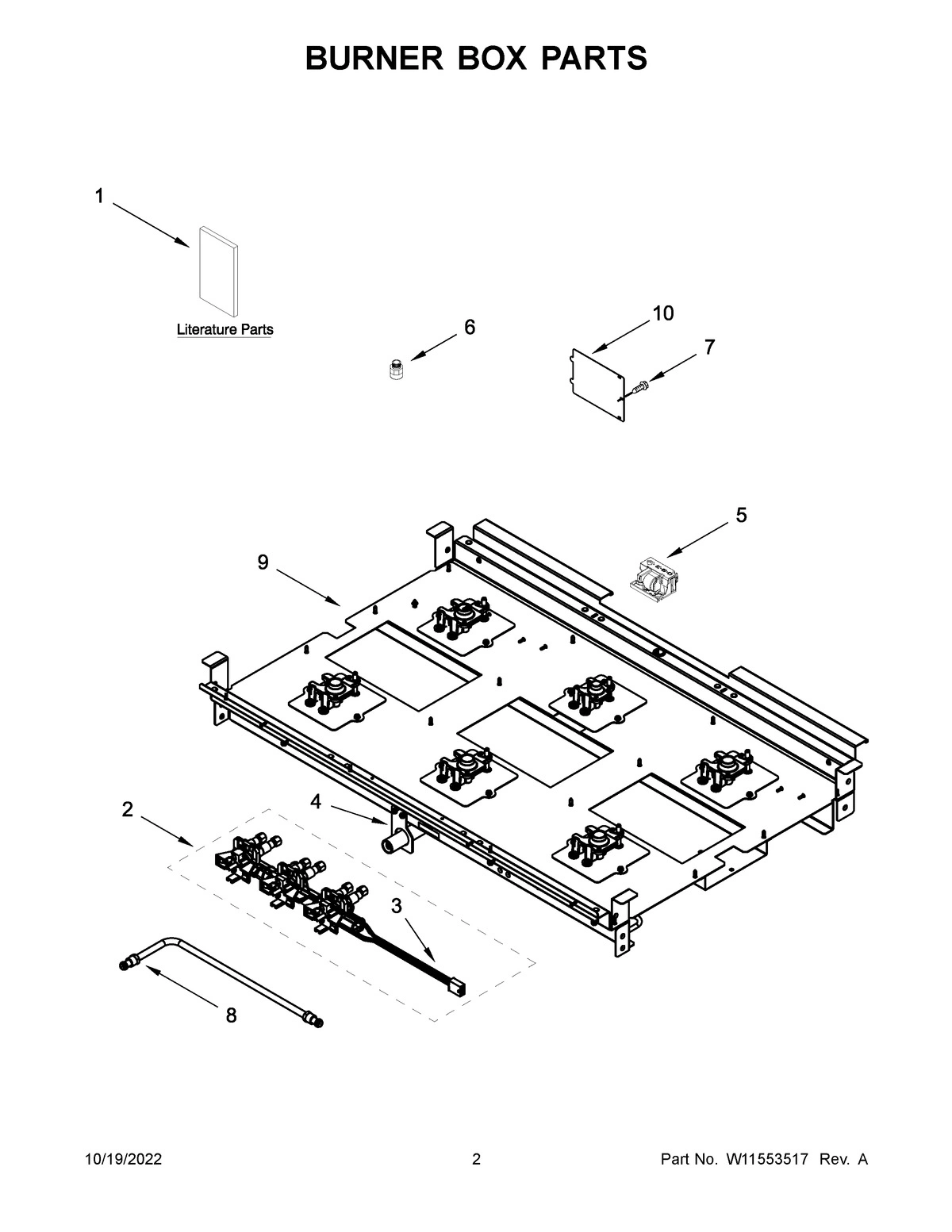

Model Whirlpool KFDC506JYP01 RANGE/OVEN, GAS – Common Parts &amp; Diagrams

1

VENT-EXHST Backorder WPL W10818234 $66.77

1

W11334152 Whirlpool Glass Frame In Stock WPL W11334152 $122.09

1

WP4449751 Whirlpool Range Oven Thermostat Fix In Stock WPL WP4449751 $76.71

1

KICKPLATE WPL W11394789 Contact Us For Availability

2

W10859573 Whirlpool Range Oven Temperature Se In Stock WPL W10859573 $68.99

2

COVER-REAR Backorder WPL W11324988 $101.60

2

W11688331 Whirlpool Insulation Backorder WPL W11688331 $16.85

2

W11688507 Whirlpool Insulation In Stock WPL W11688507 $9.10

2

VENT, COOLING TOP (30 IN) WPL W11105223 Contact Us For Availability

3

W10822069 Whirlpool Range Rack Backorder WPL W10822069 $66.28

3

W10903729 Whirlpool Wire Harness Backorder WPL W10903729 $70.03

3

W11233072 Whirlpool Screw In Stock WPL W11233072 $10.41

3

W11248652 Whirlpool Blower In Stock WPL W11248652 $120.33

3

W11334153 Whirlpool Door Glass Backorder WPL W11334153 $60.54

3

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $17.40

4

W11029221 Whirlpool Door Latch In Stock WPL W11029221 $116.09

4

W11095572 Whirlpool Duct Backorder WPL W11095572 $95.12

4

W11194820 Whirlpool Retainer In Stock WPL W11194820 $60.35

4

W11573760 Whirlpool Surface Igniter In Stock WPL W11573760 $8.44

4

RACK-OVEN Backorder WPL W11794357 $245.73

4

VENT, COOLING BOTTOM (30 IN) WPL W11105222 Contact Us For Availability

4A

W11628654 Whirlpool Surface Igniter Backorder WPL W11628654 $19.62

5

SHIELD-HT Backorder WPL W10160856 $68.91

5

W11568941 Whirlpool Door Hinge Assembly In Stock WPL W11568941 $62.39

5

TUBE, VENT WPL W11290663 Contact Us For Availability

5

PLATE, COOLING LATCH WPL W11109518 Contact Us For Availability

6

4453116 Whirlpool Range Adapter Backorder WPL 4453116 $72.36

6

W10169756 Whirlpool Light Lens Backorder WPL W10169756 $27.80

6

W10859931 Whirlpool Foot Level Backorder WPL W10859931 $46.17

6

W11193480 Whirlpool Screw In Stock WPL W11193480 $9.59

6

W11662207 Whirlpool Convection Baffle Backorder WPL W11662207 $60.04

6

BOX, TERMINAL WPL W11353392 Contact Us For Availability

7

W10860984 Whirlpool Fan Motor In Stock WPL W10860984 $74.69

7

W10908710 Whirlpool Mounting Bracket Backorder WPL W10908710 $79.35

7

W11194814 Whirlpool Window Frame Backorder WPL W11194814 $122.09

7

W11233684 Whirlpool Range Light Assembly Backorder WPL W11233684 $36.75

7

W11643628 Whirlpool Screw In Stock WPL W11643628 $9.59

7

SCREW WPL 7101P42660 Contact Us For Availability

8

W10819914 Whirlpool Convection Fan In Stock WPL W10819914 $35.67

8

W11712404 Whirlpool Screw Backorder WPL W11712404 $8.11

8

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

8

WPW10169757 Whirlpool Light Bulb In Stock WPL WPW10169757 $29.94

8

BRACKET, BLOWER MOUNT WPL W11047754 Contact Us For Availability

9

W10261523 Whirlpool Plate Backorder WPL W10261523 $27.12

9

W10270397 Whirlpool Vent Seal Backorder WPL W10270397 $12.11

9

W10920281 Whirlpool Screw Backorder WPL W10920281 $2.95

9

COVER-CNTL Backorder WPL W11369237 $55.78

9

RECEIVER, HINGE (LEFT) WPL W11096294 Contact Us For Availability

W10115869 Whirlpool Shaft Backorder WPL W10115869 $43.57

SEAL-FOAM Backorder WPL W10270396 $29.48

W10794042 Whirlpool Nut Backorder WPL W10794042 $5.29

RECEIVER, HINGE (RIGHT) WPL W11096293 Contact Us For Availability

ASSEMBLY, OUTER DOOR (INCLUDES HANDLE) WPL W11389315 Contact Us For Availability

W10115793 Whirlpool Shaft Backorder WPL W10115793 $33.69

W11380145 Whirlpool Knob Bezel Backorder WPL W11380145 $34.48

W11643125 Whirlpool Element Backorder WPL W11643125 $46.65

WP9761958 Whirlpool Range Terminal Block In Stock WPL WP9761958 $14.49

HANDLE ASSEMBLY WPL W11362709 Contact Us For Availability

489504 Whirlpool Range Ring Backorder WPL 489504 $4.85

W11106922 Whirlpool Dishwasher Bake Tray Backorder WPL W11106922 $56.74

W11320145 Whirlpool Cabinet Panel Backorder WPL W11320145 $124.37

W11380146 Whirlpool Knob Bezel Backorder WPL W11380146 $33.65

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

BRACKET, HANDLE WPL W11197830 Contact Us For Availability

12A

CHASSIS, SIDE (RIGHT) WPL W11102296 Contact Us For Availability

W10839793 Whirlpool Refrigerator Nameplate In Stock WPL W10839793 $23.59

W11320154 Whirlpool Range Gas Tubing Backorder WPL W11320154 $66.79

W11344538 Whirlpool Surface Burner Cap In Stock WPL W11344538 $88.06

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $59.04

COVER, CHANNEL WPL W11106956 Contact Us For Availability

W10160858 Whirlpool Lid Cover Backorder WPL W10160858 $27.52

SUPPORT Backorder WPL W11087493 $49.10

W11175143 Whirlpool Gasket In Stock WPL W11175143 $9.68

W11344539 Whirlpool Burner Head In Stock WPL W11344539 $46.70

WP4449154 Whirlpool Screw In Stock WPL WP4449154 $2.51

WPW10276043 Whirlpool Screw Backorder WPL WPW10276043 $2.51

14A

W11344742 Whirlpool Burner Head In Stock WPL W11344742 $49.46

14B

W11344746 Whirlpool Burner Head Backorder WPL W11344746 $48.64

15

8186589 Whirlpool Jack Probe Backorder WPL 8186589 $64.26

15

W11676901 Whirlpool Range Gasket Backorder WPL W11676901 $26.72

15

MEDALLION, HANDLE WPL W11361074 Contact Us For Availability

W10162096 Whirlpool Screw Backorder WPL W10162096 $9.59

W11050145 Whirlpool HVAC Air Duct Backorder WPL W11050145 $61.68

W11231343 Whirlpool Lock Nut In Stock WPL W11231343 $9.59

W11567541 Whirlpool Knob Backorder WPL W11567541 $75.35

SCREW Backorder WPL W10739592 $6.28

W11385634-includeCORE Whirlpool W11385634 Ran Backorder WPL W11385634-includeCORE $238.39

W11568813 Whirlpool Door Hinge In Stock WPL W11568813 $46.65

CHANNEL, WIRE WPL W11368831 Contact Us For Availability

18

W10860270 Whirlpool Bake Element Assembly Backorder WPL W10860270 $71.02

18

W11344755 Whirlpool Cooktop Backorder WPL W11344755 $63.10

18

W11362015 Whirlpool Retainer Backorder WPL W11362015 $60.35

18A

W11344757 Whirlpool Cooktop Backorder WPL W11344757 $63.10

18B

W11344761 Whirlpool Cooktop Backorder WPL W11344761 $63.10

19

W10850807 Whirlpool Screw Backorder WPL W10850807 $2.51

19

W11318855 Whirlpool Antenna Backorder WPL W11318855 $113.37

19

TOP, CHASSIS WPL W11324985 Contact Us For Availability

20

BOTTM-MAIN Backorder WPL W11040801 $113.48

20

WPL 7101P33860 WPL 7101P33860 Contact Us For Availability

21

W10130760 Whirlpool Bracket Mounting Backorder WPL W10130760 $27.52

21

W11103333 Whirlpool Rear Cover Backorder WPL W11103333 $55.10

21A

W10130759 Whirlpool Mounting Bracket Backorder WPL W10130759 $27.52

22

COVER-REAR Backorder WPL W11034133 $66.48

22

W11509770 Whirlpool Screw In Stock WPL W11509770 $10.41

23

W11320155 Whirlpool Mounting Bracket Backorder WPL W11320155 $41.34

23

PANL-CNTRL Backorder WPL W11728201 $395.10

24

W11106948 Whirlpool Pressure Regulator In Stock WPL W11106948 $112.73

24

W11380561 Whirlpool Knob Backorder WPL W11380561 $43.37

25

W11318207 Whirlpool Clip Assembly Backorder WPL W11318207 $4.61

25

W11380562 Whirlpool Knob Assembly Backorder WPL W11380562 $43.37

26

W10896366 Whirlpool Light Indicator Backorder WPL W10896366 $41.49

26

DRAWER, APPLIANCE MANAGER WPL W11106341 Contact Us For Availability

27

W11199181 Whirlpool Foot Cover Backorder WPL W11199181 $57.09

27

WPL W11500871 WPL W11500871 Contact Us For Availability

27A

W11199178 Whirlpool Foot Cover Assembly Backorder WPL W11199178 $57.09

28

W11192749 Whirlpool Front Frame Backorder WPL W11192749 $123.23

28

W11548477 Whirlpool Knob Backorder WPL W11548477 $87.95

29

WPW10351278 Whirlpool Bumper Backorder WPL WPW10351278 $3.70

29

WPL W11205794 WPL W11205794 Contact Us For Availability

30

W11169708 Whirlpool Screw Backorder WPL W11169708 $9.59

30

W11241511 Whirlpool Push Button Backorder WPL W11241511 $25.36

31

W11156416 Whirlpool Top Trim Backorder WPL W11156416 $92.47

32

W10271524 Whirlpool Trim Top Backorder WPL W10271524 $88.85

34

W11241510 Whirlpool Push Button Backorder WPL W11241510 $26.66

35

WP3400814 Whirlpool Screw Backorder WPL WP3400814 $2.91

36

WPL 7101P62460 WPL 7101P62460 Contact Us For Availability

37

W11550692 Whirlpool Bumper In Stock WPL W11550692 $11.72

38

W11234290 Whirlpool Electronic Control Board Backorder WPL W11234290 $75.33

39

W11123146 Whirlpool Speaker Backorder WPL W11123146 $31.29

W10115776 Whirlpool Backsplash Backorder WPL W10115776 $226.80

W10285448 Whirlpool Backsplash Backorder WPL W10285448 $422.40

ACCESSORY PARTS, CLEANER, COOKTOP WPL W10355051 No Longer Available

W11368841BN Whirlpool Medallion Backorder WPL W11368841BN $88.69

W11368841CF Whirlpool Range Medallion Backorder WPL W11368841CF $88.69

MEDALLION Backorder WPL W11368841MP $75.12

W11368841NE Whirlpool Medallion Backorder WPL W11368841NE $131.86

W11368841RE Whirlpool Range Commercial-Style Backorder WPL W11368841RE $83.26

W11502161 Whirlpool Conversion Kit In Stock WPL W11502161 $26.97

W11544575 Whirlpool Anti-Tip Bracket Backorder WPL W11544575 $19.47

W11688743 Whirlpool Insulation Backorder WPL W11688743 $88.44

WP3400968 Whirlpool Nut Backorder WPL WP3400968 $3.70

ACCESSORY PARTS, SPRAY, STAINLESS STEEL CLEAN WPL W11042467 Contact Us For Availability

PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE WPL NP Contact Us For Availability

INSULATION, BACK, 36" WPL W10282813 Contact Us For Availability

ACCESSORY PARTS, MEDALLION, HANDLE (BLACK ANO WPL W11368841BO Contact Us For Availability

ACCESSORY PARTS, MEDALLION, HANDLE (DARK BLUE WPL W11368841DD Contact Us For Availability
