Model Whirlpool KERS502SWB1 30`` ELECTRIC FREESTANDING SELF CLEAN RANGE CONVEC – Common Parts &amp; Diagrams

WP312309 Whirlpool Bake Element In Stock WPL WP312309 $70.05

WP660533 Whirlpool Oven 8" Surface Element In Stock WPL WP660533 $15.88

Screw, 10-12 x 7/8 (2) WPL 308043 Contact Us For Availability

1

Main Chassis (White) WPL 330086 Contact Us For Availability

1

Main Chassis (Almond) WPL 330090 Contact Us For Availability

1

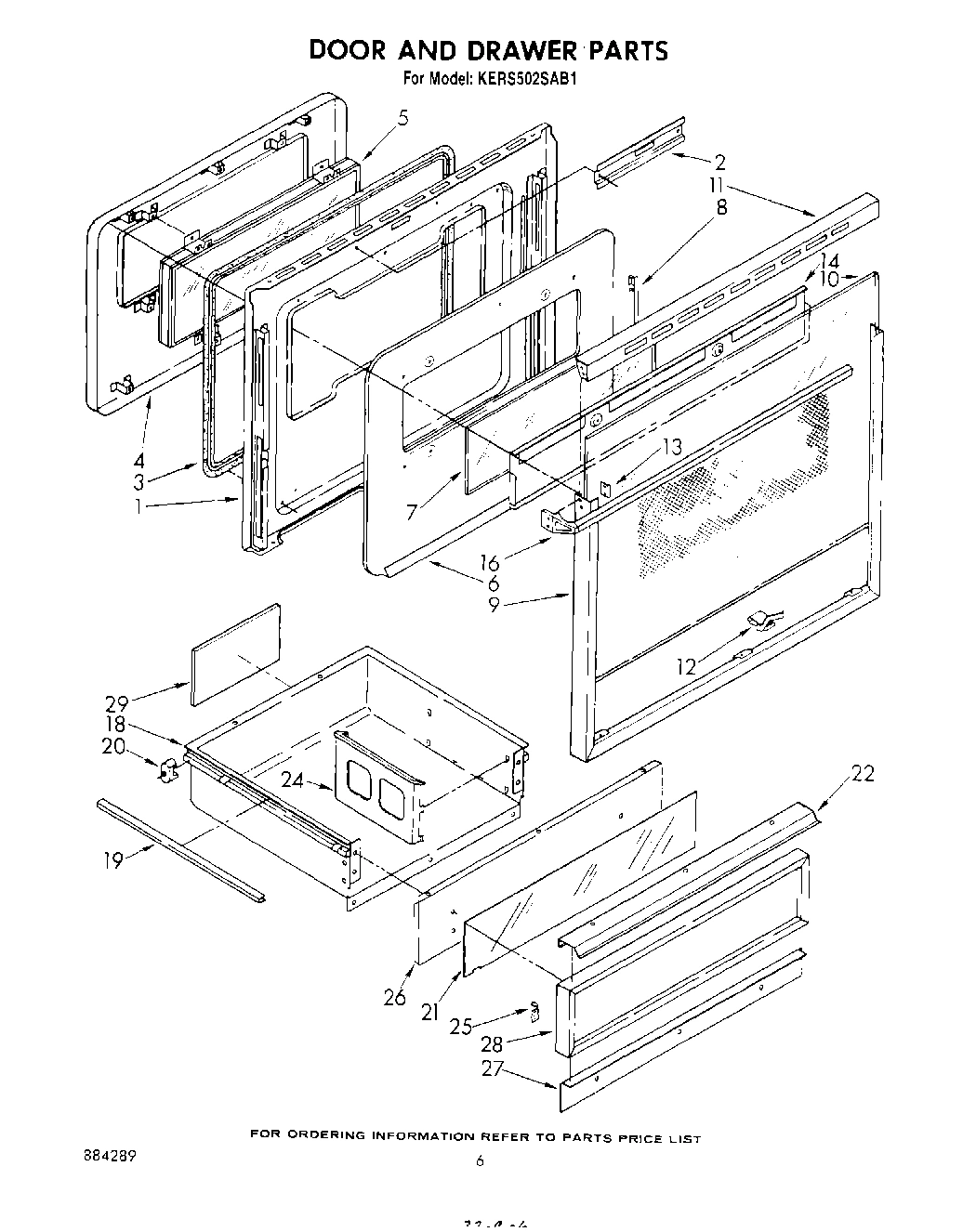

Liner, Door WPL 329694 Contact Us For Availability

1

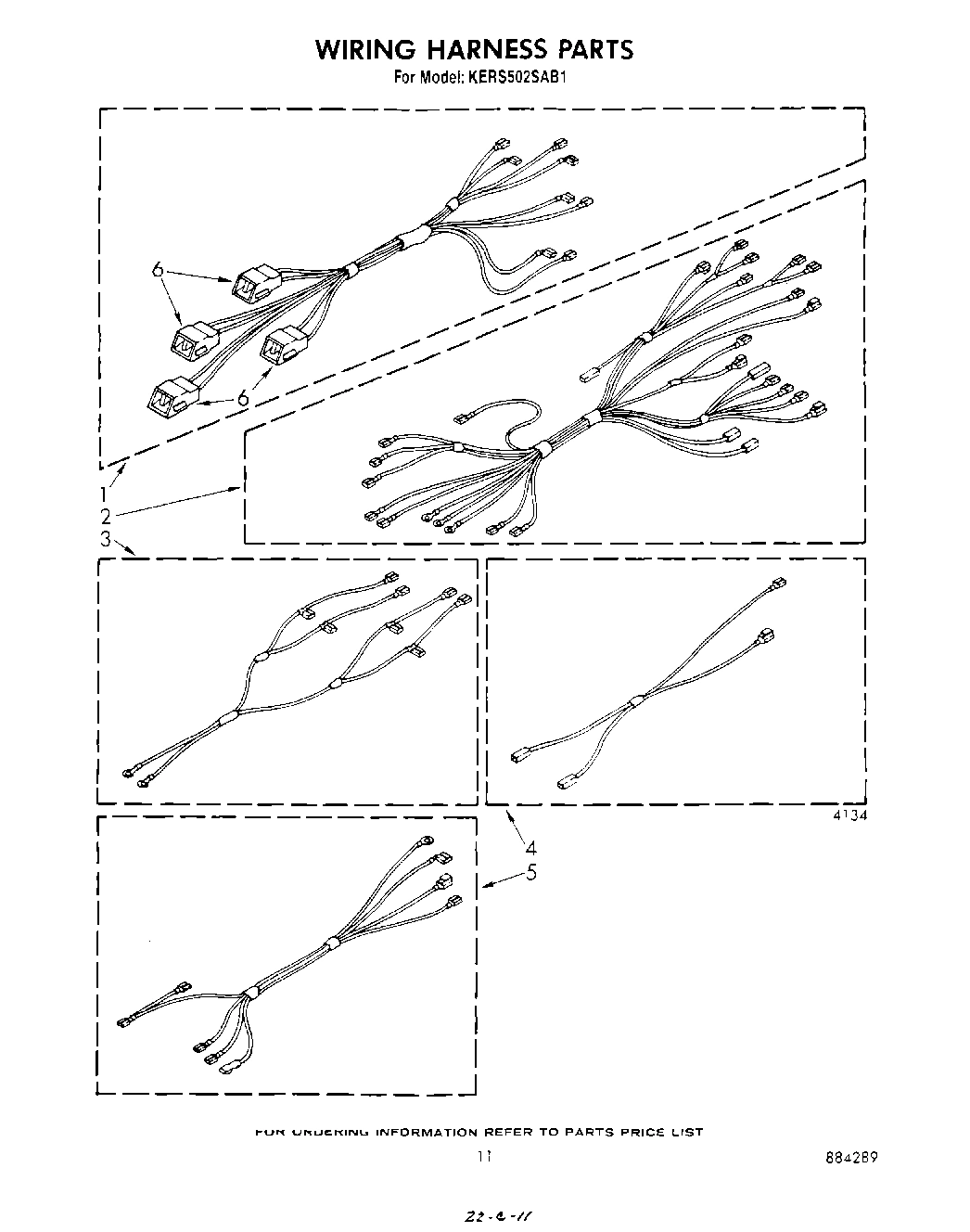

Harness, Wire (Suface Units) WPL 313148 Contact Us For Availability

1

Latch Assembly (Pyro) WPL 328585 Contact Us For Availability

2

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

2

Bumper, Cooktop (2) WPL 3147271 Contact Us For Availability

2

End Cap L.H. WPL 3147087 Contact Us For Availability

2

End Cap R.H. WPL 3147088 Contact Us For Availability

2

Channel, Latch WPL 308033 Contact Us For Availability

2

Harness, Wire (Oven) WPL 3147816 Contact Us For Availability

2

Safety Switch WPL 308185 Contact Us For Availability

2

Screw (2) WPL 98106 Contact Us For Availability

3

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.09

3

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

3

Bracket, Switch WPL 3147033 Contact Us For Availability

3

Seal, Fiberglass WPL 311904 Contact Us For Availability

3

Harness, Wire (Supply) WPL 313147 Contact Us For Availability

3

Insulator, Switch WPL 309245 Contact Us For Availability

4

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $24.28

4

Frame, Front WPL 330166 Contact Us For Availability

4

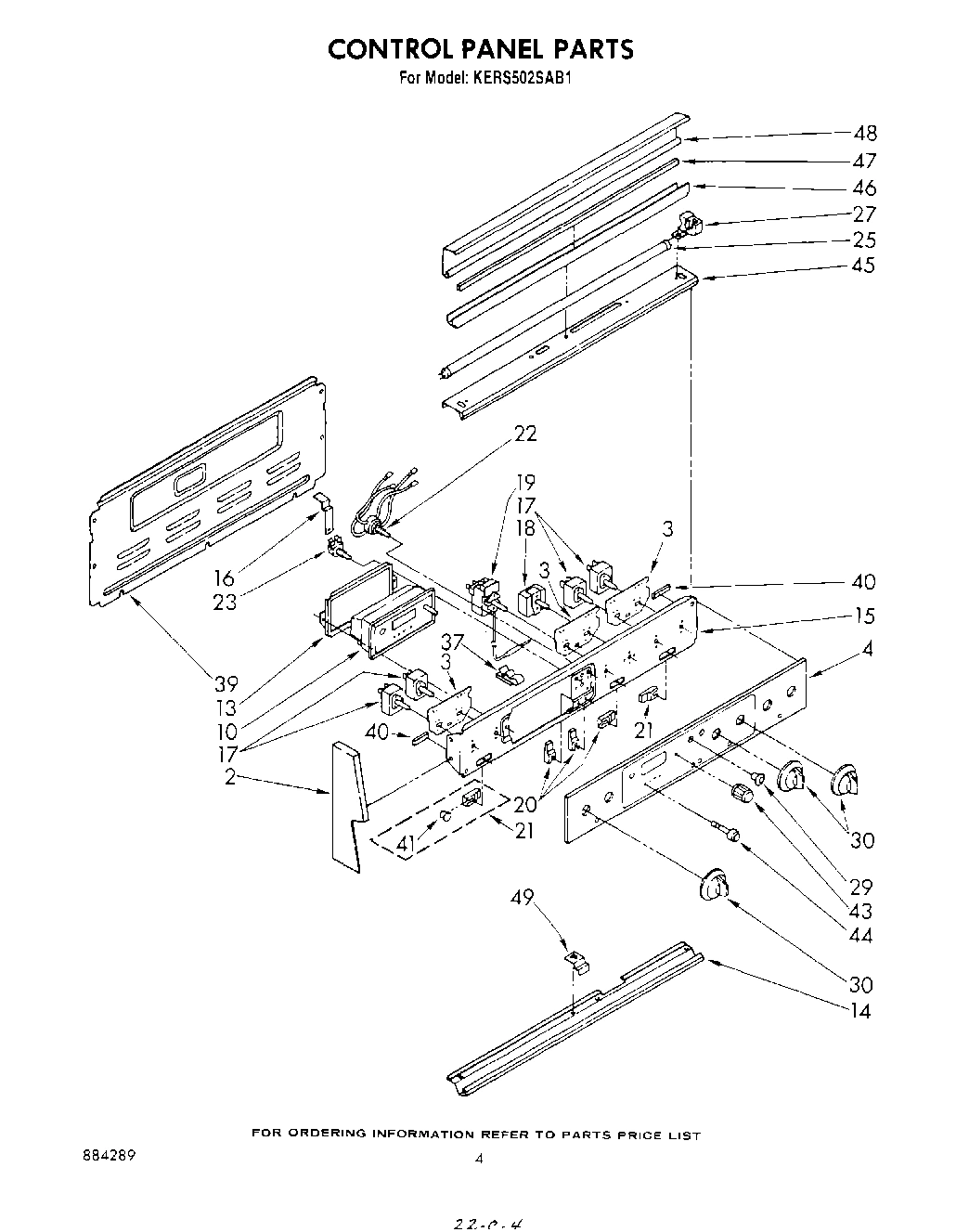

Control Panel, Glass WPL 3147156 Contact Us For Availability

4

Panel, Inner WPL 327898 Contact Us For Availability

4

Harness, Wiring (Oven Light) WPL 313152 Contact Us For Availability

4

Screw, 6 x 3/8B (2) WPL 309258 Contact Us For Availability

4

Shield, Latch Terminal WPL 313035 Contact Us For Availability

5

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

5

Pin, Hinge WPL 307985 Contact Us For Availability

5

Screw (2) WPL 311056 Contact Us For Availability

5

Window Package WPL 330038 Contact Us For Availability

5

Harness, Wire (Lockswitch) WPL 313155 Contact Us For Availability

5

Screw, 10-24 x 1/2 (2) WPL 308422 Contact Us For Availability

5

Handle, Latch WPL 3147065 Contact Us For Availability

6

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

6

Screw, 10A x 1/2 (8) WPL 247326 Contact Us For Availability

6

Retainer, Insulation WPL 308021 Contact Us For Availability

6

Knob, Latch WPL 3147064 Contact Us For Availability

7

Pushnut WPL 308306 Contact Us For Availability

7

Glass (6.81`` x 18.31``) WPL 309842 Contact Us For Availability

7

Burner Box WPL 307929 Contact Us For Availability

8

Hinge (R.H.) WPL 327890 Contact Us For Availability

8

Hinge (L.H.) WPL 327891 Contact Us For Availability

8

Retainer, Glass WPL 309843 Contact Us For Availability

8

Shield, Wiring WPL 307973 Contact Us For Availability

9

Oven (30`` Pyro) WPL 329002 Contact Us For Availability

9

Frame, Door WPL 3148023 Contact Us For Availability

9

Rod, Cooktop WPL 307968 Contact Us For Availability

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

Socket, Lamp (Alt.) WPL 307856 Contact Us For Availability

Socket, Lamp (Alt.) WPL 310208 Contact Us For Availability

Socket, Lamp WPL 660556 Contact Us For Availability

Timer, Digital WPL 3147714 Contact Us For Availability

Glass, Outer WPL 309069 Contact Us For Availability

Retainer, Cooktop WPL 307967 Contact Us For Availability

11

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

11

Top, Door Frame WPL 314250 Contact Us For Availability

11

Bracket, Cooktop (2) WPL 307965 Contact Us For Availability

12

Cover, Light WPL 308039 Contact Us For Availability

12

Pin, Cooktop (2) WPL 307966 Contact Us For Availability

Retainer, Light WPL 308038 Contact Us For Availability

Bracket, Timer (2) WPL 313475 Contact Us For Availability

Clip (2) WPL 314235 Contact Us For Availability

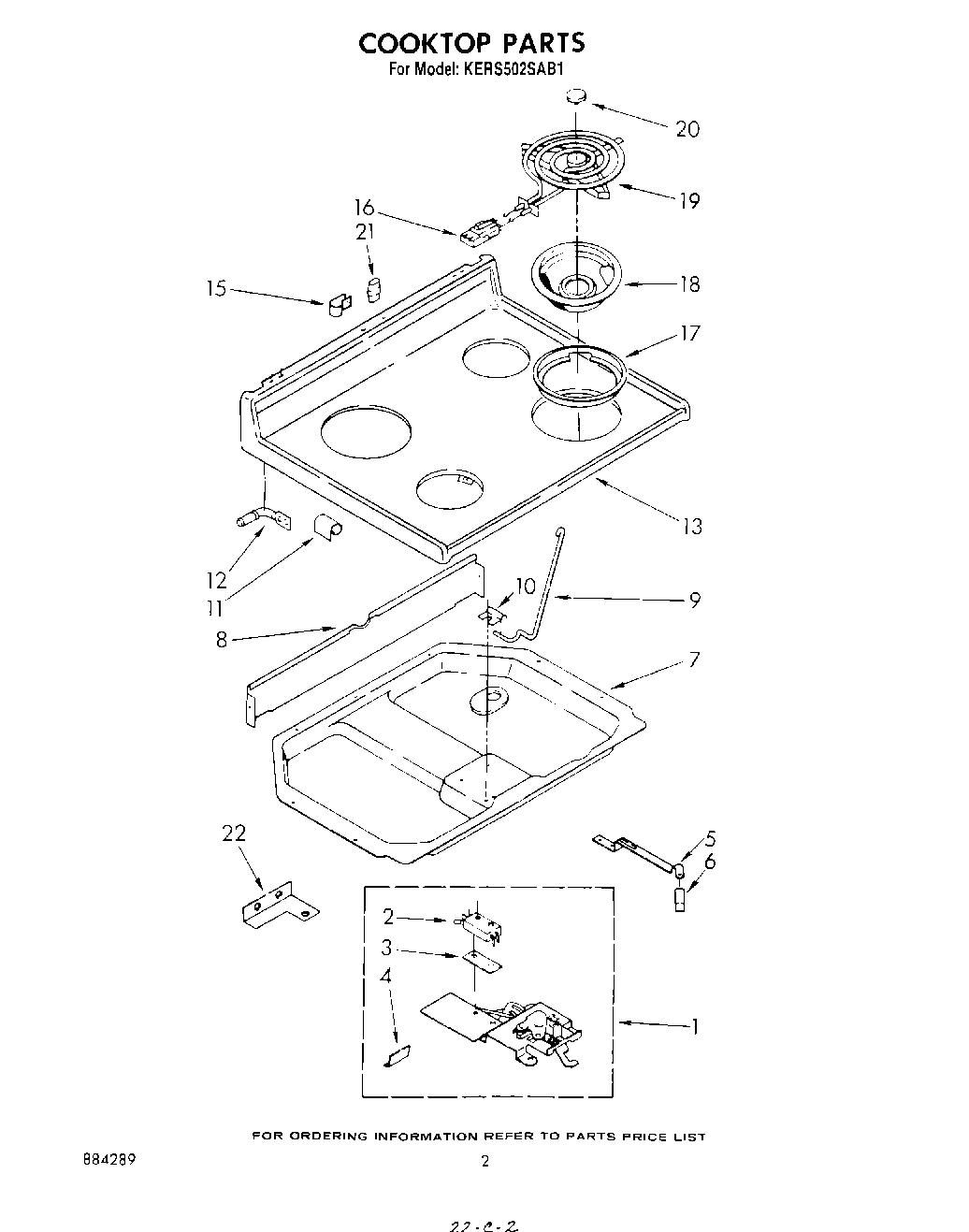

Cooktop (White) WPL 307866 Contact Us For Availability

Cooktop (Almond) WPL 307871 Contact Us For Availability

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

Plug Button WPL 257314 Contact Us For Availability

Trim, Bottom WPL 313424 Contact Us For Availability

Baffle, Heat WPL 309056 Contact Us For Availability

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $4.81

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability

Screw 8-18 x 5/8 (4) WPL 312604 Contact Us For Availability

Bracket, Control WPL 3147063 Contact Us For Availability

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 $5.40

WP313808 Whirlpool Screw In Stock WPL WP313808 $2.51

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

Plate, Cover (2) WPL 311982 Contact Us For Availability

Vent, Oven WPL 307961 Contact Us For Availability

Screw 8BT x 1/4 (2) WPL 254225 Contact Us For Availability

Brace, Control Bracket WPL 313312 Contact Us For Availability

Handle, Oven Door WPL 3147636 Contact Us For Availability

16515 Whirlpool Clip Backorder WPL 16515 $11.62

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $35.69

W10854470 Whirlpool Trim Ring Backorder WPL W10854470 $29.99

W10858781 Whirlpool Trim Ring Backorder WPL W10858781 $31.11

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

WPL 242832 WPL 242832 Contact Us For Availability

WPL 242985 WPL 242985 Contact Us For Availability

WPL 261582 WPL 261582 Contact Us For Availability

WPL 261886 WPL 261886 Contact Us For Availability

WPL 261887 WPL 261887 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261889 WPL 261889 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Switch, Broil WPL 314209 Contact Us For Availability

Switch, Infinite (Use W/6`` Surface Unit (2)) WPL 314267 Contact Us For Availability

Switch, Infinite (Use W/8`` Surface Unit (2)) WPL 314269 Contact Us For Availability

W10291024 Whirlpool Range Cooktop Gray Porcel In Stock WPL W10291024 $30.20

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

Screw, No.6 WPL 314215 Contact Us For Availability

Switch, Bake WPL 314210 Contact Us For Availability

Switch, Selector (5 Position) WPL 312290 Contact Us For Availability

Drawer, Utility WPL 330667 Contact Us For Availability

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $12.14

Channel, Arm (2) WPL 329710 Contact Us For Availability

Thermostat, Oven Pyro WPL 313862 Contact Us For Availability

Protector, Drawer Side (2) WPL 309329 Contact Us For Availability

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

Light, Indicator (3) (Oven, Lock, Clean) (Inc WPL 314126 Contact Us For Availability

Glide, Rear (2) WPL 307980 Contact Us For Availability

Medallion (4) WPL 309195 Contact Us For Availability

WP75614 Whirlpool Connector Backorder WPL WP75614 $2.51

Ring, Retainer (2) WPL 307594 Contact Us For Availability

Light, Indicator (Surface Unit) (2) (Includes WPL 313106 Contact Us For Availability

Glass, Drawer WPL 314261 Contact Us For Availability

WP308126 Whirlpool Door Spring In Stock WPL WP308126 $12.59

Screw, 10A x 1/2 WPL 307748 Contact Us For Availability

Nut, 3/8 x 27 (2) WPL 255912 Contact Us For Availability

Switch, Fluorescent Light WPL 313348 Contact Us For Availability

Handle, Drawer WPL 3148021 Contact Us For Availability

Shield, Insulation WPL 312320 Contact Us For Availability

23

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

23

Washer WPL 312796 Contact Us For Availability

23

Switch, Oven Light WPL 312581 Contact Us For Availability

24

Support, L.H. Channel WPL 313196 Contact Us For Availability

24

Support, R.H. Channel WPL 313197 Contact Us For Availability

24

Rack, Literature WPL 357645 Contact Us For Availability

25

Switch, Door WPL 310345 Contact Us For Availability

25

Lamp, Fluorescent WPL 313110 Contact Us For Availability

25

Clip, Glass WPL 314234 Contact Us For Availability

26

Ballast WPL 660001 Contact Us For Availability

26

Liner, Glass WPL 314259 Contact Us For Availability

98005642 Whirlpool Clip Backorder WPL 98005642 $28.80

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

Socket, Fluorescent Light R.H. WPL 313194 Contact Us For Availability

Socket, Fluorescent Light L.H. WPL 3147820 Contact Us For Availability

Plate, Kick WPL 314323 Contact Us For Availability

28

Screw, 8-32 x 5/16 (2) WPL 307537 Contact Us For Availability

28

Locator, Cooktop (2) WPL 311909 Contact Us For Availability

28

Frame, Glass WPL 3148022 Contact Us For Availability

29

Snubber, Door (2) WPL 309111 Contact Us For Availability

29

Bezel, Switch (2) WPL 313030 Contact Us For Availability

29

Pad, Sound (2) WPL 302340 Contact Us For Availability

30

Knob, Control (6) WPL 314222 Contact Us For Availability

37

Tube Clip WPL 313570 Contact Us For Availability

39

Rear Cover Control Panel WPL 313195 Contact Us For Availability

40

Seal, Foam (2) WPL 308299 Contact Us For Availability

41

Lens, Amber (5) WPL 311688 Contact Us For Availability

43

Knob, Generator WPL 313523 Contact Us For Availability

44

Button, Set (4) (Includes Illus. 42) WPL 314132 Contact Us For Availability

45

Trim, Socket (Top) WPL 313199 Contact Us For Availability

46

Backguard, Lamp WPL 313398 Contact Us For Availability

47

Protector, Backgu WPL 313444 Contact Us For Availability

48

WPL 3147699 WPL 3147699 Contact Us For Availability

49

WPL 246131 WPL 246131 Contact Us For Availability

49

WPL 313482 WPL 313482 Contact Us For Availability
