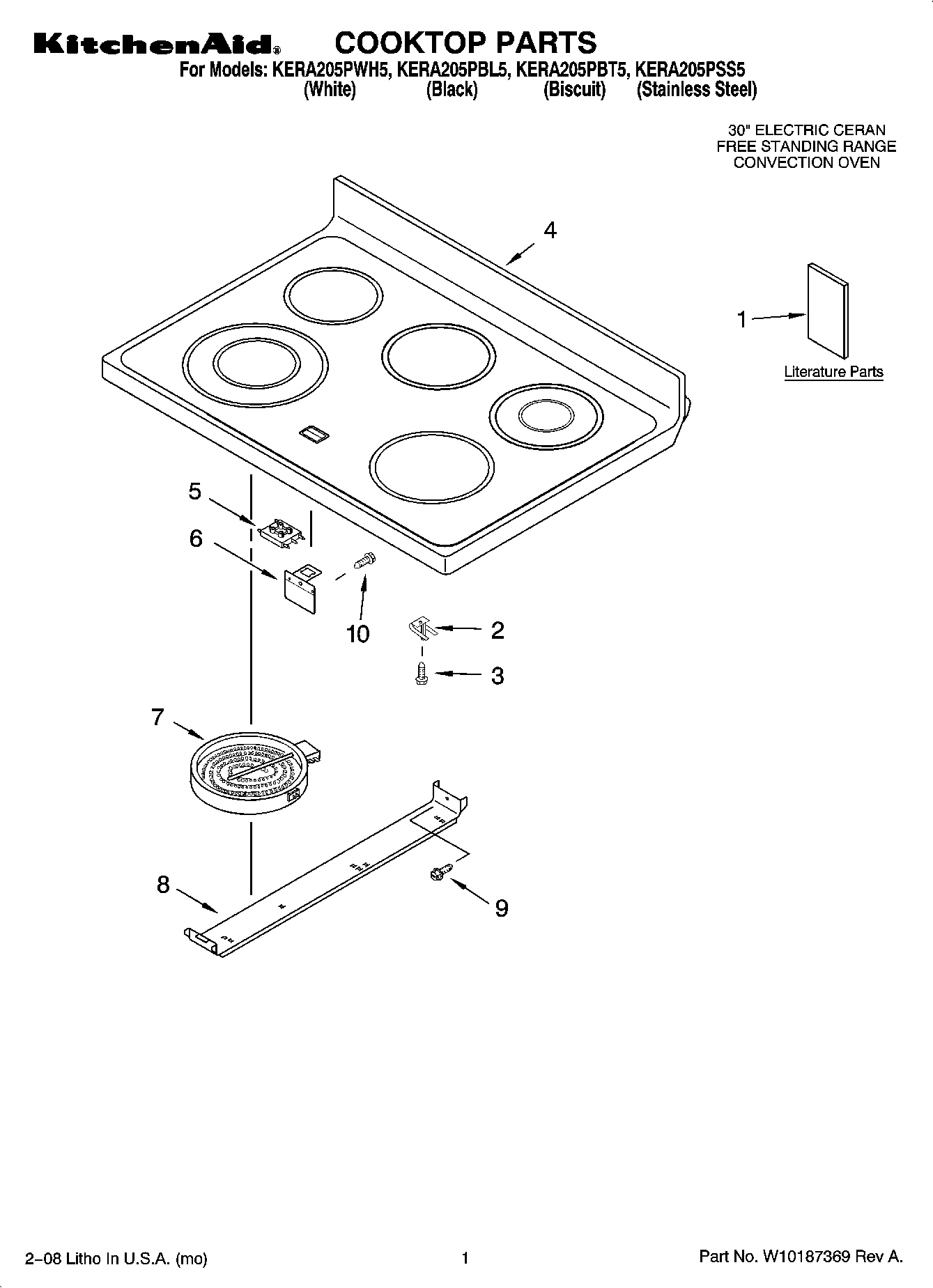

01 - COOKTOP PARTS

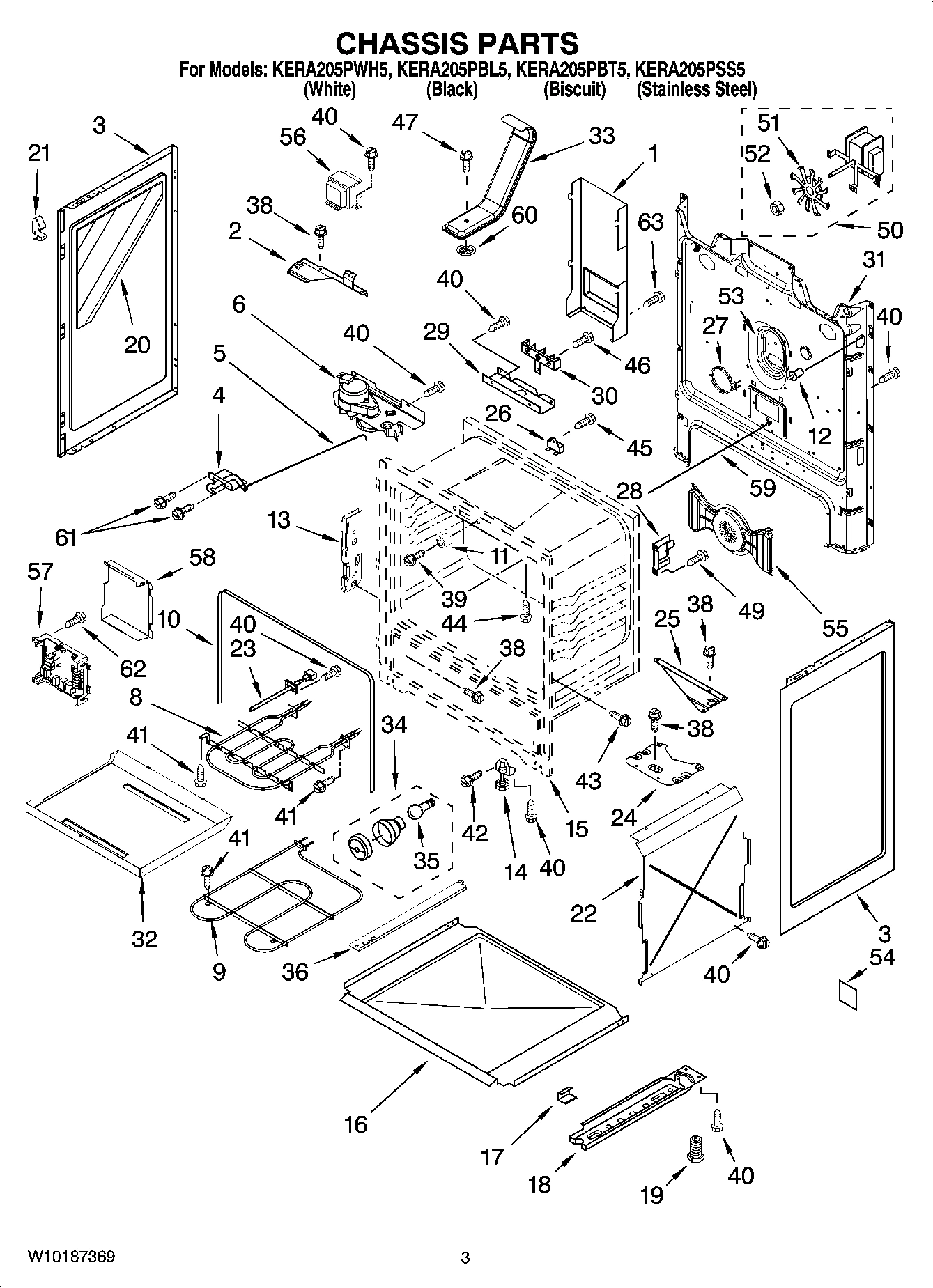

03 - CHASSIS PARTS
02 - CONTROL PANEL PARTS
04 - DOOR PARTS
05 - DRAWER & BROILER PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool KERA205PWH5 30`` ELECTRIC CERAN FREE STANDING RANGE CONVECTION
PA WPL 350930 Contact Us For Availability
WPL 4392899 WPL 4392899 Contact Us For Availability
PAINT, PRESSURIZED SPRAY 12 OZ.) (SUPERIOR BL WPL 285006 Contact Us For Availability
WPL 4392901 WPL 4392901 Contact Us For Availability
WPL 511873 WPL 511873 Contact Us For Availability
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
WPL 799344 WPL 799344 Contact Us For Availability
Cleaner (Stainless Steel) WPL 2261590 Contact Us For Availability
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
Wire (14 Ga. 200 c Red) WPL 242831 Contact Us For Availability
Grease WPL 261582 Contact Us For Availability
Clip, Ground Wire WPL 313660 Contact Us For Availability
WPL 4392900 WPL 4392900 Contact Us For Availability
WPL 799832 WPL 799832 Contact Us For Availability
WPL 8524132 WPL 8524132 Contact Us For Availability
WPL 9756550 WPL 9756550 Contact Us For Availability
WPL 9756707 WPL 9756707 Contact Us For Availability
WPL 9757315 WPL 9757315 Contact Us For Availability
WPL 9758191 WPL 9758191 Contact Us For Availability
WPL ARI154272A WPL ARI154272A Contact Us For Availability
WPL ARI154273A WPL ARI154273A Contact Us For Availability
WPL ARI154274A WPL ARI154274A Contact Us For Availability
WPL ARI154275A WPL ARI154275A Contact Us For Availability
WPL ARI154276A WPL ARI154276A Contact Us For Availability
WPL ARI154277A WPL ARI154277A Contact Us For Availability
WPL ARI154278A WPL ARI154278A Contact Us For Availability
WPL ARI154279A WPL ARI154279A Contact Us For Availability
WPL W10111797 WPL W10111797 Contact Us For Availability
WPL W10111798 WPL W10111798 Contact Us For Availability
1
Endcap (White Right Hand) WPL 9756958 Contact Us For Availability
1
Endcap (White Left Hand) WPL 9756959 Contact Us For Availability
1
Endcap (Black Right Hand) WPL 9756960 Contact Us For Availability
1
Endcap (Black Left Hand) WPL 9756961 Contact Us For Availability
1
Endcap (Biscuit Right Hand) WPL 9756962 Contact Us For Availability
1
Endcap (Biscuit Left Hand) WPL 9756963 Contact Us For Availability
1
Trim, Door Top (White) WPL W10067350 Contact Us For Availability
1
Trim, Door Top (Biscuit) WPL W10067360 Contact Us For Availability
1
Trim, Door Top (Black) WPL W10067370 Contact Us For Availability
1
Trim, Door Top (Cashmere Metalic) WPL W10067390 Contact Us For Availability
2
Membrane Switch (Stainless Steel) WPL 9762103 Contact Us For Availability
2
Membrane Switch (White) WPL 9762104 Contact Us For Availability
2
Membrane Switch (Black) WPL 9762101 Contact Us For Availability
2
Membrane Switch (Biscuit) WPL 9762102 Contact Us For Availability
2
Screw WPL 8534065 Contact Us For Availability
3
Panel, Backguard (Black) WPL 9756727 Contact Us For Availability
3
Panel, Backguard (Biscuit) WPL 9756728 Contact Us For Availability
3
Panel, Backguard (Stainless Steel) WPL 9756729 Contact Us For Availability
3
Panel, Backguard (White) WPL 9756730 Contact Us For Availability
3
Handle, Door (White) WPL 9758293 Contact Us For Availability
3
Handle Door, (Black) WPL 9758294 Contact Us For Availability
3
Handle Door (Biscuit) WPL 9758295 Contact Us For Availability
3
Handle, Door (Stainless Steel) WPL 9782649 Contact Us For Availability
4
Drawer, Storage WPL 9761030 Contact Us For Availability
5
Rod, Latch WPL W10078380 Contact Us For Availability
5
Seal, Window WPL 8522414 Contact Us For Availability
5
Light, Indicator (Hot Surface) WPL 8523739 Contact Us For Availability
7
Knob (4) (White) WPL 9756941 Contact Us For Availability
7
Knob (4) (Black) WPL 9756943 Contact Us For Availability
7
Panel, Drawer Front (White) WPL 9756325 Contact Us For Availability
7
Knob (4) (Biscuit) WPL 9756942 Contact Us For Availability
7
Knob (4) (Cashmere Metalic) WPL 9756944 Contact Us For Availability
7
Panel, Drawer Front (Biscuit) WPL 9756326 Contact Us For Availability
7
Panel, Drawer Front (Black) WPL 9756327 Contact Us For Availability
7
Panel, Drawer Front (Stainless Steel) WPL W10133401 Contact Us For Availability
8
Shield, Heat WPL 9756934 Contact Us For Availability
8
Handle, Drawer (Black) WPL 9756952BL Contact Us For Availability
8
Handle, Drawer (Biscuit) WPL 9756952BT Contact Us For Availability
8
Handle, Drawer (Cashmere Metalic) WPL 9756952CM Contact Us For Availability
8
Handle, Drawer (White) WPL 9756952WH Contact Us For Availability
9
Membrane, Insert WPL 9761078 Contact Us For Availability
10
Cover, Rear WPL 9756999 Contact Us For Availability
11
Switch, Simmer (White) WPL W10163901 Contact Us For Availability
11
Glass, Outer Door (Biscuit) WPL 9762128 Contact Us For Availability
11
Glass, Outer Door (Black) WPL 9762129 Contact Us For Availability
11
Spacer, Glide WPL 8522669 Contact Us For Availability
12
Control, Range WPL 9762811 Contact Us For Availability
12
Trim, Side (Cashmere Metalic, Right Hand) WPL 9758357 Contact Us For Availability
12
Trim, Side (Cashmere Metalic, Left Hand) WPL 9758358 Contact Us For Availability
12
Heat Shield, Drawer WPL 9756711 Contact Us For Availability
13
Rail, Drawer (Left Hand) WPL 8274190 Contact Us For Availability
13
Rail, Drawer (Right Hand) WPL 8274191 Contact Us For Availability
15
Switch, Warming (Biscuit) WPL 9757406BT Contact Us For Availability
15
Switch, Warming (White) WPL 9757406WH Contact Us For Availability
17
Clip, Panel (6) WPL 3196576 Contact Us For Availability
17
Cover, Rear (Console) WPL 9758319 Contact Us For Availability
18
Cover, Vent (White) WPL 9758352 Contact Us For Availability
18
Cover, Vent (Biscuit) WPL 9758353 Contact Us For Availability
18
Cover, Vent (Black) WPL 9758354 Contact Us For Availability
18
Cover, Vent (Cashmere Metalic) WPL 9758355 Contact Us For Availability
20
Insulation WPL 9761490 Contact Us For Availability
21
Clip, Mounting WPL 9761512 Contact Us For Availability
21
CLIP,DOOR MNTG WPL 9761517 Contact Us For Availability
24
Support, Front (2) WPL 3195736 Contact Us For Availability
25
Support, Corner RR WPL 3195987 Contact Us For Availability
31
Back, Main WPL 9757029 Contact Us For Availability
32
Tray, Hidden Bake Element WPL 9755769 Contact Us For Availability
36
Cover, Tray WPL 9755771 Contact Us For Availability
42
Screw WPL 3196179 Contact Us For Availability
45
Screw WPL 3196172 Contact Us For Availability
52
Nut WPL 4452227 Contact Us For Availability
53
Cover, Convection Fan WPL 9755776 Contact Us For Availability
55
Baffle, Convection WPL 9757088 Contact Us For Availability
56
Transformer WPL 9756518 Contact Us For Availability
57
Appliance Manager WPL 9761595 Contact Us For Availability
58
Cover WPL 9757970 Contact Us For Availability
59
Rod - Dr Switch WPL 9757239 Contact Us For Availability
60
SCREEN, CATALYST WPL 9761301 Contact Us For Availability
62
Screw WPL 8533930 Contact Us For Availability
× ![]()
