Model Whirlpool KEMS307GBS2 – Common Parts & Diagrams

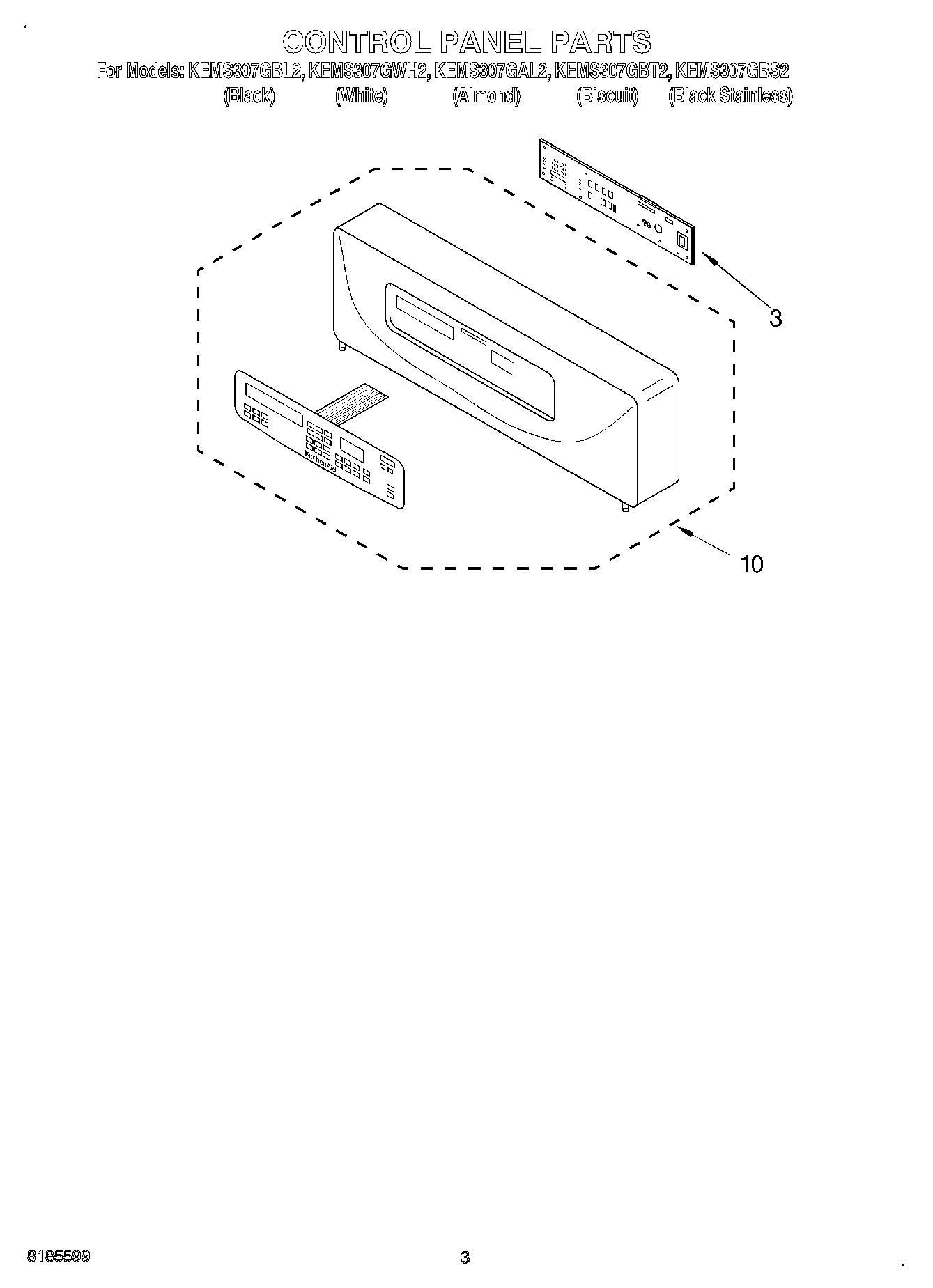

02 - CONTROL PANEL

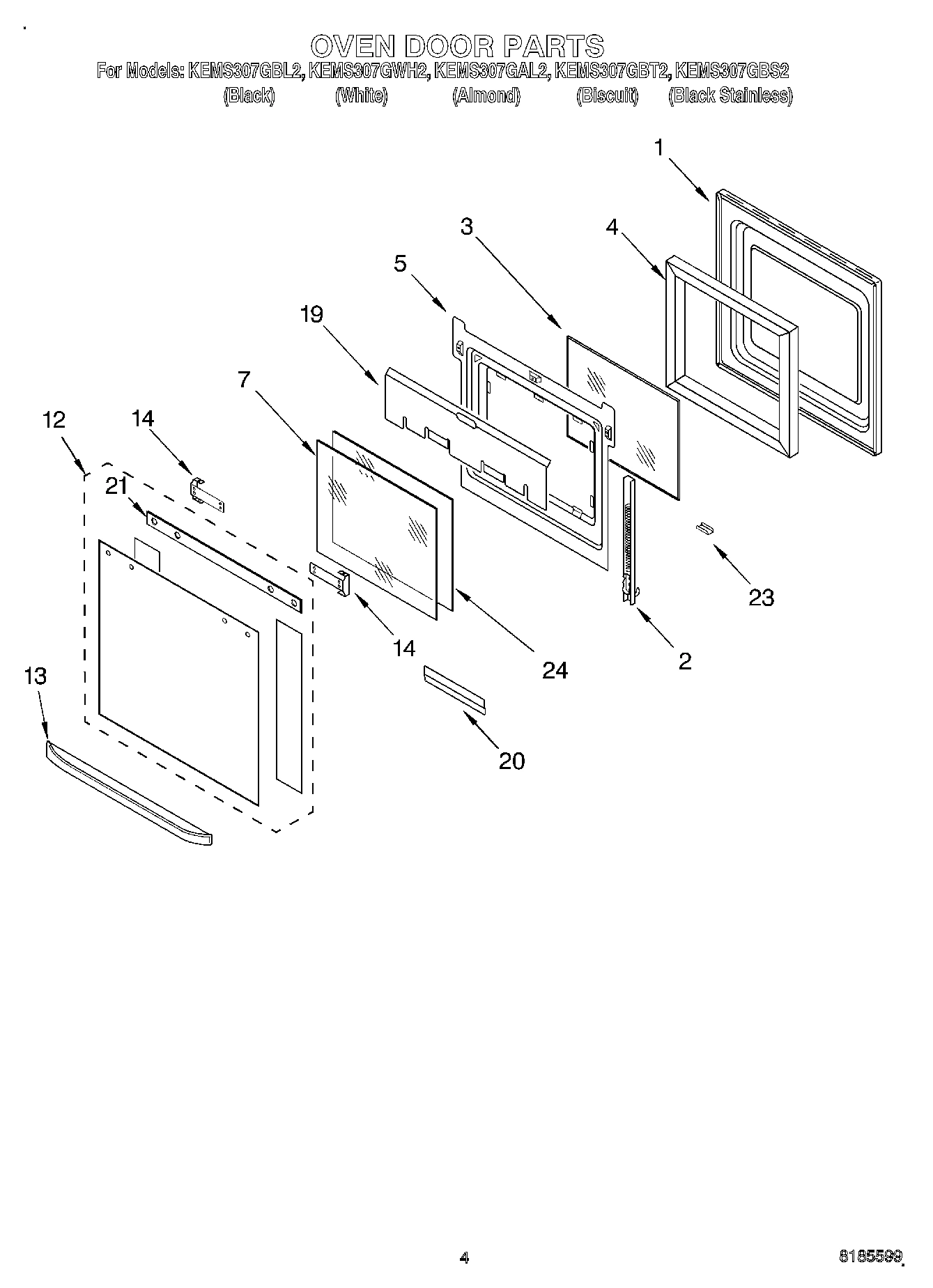

03 - OVEN DOOR

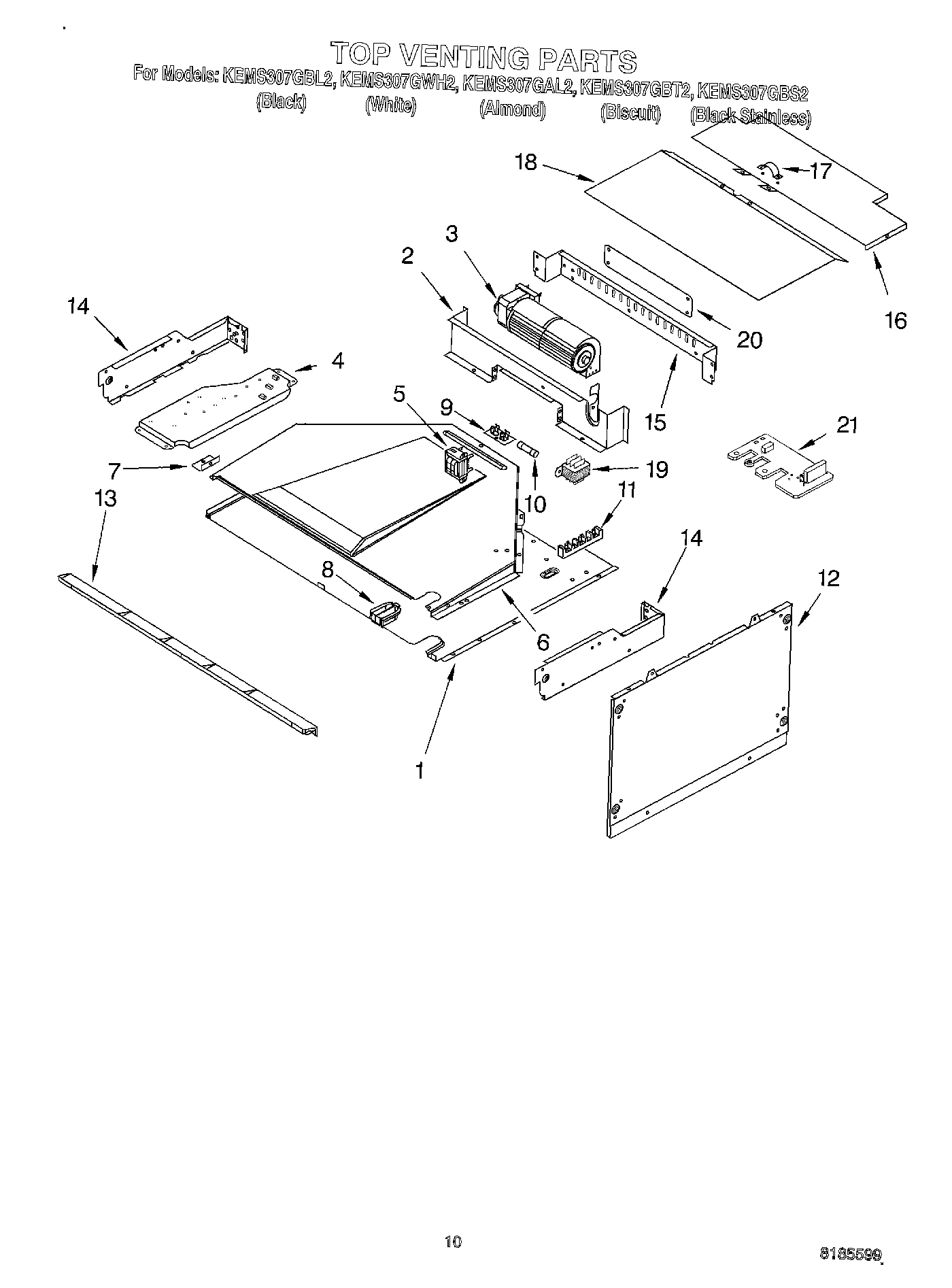

08 - TOP VENTING

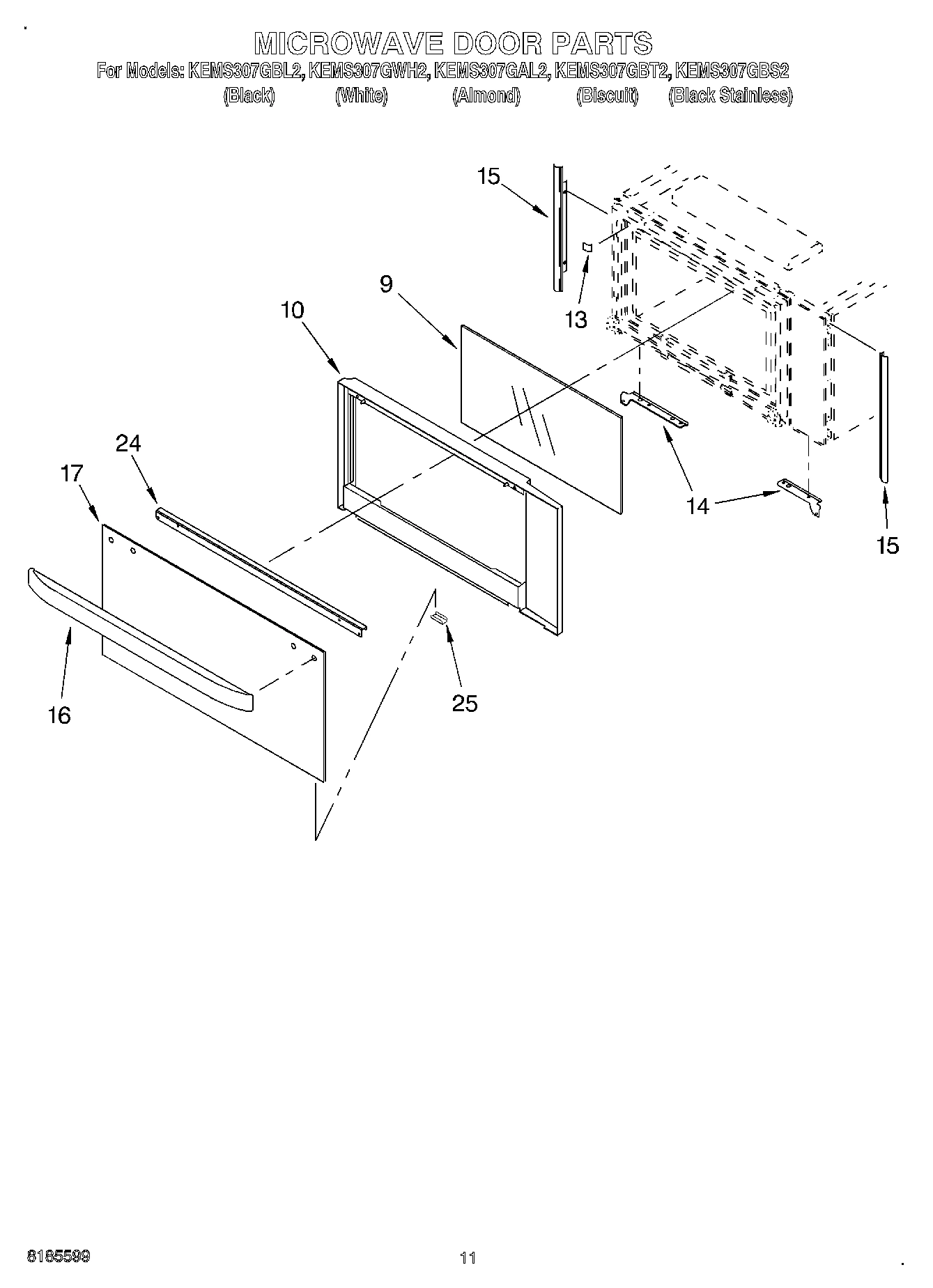

09 - MICROWAVE DOOR, OPTIONAL

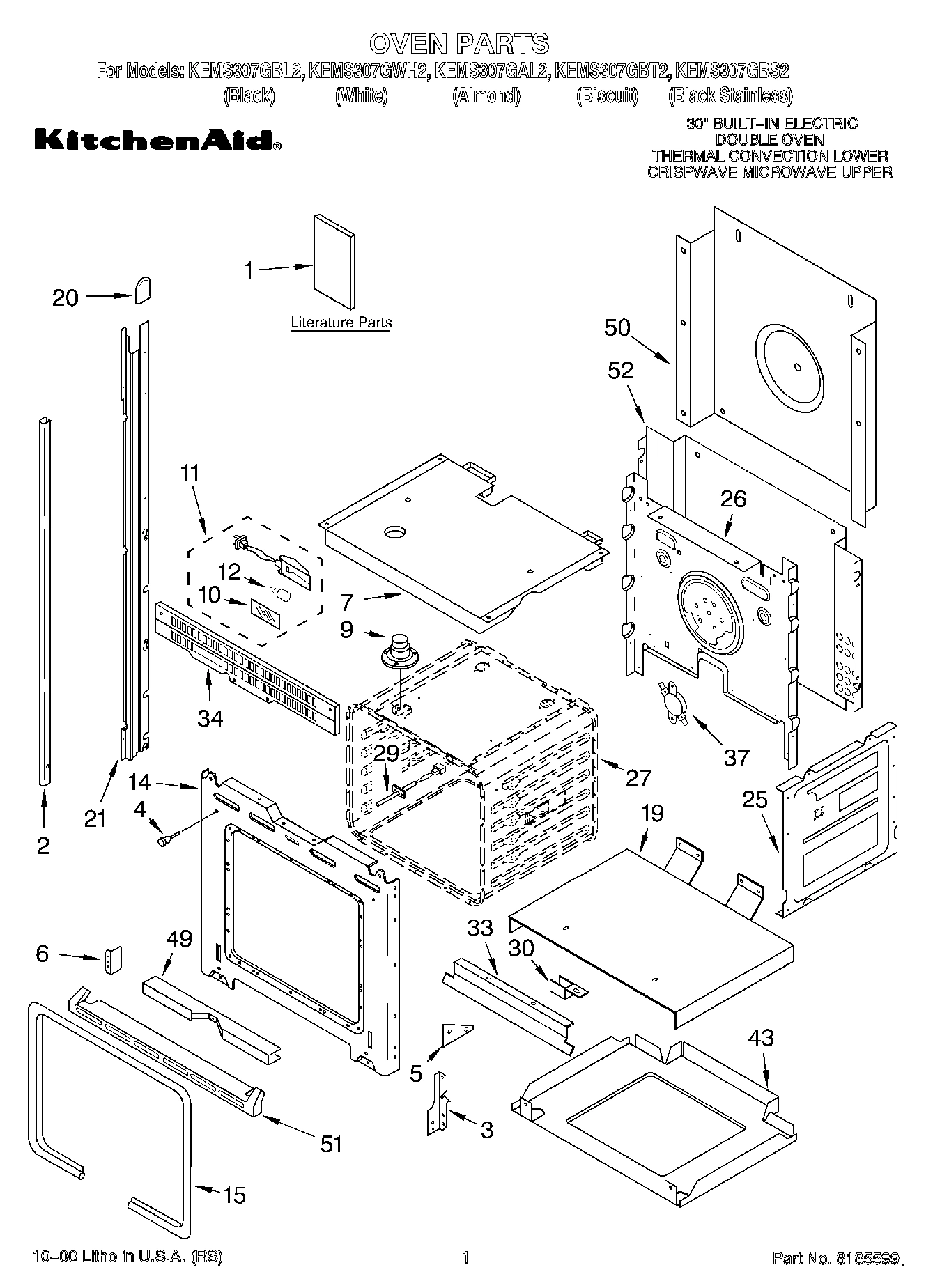

01 - OVEN, LITERATURE

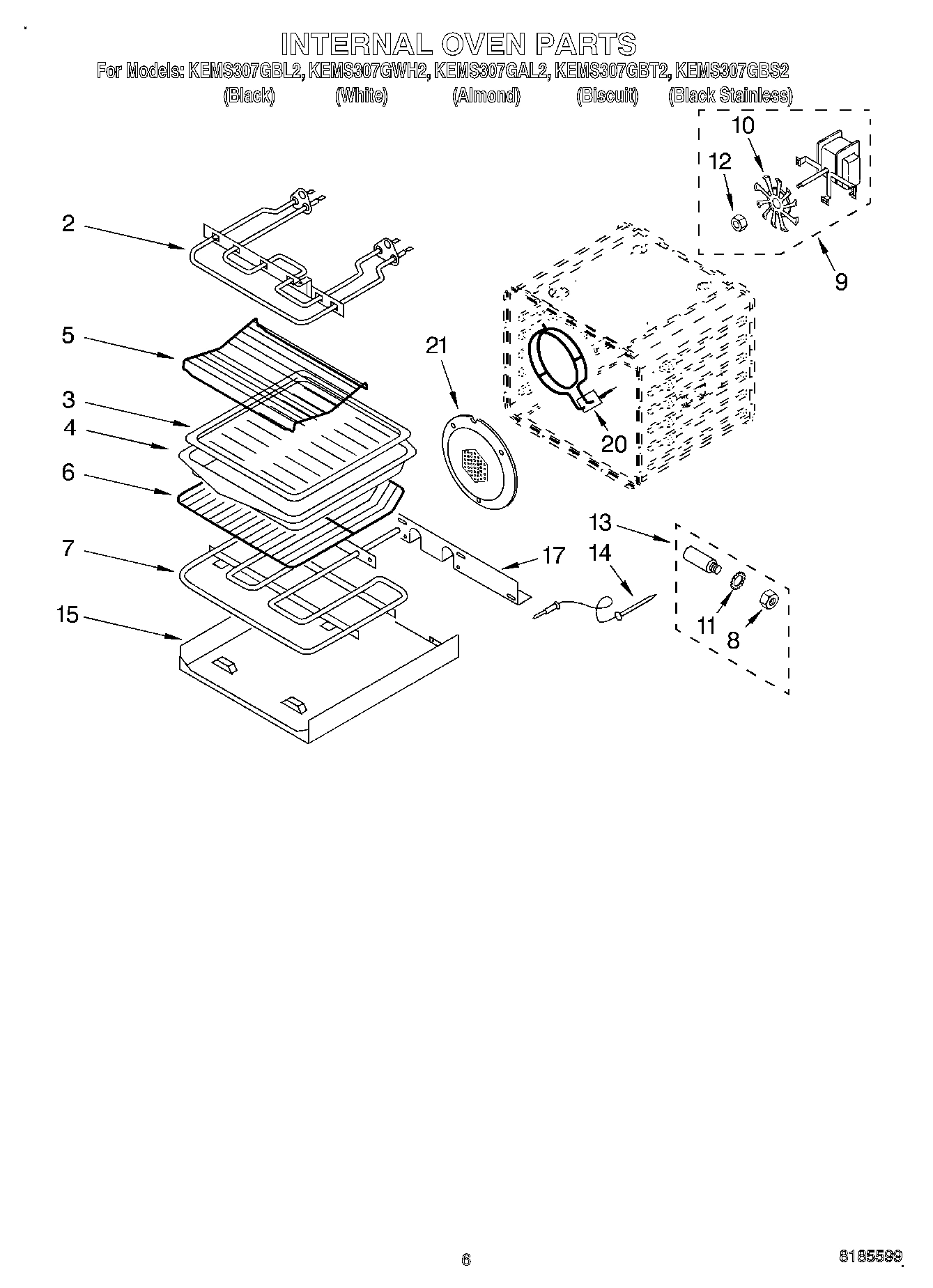

05 - INTERNAL OVEN

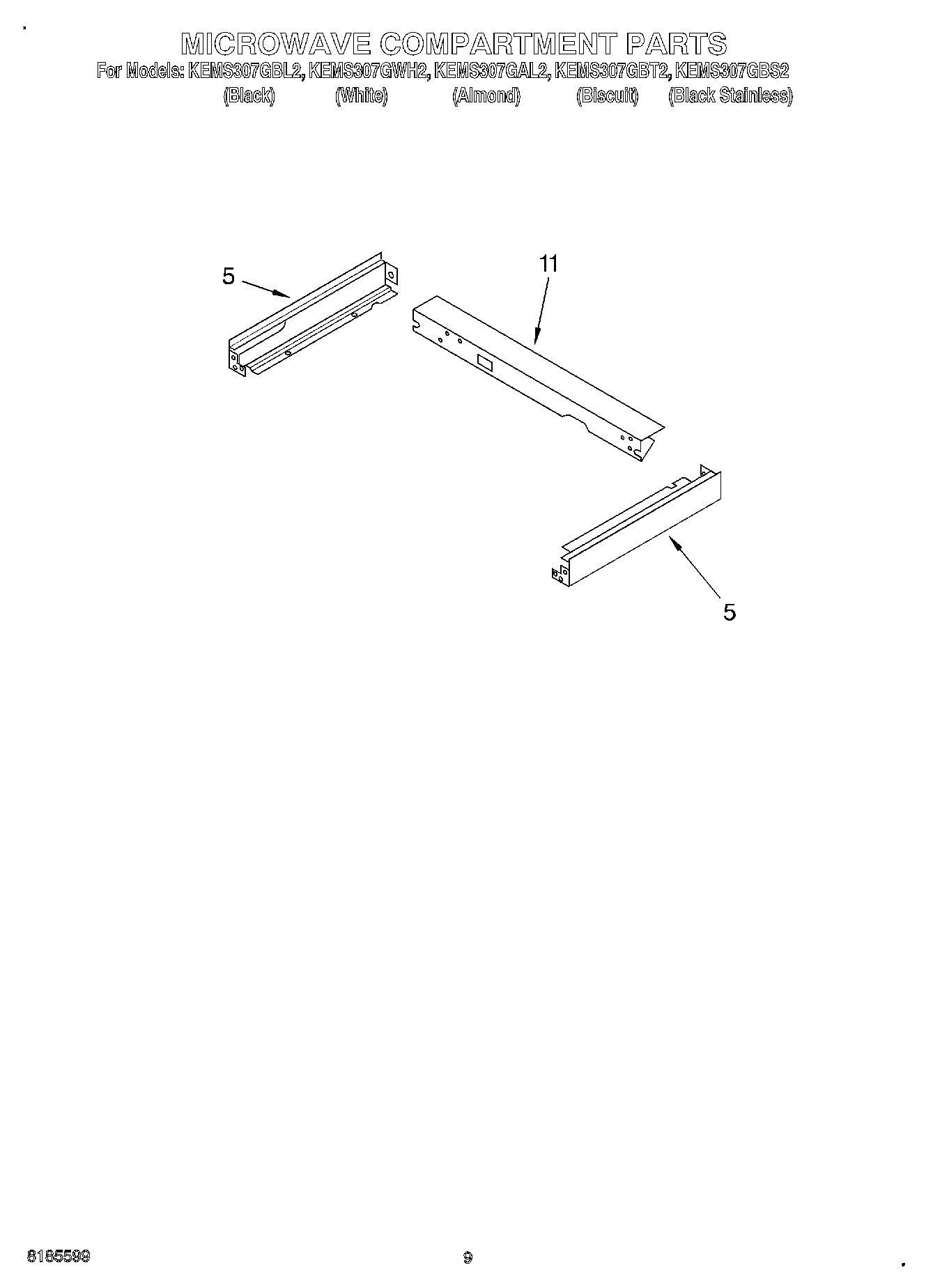

07 - MICROWAVE COMPARTMENT

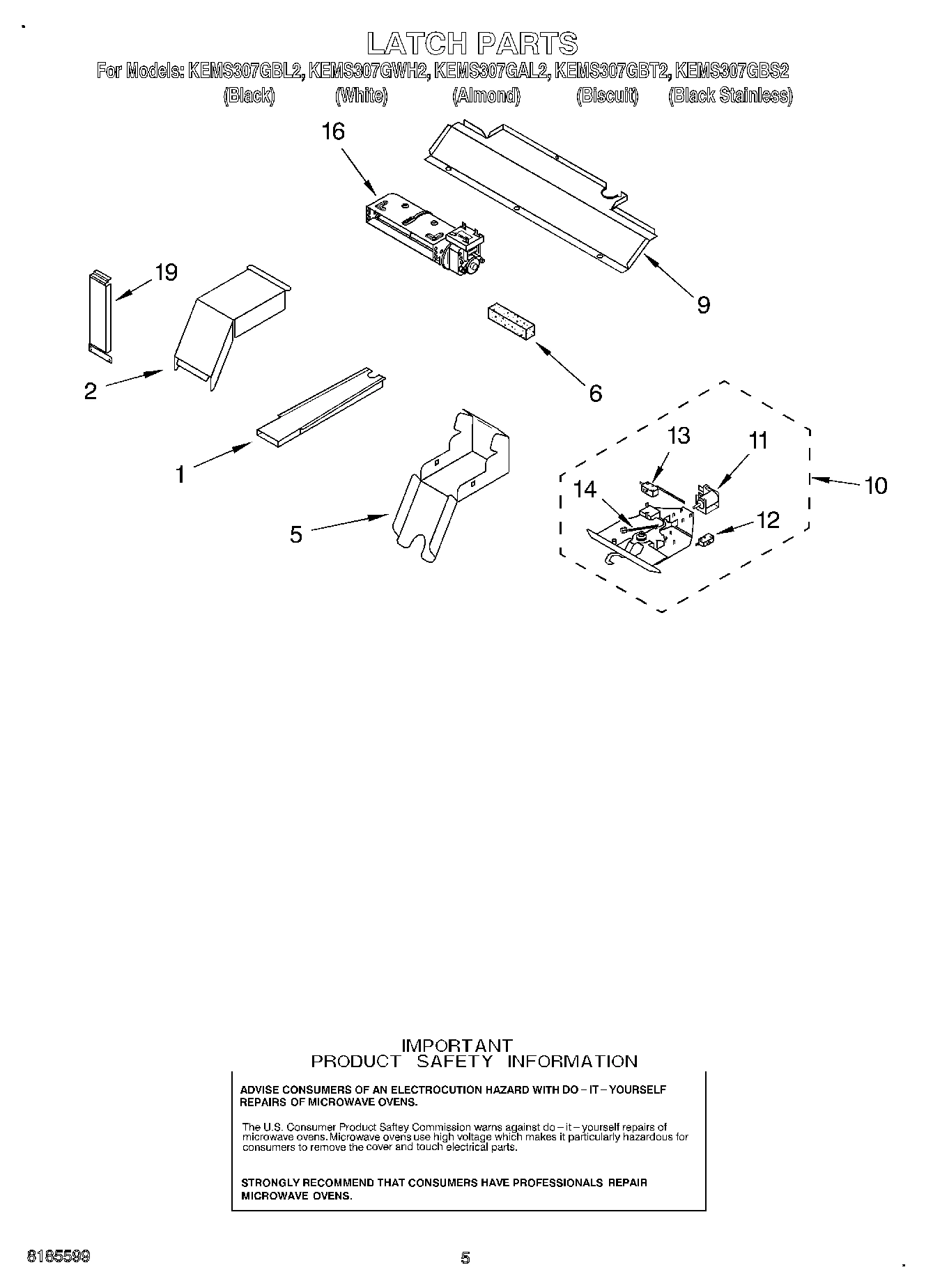

04 - LATCH

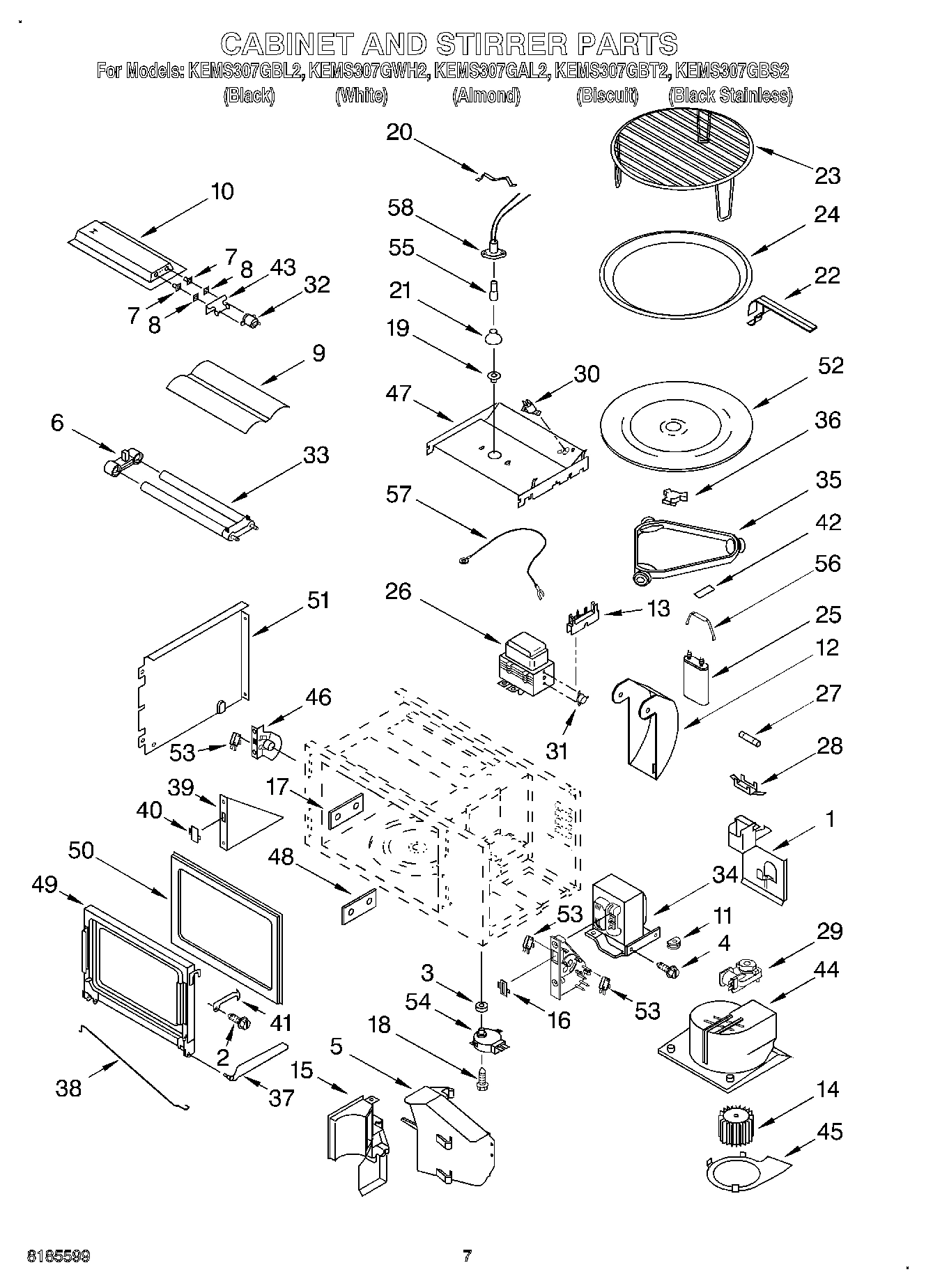

06 - CABINET AND STIRRER
Common parts from model Whirlpool KEMS307GBS2
Cabinet Parts WPL ARI85999A3 Contact Us For Availability
1
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
1
Literature Parts (Cookbook (T/C Oven)) WPL LIT4449066 Contact Us For Availability
1
Literature Parts (Easy Set Guide) WPL LIT4449264 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT4450412 Contact Us For Availability
1
Literature Parts (Cooking Guide (Label)) WPL LIT4451052 Contact Us For Availability
1
Literature Parts (Tech Sheet (Oven)) WPL LIT4452295 Contact Us For Availability
1
Literature Parts (Use & Care Guide (Oven)) WPL LIT4452300 Contact Us For Availability
1
Literature Parts (Use & Care Guide (Microwave WPL LIT4452614 Contact Us For Availability
1
Bracket, Capacitor WPL 4375299 Contact Us For Availability
2
Trim, Side (Screw White) WPL 4449041 Contact Us For Availability
2
Trim, Side (RH Black) WPL 4450856 Contact Us For Availability
2
Trim, Side (RH White) WPL 4450857 Contact Us For Availability
2
Trim, Side (RH Almond) WPL 4450858 Contact Us For Availability
2
Trim, Side (LH Black) WPL 4450859 Contact Us For Availability
2
Trim, Side (LH White) WPL 4450860 Contact Us For Availability
2
Trim, Side (LH Almond) WPL 4450861 Contact Us For Availability
2
Trim, Side (RH Biscuit) WPL 4452124 Contact Us For Availability
2
Trim, Side (LH Biscuit) WPL 4452125 Contact Us For Availability
2
Screw WPL 4375313 Contact Us For Availability
3
Reciever, Hinge (Right Hand) WPL 4455723 Contact Us For Availability
3
Reciever, Hinge (Left Hand) WPL 4455722 Contact Us For Availability
3
Rubber Ring WPL 4375037 Contact Us For Availability
4
Screw WPL 4375038 Contact Us For Availability
5
Rack, Roasting WPL 3181534 Contact Us For Availability
5
Support Rails (Right Side) WPL 4452551 Contact Us For Availability
5
Support Rails (Left Side) WPL 4452552 Contact Us For Availability
5
Air Duct, Magnetron WPL 4375314 Contact Us For Availability
6
Bracket, Support WPL 4455510 Contact Us For Availability
6
Support, Tube WPL 4375253 Contact Us For Availability
7
Top, Chassis WPL 4455286 Contact Us For Availability
7
Plug, Ceramic WPL 4375254 Contact Us For Availability
8
Bushing WPL 4375255 Contact Us For Availability
9
Convection Motor WPL 4451583 Contact Us For Availability
9
Glass, Middle WPL 4448937 Contact Us For Availability
9
Baffle, Rear WPL 4450408 Contact Us For Availability
9
Reflector WPL 4375256 Contact Us For Availability
10
Latch Assembly WPL 4451424 Contact Us For Availability
10
Lens, Light WPL 4452163 Contact Us For Availability
10
Chamber, Reflector WPL 4375257 Contact Us For Availability
11
Screw WPL 3400080 Contact Us For Availability
11
Rear Channel WPL 4452548 Contact Us For Availability
11
Solenoid WPL 4451663 Contact Us For Availability
11
Damper WPL 4375315 Contact Us For Availability
12
Microswitch N.C. WPL 4452312 Contact Us For Availability
12
Duct, Inlet WPL 4375260 Contact Us For Availability
12
Nut WPL 4452227 Contact Us For Availability
13
Microswitch WPL 4451426 Contact Us For Availability
13
Insulation, Switch WPL 4375316 Contact Us For Availability
14
Bracket, Mounting (Right Side) WPL 4449141 Contact Us For Availability
14
Bracket, Mounting (Left Side) WPL 4449142 Contact Us For Availability
14
Bracket, Handle WPL 4450813 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Frame, Front WPL 4451740 Contact Us For Availability
14
Spring, Latch WPL 4451537 Contact Us For Availability
14
Fan Wheel WPL 4375322 Contact Us For Availability
15
Filler, Side (Right Side) WPL 4449083 Contact Us For Availability
15
Filler, Side (Left) WPL 4449086 Contact Us For Availability
15
Tray, Bake WPL 4455037 Contact Us For Availability
15
Duct, Air WPL 4375317 Contact Us For Availability
16
Block, Slide WPL 4375264 Contact Us For Availability
17
Cover Plate, Upper WPL 4375248 Contact Us For Availability
19
Support, Insulation WPL 4451478 Contact Us For Availability
19
Extension Filler WPL 4449906 Contact Us For Availability
20
Retainer, Glass WPL 4451668 Contact Us For Availability
20
Cap, Spacer WPL 4451605 Contact Us For Availability
21
Suppressor WPL 4451934 Contact Us For Availability
23
Rack WPL 4375276 Contact Us For Availability
24
Glass, Inner WPL 4455257 Contact Us For Availability
24
Bracket, Handle WPL 4452331 Contact Us For Availability
25
WPL 4455732 WPL 4455732 Contact Us For Availability
25
WPL 591014 WPL 591014 Contact Us For Availability
25
Side, Chassis (R.H. & L.H.) WPL 4454691 Contact Us For Availability
26
Back, Chassis WPL 4452234 Contact Us For Availability
27
Liner, Oven (Not a Serviceable Part) WPL ARI85998A4 Contact Us For Availability
30
Thermostat WPL 4375279 Contact Us For Availability
30
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
32
Thermostat WPL 4375281 Contact Us For Availability
33
Deflector, Vent WPL 4451619 Contact Us For Availability
33
Q Tube Assembly WPL 4375282 Contact Us For Availability
34
Ven WPL 4451667 Contact Us For Availability
35
Ring, Turntable WPL 4375344 Contact Us For Availability
39
Bracket, Hinge (Left) WPL 4375327 Contact Us For Availability
39
Bracket, Hinge (Right) WPL 4375328 Contact Us For Availability
40
Inlet WPL 4375329 Contact Us For Availability
41
Strap, Door WPL 4375330 Contact Us For Availability
42
Plate, Grill WPL 4375331 Contact Us For Availability
43
WPL 4455530 WPL 4455530 Contact Us For Availability
43
Bracket WPL 4375332 Contact Us For Availability
44
Fan Cap WPL 4375333 Contact Us For Availability
45
Fan Cap Bottom WPL 4375334 Contact Us For Availability
47
Isolation Plate WPL 4375337 Contact Us For Availability
48
Cover Plate WPL 4375338 Contact Us For Availability
49
Plate, Door WPL 4375339 Contact Us For Availability
50
Inner Frame WPL 4375340 Contact Us For Availability
51
WPL 4448477 WPL 4448477 Contact Us For Availability
51
WPL 4159465 WPL 4159465 Contact Us For Availability
51
WPL 4448478 WPL 4448478 Contact Us For Availability
51
WPL 4448862 WPL 4448862 Contact Us For Availability
51
WPL 4452415 WPL 4452415 Contact Us For Availability
51
Side Plate (Left) WPL 4375341 Contact Us For Availability
51
Side Plate (Right) WPL 4375342 Contact Us For Availability
52
WPL 4450365 WPL 4450365 Contact Us For Availability
52
WPL 4451756 WPL 4451756 Contact Us For Availability
57
Cable WPL 4375350 Contact Us For Availability
58
Holder, Lamp WPL 4375351 Contact Us For Availability
× ![]()
