Model Whirlpool KEMS307DWH1 – Common Parts & Diagrams

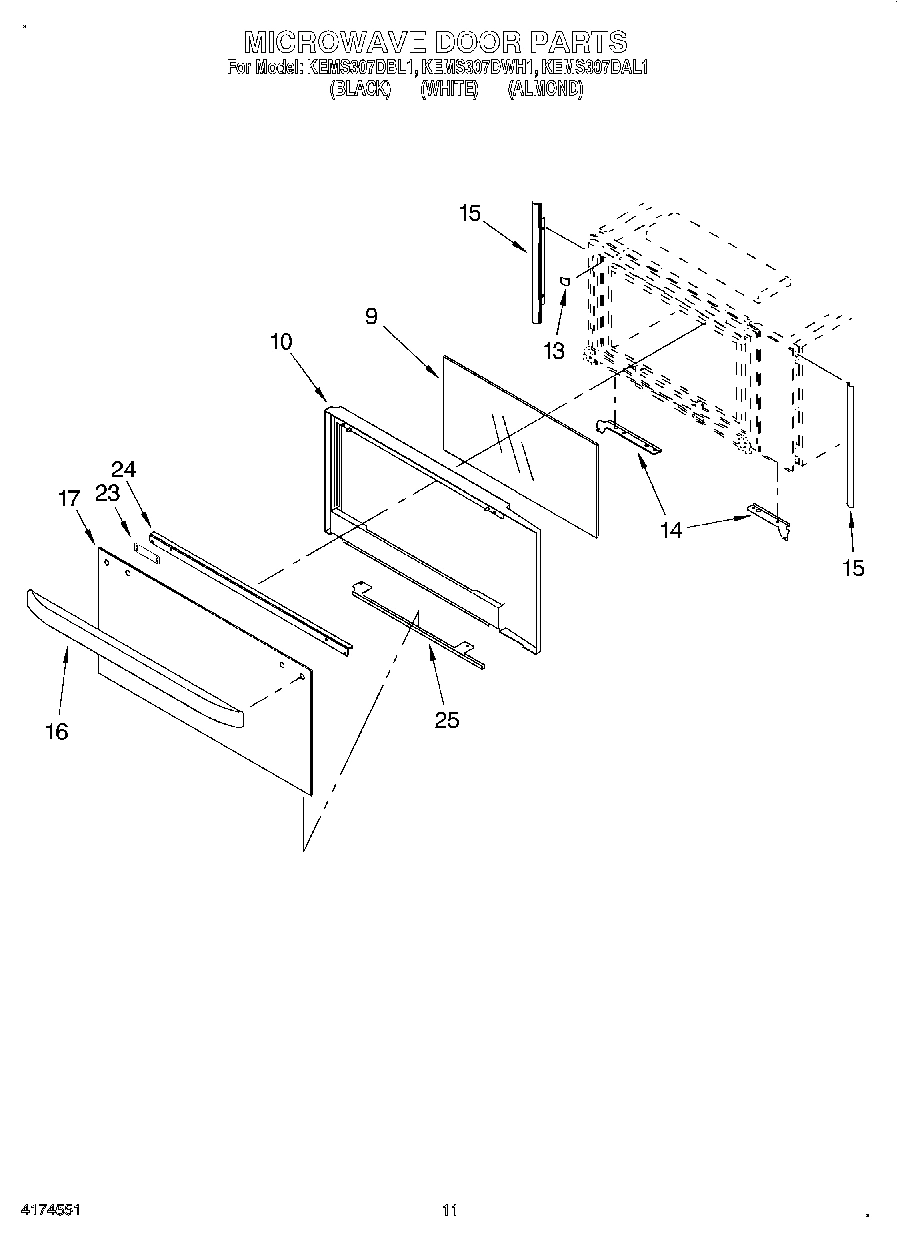

09 - MICROWAVE DOOR, OPTIONAL

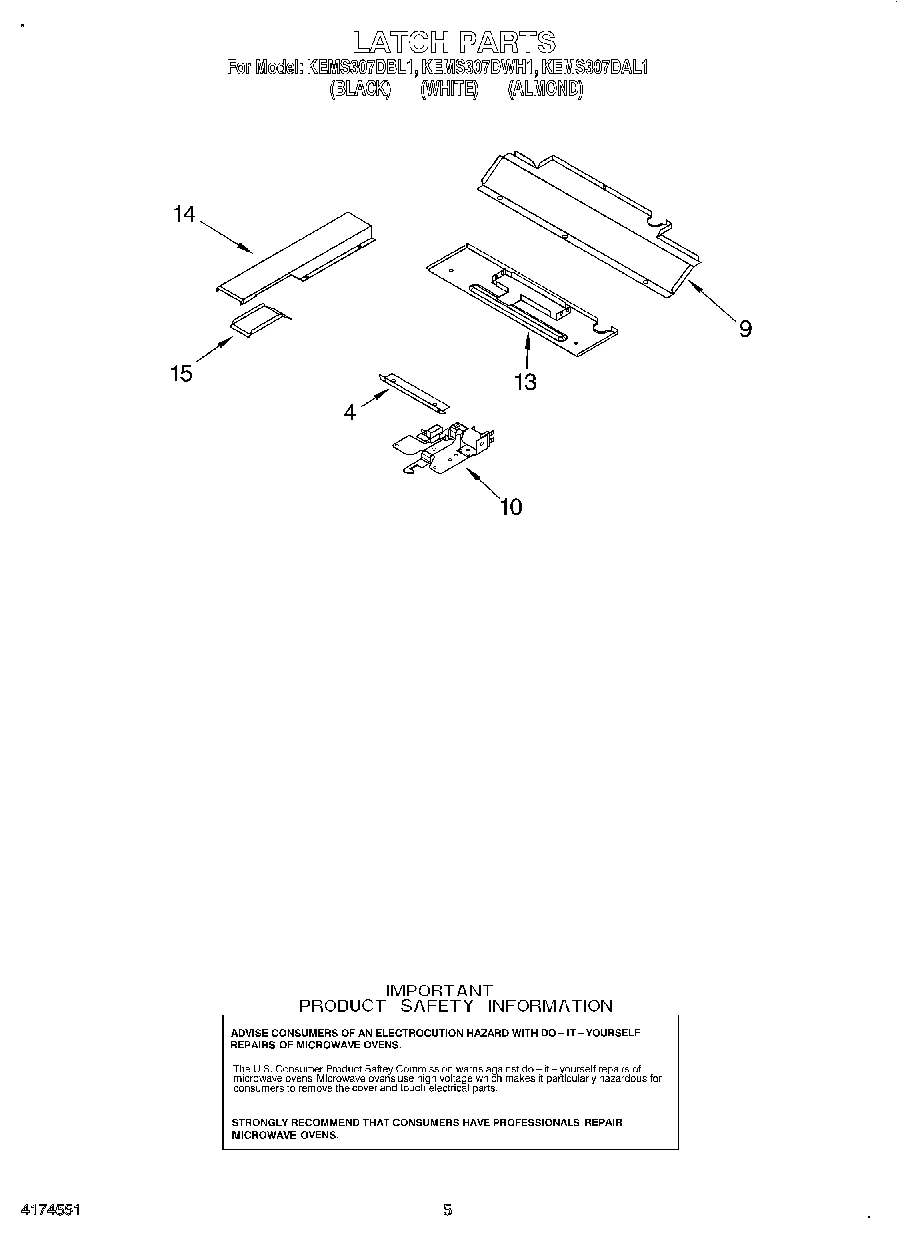

04 - LATCH

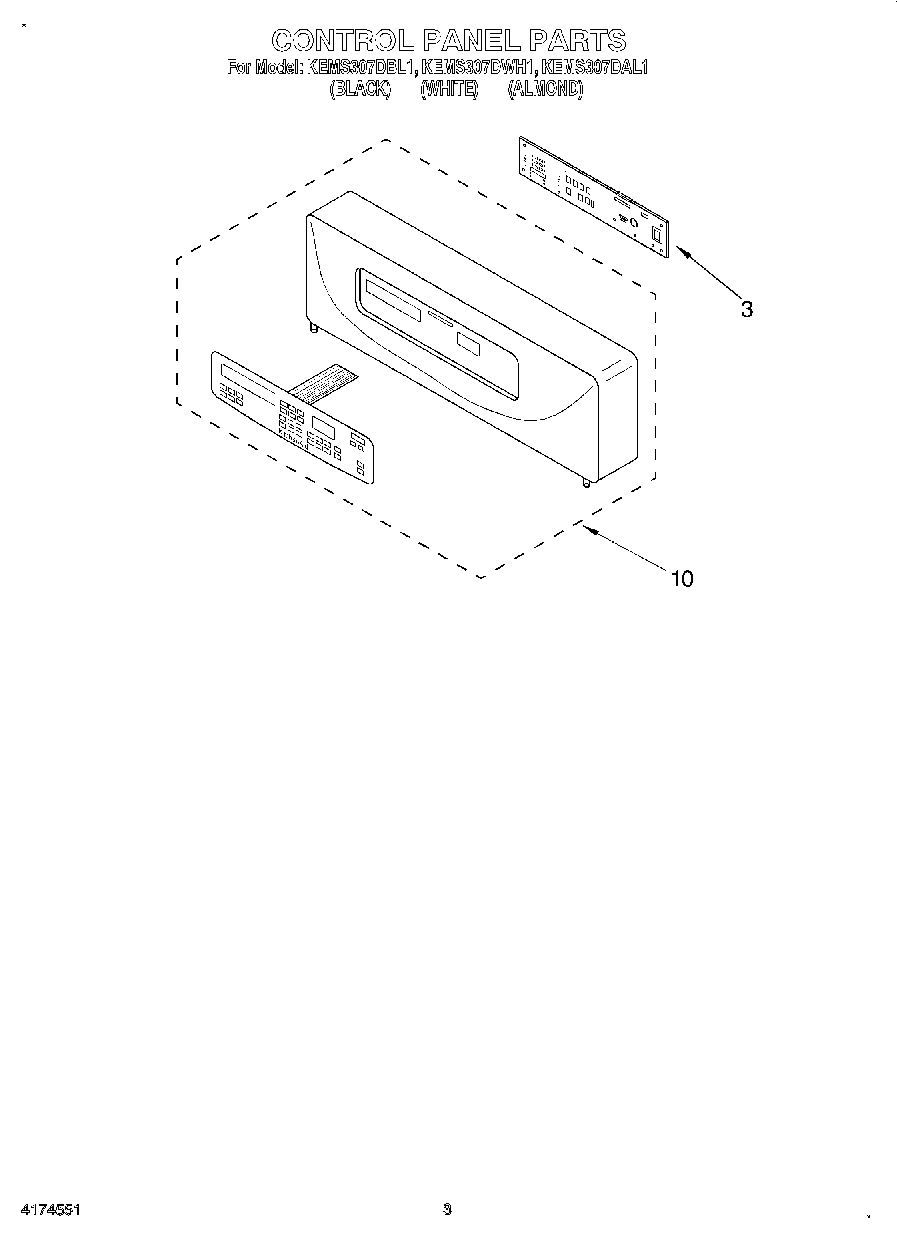

02 - CONTROL PANEL, LITERATURE

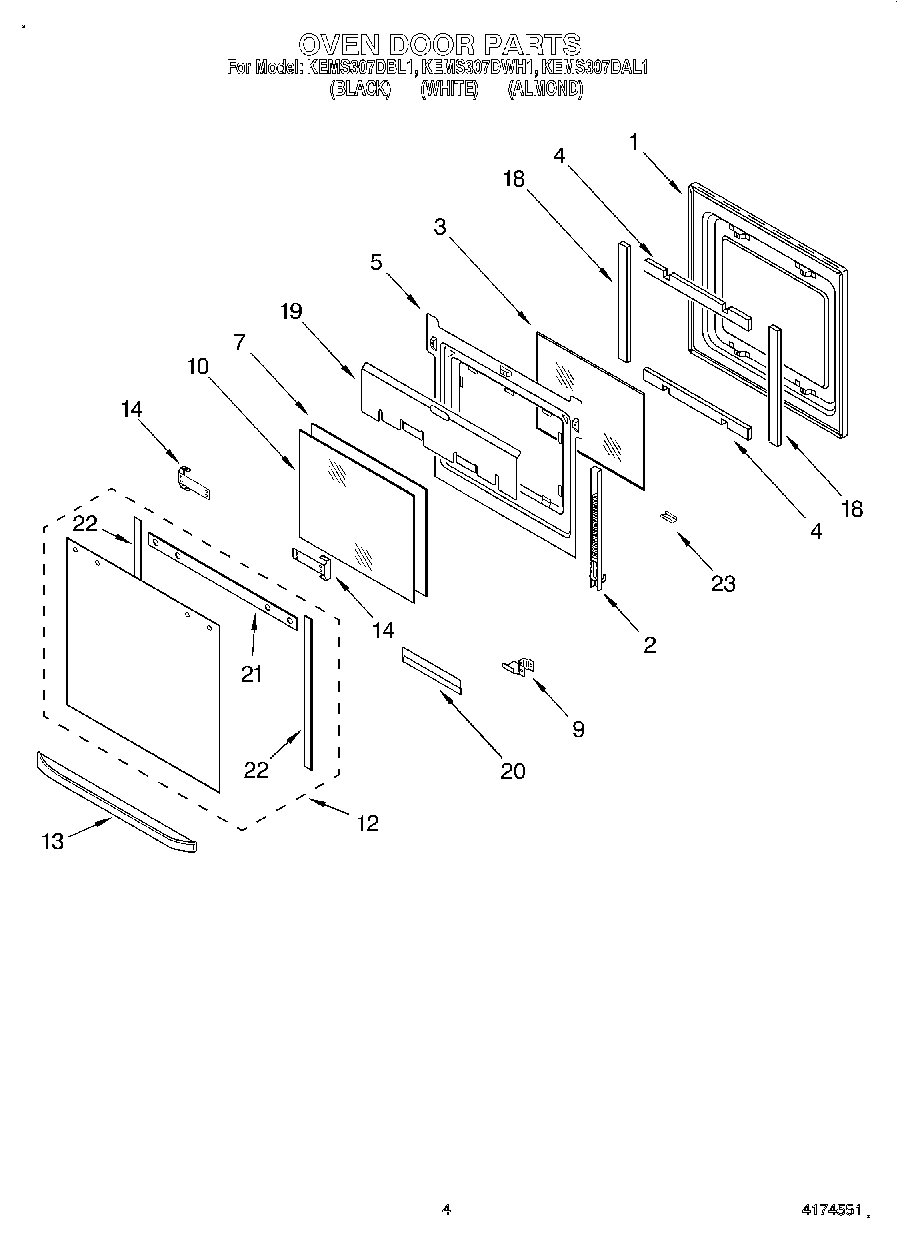

03 - OVEN DOOR

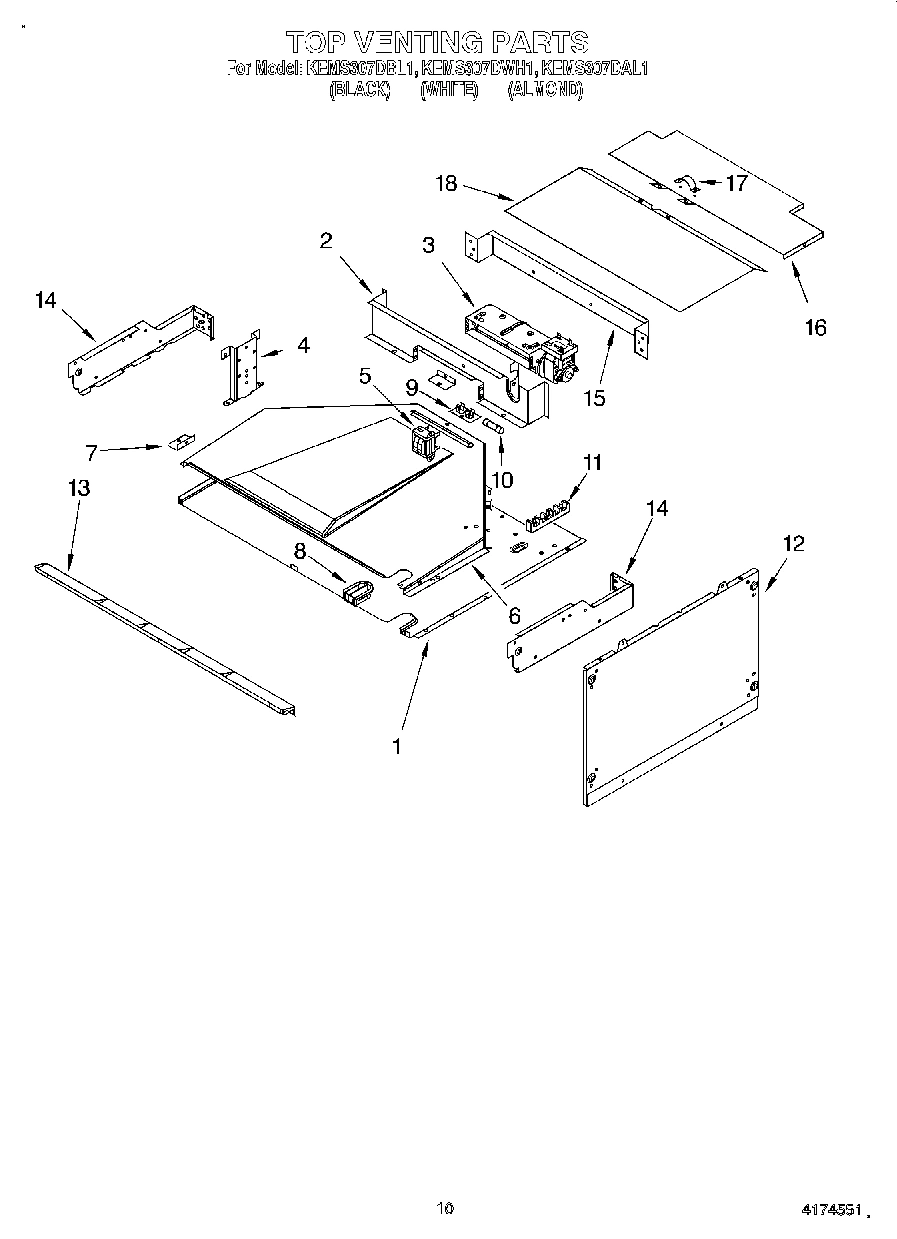

08 - TOP VENTING

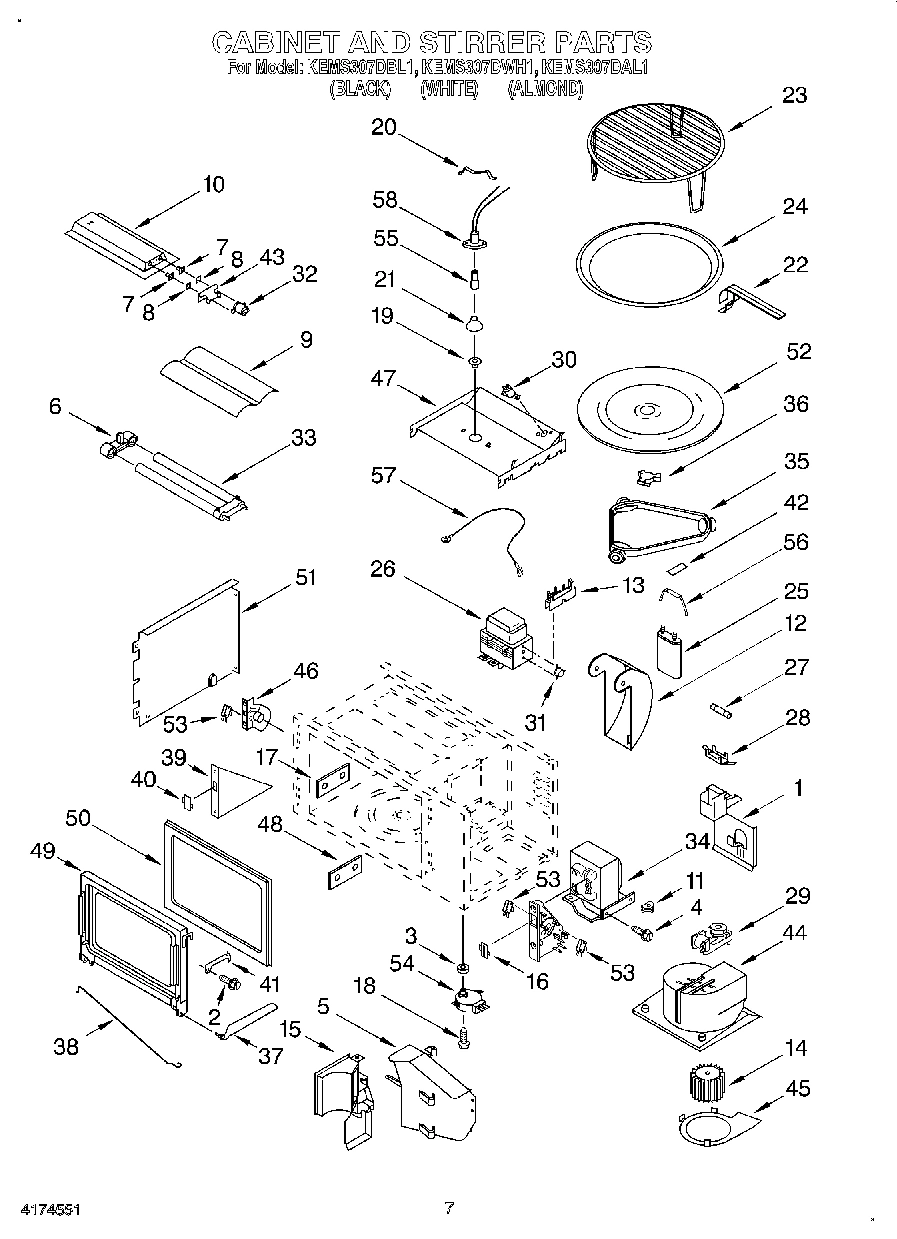

06 - CABINET AND STIRRER

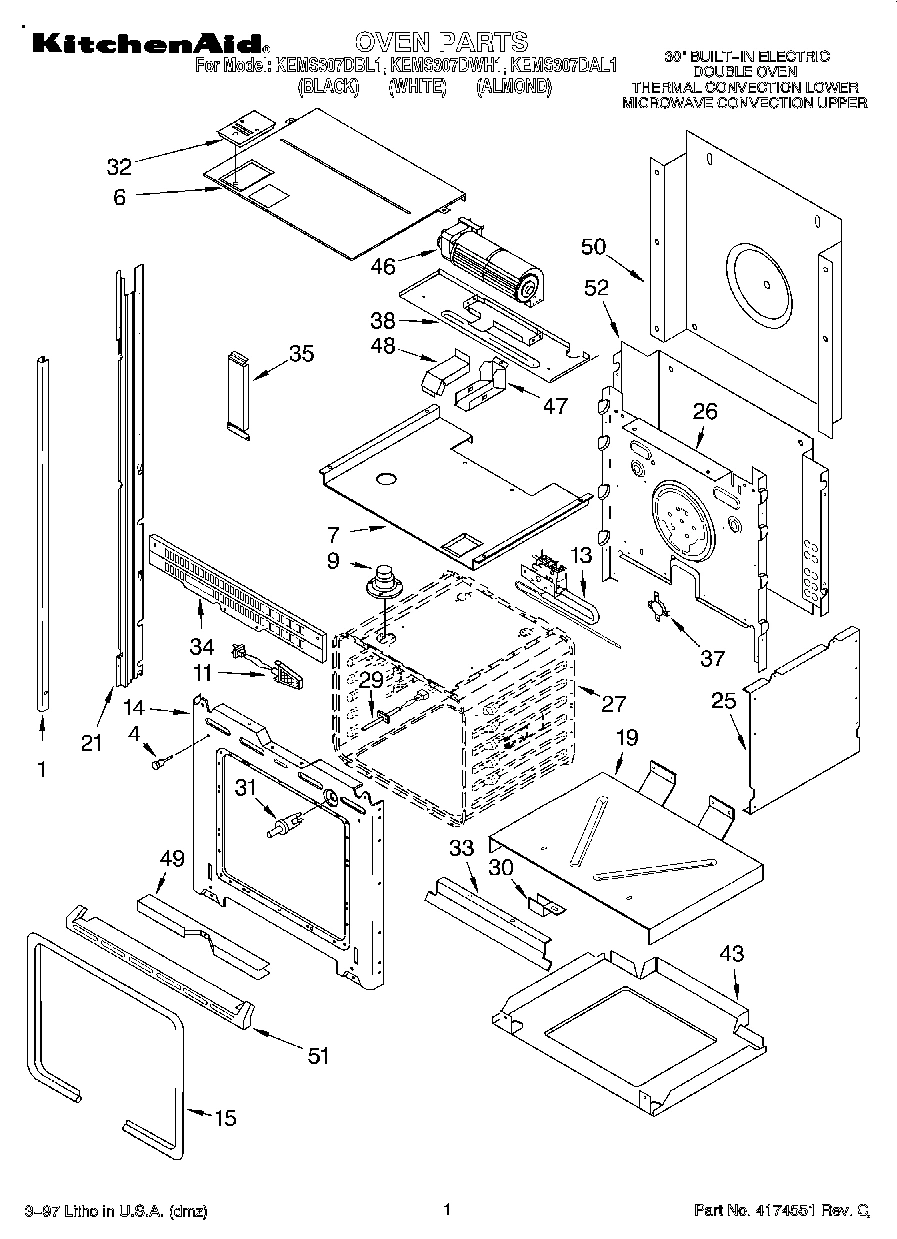

01 - OVEN

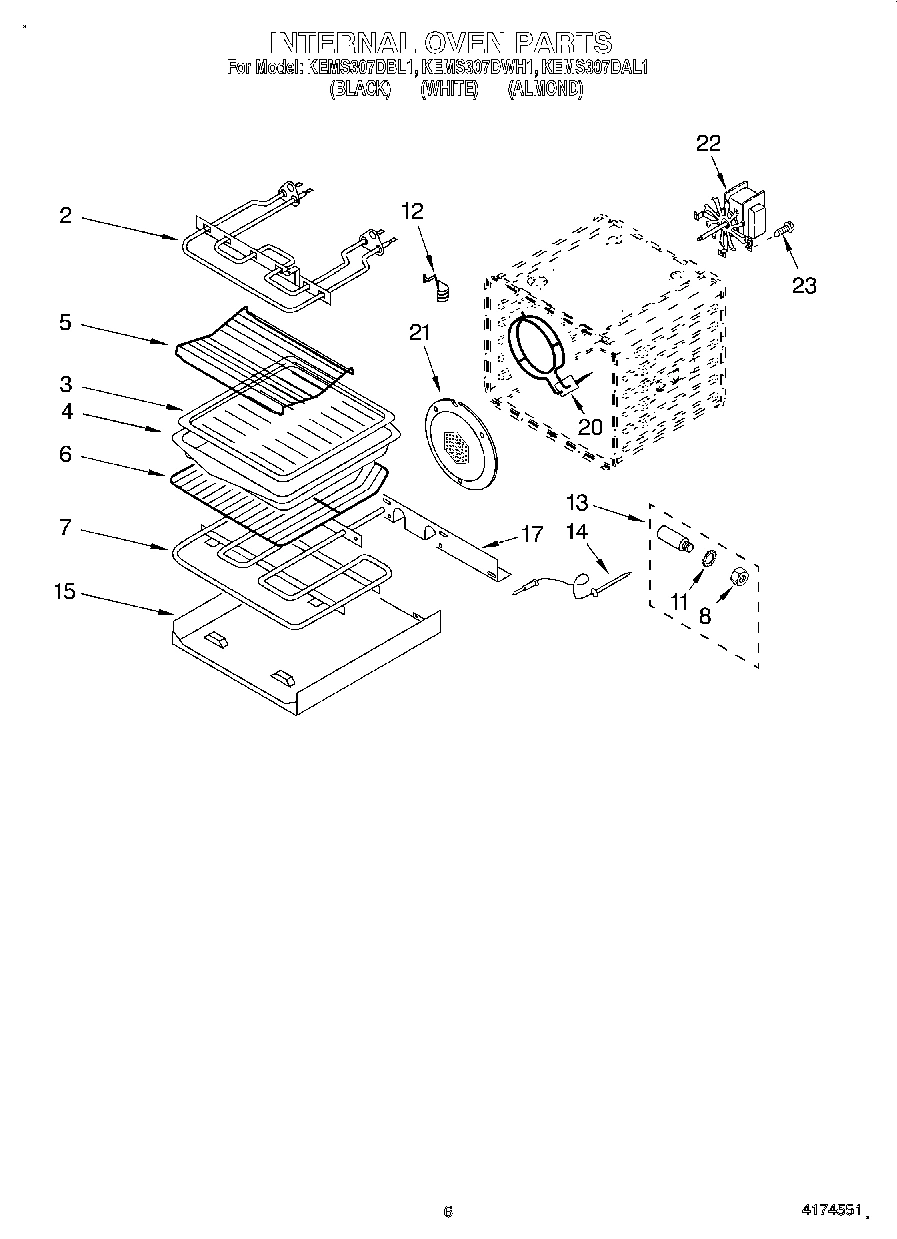

05 - INTERNAL OVEN

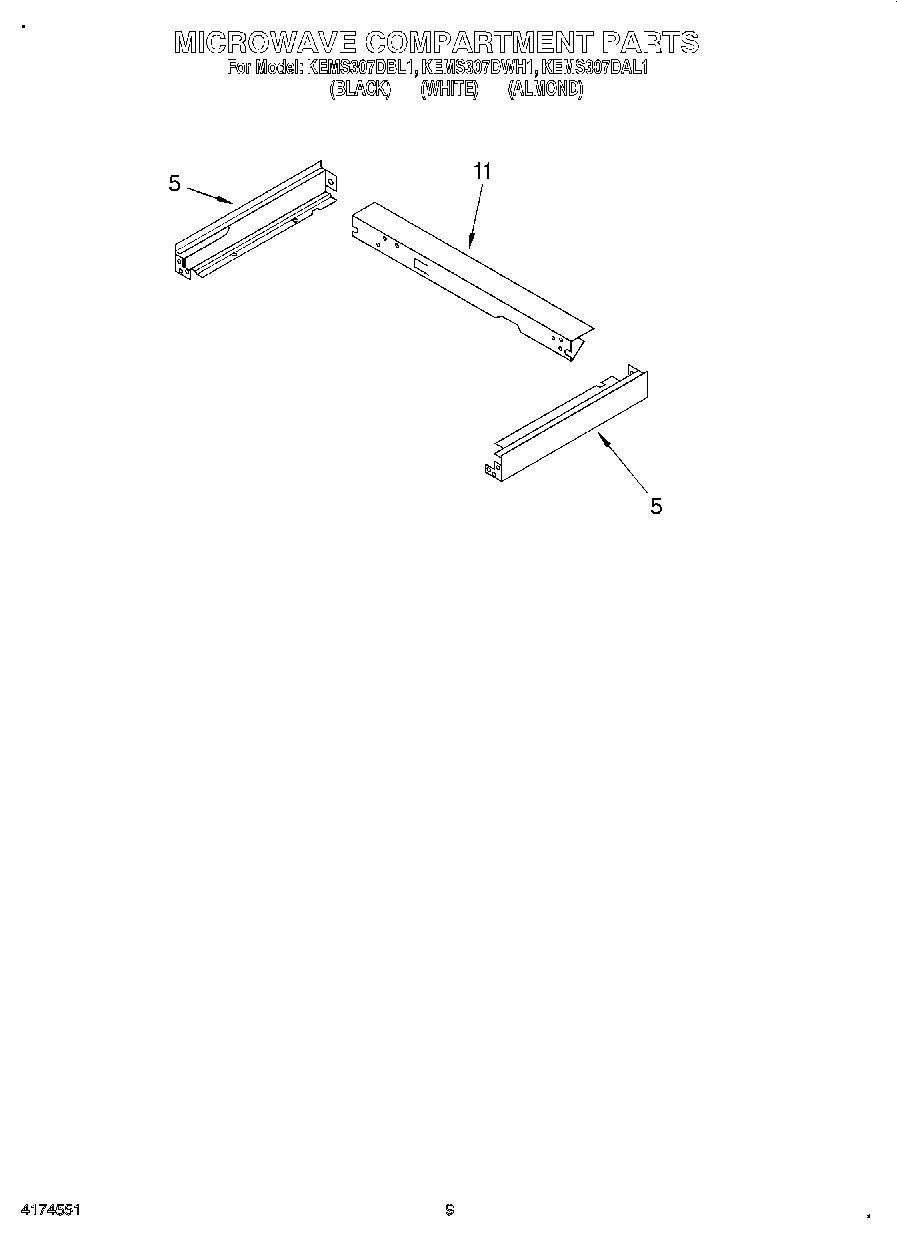

07 - MICROWAVE COMPARTMENT
Common parts from model Whirlpool KEMS307DWH1
Cabinet Parts WPL ARI85976A2 Contact Us For Availability
1
Cover, Top WPL 4450378 Contact Us For Availability
1
Bracket, Capacitor WPL 4375299 Contact Us For Availability
1
Trim, Side (Screw) (White & Almond) WPL 4449041 Contact Us For Availability
1
Trim, Side (RH Black) WPL 4450856 Contact Us For Availability
1
Trim, Side (RH White) WPL 4450857 Contact Us For Availability
1
Trim, Side (RH Almond) WPL 4450858 Contact Us For Availability
1
Trim, Side (LH Black) WPL 4450859 Contact Us For Availability
1
Trim, Side (LH White) WPL 4450860 Contact Us For Availability
1
Trim, Side (LH Almond) WPL 4450861 Contact Us For Availability
2
Baffle, Blower WPL 4448935 Contact Us For Availability
2
Screw WPL 4375313 Contact Us For Availability
3
Microcomputer WPL 4448869 Contact Us For Availability
3
Blower WPL 4450920 Contact Us For Availability
3
Rubber Ring WPL 4375037 Contact Us For Availability
4
Bracket, Transformer WPL 4450066 Contact Us For Availability
4
Screw WPL 4375038 Contact Us For Availability
5
Air Duct, Magnetron WPL 4375314 Contact Us For Availability
5
Rack, Roasting WPL 3181534 Contact Us For Availability
5
Support Rails (Right Side) WPL 4450404 Contact Us For Availability
5
Support Rails (Left Side) WPL 4450405 Contact Us For Availability
6
Exhaust Duct WPL 4450367 Contact Us For Availability
6
Support, Tube WPL 4375253 Contact Us For Availability
6
Divider, Vent WPL 4451054 Contact Us For Availability
7
Bracket, Duct WPL 4450027 Contact Us For Availability
7
Plug, Ceramic WPL 4375254 Contact Us For Availability
7
Partition WPL 4451166 Contact Us For Availability
8
Grommet WPL 4449964 Contact Us For Availability
8
Bushing WPL 4375255 Contact Us For Availability
9
Glass, Middle WPL 4448937 Contact Us For Availability
9
Reflector WPL 4375256 Contact Us For Availability
9
Tube, Vent WPL 4449009 Contact Us For Availability
10
Chamber, Reflector WPL 4375257 Contact Us For Availability
11
Damper WPL 4375315 Contact Us For Availability
11
Rear Channel WPL 4449703 Contact Us For Availability
12
Duct, Inlet WPL 4375260 Contact Us For Availability
12
Side, Combo WPL 4450401 Contact Us For Availability
13
Safety Switch (Oven Temp) WPL 4450812 Contact Us For Availability
13
Handle, Door (Almond Model) WPL 4448416 Contact Us For Availability
13
Vent, (Control Panel) WPL 4449767 Contact Us For Availability
13
Insulation, Switch WPL 4375316 Contact Us For Availability
14
Bracket, Mounting (Right Side) WPL 4449141 Contact Us For Availability
14
Bracket, Mounting (Left Side) WPL 4449142 Contact Us For Availability
14
Bracket, Handle WPL 4450813 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Screw WPL 4451040 Contact Us For Availability
14
Fan Wheel WPL 4375322 Contact Us For Availability
14
Frame, Front WPL 4450417 Contact Us For Availability
15
Filler, Side (Right Side) WPL 4449083 Contact Us For Availability
15
Filler, Side (Left) WPL 4449086 Contact Us For Availability
15
Back, Control WPL 4450658 Contact Us For Availability
15
Duct, Air WPL 4375317 Contact Us For Availability
15
Tray, Bake WPL 4448723 Contact Us For Availability
16
Block, Slide WPL 4375264 Contact Us For Availability
17
Cover Plate, Upper WPL 4375248 Contact Us For Availability
19
Shield, Heat WPL 4450362 Contact Us For Availability
19
Support, Insulation WPL 4450542 Contact Us For Availability
20
Retainer, Glass WPL 4449031 Contact Us For Availability
21
Seal, Door Top WPL 4450837 Contact Us For Availability
22
Seal, Side WPL 4450838 Contact Us For Availability
22
Convection Motor WPL 4448952 Contact Us For Availability
23
Retainer, Clip (Black Model) WPL 4450863 Contact Us For Availability
23
Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability
23
Retainer, Clip (Almond Model) WPL 4450865 Contact Us For Availability
23
Rack WPL 4375276 Contact Us For Availability
24
Screw WPL 4449746 Contact Us For Availability
25
Side, Module (R.H. & L.H.) WPL 4450528 Contact Us For Availability
26
Back, Module WPL 4451169 Contact Us For Availability
27
Liner, Oven (Not a Serviceable Part) WPL ARI85975A9 Contact Us For Availability
29
Sensor WPL 4450026 Contact Us For Availability
30
Thermostat WPL 4375279 Contact Us For Availability
30
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
31
Switch, Door WPL 4450819 Contact Us For Availability
32
Thermostat WPL 4375281 Contact Us For Availability
32
Vent Box Assy WPL 4449369 Contact Us For Availability
33
Q Tube Assembly WPL 4375282 Contact Us For Availability
33
Deflector, Vent WPL 4450280 Contact Us For Availability
34
Vent, Center WPL 4449074 Contact Us For Availability
35
Ring, Turntable WPL 4375344 Contact Us For Availability
35
Extension Filler WPL 4449906 Contact Us For Availability
37
Thermostat (TOD) (Temp.) SPST WPL 4450334 Contact Us For Availability
38
Plate, Adapter WPL 4450522 Contact Us For Availability
39
Bracket, Hinge (Left) WPL 4375327 Contact Us For Availability
39
Bracket, Hinge (Right) WPL 4375328 Contact Us For Availability
40
Inlet WPL 4375329 Contact Us For Availability
41
Strap, Door WPL 4375330 Contact Us For Availability
42
Plate, Grill WPL 4375331 Contact Us For Availability
43
Bracket WPL 4375332 Contact Us For Availability
43
Base, Chassis WPL 4450527 Contact Us For Availability
44
Fan Cap WPL 4375333 Contact Us For Availability
45
Fan Cap Bottom WPL 4375334 Contact Us For Availability
46
Blower WPL 4450919 Contact Us For Availability
47
Isolation Plate WPL 4375337 Contact Us For Availability
47
Vent, Bottom WPL 4450406 Contact Us For Availability
48
Cover Plate WPL 4375338 Contact Us For Availability
48
Vent, Top WPL 4449883 Contact Us For Availability
49
Plate, Door WPL 4375339 Contact Us For Availability
50
Inner Frame WPL 4375340 Contact Us For Availability
50
Cover, Back WPL 4450543 Contact Us For Availability
51
Side Plate (Left) WPL 4375341 Contact Us For Availability
51
Side Plate (Right) WPL 4375342 Contact Us For Availability
51
Trim, Bottom (Screw) WPL 4159465 Contact Us For Availability
51
Trim, Bottom (Black Model) WPL 4448461 Contact Us For Availability
51
Trim, Bottom (White Model) WPL 4448462 Contact Us For Availability
51
Trim, Bottom (Almond Model) WPL 4448463 Contact Us For Availability
52
Insulation, Bottom WPL 4450128 Contact Us For Availability
52
Insulation, Back WPL 4450365 Contact Us For Availability
52
Chassis, Back WPL 4450403 Contact Us For Availability
57
Cable WPL 4375350 Contact Us For Availability
58
Holder, Lamp WPL 4375351 Contact Us For Availability
× ![]()
