Model Whirlpool KEMS307DAL1 – Common Parts & Diagrams
02 - CONTROL PANEL, LITERATURE
05 - INTERNAL OVEN
07 - MICROWAVE COMPARTMENT

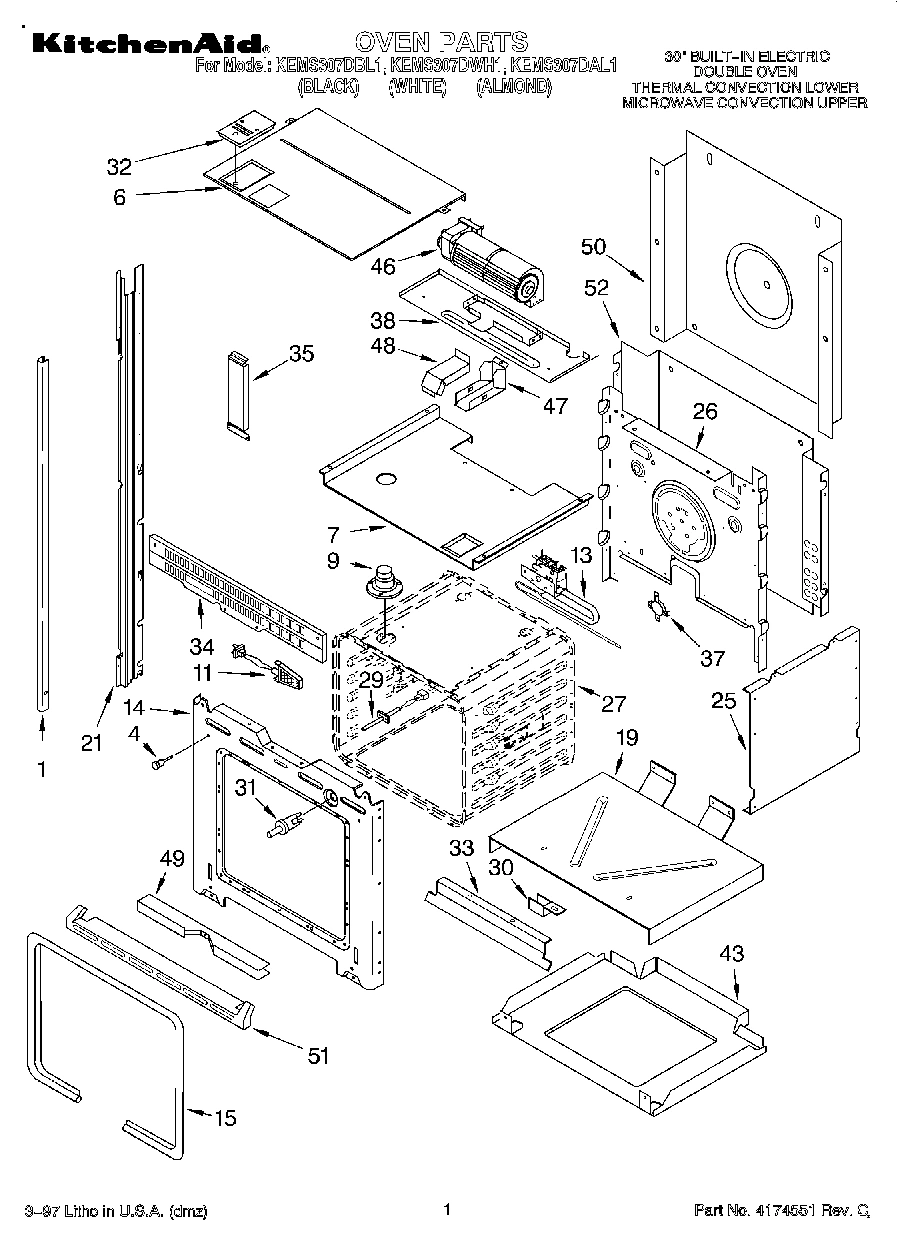

01 - OVEN

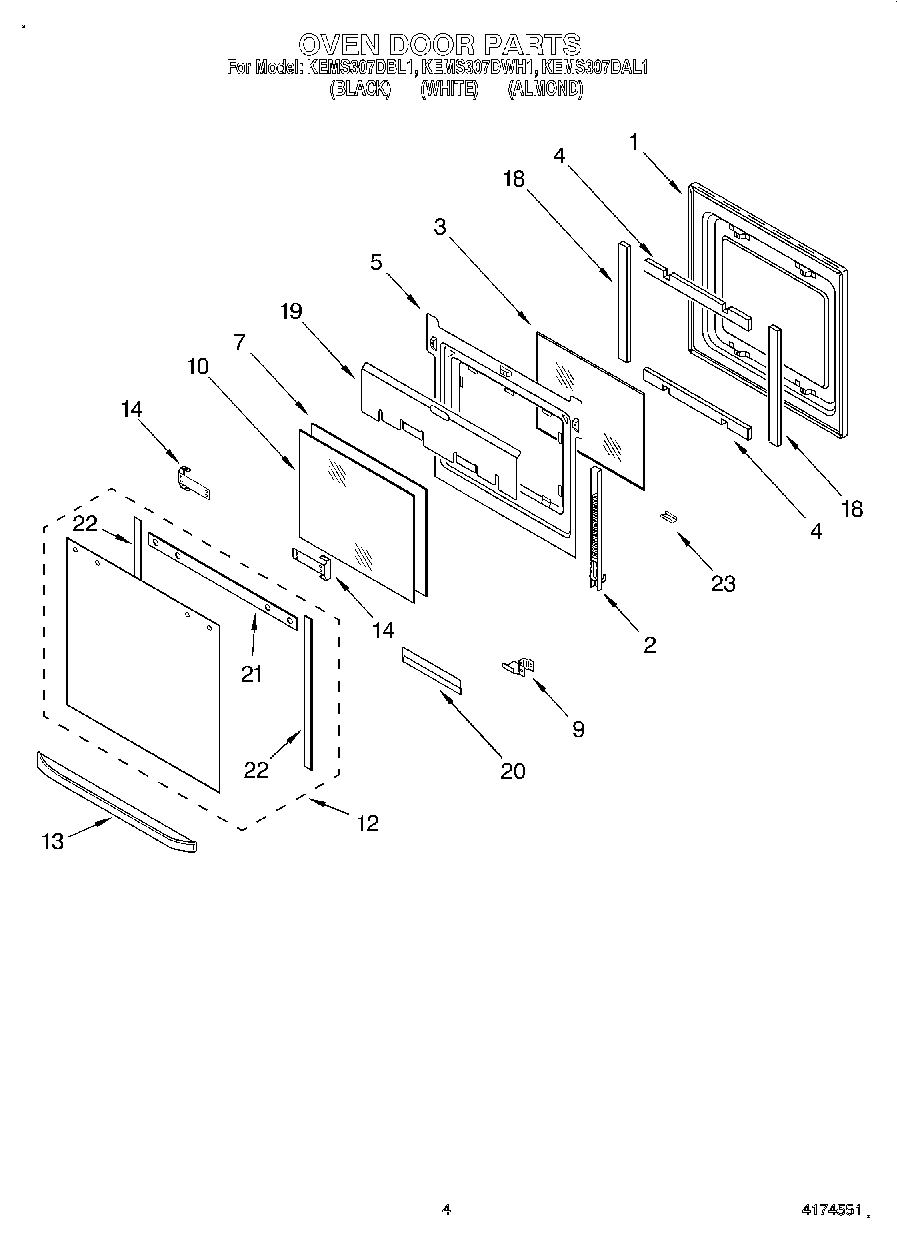

03 - OVEN DOOR
08 - TOP VENTING

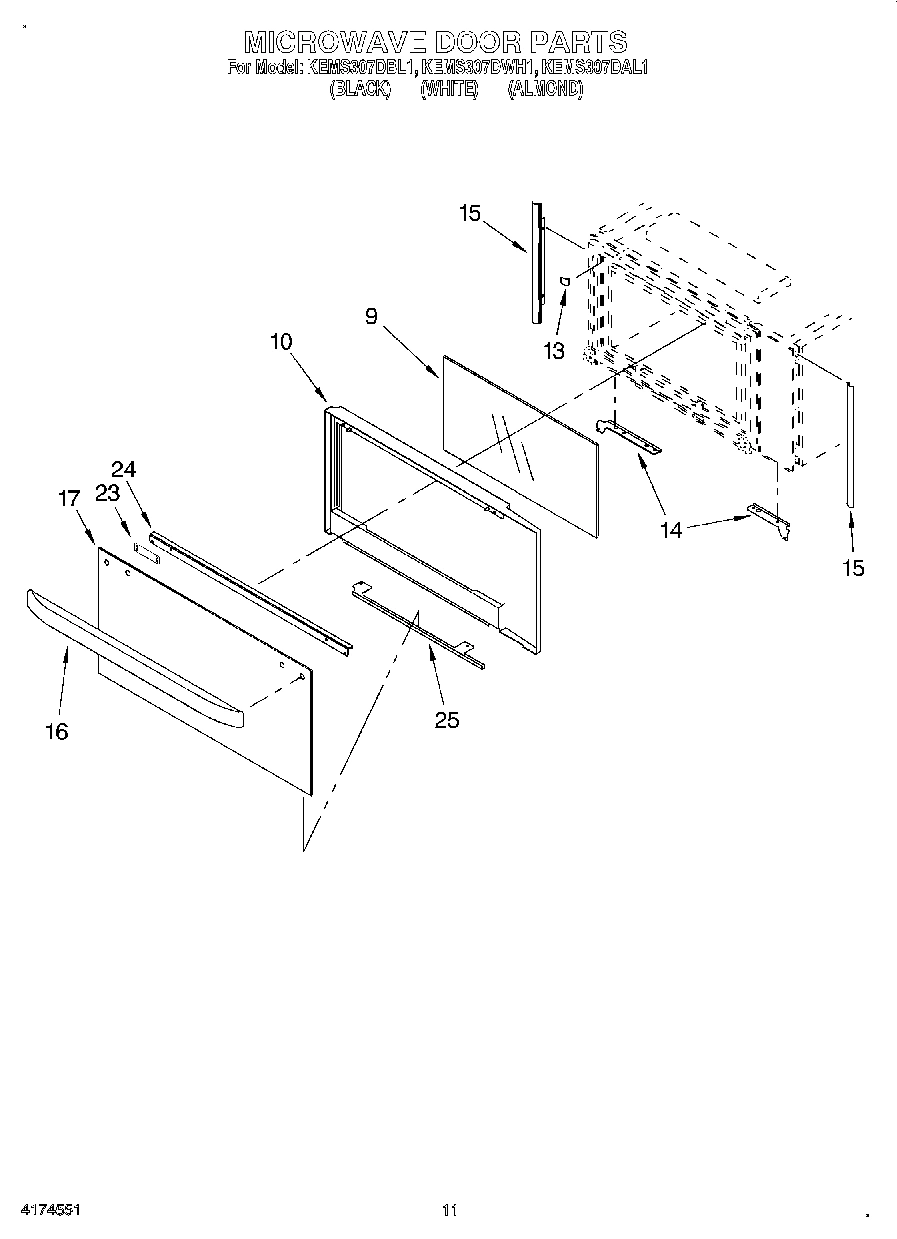

09 - MICROWAVE DOOR, OPTIONAL
04 - LATCH

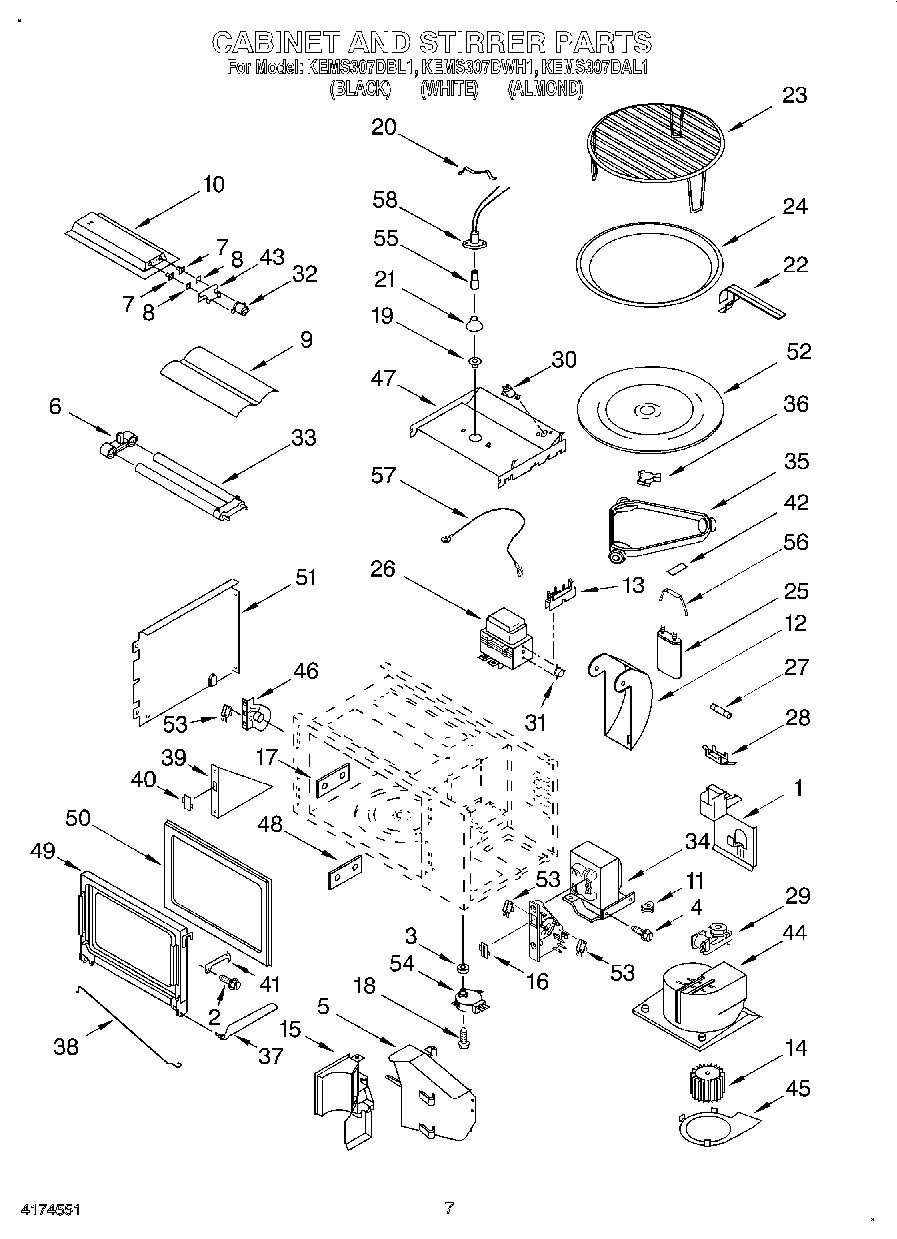

06 - CABINET AND STIRRER
Common parts from model Whirlpool KEMS307DAL1
Cabinet Parts WPL ARI85954A6 Contact Us For Availability
1
Door Liner WPL 4450429 Contact Us For Availability
1
Cover, Top WPL 4450378 Contact Us For Availability
1
Bracket, Capacitor WPL 4375299 Contact Us For Availability
2
Baffle, Blower WPL 4448935 Contact Us For Availability
2
Screw WPL 4375313 Contact Us For Availability
3
Microcomputer WPL 4448869 Contact Us For Availability
3
Blower WPL 4450920 Contact Us For Availability
3
Rubber Ring WPL 4375037 Contact Us For Availability
4
Insulation, Top and Bottom Door WPL 4448680 Contact Us For Availability
4
Bracket, Transformer WPL 4450066 Contact Us For Availability
4
Deflector, Latch WPL 4450051 Contact Us For Availability
4
Screw WPL 4375038 Contact Us For Availability
5
Retainer, Glass WPL 4450423 Contact Us For Availability
5
Air Duct, Magnetron WPL 4375314 Contact Us For Availability
6
Exhaust Duct WPL 4450367 Contact Us For Availability
6
Support, Tube WPL 4375253 Contact Us For Availability
7
Bracket, Duct WPL 4450027 Contact Us For Availability
7
Plug, Ceramic WPL 4375254 Contact Us For Availability
8
Grommet WPL 4449964 Contact Us For Availability
8
Bushing WPL 4375255 Contact Us For Availability
9
Glass, Middle WPL 4448937 Contact Us For Availability
9
Retainer, Glass WPL 4450470 Contact Us For Availability
9
Baffle, Rear WPL 4450408 Contact Us For Availability
9
Reflector WPL 4375256 Contact Us For Availability
10
Latch, Assy WPL 4450332 Contact Us For Availability
10
Chamber, Reflector WPL 4375257 Contact Us For Availability
11
Damper WPL 4375315 Contact Us For Availability
12
Duct, Inlet WPL 4375260 Contact Us For Availability
12
Door Glass (White Model) WPL 4450700 Contact Us For Availability
12
Door Glass (Almond Model) WPL 4450701 Contact Us For Availability
12
Side, Combo WPL 4450401 Contact Us For Availability
13
Safety Switch (Oven Temp) WPL 4450812 Contact Us For Availability
13
Vent, (Control Panel) WPL 4449767 Contact Us For Availability
13
Tape, Foam WPL 4450265 Contact Us For Availability
13
Plate, Adapter WPL 4450522 Contact Us For Availability
13
Insulation, Switch WPL 4375316 Contact Us For Availability
14
Bracket, Mounting (Right Side) WPL 4449141 Contact Us For Availability
14
Bracket, Mounting (Left Side) WPL 4449142 Contact Us For Availability
14
Bracket, Handle WPL 4450813 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Screw WPL 4451040 Contact Us For Availability
14
Vent, Top WPL 4449124 Contact Us For Availability
14
Fan Wheel WPL 4375322 Contact Us For Availability
15
Filler, Side (Right Side) WPL 4449083 Contact Us For Availability
15
Filler, Side (Left) WPL 4449086 Contact Us For Availability
15
Back, Control WPL 4450658 Contact Us For Availability
15
Vent, Bottom WPL 4449959 Contact Us For Availability
15
Duct, Air WPL 4375317 Contact Us For Availability
16
Handle, Door (Black Model) WPL 4448414 Contact Us For Availability
16
Handle, Door (White Model) WPL 4448415 Contact Us For Availability
16
Handle, Door (Almond Model) WPL 4448416 Contact Us For Availability
16
Block, Slide WPL 4375264 Contact Us For Availability
17
Glass, Outer (Black Model) WPL 4449136 Contact Us For Availability
17
Glass, Outer (White Model) WPL 4449137 Contact Us For Availability
17
Glass, Outer (Almond Model) WPL 4449138 Contact Us For Availability
17
Cover Plate, Upper WPL 4375248 Contact Us For Availability
19
Shield, Heat WPL 4450362 Contact Us For Availability
20
Retainer, Glass WPL 4449031 Contact Us For Availability
21
Seal, Door Top WPL 4450837 Contact Us For Availability
22
Seal, Side WPL 4450838 Contact Us For Availability
23
Retainer, Clip (Black Model) WPL 4450863 Contact Us For Availability
23
Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability
23
Retainer, Clip (Almond Model) WPL 4450865 Contact Us For Availability
23
Spacer WPL 4451055 Contact Us For Availability
23
Rack WPL 4375276 Contact Us For Availability
24
Screw WPL 4449746 Contact Us For Availability
24
Bracket, Handle WPL 4450961 Contact Us For Availability
25
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
25
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
25
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
25
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
25
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
25
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
25
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
25
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
25
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
25
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
25
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
25
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
25
Filler Kit (Bl) WPL 4378944 Contact Us For Availability
25
Filler Kit (Wh) WPL 4378945 Contact Us For Availability
25
Filler Kit (Al) WPL 4378946 Contact Us For Availability
25
Clip, Glass (Black Model) WPL 4450031 Contact Us For Availability
25
Clip, Glass (White Model) WPL 4450032 Contact Us For Availability
25
Clip, Glass (Almond Model) WPL 4450033 Contact Us For Availability
25
Harness, Transformer WPL 4450291 Contact Us For Availability
25
Harness, Latch WPL 4450753 Contact Us For Availability
25
G WPL 4450831 Contact Us For Availability
25
WPL 4450951 WPL 4450951 Contact Us For Availability
25
WPL 4450990 WPL 4450990 Contact Us For Availability
25
WPL 591014 WPL 591014 Contact Us For Availability
30
Thermostat WPL 4375279 Contact Us For Availability
32
Thermostat WPL 4375281 Contact Us For Availability
33
Q Tube Assembly WPL 4375282 Contact Us For Availability
35
Ring, Turntable WPL 4375344 Contact Us For Availability
39
Bracket, Hinge (Left) WPL 4375327 Contact Us For Availability
39
Bracket, Hinge (Right) WPL 4375328 Contact Us For Availability
40
Inlet WPL 4375329 Contact Us For Availability
41
Strap, Door WPL 4375330 Contact Us For Availability
42
Plate, Grill WPL 4375331 Contact Us For Availability
43
Bracket WPL 4375332 Contact Us For Availability
44
Fan Cap WPL 4375333 Contact Us For Availability
45
Fan Cap Bottom WPL 4375334 Contact Us For Availability
47
Isolation Plate WPL 4375337 Contact Us For Availability
48
Cover Plate WPL 4375338 Contact Us For Availability
49
Plate, Door WPL 4375339 Contact Us For Availability
50
Inner Frame WPL 4375340 Contact Us For Availability
51
Trim, Bottom (Almond Model) WPL 4448463 Contact Us For Availability
51
Side Plate (Left) WPL 4375341 Contact Us For Availability
51
Side Plate (Right) WPL 4375342 Contact Us For Availability
52
Insulation, Bottom WPL 4450128 Contact Us For Availability
52
Insulation, Back WPL 4450365 Contact Us For Availability
52
Chassis, Back WPL 4450403 Contact Us For Availability
57
Cable WPL 4375350 Contact Us For Availability
58
Holder, Lamp WPL 4375351 Contact Us For Availability
× ![]()
