Model Whirlpool KEMC307KWH05 30`` BUILT-IN ELECTRIC DOUBLE OVEN THERMAL CONVECT – Common Parts & Diagrams

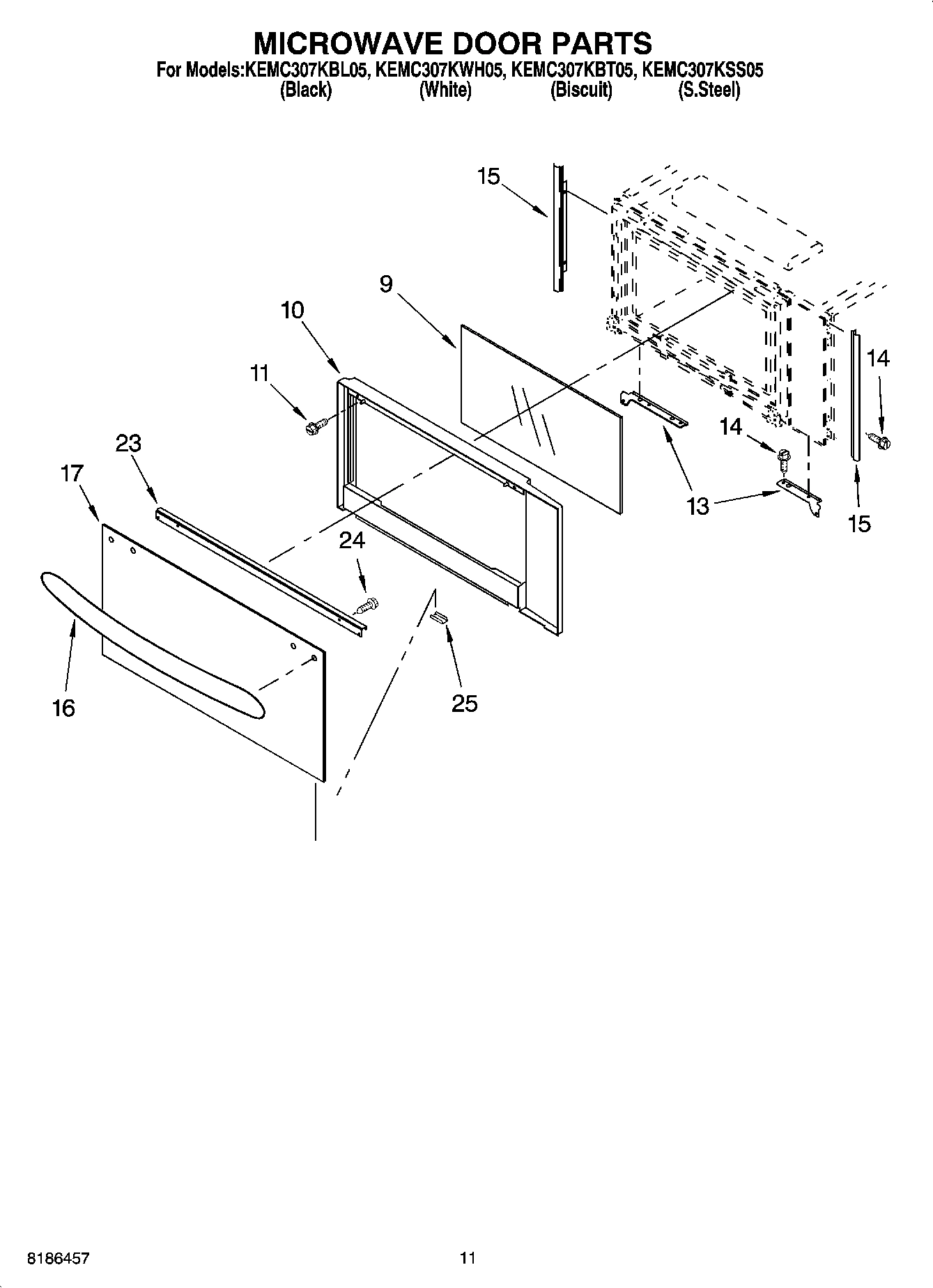

09 - MICROWAVE DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

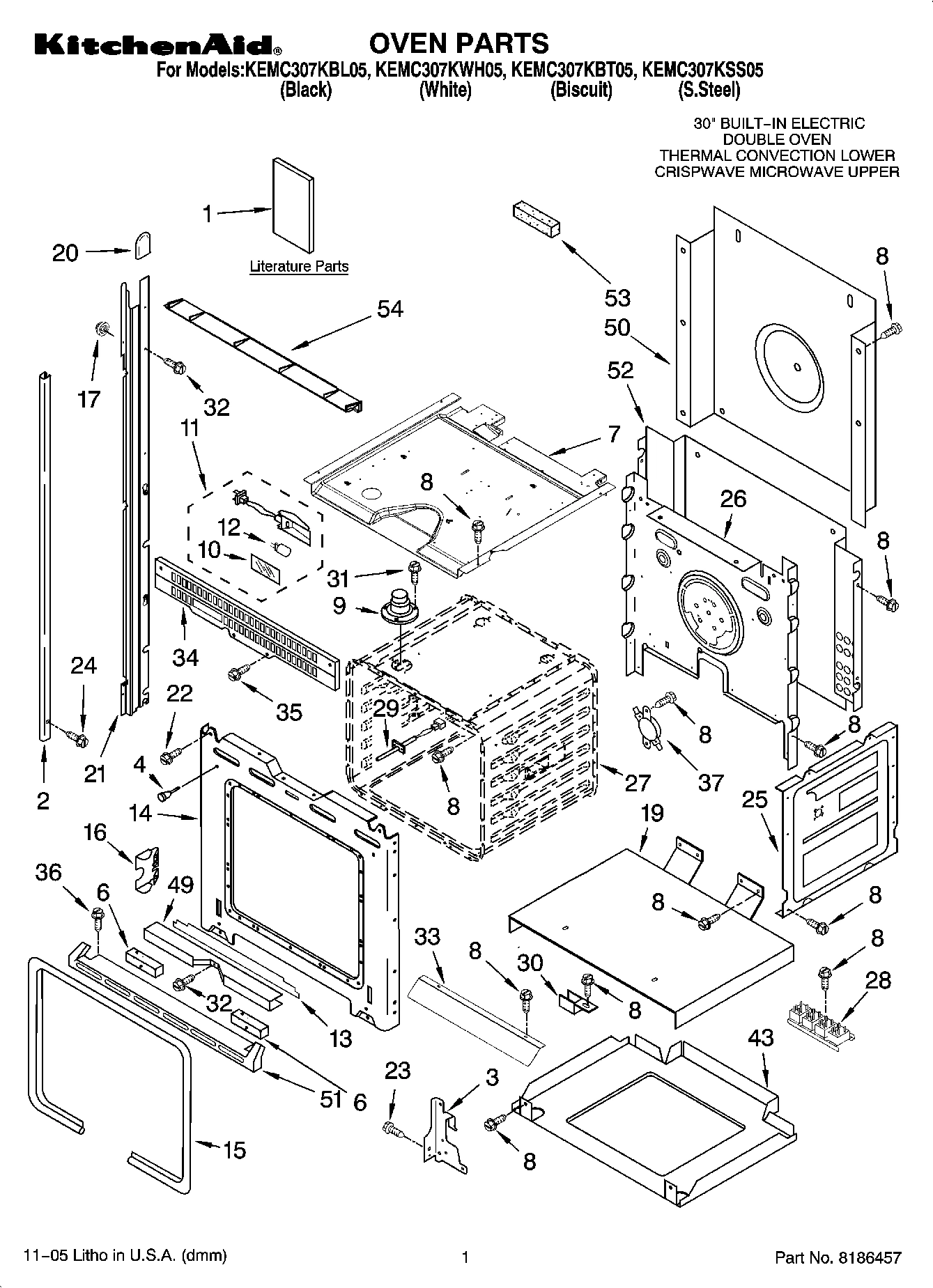

01 - OVEN PARTS
08 - TOP VENTING PARTS
04 - LATCH PARTS
06 - CABINET AND STIRRER PARTS
03 - OVEN DOOR PARTS
05 - INTERNAL OVEN PARTS
07 - MICROWAVE COMPARTMENT PARTS
02 - CONTROL PANEL PARTS
Common parts from model Whirlpool KEMC307KWH05 30`` BUILT-IN ELECTRIC DOUBLE OVEN THERMAL CONVECT
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
PAINT, TOUCH-UP (1/2oz.) (Biscuit) WPL 4392899 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT) WPL 4392901 Contact Us For Availability
PAINT, SPRAY (Citrine White) WPL 261900 Contact Us For Availability
WPL 814381 WPL 814381 Contact Us For Availability
Conduit, Combo WPL 4450950 Contact Us For Availability
Lead, Groun WPL 4452400 Contact Us For Availability
WPL 8301922 WPL 8301922 Contact Us For Availability
1
Vent, Exhaust WPL 4451759 Contact Us For Availability
1
Panel, Control (S.Steel) WPL 4451791 Contact Us For Availability
1
Cover, Top WPL 4450378 Contact Us For Availability
1
Bracket, Capacitor WPL 4375299 Contact Us For Availability
1
Support Rails (Right Side) WPL 4452551 Contact Us For Availability
1
Support Rails (Left Side) WPL 4452552 Contact Us For Availability
1
Panel, Control (Black) WPL 4452604 Contact Us For Availability
1
Panel, Control (White) WPL 4452605 Contact Us For Availability
1
Panel, Control (Biscuit) WPL 4452974 Contact Us For Availability
2
Assy, Control WPL 8302346 Contact Us For Availability
2
Trim, Side (LH Black) WPL 4455431 Contact Us For Availability
2
ELBOW, VENT TOP WPL 4455178 Contact Us For Availability
2
Baffle, Blower WPL 4448935 Contact Us For Availability
2
Screw WPL 4375313 Contact Us For Availability
3
Blower WPL 4450920 Contact Us For Availability
3
Bracket, Combo Chassis WPL 8300791 Contact Us For Availability
3
Rubber Ring WPL 4375037 Contact Us For Availability
3
Rear Channel WPL 4452548 Contact Us For Availability
4
Bumper, Door WPL 4448520 Contact Us For Availability
4
Screw WPL 4375038 Contact Us For Availability
4
Assy, Membrane (Black) WPL 8302681 Contact Us For Availability
4
Assy, Membrane (White) WPL 8302682 Contact Us For Availability
4
Assy, Membrane (Biscuit) WPL 8302683 Contact Us For Availability
4
Assy, Membrane (S.Steel) WPL 8302688 Contact Us For Availability
5
ELBOW, VENT BOTTOM WPL 4455177 Contact Us For Availability
5
Air Duct, Magnetron WPL 4375314 Contact Us For Availability
5
Rack, Roasting WPL 3181534 Contact Us For Availability
6
Exhaust Duct WPL 4451634 Contact Us For Availability
6
Support, Tube WPL 4375253 Contact Us For Availability
6
Filter WPL 4451592 Contact Us For Availability
7
Bracket, Duct WPL 4450027 Contact Us For Availability
7
Plug, Ceramic WPL 4375254 Contact Us For Availability
7
Bracket, Filter WPL 4451632 Contact Us For Availability
8
Grommet WPL 4449964 Contact Us For Availability
8
Baffle, Rear WPL 4450408 Contact Us For Availability
8
Bushing WPL 4375255 Contact Us For Availability
9
Convection Motor WPL 4451583 Contact Us For Availability
9
Holder, Fuse WPL 4454949 Contact Us For Availability
9
Glass, Middle WPL 4448937 Contact Us For Availability
9
Reflector WPL 4375256 Contact Us For Availability
10
Lens, Light WPL 4452163 Contact Us For Availability
10
Chamber, Reflector WPL 4375257 Contact Us For Availability
11
Damper WPL 4375315 Contact Us For Availability
12
Duct, Inlet WPL 4375260 Contact Us For Availability
12
Side, Combo WPL 4452559 Contact Us For Availability
12
Door Glass, Assy (White) WPL 4455390 Contact Us For Availability
12
Door Glass, Assy (Black) WPL 4455391 Contact Us For Availability
12
Door Glass, Assy (Biscuit) WPL 4455395 Contact Us For Availability
12
Nut WPL 4452227 Contact Us For Availability
13
Bracket, Mounting (Right Side) WPL 4449141 Contact Us For Availability
13
Bracket, Mounting (Left Side) WPL 4449142 Contact Us For Availability
13
Insulation WPL 4452337 Contact Us For Availability
13
Vent, Control Panel WPL 4456145 Contact Us For Availability
13
Insulation, Switch WPL 4375316 Contact Us For Availability
13
Door Handle (Black) WPL 4452502 Contact Us For Availability
13
Door Handle (White) WPL 4452503 Contact Us For Availability
13
Door Handle (Biscuit) WPL 4452871 Contact Us For Availability
13
Door Handle (S.Steel) WPL 4455851 Contact Us For Availability
14
Bracket, Handle (R.Hand) WPL 4455803 Contact Us For Availability
14
Bracket, Handle (L.Hand) WPL 4455804 Contact Us For Availability
14
Frame, Front WPL 9759060 Contact Us For Availability
14
Fan Wheel WPL 4375322 Contact Us For Availability
15
Filler, Side (Right Side) WPL 4449083 Contact Us For Availability
15
Filler, Side (Left Side) WPL 4449086 Contact Us For Availability
15
Tray, Bake WPL 4455037 Contact Us For Availability
15
Back, Control WPL 4452244 Contact Us For Availability
15
Duct, Air WPL 4375317 Contact Us For Availability
16
Bracket, Mounting WPL 4452152 Contact Us For Availability
16
Block, Slide WPL 4375264 Contact Us For Availability
16
BRACKET(3RD GLASS) WPL 9759230 Contact Us For Availability
17
Glass, Outer (Black) WPL 4452211 Contact Us For Availability
17
Glass, Outer (White) WPL 4452789 Contact Us For Availability
17
Clamp WPL 4448664 Contact Us For Availability
17
Cover Plate, Upper WPL 4375248 Contact Us For Availability
17
Cover, Bake Tray WPL 4450039 Contact Us For Availability
19
Support, Insulation WPL 4451478 Contact Us For Availability
19
Transformer, Control Panel WPL 4455038 Contact Us For Availability
19
EXT Filler WPL 4449906 Contact Us For Availability
19
Shield, Heat WPL 4457103 Contact Us For Availability
20
Cap, Spacer WPL 4451605 Contact Us For Availability
20
Plate, Cover WPL 4452247 Contact Us For Availability
20
Plate, Blower Service WPL 4455191 Contact Us For Availability
21
Suppressor WPL 4451934 Contact Us For Availability
21
Seal, Door Top WPL 4452326 Contact Us For Availability
22
Screw WPL 4449040 Contact Us For Availability
22
Screw WPL 313806 Contact Us For Availability
22
Shield, Vent (Btm) WPL 4457114 Contact Us For Availability
23
Rack (Convection (Short)) WPL 4452220 Contact Us For Availability
23
Bracket, Handle WPL 4452331 Contact Us For Availability
23
Rack (Broiling (Tall)) WPL 4375276 Contact Us For Availability
23
RETAINER, GLASS CLIP (BLACK) WPL 4450863 Contact Us For Availability
23
RETAINER,GLASS CLIP (WHITE) WPL 4450864 Contact Us For Availability
23
Retainer, Glass-Clip (S.Steel) WPL 4451432 Contact Us For Availability
23
RETAINER,GLASS CLIP (BISCUIT) WPL 4452119 Contact Us For Availability
24
Screw WPL 3400080 Contact Us For Availability
24
Glass, Inner WPL 9759228 Contact Us For Availability
26
Back, Chassis WPL 4452234 Contact Us For Availability
27
Liner, Oven (Not serviceable) WPL ARI85320A6 Contact Us For Availability
29
Motor, Blower WPL 4375278 Contact Us For Availability
30
Thermostat WPL 4375279 Contact Us For Availability
30
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
32
Thermostat WPL 4375281 Contact Us For Availability
33
Deflector, Vent WPL 9760677 Contact Us For Availability
33
Q Tube Assembly WPL 4375282 Contact Us For Availability
34
Vent, Center WPL 8302592 Contact Us For Availability
35
Ring, Turntable WPL 4375344 Contact Us For Availability
39
Bracket, Hinge (Left) WPL 4375327 Contact Us For Availability
39
Bracket, Hinge (Right) WPL 4375328 Contact Us For Availability
40
Inlet WPL 4375329 Contact Us For Availability
41
Door Strap WPL 4375330 Contact Us For Availability
42
Plate, Grill WPL 4375331 Contact Us For Availability
43
Base, Chassis WPL 9759713 Contact Us For Availability
43
Bracket WPL 4375332 Contact Us For Availability
44
Fan Cap WPL 4375333 Contact Us For Availability
45
Fan Cap Bottom WPL 4375334 Contact Us For Availability
47
Isolation Plate WPL 4375337 Contact Us For Availability
48
Cover Plate WPL 4375338 Contact Us For Availability
49
Door, Plate WPL 4375339 Contact Us For Availability
50
Inner Frame WPL 4375340 Contact Us For Availability
51
Trim, Bottom (S.Steel) WPL 4455147 Contact Us For Availability
51
Trim, Bottom (Black) WPL 4455443 Contact Us For Availability
51
Trim, Bottom (White) WPL 4455445 Contact Us For Availability
51
Trim, Bottom (Bis WPL 4455447 Contact Us For Availability
51
Side Plate (Left) WPL 4375341 Contact Us For Availability
51
Side Plate (Right) WPL 4375342 Contact Us For Availability
52
WPL 4451756 WPL 4451756 Contact Us For Availability
53
WPL 4452260 WPL 4452260 Contact Us For Availability
54
WPL 4450365 WPL 4450365 Contact Us For Availability
54
WPL ARI85321A7 WPL ARI85321A7 Contact Us For Availability
57
Cable WPL 4375350 Contact Us For Availability
58
Holder, Lamp WPL 4375351 Contact Us For Availability
× ![]()
