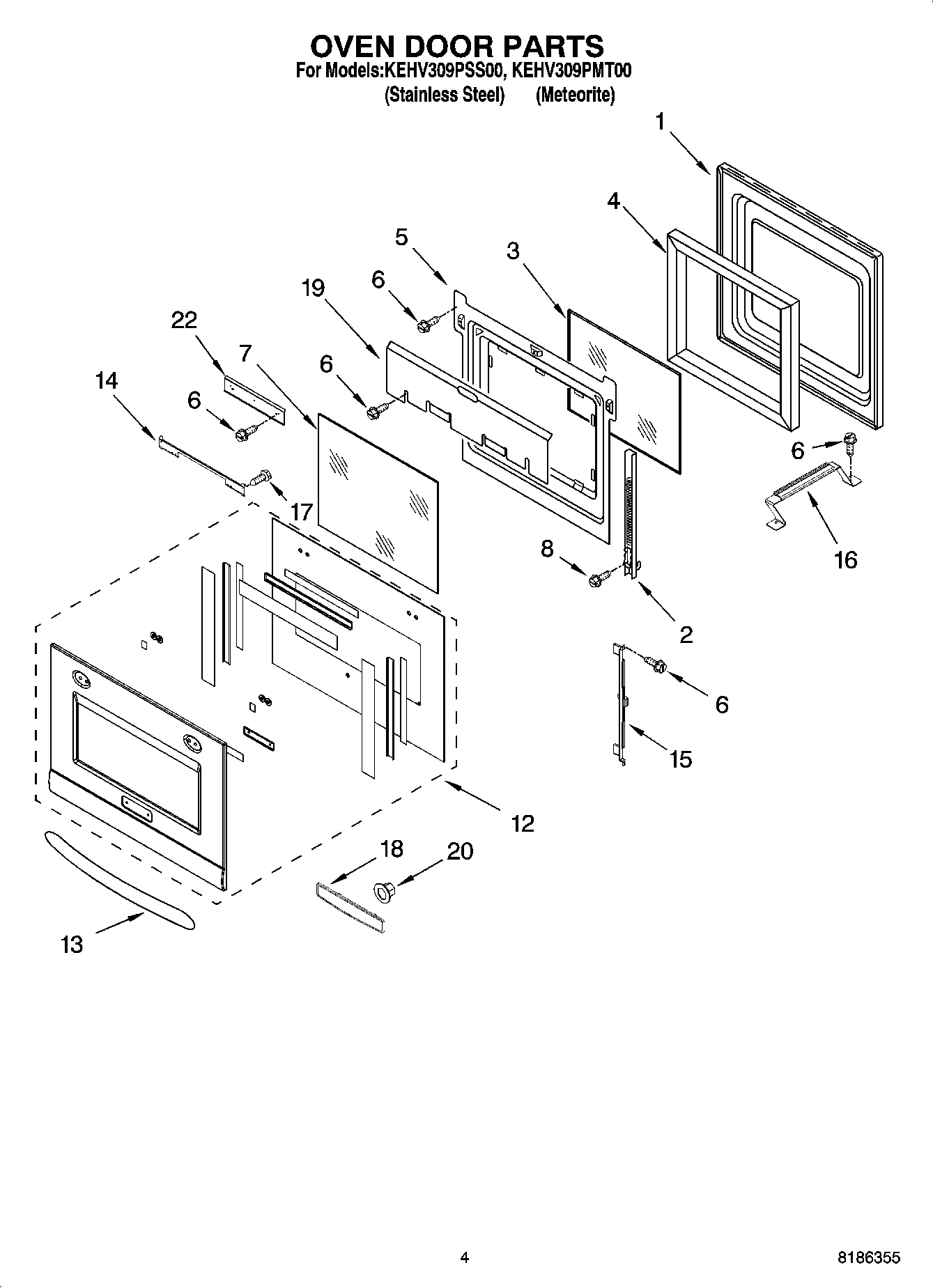

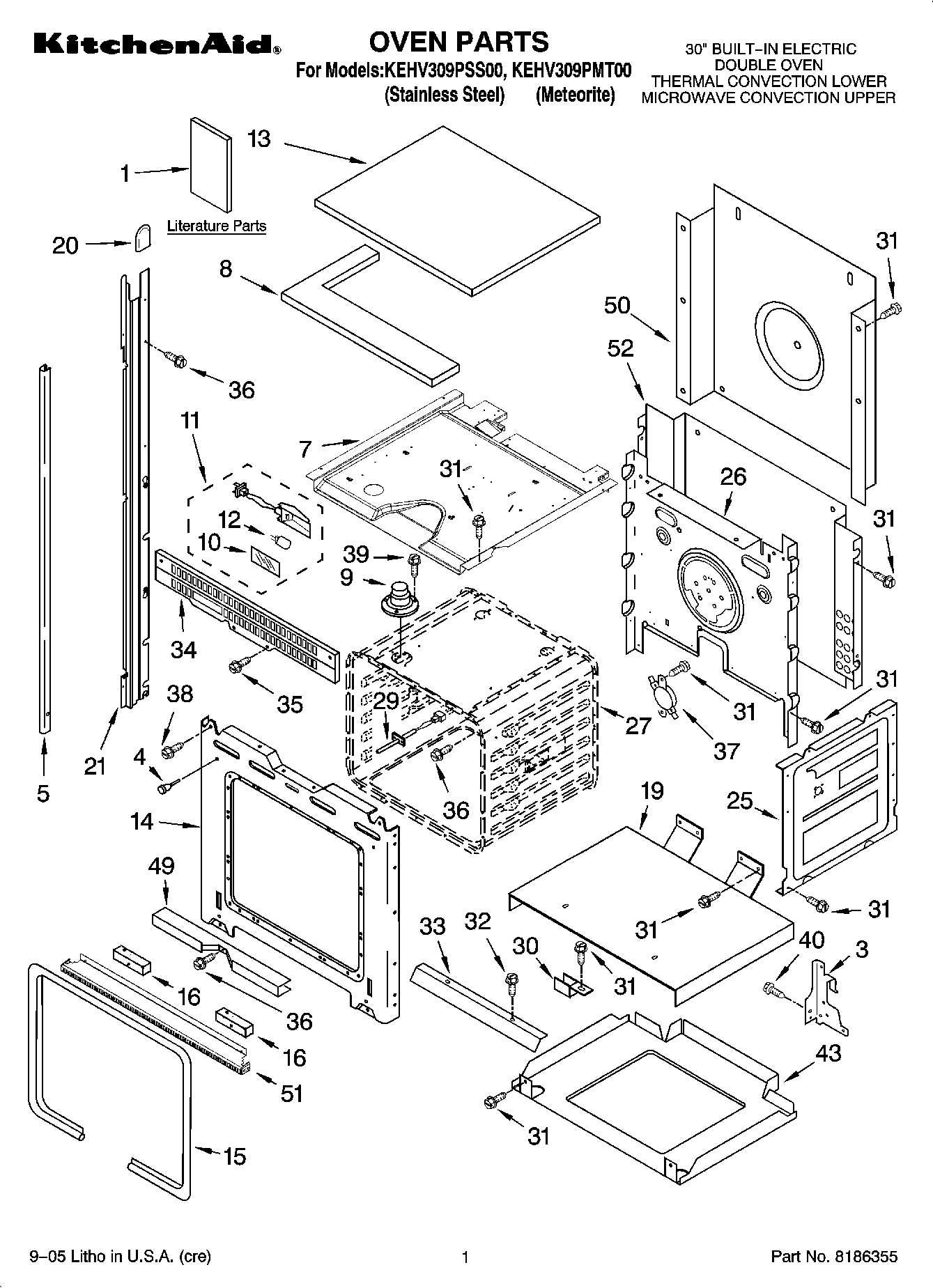

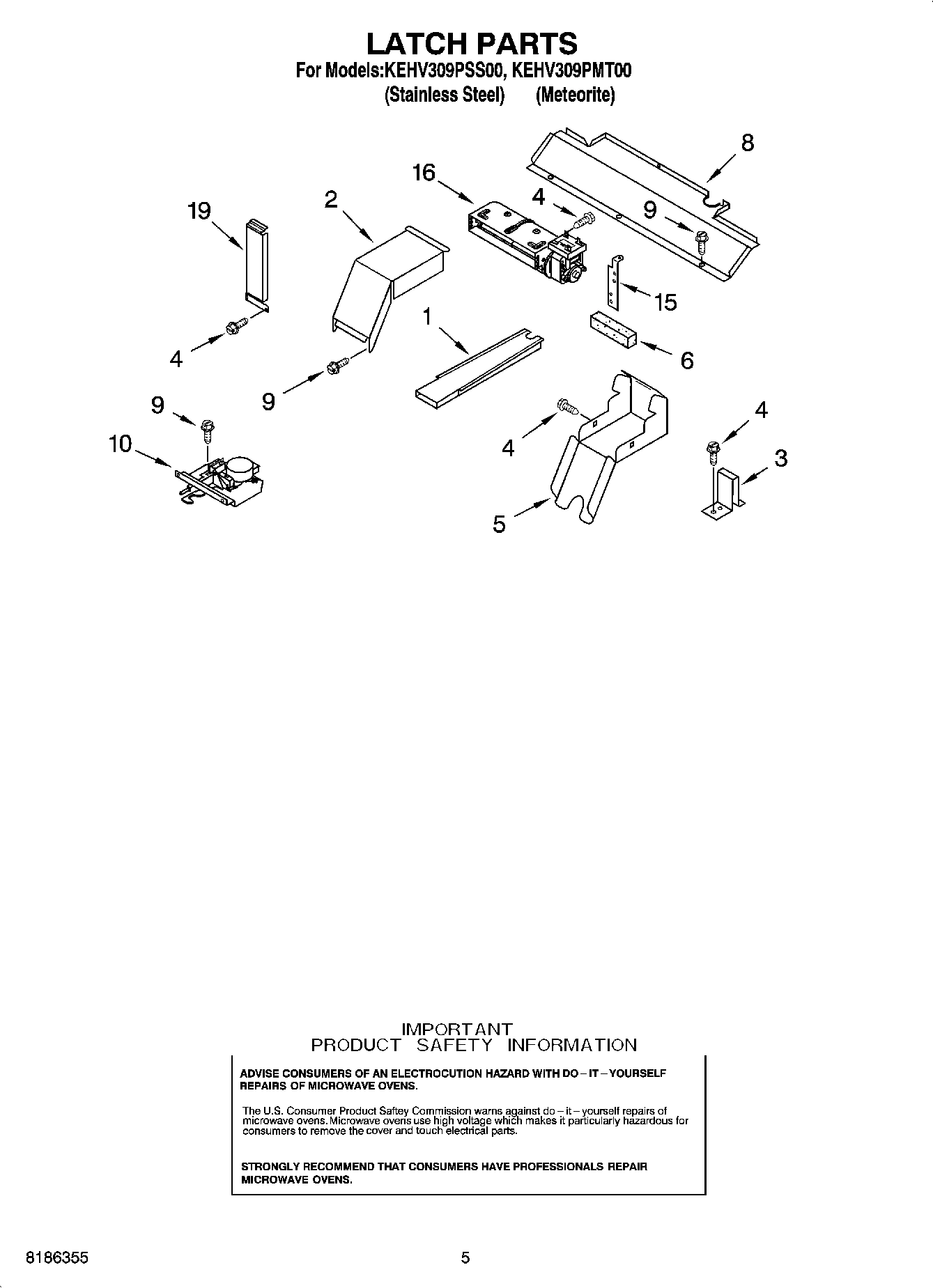

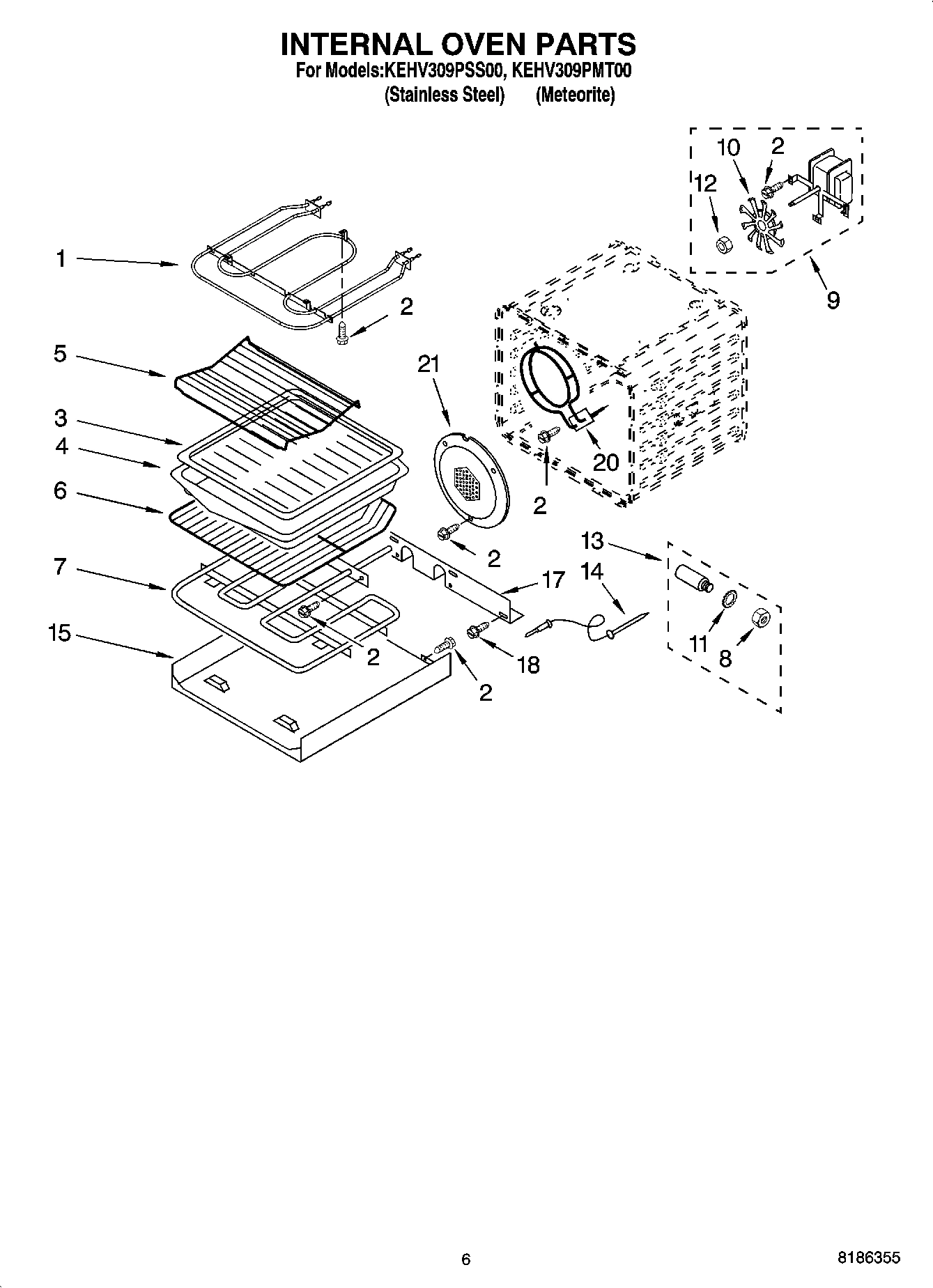

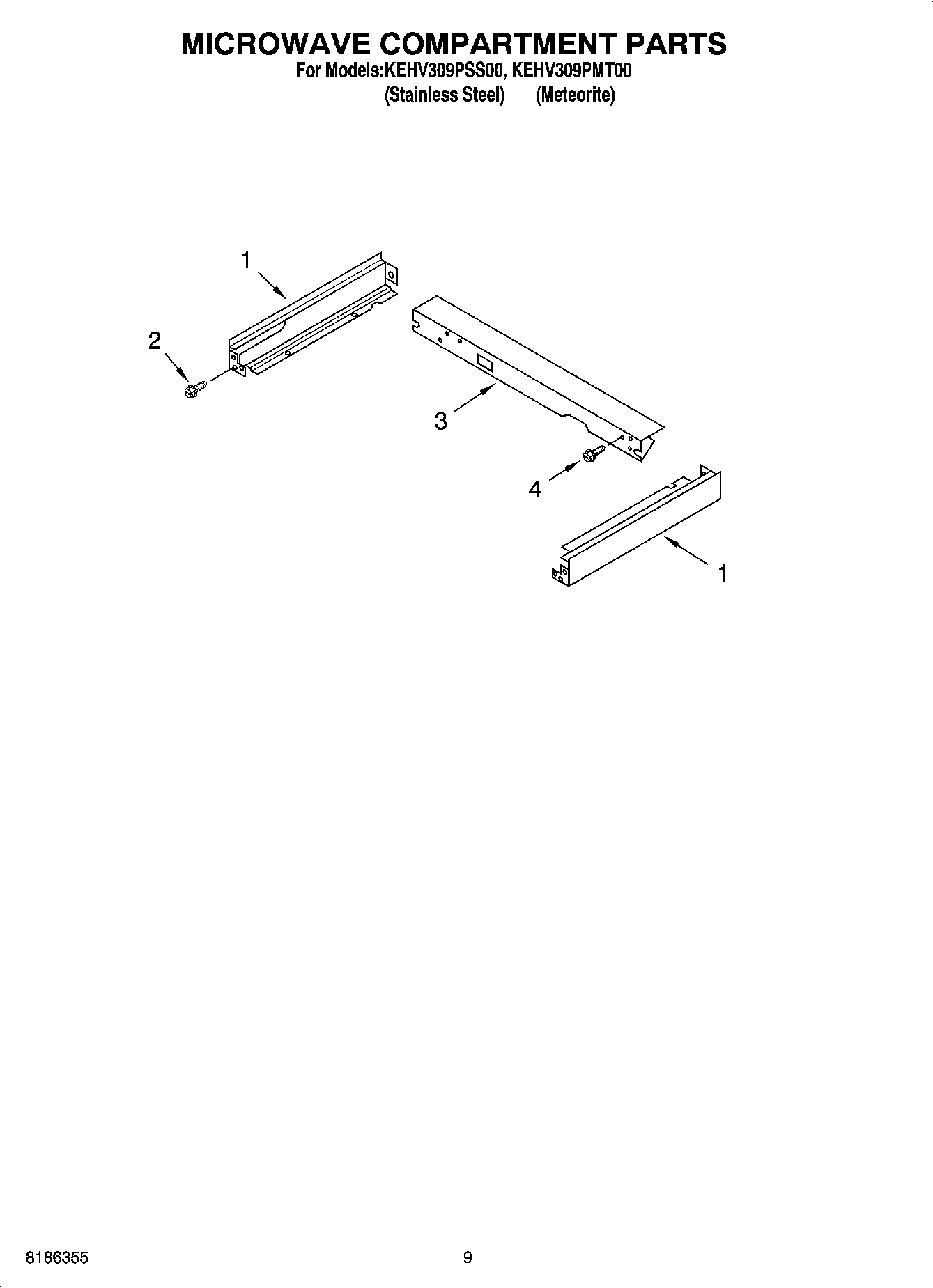

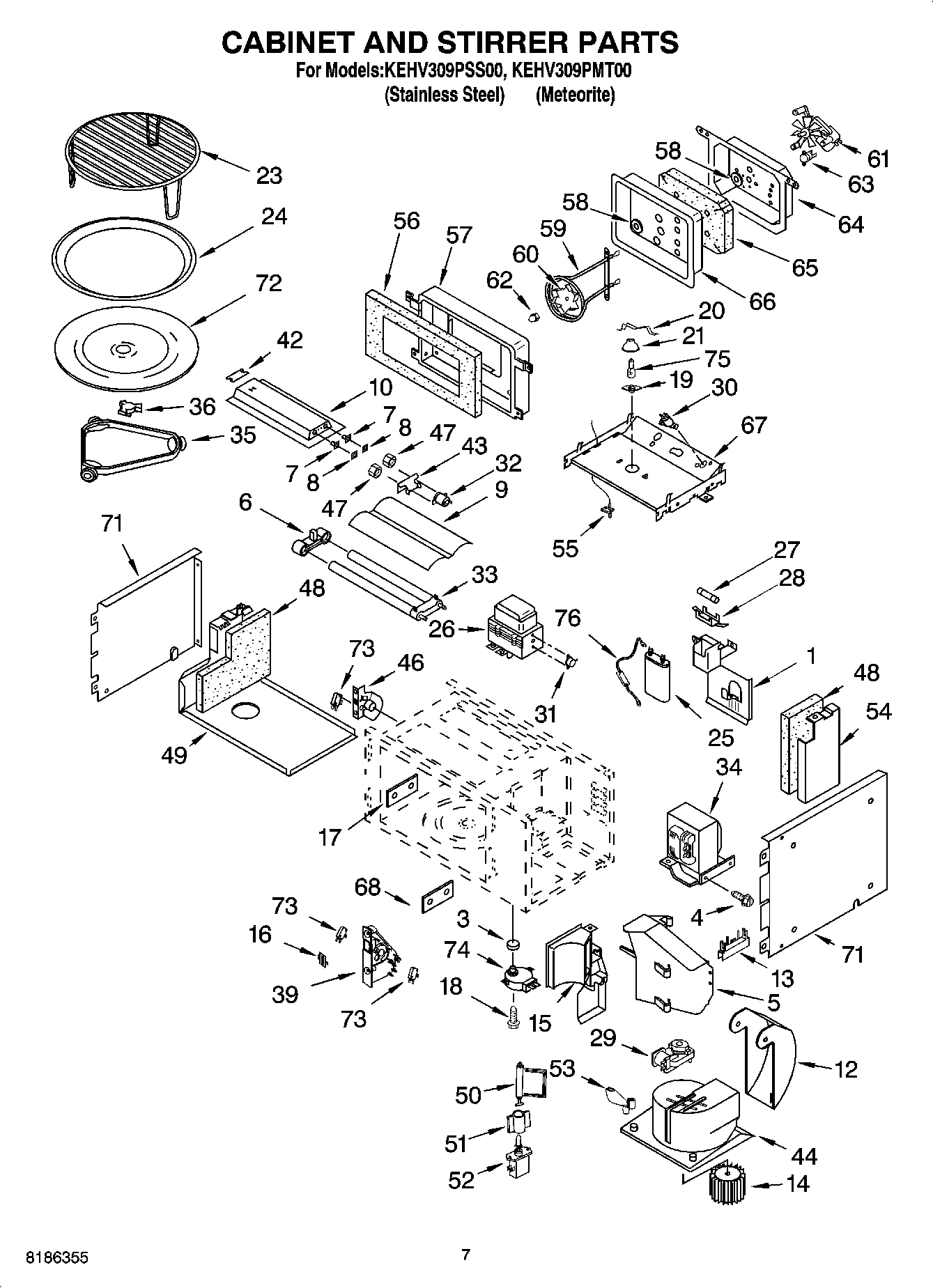

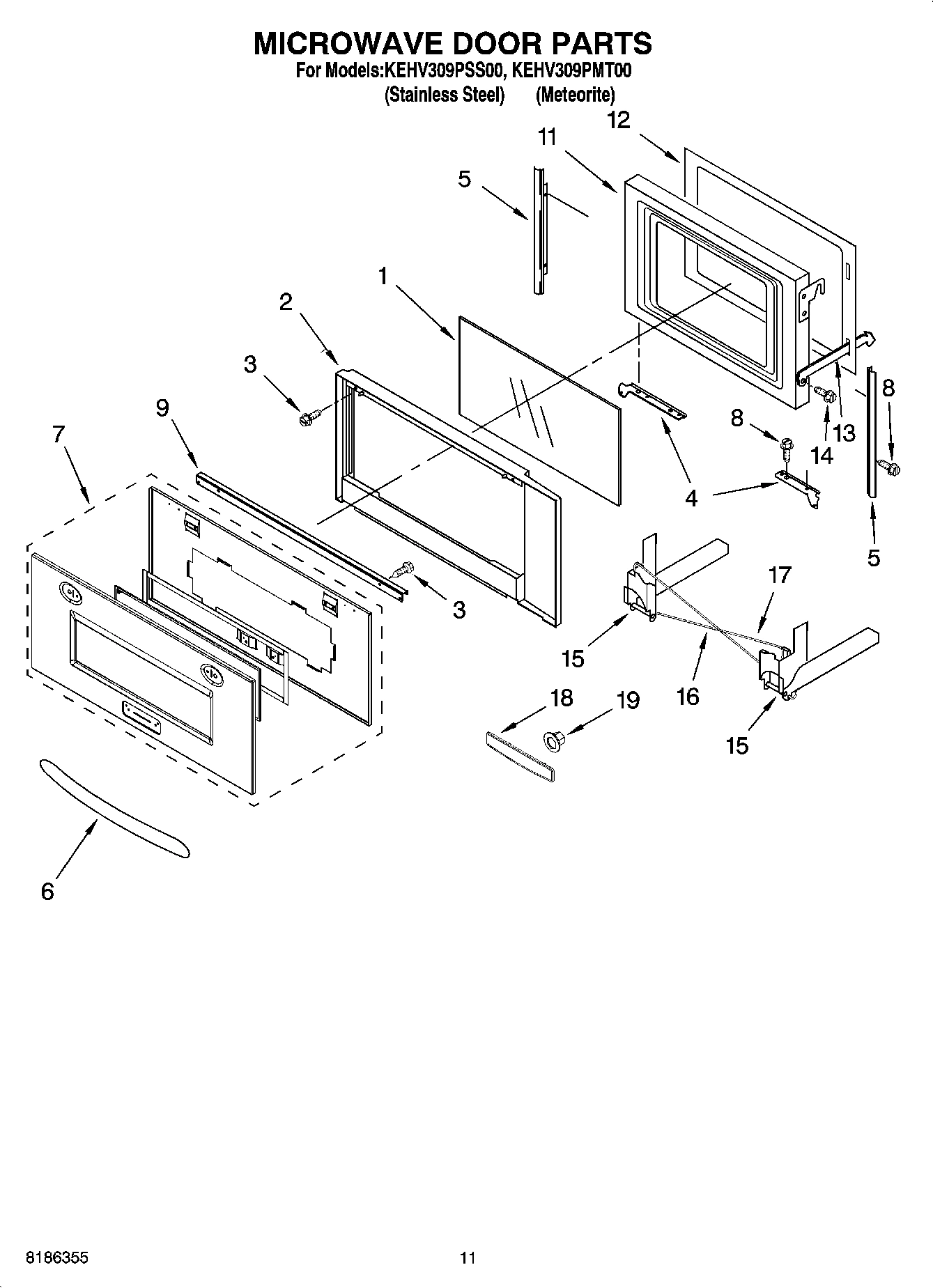

Model Whirlpool KEHV309PSS00 30`` BUILT-IN ELECTRIC DOUBLE OVEN THERMAL CONVECT – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4450950 Whirlpool Oven Conduit Backorder WPL 4450950 $109.51

4452400 Whirlpool Microwave Wire Harness Backorder WPL 4452400 $27.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

814381 Whirlpool Pin Backorder WPL 814381 $3.70

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

1

4451759 Whirlpool Oven Exhaust Vent Backorder WPL 4451759 $32.70

1

Glass, Middle WPL 4448937 Contact Us For Availability

1

Safer Cooking Tips WPL 3191638 Contact Us For Availability

1

Easy Set Guide WPL 4449264 Contact Us For Availability

1

Chart, High Speed Cooking WPL 4452967 Contact Us For Availability

1

Cooking Guide (Lable) WPL 4453330 Contact Us For Availability

1

Installation Instructions WPL 8300653 Contact Us For Availability

1

Tech Sheet (Oven) WPL 8302001 Contact Us For Availability

1

Use & Care Guide (Oven) WPL 8302973 Contact Us For Availability

1

Use & Care Guide (Microwave) WPL 8302974 Contact Us For Availability

1

Safer Cooking Tips (French) WPL 9759133 Contact Us For Availability

2

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

2

WP8303556 Whirlpool Microwave Door Frame In Stock WPL WP8303556 $114.92

3

WP4449259 Whirlpool Glass Window In Stock WPL WP4449259 $79.44

3

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $54.02

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $54.02

3

Rubber Ring WPL 4375252 Contact Us For Availability

3

Bracket, Combo Chassis WPL 8300791 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper Backorder WPL 4448520 $10.76

4

WP4451722 Whirlpool Door Insulation Assembly Backorder WPL WP4451722 $65.32

4

Bracket, Mounting (Right Side) WPL 4449141 Contact Us For Availability

4

Bracket, Mounting (Left Side) WPL 4449142 Contact Us For Availability

4

Screw WPL 4375038 Contact Us For Availability

5

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

5

WP4457132 Whirlpool Retainer Backorder WPL WP4457132 $102.32

5

Filler, Side (Right Side) WPL 4449083 Contact Us For Availability

5

Filler, Side (Left Side) WPL 4449086 Contact Us For Availability

5

Rack, Roasting WPL 3181534 Contact Us For Availability

5

Trim, Side Right Hand (Stainless Steel) WPL 8302498 Contact Us For Availability

5

Trim, Side Left Hand (Stainless Steel) WPL 8302499 Contact Us For Availability

5

Trim, Side Right Hand (Meteorite) WPL 8302500 Contact Us For Availability

5

Trim, Side Left Hand (Meteorite) WPL 8302501 Contact Us For Availability

5

Air Duct, Magnetron WPL 4375314 Contact Us For Availability

6

W10491987 Whirlpool Foam Seal Backorder WPL W10491987 $3.70

6

WPW10179152 Whirlpool Rack Oven In Stock WPL WPW10179152 $63.24

6

Support, Tube WPL 4375253 Contact Us For Availability

7

4451175 Whirlpool Bake Element Backorder WPL 4451175 $96.47

7

WP9759225 Whirlpool Inner Door Glass In Stock WPL WP9759225 $82.93

7

Top Chassis WPL 8303099 Contact Us For Availability

7

Plug, Ceramic WPL 4375421 Contact Us For Availability

8

WP9755546 Whirlpool Locknut Backorder WPL WP9755546 $2.51

8

Insulation, Top WPL 4452492 Contact Us For Availability

8

Baffle, Rear WPL 4450408 Contact Us For Availability

8

Bushing WPL 4375255 Contact Us For Availability

9

4454949 Whirlpool Oven Fuse Block Backorder WPL 4454949 $28.80

9

W10861715 Whirlpool Vent Tube Backorder WPL W10861715 $38.10

9

Convection Motor WPL 4451583 Contact Us For Availability

9

Bracket, Handle WPL 4452331 Contact Us For Availability

9

Reflector WPL 4375256 Contact Us For Availability

WP3400892 Whirlpool Dishwasher Screw Backorder WPL WP3400892 $2.51

WP4452226 Whirlpool Convection Fan Backorder WPL WP4452226 $26.94

WP9760889 Whirlpool Door Latch In Stock WPL WP9760889 $218.57

Lens, Light WPL 4452163 Contact Us For Availability

Chamber, Reflector WPL 4375257 Contact Us For Availability

11

WP4448972 Whirlpool Oven Light Backorder WPL WP4448972 $50.93

11

WP9755547 Whirlpool Lockwasher Backorder WPL WP9755547 $3.51

12

WP4452164 Whirlpool 12V 5W Halogen Light Bulb In Stock WPL WP4452164 $35.14

12

Nut WPL 4452227 Contact Us For Availability

12

Duct, Inlet WPL 4375450 Contact Us For Availability

13

8186589 Whirlpool Jack Probe In Stock WPL 8186589 $60.42

13

Insulation, Grill WPL 4452491 Contact Us For Availability

13

Insulation, Switch WPL 4375316 Contact Us For Availability

14

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $55.46

14

Frame, Front WPL 9759060 Contact Us For Availability

14

Fan Wheel WPL 4375322 Contact Us For Availability

4455191 Whirlpool Oven Mounting Plate Backorder WPL 4455191 $8.69

W11675844 Whirlpool Oven Gasket In Stock WPL W11675844 $25.44

WP4375323 Whirlpool Microwave Door Hinge Backorder WPL WP4375323 $52.87

WP4375324 Whirlpool Microwave Door Hinge Backorder WPL WP4375324 $52.70

WP9759229 Whirlpool Mounting Bracket Backorder WPL WP9759229 $60.69

Tray, Bake WPL 4455037 Contact Us For Availability

Duct, Air WPL 4375317 Contact Us For Availability

WP4451009 Whirlpool Microwave Spring In Stock WPL WP4451009 $47.54

WP4452396 Whirlpool Microwave Spring In Stock WPL WP4452396 $46.92

WPW10016550 Whirlpool Blower Cooling Fan In Stock WPL WPW10016550 $150.94

Spacer, Foam WPL 4452490 Contact Us For Availability

Block, Slide WPL 4375415 Contact Us For Availability

17

4450039 Whirlpool Oven Access Cover Backorder WPL 4450039 $28.80

17

WP4452395 Whirlpool Spring Assembly In Stock WPL WP4452395 $51.42

17

Cover Plate, Upper WPL 4375248 Contact Us For Availability

18

8206180 Whirlpool Microwave Screw Backorder WPL 8206180 $9.59

19

W11193483 Whirlpool Microwave Lamp Lens In Stock WPL W11193483 $38.25

19

Support, Insulation WPL 4451478 Contact Us For Availability

19

EXT Filler WPL 4449906 Contact Us For Availability

20

W10465869 Whirlpool Microwave Spring Backorder WPL W10465869 $36.67

20

WP9760769 Whirlpool Element Assembly In Stock WPL WP9760769 $133.70

20

Cap, Spacer WPL 4451605 Contact Us For Availability

423107022541 Whirlpool Microwave Reflector Backorder WPL 423107022541 $32.79

814375 Whirlpool Oven Rail Mount Backorder WPL 814375 $81.00

814376 Whirlpool Oven Rail Mount Backorder WPL 814376 $74.37

WPW10160821 Whirlpool Fan Cover Backorder WPL WPW10160821 $101.81

Suppressor WPL 4451934 Contact Us For Availability

22

WP9752759 Whirlpool Relay In Stock WPL WP9752759 $78.61

23

4452220 Whirlpool Microwave Rack In Stock WPL 4452220 $60.64

24

WPW10120480 Whirlpool Crisper Pan Backorder WPL WPW10120480 $41.30

25

W10782197 Whirlpool Side Panel Backorder WPL W10782197 $54.63

25

WP4375020 Whirlpool High Voltage Capacitor In Stock WPL WP4375020 $94.01

26

WP4375424 Whirlpool Microwave Magnetron In Stock WPL WP4375424 $273.49

26

Screw WPL 3400080 Contact Us For Availability

26

Back, Chassis WPL 4452234 Contact Us For Availability

27

WP4375321 Whirlpool Microwave Fuse In Stock WPL WP4375321 $10.36

27

Liner, Oven (Not serviceable) WPL ARI85149A7 Contact Us For Availability

28

W10245194 Whirlpool Microwave Fuse Block Backorder WPL W10245194 $29.77

29

4375278 Whirlpool Microwave Primary Fan Motor Backorder WPL 4375278 $143.25

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

30

Thermostat WPL 4375279 Contact Us For Availability

30

BRACKET-SUPPORT WPL 4449845 Contact Us For Availability

31

WP4375079 Whirlpool Microwave Thermostat In Stock WPL WP4375079 $33.38

31

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

32

WP4450038 Whirlpool Screw Backorder WPL WP4450038 $2.51

32

Thermostat WPL 4375281 Contact Us For Availability

33

Deflector, Vent WPL 9760678 Contact Us For Availability

33

Q Tube Assembly WPL 4375408 Contact Us For Availability

34

WP4375286 Whirlpool Microwave Transformer In Stock WPL WP4375286 $200.87

34

Vent, Center WPL 8302592 Contact Us For Availability

35

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

35

Ring, Turntable WPL 4375406 Contact Us For Availability

36

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

36

WP8183788 Whirlpool Microwave Turn Shaft Backorder WPL WP8183788 $17.33

37

WP9759243 Whirlpool Thermostat In Stock WPL WP9759243 $33.45

38

Screw WPL 4449040 Contact Us For Availability

39

4449748 Whirlpool Oven Screw Backorder WPL 4449748 $7.01

40

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

42

Plate, Grill WPL 4375331 Contact Us For Availability

43

Base, Chassis WPL 9759713 Contact Us For Availability

43

Bracket WPL 4375332 Contact Us For Availability

44

Fan Cap WPL 4375441 Contact Us For Availability

46

W10727408 Whirlpool Microwave Switch In Stock WPL W10727408 $87.50

47

Nut WPL 4375258 Contact Us For Availability

48

Insulation (Left Side) WPL 4375409 Contact Us For Availability

48

Insulation (Right Side) WPL 4375410 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

49

Plate, Side - Bottom WPL 4375411 Contact Us For Availability

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $49.46

50

Valve WPL 4375425 Contact Us For Availability

51

Trim, Bottom (Stainless Steel) WPL 8301590 Contact Us For Availability

51

Trim, Bottom (Meteorite) WPL 8301629 Contact Us For Availability

51

Screw To Valve WPL 4375428 Contact Us For Availability

461967842541 Whirlpool Microwave Actuator Backorder WPL 461967842541 $27.87

W11684730 Whirlpool Insulation Backorder WPL W11684730 $45.31

Insulation, Back WPL 4450365 Contact Us For Availability

Chassis, Back WPL 4451756 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED INSULATION WPL ARI85150A3 Contact Us For Availability

53

Air Bleed WPL 4375426 Contact Us For Availability

54

Shield, Heat Right WPL 4375439 Contact Us For Availability

55

Sensor, Temp. WPL 4375422 Contact Us For Availability

56

Insulation WPL 4375420 Contact Us For Availability

57

Duct, Heater WPL 4375419 Contact Us For Availability

58

Washer WPL 4375416 Contact Us For Availability

59

Element, Heater WPL 4375417 Contact Us For Availability

60

W11512064 Whirlpool Microwave Fan Backorder WPL W11512064 $60.85

61

Motor, Fan WPL 4375429 Contact Us For Availability

62

Left-Threaded Nut (Serviced With Motor Item 6 WPL ARI85151A4 Contact Us For Availability

63

W11607085 Whirlpool Microwave Thermostat Fix In Stock WPL W11607085 $16.05

64

Shield, Heat WPL 4375431 Contact Us For Availability

65

Insulation WPL 4375432 Contact Us For Availability

66

Chamber, Heat WPL 4375433 Contact Us For Availability

67

Isolation Plate WPL 4375437 Contact Us For Availability

68

Cover Plate WPL 4375338 Contact Us For Availability

71

Side Plate (Left) WPL 4375341 Contact Us For Availability

71

Side Plate (Right) WPL 4375342 Contact Us For Availability

72

W11373838 Whirlpool Glass Tray In Stock WPL W11373838 $43.52

73

W10211972 Whirlpool Microwave Switch In Stock WPL W10211972 $28.44

74

W10642989 Whirlpool Microwave Oven Turntable In Stock WPL W10642989 $72.24

75

WPW10440740 Whirlpool Microwave Light Bulb In Stock WPL WPW10440740 $12.94

76

WPW10687786 Whirlpool Microwave Diode In Stock WPL WPW10687786 $11.69
