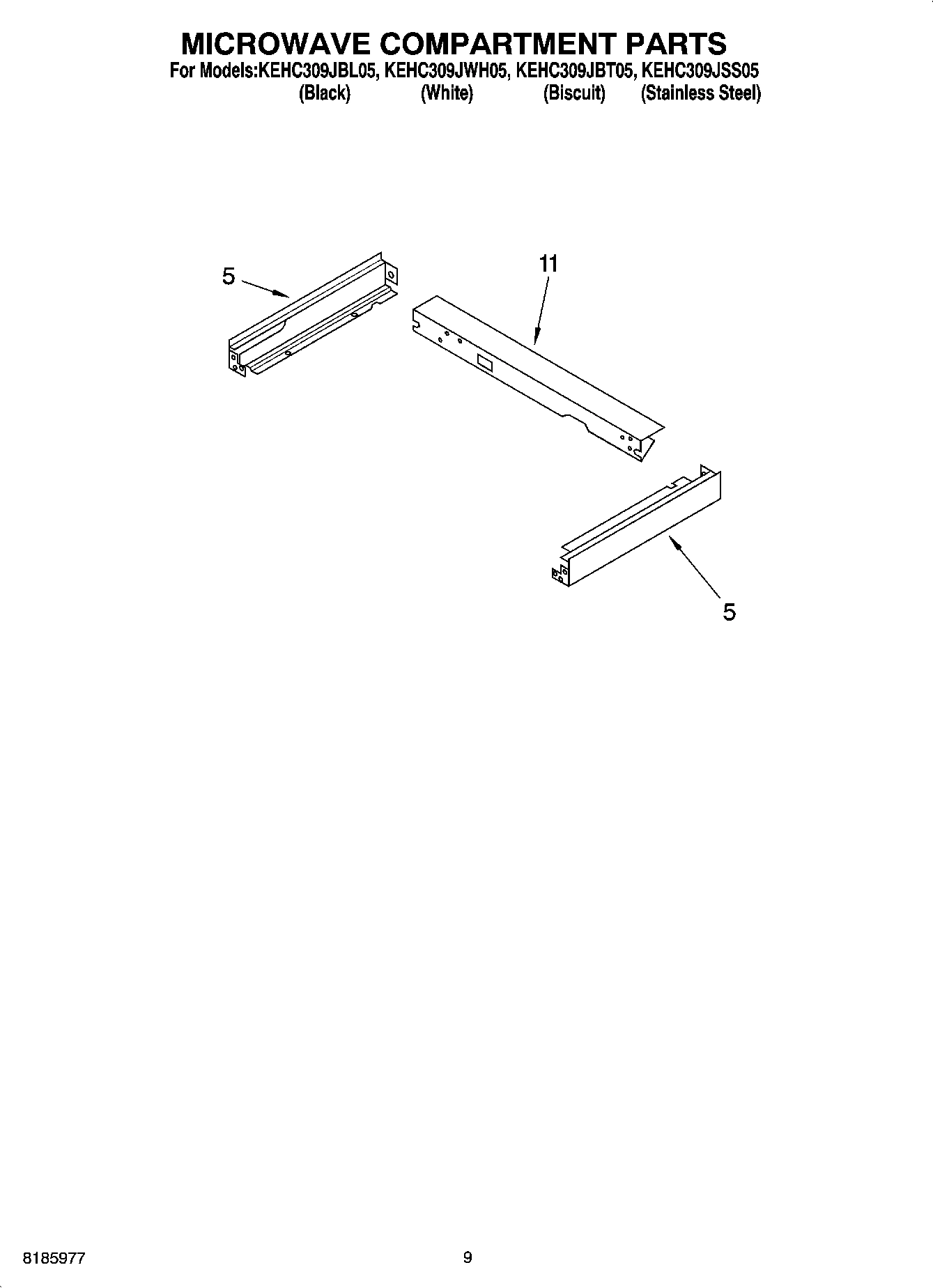

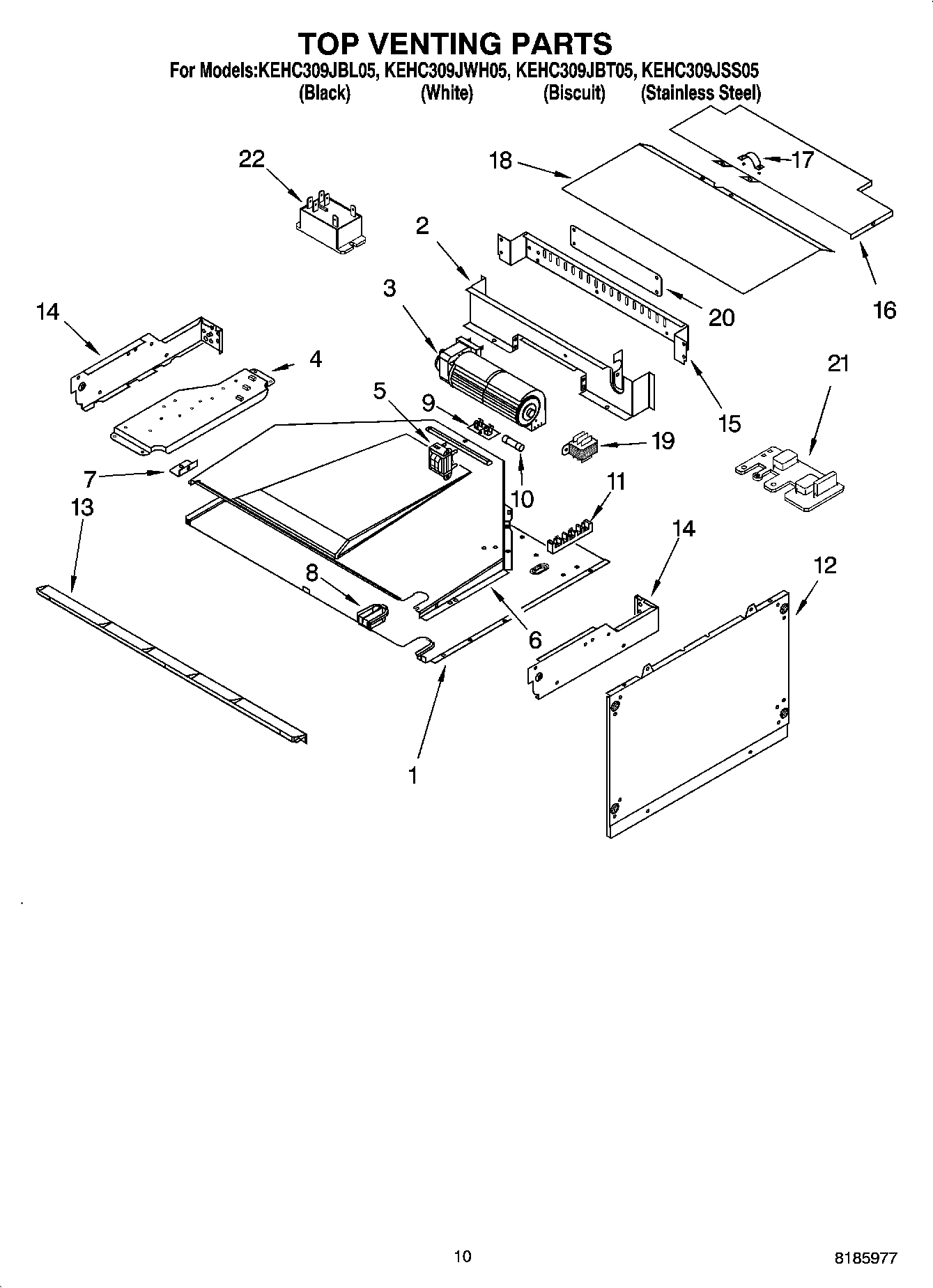

Model Whirlpool KEHC309JBL05 30`` BUILT-IN ELECTRIC DOUBLE OVEN THERMAL CONVECT – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

4450950 Whirlpool Oven Conduit Backorder WPL 4450950 $114.99

4452400 Whirlpool Microwave Wire Harness Backorder WPL 4452400 $28.38

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

814381 Whirlpool Pin In Stock WPL 814381 $3.70

WP261869 Whirlpool Microwave Paint Backorder WPL WP261869 $10.71

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $25.71

NOTE: The screws and nuts required to attach WPL ARI84809A7 Contact Us For Availability

WPL ARI84805A5 WPL ARI84805A5 Contact Us For Availability

NOTE: The screws and nuts required to attach WPL ARI84808A5 Contact Us For Availability

1

4451759 Whirlpool Oven Exhaust Vent Backorder WPL 4451759 $34.33

1

WP9759413 Whirlpool Door Liner Backorder WPL WP9759413 $138.47

1

Glass, Middle WPL 4448937 Contact Us For Availability

1

Panel, Control Stainless Steel WPL 4451791 Contact Us For Availability

1

Safer Cooking Tips WPL LIT3191638 Contact Us For Availability

1

Literature Parts (Easy Set Guide) WPL LIT4449264 Contact Us For Availability

1

Literature Parts (Chart, High Speed Cooking) WPL LIT4452967 Contact Us For Availability

1

Literature Parts (Use & Care Guide (Microwave WPL LIT4453217 Contact Us For Availability

1

Literature Parts (Cooking Guide (Lable)) WPL LIT4453330 Contact Us For Availability

1

Literature Parts (Use & Care Guide (Oven)) WPL LIT4455657 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT4455994 Contact Us For Availability

1

Literature Parts (Tech Sheet (Oven)) WPL LIT8302001 Contact Us For Availability

2

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

2

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

2

WP9760574 Whirlpool Door Hinge (Left Hand) In Stock WPL WP9760574 $52.49

2

WP9760575 Whirlpool Door Hinge (Right) In Stock WPL WP9760575 $49.61

2

WP9760577 Whirlpool Oven Right Door Hinge In Stock WPL WP9760577 $42.77

2

WP9760578 Whirlpool Oven Left Door Hinge In Stock WPL WP9760578 $43.87

3

WP4449259 Whirlpool Glass Window In Stock WPL WP4449259 $84.22

3

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $56.92

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $56.92

3

Rubber Ring WPL 4375252 Contact Us For Availability

3

Bracket, Combo Chassis WPL 8300791 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper In Stock WPL 4448520 $10.76

4

WP4451722 Whirlpool Door Insulation Assembly Backorder WPL WP4451722 $68.58

4

Bracket, Mounting (Right Side) WPL 4449141 Contact Us For Availability

4

Bracket, Mounting (Left Side) WPL 4449142 Contact Us For Availability

4

Screw WPL 4375038 Contact Us For Availability

5

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

5

WP8281236 Whirlpool Screw Backorder WPL WP8281236 $2.51

5

(Trim, Side Left Hand) (Black) WPL 4455431 Contact Us For Availability

5

Filler, Side (Right Side) WPL 4449083 Contact Us For Availability

5

Filler, Side (Left Side) WPL 4449086 Contact Us For Availability

5

Air Duct, Magnetron WPL 4375314 Contact Us For Availability

5

Trim, Side Right Hand (Stainless Steel) WPL 4452083 Contact Us For Availability

5

(Trim, Side Left Hand) (Stainless Steel) WPL 4452084 Contact Us For Availability

5

Trim, Side Right Hand (Black) WPL 4455430 Contact Us For Availability

5

Trim, Side Right Hand (White) WPL 4455432 Contact Us For Availability

5

(Trim, Side Left Hand) (White) WPL 4455433 Contact Us For Availability

5

Trim, Side Right Hand (Biscuit) WPL 4455434 Contact Us For Availability

5

(Trim, Side Left Hand) (Biscuit) WPL 4455435 Contact Us For Availability

5

Retainer, Glass WPL 8300778 Contact Us For Availability

6

W10491987 Whirlpool Foam Seal Backorder WPL W10491987 $3.70

6

Support, Tube WPL 4375253 Contact Us For Availability

7

WP4449263 Whirlpool Inner Door Glass Backorder WPL WP4449263 $85.49

7

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

7

WP4452259 Whirlpool Door Glass In Stock WPL WP4452259 $210.71

7

Glass, Outer (Black) WPL 4452211 Contact Us For Availability

7

Glass, Outer (White) WPL 4452789 Contact Us For Availability

7

Plug, Ceramic WPL 4375421 Contact Us For Availability

7

Top, Chassis WPL 4455865 Contact Us For Availability

8

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

8

Bushing WPL 4375255 Contact Us For Availability

8

Insulation, Top WPL 4452492 Contact Us For Availability

9

4454949 Whirlpool Oven Fuse Block Backorder WPL 4454949 $30.25

9

W10861715 Whirlpool Vent Tube Backorder WPL W10861715 $40.00

9

W11233072 Whirlpool Screw In Stock WPL W11233072 $10.41

9

Convection Motor WPL 4451583 Contact Us For Availability

9

Bracket, Handle WPL 4452331 Contact Us For Availability

9

Reflector WPL 4375256 Contact Us For Availability

9

Baffle, Rear WPL 4450408 Contact Us For Availability

WP4452226 Whirlpool Convection Fan Backorder WPL WP4452226 $28.29

WP9760889 Whirlpool Door Latch In Stock WPL WP9760889 $193.95

Lens, Light WPL 4452163 Contact Us For Availability

Chamber, Reflector WPL 4375257 Contact Us For Availability

11

4449748 Whirlpool Oven Screw Backorder WPL 4449748 $7.01

11

WP4448972 Whirlpool Oven Light In Stock WPL WP4448972 $50.93

11

Screw WPL 3400080 Contact Us For Availability

W10401225 Whirlpool Oven Outer Door Glass Backorder WPL W10401225 $154.06

WP4452164 Whirlpool 12V 5W Halogen Light Bulb In Stock WPL WP4452164 $49.89

Duct, Inlet WPL 4375450 Contact Us For Availability

Door Glass, Assy (White) WPL 4455390 Contact Us For Availability

Door Glass, Assy (Black) WPL 4455391 Contact Us For Availability

Door Glass, Assy (Biscuit) WPL 4455395 Contact Us For Availability

WP4450038 Whirlpool Screw Backorder WPL WP4450038 $2.51

Insulation, Switch WPL 4375316 Contact Us For Availability

Insulation, Grill WPL 4452491 Contact Us For Availability

Door Handle (Black) WPL 4452502 Contact Us For Availability

Door Handle (White) WPL 4452503 Contact Us For Availability

Door Handle (Biscuit) WPL 4452871 Contact Us For Availability

Door Handle (Stainless Steel) WPL 4455851 Contact Us For Availability

4455803 Whirlpool Oven Bracket Backorder WPL 4455803 $12.39

WP4450118 Whirlpool Nut Backorder WPL WP4450118 $2.51

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $59.04

WPW10132940 Whirlpool Dishwasher Screw In Stock WPL WPW10132940 $3.95

Bracket, Handle (Left Hand) WPL 4455804 Contact Us For Availability

Screw WPL 4449040 Contact Us For Availability

Fan Wheel WPL 4375322 Contact Us For Availability

Frame, Front WPL 4455612 Contact Us For Availability

4455191 Whirlpool Oven Mounting Plate In Stock WPL 4455191 $8.69

W11675844 Whirlpool Oven Gasket In Stock WPL W11675844 $44.23

WP4375323 Whirlpool Microwave Door Hinge In Stock WPL WP4375323 $55.71

WP4375324 Whirlpool Microwave Door Hinge In Stock WPL WP4375324 $54.73

Tray, Bake WPL 4455037 Contact Us For Availability

Duct, Air WPL 4375317 Contact Us For Availability

WP4451009 Whirlpool Microwave Spring In Stock WPL WP4451009 $50.75

WPW10016550 Whirlpool Blower Cooling Fan In Stock WPL WPW10016550 $165.64

Block, Slide WPL 4375415 Contact Us For Availability

Spacer, Foam WPL 4452490 Contact Us For Availability

17

4450039 Whirlpool Oven Access Cover Backorder WPL 4450039 $30.25

17

Cover Plate, Upper WPL 4375248 Contact Us For Availability

17

Insulation Bottom Vent WPL 4452337 Contact Us For Availability

18

8206180 Whirlpool Microwave Screw Backorder WPL 8206180 $9.59

W11193483 Whirlpool Microwave Lamp Lens In Stock WPL W11193483 $39.07

EXT Filler WPL 4449906 Contact Us For Availability

Support, Insulation WPL 4451478 Contact Us For Availability

Shield, Heat WPL 4450362 Contact Us For Availability

W10465869 Whirlpool Microwave Spring Backorder WPL W10465869 $38.50

WP9760769 Whirlpool Element Assembly Backorder WPL WP9760769 $134.50

Cap, Spacer WPL 4451605 Contact Us For Availability

Retainer, Glass WPL 4450470 Contact Us For Availability

423107022541 Whirlpool Microwave Reflector Backorder WPL 423107022541 $34.44

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $3.18

WPW10160821 Whirlpool Fan Cover Backorder WPL WPW10160821 $106.90

Suppressor WPL 4451934 Contact Us For Availability

Seal, Door Top WPL 4452326 Contact Us For Availability

22

WP9752759 Whirlpool Relay In Stock WPL WP9752759 $67.24

4452220 Whirlpool Microwave Rack In Stock WPL 4452220 $64.49

RETAINER, GLASS CLIP (BLACK) WPL 4450863 Contact Us For Availability

RETAINER,GLASS CLIP (WHITE) WPL 4450864 Contact Us For Availability

Retainer, Glass-Clip (Stainless Steel) WPL 4451432 Contact Us For Availability

RETAINER,GLASS CLIP (BISCUIT) WPL 4452119 Contact Us For Availability

24

COOKWARE In Stock WPL W11512490 $45.75

24

Glass, Inner WPL 8300974 Contact Us For Availability

25

W10782197 Whirlpool Side Panel Backorder WPL W10782197 $56.73

25

WP4375020 Whirlpool High Voltage Capacitor In Stock WPL WP4375020 $99.53

26

WP4375424 Whirlpool Microwave Magnetron In Stock WPL WP4375424 $238.54

26

Back, WPL 4452234 Contact Us For Availability

27

WP4375321 Whirlpool Microwave Fuse Backorder WPL WP4375321 $11.18

27

WPL ARI84806A6 WPL ARI84806A6 Contact Us For Availability

28

W10245194 Whirlpool Microwave Fuse Block Backorder WPL W10245194 $29.77

29

4375278 Whirlpool Microwave Primary Fan Motor Backorder WPL 4375278 $143.25

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $55.66

30

Thermostat WPL 4375279 Contact Us For Availability

30

WPL 4449845 WPL 4449845 Contact Us For Availability

31

WP4375079 Whirlpool Microwave Thermostat In Stock WPL WP4375079 $35.87

32

Thermostat WPL 4375281 Contact Us For Availability

33

Q Tube Assembly WPL 4375408 Contact Us For Availability

33

WPL 4452496 WPL 4452496 Contact Us For Availability

34

WP4375286 Whirlpool Microwave Transformer In Stock WPL WP4375286 $159.20

34

WPL 4451667 WPL 4451667 Contact Us For Availability

35

Ring, Turntable WPL 4375406 Contact Us For Availability

36

WP8183788 Whirlpool Microwave Turn Shaft Backorder WPL WP8183788 $17.33

37

WP9759243 Whirlpool Thermostat In Stock WPL WP9759243 $34.28

42

Plate, Grill WPL 4375331 Contact Us For Availability

43

Bracket WPL 4375332 Contact Us For Availability

43

WPL 4455530 WPL 4455530 Contact Us For Availability

44

Fan Cap WPL 4375441 Contact Us For Availability

46

W10727408 Whirlpool Microwave Switch In Stock WPL W10727408 $95.69

47

Nut WPL 4375258 Contact Us For Availability

48

Insulation (Left Side) WPL 4375409 Contact Us For Availability

48

Insulation (Right Side) WPL 4375410 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

49

WP4449154 Whirlpool Screw In Stock WPL WP4449154 $2.51

49

Plate, Side - Bottom WPL 4375411 Contact Us For Availability

50

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $3.46

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $51.94

50

Valve WPL 4375425 Contact Us For Availability

4452152 Whirlpool Oven Mounting Bracket Backorder WPL 4452152 $13.12

WPL 4455147 WPL 4455147 Contact Us For Availability

Screw To Valve WPL 4375428 Contact Us For Availability

WPL 4450289 WPL 4450289 Contact Us For Availability

WPL 4455443 WPL 4455443 Contact Us For Availability

WPL 4455445 WPL 4455445 Contact Us For Availability

WPL 4455447 WPL 4455447 Contact Us For Availability

461967842541 Whirlpool Microwave Actuator Backorder WPL 461967842541 $29.26

W11684730 Whirlpool Insulation Backorder WPL W11684730 $47.58

WPL 4450365 WPL 4450365 Contact Us For Availability

WPL 4451756 WPL 4451756 Contact Us For Availability

53

Air Bleed WPL 4375426 Contact Us For Availability

54

Shield, Heat Right WPL 4375439 Contact Us For Availability

55

Sensor, Temp. WPL 4375422 Contact Us For Availability

56

Insulation WPL 4375420 Contact Us For Availability

57

Duct, Heater WPL 4375419 Contact Us For Availability

58

Washer WPL 4375416 Contact Us For Availability

59

Element, Heater WPL 4375417 Contact Us For Availability

60

W11512064 Whirlpool Microwave Fan In Stock WPL W11512064 $63.89

61

Motor, Fan WPL 4375429 Contact Us For Availability

62

Left-Threaded Nut (Serviced With Motor Item 6 WPL ARI84810A6 Contact Us For Availability

63

W11607085 Whirlpool Microwave Thermostat Fix In Stock WPL W11607085 $17.68

64

Shield, Heat WPL 4375431 Contact Us For Availability

65

Insulation WPL 4375432 Contact Us For Availability

66

Chamber, Heat Cabinet WPL 4375433 Contact Us For Availability

67

Isolation Plate WPL 4375437 Contact Us For Availability

68

Cover Plate WPL 4375338 Contact Us For Availability

71

Side Plate (Left) WPL 4375341 Contact Us For Availability

71

Side Plate (Right) WPL 4375342 Contact Us For Availability

72

W11373838 Whirlpool Glass Tray In Stock WPL W11373838 $55.73

73

W10211972 Whirlpool Microwave Switch In Stock WPL W10211972 $32.67

74

W10642989 Whirlpool Microwave Oven Turntable In Stock WPL W10642989 $79.94

75

WPW10440740 Whirlpool Microwave Light Bulb In Stock WPL WPW10440740 $14.40

76

WPW10687786 Whirlpool Microwave Diode In Stock WPL WPW10687786 $14.45
