Model Whirlpool KECM860TBC0 – Common Parts & Diagrams

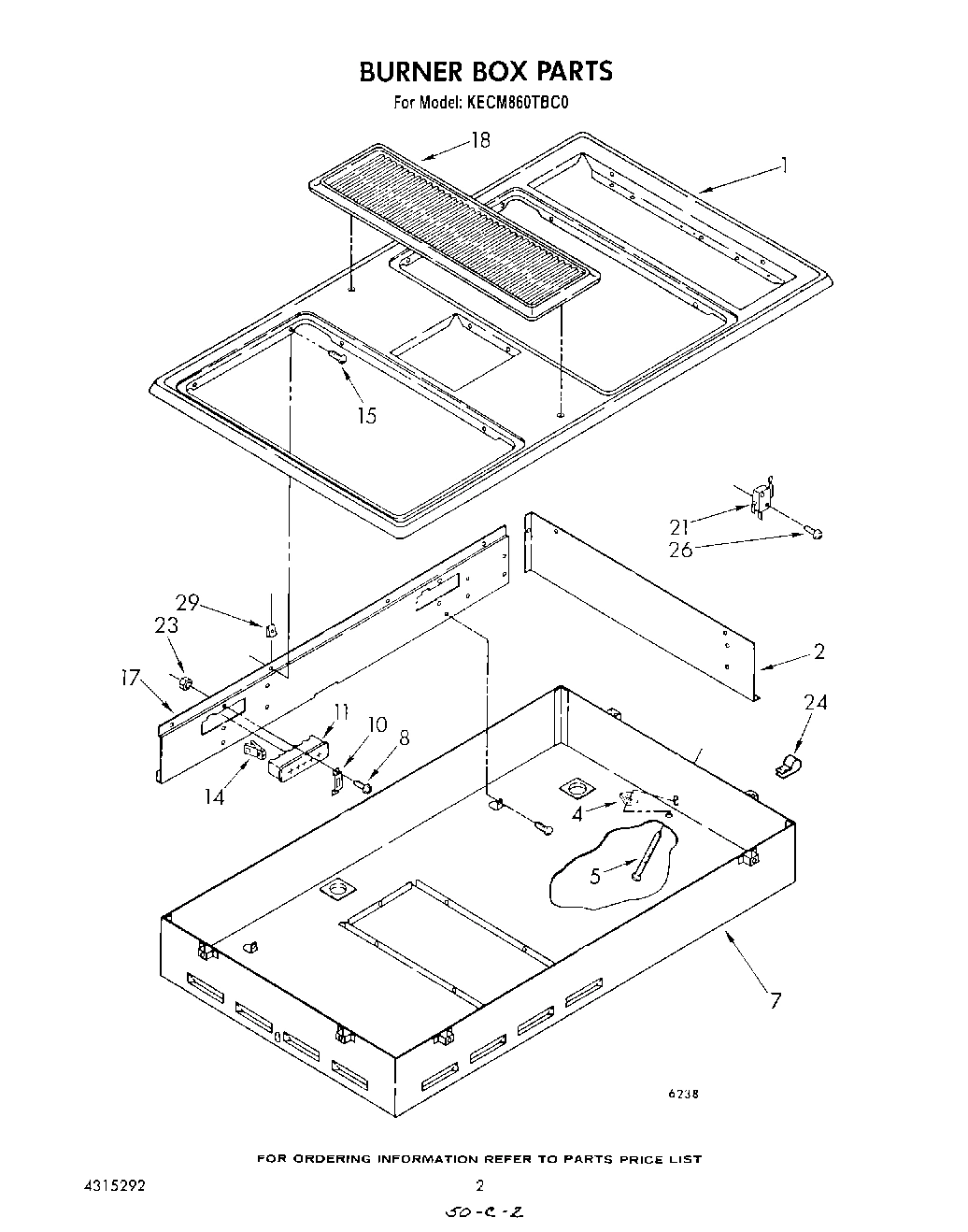

02 - BURNER BOX , LITERATURE AND OPTIONAL

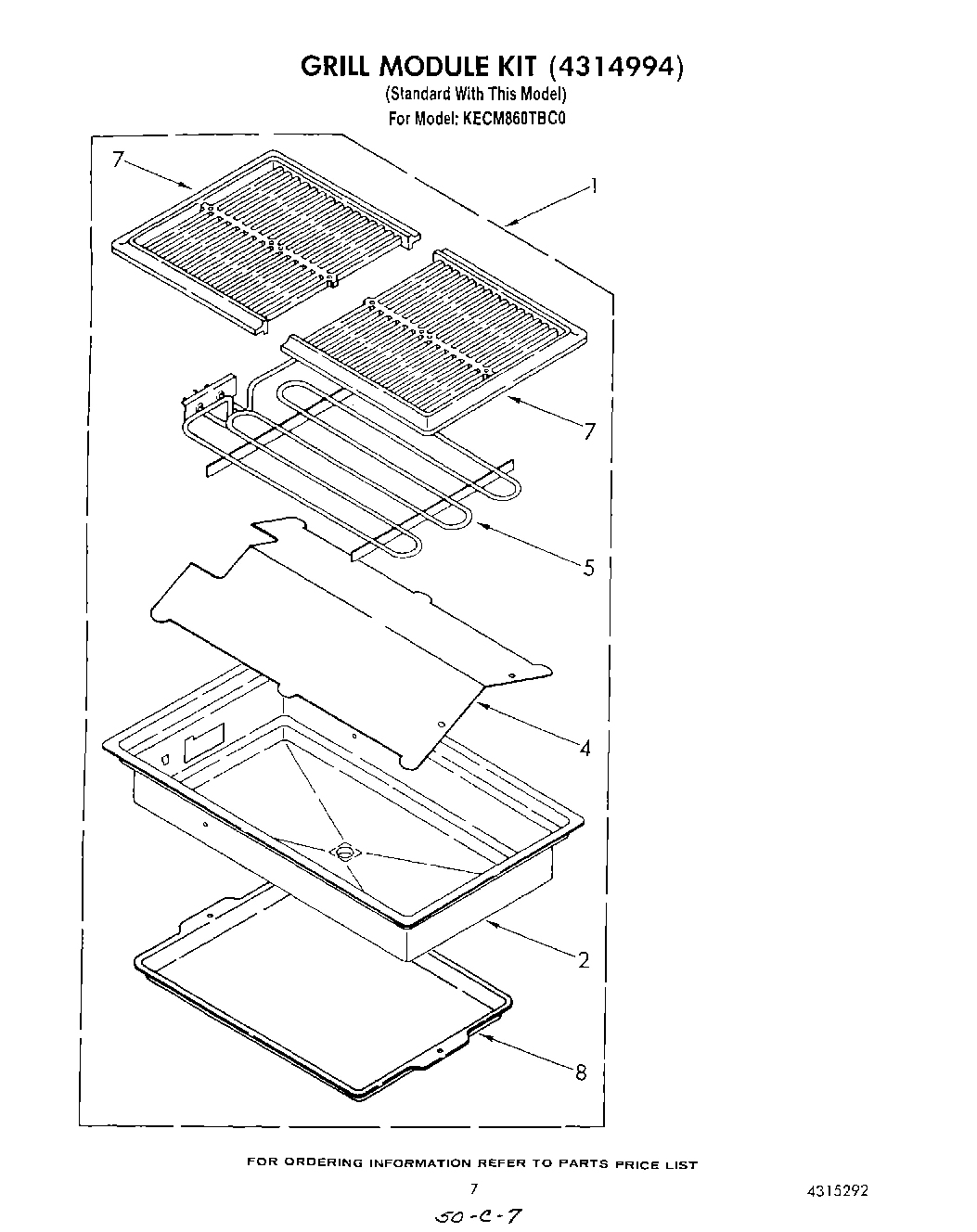

06 - GRILL MODULE KIT
08 - COOKTOP MODULE
03 - VENTILATION
05 - CONTROL PANEL
07 - SOLID ELEMENT MODULE
04 - LIT/OPTIONAL WALL CAP ACCESSORIES
Common parts from model Whirlpool KECM860TBC0
Installation Instructions WPL LIT4314900 Contact Us For Availability
List, Repair Parts WPL LIT4315292 Contact Us For Availability
Vent Installation Instructions WPL LIT786203 Contact Us For Availability
1
Top, Main WPL 4315220 Contact Us For Availability
1
Kit, Grille Module (Complete) WPL 4314994 Contact Us For Availability
1
xKit, Cooktop Module (Complete) WPL KECK80TB Contact Us For Availability
1
Knob (4) WPL 4315289 Contact Us For Availability
1
xModule Kit, Solid Element (Complete) WPL KECK85TBL Contact Us For Availability
1
6`` Diameter Duct System Wall Cap WPL 786244 Contact Us For Availability
2
Sheild, Switch WPL 786137 Contact Us For Availability
2
Pan, Grille WPL 4179155 Contact Us For Availability
2
Element, Surface (Optional) (6`` (208V)) WPL 786248 Contact Us For Availability
2
Element, Surface (Optional) (8`` (208V)) WPL 786249 Contact Us For Availability
2
Plenum WPL 4179323 Contact Us For Availability
2
Trim, Control Panel WPL 4315287 Contact Us For Availability
2
Bracket, Plug Block WPL 786707 Contact Us For Availability
2
3 1/4 X 10`` Rectangular Duct System Wall Cap WPL 786247 Contact Us For Availability
3
Gasket, Motor Mounting WPL 4179303 Contact Us For Availability
4
Nut (2) WPL 786222 Contact Us For Availability
4
Grid, Insert WPL 4179156 Contact Us For Availability
4
Transition 6`` WPL 4179340 Contact Us For Availability
4
Glass, Control Panel WPL 4315288 Contact Us For Availability
4
Bracket, Element WPL 786708 Contact Us For Availability
5
Screw, Hold Down (2) WPL 786211 Contact Us For Availability
5
Element, Grille (240V) WPL 786170 Contact Us For Availability
5
Scroll, Fan WPL 786154 Contact Us For Availability
5
Bracket, Switch Mounting WPL 4315284 Contact Us For Availability
5
Support, Glass WPL 786709 Contact Us For Availability
7
Box, Burner WPL 786193 Contact Us For Availability
7
Grille (2) WPL 4315283 Contact Us For Availability
7
Nut, Locking (4) WPL 786239 Contact Us For Availability
7
Retainer, Glass (2) WPL 786134 Contact Us For Availability
7
Ring, Spill (6``) WPL 786710 Contact Us For Availability
7
Ring, Spill (8``) WPL 786711 Contact Us For Availability
8
Pan, Grease WPL 786265 Contact Us For Availability
8
Top, Module WPL 4320648 Contact Us For Availability
8
Wheel, Fan WPL 786155 Contact Us For Availability
8
Screw, 4-40F x 1/4 Phillips Head (4) WPL 786226 Contact Us For Availability
10
Bracket, Plug Block Mounting (2) WPL 786194 Contact Us For Availability
10
Screw, 6-32 X 1/2 Phillips Pan Head WPL 786228 Contact Us For Availability
10
Plate, Motor Mounting WPL 4314921 Contact Us For Availability
10
Gasket, Switch (4) WPL 786189 Contact Us For Availability
10
Ring, Gasket (6``) WPL 786714 Contact Us For Availability
10
Ring, Gasket (8``) WPL 786715 Contact Us For Availability
11
Plug Block (2) WPL 786196 Contact Us For Availability
11
Nut WPL 786213 Contact Us For Availability
11
Grommet, Motor Mounting (8) WPL 786234 Contact Us For Availability
11
Gasket (6``) WPL 786716 Contact Us For Availability
11
Gasket (8``) WPL 786717 Contact Us For Availability
13
Frame, Top WPL 4315470 Contact Us For Availability
14
Contact, Element (10) WPL 786214 Contact Us For Availability
14
Light, Indicator WPL 786195 Contact Us For Availability
14
Pan, Module WPL 786719 Contact Us For Availability
15
Switch, Fan WPL 4315285 Contact Us For Availability
16
Wire, Ground (Green) WPL 786252 Contact Us For Availability
16
Barrier, Switch (2) WPL 4315286 Contact Us For Availability
16
Glass, Top WPL 786720 Contact Us For Availability
17
Baffle, Plug Block WPL 786197 Contact Us For Availability
17
Screw, 6-32 x 3/16 Phillips Pan Head (2) WPL 786245 Contact Us For Availability
17
Spring, Leaf WPL 786721 Contact Us For Availability
18
Cover, Vent WPL 4315290 Contact Us For Availability
18
Motor, 60 Hz. WPL 4315281 Contact Us For Availability
19
Nut, Hex WPL 786722 Contact Us For Availability
20
Bracket, Plug Block Mounting WPL 786181 Contact Us For Availability
20
Cover, Motor WPL 4314924 Contact Us For Availability
20
Screw, 8-32 X 3/8 WPL 786723 Contact Us For Availability
21
Switch, Interlock (2) WPL 4179158 Contact Us For Availability
21
Screw, 8-32 x 3/16 Phillips Pan Head (8) WPL 786231 Contact Us For Availability
21
Pan, Module Element WPL 786180 Contact Us For Availability
23
Nut (2) WPL 786260 Contact Us For Availability
23
Clamp, Wire WPL 4157298 Contact Us For Availability
24
Clip, Wire WPL 786216 Contact Us For Availability
24
Medallion WPL 309195 Contact Us For Availability
24
Orifice WPL 4179324 Contact Us For Availability
25
Conduit WPL 786253 Contact Us For Availability
25
Screw, 8 X 3/8 WPL 786242 Contact Us For Availability
26
Block, Plug WPL 786176 Contact Us For Availability
28
Terminal, Male WPL 786725 Contact Us For Availability
29
16 Oz. Cooktop Conditioner WPL W10355051 No Longer Available
29
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
29
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
29
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
29
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
29
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
29
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
29
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
29
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
29
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
29
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
29
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
29
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
29
11 Oz. Cooktop Cleaner WPL 261961 Contact Us For Availability
29
Griddle Kit (RCK 980) WPL 786100 Contact Us For Availability
29
Rotisserie Kit (RCK 982) WPL 786102 Contact Us For Availability
29
Smooth Top (RCK 988) WPL 786107 Contact Us For Availability
29
``U``Clip WPL 786264 Contact Us For Availability
29
Terminal, Male WPL 786726 Contact Us For Availability
29
Spacer, Motor Cover (4) WPL 4314926 Contact Us For Availability
31
Insulator WPL 786179 Contact Us For Availability
31
Nut, 10-24 (3) WPL 786439 Contact Us For Availability
32
Washer (3) WPL 4314923 Contact Us For Availability
33
Bolt, 10-24 X 3/4 (3) WPL 4314922 Contact Us For Availability
× ![]()
