Model Whirlpool KEBS207DAL6 BUILT-IN ELECTRIC DOUBLE OVEN – Common Parts & Diagrams

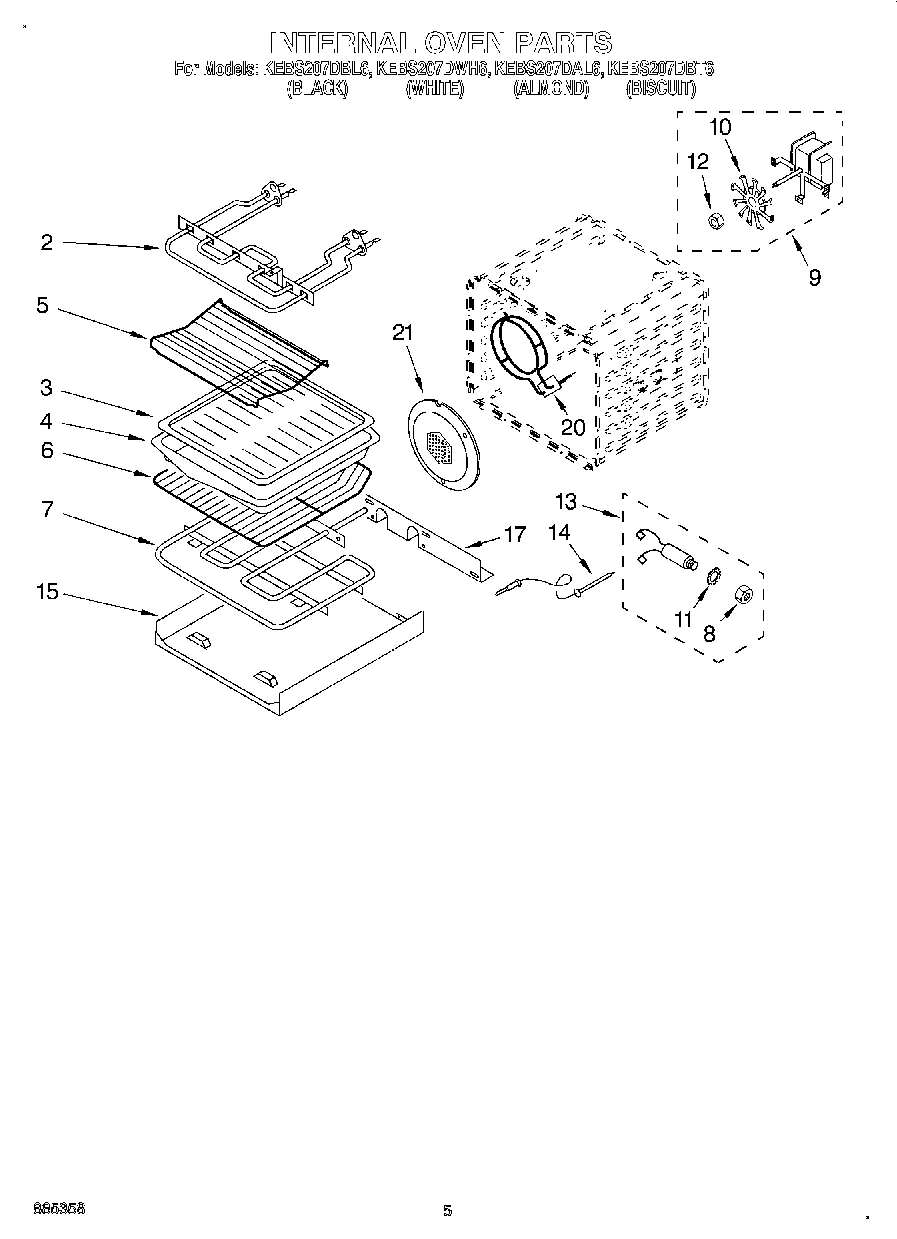

04 - INTERNAL OVEN

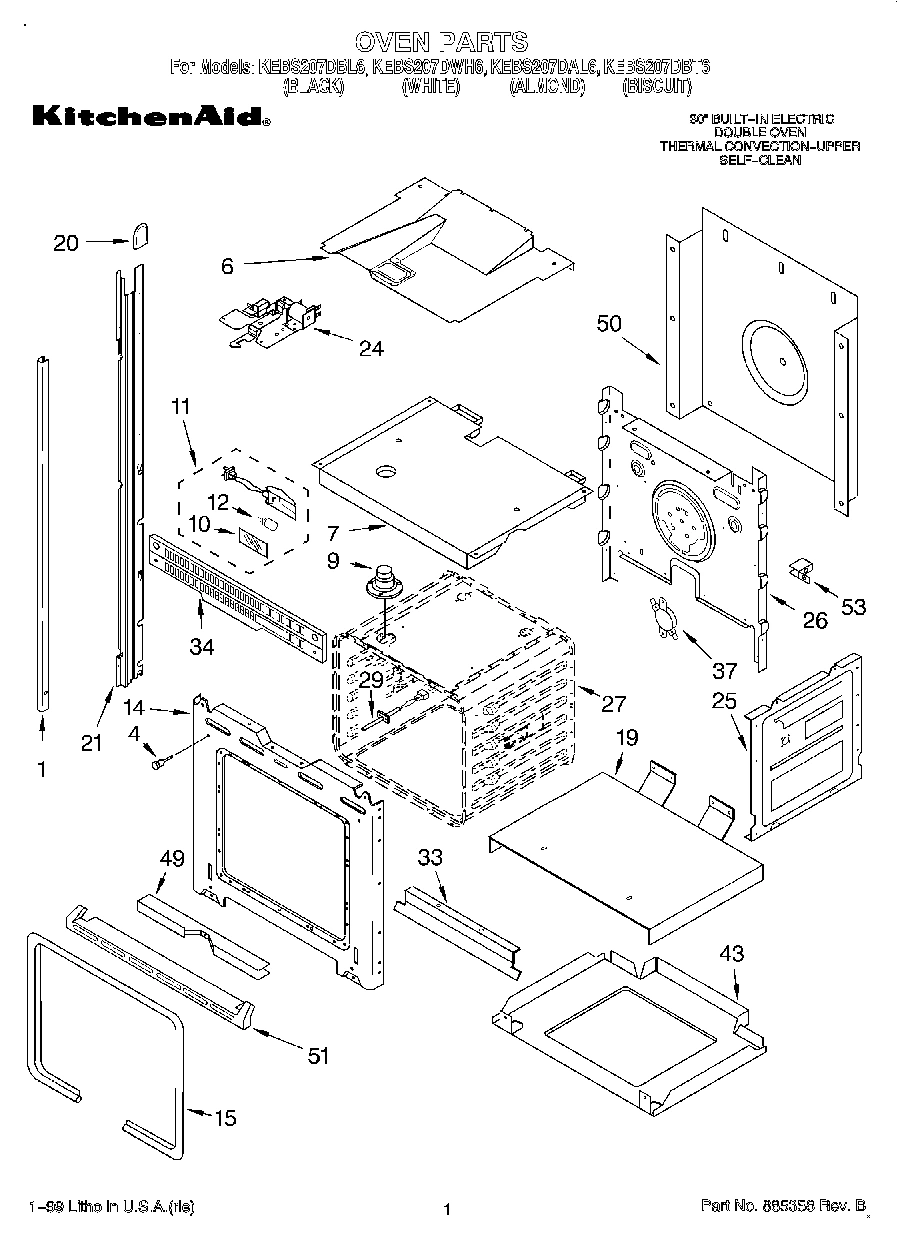

01 - OVEN

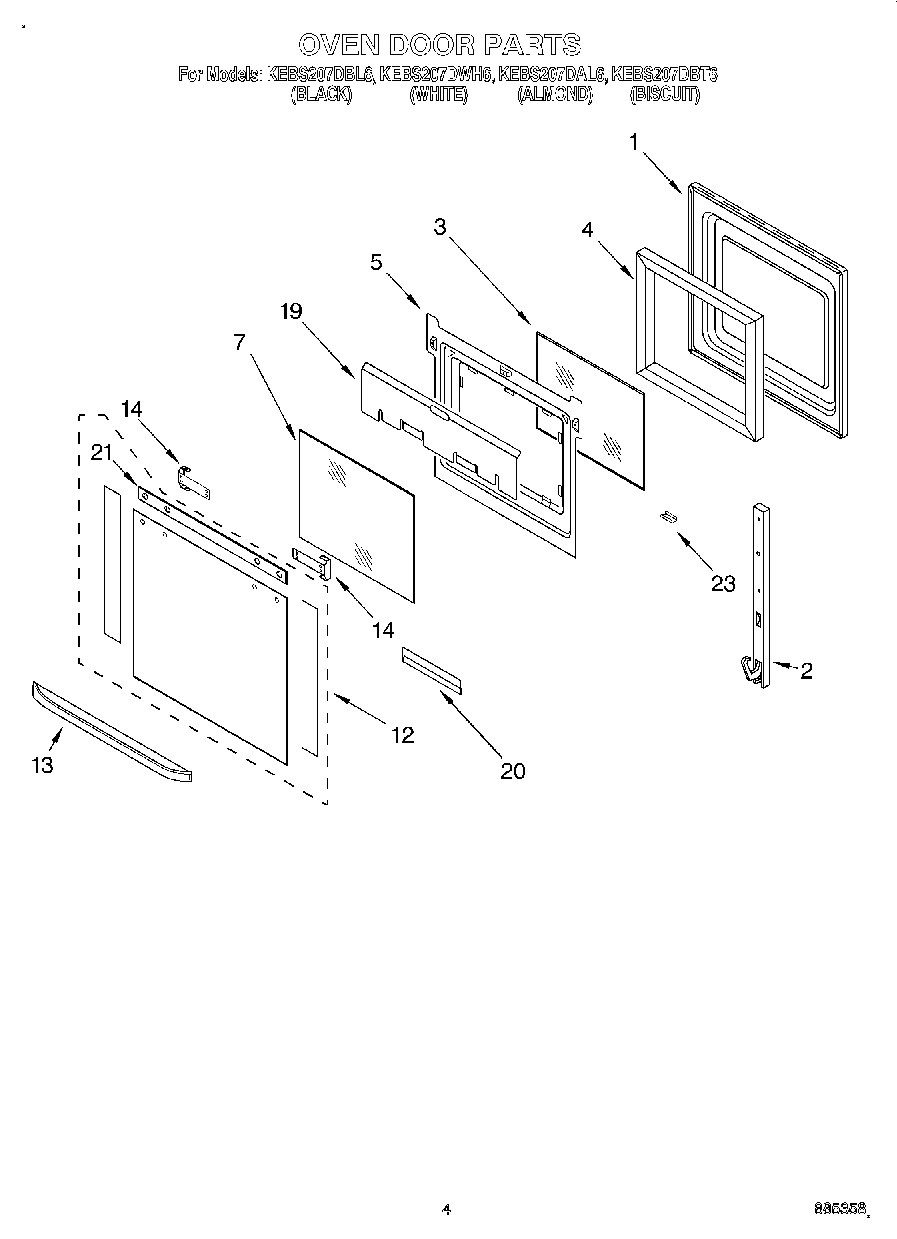

03 - OVEN DOOR

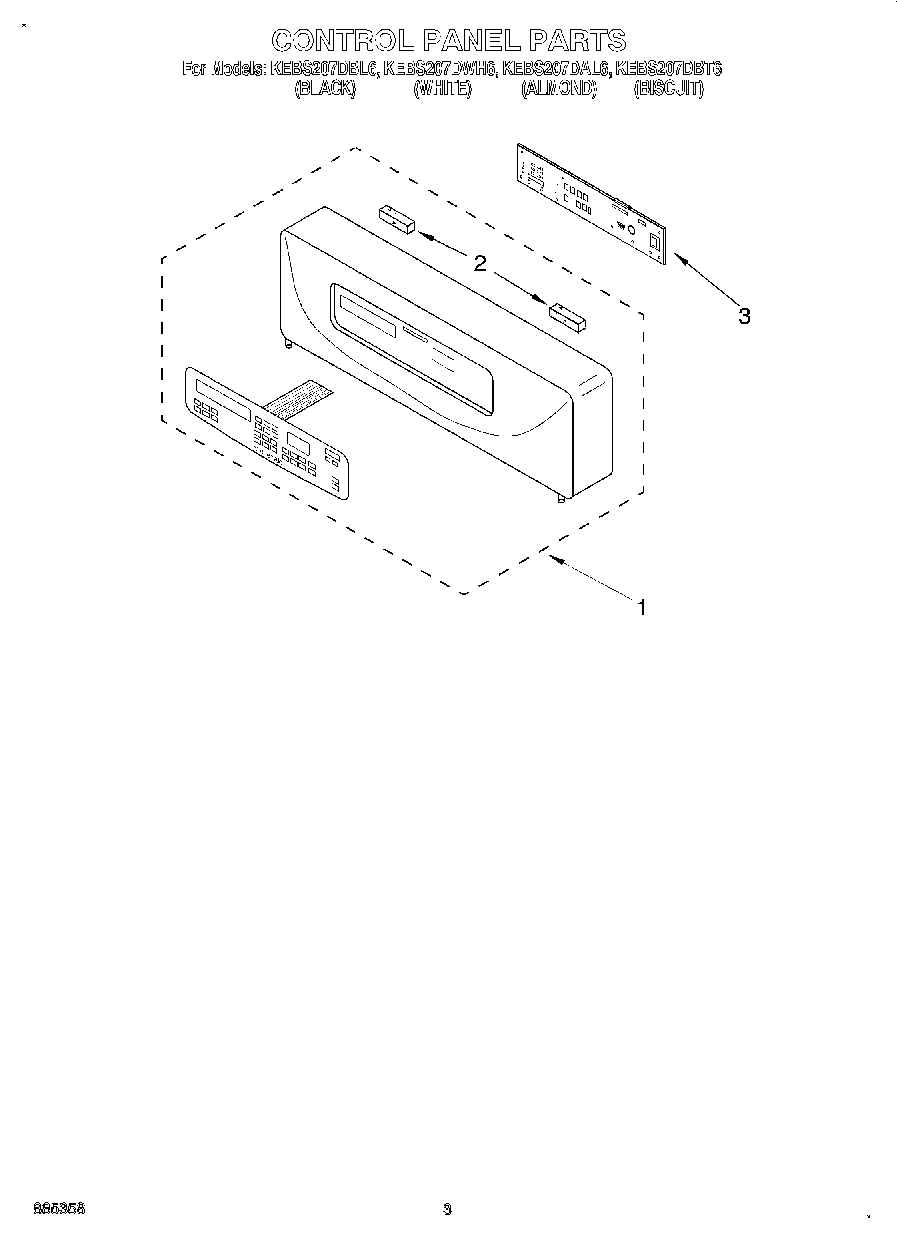

02 - CONTROL PANEL, LITERATURE

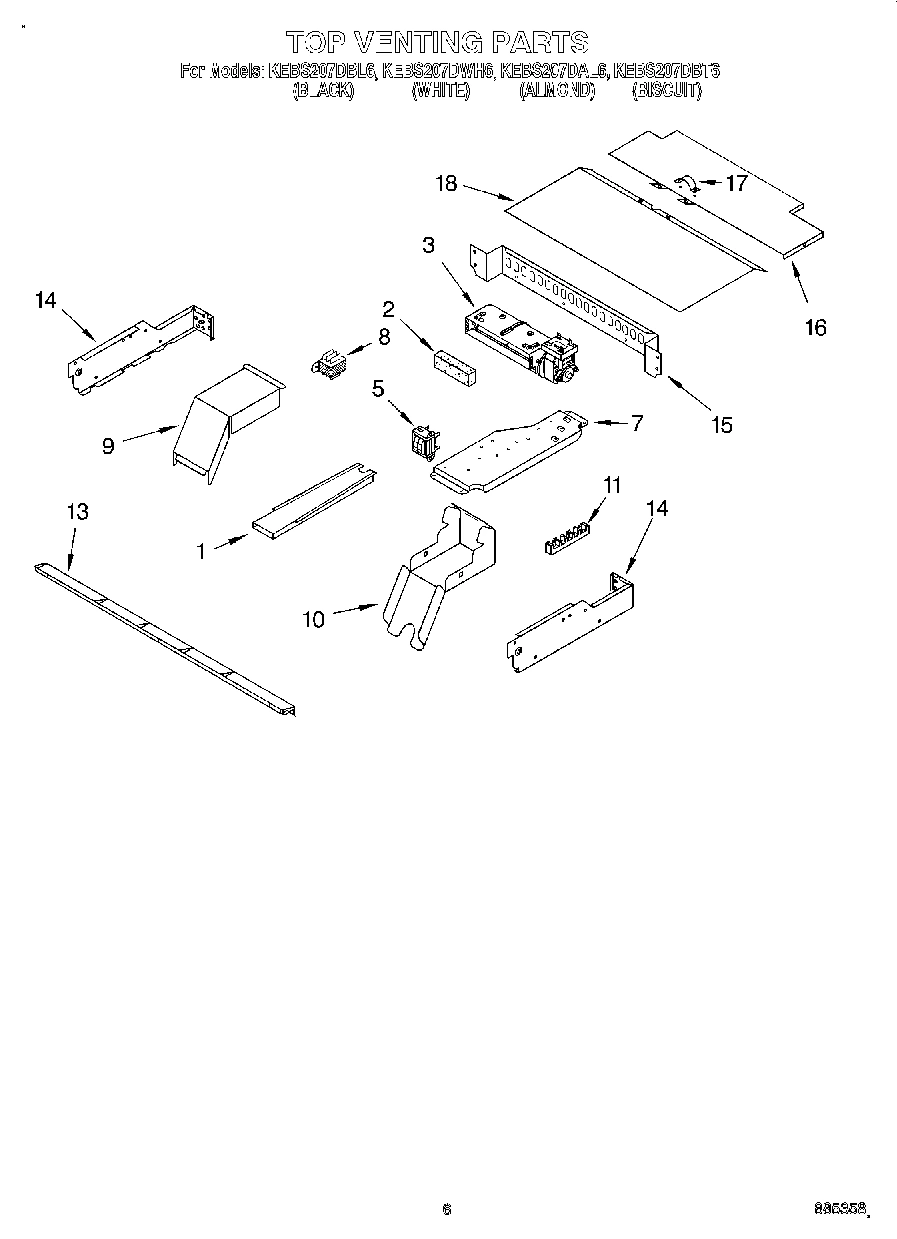

05 - TOP VENTING, OPTIONAL
Common parts from model Whirlpool KEBS207DAL6 BUILT-IN ELECTRIC DOUBLE OVEN
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
Cookbook, T/C Oven WPL LIT4449066 Contact Us For Availability
Easy Set Guide WPL LIT4449264 Contact Us For Availability
Installation Instructions WPL LIT4450411 Contact Us For Availability
Use & Care Guide (Oven) WPL LIT4450571 Contact Us For Availability
Tech Sheet (Oven) WPL LIT4452026 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Screw) WPL 4159465 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Black WPL 4451294 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (White WPL 4451295 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Almond WPL 4451296 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Biscui WPL 4451298 Contact Us For Availability
2
Gasket, Control Panel WPL 4451034 Contact Us For Availability
3
Microcomputer WPL 4448871 Contact Us For Availability
5
Retainer, Glass WPL 4451671 Contact Us For Availability
7
Plate, Mounting WPL 4451789 Contact Us For Availability
8
Transformer, Control WPL 4451658 Contact Us For Availability
9
Convection Motor WPL 4451583 Contact Us For Availability
10
Lens, Light WPL 4452163 Contact Us For Availability
12
Door Glass, Assy (White Model) WPL 4452075 Contact Us For Availability
12
Door Glass, Assy (Almond Model) WPL 4452076 Contact Us For Availability
12
Door Glass, Assy (Biscuit Model) WPL 4452147 Contact Us For Availability
13
Door Handle (Black Model) WPL 4448414 Contact Us For Availability
13
Handle, Door (White Model) WPL 4448415 Contact Us For Availability
13
Handle, Door (Almond Model) WPL 4448416 Contact Us For Availability
13
Handle, Door (Biscuit) WPL 4452129 Contact Us For Availability
13
Vent, (Control Panel) WPL 4448552 Contact Us For Availability
14
Bracket, Handle WPL 4450813 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Screw WPL 4451040 Contact Us For Availability
15
Back, Control WPL 4452244 Contact Us For Availability
16
Cover, Top Rear WPL 4450551 Contact Us For Availability
18
Conduit, Double WPL 4450953 Contact Us For Availability
18
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
18
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
18
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
18
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
18
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
18
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
18
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
18
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
18
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
18
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
18
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
18
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
18
Spacer, Harness WPL 4452222 Contact Us For Availability
18
Harness, Wire (Latc WPL 4452239 Contact Us For Availability
18
WPL 4454927 WPL 4454927 Contact Us For Availability
18
WPL 591014 WPL 591014 Contact Us For Availability
19
Shield, Heat WPL 4450362 Contact Us For Availability
20
Retainer, Glass WPL 4451668 Contact Us For Availability
21
Seal, Door Top WPL 4451674 Contact Us For Availability
23
Retainer, Clip (Black Model) WPL 4450863 Contact Us For Availability
23
Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability
23
Retainer, Clip (Almond Model) WPL 4450865 Contact Us For Availability
23
Retainer, Clip (Biscuit Model) WPL 4452119 Contact Us For Availability
24
Latch Assembly WPL 4451424 Contact Us For Availability
26
Back, Chassis WPL 4452234 Contact Us For Availability
27
Liner, Oven (Not a Serviceable Part) WPL ARI83309A9 Contact Us For Availability
29
Sensor WPL 4451665 Contact Us For Availability
33
Deflector, Vent WPL 4451619 Contact Us For Availability
34
Vent, Center WPL 4452267 Contact Us For Availability
43
Base, Chassis WPL 4451398 Contact Us For Availability
51
Trim, Bottom (Black Model) WPL 4448477 Contact Us For Availability
51
Trim, Bottom (White Model) WPL 4448478 Contact Us For Availability
51
Trim, Bottom (Almond Model) WPL 4448862 Contact Us For Availability
51
Trim, Bottom (Biscuit Model) WPL 4452415 Contact Us For Availability
53
WPL 4449845 WPL 4449845 Contact Us For Availability
53
WPL 4450365 WPL 4450365 Contact Us For Availability
× ![]()
