Model Whirlpool KEBS207DAL2 BUILT-IN ELECTRIC DOUBLE OVEN – Common Parts & Diagrams

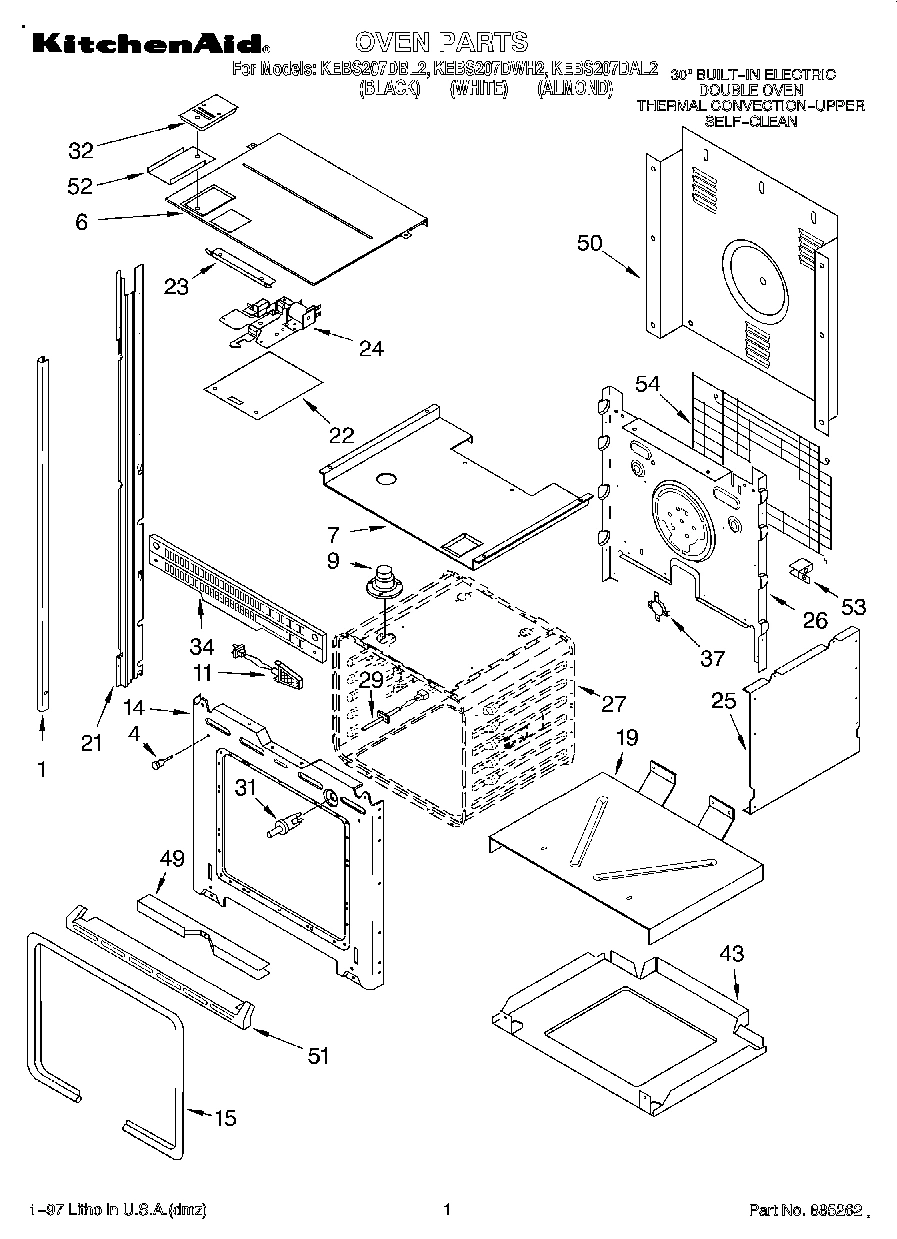

01 - OVEN

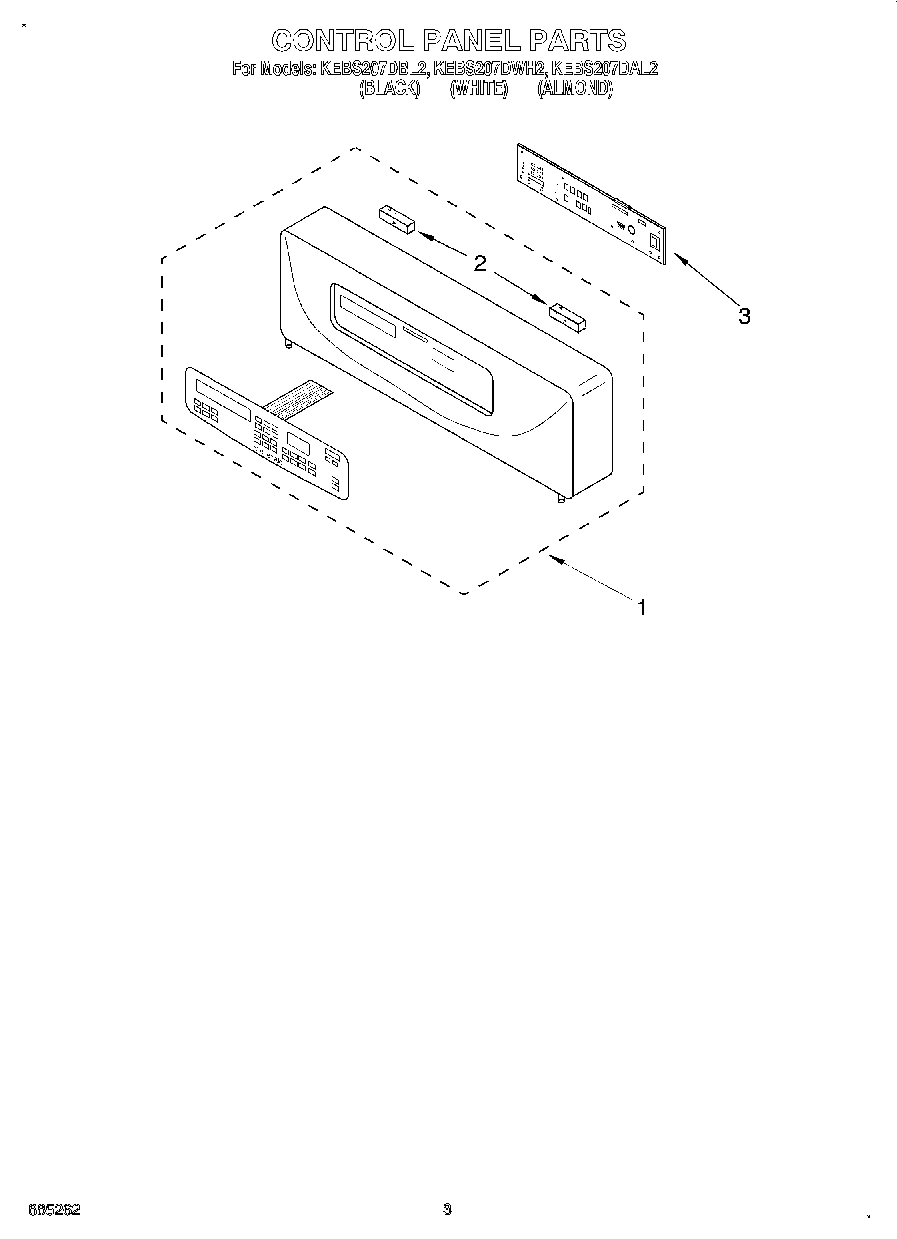

02 - CONTROL PANEL, LITERATURE
05 - TOP VENTING, OPTIONAL
03 - OVEN DOOR
04 - INTERNAL OVEN
Common parts from model Whirlpool KEBS207DAL2 BUILT-IN ELECTRIC DOUBLE OVEN
Cookbook, T/C Oven WPL LIT4449066 Contact Us For Availability
Easy Set Guide WPL LIT4449264 Contact Us For Availability
Installation Instructions WPL LIT4450411 Contact Us For Availability
Use & Care Guide (Oven) WPL LIT4450571 Contact Us For Availability
Tech Sheet (Oven) WPL LIT4454771 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Black WPL 4451294 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (White WPL 4451295 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Almond WPL 4451296 Contact Us For Availability
1
Door Liner WPL 4450429 Contact Us For Availability
2
Screw WPL 4159465 Contact Us For Availability
2
Gasket, Control Panel WPL 4451034 Contact Us For Availability
2
Foam, Block WPL 3182384 Contact Us For Availability
3
Microcomputer WPL 4448871 Contact Us For Availability
3
Blower, Upper/Lower WPL 4450920 Contact Us For Availability
4
Bracket, Transformer WPL 4450066 Contact Us For Availability
4
Insulation, Top and Bottom Door WPL 4448680 Contact Us For Availability
5
Retainer, Glass WPL 4450423 Contact Us For Availability
5
Rack, Roasting WPL 3181534 Contact Us For Availability
6
Exhaust Duct WPL 4450367 Contact Us For Availability
8
Transformer, Control WPL 4450291 Contact Us For Availability
9
Retainer, Glass WPL 4450470 Contact Us For Availability
9
Convection Motor WPL 4448952 Contact Us For Availability
12
Door Glass, Outer (White Model) WPL 4450700 Contact Us For Availability
12
Door Glass, Outer (Almond Model) WPL 4450701 Contact Us For Availability
13
Vent, (Control Panel) WPL 4448552 Contact Us For Availability
13
Door Handle (Black Model) WPL 4448414 Contact Us For Availability
13
Handle, Door (White Model) WPL 4448415 Contact Us For Availability
13
Handle, Door (Almond Model) WPL 4448416 Contact Us For Availability
14
Bracket, Handle WPL 4450813 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Screw WPL 4451040 Contact Us For Availability
15
Back, Control WPL 4450658 Contact Us For Availability
15
Tray, Bake WPL 4448723 Contact Us For Availability
19
Conduit, Double WPL 4450953 Contact Us For Availability
19
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
19
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
19
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
19
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
19
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
19
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
19
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
19
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
19
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
19
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
19
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
19
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
19
Bracket, Blower WPL 4450545 Contact Us For Availability
19
Harness, Wire (Door Switch) WPL 4450951 Contact Us For Availability
19
Harness, Wire (Latch) WPL 4454709 Contact Us For Availability
19
Harness, Wire (Main) WPL 4454797 Contact Us For Availability
19
ADHESIVE LO WPL 591014 Contact Us For Availability
19
WPL 814387 WPL 814387 Contact Us For Availability
19
Shield, Heat WPL 4450362 Contact Us For Availability
20
Retainer, Glass WPL 4449031 Contact Us For Availability
21
Seal, Door Top WPL 4450837 Contact Us For Availability
22
Seal, Side WPL 4450838 Contact Us For Availability
23
Retainer, Clip (Black Model) WPL 4450863 Contact Us For Availability
23
Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability
23
Retainer, Clip (Almond Model) WPL 4450865 Contact Us For Availability
51
Trim, Bottom (Screw) WPL 4450289 Contact Us For Availability
51
Trim, Bottom (Black Model) WPL 4448461 Contact Us For Availability
51
Trim, Bottom (White Model) WPL 4448462 Contact Us For Availability
51
Trim, Bottom (Almond Model) WPL 4448463 Contact Us For Availability
52
Extension, Vent (Upper Oven) WPL 4450795 Contact Us For Availability
52
Extension, Vent (Lower Oven) WPL 4450797 Contact Us For Availability
53
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
54
WPL 4450365 WPL 4450365 Contact Us For Availability
54
WPL 4451002 WPL 4451002 Contact Us For Availability
× ![]()
