Model Whirlpool KEBS107DWH6 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts & Diagrams

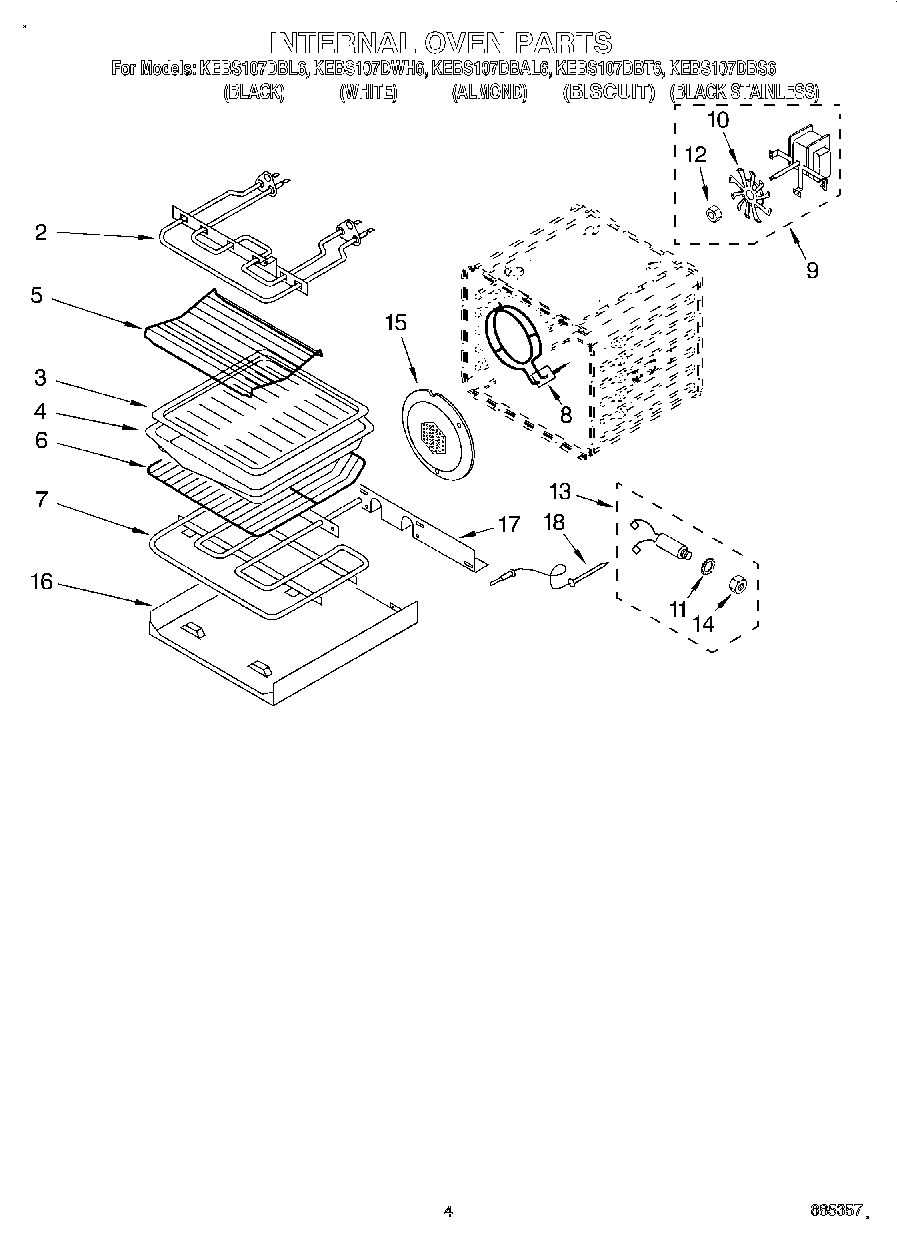

03 - INTERNAL OVEN

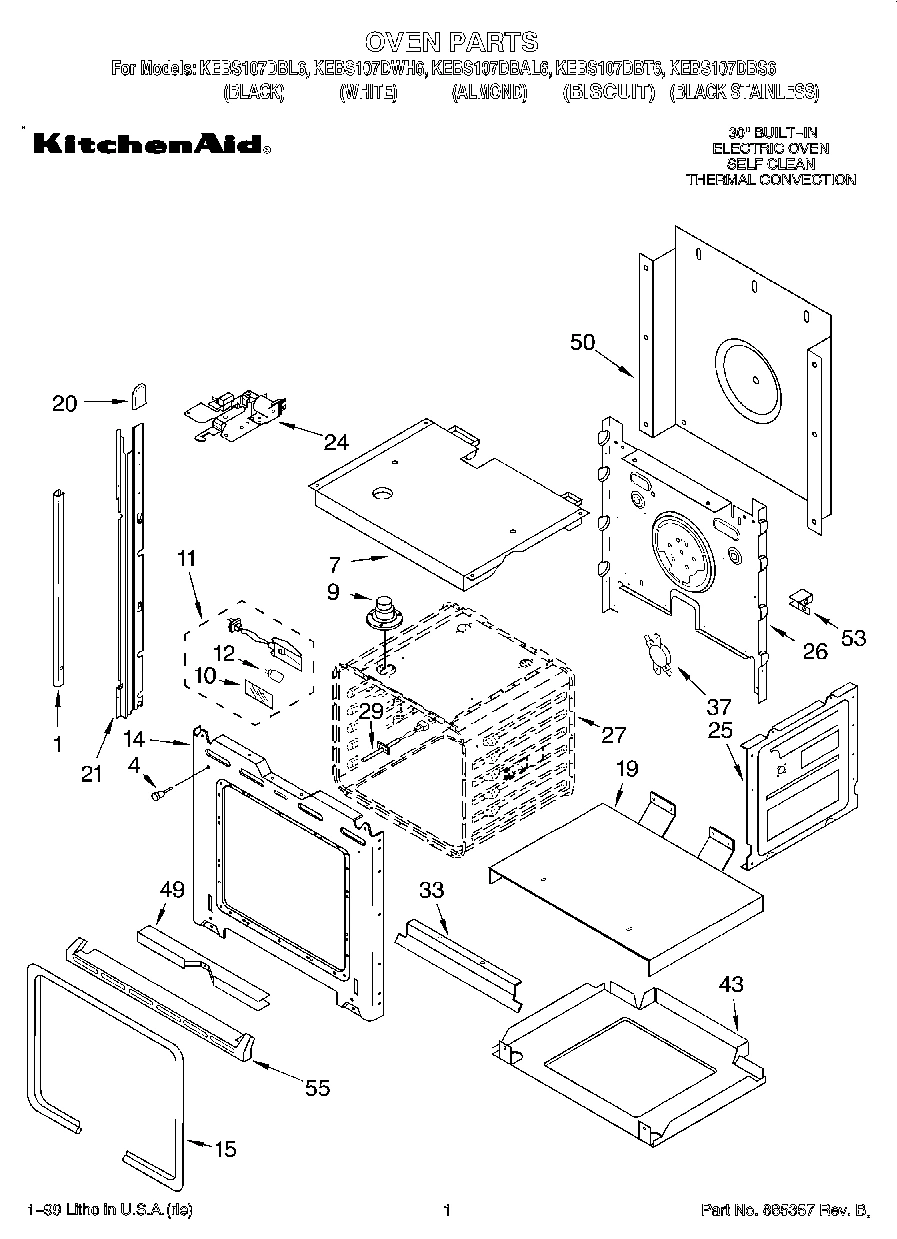

01 - OVEN

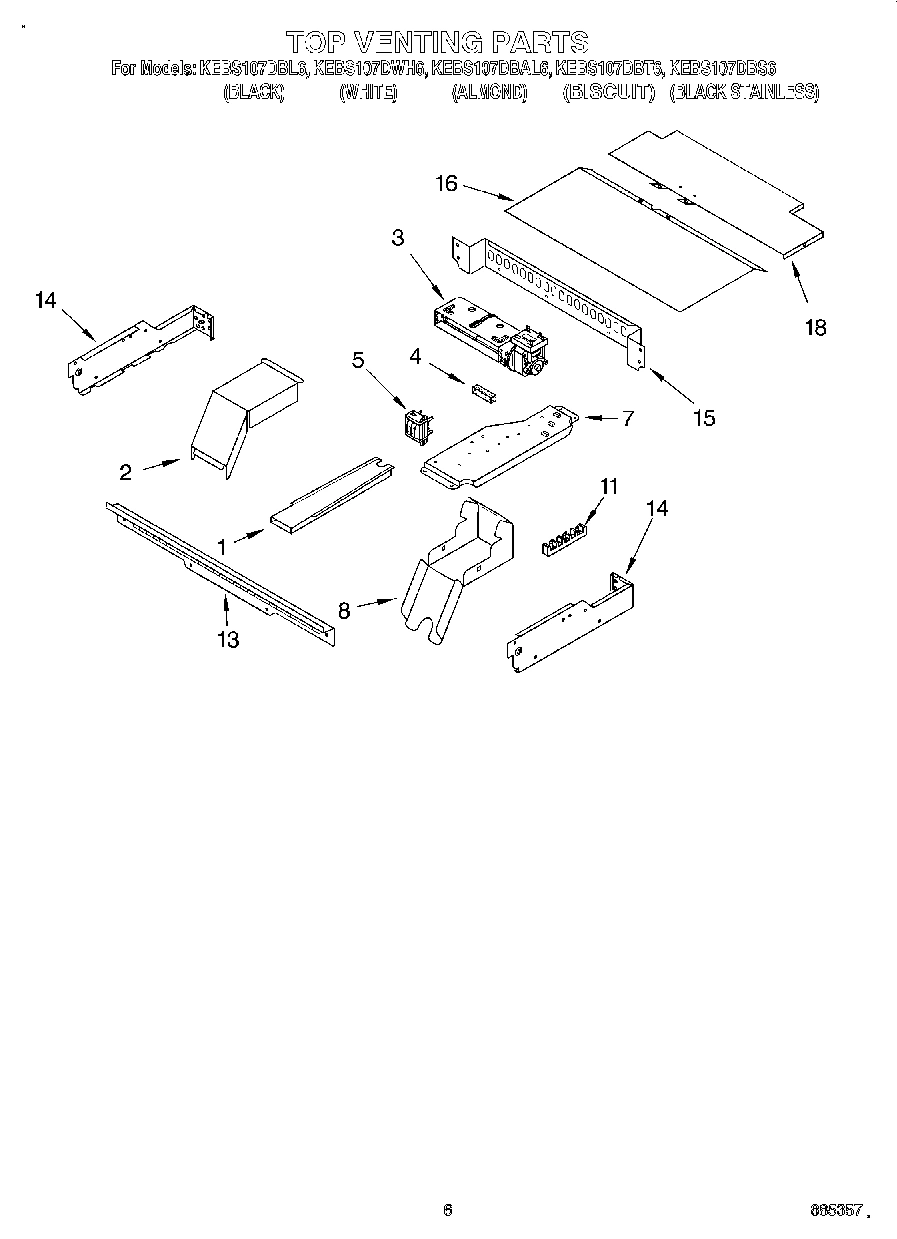

05 - TOP VENTING, OPTIONAL

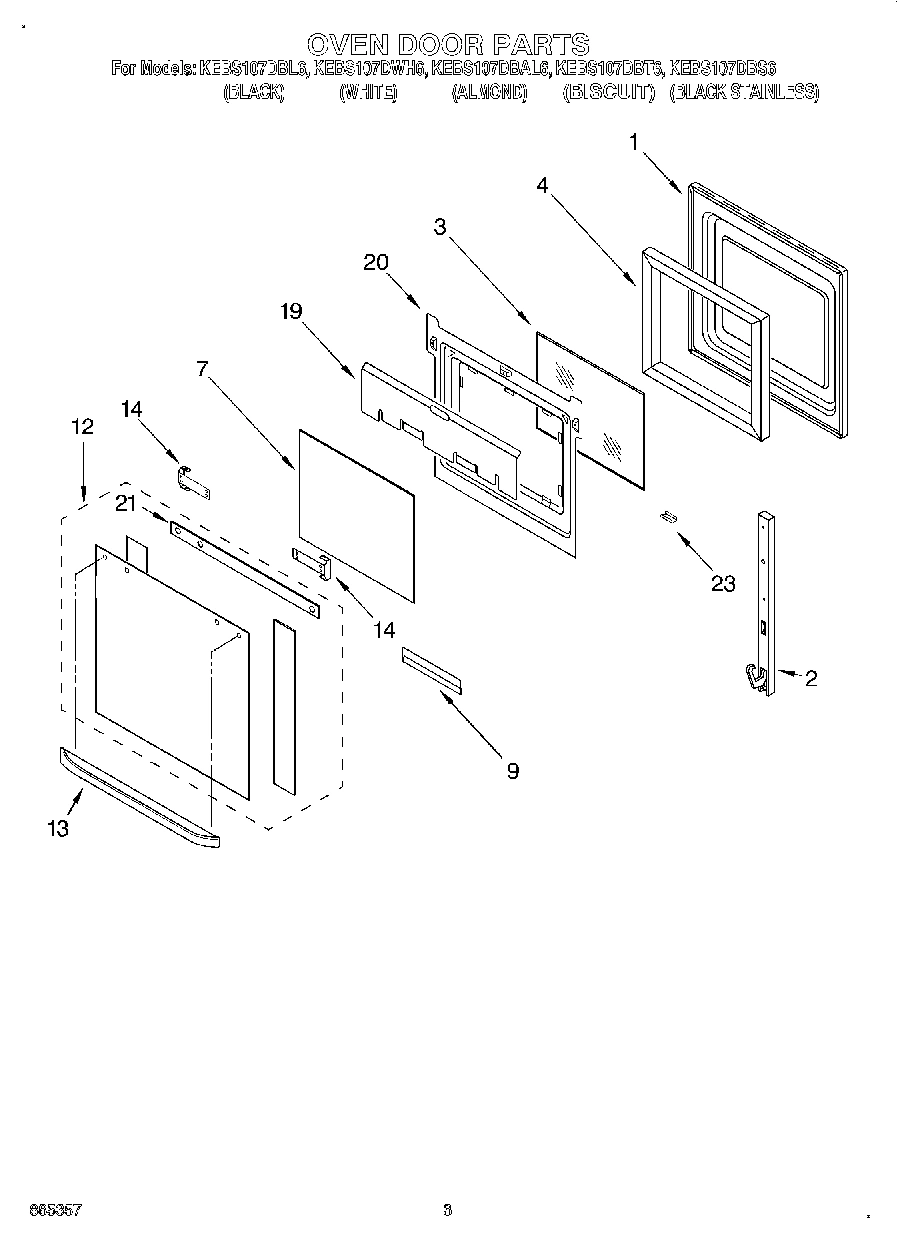

02 - OVEN DOOR

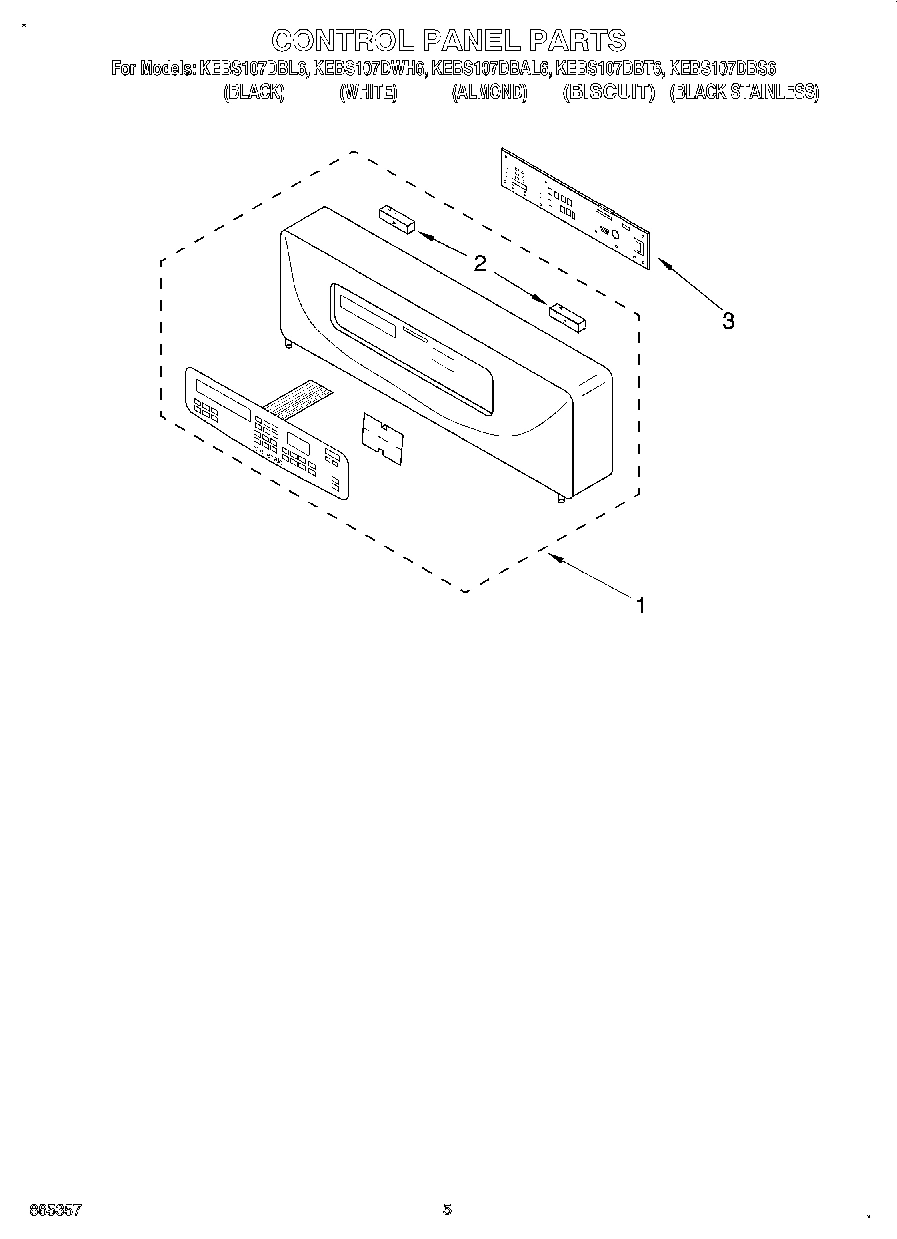

04 - CONTROL PANEL, LITERATURE
Common parts from model Whirlpool KEBS107DWH6 BUILT-IN ELECTRIC SINGLE OVEN
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
Installation/ Undercounter WPL LIT3192225 Contact Us For Availability
Cookbook T/C WPL LIT4449066 Contact Us For Availability
Easy Set Guide WPL LIT4449264 Contact Us For Availability
Installation Instructions WPL LIT4450411 Contact Us For Availability
Use & Care Guide (Oven) WPL LIT4450571 Contact Us For Availability
Installation, MWO Trim Kit WPL LIT4450841 Contact Us For Availability
Tech Sheet WPL LIT4452024 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Screw) WPL 4159465 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Black WPL 4451263 Contact Us For Availability
1
Control Panel Assy W/Membrane Switch (White M WPL 4451264 Contact Us For Availability
1
Control Panel Assy W/Membrane Switch (Almond WPL 4451265 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Biscui WPL 4451267 Contact Us For Availability
2
Gasket, Control Panel WPL 4451034 Contact Us For Availability
3
Microcomputer WPL 4448866 Contact Us For Availability
7
Plate, Mounting WPL 4451789 Contact Us For Availability
9
Motor Convection WPL 4451583 Contact Us For Availability
9
Retainer, Glass WPL 4451668 Contact Us For Availability
10
Lens, Light WPL 4452163 Contact Us For Availability
12
Door Glass, Assy (White Model) WPL 4452075 Contact Us For Availability
12
Door Glass, Assy (Almond Model) WPL 4452076 Contact Us For Availability
12
Door Glass, Assy (Black-Stainless) WPL 4452078 Contact Us For Availability
12
Door Glass, Assy (Biscuit Model) WPL 4452147 Contact Us For Availability
13
Vent, (Control Panel) WPL 4448552 Contact Us For Availability
13
Door Handle (Black & BS Model) WPL 4448414 Contact Us For Availability
13
Handle, Door (White Model) WPL 4448415 Contact Us For Availability
13
Handle, Door (Almond Model) WPL 4448416 Contact Us For Availability
13
Handle, Door (Biscuit) WPL 4452129 Contact Us For Availability
14
Bracket, Handle WPL 4450813 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Screw WPL 4451040 Contact Us For Availability
15
Back, Control WPL 4452244 Contact Us For Availability
16
Cover, Top Rear WPL 4450551 Contact Us For Availability
18
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
18
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
18
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
18
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
18
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
18
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
18
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
18
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
18
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
18
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
18
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
18
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
18
Spacer, Harness WPL 4452222 Contact Us For Availability
18
Harness, Wire (Main) WPL 4454925 Contact Us For Availability
18
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
19
Shield, Heat WPL 4450362 Contact Us For Availability
20
Retainer, Glass WPL 4451671 Contact Us For Availability
21
Seal, Door Top WPL 4451674 Contact Us For Availability
23
Retainer, Clip (Black & BS Models) WPL 4450863 Contact Us For Availability
23
Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability
23
Retainer, Clip (Almond Model) WPL 4450865 Contact Us For Availability
23
Retainer, Clip (Biscuit Model) WPL 4452119 Contact Us For Availability
24
Latch Assembly WPL 4451424 Contact Us For Availability
26
Back, Chassis WPL 4452234 Contact Us For Availability
27
Liner, Oven (Not a Serviceable Part) WPL ARI83030A2 Contact Us For Availability
29
Sensor WPL 4451665 Contact Us For Availability
33
Deflector, Vent WPL 4451619 Contact Us For Availability
43
Base, Chassis WPL 4451398 Contact Us For Availability
53
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
55
Trim, Bottom (Black & BS Models) WPL 4448477 Contact Us For Availability
55
Trim, Bottom (White Mo WPL 4448478 Contact Us For Availability
55
WPL 4448862 WPL 4448862 Contact Us For Availability
55
WPL 4450365 WPL 4450365 Contact Us For Availability
55
WPL 4452415 WPL 4452415 Contact Us For Availability
× ![]()
