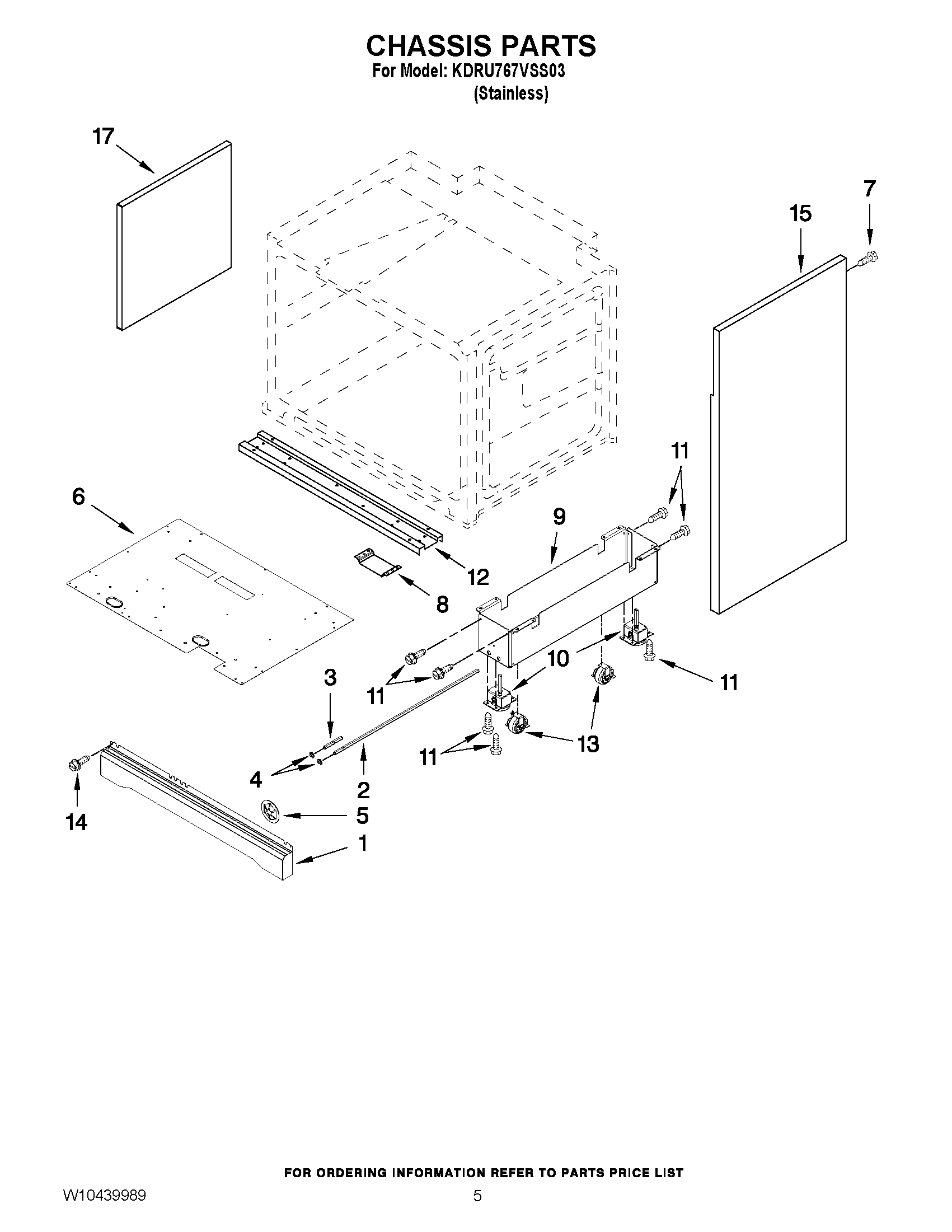

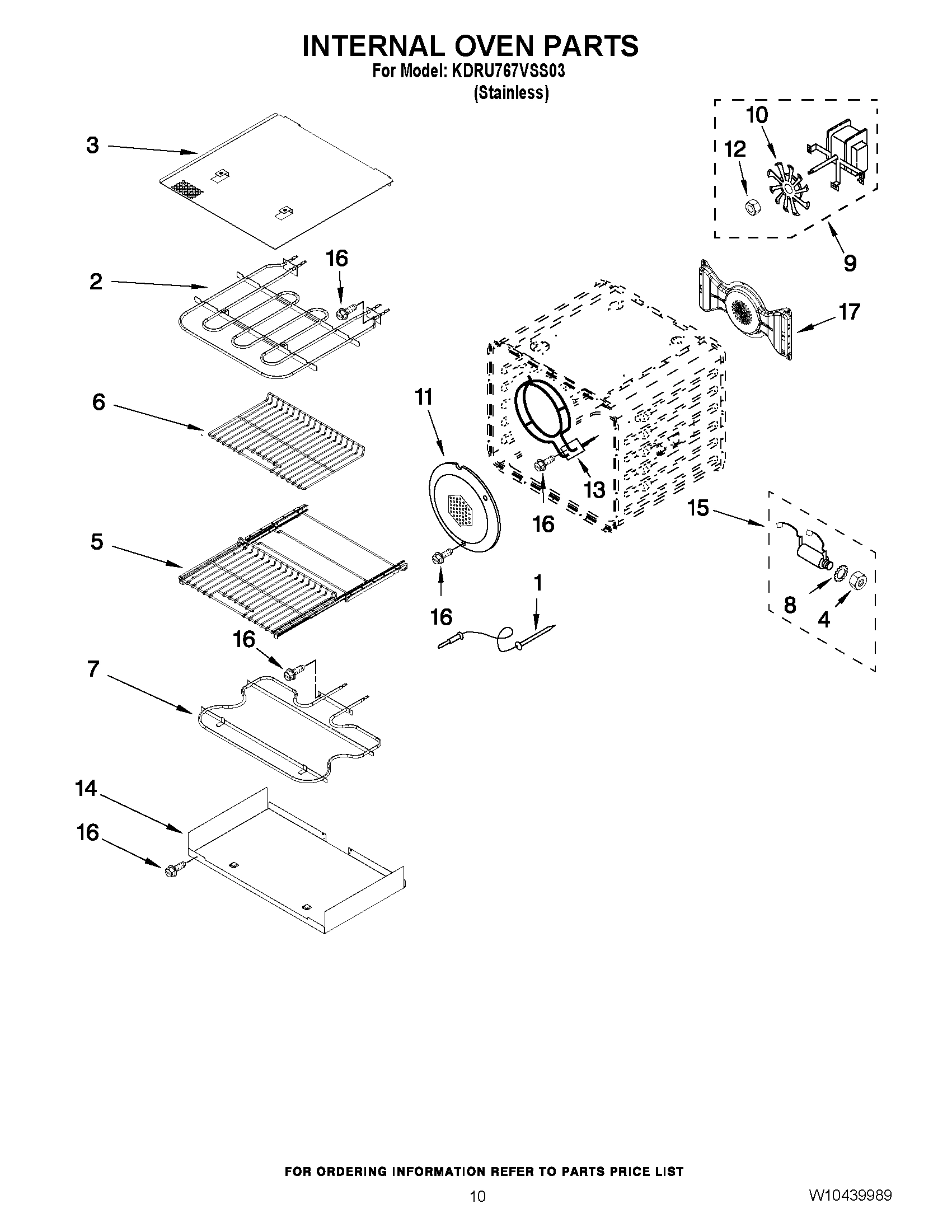

Model Whirlpool KDRU767VSS03 36`` STAINLESS PROFESSIONAL DUAL FUEL RANGE – Common Parts &amp; Diagrams

1

WPW10225970 Whirlpool Oven Vent Backorder WPL WPW10225970 $99.51

2

4449748 Whirlpool Oven Screw Backorder WPL 4449748 $7.01

2

W10115869 Whirlpool Shaft Backorder WPL W10115869 $41.50

2

W10340424 Whirlpool Orifice Spud Backorder WPL W10340424 $32.41

2

W10877227 Whirlpool Hinge Assembly Backorder WPL W10877227 $42.29

2

W11051480 Whirlpool Orifice Assembly Backorder WPL W11051480 $33.43

2

HINGE, DOOR (RIGHT) WPL W10269203 Contact Us For Availability

3

4453115 Whirlpool Oven Adapter Backorder WPL 4453115 $43.39

3

4453116 Whirlpool Oven Adapter Backorder WPL 4453116 $68.92

3

W10105790 Whirlpool Bumper Backorder WPL W10105790 $4.85

3

W10115793 Whirlpool Shaft Backorder WPL W10115793 $32.08

3

WPW10226005 Whirlpool Door Glass Backorder WPL WPW10226005 $110.95

3

WPW10245511 Whirlpool Blower In Stock WPL WPW10245511 $199.67

3

WPW10364555 Whirlpool Orifice Holder Backorder WPL WPW10364555 $45.93

4

489504 Whirlpool Oven Ring Backorder WPL 489504 $4.85

4

W10282659 Whirlpool Orifice Holder Backorder WPL W10282659 $15.70

4

WPW10364556 Whirlpool Orifice Holder Backorder WPL WPW10364556 $41.36

5

WP3400968 Whirlpool Nut Backorder WPL WP3400968 $3.70

5

WPW10115928 Whirlpool Burner Grate Backorder WPL WPW10115928 $127.61

6

W10115876 Whirlpool Cover Backorder WPL W10115876 $31.07

6

W10269217 Whirlpool Trim Top Assembly Backorder WPL W10269217 $117.12

6

W10822069 Whirlpool Oven Rack Backorder WPL W10822069 $63.13

6

Transformer, Control WPL 9762885 Contact Us For Availability

7

W10246075 Whirlpool Exhaust Vent Backorder WPL W10246075 $26.21

7

WPW10188327 Whirlpool Door Glass Backorder WPL WPW10188327 $97.25

7

WPW10307114 Whirlpool Light Backorder WPL WPW10307114 $48.62

8

WPW10385582 Whirlpool Burner Valve Backorder WPL WPW10385582 $141.33

9

W10249333 Whirlpool Dishwasher Mounting Brack Backorder WPL W10249333 $113.26

9

W10261510 Whirlpool Knob Bezel Backorder WPL W10261510 $26.59

9

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $54.02

9

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $54.02

9

PANEL, DOOR WPL W10225960 Contact Us For Availability

10

W10271524 Whirlpool Trim Top Backorder WPL W10271524 $88.85

10

W10859931 Whirlpool Foot Level Backorder WPL W10859931 $43.97

10

SEAL, CHIMNEY WPL W10270396 Contact Us For Availability

W10261523 Whirlpool Plate Backorder WPL W10261523 $25.82

W10293267 Whirlpool Regulator Assembly Backorder WPL W10293267 $128.21

WP9761958 Whirlpool Range Terminal Block In Stock WPL WP9761958 $13.67

WPW10292297 Whirlpool Screw Backorder WPL WPW10292297 $2.51

12

W10115718 Whirlpool Door Handle Backorder WPL W10115718 $132.31

12

W10115858 Whirlpool Box Terminal Backorder WPL W10115858 $40.99

12

WPW10116349 Whirlpool Nut Backorder WPL WPW10116349 $9.59

W10116434 Whirlpool Element Backorder WPL W10116434 $128.37

W10226025 Whirlpool Handle Endcap Backorder WPL W10226025 $65.38

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $15.79

WPW10256034 Whirlpool Burner Cap Backorder WPL WPW10256034 $70.34

WPW10364463 Whirlpool Burner Cap Backorder WPL WPW10364463 $26.72

END CAP, HANDLE (LEFT) WPL W10226026 Contact Us For Availability

COVER, CHANNEL WPL W10269198 Contact Us For Availability

14

9759721 Whirlpool Oven Insulator Backorder WPL 9759721 $39.35

14

WPW10256032 Whirlpool Burner Cap In Stock WPL WPW10256032 $44.14

14

WPW10385583 Whirlpool Burner Valve Backorder WPL WPW10385583 $129.17

8286863 Whirlpool Oven Clip Backorder WPL 8286863 $26.21

W10150011 Whirlpool Probe Jack Backorder WPL W10150011 $92.33

W10256046 Whirlpool Clip Backorder WPL W10256046 $6.50

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

SCREW WPL 7101P46060 Contact Us For Availability

W10833887 Whirlpool Surface Igniter In Stock WPL W10833887 $9.77

WP3196163 Whirlpool Screw In Stock WPL WP3196163 $2.51

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

WPW10145991 Whirlpool Surface Igniter Backorder WPL WPW10145991 $30.47

17

W10270397 Whirlpool Vent Seal Backorder WPL W10270397 $12.11

17

BAFFLE, CONVECTION WPL W10160879 Contact Us For Availability

17

Screw WPL 4449040 Contact Us For Availability

W10189107 Whirlpool Mounting Bracket Backorder WPL W10189107 $28.80

W10352966 Whirlpool Cooktop Backorder WPL W10352966 $135.39

W10352967 Whirlpool Cooktop Backorder WPL W10352967 $135.60

W10352969 Whirlpool Cooktop Assembly Backorder WPL W10352969 $135.65

SUPPORT, CONTROL WPL W10249337 Contact Us For Availability

W10239444 Whirlpool Foam Seal Backorder WPL W10239444 $44.05

WP4449751 Whirlpool Range Oven Thermostat Fix In Stock WPL WP4449751 $75.89

WPW10256027 Whirlpool Burner Head Backorder WPL WPW10256027 $45.48

WPW10282515 Whirlpool Burner Head Backorder WPL WPW10282515 $64.06

SUPPORT, HANDLE WPL W10225964 Contact Us For Availability

20

W10061760 Whirlpool Screw In Stock WPL W10061760 $4.85

20

WPW10371235 Whirlpool Burner Valve Backorder WPL WPW10371235 $139.07

22

4448520 Whirlpool Oven Bumper Backorder WPL 4448520 $10.76

22

W10852683 Whirlpool Nameplate Backorder WPL W10852683 $74.72

23

W10189177 Whirlpool Seal Switch Backorder WPL W10189177 $6.28

23

W10217130 Whirlpool Screw Backorder WPL W10217130 $5.29

24

W11244176 Whirlpool Knob Assembly Backorder WPL W11244176 $42.95

24

WP9759229 Whirlpool Mounting Bracket Backorder WPL WP9759229 $60.69

25

W11601369 Whirlpool Spark Module In Stock WPL W11601369 $38.10

26

W10115715 Whirlpool Bracket Mounting Backorder WPL W10115715 $13.21

28

W10194453 Whirlpool Switch Backorder WPL W10194453 $107.83

28

W11177673 Whirlpool Knob Backorder WPL W11177673 $47.25

29

8286930 Whirlpool Oven Gasket Backorder WPL 8286930 $32.57

29

Screw WPL 3400099 Contact Us For Availability

31

Valve, Solenoid WPL W10111418 Contact Us For Availability

32

WPW10076760 Whirlpool Sensor Backorder WPL WPW10076760 $74.25

34

W10115953 Whirlpool Nut Backorder WPL W10115953 $6.68

36

W10130759 Whirlpool Mounting Bracket Backorder WPL W10130759 $26.21

36

W10130760 Whirlpool Bracket Mounting Backorder WPL W10130760 $26.21

37

KEYPAD WPL W10116103 Contact Us For Availability

W10146020 Whirlpool Wire Harness Backorder WPL W10146020 $57.09

W10269191 Whirlpool Gas Tubing Backorder WPL W10269191 $90.25

W10280797 Whirlpool Gas Tubing Backorder WPL W10280797 $29.41

W10353141 Whirlpool Gas Tubing Assembly Backorder WPL W10353141 $59.17

W10399614 Whirlpool Wire Harness Backorder WPL W10399614 $64.76

W10504821 Whirlpool Wire Harness Backorder WPL W10504821 $68.18

W11544575 Whirlpool Anti-Tip Bracket Backorder WPL W11544575 $19.47

W11675299 Whirlpool Tie Wire Backorder WPL W11675299 $7.72

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

WPW10049700 Whirlpool Filter Backorder WPL WPW10049700 $120.76
