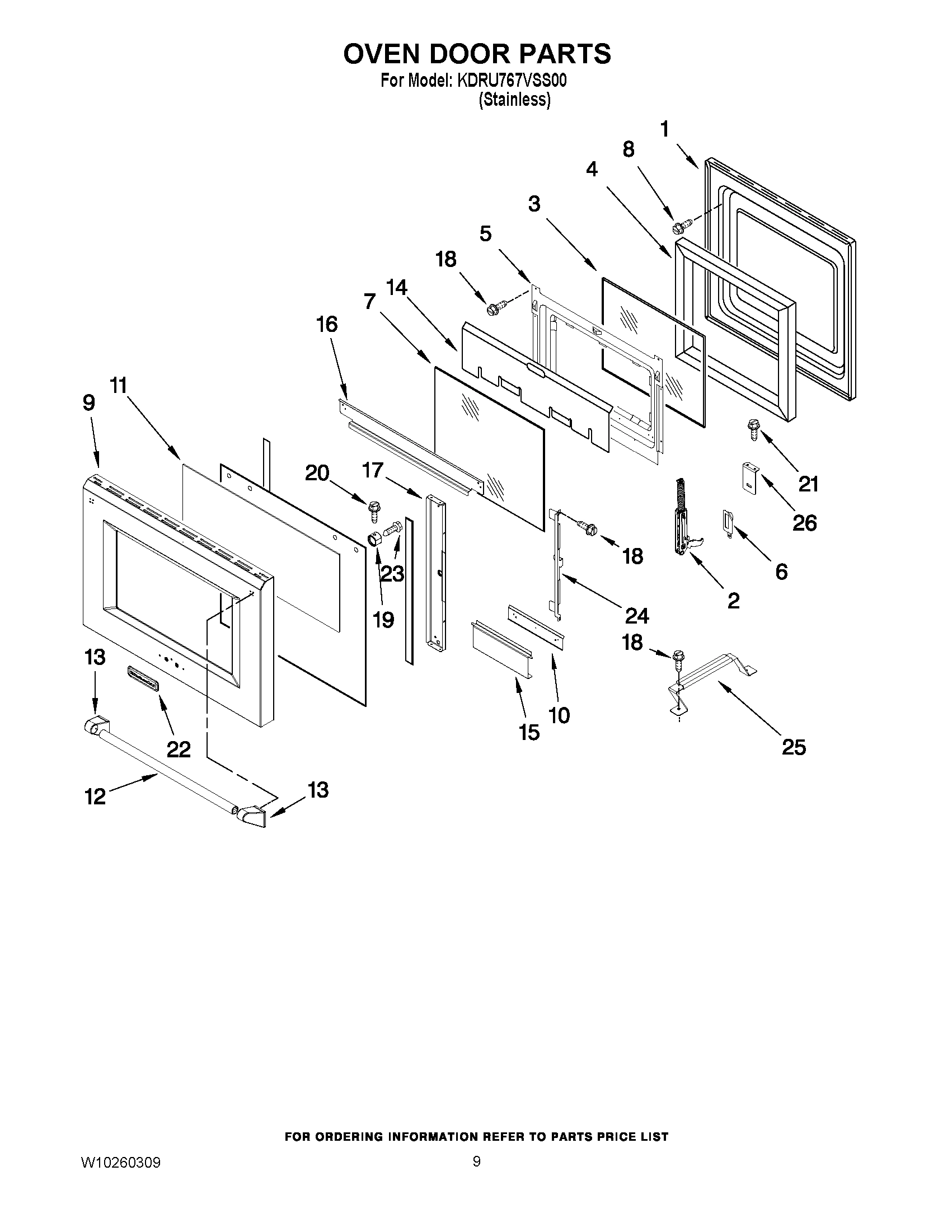

Model Whirlpool KDRU767VSS00 36`` STAINLESS PROFESSIONAL DUAL FUEL RANGE – Common Parts &amp; Diagrams

1

WPW10225970 Whirlpool Range Vent Backorder WPL WPW10225970 $99.51

2

4449748 Whirlpool Oven Screw Backorder WPL 4449748 $7.01

2

W10115869 Whirlpool Shaft Backorder WPL W10115869 $43.57

2

W10877227 Whirlpool Hinge Assembly In Stock WPL W10877227 $44.41

2

ORIFICE (LF & RF - LOW) WPL W10160185 Contact Us For Availability

2

ORIFICE (LF & RF - HIGH) WPL W10160179 Contact Us For Availability

2

ORIFICE (LR,CF,RR) WPL W10160232 Contact Us For Availability

2

HINGE, DOOR (RIGHT) WPL W10269203 Contact Us For Availability

3

4453115 Whirlpool Range Adapter Backorder WPL 4453115 $45.57

3

4453116 Whirlpool Range Adapter Backorder WPL 4453116 $72.36

3

W10105790 Whirlpool Bumper In Stock WPL W10105790 $4.85

3

W10115793 Whirlpool Shaft Backorder WPL W10115793 $33.69

3

WPW10160187 Whirlpool Orifice Holder Backorder WPL WPW10160187 $46.99

3

WPW10226005 Whirlpool Door Glass Backorder WPL WPW10226005 $116.50

3

WPW10245511 Whirlpool Blower In Stock WPL WPW10245511 $199.67

4

489504 Whirlpool Range Ring Backorder WPL 489504 $4.85

4

W10189107 Whirlpool Mounting Bracket Backorder WPL W10189107 $30.25

4

W10282659 Whirlpool Orifice Holder Backorder WPL W10282659 $15.70

4

ORIFICE HOLDER (LR,CF,RR) WPL W10160234 Contact Us For Availability

5

WP3400968 Whirlpool Nut Backorder WPL WP3400968 $3.70

5

WPW10115928 Whirlpool Burner Grate Backorder WPL WPW10115928 $133.98

5

PLATE, LATCH WPL W10160875 Contact Us For Availability

6

W10115876 Whirlpool Cover Backorder WPL W10115876 $32.63

6

W10169756 Whirlpool Light Lens Backorder WPL W10169756 $27.80

6

W10269217 Whirlpool Trim Top Assembly Backorder WPL W10269217 $122.98

6

W10822069 Whirlpool Range Rack Backorder WPL W10822069 $66.28

6

Transformer, Control WPL 9762885 Contact Us For Availability

7

W10246075 Whirlpool Exhaust Vent Backorder WPL W10246075 $27.52

7

WPW10188327 Whirlpool Door Glass Backorder WPL WPW10188327 $102.12

7

WPW10307114 Whirlpool Light Backorder WPL WPW10307114 $51.06

7

CLIP, ELECTRODE WPL W10160825 Contact Us For Availability

8

W10160844 Whirlpool Bracket Mounting Backorder WPL W10160844 $38.96

8

WPW10169757 Whirlpool Light Bulb In Stock WPL WPW10169757 $29.12

8

VALVE, SINGLE LR,CF,RR WPL W10326645 Contact Us For Availability

9

W10160858 Whirlpool Lid Cover Backorder WPL W10160858 $27.52

9

W10249333 Whirlpool Range Mounting Bracket Backorder WPL W10249333 $118.92

9

W10261510 Whirlpool Knob Bezel Backorder WPL W10261510 $27.93

9

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $56.11

9

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $56.11

9

PANEL, DOOR WPL W10225960 Contact Us For Availability

10

SEAL-FOAM Backorder WPL W10270396 $29.48

10

W10271524 Whirlpool Trim Top Backorder WPL W10271524 $88.85

10

W10859931 Whirlpool Foot Level Backorder WPL W10859931 $46.17

W10261523 Whirlpool Plate Backorder WPL W10261523 $27.12

W10293267 Whirlpool Regulator Assembly Backorder WPL W10293267 $134.62

WP9761958 Whirlpool Range Terminal Block In Stock WPL WP9761958 $13.67

WPW10292297 Whirlpool Screw Backorder WPL WPW10292297 $2.51

12

W10115718 Whirlpool Door Handle Backorder WPL W10115718 $132.31

12

W10115858 Whirlpool Box Terminal Backorder WPL W10115858 $43.04

12

WPW10116349 Whirlpool Nut Backorder WPL WPW10116349 $9.59

W10116434 Whirlpool Element Backorder WPL W10116434 $128.37

W10226025 Whirlpool Handle Endcap Backorder WPL W10226025 $68.65

WP8286816 Whirlpool Burner Cap Backorder WPL WP8286816 $48.81

WPW10115952 Whirlpool Burner Cap Backorder WPL WPW10115952 $62.45

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $16.58

WPW10160229 Whirlpool Burner Cap Backorder WPL WPW10160229 $51.66

END CAP, HANDLE (LEFT) WPL W10226026 Contact Us For Availability

COVER, CHANNEL WPL W10269198 Contact Us For Availability

14

9759721 Whirlpool Range Insulator Backorder WPL 9759721 $41.32

14

WPW10320937 Whirlpool Burner Top Backorder WPL WPW10320937 $66.07

14

WPW10385583 Whirlpool Burner Valve Backorder WPL WPW10385583 $129.17

8286863 Whirlpool Oven Clip In Stock WPL 8286863 $26.21

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

Jack, Meat Probe WPL W10150011 Contact Us For Availability

SCREW WPL 7101P46060 Contact Us For Availability

WP3196163 Whirlpool Screw In Stock WPL WP3196163 $2.51

WP4449154 Whirlpool Screw In Stock WPL WP4449154 $2.51

WPW10145991 Whirlpool Surface Igniter Backorder WPL WPW10145991 $31.99

WPW10160235 Whirlpool Surface Igniter In Stock WPL WPW10160235 $16.49

ELECTRODE (LF,RF) WPL W10250406 Contact Us For Availability

17

W10270397 Whirlpool Vent Seal Backorder WPL W10270397 $12.11

17

BAFFLE, CONVECTION WPL W10160879 Contact Us For Availability

17

Screw WPL 4449040 Contact Us For Availability

18

W10189101 Whirlpool Cooktop Backorder WPL W10189101 $175.33

18

COOKTOP (LEFT) WPL W10189104 Contact Us For Availability

WP4449751 Whirlpool Range Oven Thermostat Fix In Stock WPL WP4449751 $75.89

WPW10250459 Whirlpool Burner Head In Stock WPL WPW10250459 $88.73

WPW10282515 Whirlpool Burner Head Backorder WPL WPW10282515 $67.26

SUPPORT, HANDLE WPL W10225964 Contact Us For Availability

20

W10061760 Whirlpool Screw In Stock WPL W10061760 $4.85

22

4448520 Whirlpool Oven Bumper In Stock WPL 4448520 $10.76

22

W10852683 Whirlpool Nameplate Backorder WPL W10852683 $78.45

23

W10189177 Whirlpool Seal Switch Backorder WPL W10189177 $6.28

23

W10217130 Whirlpool Screw Backorder WPL W10217130 $5.29

24

W11244176 Whirlpool Knob Assembly Backorder WPL W11244176 $45.09

24

WP9759229 Whirlpool Mounting Bracket Backorder WPL WP9759229 $63.73

26

W10115715 Whirlpool Bracket Mounting Backorder WPL W10115715 $13.21

28

W11177673 Whirlpool Knob Backorder WPL W11177673 $49.61

28

Switch, Pressure WPL W10194453 Contact Us For Availability

29

8286930 Whirlpool Oven Gasket Backorder WPL 8286930 $32.57

29

W11404293 Whirlpool Screw In Stock WPL W11404293 $9.59

31

Valve, Solenoid WPL W10111418 Contact Us For Availability

32

WPW10076760 Whirlpool Sensor Backorder WPL WPW10076760 $77.96

34

W10115953 Whirlpool Nut Backorder WPL W10115953 $6.68

36

W10130759 Whirlpool Mounting Bracket Backorder WPL W10130759 $27.52

36

W10130760 Whirlpool Bracket Mounting Backorder WPL W10130760 $27.52

37

KEYPAD WPL W10116103 Contact Us For Availability

W10115911 Whirlpool Gas Tubing Backorder WPL W10115911 $70.08

W10146020 Whirlpool Wire Harness Backorder WPL W10146020 $59.95

W10231531 Whirlpool Wire Harness Backorder WPL W10231531 $67.77

W10269191 Whirlpool Gas Tubing Backorder WPL W10269191 $94.75

W10280797 Whirlpool Gas Tubing Backorder WPL W10280797 $30.87

W11544575 Whirlpool Anti-Tip Bracket Backorder WPL W11544575 $19.47

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

WPW10049700 Whirlpool Filter Backorder WPL WPW10049700 $120.76

KIT, LP CONVERSION WPL W10221288 Contact Us For Availability

HARNESS, WIRE IGNITION WPL W10145986 Contact Us For Availability
