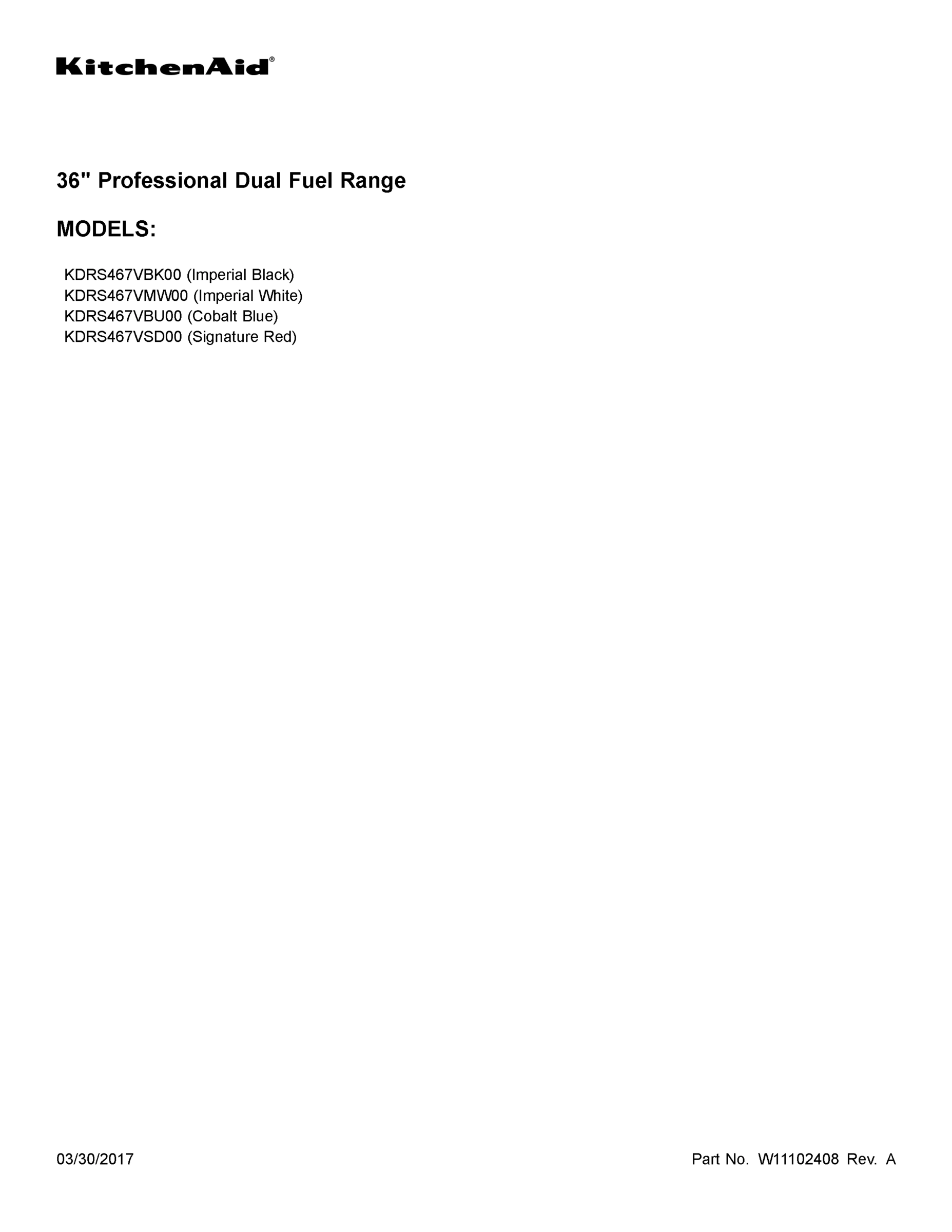

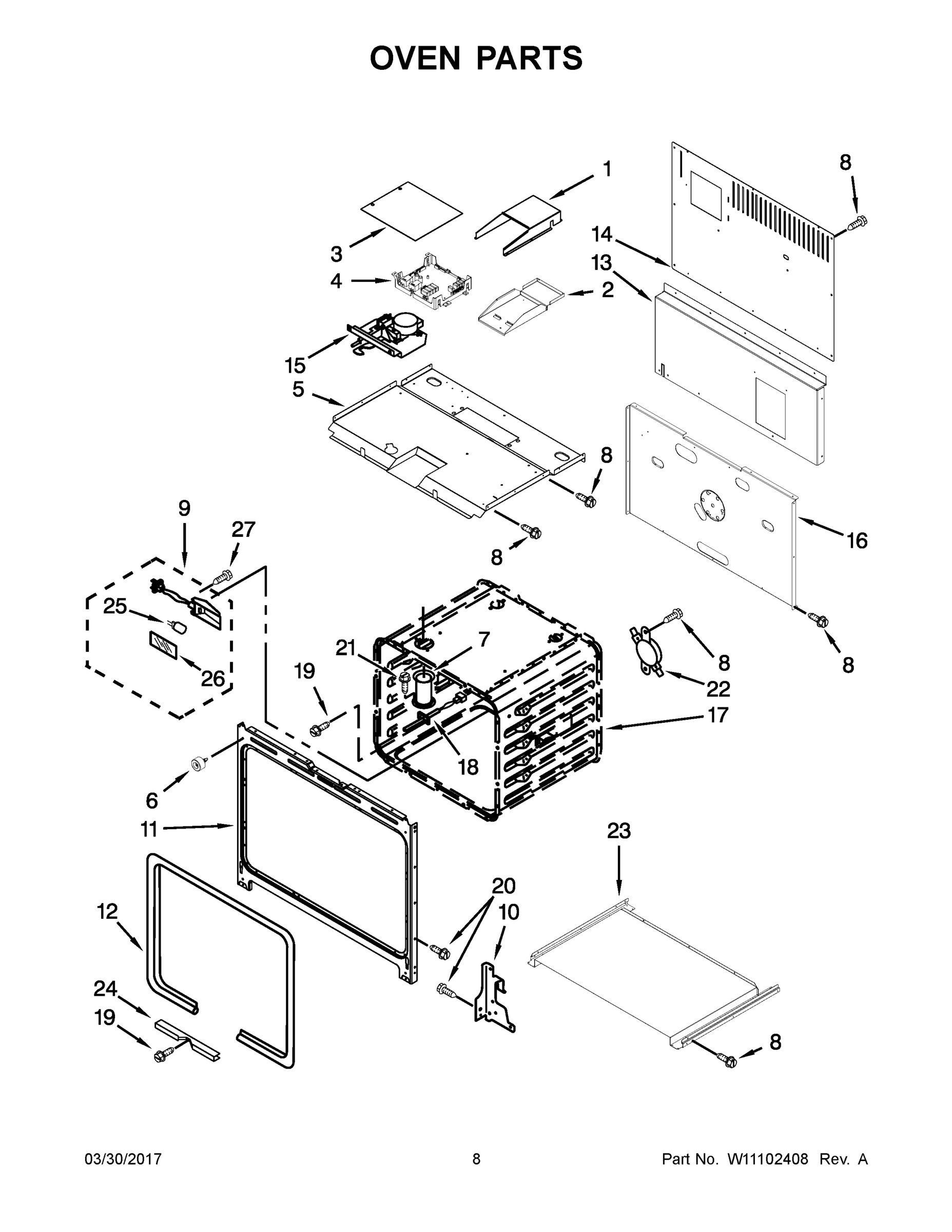

Model Whirlpool KDRS467VSD00 RANGE/OVEN, DUAL FUEL, SLIDE-IN, 36 INCH – Common Parts &amp; Diagrams

1

SCREW WPL 7101P42660 Contact Us For Availability

1B

W11127307 Whirlpool Cover Plate Backorder WPL W11127307 $139.77

1C

KICKPLATE (SIGNATURE RED) WPL W11028631 Contact Us For Availability

2

W10115869 Whirlpool Shaft Backorder WPL W10115869 $43.57

2

W10340424 Whirlpool Orifice Spud Backorder WPL W10340424 $32.41

2

W10877227 Whirlpool Hinge Assembly In Stock WPL W10877227 $44.41

2

VENT, COOLING TOP (30") WPL W10160896 Contact Us For Availability

2A

HINGE, DOOR (RIGHT) WPL W10774096 Contact Us For Availability

2B

W11051480 Whirlpool Orifice Assembly Backorder WPL W11051480 $35.10

3

4453115 Whirlpool Range Adapter Backorder WPL 4453115 $45.57

3

W10115793 Whirlpool Shaft Backorder WPL W10115793 $33.69

3

WPW10226005 Whirlpool Door Glass Backorder WPL WPW10226005 $116.50

3

WPW10245511 Whirlpool Blower In Stock WPL WPW10245511 $199.67

3

WPW10364555 Whirlpool Orifice Holder Backorder WPL WPW10364555 $48.24

3A

4453116 Whirlpool Range Adapter Backorder WPL 4453116 $72.36

4

489504 Whirlpool Range Ring Backorder WPL 489504 $4.85

4

W10246078 Whirlpool Vent Panel Backorder WPL W10246078 $37.99

4

WPW10364556 Whirlpool Orifice Holder Backorder WPL WPW10364556 $43.43

5

W10189177 Whirlpool Seal Switch Backorder WPL W10189177 $6.28

5

WP3400968 Whirlpool Nut Backorder WPL WP3400968 $3.70

5

RACK, OVEN (SLIDING) WPL W10570868 Contact Us For Availability

5

PLATE, COOLING LATCH WPL W10160875 Contact Us For Availability

6

W10105790 Whirlpool Bumper In Stock WPL W10105790 $4.85

6

W10115876 Whirlpool Cover Backorder WPL W10115876 $32.63

6

W10269191 Whirlpool Gas Tubing Backorder WPL W10269191 $94.75

6

W10269196 Whirlpool Duct Backorder WPL W10269196 $114.38

6

W10269217 Whirlpool Trim Top Assembly Backorder WPL W10269217 $122.98

6

W10495854 Whirlpool Transformer Backorder WPL W10495854 $86.64

6

W10822069 Whirlpool Range Rack Backorder WPL W10822069 $66.28

7

VENT-EXHST Backorder WPL W10818234 $66.77

7

WPW10188327 Whirlpool Door Glass Backorder WPL WPW10188327 $102.12

7

WPW10373929 Whirlpool Screw In Stock WPL WPW10373929 $22.78

8

W10115850 Whirlpool Mounting Bracket Backorder WPL W10115850 $27.52

8

W10160844 Whirlpool Bracket Mounting Backorder WPL W10160844 $38.96

8

WPW10292297 Whirlpool Screw Backorder WPL WPW10292297 $2.51

8

WPW10385582 Whirlpool Burner Valve In Stock WPL WPW10385582 $141.33

9

W10160858 Whirlpool Lid Cover Backorder WPL W10160858 $27.52

9

W10249333 Whirlpool Range Mounting Bracket Backorder WPL W10249333 $118.92

9

W10860984 Whirlpool Fan Motor In Stock WPL W10860984 $74.69

9

WPW10307114 Whirlpool Light Backorder WPL WPW10307114 $51.06

SEAL-FOAM Backorder WPL W10270396 $29.48

W10271524 Whirlpool Trim Top Backorder WPL W10271524 $88.85

W10859931 Whirlpool Foot Level Backorder WPL W10859931 $46.17

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $56.11

10A

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $56.11

W10261523 Whirlpool Plate Backorder WPL W10261523 $27.12

W10449141 Whirlpool Regulator Backorder WPL W10449141 $116.41

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

WP9761958 Whirlpool Range Terminal Block In Stock WPL WP9761958 $13.67

12

W10269193 Whirlpool Support Backorder WPL W10269193 $37.55

12

W10467022 Whirlpool Box Terminal Backorder WPL W10467022 $52.58

12

WPW10256034 Whirlpool Burner Cap Backorder WPL WPW10256034 $73.85

12A

WPW10256032 Whirlpool Burner Cap Backorder WPL WPW10256032 $46.35

12B

WPW10364463 Whirlpool Burner Cap Backorder WPL WPW10364463 $28.05

13

W11643125 Whirlpool Element Backorder WPL W11643125 $46.65

13

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $16.58

13

COVER, CHANNEL WPL W10618712 Contact Us For Availability

9759721 Whirlpool Range Insulator Backorder WPL 9759721 $41.32

W10130760 Whirlpool Bracket Mounting Backorder WPL W10130760 $27.52

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

WPW10385583 Whirlpool Burner Valve Backorder WPL WPW10385583 $129.17

14A

W10130759 Whirlpool Mounting Bracket Backorder WPL W10130759 $27.52

15

W10256046 Whirlpool Clip Backorder WPL W10256046 $6.50

15

WPW10250465 Whirlpool Cabinet Panel Backorder WPL WPW10250465 $224.73

15A

W11333303 Whirlpool Side Complete Assembly Backorder WPL W11333303 $188.78

W10269206 Whirlpool Side Compartment Backorder WPL W10269206 $100.36

W10833887 Whirlpool Surface Igniter In Stock WPL W10833887 $10.27

WP3196163 Whirlpool Screw In Stock WPL WP3196163 $2.51

WPW10371235 Whirlpool Burner Valve Backorder WPL WPW10371235 $139.07

16A

W10269205 Whirlpool Side Compartment Backorder WPL W10269205 $100.55

17

W10270397 Whirlpool Vent Seal Backorder WPL W10270397 $12.11

17

WPW10298119-includeCORE Whirlpool WPW10298119 Backorder WPL WPW10298119-includeCORE $298.87

17

BRACKET, BURNER WPL W10560553 Contact Us For Availability

18

W10352969 Whirlpool Cooktop Assembly Backorder WPL W10352969 $135.65

18

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

18A

W10352966 Whirlpool Cooktop Backorder WPL W10352966 $135.39

18B

W10352967 Whirlpool Cooktop Backorder WPL W10352967 $135.60

19

WP4449154 Whirlpool Screw In Stock WPL WP4449154 $2.51

19

WPW10475147 Whirlpool Spark Module In Stock WPL WPW10475147 $145.85

19

SUPPORT, HANDLE WPL W10225964 Contact Us For Availability

19A

WPW10256027 Whirlpool Burner Head Backorder WPL WPW10256027 $47.74

19B

WPW10282515 Whirlpool Burner Head Backorder WPL WPW10282515 $67.26

20

W10061760 Whirlpool Screw In Stock WPL W10061760 $4.85

20

WPW10116104 Whirlpool Membrane Switch Backorder WPL WPW10116104 $184.04

20

SCREW WPL 4449040 Contact Us For Availability

21

W10250476 Whirlpool Mounting Bracket Backorder WPL W10250476 $67.78

22

4448520 Whirlpool Oven Bumper In Stock WPL 4448520 $10.76

22

W10839793 Whirlpool Refrigerator Nameplate In Stock WPL W10839793 $22.77

22

WP4449751 Whirlpool Range Oven Thermostat Fix In Stock WPL WP4449751 $75.89

23

W10217130 Whirlpool Screw Backorder WPL W10217130 $5.29

23

WPW10115888 Whirlpool Console Backorder WPL WPW10115888 $291.98

24

W11244176 Whirlpool Knob Assembly Backorder WPL W11244176 $45.09

24

WP9759229 Whirlpool Mounting Bracket Backorder WPL WP9759229 $63.73

25

W11601369 Whirlpool Spark Module In Stock WPL W11601369 $40.00

25

WPW10169757 Whirlpool Light Bulb In Stock WPL WPW10169757 $29.12

26

W10115715 Whirlpool Bracket Mounting Backorder WPL W10115715 $13.21

26

W10169756 Whirlpool Light Lens Backorder WPL W10169756 $27.80

26

WP3177991 Whirlpool Screw Backorder WPL WP3177991 $2.51

27

4449748 Whirlpool Oven Screw Backorder WPL 4449748 $7.01

28

W11177673 Whirlpool Knob Backorder WPL W11177673 $49.61

31

W10282659 Whirlpool Orifice Holder Backorder WPL W10282659 $15.70

32

8286930 Whirlpool Oven Gasket Backorder WPL 8286930 $32.57

33

8286863 Whirlpool Oven Clip In Stock WPL 8286863 $26.21

34

W10854967 Whirlpool Surface Igniter In Stock WPL W10854967 $16.21

4378577 Whirlpool Oven Bake Stone Backorder WPL 4378577 $36.58

W10280797 Whirlpool Gas Tubing Backorder WPL W10280797 $30.87

W10338986 Whirlpool Wire Harness Backorder WPL W10338986 $188.81

W10353141 Whirlpool Gas Tubing Assembly Backorder WPL W10353141 $62.12

W10353154 Whirlpool Gas Tubing Backorder WPL W10353154 $61.52

W10399614 Whirlpool Wire Harness Backorder WPL W10399614 $68.00

W10494088 Whirlpool Wire Harness Backorder WPL W10494088 $43.59

W10726866 Whirlpool Wire Harness Backorder WPL W10726866 $30.56

Backorder WPL W11321066 $53.18

W11544575 Whirlpool Anti-Tip Bracket Backorder WPL W11544575 $19.47

W11675299 Whirlpool Tie Wire Backorder WPL W11675299 $7.72

W11676349 Whirlpool Screw Backorder WPL W11676349 $8.11

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

ACCESSORIES, CLEANER, COOKTOP WPL 31464 Contact Us For Availability

ACCESSORIES, APPLIANCE CLEANER WPL 31682 Contact Us For Availability

WPL W10507834 WPL W10507834 Contact Us For Availability
