Model Whirlpool KDRS467VBK00 RANGE/OVEN, DUAL FUEL, SLIDE-IN, 36 INCH – Common Parts & Diagrams

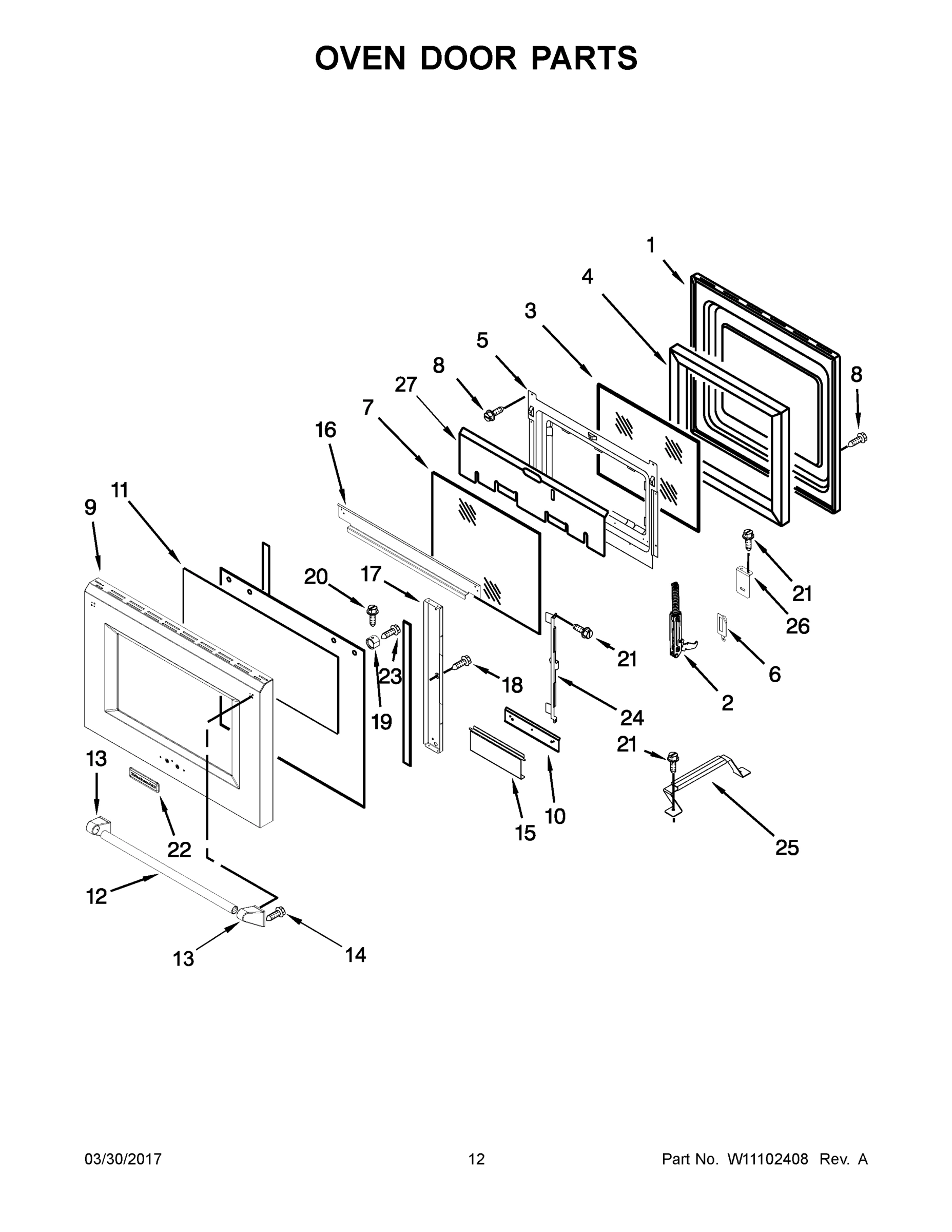

07 - OVEN DOOR PARTS

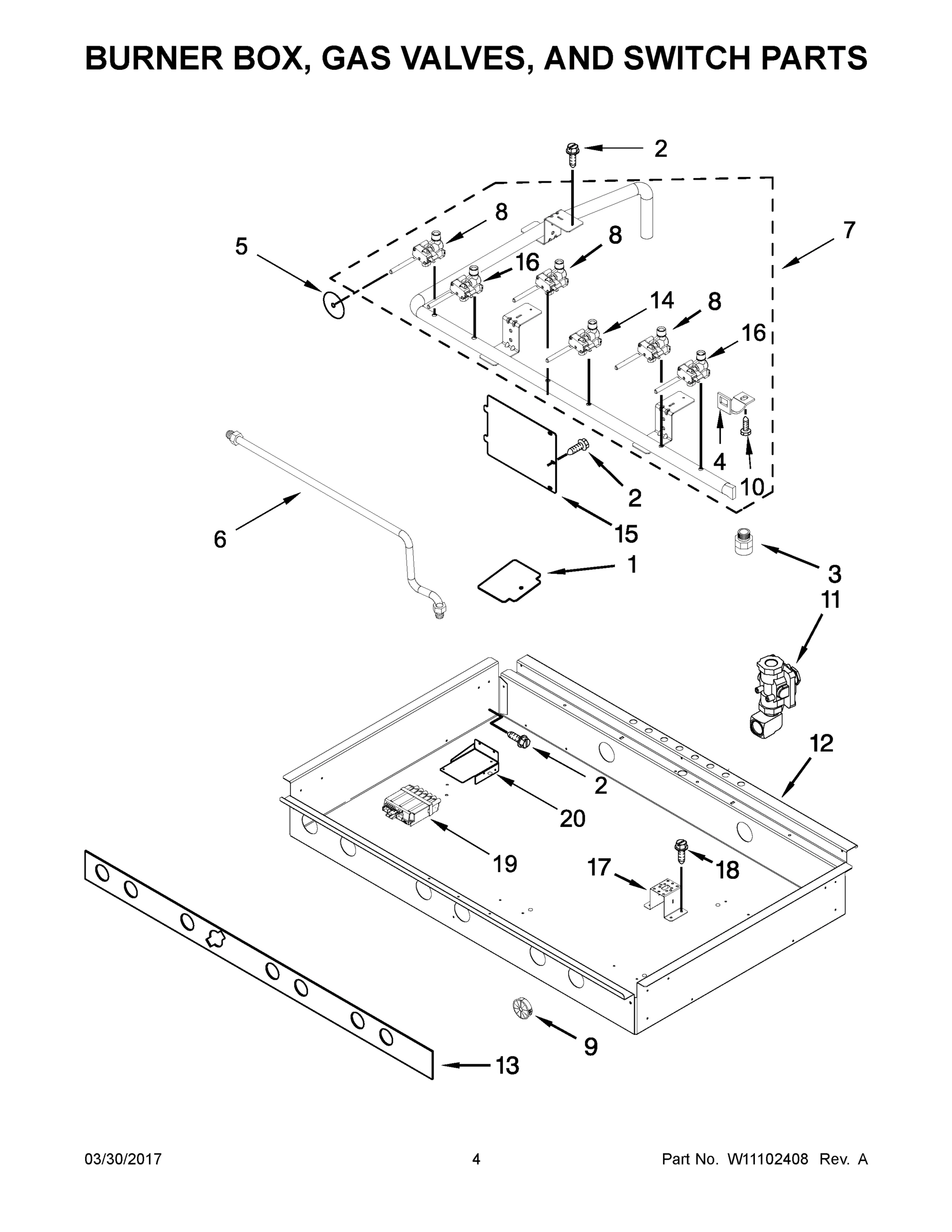

03 - BURNER BOX, GAS VALVES, AND SWITCH PARTS
05 - OVEN PARTS
02 - COOKTOP, BURNER AND GRATE PARTS
04 - CHASSIS PARTS
06 - TOP VENTING PARTS
08 - INTERNAL OVEN PARTS
09 - OPTIONAL PARTS
01 - COVER SHEET
Common parts from model Whirlpool KDRS467VBK00 RANGE/OVEN, DUAL FUEL, SLIDE-IN, 36 INCH
1C
KICKPLATE (SIGNATURE RED) WPL W11028631 Contact Us For Availability
2
SHAFT, LONG WPL W10115869 Contact Us For Availability
2
ORIFICE (17K) (LEFT FRONT & RIGHT FRONT, HIGH WPL W10340424 Contact Us For Availability
2
VENT, COOLING TOP (30") WPL W10160896 Contact Us For Availability
2A
HINGE, DOOR (RIGHT) WPL W10774096 Contact Us For Availability
3
SHAFT, SHORT WPL W10115793 Contact Us For Availability
3
ADAPTER, FEMALE WPL 4453115 Contact Us For Availability
3
SHIELD, BROIL ELEMENT WPL W10160857 Contact Us For Availability
3A
ADAPTER, MALE WPL 4453116 Contact Us For Availability
4
E-RING WPL 489504 Contact Us For Availability
4
VENT, COOLING BOTTOM (30") WPL W10246078 Contact Us For Availability
5
RACK, OVEN (SLIDING) WPL W10570868 Contact Us For Availability
5
SEAL, SWITCH COVER WPL W10189177 Contact Us For Availability
5
PLATE, COOLING LATCH WPL W10160875 Contact Us For Availability
6
TRANSFORMER, CONTROL WPL W10495854 Contact Us For Availability
6
ISLAND, TRIM WPL W10269217 Contact Us For Availability
6
COVER, HINGE (LEFT) WPL W10115876 Contact Us For Availability
6
RACK, OVEN WPL W10822069 Contact Us For Availability
6
TUBE, PRESSURE REGULATOR WPL W10269191 Contact Us For Availability
6
BUMPER & SCREW WPL W10105790 Contact Us For Availability
6
DUCT, BOTTOM WPL W10269196 Contact Us For Availability
7
SLOPE, EXHAUST VENT (30") WPL W10818234 Contact Us For Availability
8
BRACKET, PRESSURE REGULATOR WPL W10115850 Contact Us For Availability
8
BRACKET, BLOWER (18") WPL W10160844 Contact Us For Availability
9
BASE, LEVELING LEG WPL W10249333 Contact Us For Availability
9
COVER, LATCH WPL W10160858 Contact Us For Availability
10
T-STRIP WPL W10271524 Contact Us For Availability
10
SEAL, CHIMNEY WPL W10270396 Contact Us For Availability
11
REGULATOR, PRESSURE WPL W10449141 Contact Us For Availability
11
PLATE, FAN WPL W10261523 Contact Us For Availability
12
BOX, TERMINAL WPL W10467022 Contact Us For Availability
12
SUPPORT, CHANNEL WPL W10269193 Contact Us For Availability
13
COVER, CHANNEL WPL W10618712 Contact Us For Availability
14
BRACKET, MOVING CONSOLE (LEFT) WPL W10130760 Contact Us For Availability
14
INSULATOR, TERMINAL BOX WPL 9759721 Contact Us For Availability
14
TRAY, HIDDEN BAKE WPL W10160872 Contact Us For Availability
14A
BRACKET, MOVING CONSOLE (RIGHT) WPL W10130759 Contact Us For Availability
15
CLIP, SPRING (ELECTRODE) WPL W10256046 Contact Us For Availability
16
CHASSIS, SIDE (LEFT) WPL W10269206 Contact Us For Availability
16A
CHASSIS, SIDE (RIGHT) WPL W10269205 Contact Us For Availability
17
BRACKET, BURNER WPL W10560553 Contact Us For Availability
17
SEAL, VENT SLOPE (30") WPL W10270397 Contact Us For Availability
18
COOKTOP (BLACK (LEFT)) WPL W10352969 Contact Us For Availability
18
SCREW WPL 7101P42660 Contact Us For Availability
18A
COOKTOP (BLACK (CENTER)) WPL W10352966 Contact Us For Availability
18B
COOKTOP (BLACK (RIGHT)) WPL W10352967 Contact Us For Availability
19
SUPPORT, HANDLE WPL W10225964 Contact Us For Availability
20
SCREW WPL W10061760 Contact Us For Availability
20
SCREW WPL 4449040 Contact Us For Availability
21
WPL W10250476 WPL W10250476 Contact Us For Availability
22
WPL 4448520 WPL 4448520 Contact Us For Availability
23
SCREW WPL W10217130 Contact Us For Availability
26
LENS, LIGHT WPL W10169756 Contact Us For Availability
26
BRACKET, DOOR TOP WPL W10115715 Contact Us For Availability
27
SCREW WPL 4449748 Contact Us For Availability
31
WPL W10282659 WPL W10282659 Contact Us For Availability
32
WPL 8286930 WPL 8286930 Contact Us For Availability
33
WPL 8286863 WPL 8286863 Contact Us For Availability
NI
ACCESSORIES, APPLIANCE CLEANER WPL 31682 Contact Us For Availability
NI
ACCESSORIES, STONE, BRICK PIZZA WPL 4378577 Contact Us For Availability
NI
WPL W10726866 WPL W10726866 Contact Us For Availability
NI
WPL W10494088 WPL W10494088 Contact Us For Availability
NI
WPL W10507834 WPL W10507834 Contact Us For Availability
NI
WPL W10338986 WPL W10338986 Contact Us For Availability
NI
TUBE, (LEFT REAR) WPL W10280797 Contact Us For Availability
NI
WPL W10399614 WPL W10399614 Contact Us For Availability
NI
TUBE (RIGHT FRONT) WPL W10353141 Contact Us For Availability
NI
TUBE (LEFT FRONT) WPL W10353154 Contact Us For Availability
NI
WPL 9757778 WPL 9757778 Contact Us For Availability
NI
WPL NP WPL NP Contact Us For Availability
NI
WPL W10177363 WPL W10177363 Contact Us For Availability
NI
WPL W10283996 WPL W10283996 Contact Us For Availability
NI
WPL W10766100 WPL W10766100 Contact Us For Availability
NI
WPL W10780278 WPL W10780278 Contact Us For Availability
NI
ACCESSORIES, STAINLESS STEEL CLEANER & POLISH WPL 4396920 Contact Us For Availability
NI
ADHESIVE, SEAL, ACCESS PANEL WPL 4453191 Contact Us For Availability
NI
ACCESSORIES, WIPES, STAINLESS STEEL WPL 8212510 Contact Us For Availability
× ![]()
