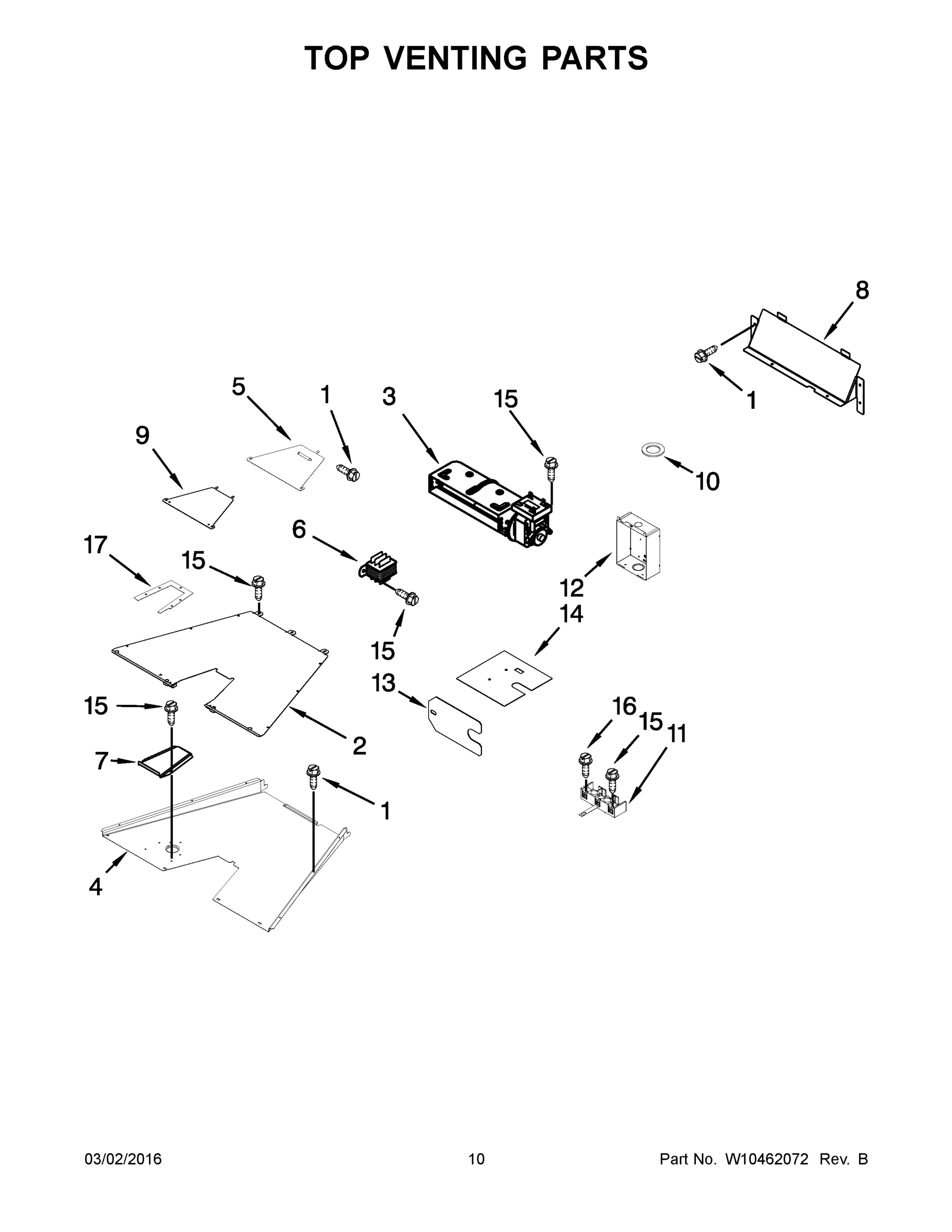

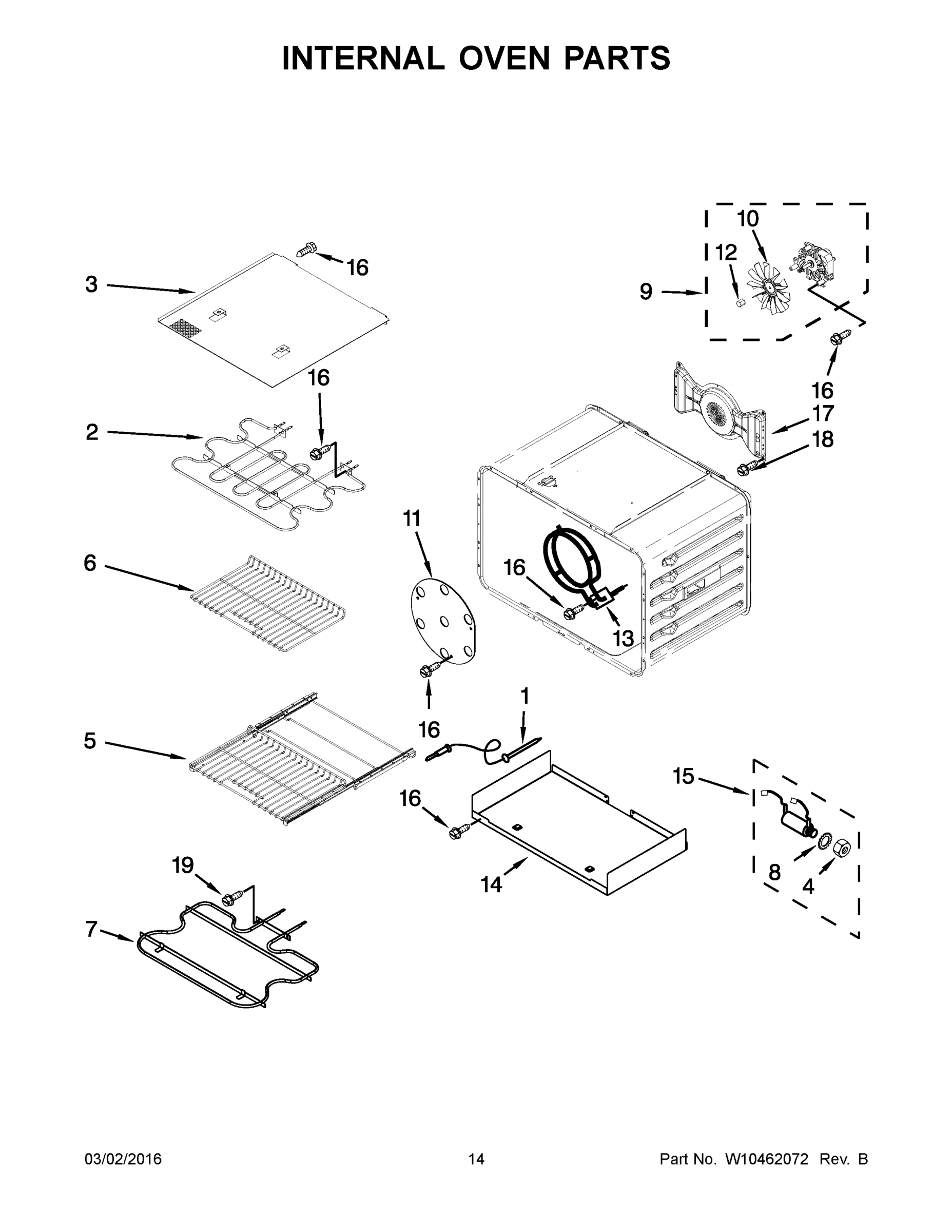

Model Whirlpool KDRS463VSS03 RANGE/OVEN, GRIDDLE – Common Parts &amp; Diagrams

1

WPW10225970 Whirlpool Oven Vent Backorder WPL WPW10225970 $99.51

2

W10115869 Whirlpool Shaft Backorder WPL W10115869 $41.50

2

W10138296 Whirlpool Element Grille Backorder WPL W10138296 $141.12

2

W10340424 Whirlpool Orifice Spud Backorder WPL W10340424 $32.41

2

W10877227 Whirlpool Hinge Assembly Backorder WPL W10877227 $42.29

2A

HINGE, DOOR (RIGHT) WPL W10774096 Contact Us For Availability

2B

W11051480 Whirlpool Orifice Assembly Backorder WPL W11051480 $33.43

3

W10115793 Whirlpool Shaft Backorder WPL W10115793 $32.08

3

W10145620 Whirlpool Bottom Model Backorder WPL W10145620 $40.53

3

WPW10226005 Whirlpool Door Glass Backorder WPL WPW10226005 $110.95

3

WPW10245511 Whirlpool Blower In Stock WPL WPW10245511 $199.67

3

WPW10364555 Whirlpool Orifice Holder Backorder WPL WPW10364555 $45.93

4

489504 Whirlpool Oven Ring Backorder WPL 489504 $4.85

4

WPW10364556 Whirlpool Orifice Holder Backorder WPL WPW10364556 $41.36

5

WPW10115928 Whirlpool Burner Grate Backorder WPL WPW10115928 $127.61

5

RACK, OVEN (SLIDING) WPL W10570868 Contact Us For Availability

6

W10105790 Whirlpool Bumper Backorder WPL W10105790 $4.85

6

W10115876 Whirlpool Cover Backorder WPL W10115876 $31.07

6

W10269217 Whirlpool Trim Top Assembly Backorder WPL W10269217 $117.12

6

W10495854 Whirlpool Transformer Backorder WPL W10495854 $82.52

7

W10246075 Whirlpool Exhaust Vent Backorder WPL W10246075 $26.21

7

W10402610 Whirlpool Manifold Backorder WPL W10402610 $188.64

7

WP3177991 Whirlpool Screw Backorder WPL WP3177991 $2.51

7

WPW10188327 Whirlpool Door Glass Backorder WPL WPW10188327 $97.25

8

WPW10292297 Whirlpool Screw Backorder WPL WPW10292297 $2.51

8

WPW10385582 Whirlpool Burner Valve Backorder WPL WPW10385582 $141.33

9

W10249333 Whirlpool Dishwasher Mounting Brack Backorder WPL W10249333 $113.26

9

W10261510 Whirlpool Knob Bezel Backorder WPL W10261510 $26.59

9

W10860984 Whirlpool Fan Motor In Stock WPL W10860984 $74.69

9

WPW10307114 Whirlpool Light Backorder WPL WPW10307114 $48.62

9

PANEL, DOOR WPL W10225960 Contact Us For Availability

10

W10250390 Whirlpool Knob Backorder WPL W10250390 $14.44

10

W10859931 Whirlpool Foot Level Backorder WPL W10859931 $43.97

10

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $54.02

10A

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $54.02

11

W10261523 Whirlpool Plate Backorder WPL W10261523 $25.82

11

W10293267 Whirlpool Regulator Assembly Backorder WPL W10293267 $128.21

11

WP9761958 Whirlpool Range Terminal Block In Stock WPL WP9761958 $13.67

12

W10115718 Whirlpool Door Handle Backorder WPL W10115718 $132.31

12

W10467022 Whirlpool Box Terminal Backorder WPL W10467022 $50.07

W10276497 Whirlpool Drip Tray Backorder WPL W10276497 $189.27

W11643125 Whirlpool Element Backorder WPL W11643125 $44.43

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $15.79

WPW10256034 Whirlpool Burner Cap Backorder WPL WPW10256034 $70.34

HANDLE, END CAP (LEFT) WPL W10226026 Contact Us For Availability

13A

W10226025 Whirlpool Handle Endcap Backorder WPL W10226025 $65.38

13A

WPW10256032 Whirlpool Burner Cap In Stock WPL WPW10256032 $44.14

13B

WPW10364463 Whirlpool Burner Cap Backorder WPL WPW10364463 $26.72

14

9759721 Whirlpool Oven Insulator Backorder WPL 9759721 $39.35

14

W10282659 Whirlpool Orifice Holder Backorder WPL W10282659 $15.70

14

WPW10385583 Whirlpool Burner Valve Backorder WPL WPW10385583 $129.17

15

W10256046 Whirlpool Clip Backorder WPL W10256046 $6.50

16

W10560553 Whirlpool Mounting Bracket Backorder WPL W10560553 $12.39

16

W10833887 Whirlpool Surface Igniter In Stock WPL W10833887 $9.77

16

WP3196163 Whirlpool Screw In Stock WPL WP3196163 $2.51

17

W10146042 Whirlpool Surface Igniter Backorder WPL W10146042 $13.85

17

W10270397 Whirlpool Vent Seal Backorder WPL W10270397 $12.11

18

W10352969 Whirlpool Cooktop Assembly Backorder WPL W10352969 $135.65

18

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

18

WPW10371235 Whirlpool Burner Valve Backorder WPL WPW10371235 $139.07

18A

W10352968 Whirlpool Cooktop Backorder WPL W10352968 $131.54

19

W11106799 Whirlpool Range Burner Base Surface Backorder WPL W11106799 $48.17

19

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

19

SUPPORT, HANDLE WPL W10225964 Contact Us For Availability

19A

WPW10256027 Whirlpool Burner Head Backorder WPL WPW10256027 $45.48

19B

WPW10282515 Whirlpool Burner Head Backorder WPL WPW10282515 $64.06

20

W10061760 Whirlpool Screw In Stock WPL W10061760 $4.85

20

W10189177 Whirlpool Seal Switch Backorder WPL W10189177 $6.28

20

SCREW WPL 4449040 Contact Us For Availability

21

WPW10169757 Whirlpool Light Bulb In Stock WPL WPW10169757 $27.72

22

W10852683 Whirlpool Nameplate Backorder WPL W10852683 $74.72

22

WP4449751 Whirlpool Range Oven Thermostat Fix In Stock WPL WP4449751 $75.89

23

4453116 Whirlpool Oven Adapter Backorder WPL 4453116 $68.92

23

W10217130 Whirlpool Screw Backorder WPL W10217130 $5.29

24

W10269191 Whirlpool Gas Tubing Backorder WPL W10269191 $90.25

24

W11244176 Whirlpool Knob Assembly Backorder WPL W11244176 $42.95

24

WP9759229 Whirlpool Mounting Bracket Backorder WPL WP9759229 $60.69

25

4453115 Whirlpool Oven Adapter Backorder WPL 4453115 $43.39

25

W10169756 Whirlpool Light Lens Backorder WPL W10169756 $26.48

25

WPW10475147 Whirlpool Spark Module In Stock WPL WPW10475147 $145.85

26

4449748 Whirlpool Oven Screw Backorder WPL 4449748 $7.01

26

8286863 Whirlpool Oven Clip Backorder WPL 8286863 $26.21

26

W10115715 Whirlpool Bracket Mounting Backorder WPL W10115715 $13.21

27

4448520 Whirlpool Oven Bumper Backorder WPL 4448520 $10.76

28

W11177673 Whirlpool Knob Backorder WPL W11177673 $47.25

29

WPW10373929 Whirlpool Screw In Stock WPL WPW10373929 $21.70

30

W10116151 Whirlpool Indicator Light Backorder WPL W10116151 $26.21

32

W10291193 Whirlpool Trim Top Backorder WPL W10291193 $57.11

34

W10250476 Whirlpool Mounting Bracket Backorder WPL W10250476 $64.56

35

WPW10116113 Whirlpool Infinite Switch Backorder WPL WPW10116113 $149.00

37

8286930 Whirlpool Oven Gasket Backorder WPL 8286930 $32.57

38

W10625221 Whirlpool Module Backorder WPL W10625221 $757.35

39

W10130760 Whirlpool Bracket Mounting Backorder WPL W10130760 $26.21

39A

W10130759 Whirlpool Mounting Bracket Backorder WPL W10130759 $26.21

41

W10319835 Whirlpool Sensor Backorder WPL W10319835 $81.34

43

WPW10116104 Whirlpool Membrane Switch Backorder WPL WPW10116104 $184.04

4378577 Whirlpool Oven Bake Stone Backorder WPL 4378577 $36.58

4396096RB Whirlpool Griddle Backorder WPL 4396096RB $149.59

W10115776 Whirlpool Backsplash Backorder WPL W10115776 $237.60

W10116182 Whirlpool Wire Harness Backorder WPL W10116182 $56.98

W10123240 Whirlpool Broil Pan and Roasting Ra Backorder WPL W10123240 $72.40

W10160195 Whirlpool Cover Backorder WPL W10160195 $160.20

W10216179 Whirlpool Wok Ring In Stock WPL W10216179 $22.05

W10225949 Whirlpool Range Hood Backsplash, St Backorder WPL W10225949 $650.09

W10280797 Whirlpool Gas Tubing Backorder WPL W10280797 $29.41

WPL W10327536 No Longer Available

W10338986 Whirlpool Wire Harness Backorder WPL W10338986 $188.81

W10353141 Whirlpool Gas Tubing Assembly Backorder WPL W10353141 $59.17

W10353154 Whirlpool Gas Tubing Backorder WPL W10353154 $58.59

W10355051 Whirlpool Cooktop Cleaner Affresh ( In Stock WPL W10355051 $5.93

W10494088 Whirlpool Wire Harness Backorder WPL W10494088 $41.52

W10726866 Whirlpool Wire Harness Backorder WPL W10726866 $29.10

W11544575 Whirlpool Anti-Tip Bracket Backorder WPL W11544575 $19.47

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP3400968 Whirlpool Nut Backorder WPL WP3400968 $3.70

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

ACCESSORIES, APPLIANCE CLEANER WPL 31682 Contact Us For Availability

ACCESSORIES, KIT, STAINLESS KNOBS WPL W10231703 Contact Us For Availability
