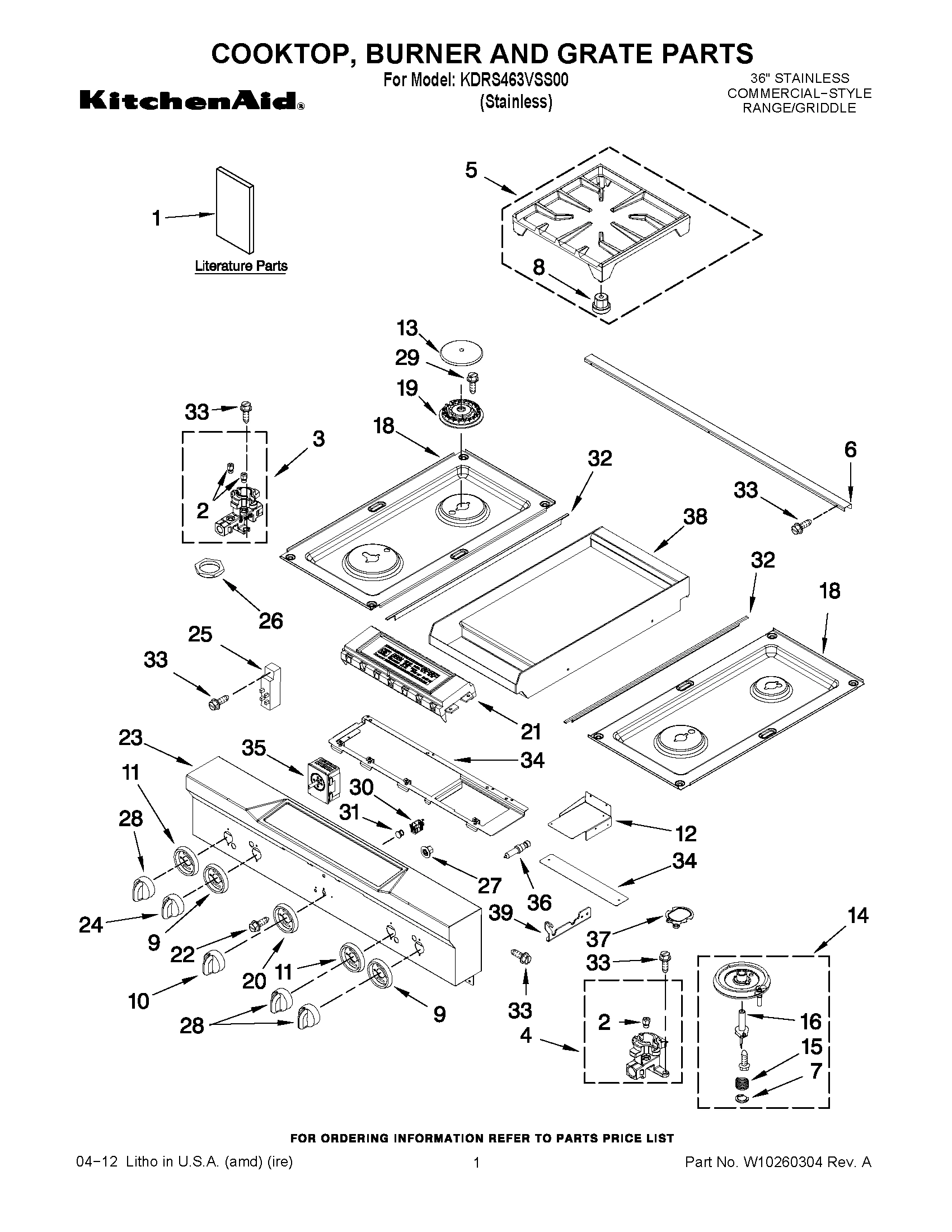

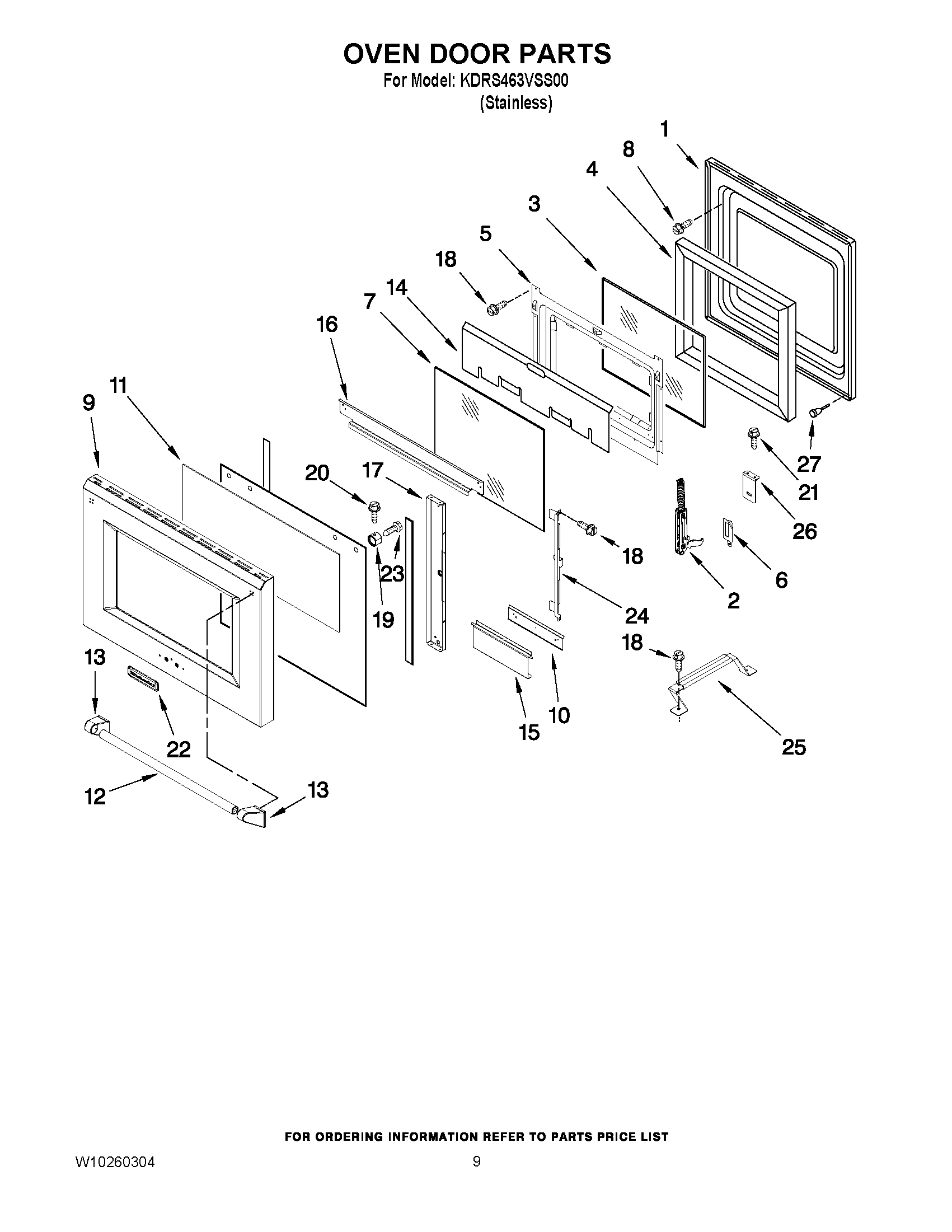

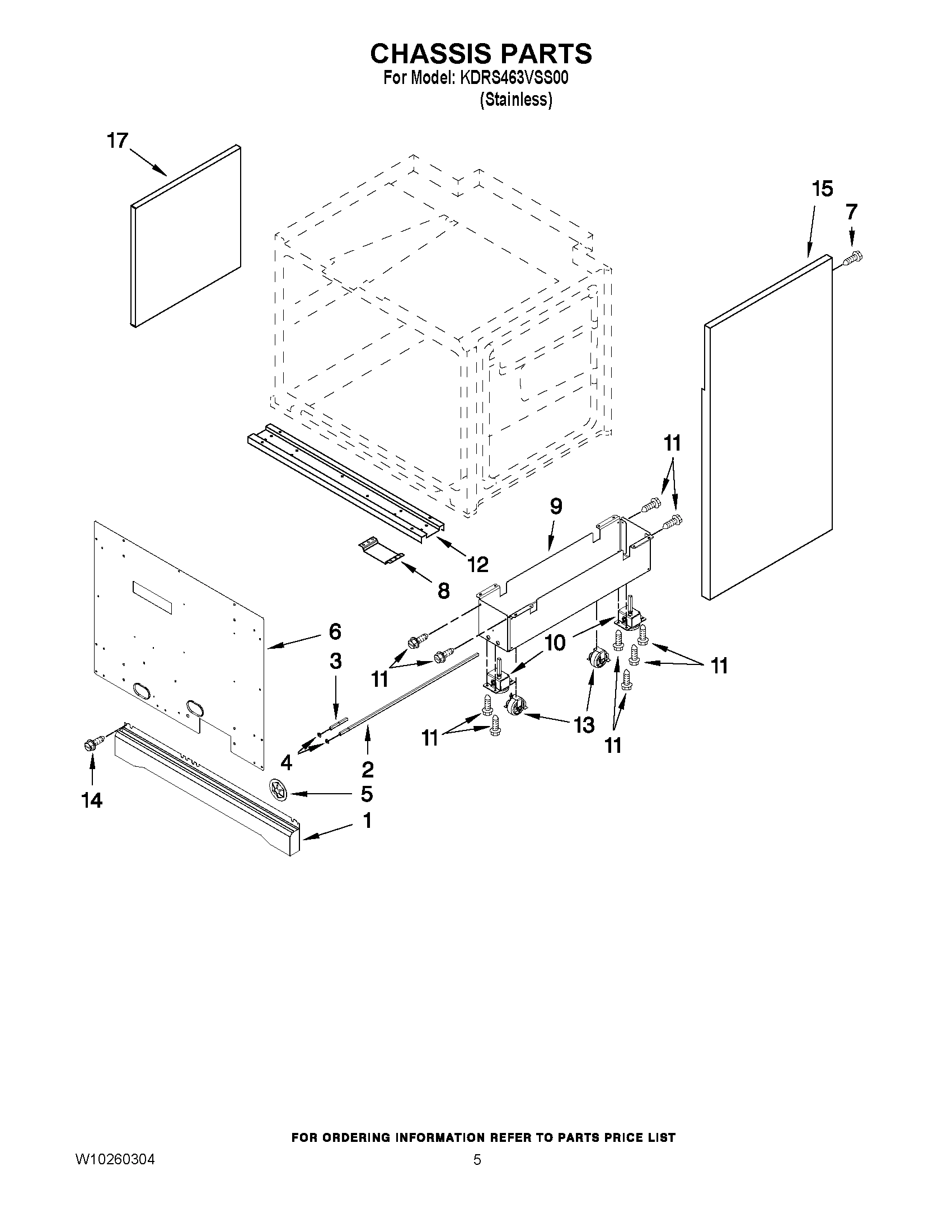

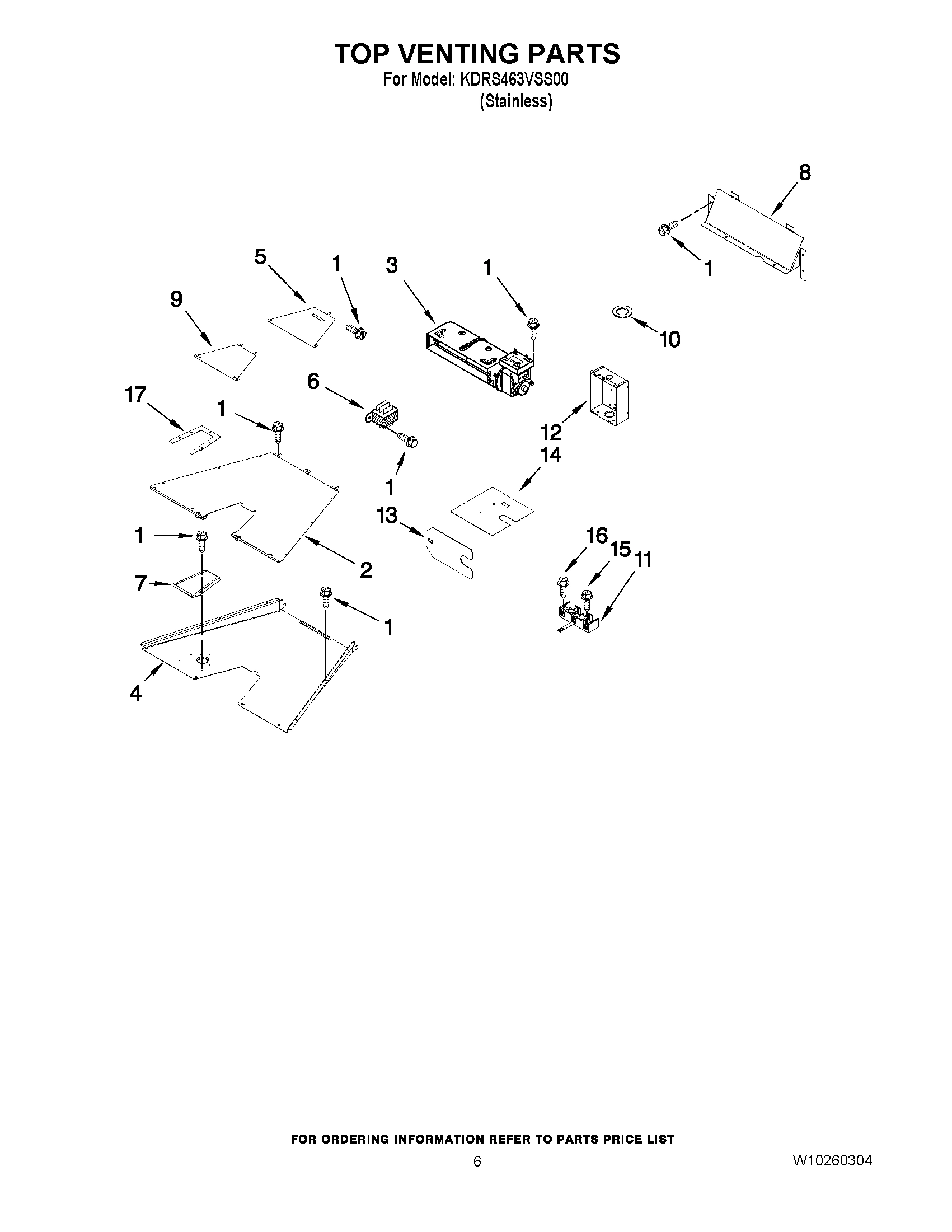

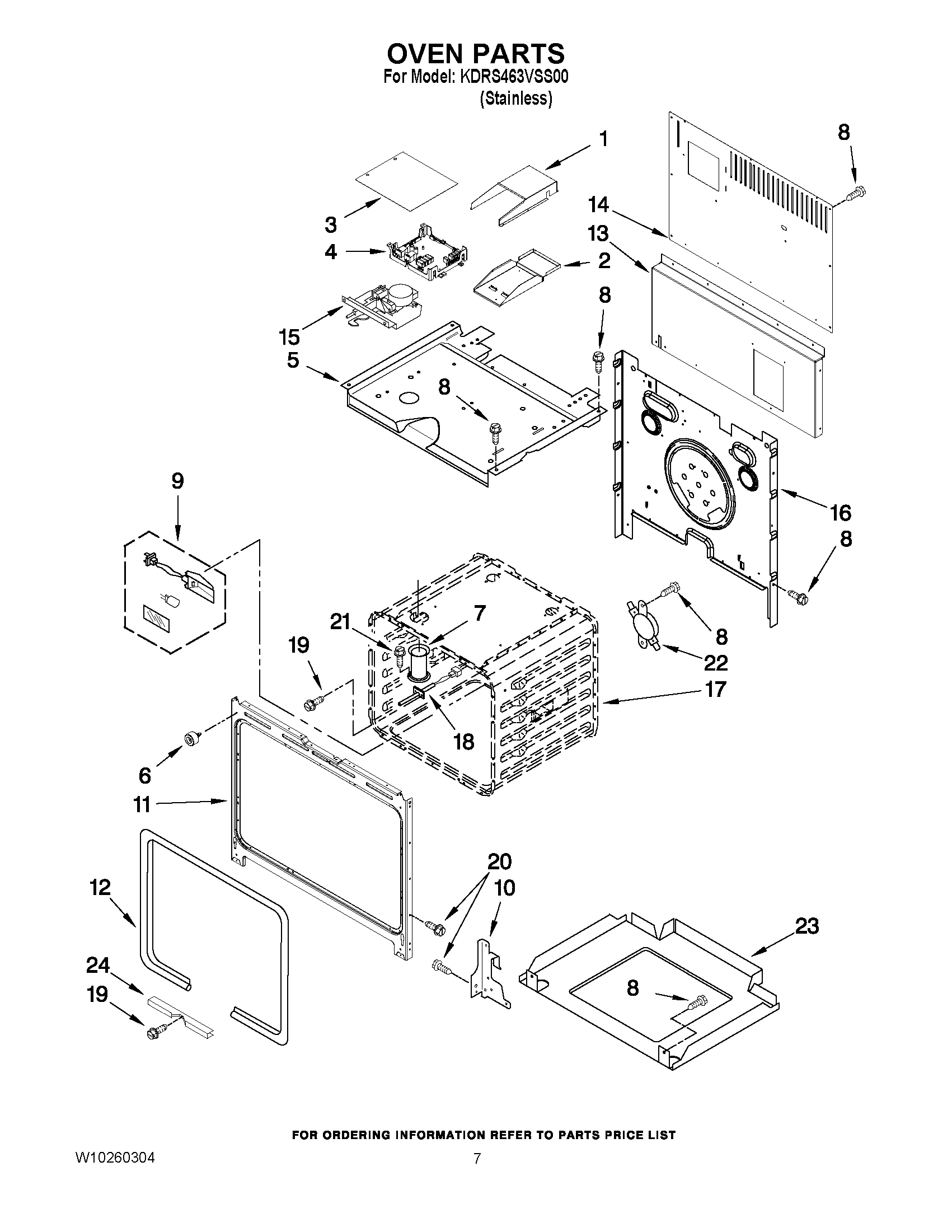

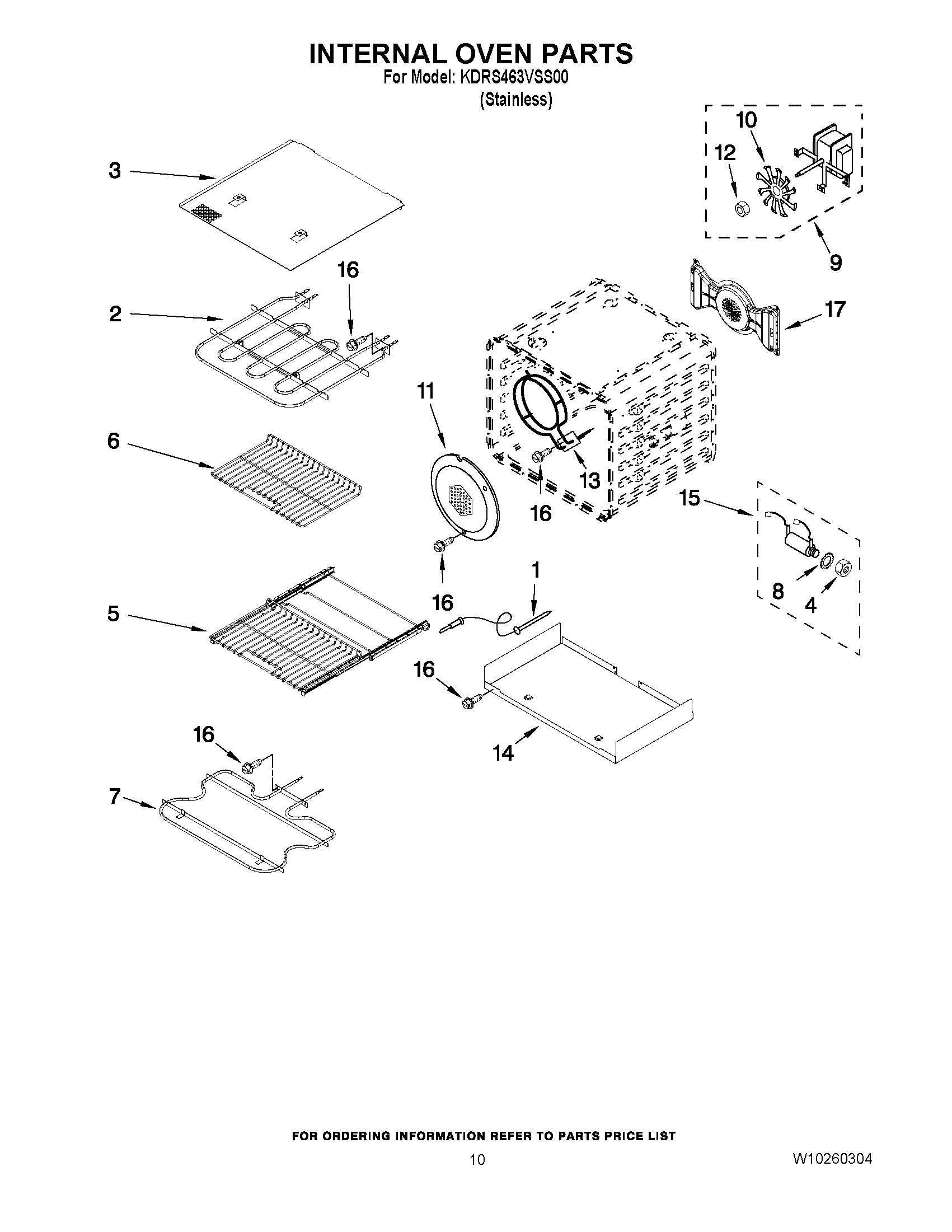

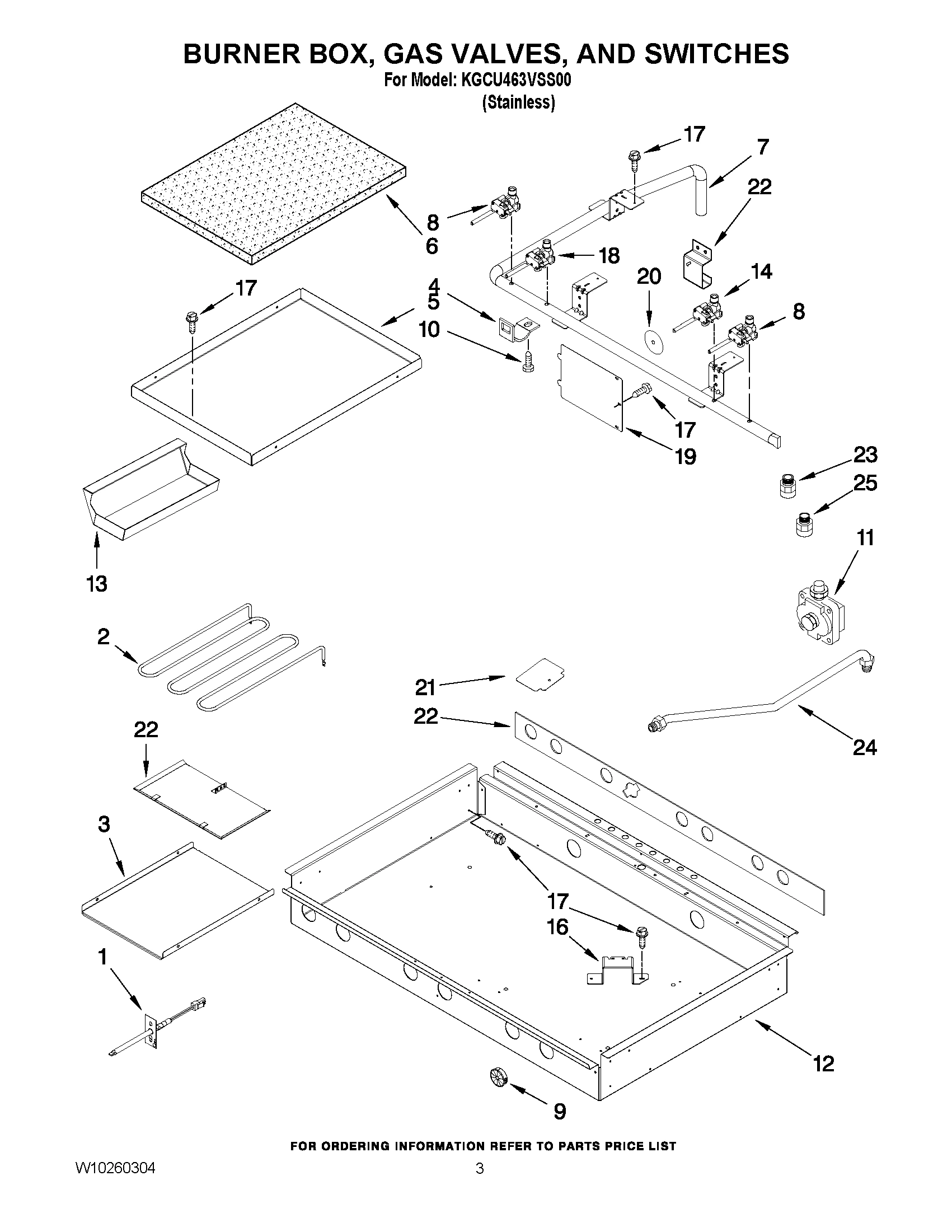

Model Whirlpool KDRS463VSS00 36`` STAINLESS COMMERCIAL-STYLE RANGE/GRIDDLE – Common Parts &amp; Diagrams

1

WPW10225970 Whirlpool Range Vent Backorder WPL WPW10225970 $99.51

1

DOOR LINER WPL W10188330 Contact Us For Availability

2

W10115869 Whirlpool Shaft Backorder WPL W10115869 $43.57

2

W10138296 Whirlpool Element Grille Backorder WPL W10138296 $141.12

2

W10877227 Whirlpool Hinge Assembly In Stock WPL W10877227 $44.41

2

ORIFICE (LF - LOW) WPL W10160185 Contact Us For Availability

2

ORIFICE (LF - HIGH) WPL W10160179 Contact Us For Availability

2

ORIFICE (LR & RF) WPL W10160232 Contact Us For Availability

2

HINGE, DOOR (R.SIDE) WPL W10269203 Contact Us For Availability

3

W10115793 Whirlpool Shaft Backorder WPL W10115793 $33.69

3

W10145620 Whirlpool Bottom Model Backorder WPL W10145620 $42.57

3

WPW10160187 Whirlpool Orifice Holder Backorder WPL WPW10160187 $46.99

3

WPW10226005 Whirlpool Door Glass Backorder WPL WPW10226005 $116.50

3

WPW10245511 Whirlpool Blower In Stock WPL WPW10245511 $201.89

4

489504 Whirlpool Range Ring Backorder WPL 489504 $4.85

4

W10189107 Whirlpool Mounting Bracket Backorder WPL W10189107 $30.25

4

W10282659 Whirlpool Orifice Holder Backorder WPL W10282659 $15.70

4

W11706557 Whirlpool Insulation Backorder WPL W11706557 $27.54

4

ORIFICE HOLDER (LR & RF) WPL W10160234 Contact Us For Availability

5

W10859077 Whirlpool Retainer Assembly Backorder WPL W10859077 $92.47

5

WP3400968 Whirlpool Nut Backorder WPL WP3400968 $3.70

5

WPW10115928 Whirlpool Burner Grate Backorder WPL WPW10115928 $133.98

6

W10105790 Whirlpool Bumper In Stock WPL W10105790 $4.85

6

W10115876 Whirlpool Cover Backorder WPL W10115876 $32.63

6

W10115877 Whirlpool Cover Backorder WPL W10115877 $32.72

6

W10269217 Whirlpool Trim Top Assembly Backorder WPL W10269217 $122.98

6

W10822069 Whirlpool Range Rack Backorder WPL W10822069 $66.28

6

WPW10111628 Whirlpool Transformer In Stock WPL WPW10111628 $112.09

7

W10246075 Whirlpool Exhaust Vent Backorder WPL W10246075 $27.52

7

WPW10188327 Whirlpool Door Glass Backorder WPL WPW10188327 $102.12

7

CLIP, ELECTRODE WPL W10160825 Contact Us For Availability

9

W10249333 Whirlpool Range Mounting Bracket Backorder WPL W10249333 $118.92

9

W10261510 Whirlpool Knob Bezel Backorder WPL W10261510 $27.93

9

PANEL, DOOR WPL W10225960 Contact Us For Availability

W10226024 Whirlpool Heat Shield Backorder WPL W10226024 $39.36

W10250390 Whirlpool Knob Backorder WPL W10250390 $14.44

W10859931 Whirlpool Foot Level Backorder WPL W10859931 $46.17

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $56.11

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $56.11

W10261523 Whirlpool Plate Backorder WPL W10261523 $27.12

W10293267 Whirlpool Regulator Assembly Backorder WPL W10293267 $134.62

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

WP9761958 Whirlpool Range Terminal Block In Stock WPL WP9761958 $13.67

WPW10115712 Whirlpool Door Glass Backorder WPL WPW10115712 $108.53

12

W10115718 Whirlpool Door Handle Backorder WPL W10115718 $132.31

12

W10115858 Whirlpool Box Terminal Backorder WPL W10115858 $43.04

12

WPW10116349 Whirlpool Nut Backorder WPL WPW10116349 $9.59

W10276497 Whirlpool Drip Tray Backorder WPL W10276497 $189.27

W10771437 Whirlpool Screw Backorder WPL W10771437 $2.38

W11643125 Whirlpool Element Backorder WPL W11643125 $46.65

WP8286816 Whirlpool Burner Cap Backorder WPL WP8286816 $48.81

WPW10115952 Whirlpool Burner Cap Backorder WPL WPW10115952 $62.45

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $16.58

WPW10160229 Whirlpool Burner Cap Backorder WPL WPW10160229 $51.66

COVER, CHANNEL WPL W10269198 Contact Us For Availability

END CAP, HANDLE (RIGHT) WPL W10115713 Contact Us For Availability

END CAP, HANDLE (LEFT) WPL W10115714 Contact Us For Availability

14

9759721 Whirlpool Range Insulator Backorder WPL 9759721 $41.32

14

SHIELD-HT Backorder WPL W10188328 $32.83

15

8286863 Whirlpool Oven Clip In Stock WPL 8286863 $26.21

15

BRKT-GLASS Backorder WPL W10145810 $27.52

15

SCREW WPL 7101P46060 Contact Us For Availability

W10145806 Whirlpool Glass Bracket Backorder WPL W10145806 $46.35

WP3196163 Whirlpool Screw In Stock WPL WP3196163 $2.51

WPW10160235 Whirlpool Surface Igniter In Stock WPL WPW10160235 $16.49

ELECTRODE (LF (DUAL)) WPL W10250406 Contact Us For Availability

17

BRKT-GLASS Backorder WPL W10145811 $30.25

17

W10270397 Whirlpool Vent Seal Backorder WPL W10270397 $12.11

18

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

18

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

18

COOKTOP (LEFT) WPL W10189104 Contact Us For Availability

WP4449154 Whirlpool Screw In Stock WPL WP4449154 $2.51

WPW10250459 Whirlpool Burner Head In Stock WPL WPW10250459 $88.73

WPW10282515 Whirlpool Burner Head Backorder WPL WPW10282515 $67.26

SUPPORT, HANDLE WPL W10225964 Contact Us For Availability

20

W10061760 Whirlpool Screw In Stock WPL W10061760 $4.85

20

W10189177 Whirlpool Seal Switch Backorder WPL W10189177 $6.28

20

Screw, 8-18 x 3/8 WPL 4449040 Contact Us For Availability

21

SCREW WPL 7101P42660 Contact Us For Availability

22

W10852683 Whirlpool Nameplate Backorder WPL W10852683 $78.45

22

WP4449751 Whirlpool Range Oven Thermostat Fix In Stock WPL WP4449751 $75.89

23

4453116 Whirlpool Range Adapter Backorder WPL 4453116 $72.36

23

W10217130 Whirlpool Screw Backorder WPL W10217130 $5.29

24

W10269191 Whirlpool Gas Tubing Backorder WPL W10269191 $94.75

24

W11244176 Whirlpool Knob Assembly Backorder WPL W11244176 $45.09

24

WP9759229 Whirlpool Mounting Bracket Backorder WPL WP9759229 $63.73

25

4453115 Whirlpool Range Adapter Backorder WPL 4453115 $45.57

25

BRACKET(3RD GLASS) WPL 9759230 Contact Us For Availability

26

W10115715 Whirlpool Bracket Mounting Backorder WPL W10115715 $13.21

26

W10115953 Whirlpool Nut Backorder WPL W10115953 $6.68

27

4448520 Whirlpool Oven Bumper In Stock WPL 4448520 $10.76

28

W11177673 Whirlpool Knob Backorder WPL W11177673 $49.61

29

W11404293 Whirlpool Screw In Stock WPL W11404293 $9.59

30

W10116151 Whirlpool Indicator Light Backorder WPL W10116151 $27.52

34

W10250476 Whirlpool Mounting Bracket Backorder WPL W10250476 $67.78

35

WPW10116113 Whirlpool Infinite Switch Backorder WPL WPW10116113 $149.00

36

WPW10145991 Whirlpool Surface Igniter Backorder WPL WPW10145991 $31.99

37

8286930 Whirlpool Oven Gasket Backorder WPL 8286930 $32.57

39

W10130759 Whirlpool Mounting Bracket Backorder WPL W10130759 $27.52

39

W10130760 Whirlpool Bracket Mounting Backorder WPL W10130760 $27.52

W10115911 Whirlpool Gas Tubing Backorder WPL W10115911 $70.08

W10116124 Whirlpool Wire Harness Backorder WPL W10116124 $10.19

W10116174 Whirlpool Wire Harness Backorder WPL W10116174 $67.17

W10116182 Whirlpool Wire Harness Backorder WPL W10116182 $59.82

W10145992 Whirlpool Wire Harness Backorder WPL W10145992 $36.71

W10252239 Whirlpool Wire Harness Backorder WPL W10252239 $48.20

W10280797 Whirlpool Gas Tubing Backorder WPL W10280797 $30.87

W11544575 Whirlpool Anti-Tip Bracket Backorder WPL W11544575 $19.47

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

KIT, LP CONVERSION WPL W10221288 Contact Us For Availability

HARNESS, WIRE (MAIN) WPL W10116180 Contact Us For Availability
