Model Whirlpool KDRS463VBK01 RANGE/OVEN/GRIDDLE, DUAL FUEL, COMMERCIAL-STYLE, 3 – Common Parts & Diagrams

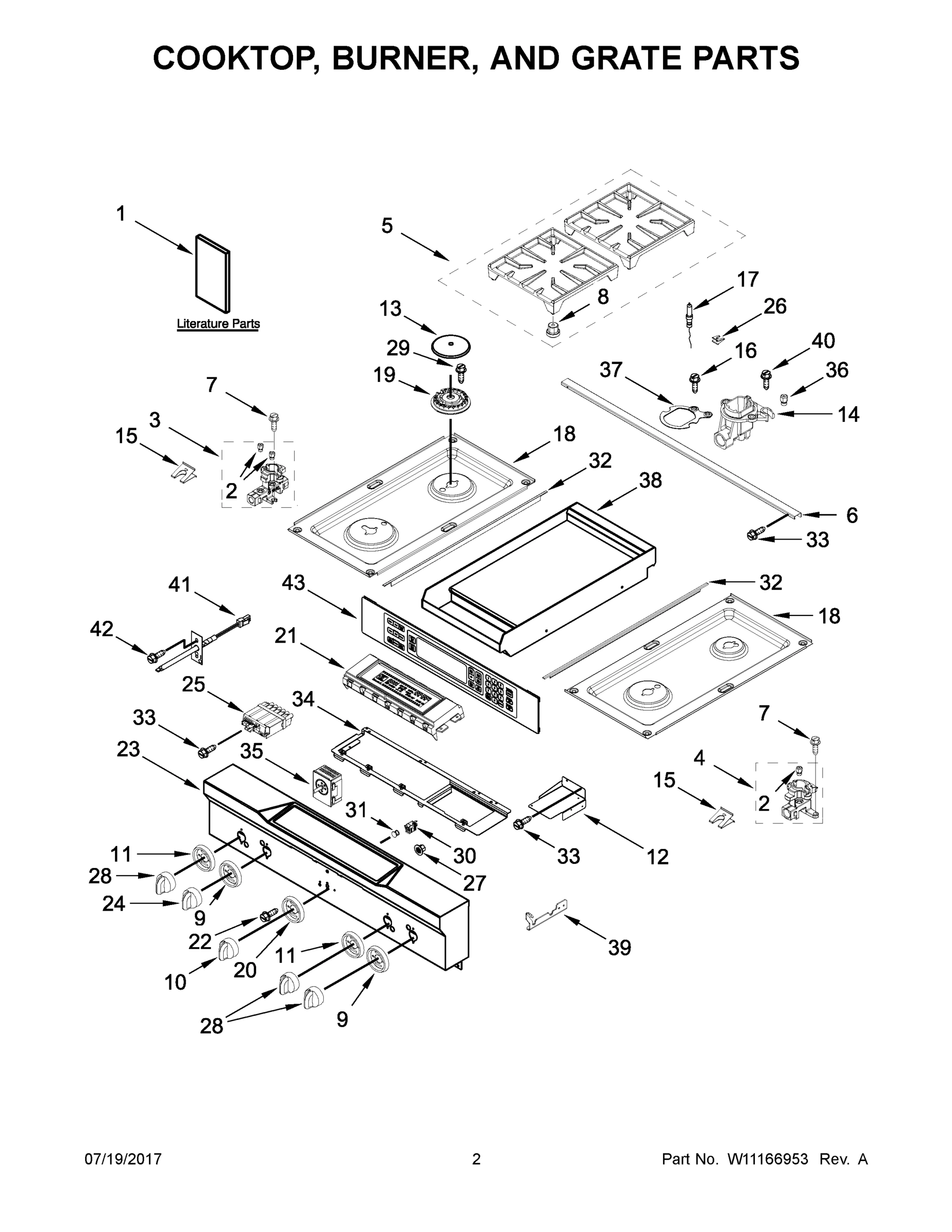

02 - COOKTOP, BURNER, AND GRATE PARTS

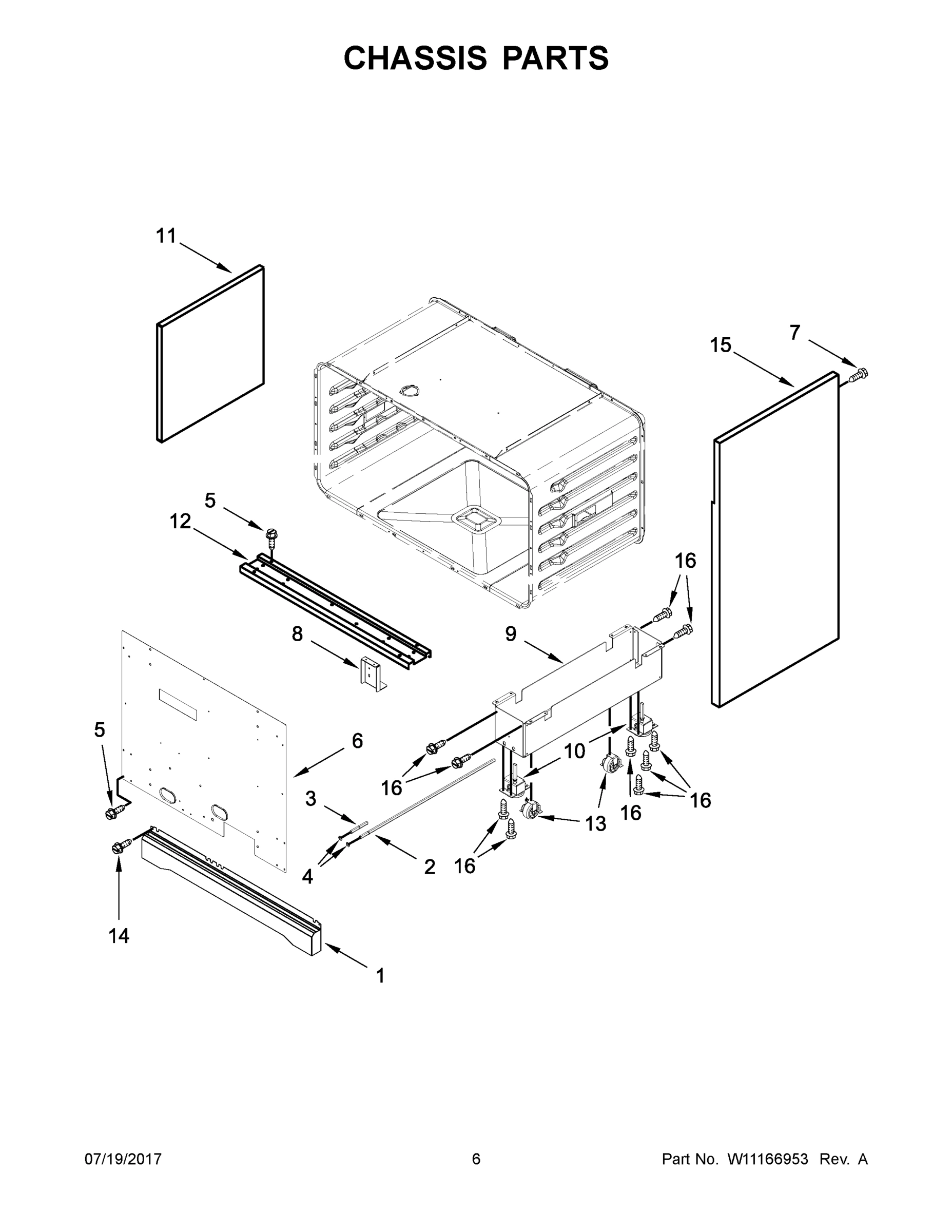

04 - CHASSIS PARTS
01 - COVER SHEET
08 - INTERNAL OVEN PARTS
03 - BURNER BOX PARTS
05 - OVEN PARTS
06 - TOP VENTING PARTS
07 - OVEN DOOR PARTS
09 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool KDRS463VBK01 RANGE/OVEN/GRIDDLE, DUAL FUEL, COMMERCIAL-STYLE, 3
1
PANEL, DOOR WPL W10188330 Contact Us For Availability
2
SHAFT, LONG WPL W10115869 Contact Us For Availability
2
ELEMENT, GRIDDLE WPL W10138296 Contact Us For Availability
2
ORIFICE (20K) (LEFT FRONT, HIGH) WPL W10657945 Contact Us For Availability
2A
HINGE, DOOR (RIGHT) WPL W10774096 Contact Us For Availability
3
SHAFT, SHORT WPL W10115793 Contact Us For Availability
3
ASSEMBLY, ORIFICE HOLDER (LEFT FRONT) WPL W10846622 Contact Us For Availability
3
TRAY, ELEMENT GRIDDLE WPL W10145620 Contact Us For Availability
4
E-RING WPL 489504 Contact Us For Availability
4
ASSEMBLY, ORIFICE HOLDER (LEFT REAR & RIGHT F WPL W10846623 Contact Us For Availability
5
RACK, OVEN (SLIDING) WPL W10570868 Contact Us For Availability
6
TRANSFORMER, CONTROL WPL W10495854 Contact Us For Availability
6
TRIM, ISLAND WPL W10269217 Contact Us For Availability
6
COVER, HINGE (LEFT) WPL W10115876 Contact Us For Availability
6
RACK, OVEN WPL W10822069 Contact Us For Availability
6
BUMPER & SCREW WPL W10105790 Contact Us For Availability
6A
COVER, HINGE (RIGHT) WPL W10115877 Contact Us For Availability
7
ASSEMBLY, MANIFOLD WPL W10402610 Contact Us For Availability
9
BASE, LEVELING LEG WPL W10249333 Contact Us For Availability
9
PANEL, EXTERIOR DOOR (IMPERIAL BLACK) WPL W10893002 Contact Us For Availability
10
KNOB, GRIDDLE (BLACK) WPL W10250390 Contact Us For Availability
10
SHIELD, HEAT BOTTOM WPL W10226024 Contact Us For Availability
11
REGULATOR, PRESSURE WPL W10449141 Contact Us For Availability
11
PLATE, FAN WPL W10261523 Contact Us For Availability
12
BOX, TERMINAL WPL W10467022 Contact Us For Availability
13
TRAY, GRIDDLE DRIP WPL W10276497 Contact Us For Availability
14
HOLDER, ORIFICE (AUX) (RIGHT REAR) WPL W10883622 Contact Us For Availability
14
INSULATOR, TERMINAL BOX WPL 9759721 Contact Us For Availability
14
SHIELD, HEAT TOP WPL W10188328 Contact Us For Availability
15
BRACKET, BOTTOM WPL W10145810 Contact Us For Availability
16
BRACKET, BURNER WPL W10560553 Contact Us For Availability
16
BRACKET, TOP WPL W10145806 Contact Us For Availability
17
ELECTRODE, BURNER (RIGHT REAR) WPL W10146042 Contact Us For Availability
17
SEAL, VENT SLOPE (30") WPL W10270397 Contact Us For Availability
17
BRACKET, OUTER GLASS (SIDE) WPL W10145811 Contact Us For Availability
18
COOKTOP (BLACK (LEFT)) WPL W10352969 Contact Us For Availability
18A
COOKTOP (BLACK (RIGHT)) WPL W10352968 Contact Us For Availability
19
SUPPORT, HANDLE WPL W10225964 Contact Us For Availability
20
SEAL, SWITCH COVER WPL W10189177 Contact Us For Availability
20
SCREW WPL W10061760 Contact Us For Availability
20
SCREW WPL 4449040 Contact Us For Availability
21
SCREW WPL 7101P42660 Contact Us For Availability
23
SCREW WPL W10217130 Contact Us For Availability
23
ADAPTER, MALE WPL 4453116 Contact Us For Availability
24
TUBE, PRESSURE REGULATOR WPL W10269191 Contact Us For Availability
25
ADAPTER, FEMALE WPL 4453115 Contact Us For Availability
25
LENS, LIGHT WPL W10169756 Contact Us For Availability
25
BRACKET, CENTRAL WPL 9759230 Contact Us For Availability
26
SPRING, ELECTRODE (RIGHT REAR) WPL 8286863 Contact Us For Availability
26
SCREW WPL 4449748 Contact Us For Availability
26
BRACKET, DOOR TOP WPL W10115715 Contact Us For Availability
27
BUMPER, DOOR WPL 4448520 Contact Us For Availability
30
WPL W10116151 WPL W10116151 Contact Us For Availability
32
WPL W10291193 WPL W10291193 Contact Us For Availability
34
WPL W10250476 WPL W10250476 Contact Us For Availability
37
WPL 8286930 WPL 8286930 Contact Us For Availability
38
WPL W10625221 WPL W10625221 Contact Us For Availability
39
WPL W10130760 WPL W10130760 Contact Us For Availability
39A
WPL W10130759 WPL W10130759 Contact Us For Availability
41
WPL W10319835 WPL W10319835 Contact Us For Availability
NI
ACCESSORIES, GRIDDLE WPL 4396096RB Contact Us For Availability
NI
ACCESSORIES, RING, WOK WPL W10216179 Contact Us For Availability
NI
ACCESSORIES, RACK, BROILER PAN & ROASTING WPL W10123240 Contact Us For Availability
NI
ACCESSORIES, COVER, GRILL/GRIDDLE WPL W10160195 Contact Us For Availability
NI
ACCESSORIES, APPLIANCE CLEANER WPL 31682 Contact Us For Availability
NI
ACCESSORIES, STONE, BRICK PIZZA WPL 4378577 Contact Us For Availability
NI
ACCESSORIES, BACKGUARD (36") WPL W10115776 Contact Us For Availability
NI
WPL W10726866 WPL W10726866 Contact Us For Availability
NI
WPL W10494088 WPL W10494088 Contact Us For Availability
NI
WPL W10116182 WPL W10116182 Contact Us For Availability
NI
WPL W10338986 WPL W10338986 Contact Us For Availability
NI
TUBE, (LEFT REAR) WPL W10280797 Contact Us For Availability
NI
ACCESSORIES, KIT, STAINLESS KNOBS WPL W10231703 Contact Us For Availability
NI
WPL W10327536 WPL W10327536 Contact Us For Availability
NI
TUBE (RIGHT FRONT) WPL W10353141 Contact Us For Availability
NI
TUBE (LEFT FRONT) WPL W10353154 Contact Us For Availability
NI
ACCESSORIES, BACKGUARD WITH SHELF (36") WPL W10225949 Contact Us For Availability
NI
ACCESSORIES, STAINLESS STEEL CLEANER & POLISH WPL 4396920 Contact Us For Availability
NI
MISCELLANEOUS, SEAL, ACCESS PANEL WPL 4453191 Contact Us For Availability
NI
ACCESSORIES, WIPES, STAINLESS STEEL WPL 8212510 Contact Us For Availability
NI
ACCESSORIES, HANDLE KIT WPL W10188341 Contact Us For Availability
× ![]()
