Model Whirlpool KDRS462VSS02 36`` STAINLESS PROFESSIONAL DUAL FUEL RANGE – Common Parts & Diagrams

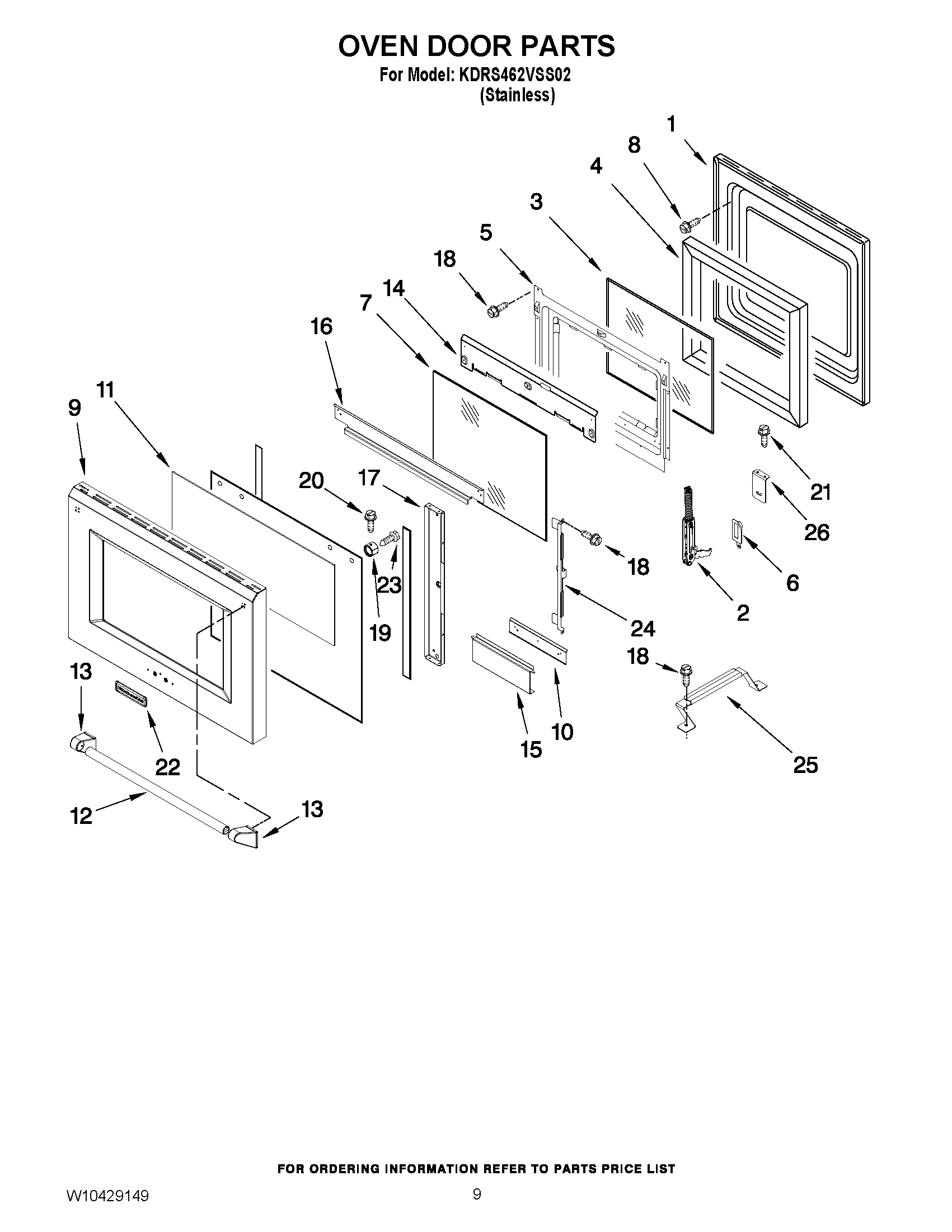

06 - OVEN DOOR PARTS

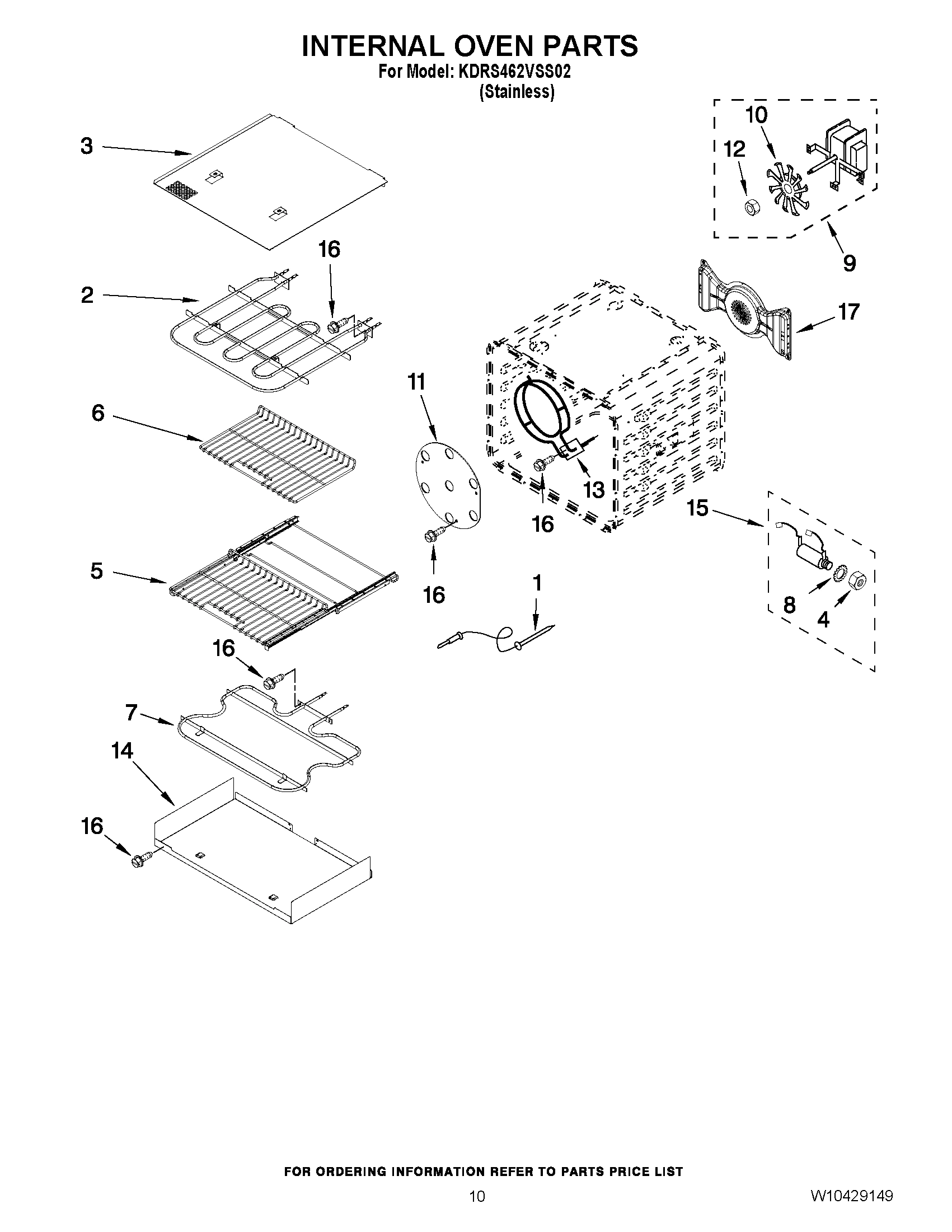

07 - INTERNAL OVEN PARTS

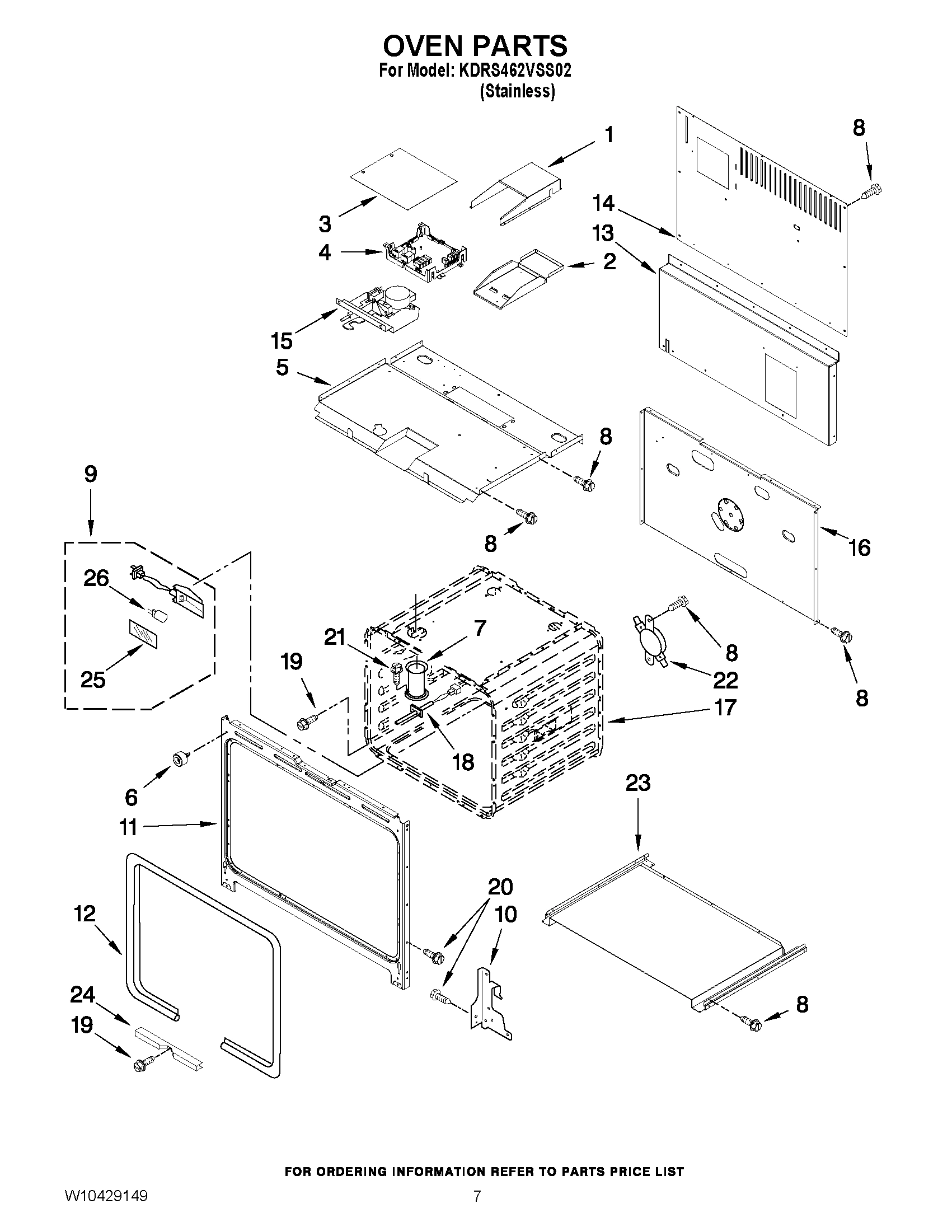

05 - OVEN PARTS
01 - COOKTOP, BURNER AND GRATE PARTS

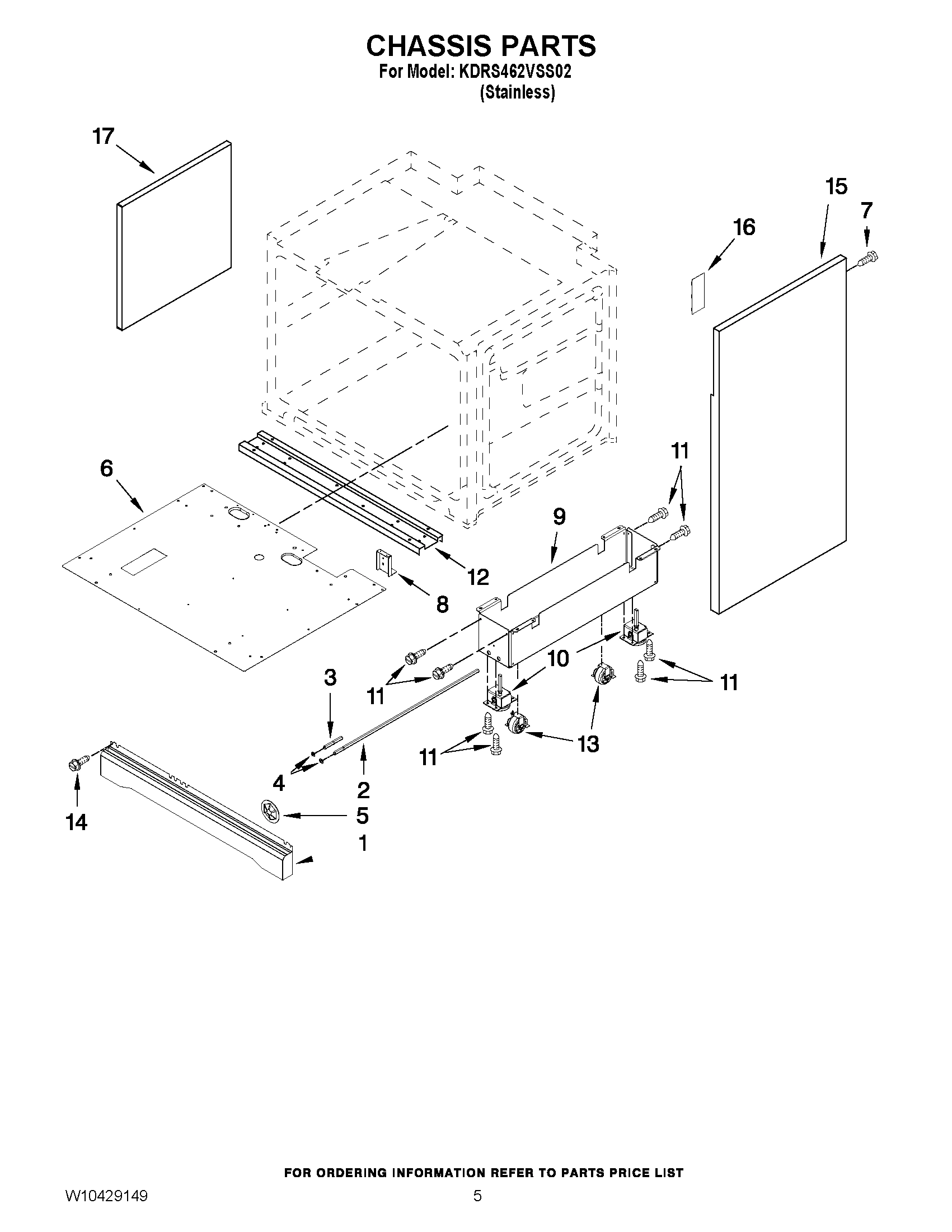

03 - CHASSIS PARTS
08 - OPTIONAL PARTS

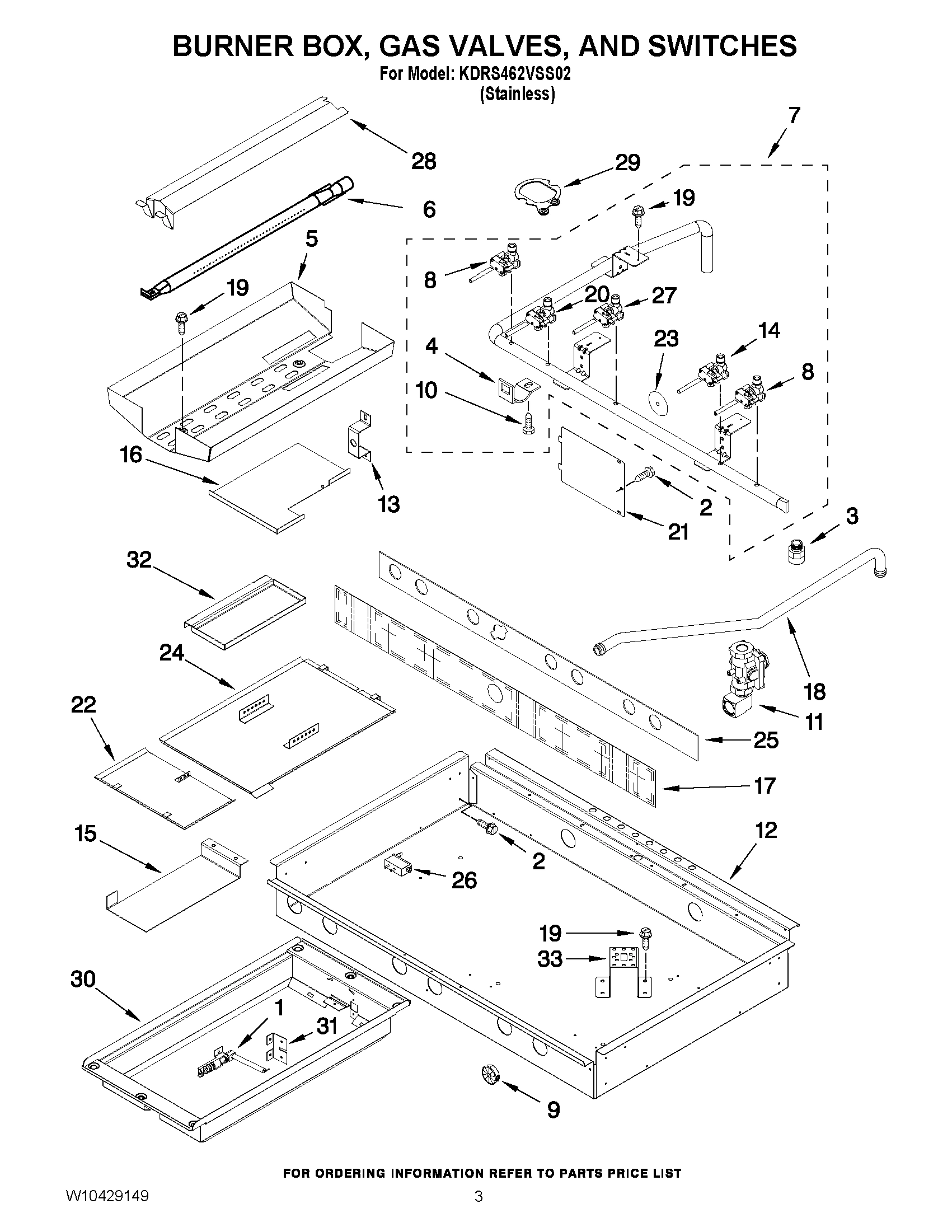

02 - BURNER BOX, GAS VALVES, AND SWITCHES

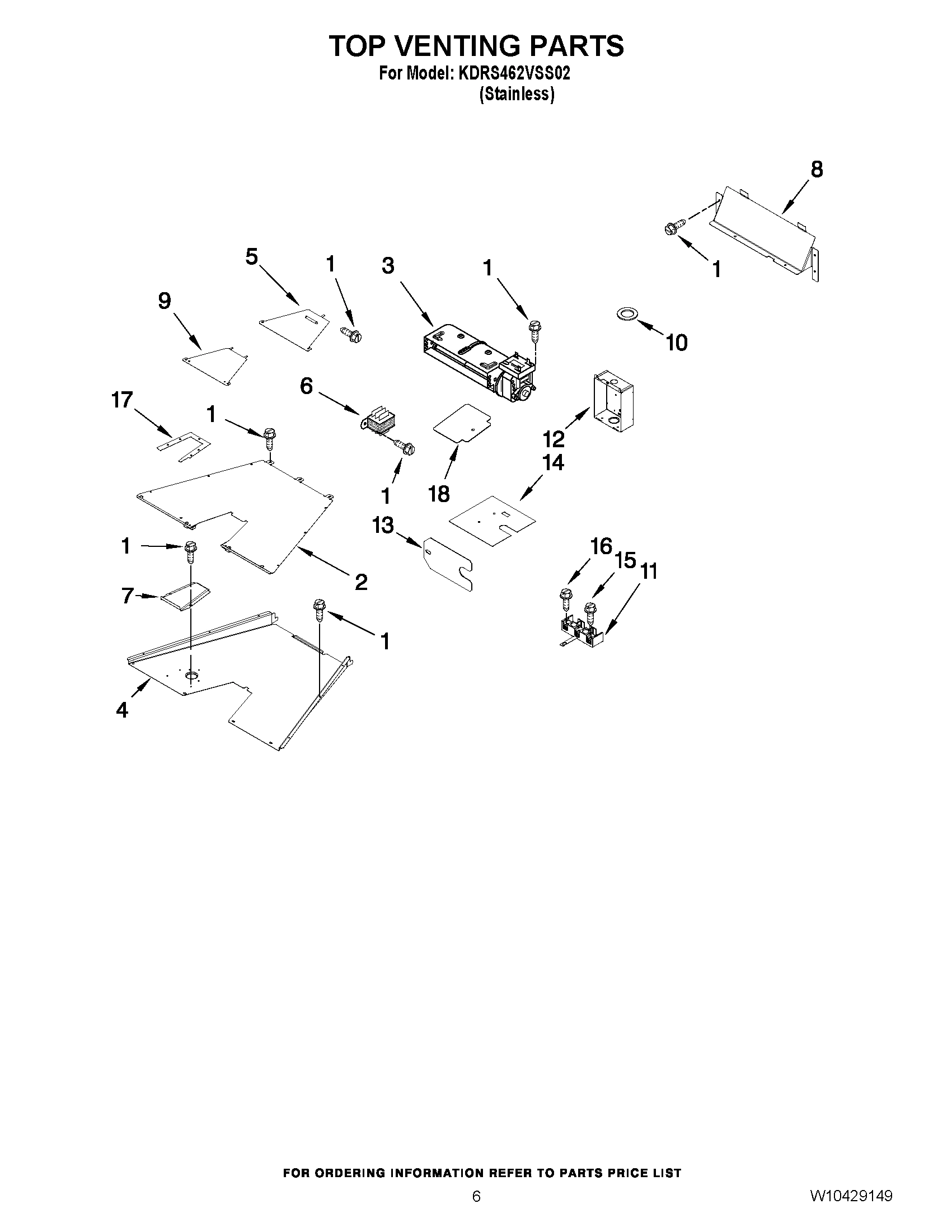

04 - TOP VENTING PARTS
Common parts from model Whirlpool KDRS462VSS02 36`` STAINLESS PROFESSIONAL DUAL FUEL RANGE
1
IGNITOR, GRILL WPL W10268770 Contact Us For Availability
2
SHAFT, LONG WPL W10115869 Contact Us For Availability
2
ORIFICE (LF-HIGH) WPL W10340424 Contact Us For Availability
2
HINGE, DOOR (RIGHT) WPL W10269203 Contact Us For Availability
2
ORIFICE (GRILL) WPL 4456495 Contact Us For Availability
2
VENT, TOP WPL W10160896 Contact Us For Availability
3
SHAFT, SHORT WPL W10115793 Contact Us For Availability
3
ADAPTER (FEMALE) WPL 4453115 Contact Us For Availability
3
ADAPTER (MALE) WPL 4453116 Contact Us For Availability
4
RING WPL 489504 Contact Us For Availability
4
ORIFICE HOLDER (RR) WPL W10282659 Contact Us For Availability
4
VENT-BOTTOM WPL W10246078 Contact Us For Availability
5
DEFLECTOR, GRILL WPL W10269564 Contact Us For Availability
5
PLATE, LATCH WPL W10160875 Contact Us For Availability
6
TRIM, ISLAND WPL W10269217 Contact Us For Availability
6
COVER, HINGE (LEFT) WPL W10115876 Contact Us For Availability
6
BURNER, GRILL WPL W10223569 Contact Us For Availability
6
ASSEMBLY, BUMPER WPL W10105790 Contact Us For Availability
7
VENT, EXHAUST WPL W10246075 Contact Us For Availability
8
BRACKET, BLOWER WPL W10160844 Contact Us For Availability
9
PANEL, DOOR WPL W10225960 Contact Us For Availability
9
BASE, LEVELING WPL W10249333 Contact Us For Availability
9
BEZEL, FRONT WPL W10261510 Contact Us For Availability
9
COVER, LATCH WPL W10160858 Contact Us For Availability
10
SCREW, VALVE MTG WPL W10189140 Contact Us For Availability
10
SEAL, CHIMNEY WPL W10270396 Contact Us For Availability
11
REGULATOR, PRESSURE WPL W10293267 Contact Us For Availability
11
COVER, FAN WPL W10261523 Contact Us For Availability
12
DOOR HANDLE WPL W10115718 Contact Us For Availability
12
BOX, TERMINAL WPL W10467022 Contact Us For Availability
12
BURNER BOX WPL W10371512 Contact Us For Availability
13
END CAP, HANDLE (RIGHT) WPL W10226025 Contact Us For Availability
13
END CAP, HANDLE (LEFT) WPL W10226026 Contact Us For Availability
13
BRACKET, GRILL ORIFICE MOUNTING WPL W10250475 Contact Us For Availability
13
COVER, CHANNEL WPL W10269198 Contact Us For Availability
14
INSULATOR, TERMINAL BOX WPL 9759721 Contact Us For Availability
15
SPRING, ELECTRODE (LF,LR,RF) WPL W10256046 Contact Us For Availability
15
SPRING, ELECTRODE (RR) WPL 8286863 Contact Us For Availability
15
SHIELD, GREASE WPL W10272139 Contact Us For Availability
16
ELECTRODE (RR) WPL W10146042 Contact Us For Availability
16
HOLDER, DRIP TRAY WPL W10250474 Contact Us For Availability
17
SEAL, FOAM WPL W10270397 Contact Us For Availability
17
INSULATION, GRILL WPL W10294030 Contact Us For Availability
18
COOKTOP (LEFT) WPL W10352969 Contact Us For Availability
18
COOKTOP (RIGHT) WPL W10352968 Contact Us For Availability
18
TUBE, PRESSURE REGULATOR WPL W10269191 Contact Us For Availability
18
COVER, HOUSING WPL W10287036 Contact Us For Availability
19
SUPPORT, HANDLE WPL W10225964 Contact Us For Availability
19
SCREW WPL 7101P42660 Contact Us For Availability
20
SCREW WPL W10061760 Contact Us For Availability
20
Screw WPL 4449040 Contact Us For Availability
21
BRACKET, USER INTERFACE WPL W10250476 Contact Us For Availability
21
COVER, IGNITION WPL W10115843 Contact Us For Availability
22
Bumper WPL 4448520 Contact Us For Availability
22
DRIP TRAY, ROUTER 2 WPL W10250468 Contact Us For Availability
23
SEAL, SWITCH COVER WPL W10189177 Contact Us For Availability
23
SCREW, END CAP WPL W10217130 Contact Us For Availability
24
DRIP TRAY, ROUTER 1 WPL W10250470 Contact Us For Availability
25
Lens, Light WPL W10169756 Contact Us For Availability
26
WAVE, TRAY WPL W10250469 Contact Us For Availability
26
BRACKET, DOOR TOP WPL W10115715 Contact Us For Availability
27
VALVE, GAS GRILL WPL W10385584 Contact Us For Availability
28
FLAME SPREADER WPL W10250462 Contact Us For Availability
29
GASKET, ORIFICE WPL 8286930 Contact Us For Availability
30
LIGHT, INDICATOR HOUSING WPL W10116114 Contact Us For Availability
31
BRACKET, GRILL IGNITOR WPL W10250461 Contact Us For Availability
32
TRIM WPL W10291193 Contact Us For Availability
32
DRIP TRAY WPL W10250473 Contact Us For Availability
33
BRACKET, BURNER WPL W10369547 Contact Us For Availability
36
BRACKET,CONSOLE (RIGHT) WPL W10130759 Contact Us For Availability
36
BRACKET,CONSOLE (LEFT) WPL W10130760 Contact Us For Availability
NI
GRIDDLE WPL 4396096RB Contact Us For Availability
NI
WOK RING WPL W10216179 Contact Us For Availability
NI
BROIL PAN WPL W10123240 Contact Us For Availability
NI
GRILL & GRIDDLE COVER WPL W10160195 Contact Us For Availability
NI
ALL PURPOSE APPLIANCE CLEANER WPL 31682 Contact Us For Availability
NI
BRICK BAKING STONE WPL 4378577 Contact Us For Availability
NI
9`` BACKGUARD WPL W10115776 Contact Us For Availability
NI
CONNECTOR, RIBBON WPL W10252239 Contact Us For Availability
NI
TUBING, GAS (LR) WPL W10280797 Contact Us For Availability
NI
KNOBS, 1 GRILL & 4 BURNER WPL W10231703 Contact Us For Availability
NI
HARNESS, SWITCH WPL W10327536 Contact Us For Availability
NI
HARNESS, COMMUNICATION WPL W10116124 Contact Us For Availability
NI
HARNESS, MAIN WPL W10116180 Contact Us For Availability
NI
BACKGUARD WITH SHELF WPL W10225949 Contact Us For Availability
NI
TUBING, GAS (RF) WPL W10353141 Contact Us For Availability
NI
TUBING, GAS (LF) WPL W10353154 Contact Us For Availability
NI
TUBING, GAS (GRILL) WPL W10158807 Contact Us For Availability
NI
TUBING, GAS (LF) WPL W10353152 Contact Us For Availability
× ![]()
