Model Whirlpool KDDA27TRS00 INGREDIENT CENTER – Common Parts & Diagrams

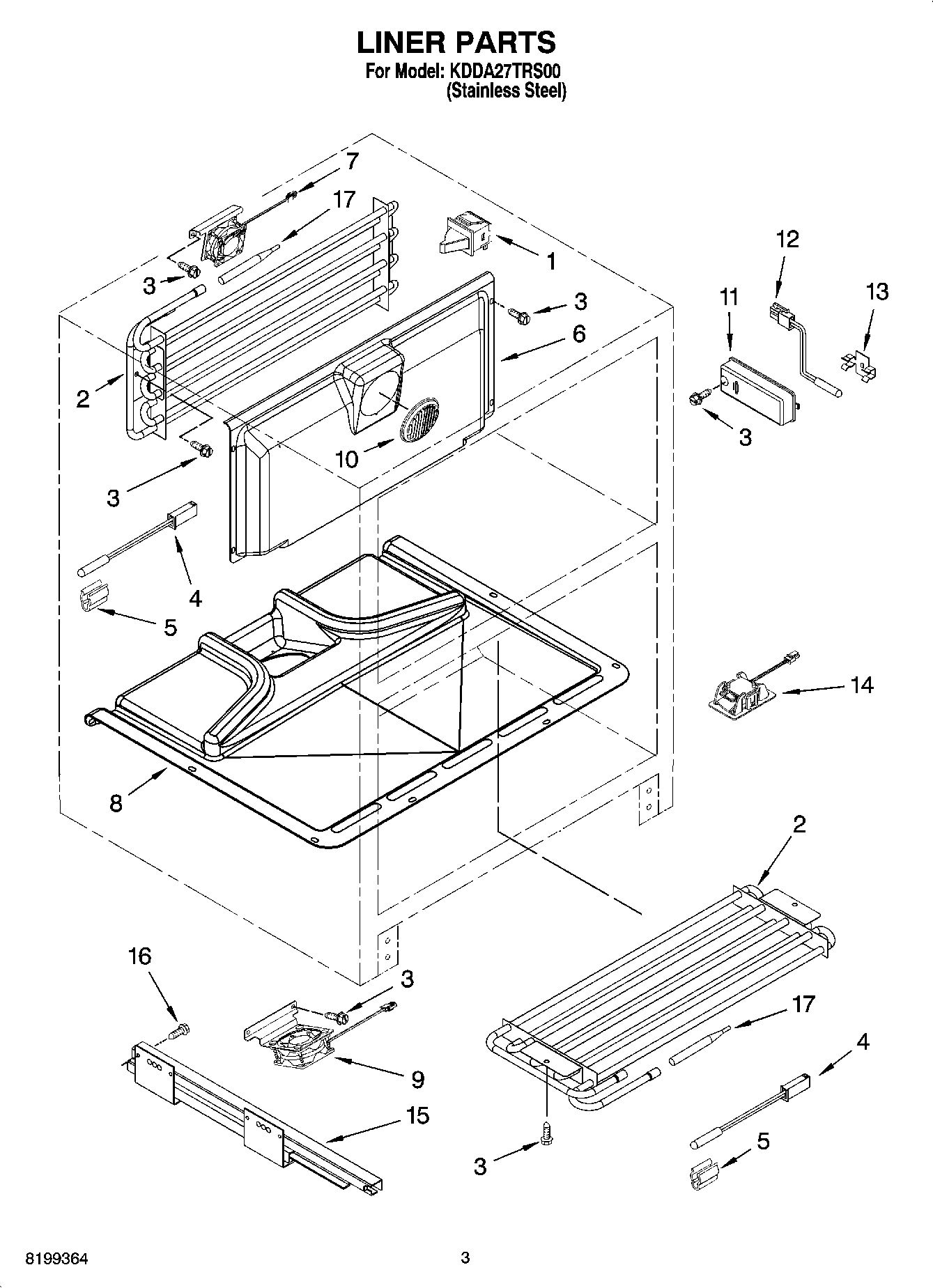

02 - LINER PARTS

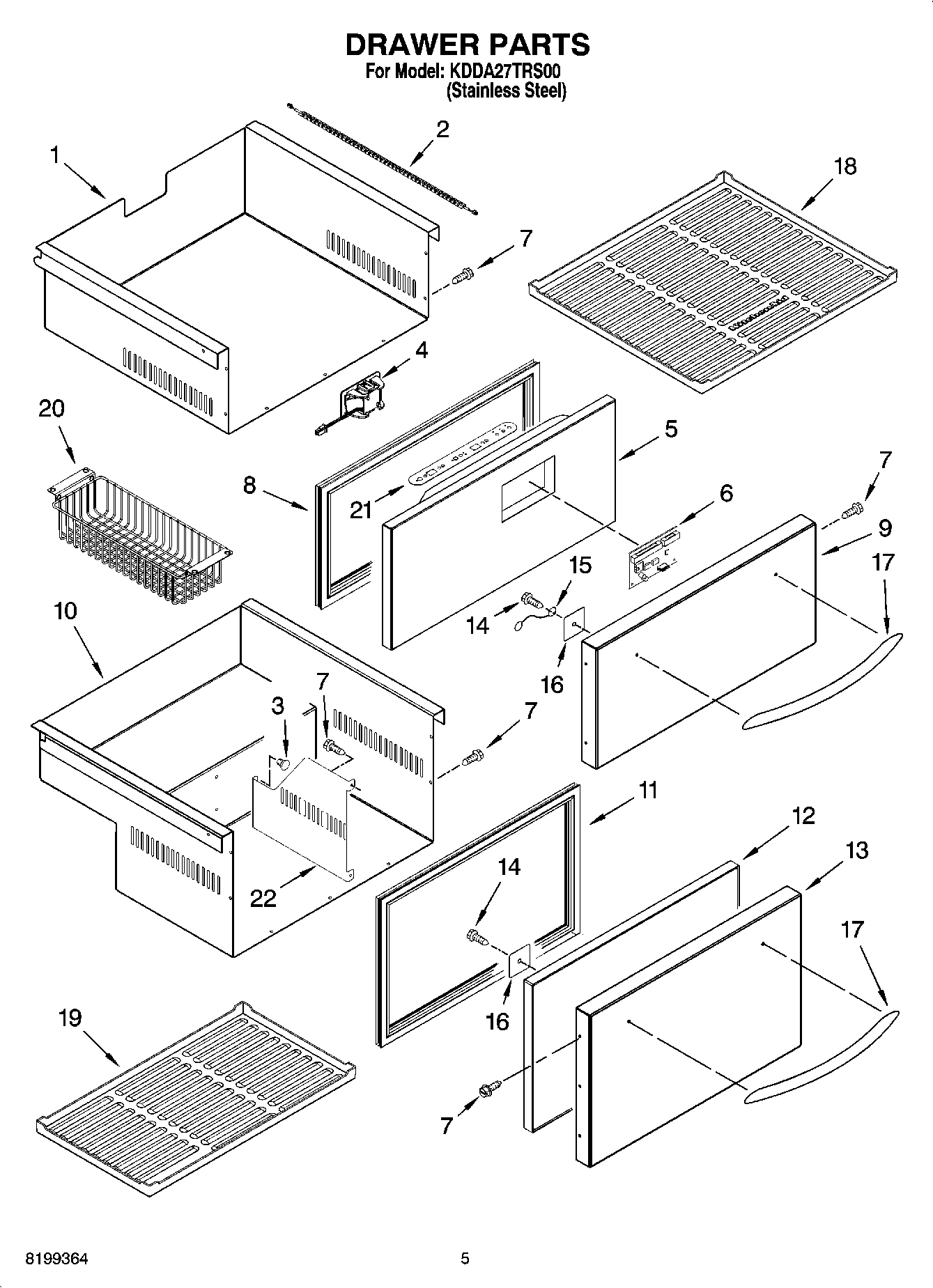

03 - DRAWER PARTS

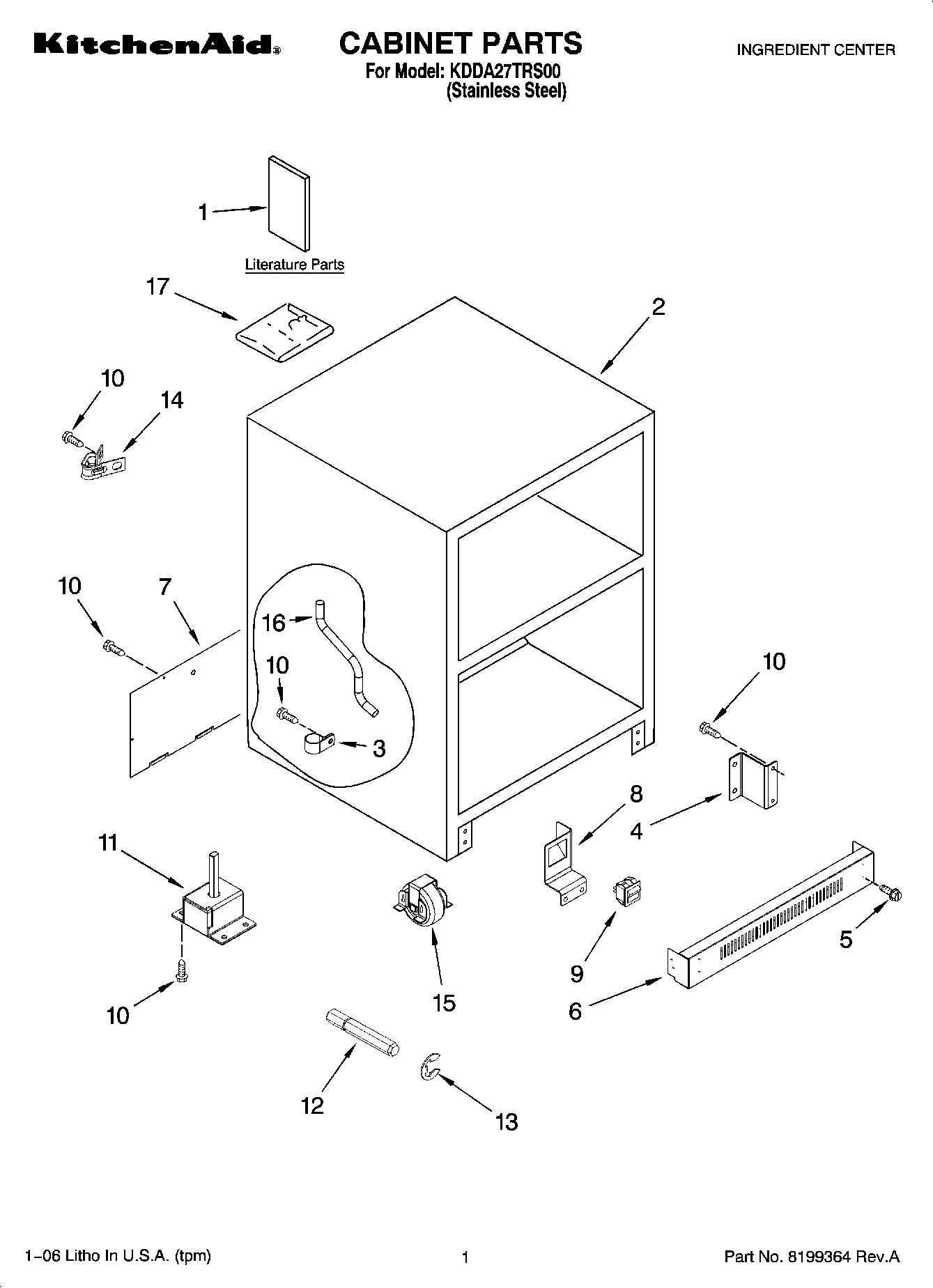

01 - CABINET PARTS

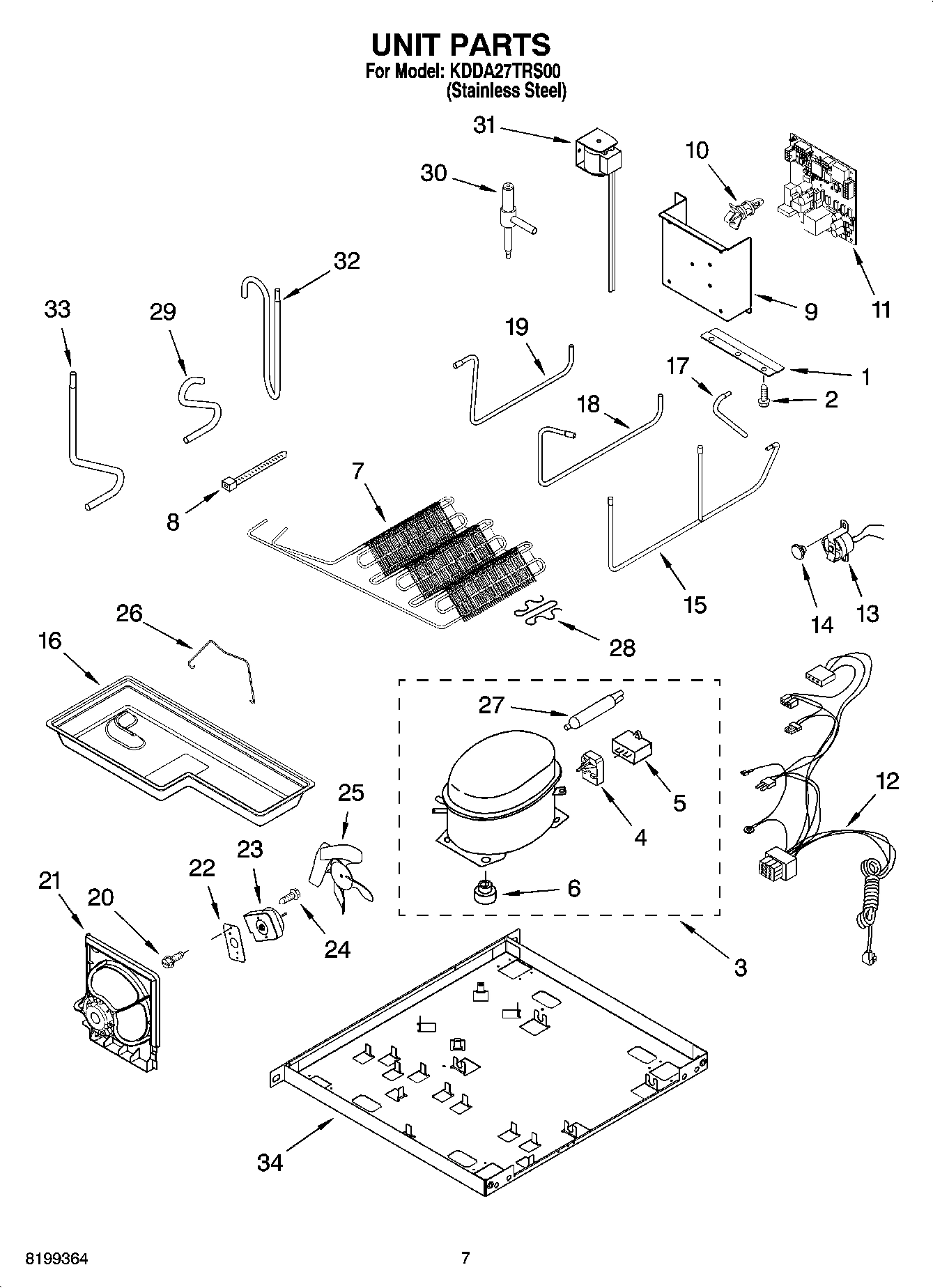

04 - UNIT PARTS
Common parts from model Whirlpool KDDA27TRS00 INGREDIENT CENTER
1
Use & Care Guide WPL 2258024 Contact Us For Availability
1
Installation Instructions WPL 2258066 Contact Us For Availability
1
Energy Guide WPL 2258067 Contact Us For Availability
1
Temperature Guide WPL 2258088 Contact Us For Availability
1
Service & Wiring Sheet WPL 2258105 Contact Us For Availability
1
Bracket, Control Box WPL 2257844 Contact Us For Availability
2
Evaporator (2) WPL 2257814 Contact Us For Availability
2
Harness, Wiring (Drawer) WPL 2310007 Contact Us For Availability
2
Cabinet (Not A Servicable Part) WPL ARI80848A3 Contact Us For Availability
3
Clamp, Drain Tube WPL 2258085 Contact Us For Availability
3
COMPRESSOR WPL 2257884 Contact Us For Availability
4
Start-Device Combination WPL 2258026 Contact Us For Availability
4
Bracket, Grille WPL 2258201 Contact Us For Availability
6
Control, Electronic WPL 2304086 Contact Us For Availability
6
GRILLE WPL 2257846 Contact Us For Availability
7
CONDENSER WPL 2257869 Contact Us For Availability
7
Cover, Unit WPL 2257885 Contact Us For Availability
8
Bracket, Switch WPL 2257923 Contact Us For Availability
9
Skin, Door (Upper) WPL 2258205 Contact Us For Availability
9
Box, Control Board WPL 2257840 Contact Us For Availability
10
Drawer, Lower WPL 2257848 Contact Us For Availability
11
Gasket, Lower Drawer WPL 2258016 Contact Us For Availability
11
Control Board (Main) WPL 2252184 Contact Us For Availability
12
Drawer Front (Lower) WPL 2257949 Contact Us For Availability
12
Rod, Leveler (Rear (2)) WPL 2257892 Contact Us For Availability
12
Rod, Leveler (Front (2)) WPL 2257893 Contact Us For Availability
12
Harness, Unit (Includes 13) WPL 2310005 Contact Us For Availability
13
Bi-Metal WPL 2258137 Contact Us For Availability
13
Clip, Thermistor (2) WPL 2209204 Contact Us For Availability
13
Skin, Door (Lower) WPL 2258206 Contact Us For Availability
14
Screw WPL 3400067 Contact Us For Availability
14
Plug, Button (2) WPL 54690 Contact Us For Availability
15
Wire, Ground WPL 2310033 Contact Us For Availability
15
Tube, Suction WPL 2257905 Contact Us For Availability
16
Plate, Backing WPL 9744437 Contact Us For Availability
16
Tube, Drain WPL 2257916 Contact Us For Availability
16
Tray, Evaporator WPL 2257890 Contact Us For Availability
17
HANDLE WPL 8557792 Contact Us For Availability
17
Kit, Mounting (4 brackets & 16 screws) WPL 2258203 Contact Us For Availability
17
Tube, Process WPL 2258083 Contact Us For Availability
18
Mat, Upper Drawer WPL 2257937 Contact Us For Availability
18
Tube, Drier to Lower Valve WPL 2257902 Contact Us For Availability
19
Mat, Lower Drawer WPL 2258134 Contact Us For Availability
19
Tube, Drier to Upper Valve WPL 2257903 Contact Us For Availability
20
Basket (2) WPL 2258000 Contact Us For Availability
21
OVERLAY WPL 2258032 Contact Us For Availability
21
Bracket, Fan WPL 2208157 Contact Us For Availability
22
Plate, Motor WPL 2301979 Contact Us For Availability
22
DIVIDER WPL 2258131 Contact Us For Availability
26
Clip, Retaining WPL 2255199 Contact Us For Availability
27
Drier WPL 2257904 Contact Us For Availability
28
Clip, Mounting WPL 2163787 Contact Us For Availability
29
Tube, Discharge WPL 2257919 Contact Us For Availability
30
Valve, Solenoid (2) WPL 2257924 Contact Us For Availability
31
Coil, Solenoid (2) WPL 2257537 Contact Us For Availability
32
Tube, Heat Loop to Drier WPL 2258070 Contact Us For Availability
33
Tube, Condenser to Heat Loop WPL 2258071 Contact Us For Availability
34
Baseplate WPL 2257876 Contact Us For Availability
34
REFRIGERANT CHARGE 3.25 oz. (R-134A) WPL ARI80849A9 Contact Us For Availability
× ![]()
