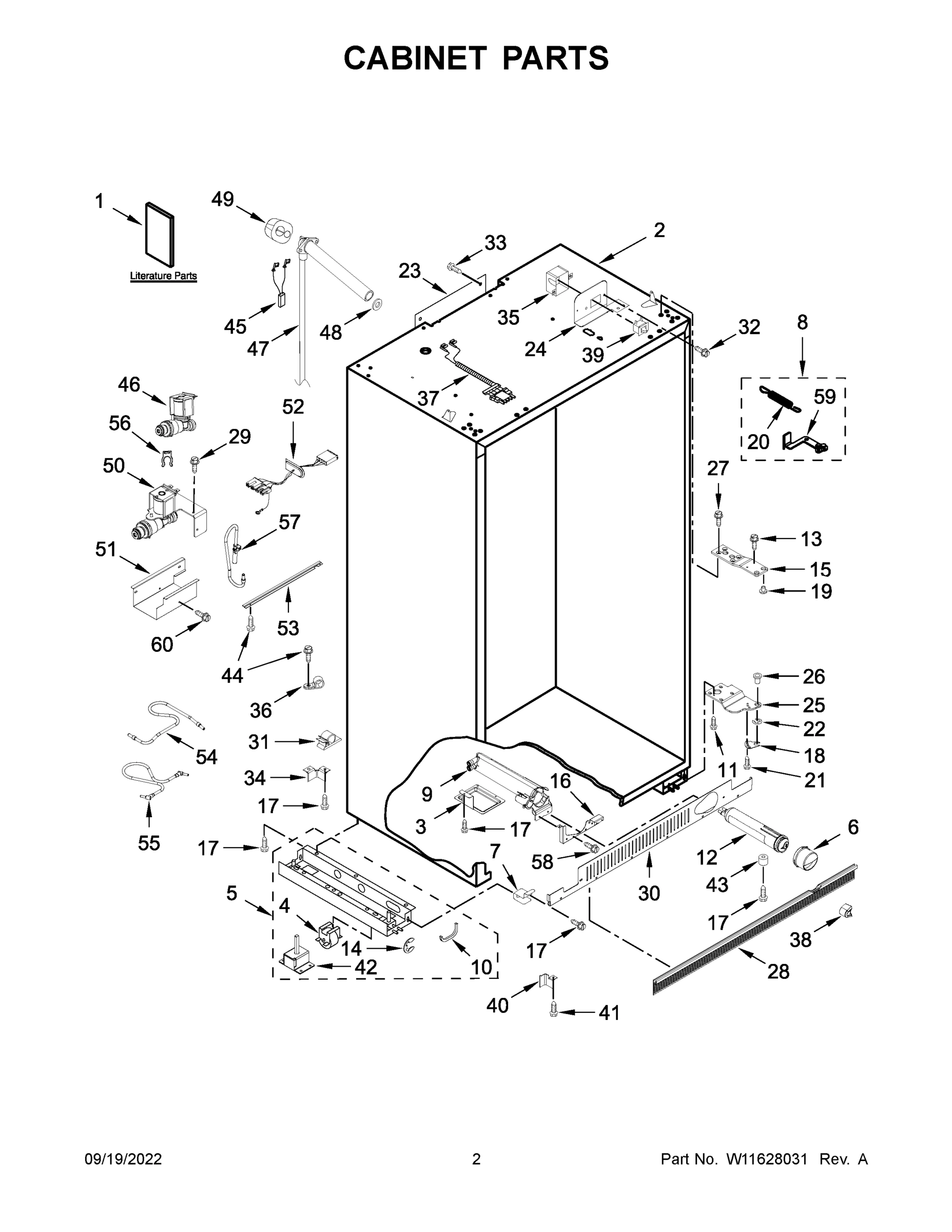

Model Whirlpool KBSN708MPA00 REFRIGERATOR, ALL – Common Parts &amp; Diagrams

1

W11173663 Whirlpool Refrigerator Cabinet Trim Backorder WPL W11173663 $135.73

1

W11623097 Whirlpool Inverter Box In Stock WPL W11623097 $177.66

1

DOOR, FREEZER WPL W11570423 Contact Us For Availability

1

BRACKET, EVAPORATOR RIGHT TOP WPL W11463140 Contact Us For Availability

2

2207457 Whirlpool Refrigerator Door Trim Backorder WPL 2207457 $42.33

2

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

2

W11530767 Whirlpool Tube Backorder WPL W11530767 $44.94

2

COVER-UNIT Backorder WPL W11735285 $109.01

3

2252294 Whirlpool Refrigerator Door Hinge Backorder WPL 2252294 $20.02

3

2318189 Whirlpool Refrigerator Drip Pan Backorder WPL 2318189 $53.53

3

W11557671 Whirlpool Refrigerator Compressor In Stock WPL W11557671 $445.05

3

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

3

WPW10121451 Whirlpool Refrigerator Insert Backorder WPL WPW10121451 $3.70

3

SCREW (BLACK) WPL W10784922 Contact Us For Availability

3A

W11504415 Whirlpool Refrigerator Coupler In Stock WPL W11504415 $13.69

3B

W11504431 Whirlpool Microwave Coupler In Stock WPL W11504431 $14.24

3C

W11504416 Whirlpool Refrigerator Coupler In Stock WPL W11504416 $14.57

4

2256466 Whirlpool Refrigerator Unit Cover Backorder WPL 2256466 $151.83

4

W10550831 Whirlpool Refrigerator Housing Backorder WPL W10550831 $35.26

4

W11474472 Whirlpool Screw In Stock WPL W11474472 $2.51

4

W11629268 Whirlpool Thermistor In Stock WPL W11629268 $19.98

4

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $16.58

5

W10484480 Whirlpool Refrigerator Door Hinge Backorder WPL W10484480 $40.75

5

GROMMET Backorder WPL W10587113 $7.16

5

W11435372 Whirlpool Cover-Unit In Stock WPL W11435372 $26.90

5

W11444578 Whirlpool Tube Backorder WPL W11444578 $44.94

6

2252293 Whirlpool Refrigerator Door Hinge Backorder WPL 2252293 $30.89

6

W10645086 Whirlpool Refrigerator Divider Backorder WPL W10645086 $39.58

6

W11173662 Whirlpool Refrigerator Cabinet Trim Backorder WPL W11173662 $135.73

6

W11238395 Whirlpool Refrigerator Filter Cap In Stock WPL W11238395 $38.76

6

W11661108 Whirlpool Grommet Backorder WPL W11661108 $5.51

6

W11673500 Whirlpool Door Hinge In Stock WPL W11673500 $64.71

6

WP2259318 Whirlpool Refrigerator Slide Backorder WPL WP2259318 $144.34

6

ASSEMBLY, DRAIN PAN WPL W11491712 Contact Us For Availability

6A

2259317 Whirlpool Refrigerator Slide Backorder WPL 2259317 $109.65

7

GASKET Backorder WPL W10783303 $38.92

7

W11625072 Whirlpool Refrigerator FIP Gasket In Stock WPL W11625072 $180.98

7

WPW10309012 Whirlpool Wire Cover Backorder WPL WPW10309012 $27.52

7

SUPPORT, CONDENSER (LEFT HAND) WPL W11443116 Contact Us For Availability

7A

SUPPORT, CONDENSER (RIGHT HAND) WPL W11443117 Contact Us For Availability

8

CNTRL-ELEC Backorder WPL W11752962-includeCORE $200.85

8

INSULATION, UNIT BACK PANEL WPL W11244166 Contact Us For Availability

8

COVER, WIRE BOX WPL W10321048 Contact Us For Availability

8A

2324874 Whirlpool Refrigerator Extension Backorder WPL 2324874 $40.24

9

W11247667 Whirlpool Refrigerator Cover Backorder WPL W11247667 $41.14

9

W11625077 Whirlpool Refrigerator FIP Gasket In Stock WPL W11625077 $180.44

9

WP2302937 Whirlpool Refrigerator Thermistor In Stock WPL WP2302937 $44.95

9

WPW10121140 Whirlpool Refrigerator Housing In Stock WPL WPW10121140 $112.14

9

TUBE, DISCHARGE WPL W11444570 Contact Us For Availability

2259448S Whirlpool Refrigerator Trim Cover Backorder WPL 2259448S $57.14

2307584 Whirlpool Refrigerator Grommet Backorder WPL 2307584 $12.70

W10321050 Whirlpool Refrigerator Shield Backorder WPL W10321050 $27.52

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

2309497S Whirlpool Refrigerator Door Trim Backorder WPL 2309497S $104.64

HOUSING Backorder WPL W11623130 $17.75

W11629714 Whirlpool Evaporator Backorder WPL W11629714 $159.81

SCREW WPL 3400525 Contact Us For Availability

11A

W11504450 Whirlpool Refrigerator Coupler In Stock WPL W11504450 $25.69

11B

W11506620 Whirlpool Refrigerator Coupler In Stock WPL W11506620 $17.70

2309490S Whirlpool Refrigerator Door Trim Backorder WPL 2309490S $88.47

2314003S Whirlpool Refrigerator Trim Cover Backorder WPL 2314003S $52.85

W11626107 Whirlpool Heater Assembly In Stock WPL W11626107 $88.80

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

2256328 Whirlpool Bracket Assembly Backorder WPL 2256328 $29.61

2309496S Whirlpool Refrigerator Door Trim Backorder WPL 2309496S $87.57

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

W10833902 Whirlpool Refrigerator Clamp In Stock WPL W10833902 $4.45

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

2302956 Whirlpool Refrigerator Slide Backorder WPL 2302956 $124.19

2309498S Whirlpool Refrigerator Door Trim In Stock WPL 2309498S $126.56

2310195 Whirlpool Refrigerator Wire Jumper Backorder WPL 2310195 $49.01

W11715935 Whirlpool Dampener Backorder WPL W11715935 $7.61

SCREW WPL W10191952 Contact Us For Availability

BIN, GALLON DOOR WPL W11408930 Contact Us For Availability

14A

2302957 Whirlpool Refrigerator Slide Backorder WPL 2302957 $91.88

2252291 Whirlpool Refrigerator Door Hinge Backorder WPL 2252291 $33.53

2302954 Whirlpool Refrigerator Slide In Stock WPL 2302954 $127.84

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

WP8281250 Whirlpool Refrigerator Screw In Stock WPL WP8281250 $4.56

BIN, SHALLOW DOOR WPL W11408940 Contact Us For Availability

15A

2252292 Whirlpool Refrigerator Door Hinge Backorder WPL 2252292 $30.43

15A

2302955 Whirlpool Refrigerator Slide In Stock WPL 2302955 $127.84

2309487S Whirlpool Refrigerator Door Trim Backorder WPL 2309487S $91.01

W11408149 Whirlpool Condenser In Stock WPL W11408149 $87.06

BRACKET Backorder WPL W11755873 $29.88

WP2006346 Whirlpool Refrigerator Washer Backorder WPL WP2006346 $4.59

WP8533928 Whirlpool Refrigerator Screw In Stock WPL WP8533928 $2.51

GASKET, EVAPORATOR BYPASS WPL W11475798 Contact Us For Availability

W11585870 Whirlpool Wire Harness Backorder WPL W11585870 $76.40

W11700297 Whirlpool Refrigerator Gap Hinge Backorder WPL W11700297 $13.29

WP2220377 Whirlpool Refrigerator Air Baffle In Stock WPL WP2220377 $179.78

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

18

W10169509 Whirlpool Refrigerator Clip Backorder WPL W10169509 $30.25

18

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $3.70

18

WP2004994 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2004994 $3.70

2320554 Whirlpool Bracket Backorder WPL 2320554 $26.21

W11500952 Whirlpool Refrigerator Hinge Bushin Backorder WPL W11500952 $12.32

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $18.70

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

ASSEMBLY, TOP DOOR BIN WPL W11610618 Contact Us For Availability

20

2215648 Whirlpool Refrigerator Dampener Backorder WPL 2215648 $7.78

21

W11109499 Whirlpool Refrigerator Tube In Stock WPL W11109499 $20.17

21

W11769878 Whirlpool Screw Backorder WPL W11769878 $7.72

21A

W11504445 Whirlpool Refrigerator Coupler In Stock WPL W11504445 $16.34

21B

W11504432 Whirlpool Refrigerator Coupler In Stock WPL W11504432 $13.58

22

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $9.59

22

W11627456 Whirlpool Sensor Backorder WPL W11627456 $32.28

23

W11623099 Whirlpool Condenser Motor Backorder WPL W11623099 $52.50

24

BRACKET, CONDENSER BOTTOM WPL W11443119 Contact Us For Availability

25

SCREW WPL W10068580 Contact Us For Availability

25A

2309471 Whirlpool Refrigerator Door Hinge In Stock WPL 2309471 $96.91

26

WP2302876 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2302876 $28.40

26

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

27

W11234470 Whirlpool Refrigerator Clamp Backorder WPL W11234470 $10.76

28

SWITCH, POWER DISCONNECT WPL W11311927 Contact Us For Availability

29

W11460409 Whirlpool Tube In Stock WPL W11460409 $44.94

30

TUBE Backorder WPL W11411473 $44.94

30

Backorder WPL W11739148 $76.35

31

TUBE, PROCESS WPL W11482820 Contact Us For Availability

33

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $2.51

33

COVER WPL W11443120 Contact Us For Availability

34

2006617 Whirlpool Refrigerator Bracket Backorder WPL 2006617 $30.25

34

2310196 Whirlpool Refrigerator Power Cord Backorder WPL 2310196 $33.12

35

WPL W11435371 WPL W11435371 Contact Us For Availability

40

2006616 Whirlpool Refrigerator Bracket Backorder WPL 2006616 $30.25

42

2005032 Whirlpool Refrigerator Leveler Backorder WPL 2005032 $68.35

43

2005433 Whirlpool Refrigerator Spacer Backorder WPL 2005433 $10.23

46

W11246413 Whirlpool Refrigerator Inlet Valve In Stock WPL W11246413 $76.11

48

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

50

W11225845 Whirlpool Refrigerator Inlet Valve In Stock WPL W11225845 $76.11

54

W10619899 Whirlpool Refrigerator Water Tube Backorder WPL W10619899 $16.87

55

W10635851 Whirlpool Refrigerator Water Tube In Stock WPL W10635851 $34.51

56

W10782423 Whirlpool Refrigerator Ring Backorder WPL W10782423 $8.53

56A

W10782424 Whirlpool Refrigerator Ring Backorder WPL W10782424 $8.53

57

WPL W10577944 WPL W10577944 Contact Us For Availability

58

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

59

W11416733 Whirlpool Refrigerator Extension Backorder WPL W11416733 $29.66

59A

W11418227 Whirlpool Refrigerator Extension In Stock WPL W11418227 $29.66

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $39.63

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

W10134625 Whirlpool Refrigerator Touch-Up Pai Backorder WPL W10134625 $7.85

NLA:TOUCH-UP Backorder WPL W10917540 $6.57

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

KIT, FOAM SLAB (30" X 32 1/2" X 1 1/2") WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108") WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE (UNCUT)) WPL 799344 Contact Us For Availability

TORX SCREW WRENCH, TORX KEY WPL 1117510 Contact Us For Availability

WPL NP WPL NP Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
