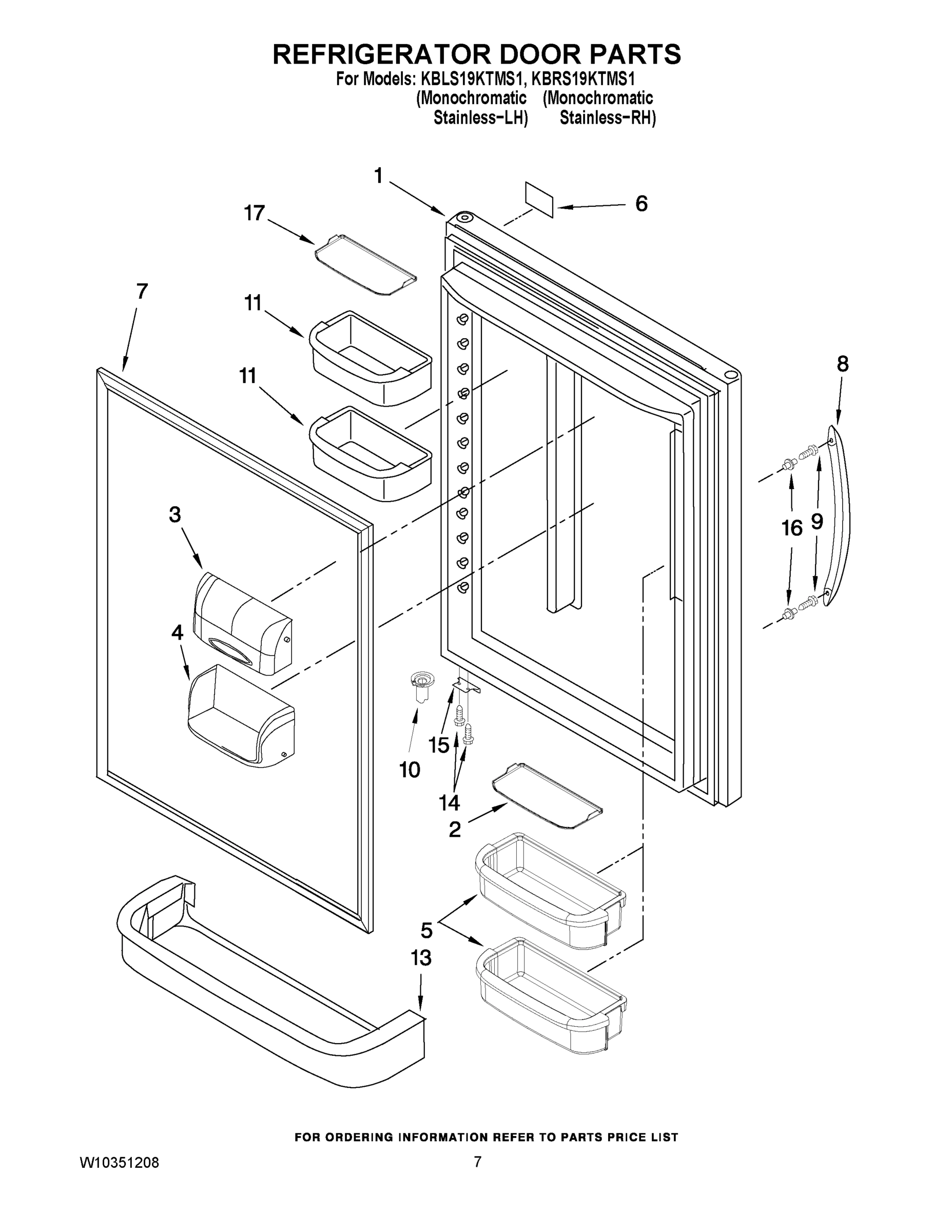

Model Whirlpool KBRS19KTMS1 REFRIGERATOR – Common Parts &amp; Diagrams

1

W10251970 Whirlpool Refrigerator Ladder Backorder WPL W10251970 $11.91

1

DOOR, FREEZER (MONO STAINLESS) WPL 13092272S Contact Us For Availability

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $52.96

2

WPW10314517K Whirlpool Refrigerator Handle Backorder WPL WPW10314517K $120.76

3

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $9.68

3

W10273463 Whirlpool Refrigerator Ladder Backorder WPL W10273463 $11.38

3

W10480107 Whirlpool Refrigerator Plate Backorder WPL W10480107 $59.49

3

WP67006113 Whirlpool Stud Bolt In Stock WPL WP67006113 $5.82

3

OVERLAY WPL W10207257 Contact Us For Availability

4

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $3.33

4

W10443312 Whirlpool Refrigerator FIP Gasket Backorder WPL W10443312 $124.07

5

W10802329 Whirlpool Refrigerator Shaft Backorder WPL W10802329 $43.52

6

W11402522 Whirlpool Refrigerator Glass Shelf Backorder WPL W11402522 $124.05

6

NAMEPLATE WPL W10046610 Contact Us For Availability

6

TUBE, DISCHARGE WPL W10296293 Contact Us For Availability

7

W11260592 Whirlpool Refrigerator Wire Harness Backorder WPL W11260592 $43.99

7

W11676571 Whirlpool Refrigerator FIP Gasket Backorder WPL W11676571 $83.93

7

WP67006642 Whirlpool Refrigerator Pin Backorder WPL WP67006642 $3.70

8

WPW10655367 Whirlpool Refrigerator Drip Pan In Stock WPL WPW10655367 $69.53

9

W10829281 Whirlpool Refrigerator Screw In Stock WPL W10829281 $5.01

9

SCREW-HANDLE WPL W10290759 Contact Us For Availability

10

W11469652 Whirlpool Refrigerator Shield Backorder WPL W11469652 $10.76

10

WP12028505AP Whirlpool Closing Cam In Stock WPL WP12028505AP $43.13

10

WP12729127 Whirlpool Refrigerator Heater In Stock WPL WP12729127 $69.72

11

W11092534 Whirlpool Refrigerator Clip Backorder WPL W11092534 $4.39

12

W10293291 Whirlpool Refrigerator Start Device Backorder WPL W10293291 $64.00

12

WPW10194431 Whirlpool Start Device In Stock WPL WPW10194431 $62.01

13

W11685757 Whirlpool Label Backorder WPL W11685757 $2.29

13

WP12227302WD Whirlpool Refrigerator Shelf Sup Backorder WPL WP12227302WD $36.18

13

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $39.73

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $4.52

Backorder WPL W11750607 $19.22

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $3.33

WPW10231481 Whirlpool Refrigerator Shelf Trim In Stock WPL WPW10231481 $42.36

WPW10277025 Whirlpool Refrigerator Housing Backorder WPL WPW10277025 $54.90

W10206336 Whirlpool Refrigerator Extension Backorder WPL W10206336 $27.52

W11401472 Whirlpool Refrigerator Door Stop Backorder WPL W11401472 $10.76

W11689473 Whirlpool Door Hinge In Stock WPL W11689473 $26.41

WPW10196393 Whirlpool Control Damper In Stock WPL WPW10196393 $93.06

CLIP, EVAP. MOTOR WPL 13058002 Contact Us For Availability

16

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $4.70

17

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $3.70

17

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $4.52

W10241046 Whirlpool Refrigerator Divider Backorder WPL W10241046 $12.44

W10346423 Whirlpool Refrigerator Condenser Backorder WPL W10346423 $95.50

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $16.98

WPW10280608 Whirlpool Refrigerator Bracket Backorder WPL WPW10280608 $36.87

WPW10280613 Whirlpool Refrigerator Bracket Backorder WPL WPW10280613 $36.87

W10206339 Whirlpool Fastener Backorder WPL W10206339 $4.70

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $75.69

WPW10515762 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515762 $42.21

WPW10515763 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515763 $49.66

20

A3189394 Whirlpool Refrigerator Gasket Backorder WPL A3189394 $10.76

20

WP98165 Whirlpool Screw In Stock WPL WP98165 $2.51

20

TRAY, DRIP WPL W10292801 Contact Us For Availability

W11106366 Whirlpool Refrigerator Door Hinge Backorder WPL W11106366 $27.89

WPW10284684 Whirlpool Refrigerator Bracket In Stock WPL WPW10284684 $15.24

WPW10284685 Whirlpool Refrigerator Bracket In Stock WPL WPW10284685 $15.34

Screw WPL 12992101 Contact Us For Availability

22

W10920993 Whirlpool Refrigerator Evaporator Backorder WPL W10920993 $155.31

22

WPW10534165 Whirlpool Refrigerator Front Gril Backorder WPL WPW10534165 $36.40

23

WP67001098 Whirlpool Refrigerator Tube Cover Backorder WPL WP67001098 $3.70

23

Dam (Left Side) WPL 12225602 Contact Us For Availability

23

Dam (Right Side) WPL 12225702 Contact Us For Availability

24

W11613295 Whirlpool Condenser Motor In Stock WPL W11613295 $50.82

24

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

25

W10121318 Whirlpool Refrigerator Grommet In Stock WPL W10121318 $28.66

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $62.75

26

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $44.47

26

WPW10234024 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10234024 $176.20

27

W11684617 Whirlpool Valve Cover Backorder WPL W11684617 $7.41

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $15.50

28

W10210978 Whirlpool Refrigerator Back Cover Backorder WPL W10210978 $79.68

28

W10233960 Whirlpool Refrigerator Compressor In Stock WPL W10233960 $303.59

29

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $29.06

30

67006434 Whirlpool Axle Pin In Stock WPL 67006434 $3.70

30

W10328331 Whirlpool Refrigerator Utility Pan Backorder WPL W10328331 $76.02

30

INSULATION, SOUND WPL 12820505 Contact Us For Availability

31

W10619951 Whirlpool Drain Tube with Grommet In Stock WPL W10619951 $25.33

31

W11556315 Whirlpool Shroud In Stock WPL W11556315 $30.01

32

B5759655 Whirlpool Refrigerator Gasket In Stock WPL B5759655 $7.69

34

W10281329 Whirlpool Clamp In Stock WPL W10281329 $6.59

35

WP67005149 Whirlpool Roller In Stock WPL WP67005149 $10.76

36

CLIP, EVAP (2) WPL 10623002 Contact Us For Availability

37

WPW10137529 Whirlpool Refrigerator Grommet Backorder WPL WPW10137529 $3.70

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $29.35

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

ICEMAKER In Stock WPL W11762633 $161.98

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (BLACK (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

REFRIGERANT CHARGE (4.25 OZS. (R-134A)) WPL NP Contact Us For Availability
