Model GE JVM1331WW05 – Common Parts & Diagrams

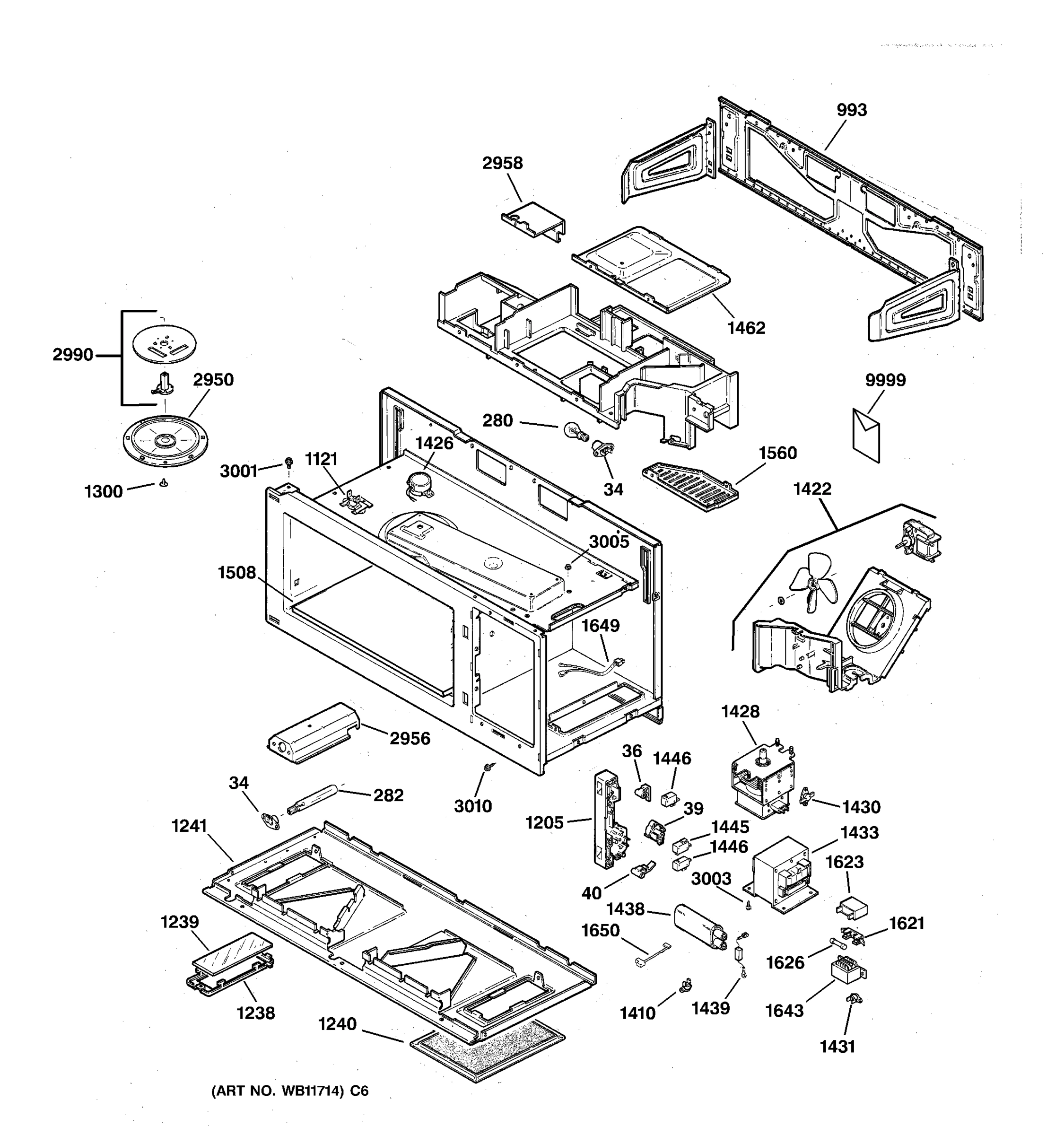

BASE, STIRRER & ELECTRONICS

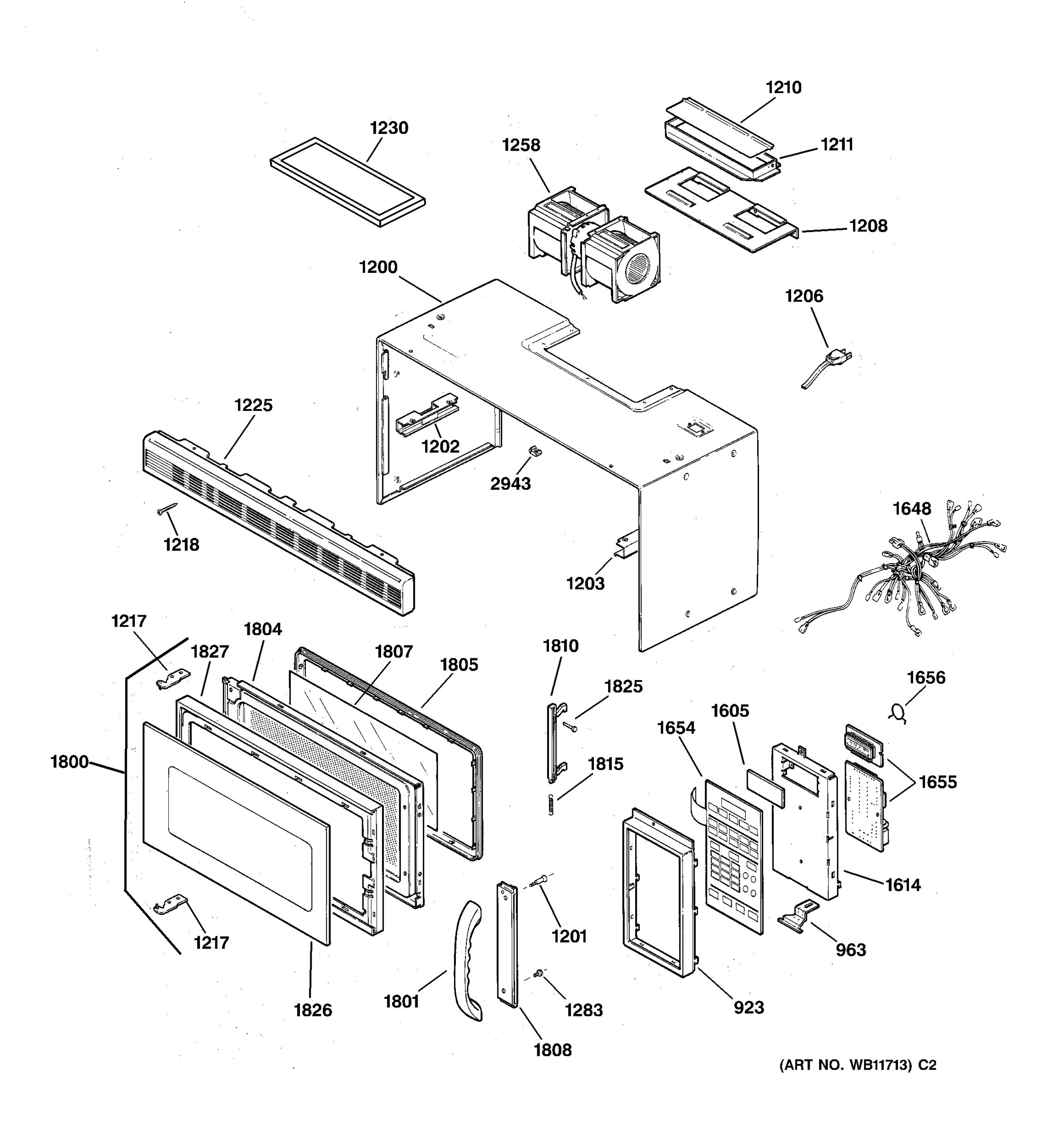

CASE, DOOR & CONTROLS
Common parts from model GE JVM1331WW05
39
GEN WB06X0490 GEN WB06X0490 Contact Us For Availability
40
LEVER SWITCH LOWER GEN WB06X0491 Contact Us For Availability
923
GEN WB07X2080 GEN WB07X2080 Contact Us For Availability
963
HINGE, CONTROL BOX GEN WB14X0204 Contact Us For Availability
993
ASSY-MOUNTING PLATE GEN WB56X2147 Contact Us For Availability
1121
GEN WB20X0170 GEN WB20X0170 Contact Us For Availability
1200
GEN WB56X2184 GEN WB56X2184 Contact Us For Availability
1201
SCREW, TAPPING GEN WB01X1524 Contact Us For Availability
1202
BRACKET, CASE-LEFT GEN WB06X0510 Contact Us For Availability
1203
BRACKET, CASE-RIGHT GEN WB06X0511 Contact Us For Availability
1205
GEN WB06X0484 GEN WB06X0484 Contact Us For Availability
1206
GEN WB18X0566 GEN WB18X0566 Contact Us For Availability
1208
GEN WB06X0387 GEN WB06X0387 Contact Us For Availability
1217
HINGE DOOR - UPPER GEN WB14X0203 Contact Us For Availability
1218
SCREW, GRILLE MOUNTING GEN WB01X1464 Contact Us For Availability
1225
GEN WB07X2083 GEN WB07X2083 Contact Us For Availability
1230
GEN WB06X0186 GEN WB06X0186 Contact Us For Availability
1238
GEN WB06X0483 GEN WB06X0483 Contact Us For Availability
1241
GEN WB56X2182 GEN WB56X2182 Contact Us For Availability
1258
MOTOR-VENTILATION GEN WB26X0182 Contact Us For Availability
1283
GEN WB01X0861 GEN WB01X0861 Contact Us For Availability
1300
GEN WB01X1498 GEN WB01X1498 Contact Us For Availability
1422
GEN WB26X0183 GEN WB26X0183 Contact Us For Availability
1426
GEN WB26X0154 GEN WB26X0154 Contact Us For Availability
1430
GEN WB24X0819 GEN WB24X0819 Contact Us For Availability
1433
GEN WB27X1112 GEN WB27X1112 Contact Us For Availability
1438
CAPACITOR, H.V. GEN WB27X0949 Contact Us For Availability
1462
BRACKET-UPPER DUCT GEN WB06X0493 Contact Us For Availability
1508
TRAY-COOKING GEN WB39X0079 Contact Us For Availability
1560
COVER-FRONT GEN WB06X0495 Contact Us For Availability
1605
GEN WB36X0944 GEN WB36X0944 Contact Us For Availability
1614
GEN WB06X10097 GEN WB06X10097 Contact Us For Availability
1621
HOLDER-FUSE GEN WB06X0234 Contact Us For Availability
1626
GEN WB27X0995 GEN WB27X0995 Contact Us For Availability
1643
GEN WB27X1108 GEN WB27X1108 Contact Us For Availability
1648
GEN WB18X10044 GEN WB18X10044 Contact Us For Availability
1649
ASSY WIRE HARNESS-C GEN WB18X0565 Contact Us For Availability
1650
GEN WB18X0453 GEN WB18X0453 Contact Us For Availability
1654
GEN WB27X10124 GEN WB27X10124 Contact Us For Availability
1655
GEN WB27X10109 GEN WB27X10109 Contact Us For Availability
1656
GEN WB27X0956 GEN WB27X0956 Contact Us For Availability
1800
GEN WB55X0992 GEN WB55X0992 Contact Us For Availability
1801
GEN WB15X0335 GEN WB15X0335 Contact Us For Availability
1804
GEN WB55X0983 GEN WB55X0983 Contact Us For Availability
1805
GEN WB55X0986 GEN WB55X0986 Contact Us For Availability
1807
FILM-DOOR GEN WB36X0943 Contact Us For Availability
1808
GEN WB06X0498 GEN WB06X0498 Contact Us For Availability
1810
GEN WB10X0301 GEN WB10X0301 Contact Us For Availability
1815
SPRING-LATCH DOOR GEN WB09X0303 Contact Us For Availability
1825
GEN WB06X0480 GEN WB06X0480 Contact Us For Availability
1826
GEN WB36X0941 GEN WB36X0941 Contact Us For Availability
1827
GEN WB55X0980 GEN WB55X0980 Contact Us For Availability
2943
GEN WB01X1502 GEN WB01X1502 Contact Us For Availability
2950
COVER-STIRRER GEN WB06X0494 Contact Us For Availability
2956
COVER-LAMP GEN WB06X0488 Contact Us For Availability
2958
COVER-OVEN LAMP GEN WB06X0492 Contact Us For Availability
2990
GEN WB06X0496 GEN WB06X0496 Contact Us For Availability
3001
BOLT-FLANGE GEN WB01X1457 Contact Us For Availability
3010
GEN WB01X0894 GEN WB01X0894 Contact Us For Availability
9999
GEN 31-20901 GEN 31-20901 Contact Us For Availability
9999
GEN 49-8694 GEN 49-8694 Contact Us For Availability
9999
GEN 49-8699 GEN 49-8699 Contact Us For Availability
9999
GEN 49-8729 GEN 49-8729 Contact Us For Availability
9999
GEN 49-8729-1 GEN 49-8729-1 Contact Us For Availability
9999
ASSY-HARD WARE GEN WB01X1526 Contact Us For Availability
× ![]()
