Model GE JVM1190SY002 – Common Parts & Diagrams

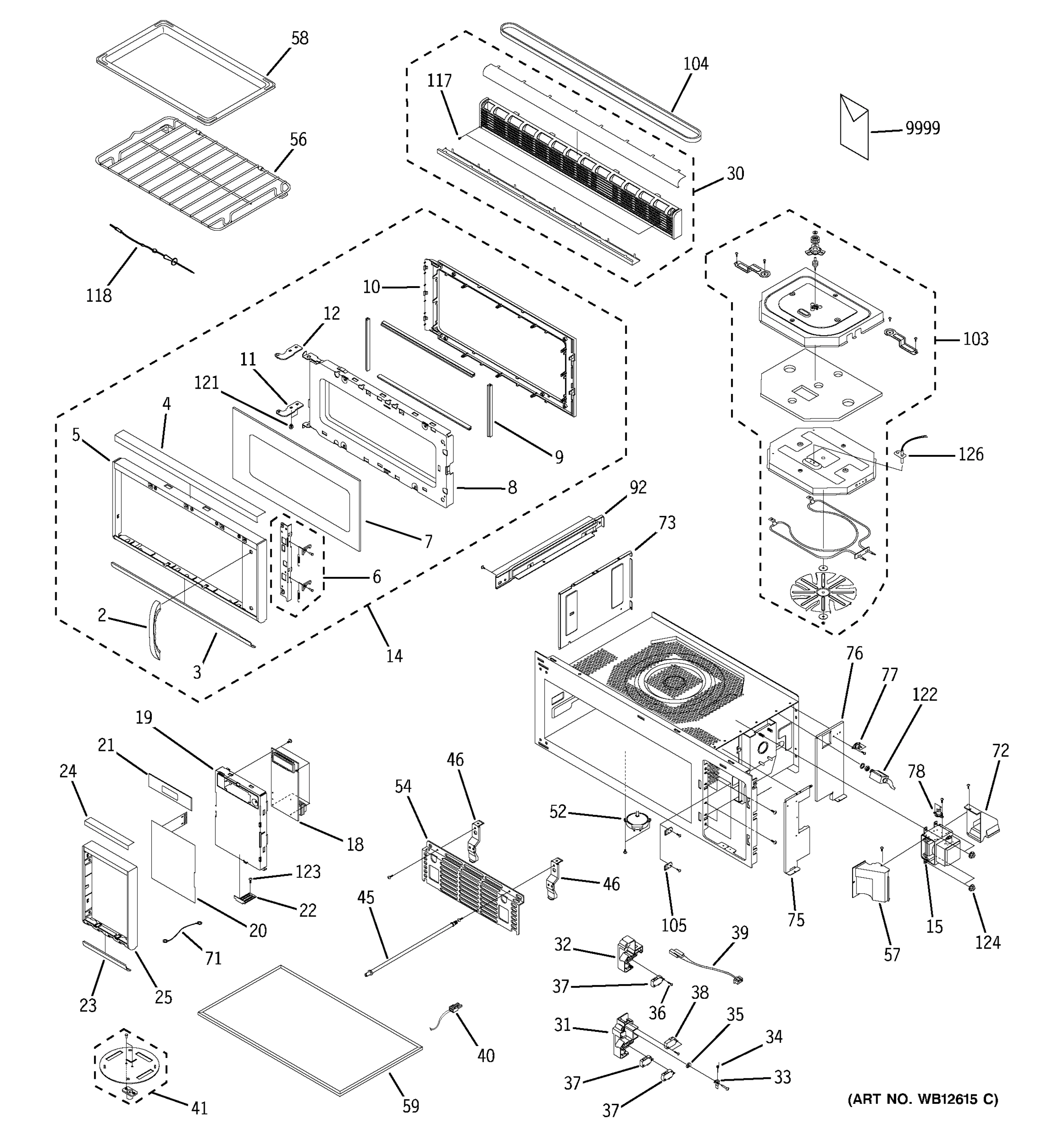

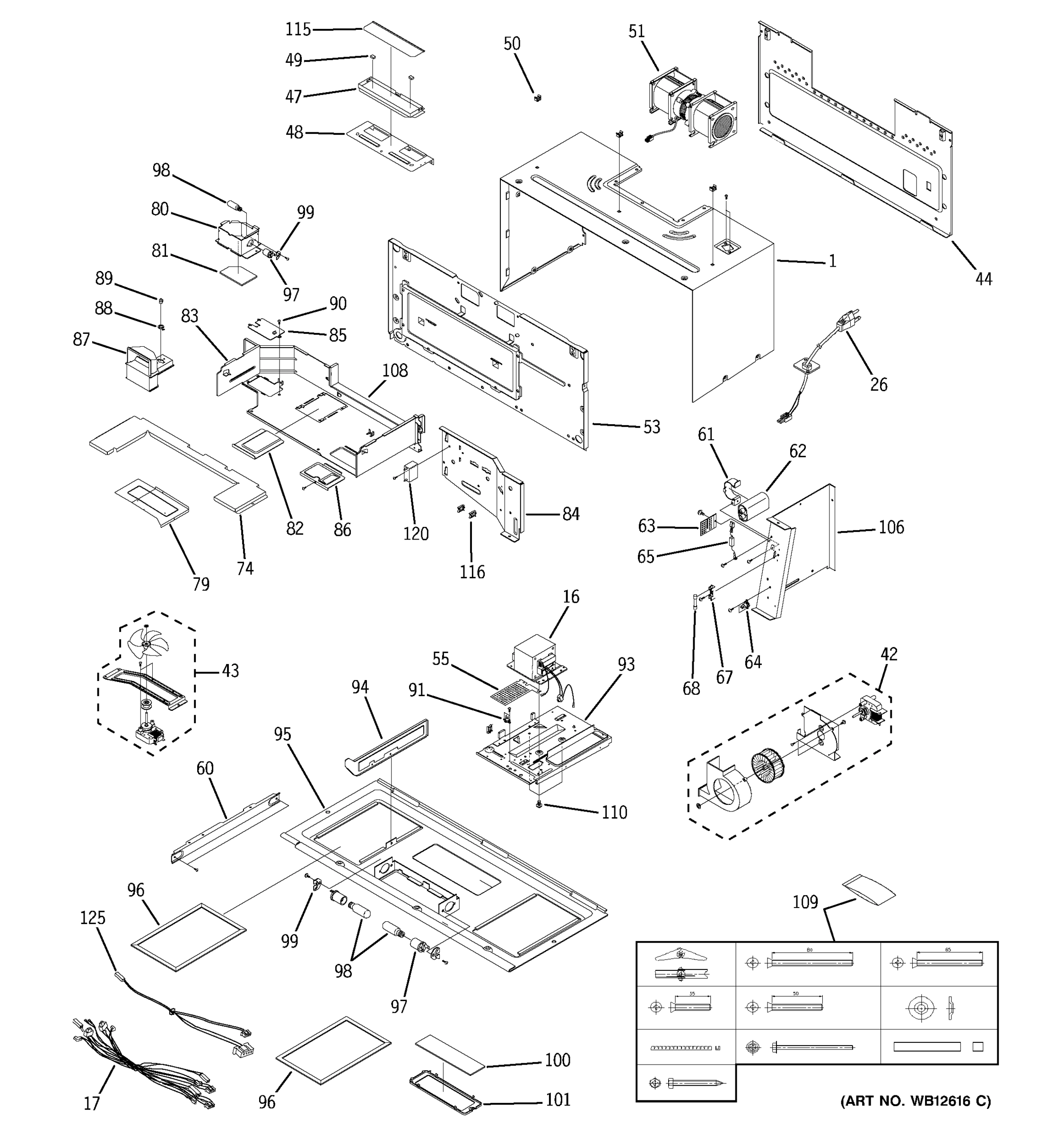

CASE & INTERIOR PARTS
DOOR & CASE PARTS
Common parts from model GE JVM1190SY002
2
GEN WB15X10092 GEN WB15X10092 Contact Us For Availability
3
GEN WB07X2047 GEN WB07X2047 Contact Us For Availability
4
SASH-DOOR-U GEN WB55X10573 Contact Us For Availability
5
GEN WB55X10574 GEN WB55X10574 Contact Us For Availability
6
GEN WB05X10008 GEN WB05X10008 Contact Us For Availability
7
GEN WB36X10229 GEN WB36X10229 Contact Us For Availability
8
GEN WB55X10571 GEN WB55X10571 Contact Us For Availability
9
GEN WB02X10868 GEN WB02X10868 Contact Us For Availability
10
GEN WB55X10572 GEN WB55X10572 Contact Us For Availability
11
GEN WB14X10029 GEN WB14X10029 Contact Us For Availability
12
GEN WB14X10030 GEN WB14X10030 Contact Us For Availability
14
GEN WB55X10525 GEN WB55X10525 Contact Us For Availability
18
GEN WB27X10663 GEN WB27X10663 Contact Us For Availability
19
GEN WB06X10484 GEN WB06X10484 Contact Us For Availability
20
GEN WB27X10228 GEN WB27X10228 Contact Us For Availability
21
GEN WB36X0954 GEN WB36X0954 Contact Us For Availability
22
GEN WB14X0159 GEN WB14X0159 Contact Us For Availability
23
TRIM-CONTR PANEL,LWR-BLK GEN WB07X2045 Contact Us For Availability
24
GEN WB07X2044 GEN WB07X2044 Contact Us For Availability
25
GEN WB07X2043 GEN WB07X2043 Contact Us For Availability
30
GEN WB07X2039 GEN WB07X2039 Contact Us For Availability
31
GEN WB06X10169 GEN WB06X10169 Contact Us For Availability
32
BODY-LATCH-U GEN WB06X0048 Contact Us For Availability
33
LEVER-HOOK GEN WB02X4261 Contact Us For Availability
34
SPRING-KEY GEN WB09X0199 Contact Us For Availability
35
CAM-SWITCH GEN WB02X4260 Contact Us For Availability
36
SCREW-CAM GEN WB01X0721 Contact Us For Availability
39
GEN WB18X10208 GEN WB18X10208 Contact Us For Availability
40
GEN WB18X10209 GEN WB18X10209 Contact Us For Availability
41
STIRRER ASM GEN WB06X0045 Contact Us For Availability
42
GEN WB26X10123 GEN WB26X10123 Contact Us For Availability
45
SHAFT-MOUNTING GEN WB06X0030 Contact Us For Availability
46
GEN WB02X4238 GEN WB02X4238 Contact Us For Availability
50
GEN WB01X10066 GEN WB01X10066 Contact Us For Availability
51
GEN WB26X10124 GEN WB26X10124 Contact Us For Availability
52
MOTOR-SYNCHRONOUS GEN WB26X0154 Contact Us For Availability
53
GEN WB56X10313 GEN WB56X10313 Contact Us For Availability
54
BARRIER-FRONT GEN WB06X0031 Contact Us For Availability
55
GEN WB06X10474 GEN WB06X10474 Contact Us For Availability
56
GEN WB48X10027 GEN WB48X10027 Contact Us For Availability
57
DUCT-MGT GEN WB06X0053 Contact Us For Availability
58
PAN-BROIL GEN WB49X0664 Contact Us For Availability
59
GEN WB39X0075 GEN WB39X0075 Contact Us For Availability
60
GEN WB06X0055 GEN WB06X0055 Contact Us For Availability
61
BRACKET-HVC GEN WB06X0064 Contact Us For Availability
63
GEN WB06X10475 GEN WB06X10475 Contact Us For Availability
64
GEN WB27X10664 GEN WB27X10664 Contact Us For Availability
67
GEN WB06X10005 GEN WB06X10005 Contact Us For Availability
71
GEN WB18X10140 GEN WB18X10140 Contact Us For Availability
72
DUCT-AIR GEN WB06X0057 Contact Us For Availability
73
PLATE-HEATER-L GEN WB06X0040 Contact Us For Availability
74
PLATE-HEATER-U GEN WB06X0016 Contact Us For Availability
75
GEN WB06X10476 GEN WB06X10476 Contact Us For Availability
76
GEN WB06X10477 GEN WB06X10477 Contact Us For Availability
78
THERMOSTAT-MAGNETRON GEN WB21X0536 Contact Us For Availability
79
SUPPORTER-V/MOTOR GEN WB06X0056 Contact Us For Availability
80
COVER-OVEN LAMP-U GEN WB04X0128 Contact Us For Availability
81
GLASS-LAMP GEN WB06X0037 Contact Us For Availability
82
DUCT-COVER GEN WB06X0014 Contact Us For Availability
83
GEN WB06X10478 GEN WB06X10478 Contact Us For Availability
84
GEN WB06X10479 GEN WB06X10479 Contact Us For Availability
85
GEN WB06X0308 GEN WB06X0308 Contact Us For Availability
86
GEN WB04X0129 GEN WB04X0129 Contact Us For Availability
87
GEN WB06X0034 GEN WB06X0034 Contact Us For Availability
89
GEN WB06X0309 GEN WB06X0309 Contact Us For Availability
90
GEN WB01X1465 GEN WB01X1465 Contact Us For Availability
92
GEN WB06X10480 GEN WB06X10480 Contact Us For Availability
93
GEN WB56X10314 GEN WB56X10314 Contact Us For Availability
94
GEN WB06X10481 GEN WB06X10481 Contact Us For Availability
95
BASE BOTTOM ASS'Y GEN WB56X2114 Contact Us For Availability
97
GEN WB08X0300 GEN WB08X0300 Contact Us For Availability
99
GEN WB08X0306 GEN WB08X0306 Contact Us For Availability
100
GLASS-COOKTOP LAMP GEN WB36X0820 Contact Us For Availability
101
GEN WB36X0830 GEN WB36X0830 Contact Us For Availability
103
GEN WB06X10417 GEN WB06X10417 Contact Us For Availability
104
BELT-RUBBER GEN WB06X0063 Contact Us For Availability
105
GEN WB04X0185 GEN WB04X0185 Contact Us For Availability
106
GEN WB06X10483 GEN WB06X10483 Contact Us For Availability
108
GEN WB06X0012 GEN WB06X0012 Contact Us For Availability
109
GEN WB02X10516 GEN WB02X10516 Contact Us For Availability
110
SCREW-TAP PH GEN WB01X0858 Contact Us For Availability
115
FRAME, MAIN DAMPER GEN WB02X4230 Contact Us For Availability
116
WIRE-SADDLE GEN WB02X9330 Contact Us For Availability
117
GEN WB01X10062 GEN WB01X10062 Contact Us For Availability
118
SENSOR-THERMISTOR GEN WB20X0135 Contact Us For Availability
121
GEN WB01X10064 GEN WB01X10064 Contact Us For Availability
122
SOCKET-PROBE GEN WB08X0302 Contact Us For Availability
123
GEN WB01X10063 GEN WB01X10063 Contact Us For Availability
124
NUT-FLANGE GEN WB01X10065 Contact Us For Availability
125
GEN WB18X10210 GEN WB18X10210 Contact Us For Availability
126
SENSOR-THERMISTOR GEN WB27X0596 Contact Us For Availability
9999
MINI-MANUAL GEN 31-20296 Contact Us For Availability
9999
GEN 49-40008 GEN 49-40008 Contact Us For Availability
9999
GEN 49-40009 GEN 49-40009 Contact Us For Availability
9999
GEN 49-40010 GEN 49-40010 Contact Us For Availability
9999
GEN 49-40063-2 GEN 49-40063-2 Contact Us For Availability
9999
GEN 49-8845 GEN 49-8845 Contact Us For Availability
× ![]()
