Model GE JT3500DF4BB Electric Range – Common Parts & Diagrams
CONTROL PANEL
UPPER OVEN
CENTER SPACER
LOWER OVEN
UPPER DOOR
LOWER DOOR
DOOR LOCK
PEDESTAL

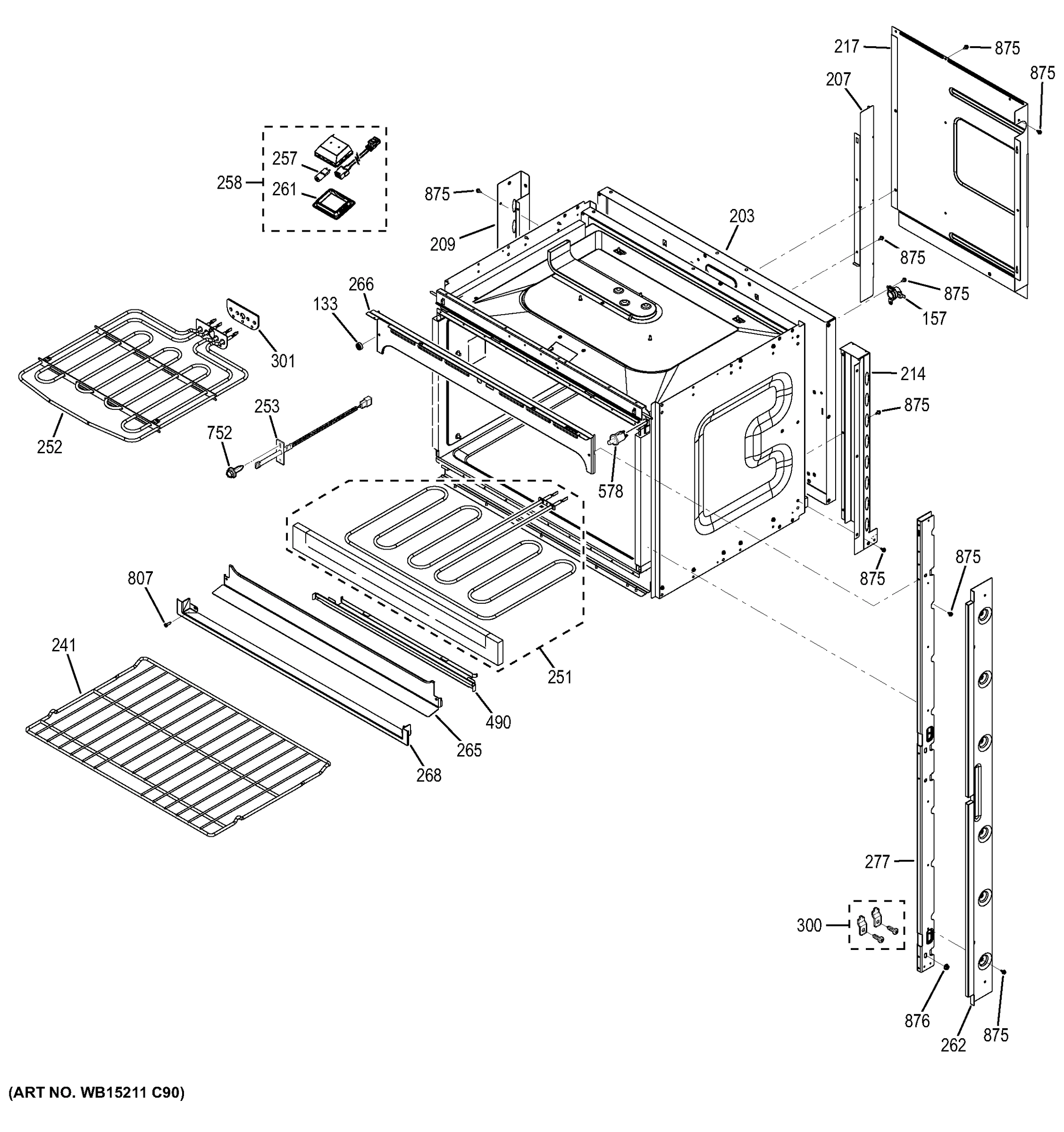

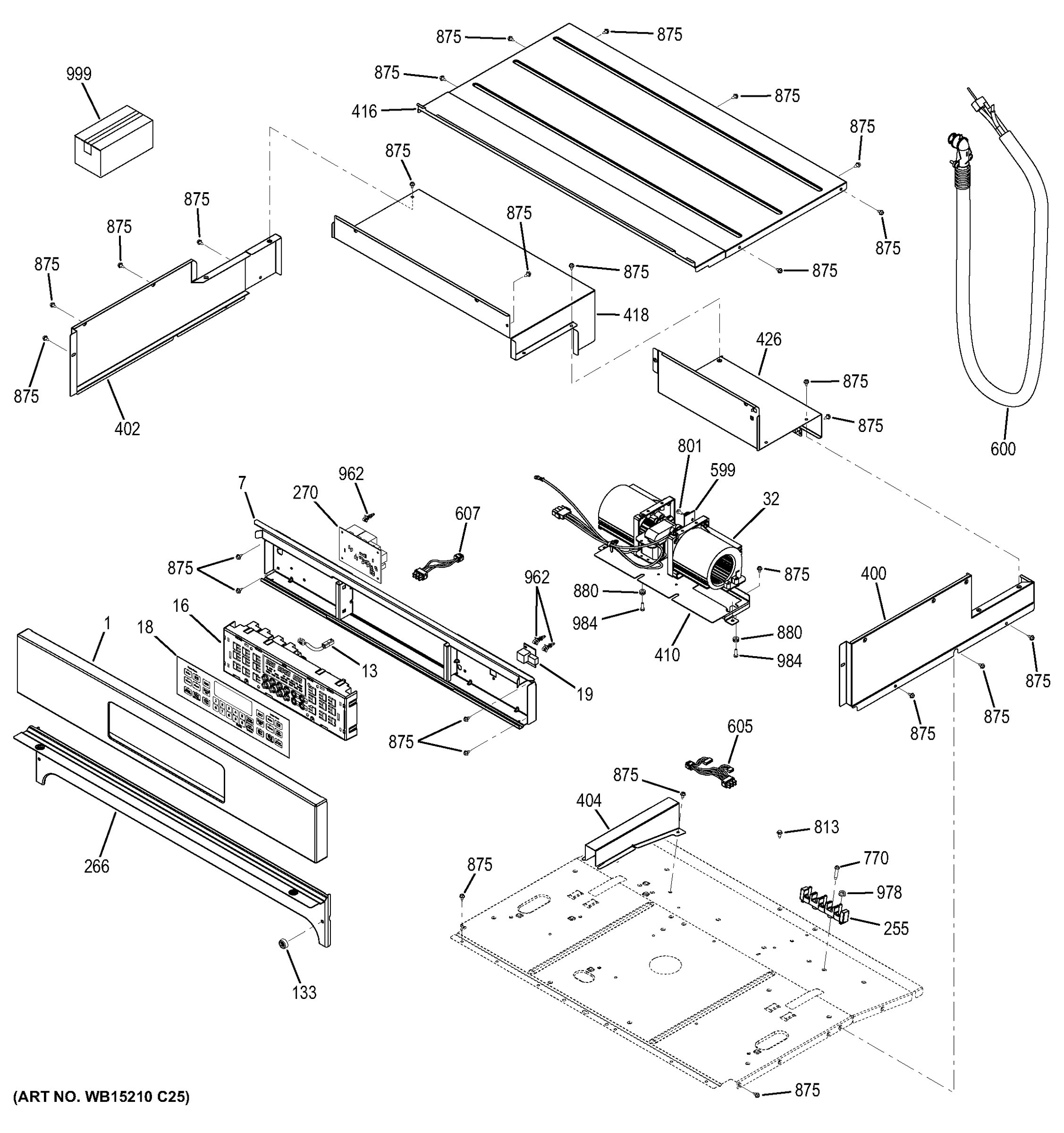

Common parts from model GE JT3500DF4BB Electric Range
7
MOUNTING PANEL-CONTROL GEN WB37T10031 Contact Us For Availability
16
CONTROL BOARD T012 ELE GEN WB27X25346 Contact Us For Availability
18
OVERLAY GEN WB27T11464 Contact Us For Availability
32
COOLING FAN GEN WB26X24020 Contact Us For Availability
101
INSULATION DR TOP GEN WB35X21737 Contact Us For Availability
102
INSULATION DR SIDE GEN WB35X21672 Contact Us For Availability
133
BUMPER DOOR GEN WB03T10341 Contact Us For Availability
144
SUPPORT HANDLE GEN WB02T10603 Contact Us For Availability
145
DEFLECTOR OVEN DOOR GEN WB34T10142 Contact Us For Availability
150
LATCH ASM GEN WB10X23814 Contact Us For Availability
208
DIVIDER AIR DOUBLE OVEN GEN WB34T10140 Contact Us For Availability
209
CHANNEL REAR LT GEN WB34X21910 Contact Us For Availability
217
COVER - UPPER REAR DUCT GEN WB34T10136 Contact Us For Availability
251
HIDDEN BAKE ELEMENT KIT GEN WB44X21667 Contact Us For Availability
253
SENSOR ASM GEN WB21X10165 Contact Us For Availability
257
LAMP HALOGEN BULB G9 GEN WB25T10102 Contact Us For Availability
261
LENS OVEN LIGHT GEN WB34T10145 Contact Us For Availability
262
TRIM VERT SIDE BK GEN WB07T10744 Contact Us For Availability
265
TRIM VENT LWR GEN WB07X21783 Contact Us For Availability
266
TRIM VENT UPPER BLACK GEN WB07T10805 Contact Us For Availability
268
TRIM BOTTOM CABINET GEN WB07T10761 Contact Us For Availability
269
TRIM BOTTOM CABINET GEN WB07T10788 Contact Us For Availability
300
HINGE BRACKET ASM KIT GEN WB49X21652 Contact Us For Availability
338
WINDOW PACK ASM GEN WB56X27480 Contact Us For Availability
352
CHANNEL PEDESTAL RIGHT GEN WB37T10028 Contact Us For Availability
353
CHANNEL PEDESTAL LEFT GEN WB37T10029 Contact Us For Availability
354
PEDESTAL ASM GEN WB63X25756 Contact Us For Availability
402
COVER TOP LEFT EDGE GEN WB44T10126 Contact Us For Availability
490
COVER HIDDEN BAKE GEN WB55T10197 Contact Us For Availability
578
SWITCH SPDT HIGH AMP GEN WB24T10147 Contact Us For Availability
599
BOARD FAN SENSOR GEN WB27T11463 Contact Us For Availability
600
CONDUIT WIRE ASM GEN WB18T10573 Contact Us For Availability
600
OPTIONAL 6 FT CONDUIT GEN WB18T10580 Contact Us For Availability
801
6-19 X 1/4 TORX PAN HEAD GEN WD02X10129 Contact Us For Availability
936
SCREW 10-16 2 1/2 IN T20 GEN WB01T10129 Contact Us For Availability
937
SCREW 10-16 X 1.000 HWH GEN WB01T10066 Contact Us For Availability
962
STANDOFF PCB GEN WB02T10093 Contact Us For Availability
1005
SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability
× ![]()
