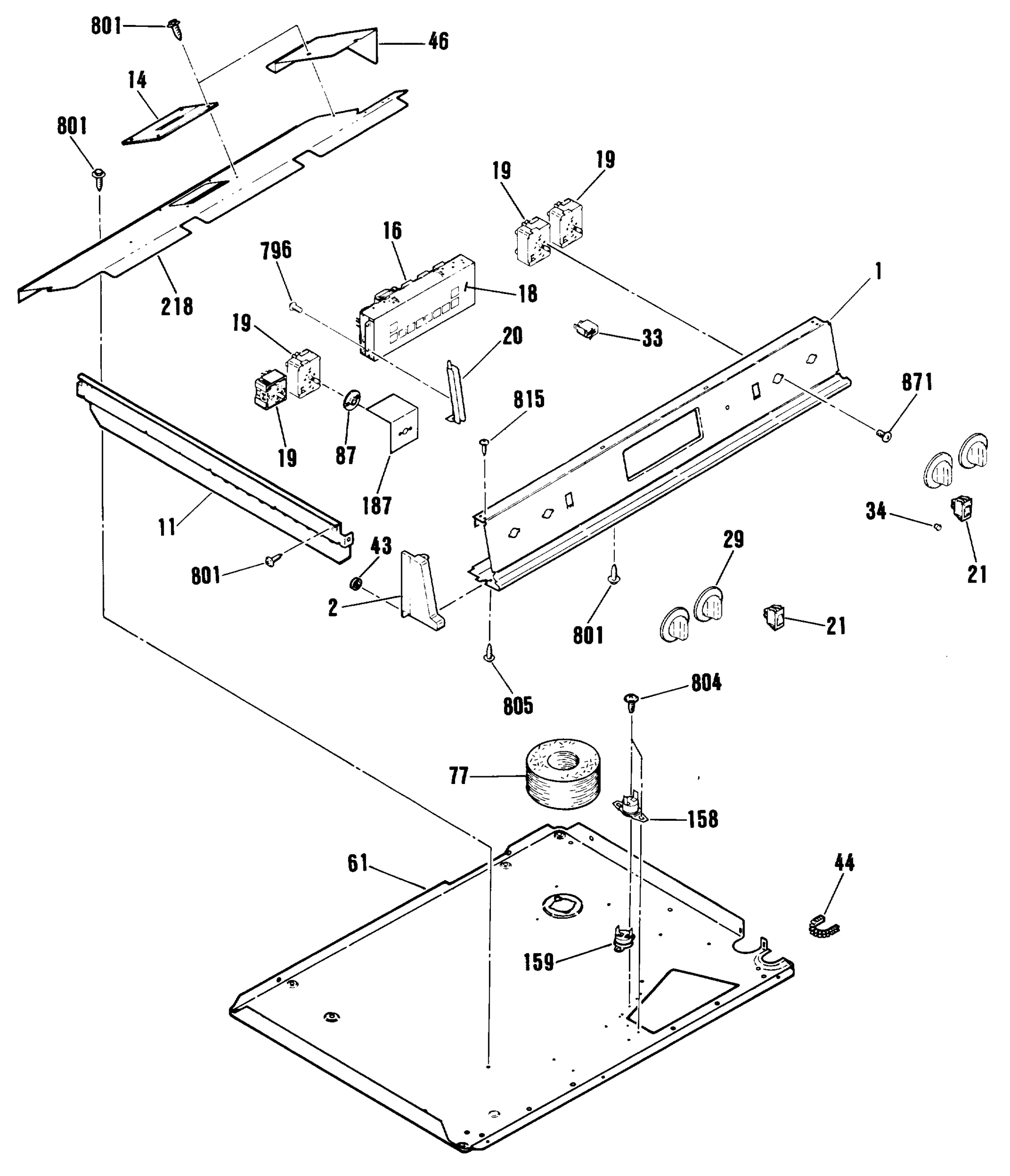

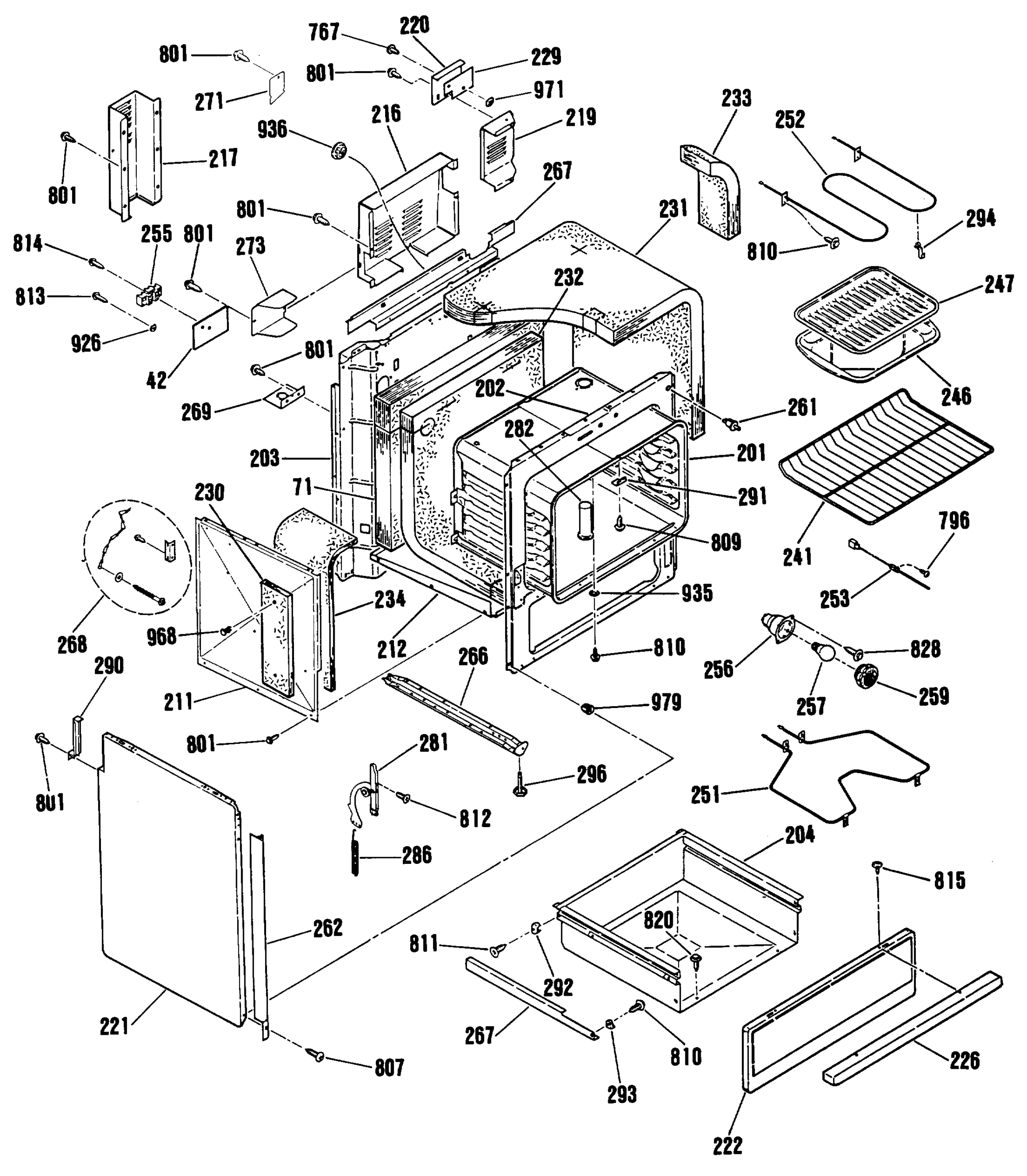

Model GE JSP39GR1 – Common Parts & Diagrams
ELECTRIC RANGE
ELECTRIC RANGE
RANGE
RANGE
RANGE
Common parts from model GE JSP39GR1
2
MANIFOLD END CAP-RT GEN WB36K5135 Contact Us For Availability
9
RACEWAY GEN WB34K5056 Contact Us For Availability
18
GEN WB27K5031 GEN WB27K5031 Contact Us For Availability
19
GEN WB23M0023 GEN WB23M0023 Contact Us For Availability
19
ELEMENT CONTROL 3000W GEN WB24M0025 Contact Us For Availability
20
GEN WB02M0075 GEN WB02M0075 Contact Us For Availability
21
GEN WB24K5064 GEN WB24K5064 Contact Us For Availability
29
GEN WB03K5034 GEN WB03K5034 Contact Us For Availability
36
GEN WB36K5137 GEN WB36K5137 Contact Us For Availability
42
GEN WB34K5128 GEN WB34K5128 Contact Us For Availability
43
SPACER GEN WB02X9099 Contact Us For Availability
44
GEN WB02K5096 GEN WB02K5096 Contact Us For Availability
44
GEN WB02X9725 GEN WB02X9725 Contact Us For Availability
46
GEN WB34K5111 GEN WB34K5111 Contact Us For Availability
48
GEN WB38K5031 GEN WB38K5031 Contact Us For Availability
51
GEN WB57K5123 GEN WB57K5123 Contact Us For Availability
56
GEN WB23M0026 GEN WB23M0026 Contact Us For Availability
57
GEN WB23M0012 GEN WB23M0012 Contact Us For Availability
60
RADIANT HEATER SPRING GEN WB09K5014 Contact Us For Availability
61
GEN WB64K5045 GEN WB64K5045 Contact Us For Availability
62
GEN WB02M0083 GEN WB02M0083 Contact Us For Availability
71
GEN WB35K5075 GEN WB35K5075 Contact Us For Availability
77
GEN WB32M0016 GEN WB32M0016 Contact Us For Availability
82
TERMINAL BLOCK 2350W GEN WB21X0495 Contact Us For Availability
82
TERMINAL BLOCK 1900W GEN WB21X0497 Contact Us For Availability
82
TERMINAL BLOCK 1400W GEN WB24M0016 Contact Us For Availability
90
GLASS SUPPORT FRONT GEN WB02K5211 Contact Us For Availability
90
GEN WB02M0081 GEN WB02M0081 Contact Us For Availability
90
GLASS SUPPORT-BACK GEN WB02M0082 Contact Us For Availability
95
GEN WB02K5210 GEN WB02K5210 Contact Us For Availability
102
GEN WB35K5026 GEN WB35K5026 Contact Us For Availability
111
GEN WB55M0010 GEN WB55M0010 Contact Us For Availability
112
OV DOOR LINING GEN WB56M0001 Contact Us For Availability
113
OV DR INS RETAINER GEN WB02X9372 Contact Us For Availability
114
GEN WB02M0001 GEN WB02M0001 Contact Us For Availability
116
GLASS MOUNTING PLATE GEN WB02X9178 Contact Us For Availability
121
OV DR GLASS ASM-WHT GEN WB57K5182 Contact Us For Availability
122
GEN WB57K5102 GEN WB57K5102 Contact Us For Availability
123
OV DR CENTER GLASS GEN WB56X1907 Contact Us For Availability
124
GEN WB57K5063 GEN WB57K5063 Contact Us For Availability
125
GEN WB35K5031 GEN WB35K5031 Contact Us For Availability
130
HANDLE SPACER GEN WB02K5150 Contact Us For Availability
133
FELT PAD GEN WB01K5115 Contact Us For Availability
133
FELT WASHER GEN WB01X1159 Contact Us For Availability
136
GEN WB15K5047 GEN WB15K5047 Contact Us For Availability
140
GEN WB56K5023 GEN WB56K5023 Contact Us For Availability
143
FIBER WASHER GEN WB01X1138 Contact Us For Availability
146
GEN WB02M0046 GEN WB02M0046 Contact Us For Availability
158
GEN WB24M0015 GEN WB24M0015 Contact Us For Availability
178
GEN WB35M0015 GEN WB35M0015 Contact Us For Availability
178
GEN WB35M0023 GEN WB35M0023 Contact Us For Availability
187
GEN WB34M0036 GEN WB34M0036 Contact Us For Availability
201
GEN WB63K5109 GEN WB63K5109 Contact Us For Availability
202
GEN WB63M0057 GEN WB63M0057 Contact Us For Availability
203
GEN WB63M0056 GEN WB63M0056 Contact Us For Availability
204
GEN WB58X0065 GEN WB58X0065 Contact Us For Availability
211
GEN WB02M0004 GEN WB02M0004 Contact Us For Availability
212
INS RETAINER-LO GEN WB02K5093 Contact Us For Availability
216
GEN WB34M0041 GEN WB34M0041 Contact Us For Availability
217
GEN WB34K5093 GEN WB34K5093 Contact Us For Availability
218
GEN WB34K5133 GEN WB34K5133 Contact Us For Availability
219
GEN WB34K5174 GEN WB34K5174 Contact Us For Availability
220
GEN WB34K5175 GEN WB34K5175 Contact Us For Availability
221
GEN WB63M0024 GEN WB63M0024 Contact Us For Availability
221
BODY SIDE RT GEN WB63M0058 Contact Us For Availability
222
GEN WB56K5017 GEN WB56K5017 Contact Us For Availability
226
GEN WB15K5010 GEN WB15K5010 Contact Us For Availability
229
GEN WB35K5085 GEN WB35K5085 Contact Us For Availability
230
GEN WB35M0014 GEN WB35M0014 Contact Us For Availability
231
INSULATION TOP/SIDES GEN WB02X9676 Contact Us For Availability
232
INSULATION-OV BTM/BACK GEN WB35K5029 Contact Us For Availability
233
GEN WB35M0024 GEN WB35M0024 Contact Us For Availability
234
GEN WB35M0017 GEN WB35M0017 Contact Us For Availability
241
GEN WB48X0208 GEN WB48X0208 Contact Us For Availability
256
GEN WB08M0003 GEN WB08M0003 Contact Us For Availability
257
GEN BUY LOCAL GEN BUY LOCAL Contact Us For Availability
259
OVEN LAMP LENS GEN WB25M0010 Contact Us For Availability
262
SIDE VENT TRIM-RT GEN WB07K5116 Contact Us For Availability
262
SIDE VENT TRIM-LT GEN WB07K5117 Contact Us For Availability
262
GEN WB07M0018 GEN WB07M0018 Contact Us For Availability
266
GEN WB02M0033 GEN WB02M0033 Contact Us For Availability
267
GEN WB02M0080 GEN WB02M0080 Contact Us For Availability
267
DRAWER SUPPORT RT & LT GEN WB56M0003 Contact Us For Availability
269
RANGE SERVICE MTG PLATE GEN WB02X9427 Contact Us For Availability
271
GEN WB02X9749 GEN WB02X9749 Contact Us For Availability
273
GEN WB34M0027 GEN WB34M0027 Contact Us For Availability
282
GEN WB38M0014 GEN WB38M0014 Contact Us For Availability
286
OV DOOR SPRING GEN WB09X0244 Contact Us For Availability
290
GEN WB63M0021 GEN WB63M0021 Contact Us For Availability
291
GEN WB02X9152 GEN WB02X9152 Contact Us For Availability
292
SLIDE BLOCK REAR GEN WB02X9146 Contact Us For Availability
293
SLIDE BLOCK FRT GEN WB02X9148 Contact Us For Availability
296
GEN WB01M0018 GEN WB01M0018 Contact Us For Availability
337
GEN WB02M0079 GEN WB02M0079 Contact Us For Availability
507
FLEXIBLE HOSE GEN WB26M0017 Contact Us For Availability
511
FAN MOTOR GEN WB26M0019 Contact Us For Availability
512
GEN WB26M0013 GEN WB26M0013 Contact Us For Availability
513
GEN WB26M0018 GEN WB26M0018 Contact Us For Availability
514
GEN WB26M0020 GEN WB26M0020 Contact Us For Availability
520
GEN WB26K5031 GEN WB26K5031 Contact Us For Availability
588
GEN WB25K5017 GEN WB25K5017 Contact Us For Availability
767
SCREW GEN WB01K5136 Contact Us For Availability
805
GEN WB01X1113 GEN WB01X1113 Contact Us For Availability
811
GEN WB01X1172 GEN WB01X1172 Contact Us For Availability
826
GEN WB01X1167 GEN WB01X1167 Contact Us For Availability
831
GEN WB01X1132 GEN WB01X1132 Contact Us For Availability
871
GEN WB01M0013 GEN WB01M0013 Contact Us For Availability
881
TRIM SCREW-BLACK GEN WB01X1271 Contact Us For Availability
892
SET SCREW GEN WB01K5056 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
934
GEN WB01K5054 GEN WB01K5054 Contact Us For Availability
936
GEN WB02M0021 GEN WB02M0021 Contact Us For Availability
962
CLIP GEN WB17M0004 Contact Us For Availability
968
GEN WB02X9393 GEN WB02X9393 Contact Us For Availability
971
GEN WB01M0025 GEN WB01M0025 Contact Us For Availability
979
SPACER GEN WB01X1177 Contact Us For Availability
990
GEN WB01X1432 GEN WB01X1432 Contact Us For Availability
995
GEN WB01M0040 GEN WB01M0040 Contact Us For Availability
996
GEN WB01M0041 GEN WB01M0041 Contact Us For Availability
999
GEN 31-1112 GEN 31-1112 Contact Us For Availability
999
GEN 31-13032 GEN 31-13032 Contact Us For Availability
999
GEN 49-8236 GEN 49-8236 Contact Us For Availability
999
GEN WB18K5249 GEN WB18K5249 Contact Us For Availability
999
GEN WB18K5317 GEN WB18K5317 Contact Us For Availability
999
GEN WB18K5318 GEN WB18K5318 Contact Us For Availability
999
GEN WB18K5319 GEN WB18K5319 Contact Us For Availability
999
GEN WB18K5320 GEN WB18K5320 Contact Us For Availability
× ![]()
