Model GE JSP34AW1AA Electric Range – Common Parts & Diagrams
BLOWER
BODY & DRAWER PARTS

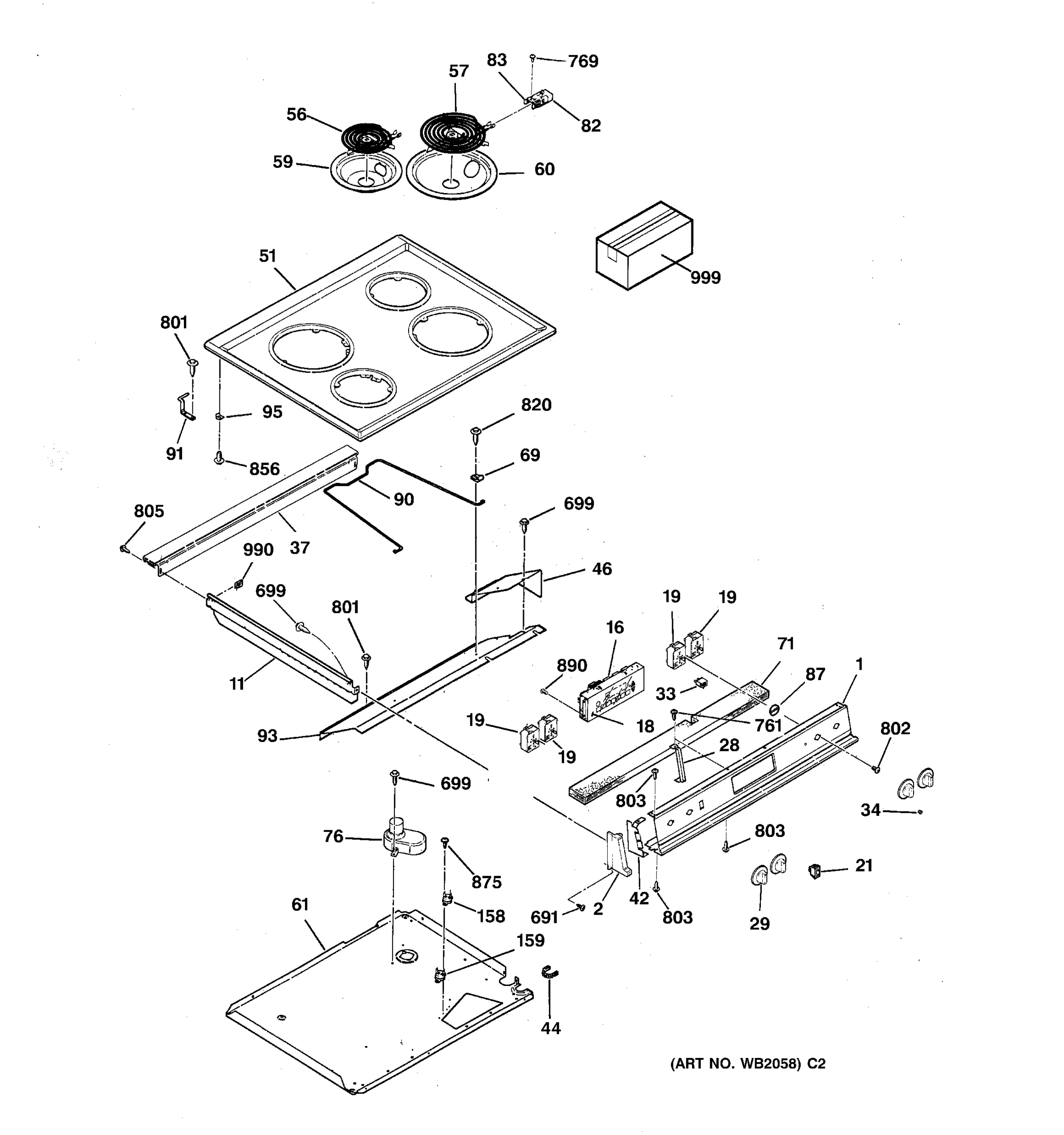

CONTROL PANEL & COOKTOP

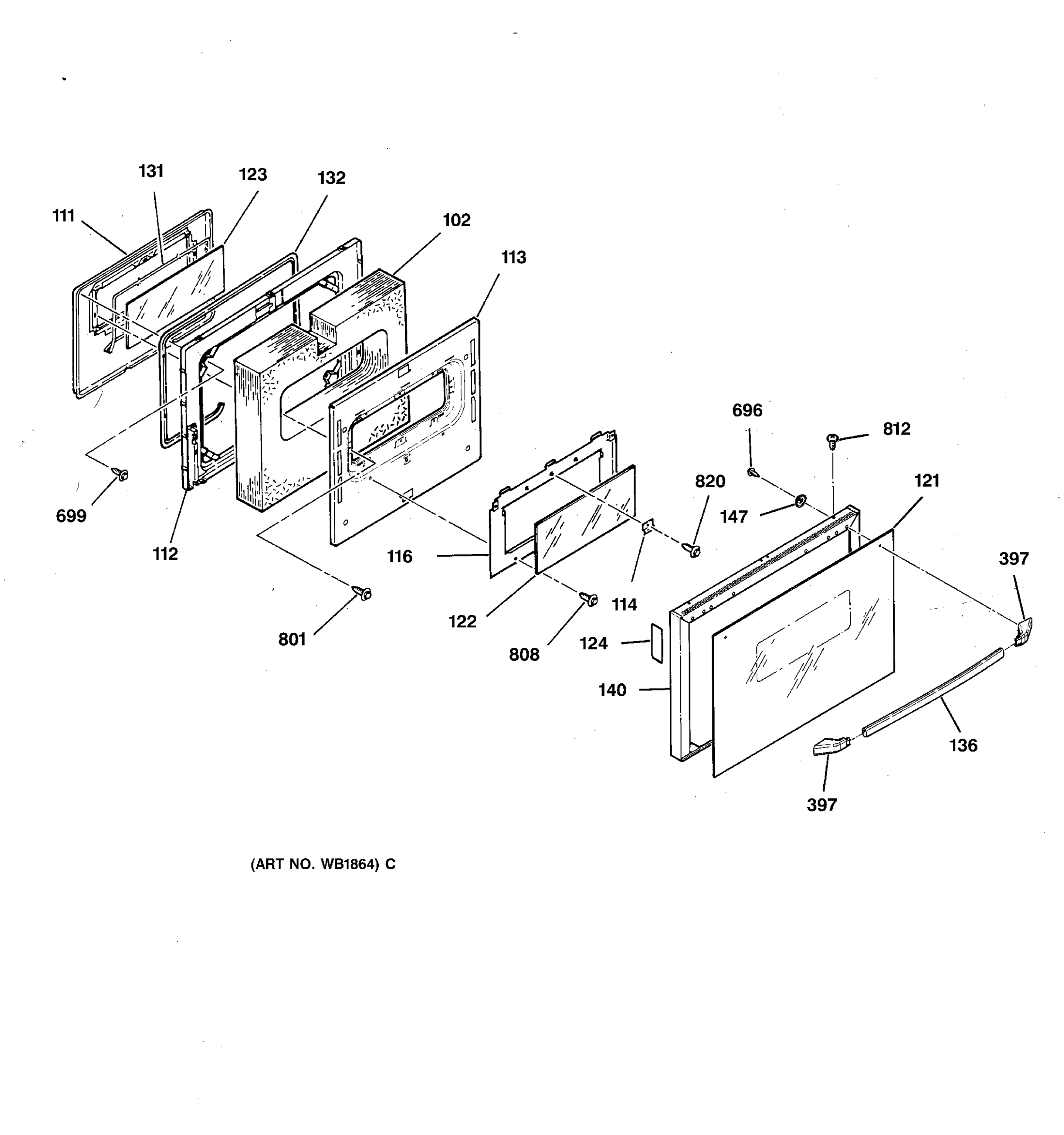

DOOR

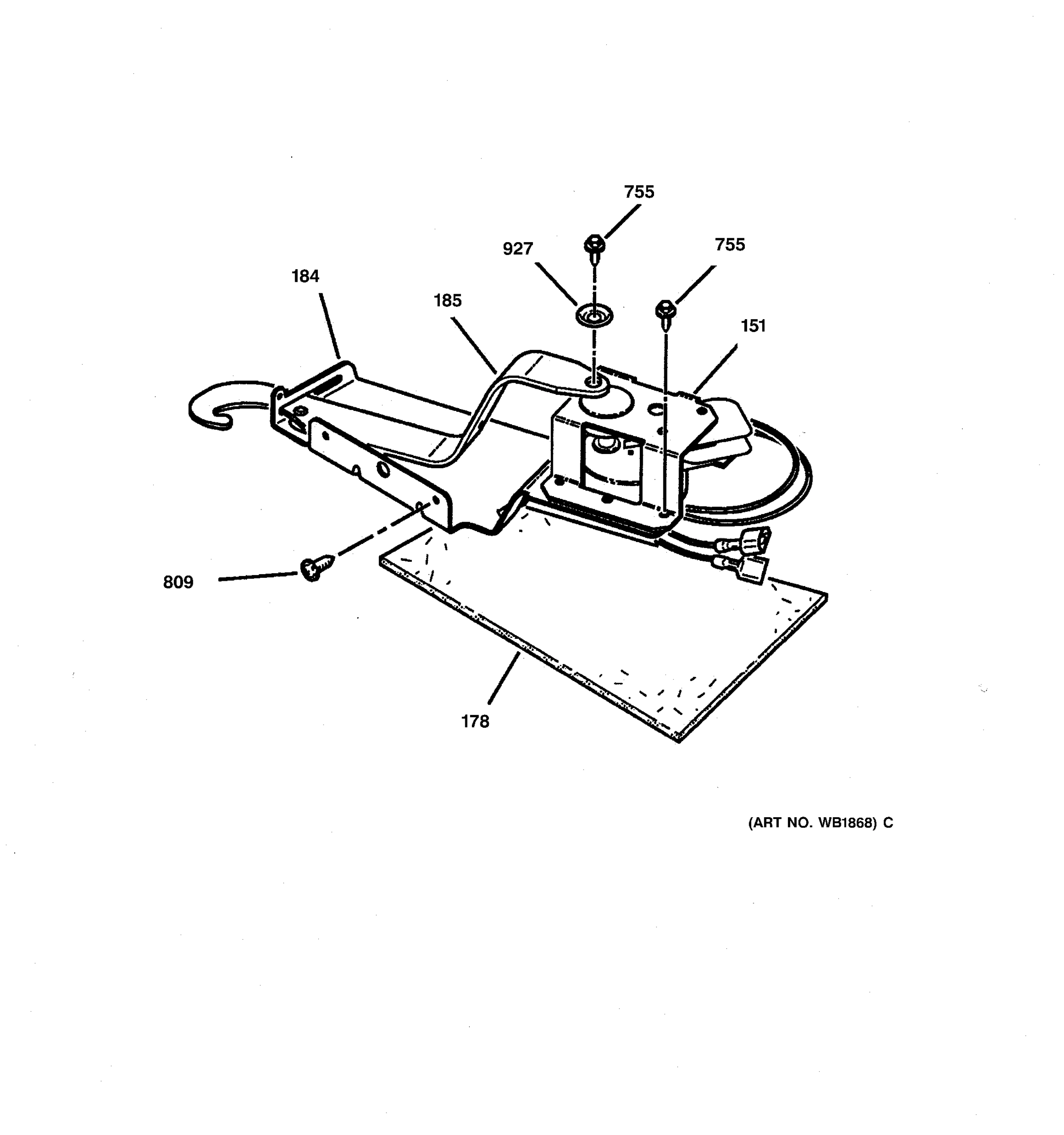

DOOR LOCK
Common parts from model GE JSP34AW1AA Electric Range
1
GEN WB36K5669 GEN WB36K5669 Contact Us For Availability
2
GEN WB36K5439 GEN WB36K5439 Contact Us For Availability
2
GEN WB36K5440 GEN WB36K5440 Contact Us For Availability
11
COVER WIRE GEN WB34K5107 Contact Us For Availability
11
EXTENSION BURN BOX SDE GEN WB64K5038 Contact Us For Availability
16
GEN WB27K5306 GEN WB27K5306 Contact Us For Availability
18
GEN WB27K5339 GEN WB27K5339 Contact Us For Availability
21
GEN WB24K5081 GEN WB24K5081 Contact Us For Availability
28
GEN WB02K5333 GEN WB02K5333 Contact Us For Availability
29
GEN WB03K5249 GEN WB03K5249 Contact Us For Availability
37
GEN WB36K5581 GEN WB36K5581 Contact Us For Availability
42
GEN WB34K5250 GEN WB34K5250 Contact Us For Availability
42
GEN WB34K5251 GEN WB34K5251 Contact Us For Availability
42
GEN WB34K5128 GEN WB34K5128 Contact Us For Availability
44
GROMMET STRIP GEN WB02K5225 Contact Us For Availability
46
EXTENSION WIRE COVER GEN WB34K5111 Contact Us For Availability
51
MAINTOP-ALMOND GEN WB62K5146 Contact Us For Availability
61
GEN WB64K5044 GEN WB64K5044 Contact Us For Availability
76
GEN WB38K5027 GEN WB38K5027 Contact Us For Availability
83
GEN WB01K5128 GEN WB01K5128 Contact Us For Availability
90
GEN WB02M0084 GEN WB02M0084 Contact Us For Availability
91
GEN WB14X0109 GEN WB14X0109 Contact Us For Availability
91
GEN WB14X0110 GEN WB14X0110 Contact Us For Availability
102
OVEN DOOR INSULATION GEN WB35K5026 Contact Us For Availability
111
GEN WB55K5037 GEN WB55K5037 Contact Us For Availability
112
GEN WB55K5038 GEN WB55K5038 Contact Us For Availability
113
INSULATION RETAINER GEN WB56X1910 Contact Us For Availability
114
GEN WB02M0001 GEN WB02M0001 Contact Us For Availability
116
GEN WB02X9178 GEN WB02X9178 Contact Us For Availability
121
GEN WB57K5244 GEN WB57K5244 Contact Us For Availability
122
GEN WB57K5141 GEN WB57K5141 Contact Us For Availability
123
GLASS OV DR INNER GEN WB56X1907 Contact Us For Availability
124
GEN WB35K5109 GEN WB35K5109 Contact Us For Availability
136
GEN WB15T10028 GEN WB15T10028 Contact Us For Availability
140
GEN WB55K5064 GEN WB55K5064 Contact Us For Availability
147
SPACER DR HDL (BLK) GEN WB02K5312 Contact Us For Availability
158
GEN WB24K5086 GEN WB24K5086 Contact Us For Availability
159
LIMIT SWITCH GEN WB24M0015 Contact Us For Availability
178
GEN WB35M0023 GEN WB35M0023 Contact Us For Availability
201
GEN WB63K5109 GEN WB63K5109 Contact Us For Availability
202
GEN WB63M0057 GEN WB63M0057 Contact Us For Availability
203
GEN WB63M0056 GEN WB63M0056 Contact Us For Availability
204
DRAWER STORAGE-253 GEN WB58X0065 Contact Us For Availability
211
INSULATION SIDE RETAINER GEN WB02M0004 Contact Us For Availability
212
INS RETAINER-LO GEN WB02K5093 Contact Us For Availability
216
GEN WB34M0041 GEN WB34M0041 Contact Us For Availability
217
UPPER WIRE COVER GEN WB34K5093 Contact Us For Availability
219
GEN WB34K5221 GEN WB34K5221 Contact Us For Availability
221
GEN WB63K5192 GEN WB63K5192 Contact Us For Availability
221
GEN WB63K5195 GEN WB63K5195 Contact Us For Availability
222
GEN WB56K5018 GEN WB56K5018 Contact Us For Availability
226
GEN WB15K5083 GEN WB15K5083 Contact Us For Availability
231
INSULATION TOP &SIDES GEN WB35M0022 Contact Us For Availability
232
GEN WB35K5113 GEN WB35K5113 Contact Us For Availability
233
GEN WB35M0024 GEN WB35M0024 Contact Us For Availability
241
RACK OVN GEN WB48X0208 Contact Us For Availability
256
GEN WB08K5042 GEN WB08K5042 Contact Us For Availability
257
LAMP OVEN GEN BUY LOCAL Contact Us For Availability
259
OVEN LAMP LENS GEN WB25M0010 Contact Us For Availability
262
GEN WB07K5333 GEN WB07K5333 Contact Us For Availability
262
GEN WB07K5334 GEN WB07K5334 Contact Us For Availability
265
GEN WB34K5141 GEN WB34K5141 Contact Us For Availability
267
SUPPORT DRAW RT & LT GEN WB56M0003 Contact Us For Availability
269
SERVICE CORD MTG PLATE GEN WB02X9427 Contact Us For Availability
271
GEN W02X9749 GEN W02X9749 Contact Us For Availability
273
GEN WB34M0027 GEN WB34M0027 Contact Us For Availability
286
OV DR SPRING GEN WB09X0244 Contact Us For Availability
290
FILLER BODYSIDE REAR GEN WB63M0021 Contact Us For Availability
291
GEN WB02X9152 GEN WB02X9152 Contact Us For Availability
292
BLOCK SLIDE REAR GEN WB02X9146 Contact Us For Availability
293
BLOCK SLIDE FRT GEN WB02X9148 Contact Us For Availability
296
GEN WB01M0018 GEN WB01M0018 Contact Us For Availability
691
GEN WB01K5176 GEN WB01K5176 Contact Us For Availability
802
GEN WB01K5123 GEN WB01K5123 Contact Us For Availability
805
GEN WB01X1113 GEN WB01X1113 Contact Us For Availability
807
SCREW ST 8-18X.625 TR AD GEN WB01K5168 Contact Us For Availability
811
SCREW TC8-32X.375FLNI GEN WB01X1172 Contact Us For Availability
812
SCREW TC 10-32X.625(AD) GEN WB01K5158 Contact Us For Availability
815
GEN WB01K5184 GEN WB01K5184 Contact Us For Availability
826
SCREW TC10-32X.531HEXPRK GEN WB01X1167 Contact Us For Availability
926
WASHER GROUND GEN WB01X1260 Contact Us For Availability
936
GEN WB02M0021 GEN WB02M0021 Contact Us For Availability
979
SPACER EXPAN NUT GEN WB01X1177 Contact Us For Availability
990
GEN WB01X1432 GEN WB01X1432 Contact Us For Availability
999
GEN 31-10070 GEN 31-10070 Contact Us For Availability
999
GEN 31-13285 GEN 31-13285 Contact Us For Availability
999
GEN 49-8750 GEN 49-8750 Contact Us For Availability
999
GEN WB18K5363 GEN WB18K5363 Contact Us For Availability
999
GEN WB18K5371 GEN WB18K5371 Contact Us For Availability
999
GEN WB18K5622 GEN WB18K5622 Contact Us For Availability
× ![]()
