Model GE JS960TB1WW – Common Parts & Diagrams

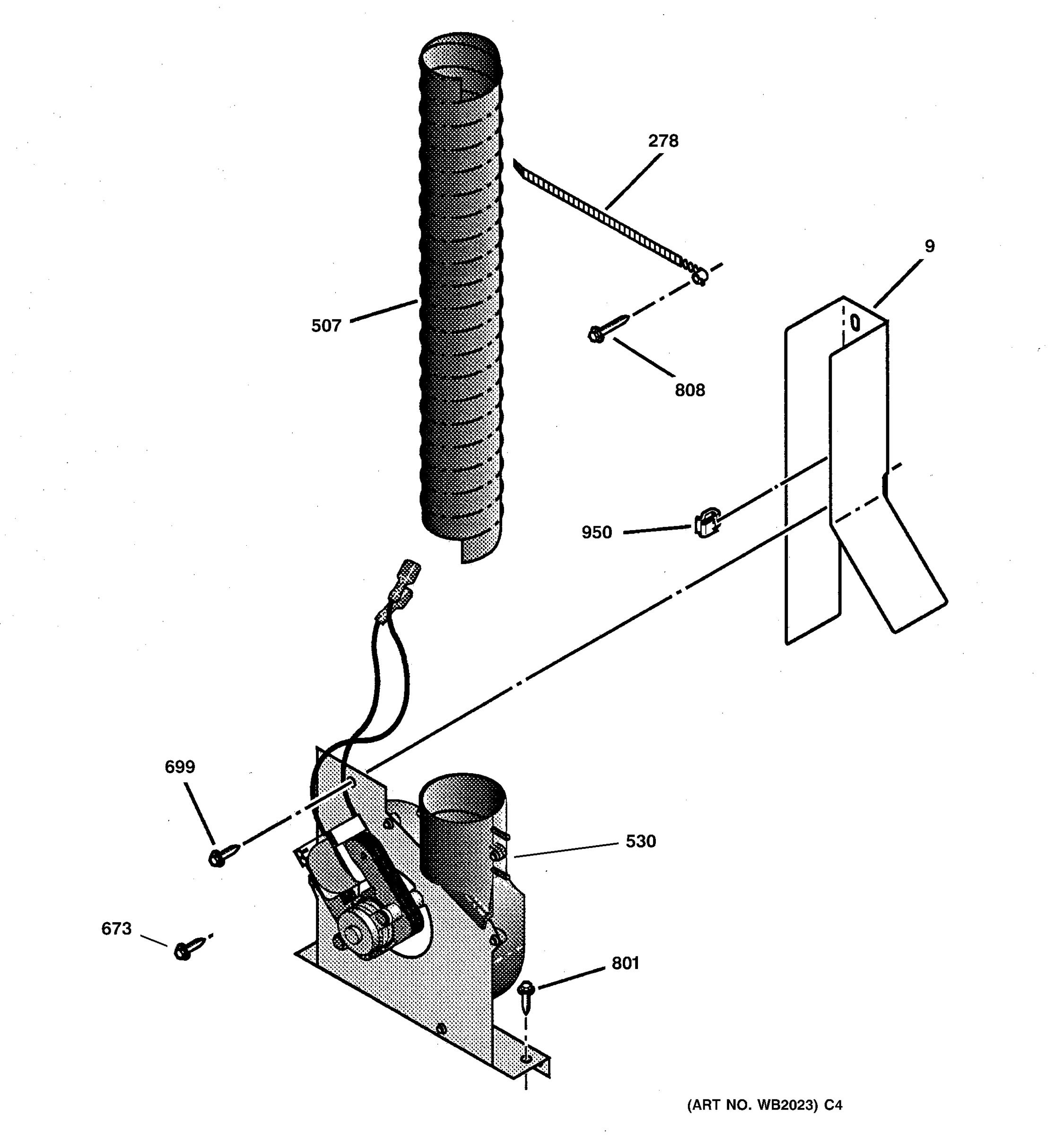

BLOWER

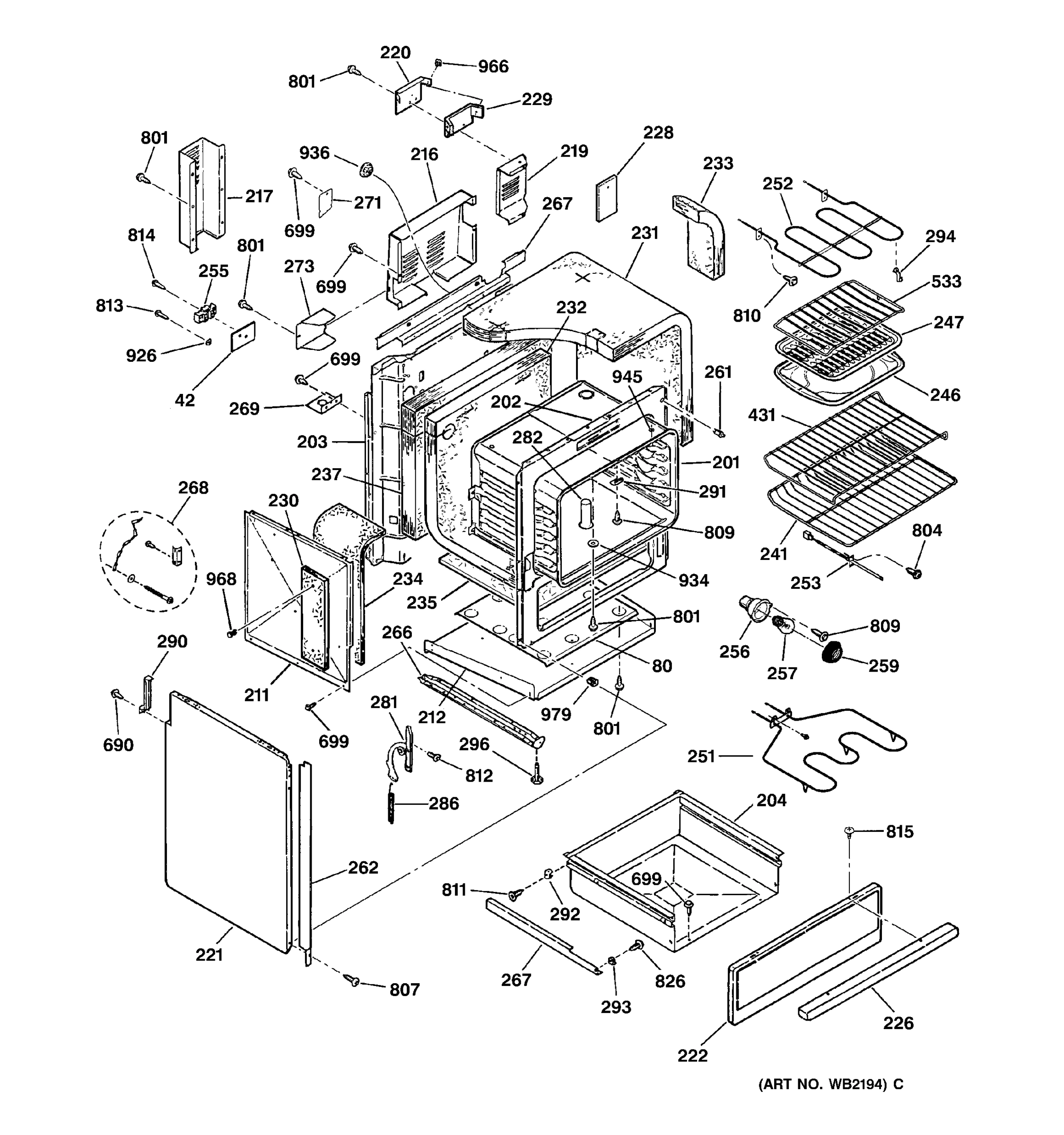

BODY & DRAWER PARTS

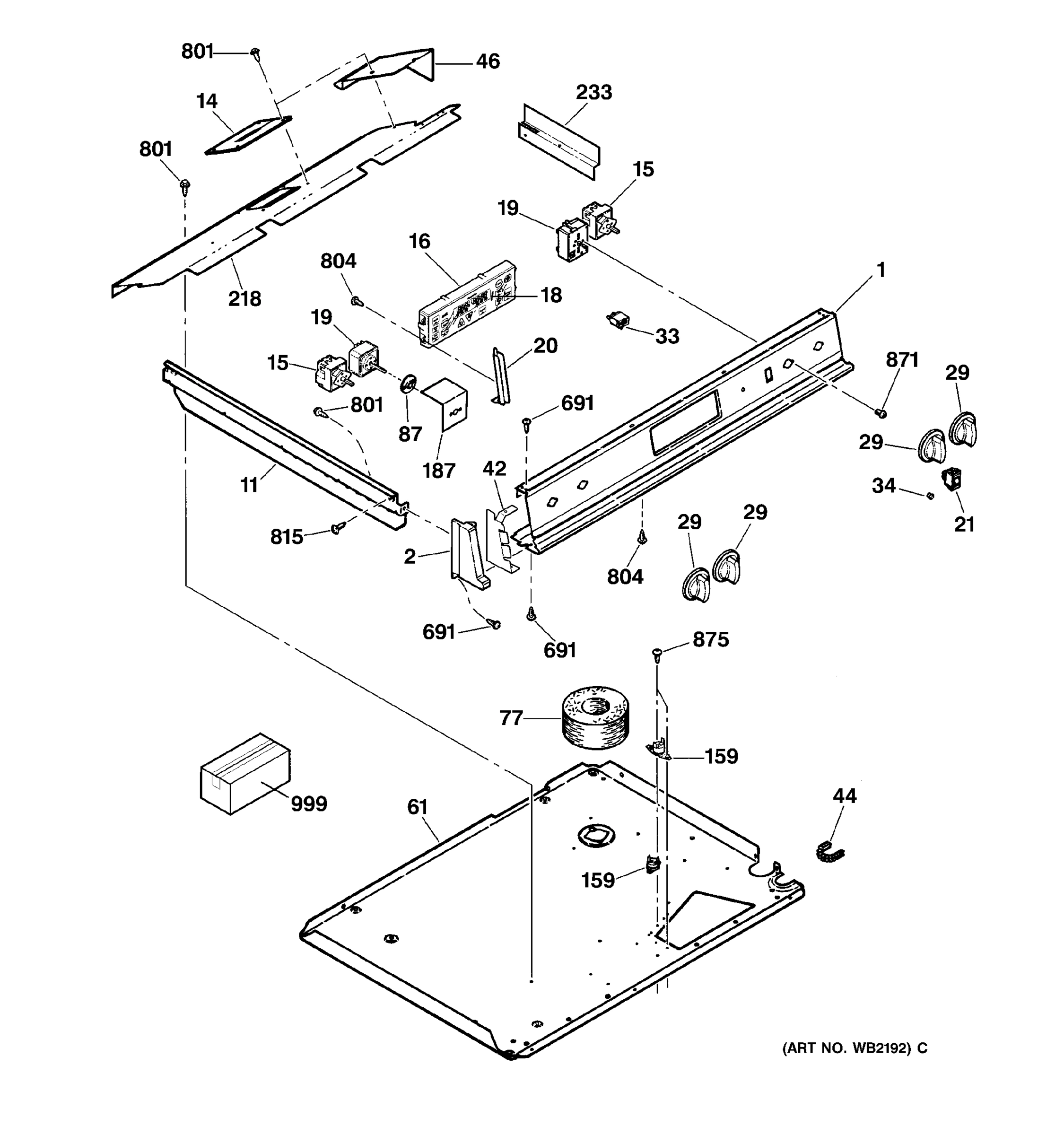

CONTROL PANEL

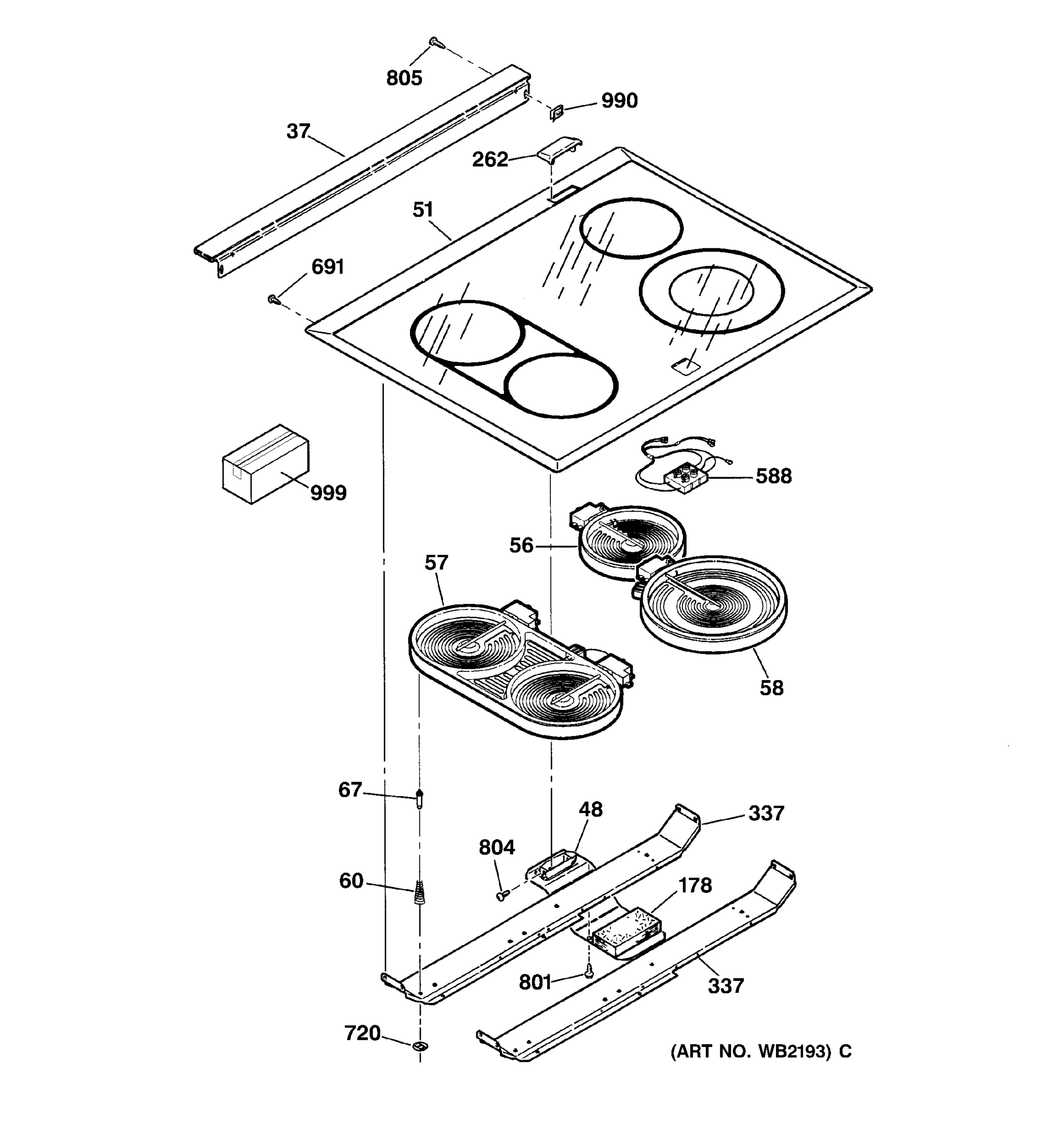

COOKTOP

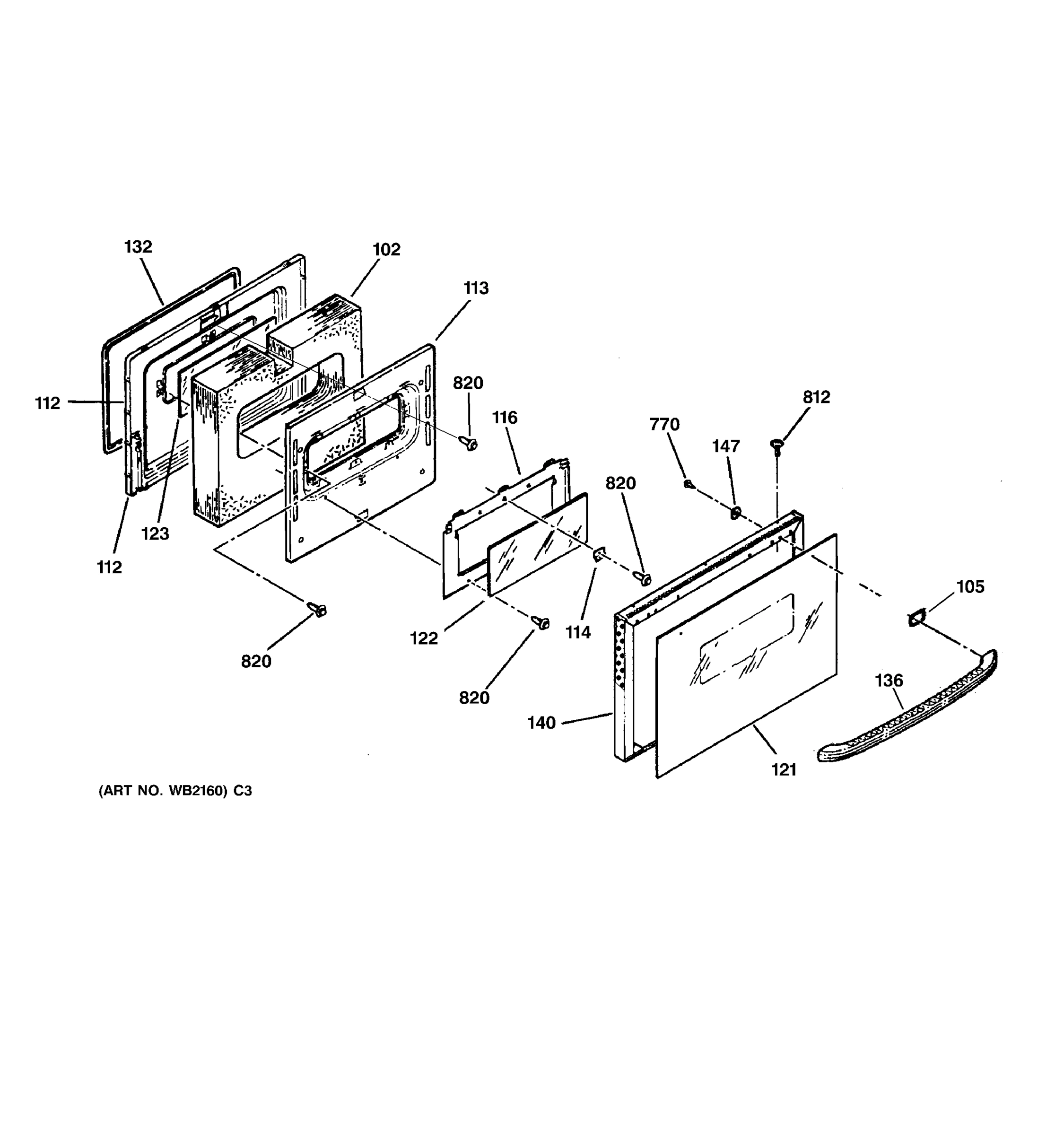

DOOR

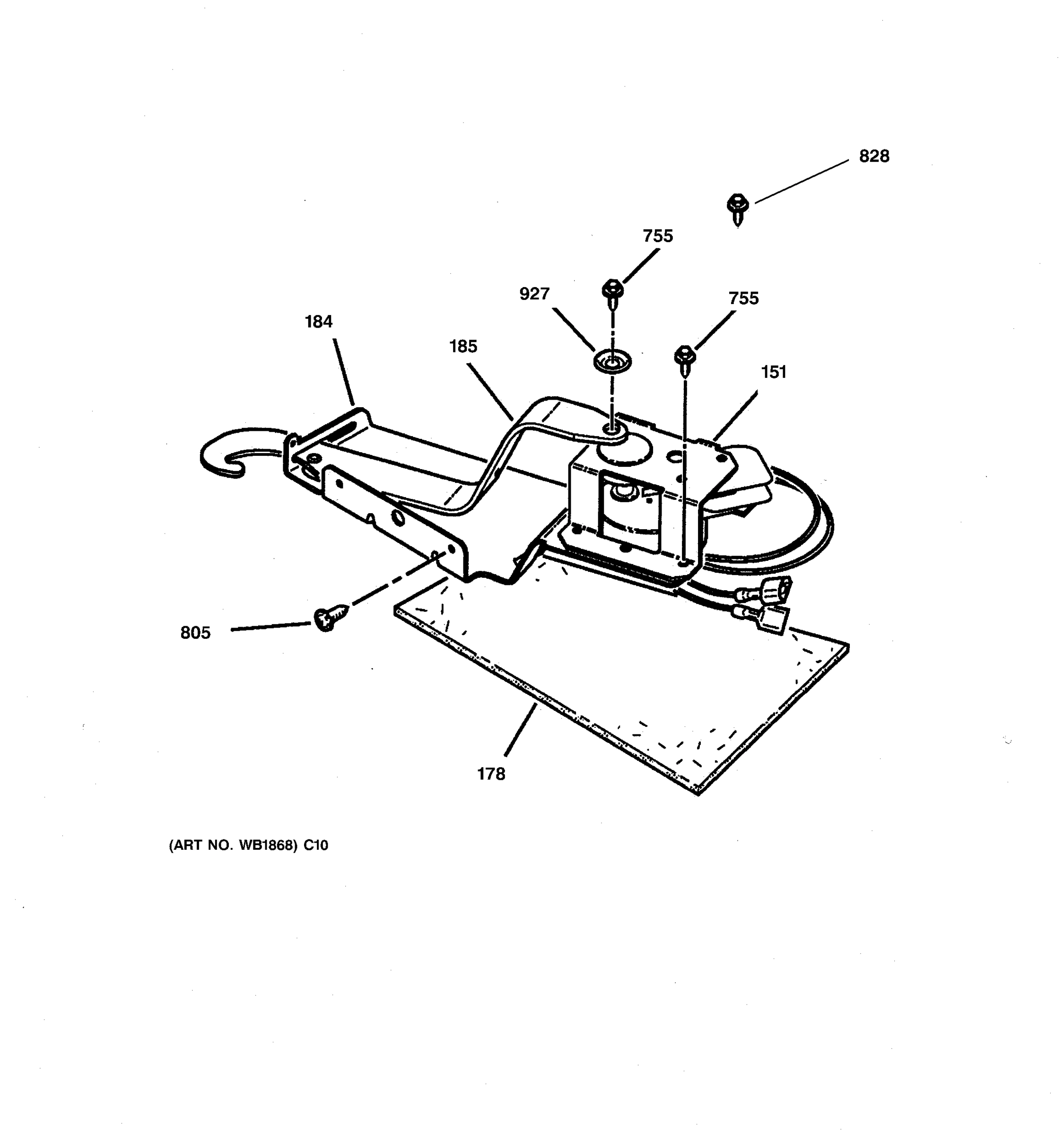

DOOR LOCK

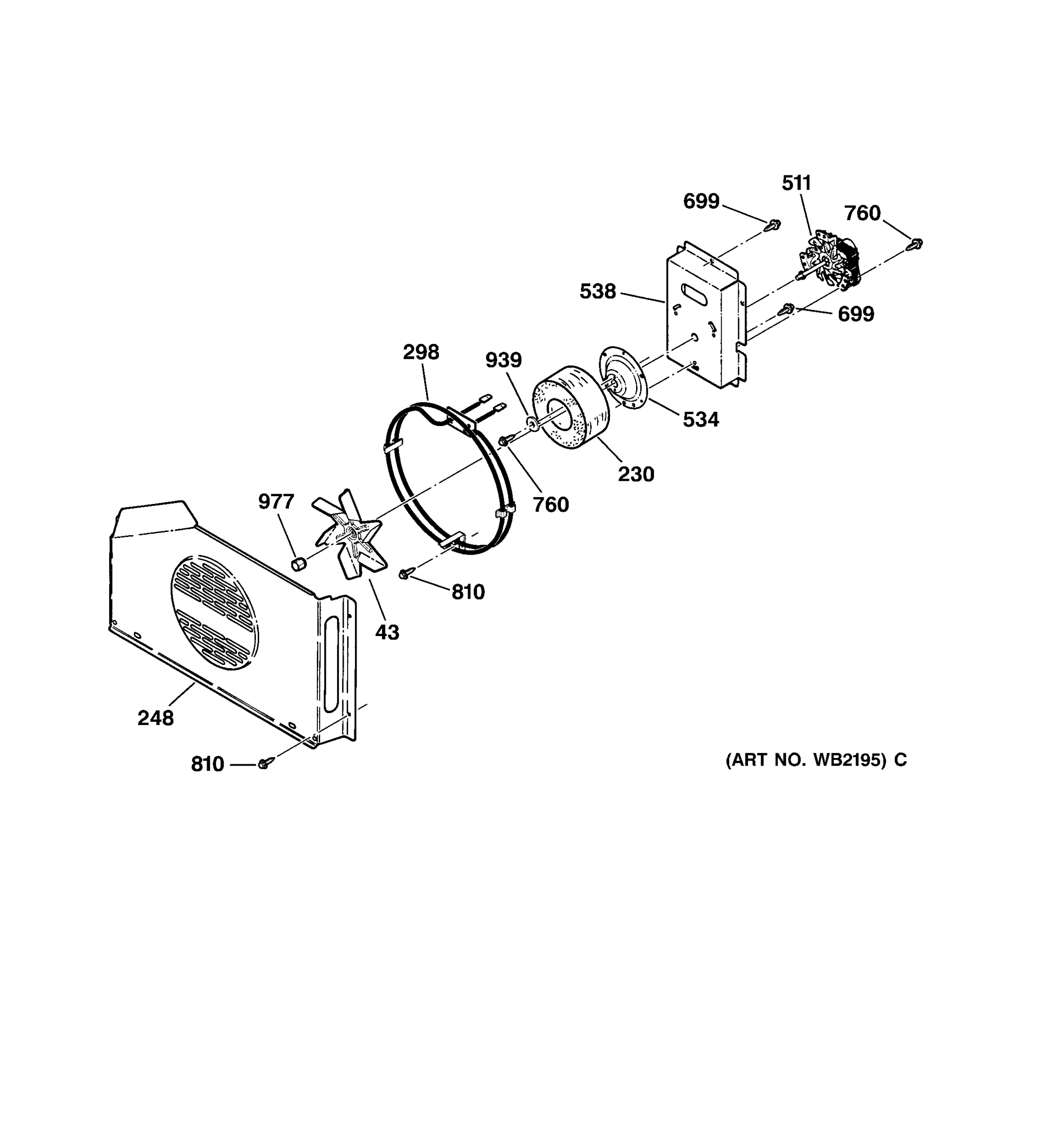

FAN
Common parts from model GE JS960TB1WW
1
GEN WB36T10321 GEN WB36T10321 Contact Us For Availability
2
GEN WB36K5411 GEN WB36K5411 Contact Us For Availability
2
GEN WB36K5410 GEN WB36K5410 Contact Us For Availability
11
BURN BOX SDE EXTENSION GEN WB64K5038 Contact Us For Availability
14
GEN WB34K5120 GEN WB34K5120 Contact Us For Availability
16
GEN WB27T10196 GEN WB27T10196 Contact Us For Availability
20
GEN WB02T10081 GEN WB02T10081 Contact Us For Availability
29
GEN WB03T10104 GEN WB03T10104 Contact Us For Availability
29
GEN WB03T10105 GEN WB03T10105 Contact Us For Availability
29
GEN WB03T10106 GEN WB03T10106 Contact Us For Availability
37
GEN WB36K5579 GEN WB36K5579 Contact Us For Availability
42
GEN WB34K5128 GEN WB34K5128 Contact Us For Availability
42
GEN WB34K5250 GEN WB34K5250 Contact Us For Availability
42
GEN WB34K5251 GEN WB34K5251 Contact Us For Availability
44
GROMMET STRIP GEN WB02X9725 Contact Us For Availability
46
EXTENSION WIRE COVER GEN WB34K5111 Contact Us For Availability
48
GEN WB38K5031 GEN WB38K5031 Contact Us For Availability
51
GEN WB61T10061 GEN WB61T10061 Contact Us For Availability
60
GEN WB09T10004 GEN WB09T10004 Contact Us For Availability
61
GEN WB61K5101 GEN WB61K5101 Contact Us For Availability
67
GEN WB02T10078 GEN WB02T10078 Contact Us For Availability
77
GEN WB32M0016 GEN WB32M0016 Contact Us For Availability
102
OVEN DOOR INSULATION GEN WB35K5026 Contact Us For Availability
105
GEN WB07K5476 GEN WB07K5476 Contact Us For Availability
112
GEN WB55T10018 GEN WB55T10018 Contact Us For Availability
113
INSULATION RETAINER GEN WB56X1910 Contact Us For Availability
114
GEN WB02M0001 GEN WB02M0001 Contact Us For Availability
116
GLASS MOUNTING PLATE GEN WB02X9178 Contact Us For Availability
121
GEN WB57T10111 GEN WB57T10111 Contact Us For Availability
122
GEN WB57K5102 GEN WB57K5102 Contact Us For Availability
123
CENTER GLASS GEN WB56X1907 Contact Us For Availability
136
GEN WB15X5226 GEN WB15X5226 Contact Us For Availability
140
GEN WB55T10030 GEN WB55T10030 Contact Us For Availability
147
GEN WB02K5312 GEN WB02K5312 Contact Us For Availability
159
LIMIT SWITCH GEN WB24M0015 Contact Us For Availability
178
GEN WB35M0015 GEN WB35M0015 Contact Us For Availability
178
GEN WB35M0023 GEN WB35M0023 Contact Us For Availability
187
GEN WB34M0036 GEN WB34M0036 Contact Us For Availability
217
UPPER WIRE COVER GEN WB34K5093 Contact Us For Availability
218
GEN WB34T10022 GEN WB34T10022 Contact Us For Availability
220
GEN WB34K5235 GEN WB34K5235 Contact Us For Availability
221
GEN WB63K5192 GEN WB63K5192 Contact Us For Availability
221
GEN WB63K5195 GEN WB63K5195 Contact Us For Availability
222
PANEL FRT LWR ASM GEN WB56K5017 Contact Us For Availability
226
DRAWER HANDLE-WHITE GEN WB15K5082 Contact Us For Availability
228
GEN WB35K5122 GEN WB35K5122 Contact Us For Availability
229
GEN WB35K5123 GEN WB35K5123 Contact Us For Availability
230
GEN WB35M0014 GEN WB35M0014 Contact Us For Availability
230
GEN WB35T10004 GEN WB35T10004 Contact Us For Availability
231
GEN WB02X9676 GEN WB02X9676 Contact Us For Availability
232
GEN WB35T10003 GEN WB35T10003 Contact Us For Availability
233
GEN WB35T10038 GEN WB35T10038 Contact Us For Availability
234
OV SIDE FRT INSULATION GEN WB35M0017 Contact Us For Availability
235
GEN WB35T10041 GEN WB35T10041 Contact Us For Availability
237
GEN WB35T10040 GEN WB35T10040 Contact Us For Availability
241
GEN WB48K5024 GEN WB48K5024 Contact Us For Availability
248
GEN WB63T10005 GEN WB63T10005 Contact Us For Availability
252
GEN WB44K5031 GEN WB44K5031 Contact Us For Availability
257
GEN BUY LOCAL GEN BUY LOCAL Contact Us For Availability
262
GEN WB07K5301 GEN WB07K5301 Contact Us For Availability
262
GEN WB07K5302 GEN WB07K5302 Contact Us For Availability
262
GEN WB07K5514 GEN WB07K5514 Contact Us For Availability
266
GEN WB02K5334 GEN WB02K5334 Contact Us For Availability
267
GEN WB02M0080 GEN WB02M0080 Contact Us For Availability
267
GEN WB56M0003 GEN WB56M0003 Contact Us For Availability
269
PLATE RANGE SERVICE MTG GEN WB02X9427 Contact Us For Availability
271
GEN W02X9749 GEN W02X9749 Contact Us For Availability
273
GEN WB34M0027 GEN WB34M0027 Contact Us For Availability
282
GEN WB38M0014 GEN WB38M0014 Contact Us For Availability
286
OV DR SPRING GEN WB09X0244 Contact Us For Availability
290
GEN WB63M0021 GEN WB63M0021 Contact Us For Availability
291
GEN WB02X9152 GEN WB02X9152 Contact Us For Availability
292
GEN WB02X9146 GEN WB02X9146 Contact Us For Availability
293
GEN WB02X9148 GEN WB02X9148 Contact Us For Availability
296
GEN WB01M0018 GEN WB01M0018 Contact Us For Availability
337
GEN WB02T10072 GEN WB02T10072 Contact Us For Availability
431
GEN WB48K5023 GEN WB48K5023 Contact Us For Availability
511
GEN WB26T10006 GEN WB26T10006 Contact Us For Availability
534
SUPPORT OVN CAVITY GEN WB26T10003 Contact Us For Availability
538
GEN WB02T10073 GEN WB02T10073 Contact Us For Availability
588
GEN WB18T10122 GEN WB18T10122 Contact Us For Availability
691
GEN WB01K5192 GEN WB01K5192 Contact Us For Availability
720
GEN WB02X8323 GEN WB02X8323 Contact Us For Availability
805
GEN WB01X1113 GEN WB01X1113 Contact Us For Availability
811
GEN WB01X1172 GEN WB01X1172 Contact Us For Availability
815
GEN WB01K5179 GEN WB01K5179 Contact Us For Availability
815
SCREW-BLK GEN WB01K5212 Contact Us For Availability
826
GEN WB01X1167 GEN WB01X1167 Contact Us For Availability
871
GEN WB01K5122 GEN WB01K5122 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
934
GEN WB01K5054 GEN WB01K5054 Contact Us For Availability
936
GEN WB02M0021 GEN WB02M0021 Contact Us For Availability
939
GEN WB01T10010 GEN WB01T10010 Contact Us For Availability
968
GEN WB02X9393 GEN WB02X9393 Contact Us For Availability
979
SPACER GEN WB01X1177 Contact Us For Availability
990
GEN WB01X1432 GEN WB01X1432 Contact Us For Availability
999
GEN 31-10034 GEN 31-10034 Contact Us For Availability
999
GEN 31-10070 GEN 31-10070 Contact Us For Availability
999
GEN 31-13731 GEN 31-13731 Contact Us For Availability
999
GEN 49-8979 GEN 49-8979 Contact Us For Availability
999
GEN WB18K5363 GEN WB18K5363 Contact Us For Availability
999
GEN WB18T10118 GEN WB18T10118 Contact Us For Availability
999
GEN WB18T10119 GEN WB18T10119 Contact Us For Availability
999
GEN WB18T10120 GEN WB18T10120 Contact Us For Availability
999
GEN WB18T10121 GEN WB18T10121 Contact Us For Availability
999
GEN WB50T10031 GEN WB50T10031 Contact Us For Availability
999
GEN WB50T10032 GEN WB50T10032 Contact Us For Availability
999
GEN WB50T10033 GEN WB50T10033 Contact Us For Availability
× ![]()
