Model GE JS645EL8ES Electric Range – Common Parts & Diagrams

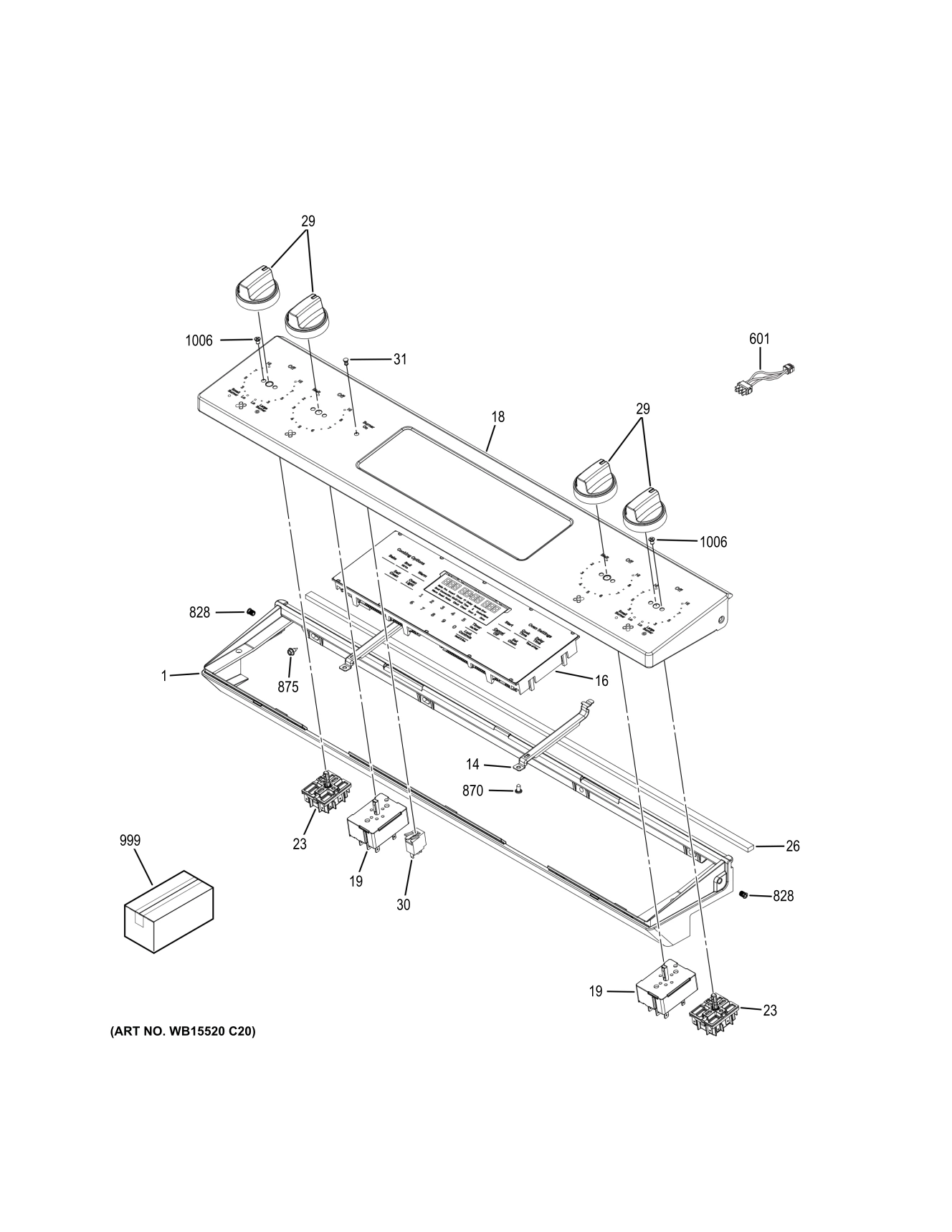

14
CONTROL BRACKET
CONTROL BRACKET GEN WB34X29472 Contact Us For Availability
View on Model
19
INF SWITCH CONTROL 1250W
INF SWITCH CONTROL 1250W GEN WB24T10022 Contact Us For Availability
View on Model
26
CONTROL PANEL GASKET
CONTROL PANEL GASKET GEN WB35X29473 Contact Us For Availability
View on Model
29
STAINLESS INFINITE KNOB
STAINLESS INFINITE KNOB GEN WB03X34871 Contact Us For Availability
View on Model

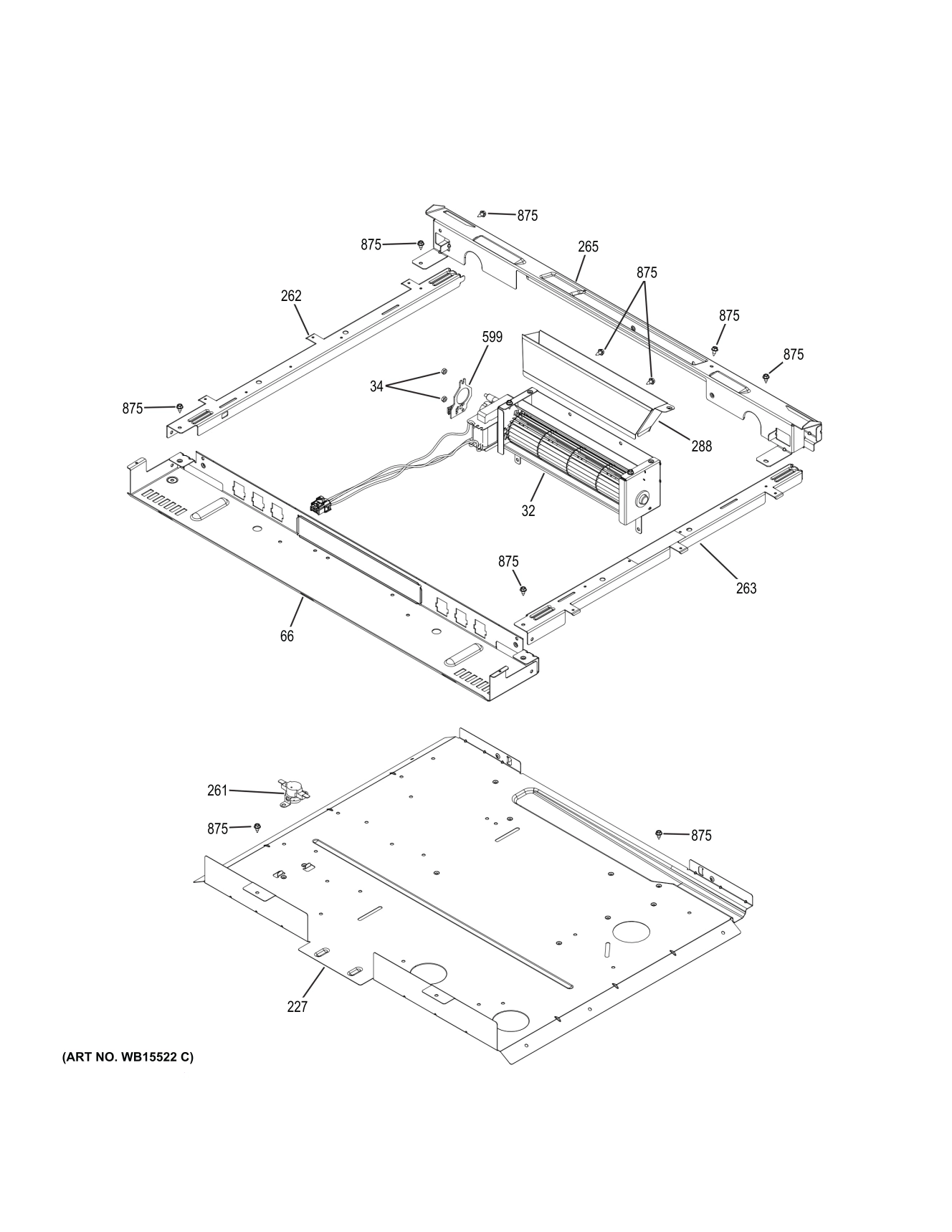

32
COOLING FAN ASM
COOLING FAN ASM GEN WB26X29468 Contact Us For Availability
View on Model
55
FLAT BADGE ASM
FLAT BADGE ASM GEN WB02X29479 Contact Us For Availability
View on Model

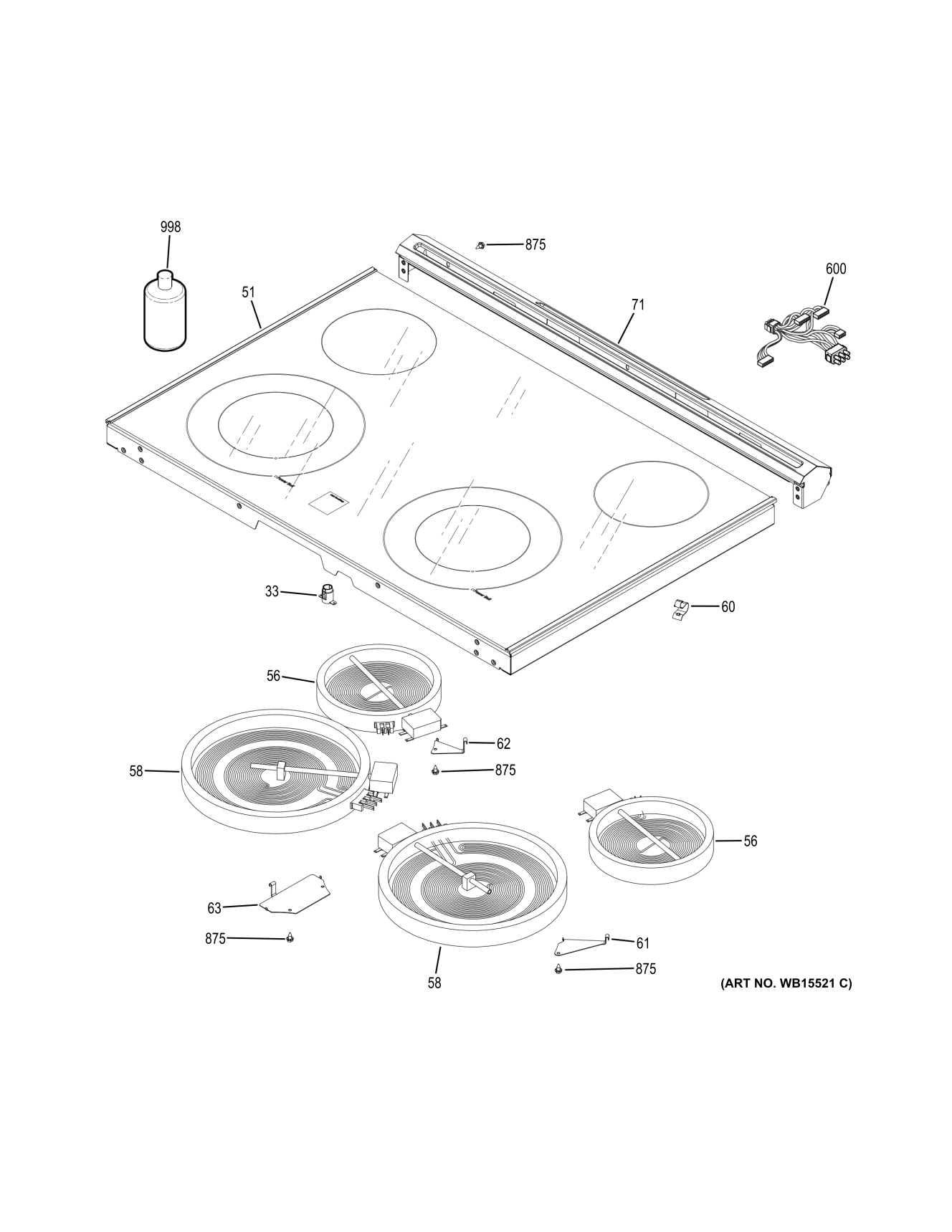

60
SPRING RADIANT ELEMENT
SPRING RADIANT ELEMENT GEN WB09X40389 Contact Us For Availability
View on Model
61
BRACKET RADIANT ELEMENT
BRACKET RADIANT ELEMENT GEN WB02X29066 Contact Us For Availability
View on Model

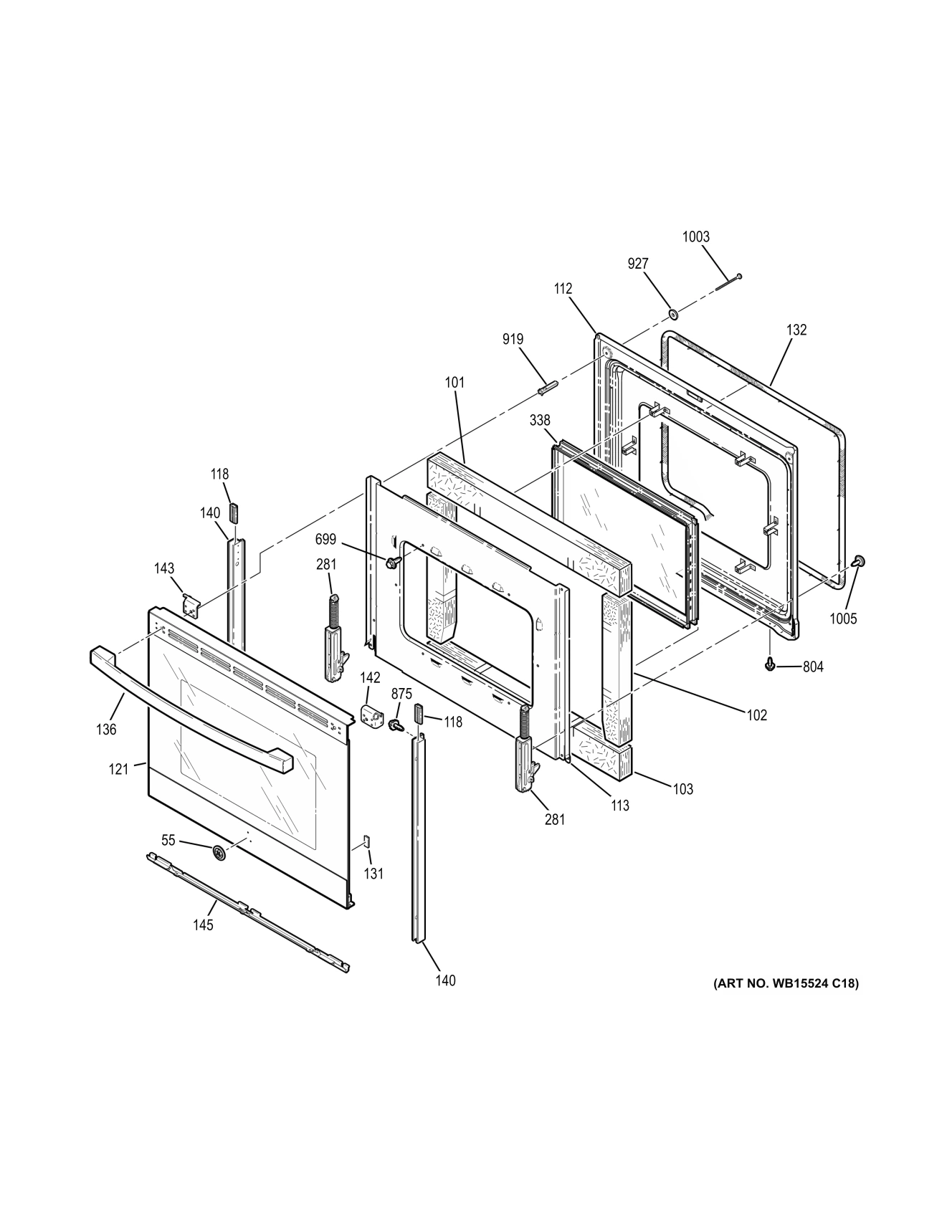

101
INSULATION DOOR
INSULATION DOOR GEN WB35T10134 Contact Us For Availability
View on Model
102
INSULATION DOOR
INSULATION DOOR GEN WB35T10135 Contact Us For Availability
View on Model
103
INSULATION DOOR
INSULATION DOOR GEN WB35T10255 Contact Us For Availability
View on Model
112
LINER OVEN DOOR ASM (BK)
LINER OVEN DOOR ASM (BK) GEN WB55T10203 Contact Us For Availability
View on Model
131
DOOR PAD
DOOR PAD GEN WB01T10026 Contact Us For Availability
View on Model
132
OVEN DOOR GASKET
OVEN DOOR GASKET GEN WB35X30048 Contact Us For Availability
View on Model
150
LATCH ASM
LATCH ASM GEN WB10X29077 Contact Us For Availability
View on Model

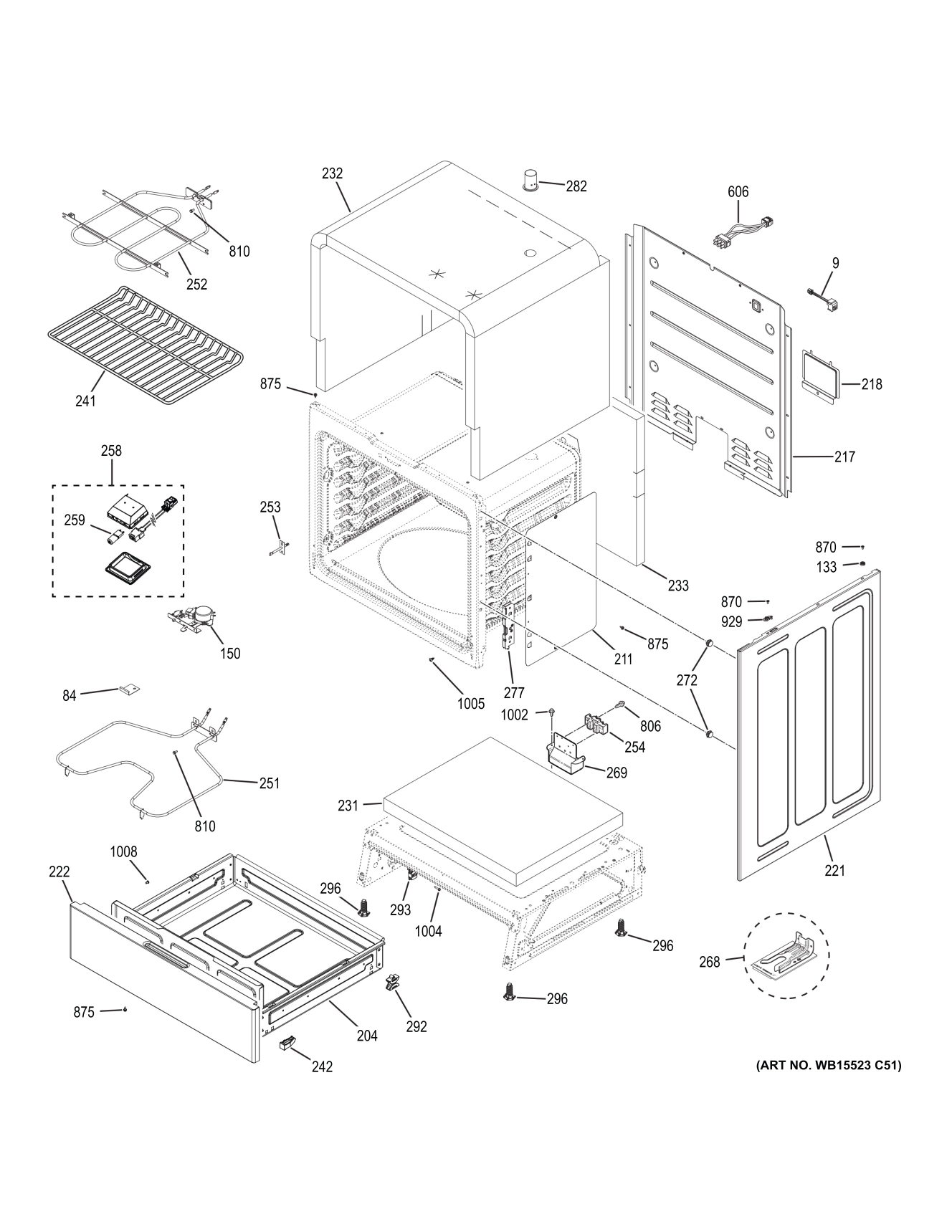

204
DRAWER BODY ASM
DRAWER BODY ASM GEN WB63X29469 Contact Us For Availability
View on Model
217
MAIN WIRE COVER
MAIN WIRE COVER GEN WB34X29069 Contact Us For Availability
View on Model
218
COVER TERMINAL BLOCK
COVER TERMINAL BLOCK GEN WB02T10560 Contact Us For Availability
View on Model
221
SIDE PANEL DG
SIDE PANEL DG GEN WB63X28679 Contact Us For Availability
View on Model
242
DRAWER WEDGE
DRAWER WEDGE GEN WB02X29072 Contact Us For Availability
View on Model
254
BLOCK TERMINAL ASM
BLOCK TERMINAL ASM GEN WB17X38438 Contact Us For Availability
View on Model
272
SIDE PANEL SUPPORT
SIDE PANEL SUPPORT GEN WB02T10034 Contact Us For Availability
View on Model
288
COOLING FAN DUCT
COOLING FAN DUCT GEN WB34X29483 Contact Us For Availability
View on Model
292
REAR SUPPORT
REAR SUPPORT GEN WB02X33180 Contact Us For Availability
View on Model
293
DRAWER SUPPORT FRT
DRAWER SUPPORT FRT GEN WB48T10013 Contact Us For Availability
View on Model
296
LEG LEVELER
LEG LEVELER GEN WB02X10521 Contact Us For Availability
View on Model
599
BOARD SENSOR
BOARD SENSOR GEN WB27X28659 Contact Us For Availability
View on Model
828
INSERT PLUG
INSERT PLUG GEN WB01X29474 Contact Us For Availability
View on Model
1003
SCR 10-32 CA TRT15 3.06
SCR 10-32 CA TRT15 3.06 GEN WB02X24268 Contact Us For Availability
View on Model
1005
SCREW 10-32 TR T
SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability
View on Model
1006
SCR 8-32 TT FLP .270
SCR 8-32 TT FLP .270 GEN WB01X23501 Contact Us For Availability
View on Model
