Model Maytag JS48NXFXDW05 REFRIGERATOR – Common Parts & Diagrams

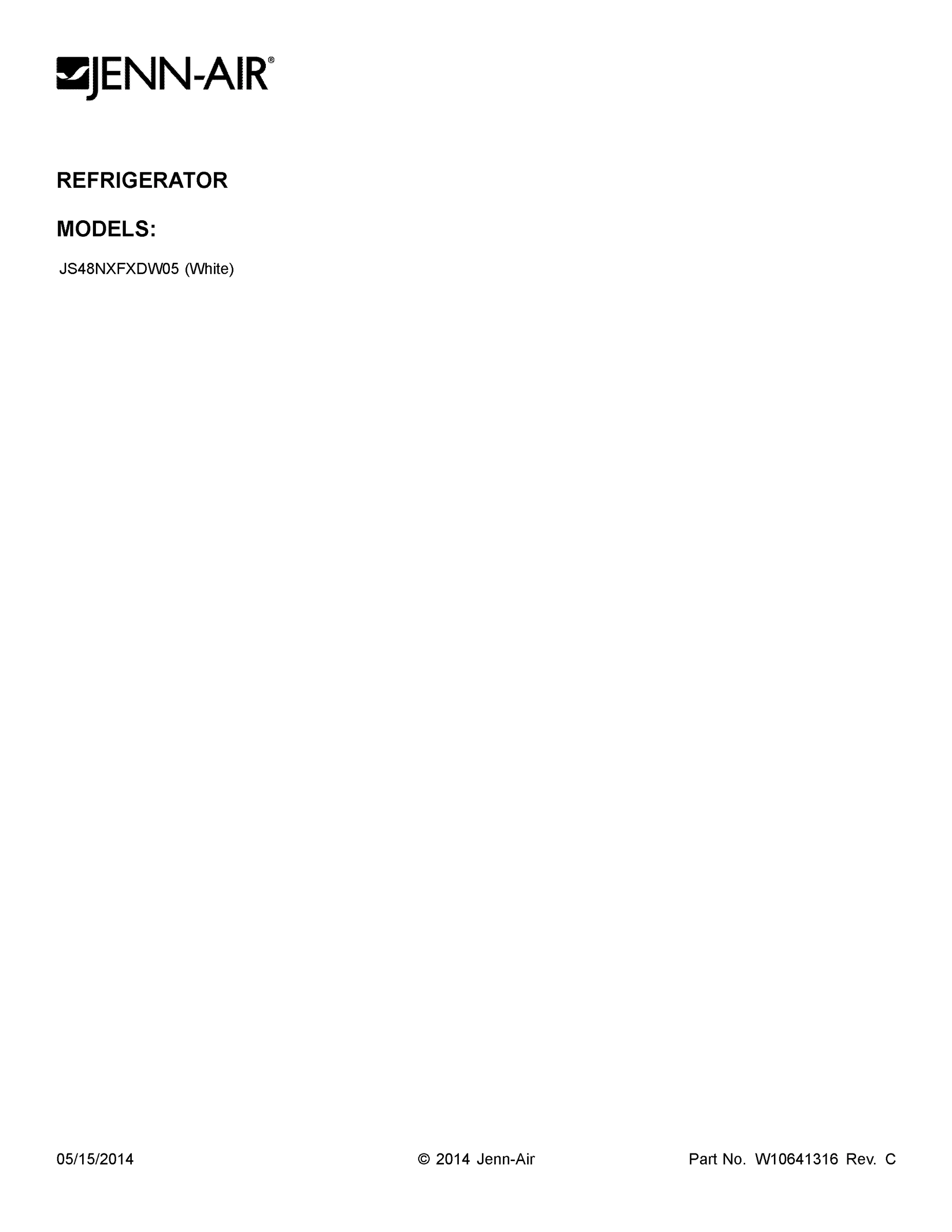

01 - COVER SHEET

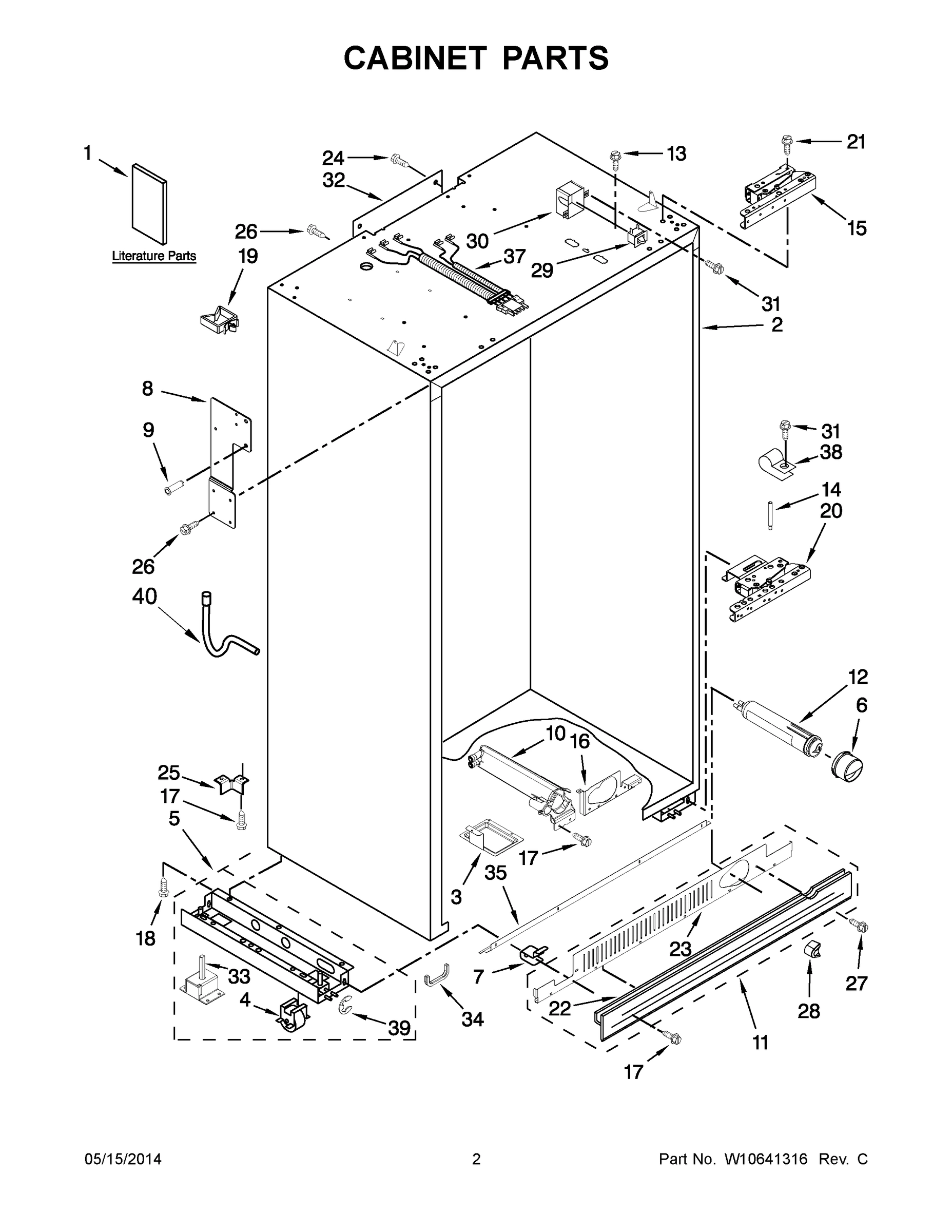

02 - CABINET PARTS

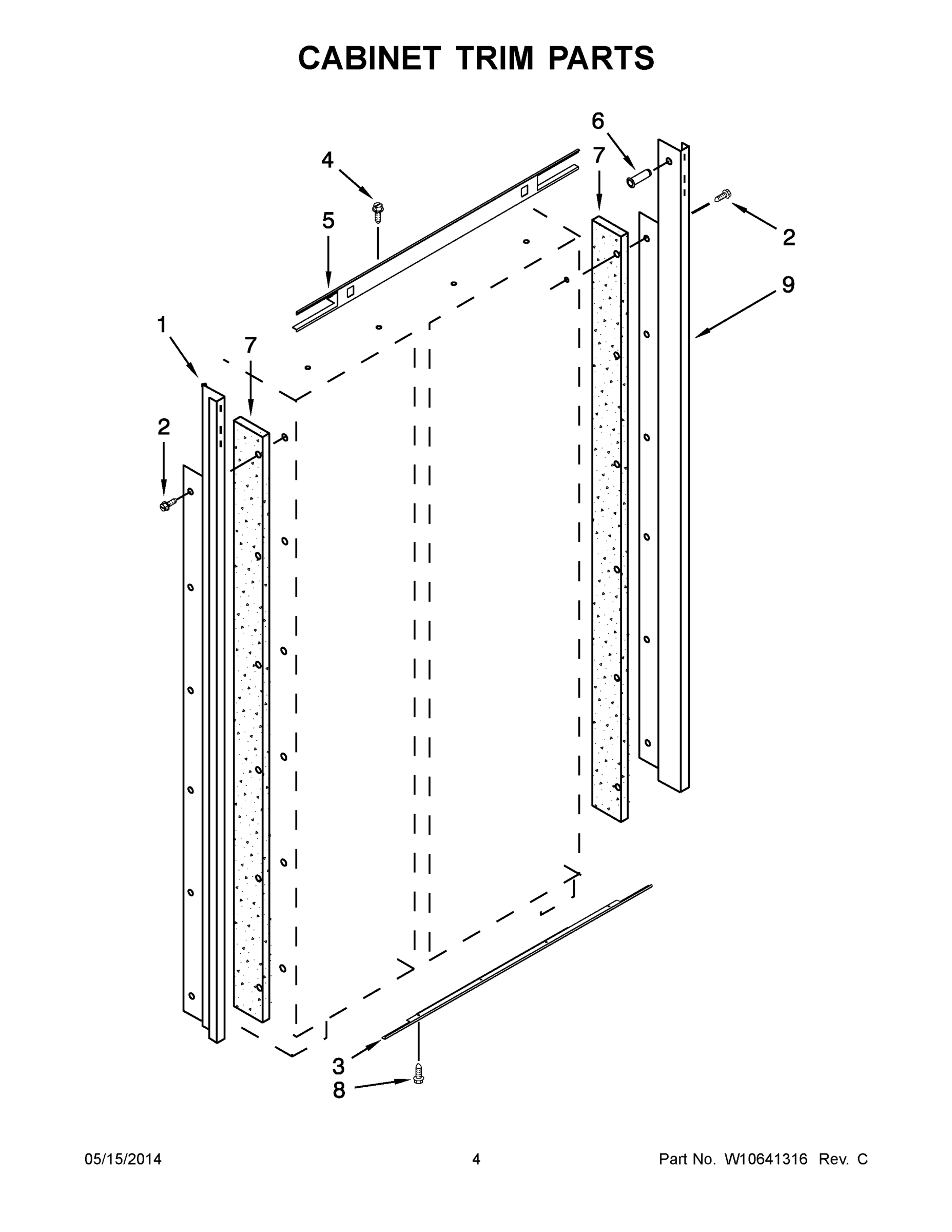

03 - CABINET TRIM PARTS

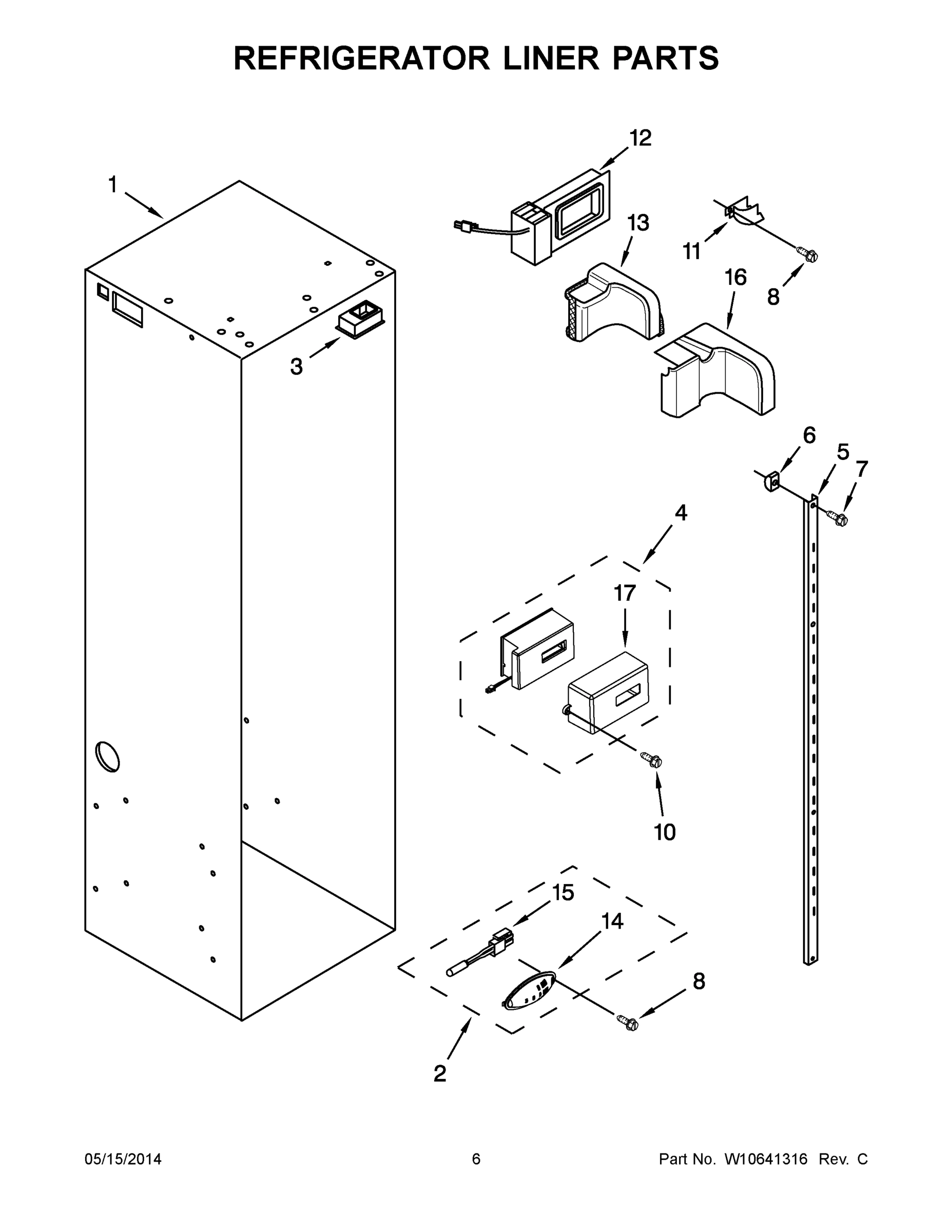

04 - REFRIGERATOR LINER PARTS

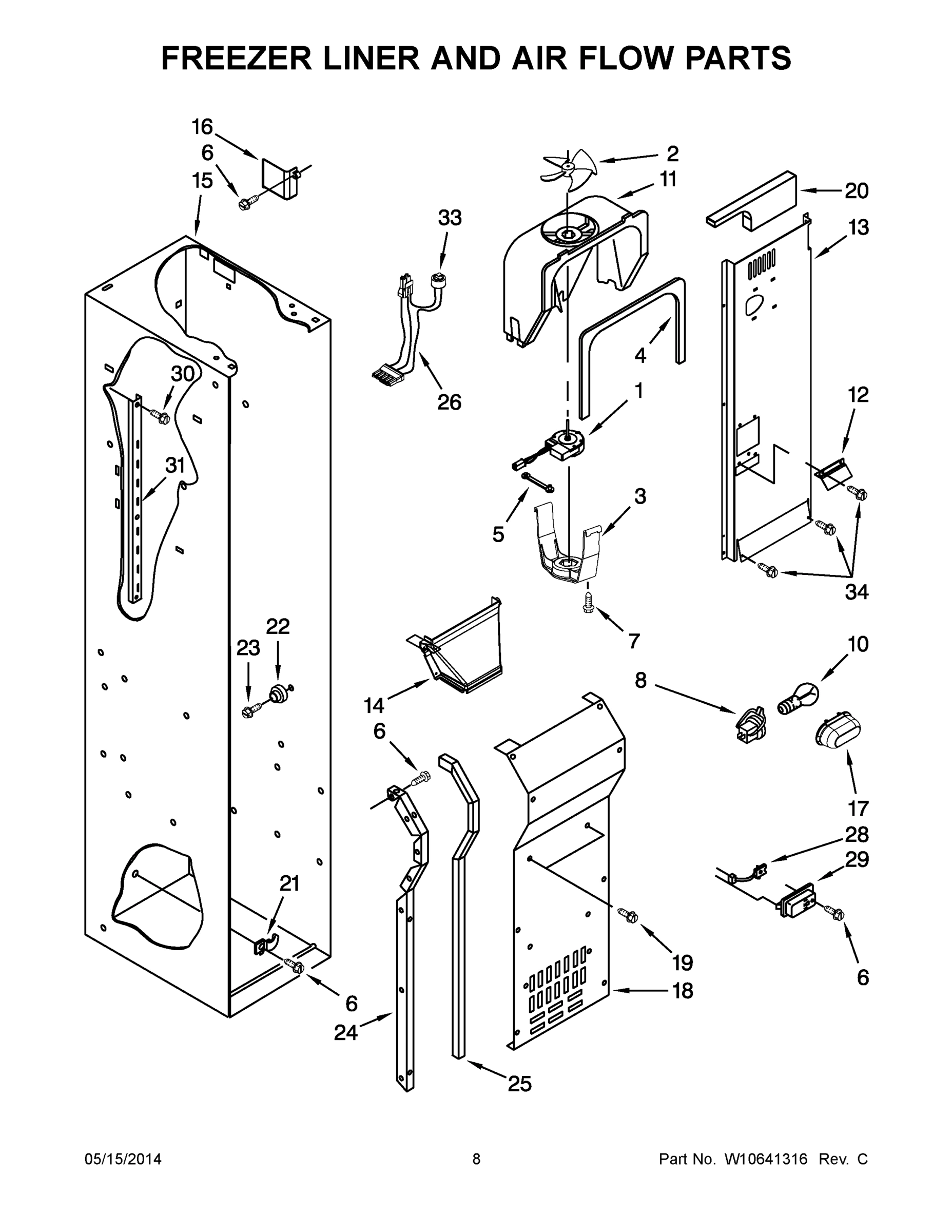

05 - FREEZER LINER AND AIR FLOW PARTS

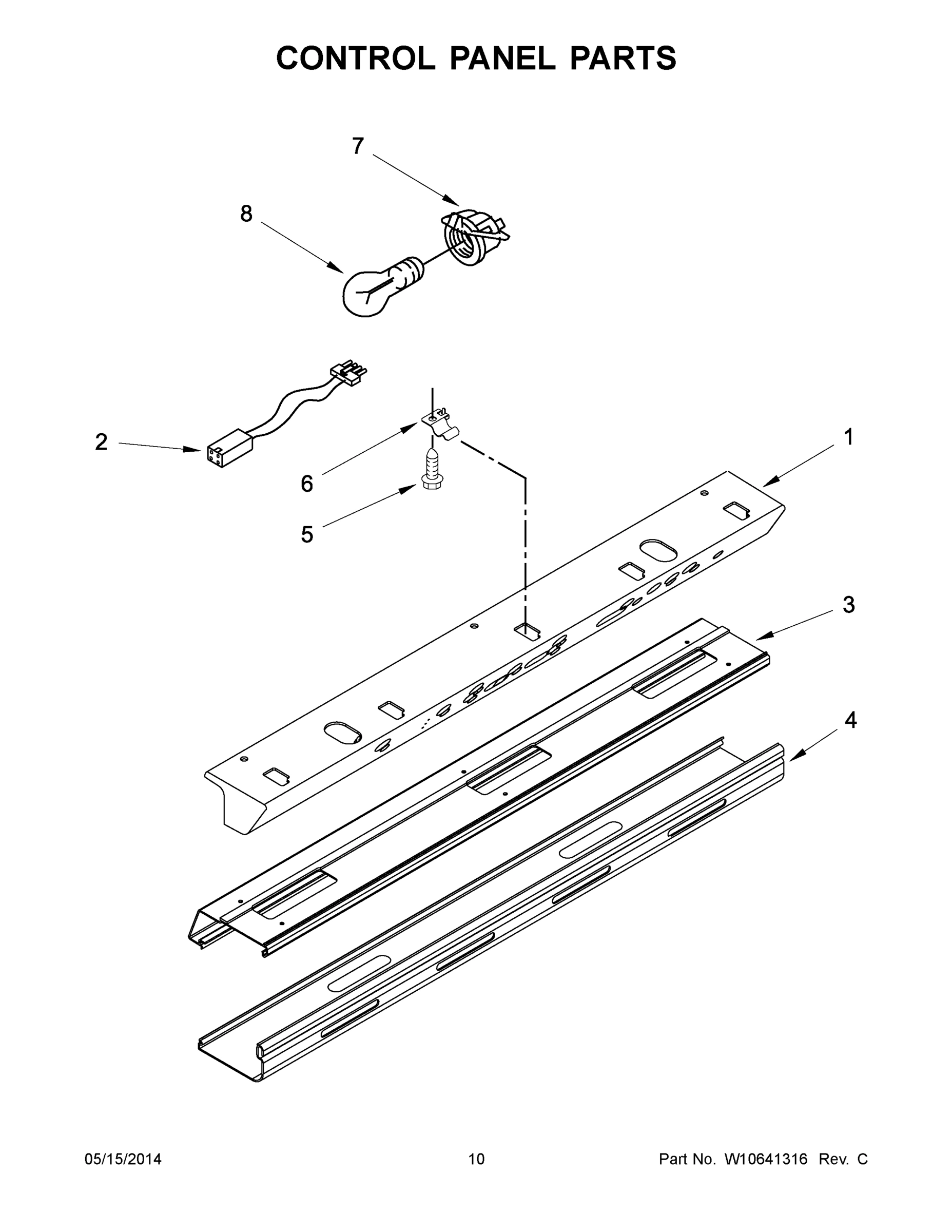

06 - CONTROL PANEL PARTS

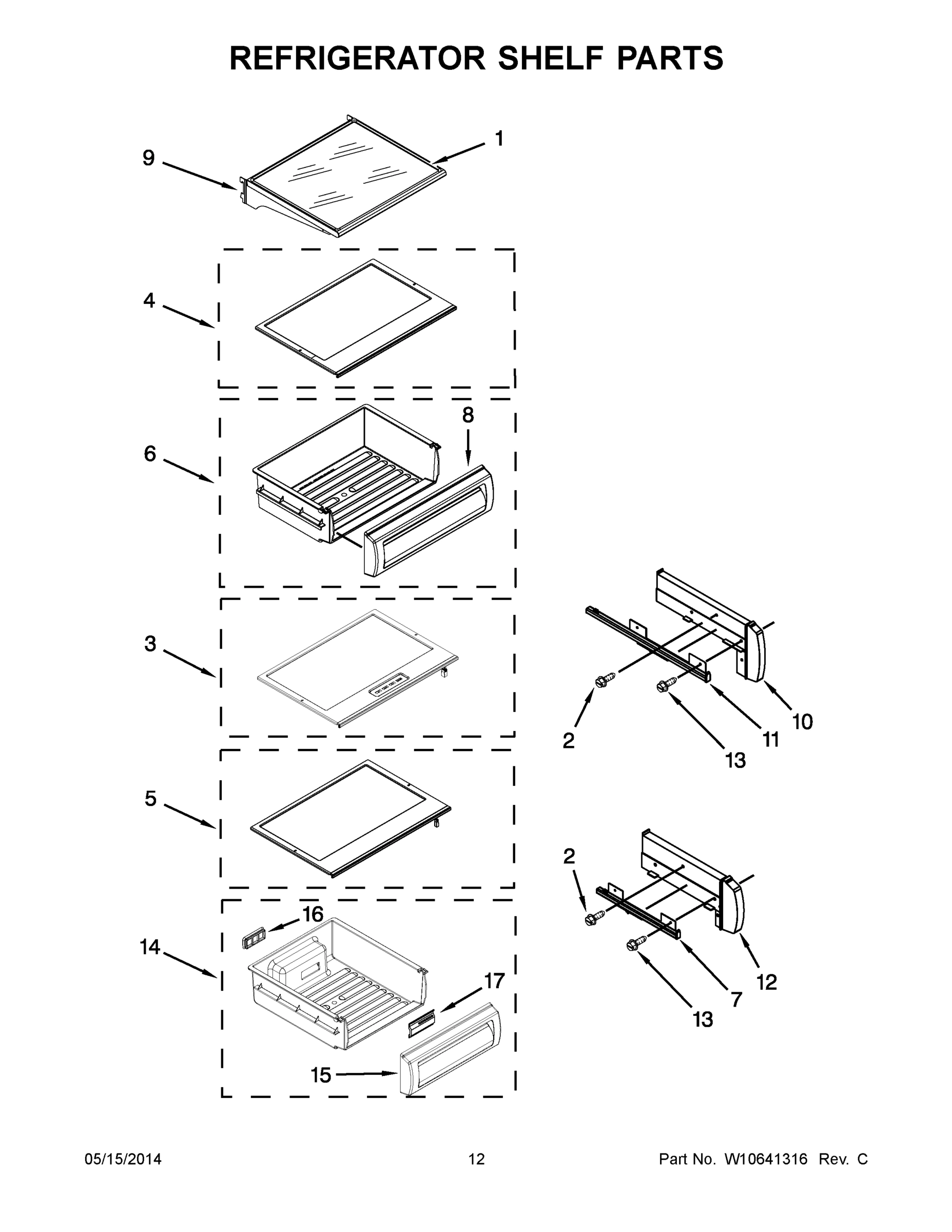

07 - REFRIGERATOR SHELF PARTS

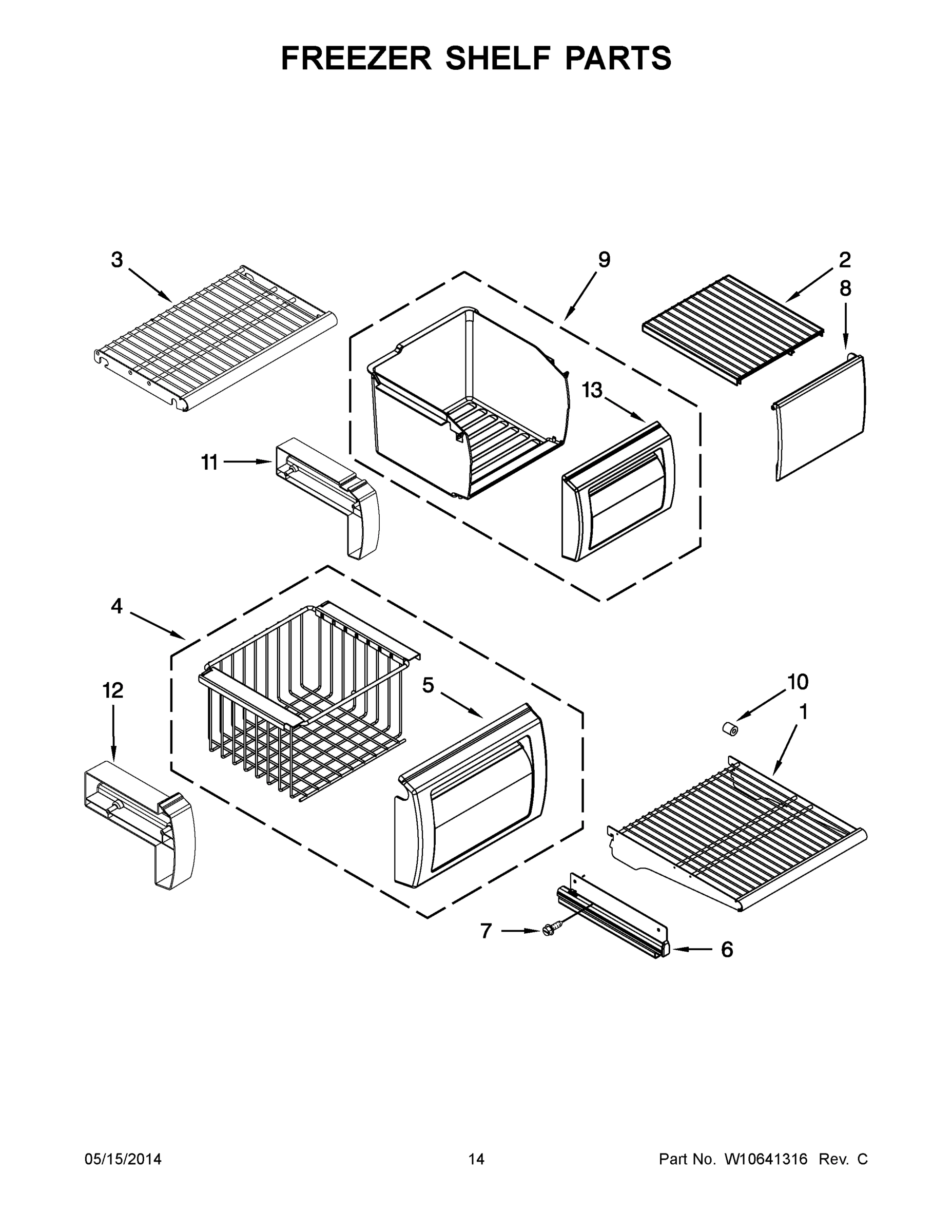

08 - FREEZER SHELF PARTS

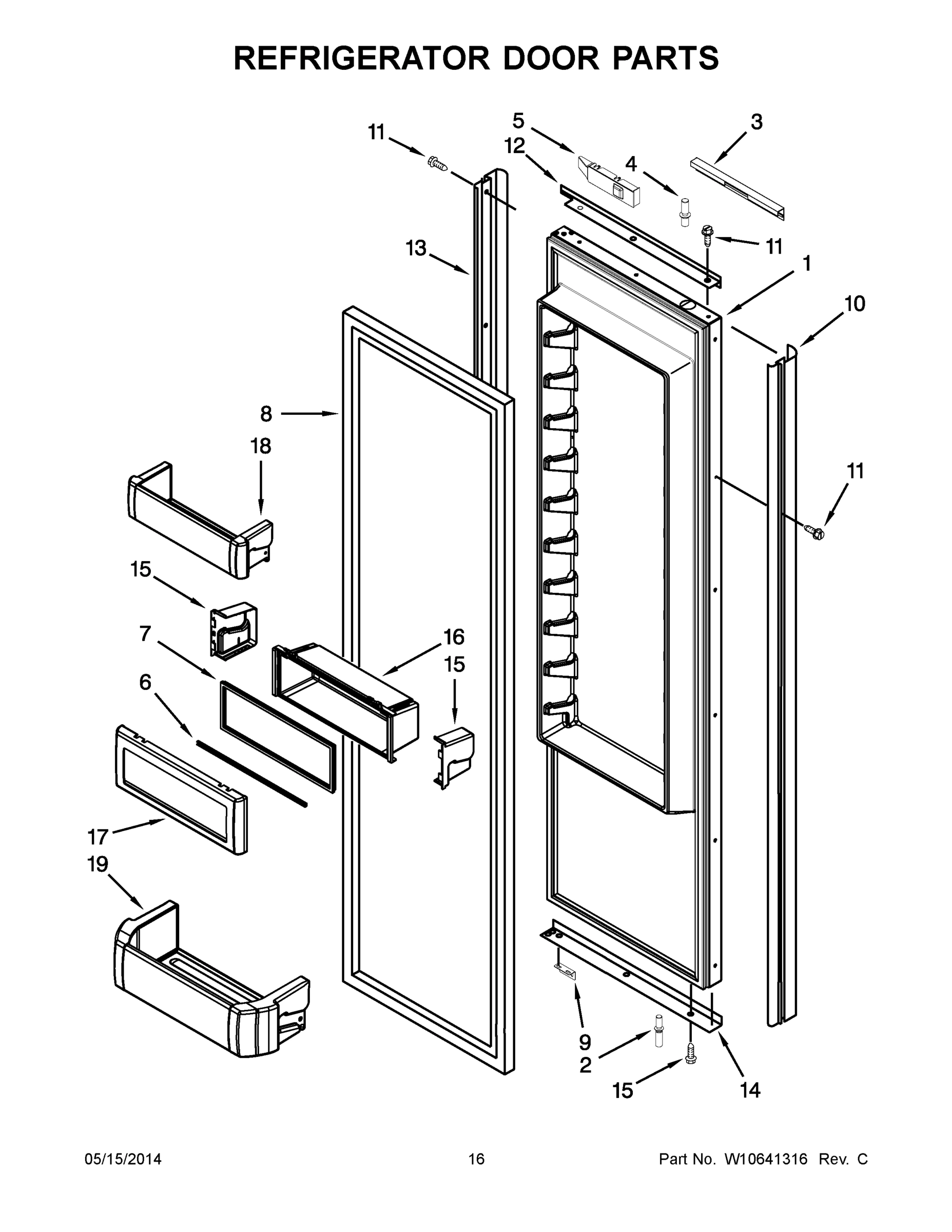

09 - REFRIGERATOR DOOR PARTS

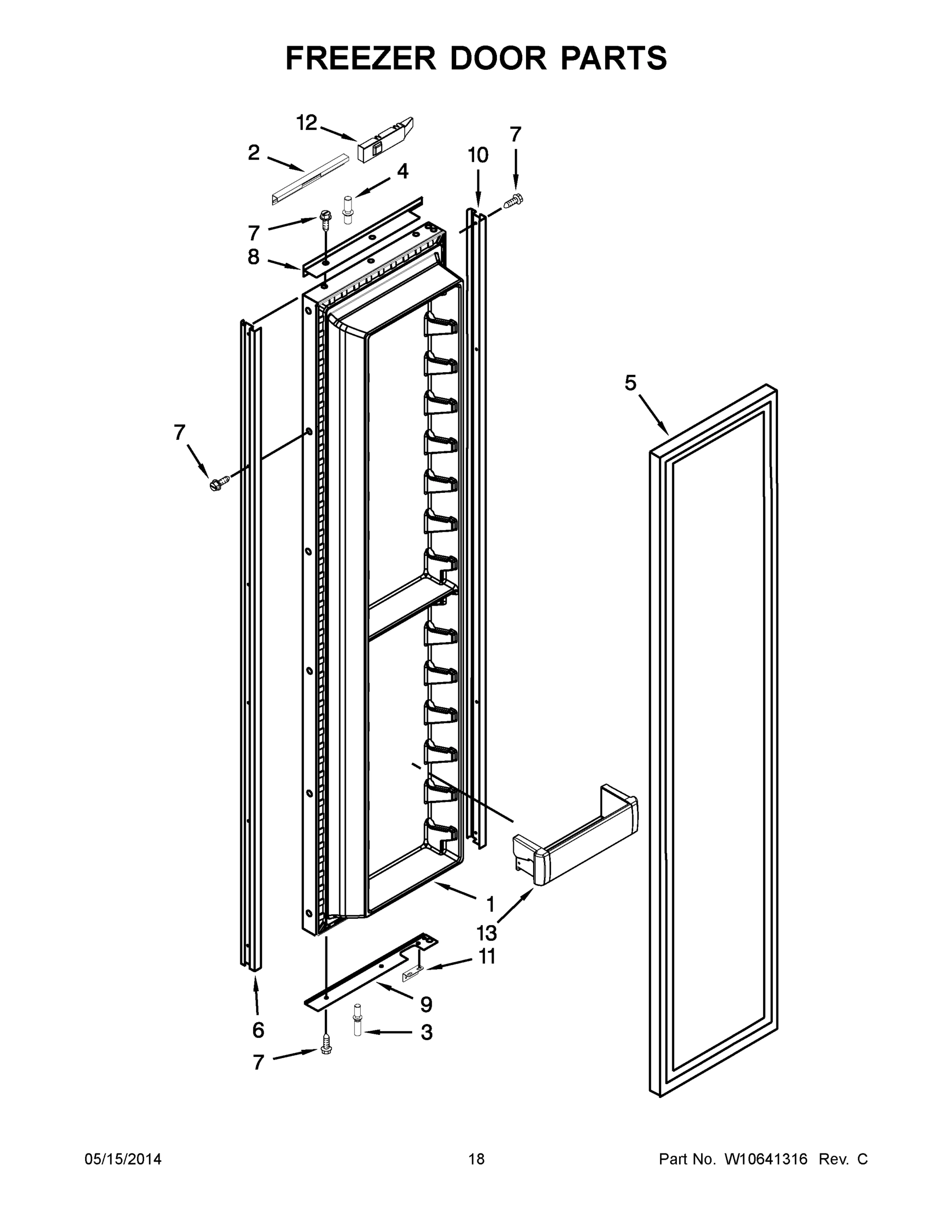

10 - FREEZER DOOR PARTS

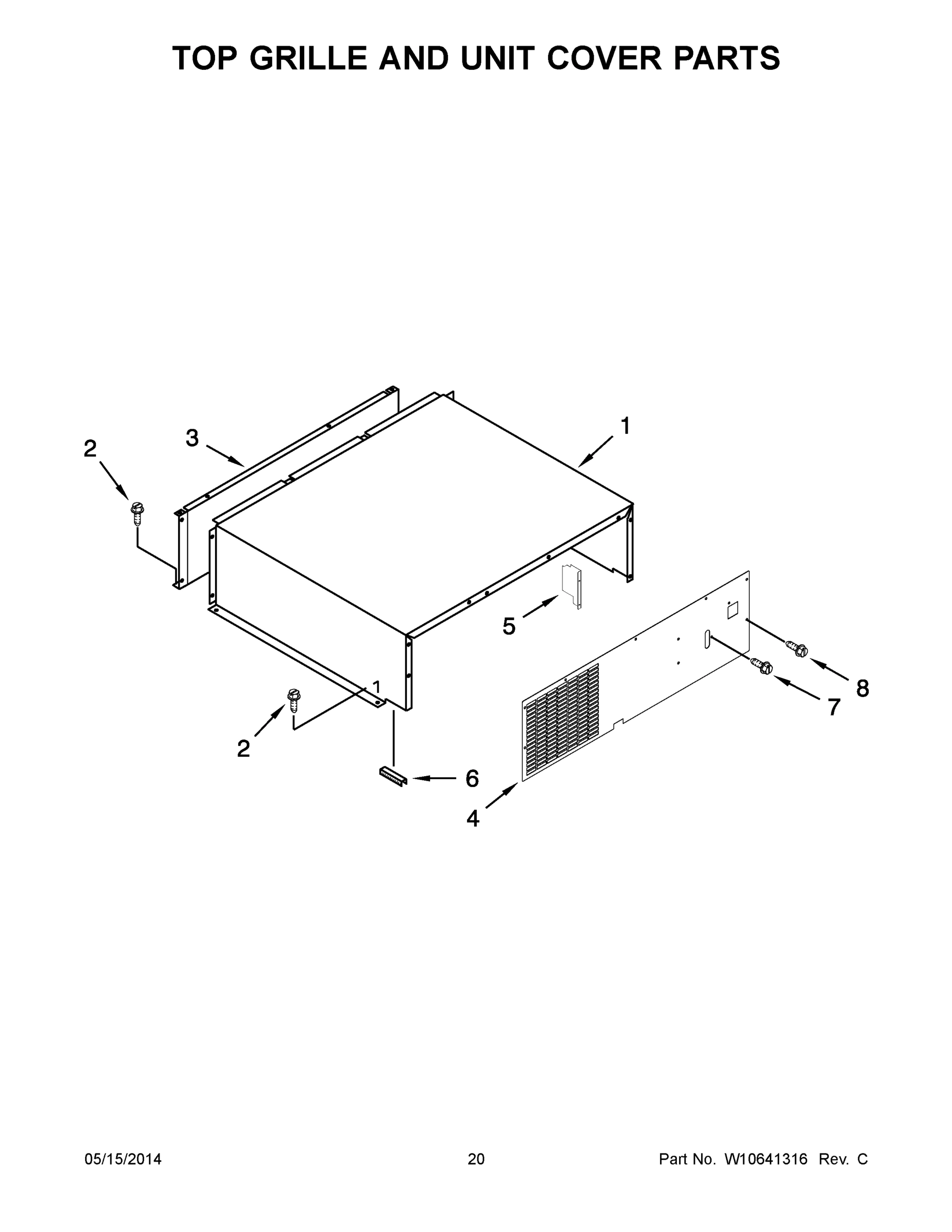

11 - TOP GRILLE AND UNIT COVER PARTS

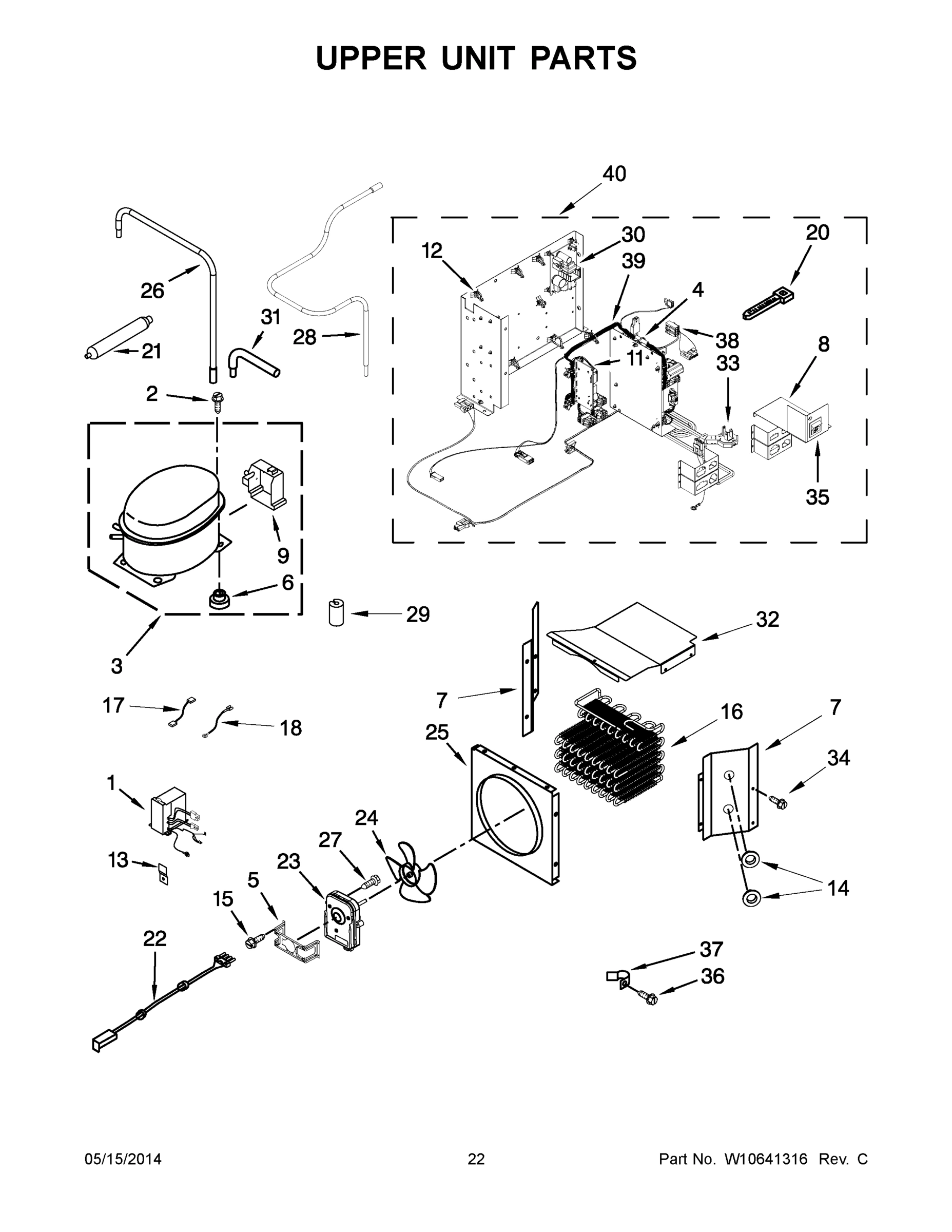

12 - UPPER UNIT PARTS

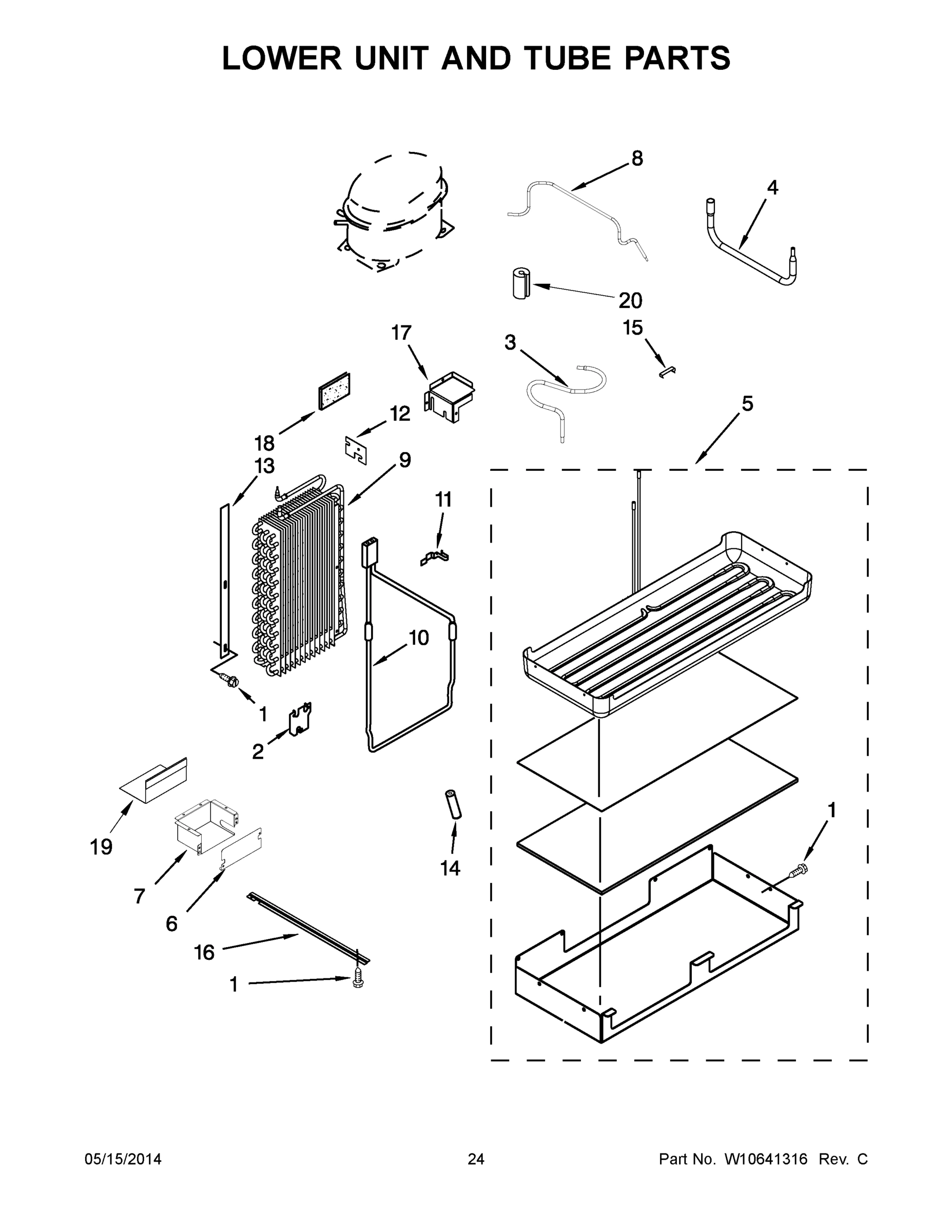

13 - LOWER UNIT AND TUBE PARTS

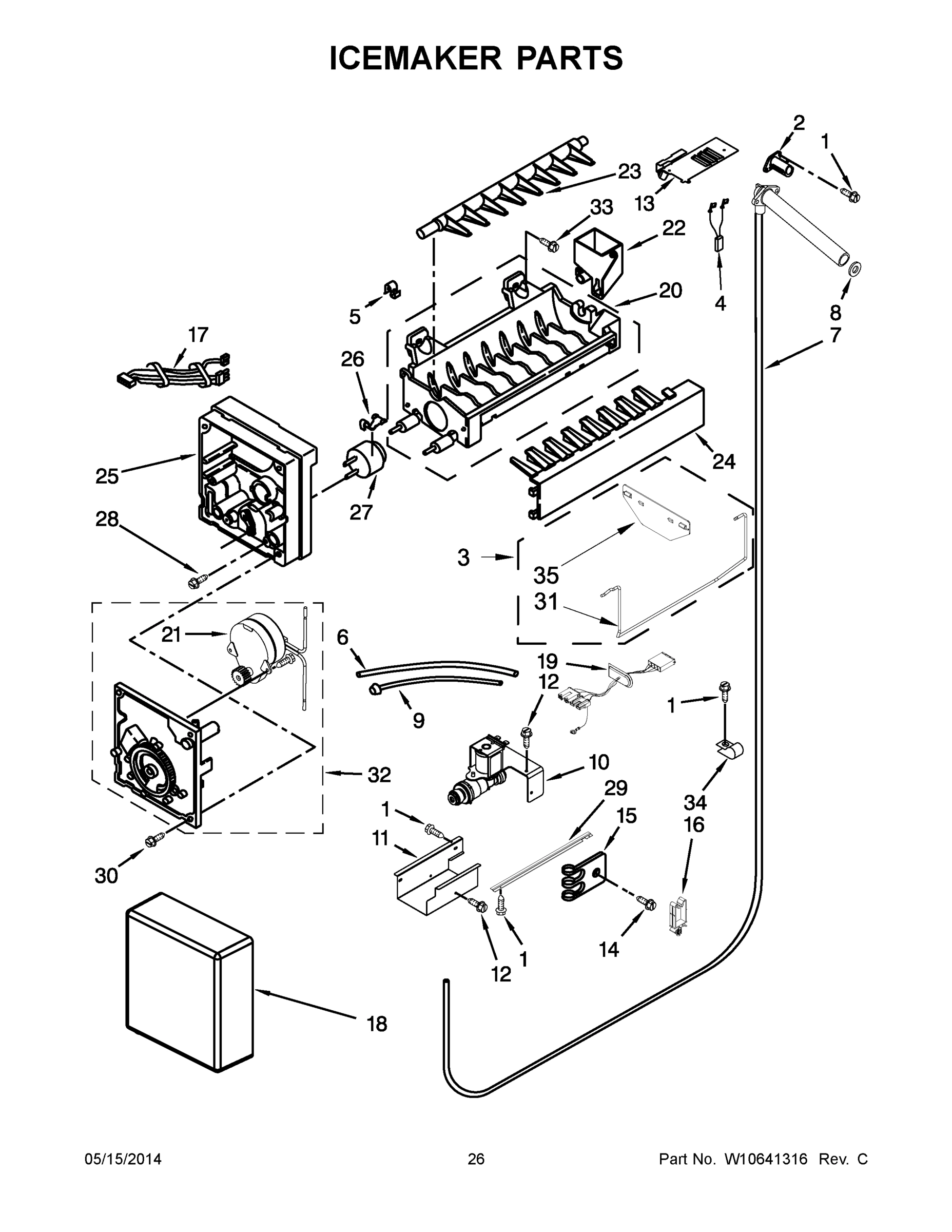

14 - ICEMAKER PARTS
15 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JS48NXFXDW05 REFRIGERATOR
1
MAY W10234149 MAY W10234149 Contact Us For Availability
1
MAY W10234151 MAY W10234151 Contact Us For Availability
1
MAY W10246794 MAY W10246794 Contact Us For Availability
1
MAY W10303992 MAY W10303992 Contact Us For Availability
1
MAY W10379136 MAY W10379136 Contact Us For Availability
1
MAY W10483325 MAY W10483325 Contact Us For Availability
1
SCREW MAY 486194 Contact Us For Availability
1
TRIM, CABINET SIDE (LEFT) (BLACK) MAY W10344547 Contact Us For Availability
1
MAY W10436861 MAY W10436861 Contact Us For Availability
1
CONTROL BOX ASSEMBLY MAY W10269711 Contact Us For Availability
1
SHELF ASSEMBLY MAY W10187538 Contact Us For Availability
1
MAY W10175906 MAY W10175906 Contact Us For Availability
1
REFRIGERATOR DOOR MAY W10167383 Contact Us For Availability
1
FREEZER DOOR MAY W10167379 Contact Us For Availability
1
MAY W10624563 MAY W10624563 Contact Us For Availability
1
ASSEMBLY, INVERTER BOX MAY W10449006 Contact Us For Availability
2
SCREW MAY 1163283 Contact Us For Availability
2
ASSEMBLY, THERMISTOR MAY 2317844 Contact Us For Availability
2
MAY 2169142 MAY 2169142 Contact Us For Availability
2
MAY W10209498 MAY W10209498 Contact Us For Availability
2
MAY 8281160 MAY 8281160 Contact Us For Availability
2
MAY W10213535 MAY W10213535 Contact Us For Availability
2
COVER, TOP DOOR MAY W10199888 Contact Us For Availability
2
MAY 489373 MAY 489373 Contact Us For Availability
2
MAY W10157752 MAY W10157752 Contact Us For Availability
2
MAY 2221240 MAY 2221240 Contact Us For Availability
3
MAY 2318189 MAY 2318189 Contact Us For Availability
3
TRIM, BOTTOM CAB MAY W10188506 Contact Us For Availability
3
MAY 2208970 MAY 2208970 Contact Us For Availability
3
MAY W10260421 MAY W10260421 Contact Us For Availability
3
MAY 2324973 MAY 2324973 Contact Us For Availability
3
COVER ASSEMBLY, CRISPER (UPPER) MAY W10137287 Contact Us For Availability
3
MAY 2302884 MAY 2302884 Contact Us For Availability
3
MAY W10234206 MAY W10234206 Contact Us For Availability
3
COVER, TOP DOOR MAY W10199875 Contact Us For Availability
3
MAY 2256466 MAY 2256466 Contact Us For Availability
3
MAY W10173296 MAY W10173296 Contact Us For Availability
3
TUBE, OIL TRAP SUCTION MAY W10306442 Contact Us For Availability
3
ASSEMBLY, SHUT OFF ARM MAY 2304354 Contact Us For Availability
4
MAY W10138054 MAY W10138054 Contact Us For Availability
4
DIFFUSER, ASSEMBLY CRISPER (UPPER) MAY W10171433 Contact Us For Availability
4
Gasket, Cover MAY W10203260 Contact Us For Availability
4
MAY 2307596 MAY 2307596 Contact Us For Availability
4
COVER ASSEMBLY, MEAT PAN MAY W10217205 Contact Us For Availability
4
MAY 2259082 MAY 2259082 Contact Us For Availability
4
MAY W10234194 MAY W10234194 Contact Us For Availability
4
UNIT COVER, FRONT MAY W10272180 Contact Us For Availability
4
MAY W10200659 MAY W10200659 Contact Us For Availability
4
MAY W10388653 MAY W10388653 Contact Us For Availability
4
WIRE ASSEMBLY, FILL TUBE HEATER MAY W10482373 Contact Us For Availability
5
SUPPORT, LEVELER ASSEMBLY (RIGHT HAND) MAY W10138423 Contact Us For Availability
5
SUPPORT, LEVELER ASSEMBLY (LEFT HAND) MAY W10279275 Contact Us For Availability
5
TRIM, TOP CAB MAY W10138452 Contact Us For Availability
5
LADDER, SHELF MAY W10213536 Contact Us For Availability
5
SCREW (STAINLESS) MAY 487539 Contact Us For Availability
5
MAY W10321090 MAY W10321090 Contact Us For Availability
5
COVER ASSEMBLY, CRISPER (LOWER) MAY W10189067 Contact Us For Availability
5
MAY 2256270 MAY 2256270 Contact Us For Availability
5
GASKET, DOOR MAY 2222810 Contact Us For Availability
5
MAY W10251186 MAY W10251186 Contact Us For Availability
5
MAY W10414681 MAY W10414681 Contact Us For Availability
5
ASSEMBLY, DRAIN PAN MAY W10281063 Contact Us For Availability
5
CLIP, THERMAL FUSE MAY 628379 Contact Us For Availability
6
MAY 2260518B MAY 2260518B Contact Us For Availability
6
MAY W10121451 MAY W10121451 Contact Us For Availability
6
MAY 2259445 MAY 2259445 Contact Us For Availability
6
MAY 2317000 MAY 2317000 Contact Us For Availability
6
MEAT PAN ASSEMBLY MAY W10407641 Contact Us For Availability
6
MAY 2259317 MAY 2259317 Contact Us For Availability
6
MAY 2259318 MAY 2259318 Contact Us For Availability
6
MAY 2222797 MAY 2222797 Contact Us For Availability
6
MAY W10182700 MAY W10182700 Contact Us For Availability
6
GROMMET, FLEXIBLE MAY 2215910 Contact Us For Availability
6
GROMMET MAY 1100826 Contact Us For Availability
6
MAY W10321048 MAY W10321048 Contact Us For Availability
6
MAY W10296807 MAY W10296807 Contact Us For Availability
7
MAY 2307640 MAY 2307640 Contact Us For Availability
7
MAY 2005925 MAY 2005925 Contact Us For Availability
7
MAY 2006475 MAY 2006475 Contact Us For Availability
7
SCREW MAY W10141604 Contact Us For Availability
7
MAY W10191429 MAY W10191429 Contact Us For Availability
7
MAY 2302954 MAY 2302954 Contact Us For Availability
7
MAY 2302955 MAY 2302955 Contact Us For Availability
7
SCREW (STAINLESS) MAY 8533928 Contact Us For Availability
7
MAY 2222983 MAY 2222983 Contact Us For Availability
7
SCREW (WHITE) MAY 8281251 Contact Us For Availability
7
MAY W10525177 MAY W10525177 Contact Us For Availability
7
MAY W10525179 MAY W10525179 Contact Us For Availability
7
MAY W10309012 MAY W10309012 Contact Us For Availability
7
MAY 2314049 MAY 2314049 Contact Us For Availability
8
SUPPORT-GRILLE (LEFT HAND) MAY W10188499 Contact Us For Availability
8
SUPPORT-GRILLE (RIGHT HAND) MAY W10188500 Contact Us For Availability
8
Screw MAY 487415 Contact Us For Availability
8
Bulb, Light MAY 2326255 Contact Us For Availability
8
ASSEMBLY, MEAT PAN FRONT MAY 2256367 Contact Us For Availability
8
MAY 2266935 MAY 2266935 Contact Us For Availability
8
MAY 2222812 MAY 2222812 Contact Us For Availability
8
TRIM, TOP DOOR MAY W10182706 Contact Us For Availability
8
MAY W10209446 MAY W10209446 Contact Us For Availability
8
MAY W10412485 MAY W10412485 Contact Us For Availability
8
GASKET, SEAL MAY 1106508 Contact Us For Availability
9
TRIM, CABINET SIDE (RIGHT) (BLACK) MAY W10344544 Contact Us For Availability
9
MAY W10187549 MAY W10187549 Contact Us For Availability
9
MAY 2266931 MAY 2266931 Contact Us For Availability
9
TRIM, BOTTOM DOOR MAY W10182710 Contact Us For Availability
9
MAY 2215676 MAY 2215676 Contact Us For Availability
9
MAY W10427993 MAY W10427993 Contact Us For Availability
9
MAY W10437853 MAY W10437853 Contact Us For Availability
10
MAY W10121140 MAY W10121140 Contact Us For Availability
10
MAY W10137277 MAY W10137277 Contact Us For Availability
10
MAY 2266955 MAY 2266955 Contact Us For Availability
10
MAY W10167367 MAY W10167367 Contact Us For Availability
10
MAY W10182685 MAY W10182685 Contact Us For Availability
10
MAY W10140162 MAY W10140162 Contact Us For Availability
10
MAY 2307650 MAY 2307650 Contact Us For Availability
11
ASSEMBLY, BOTTOM GRILLE MAY W10182714 Contact Us For Availability
11
MAY 2003577 MAY 2003577 Contact Us For Availability
11
MAY W10170114 MAY W10170114 Contact Us For Availability
11
SLIDE, CRISPER (LEFT HAND) MAY 2302956 Contact Us For Availability
11
SLIDE, CRISPER (RIGHT HAND) MAY 2302957 Contact Us For Availability
11
MAY W10188511 MAY W10188511 Contact Us For Availability
11
MAY W10199955 MAY W10199955 Contact Us For Availability
11
CONTROL, ELECTRONIC MAY W10356040 Contact Us For Availability
11
CLAMP, HEATER MAY 1113048 Contact Us For Availability
11
SHIELD, VALVE ELECTRICAL MAY W10129653 Contact Us For Availability
12
Filter, Water MAY W10121146 Contact Us For Availability
12
ASSEMBLY, AIR BAFFLE MAY 2221296 Contact Us For Availability
12
MAY W10217428 MAY W10217428 Contact Us For Availability
12
MAY W10188539 MAY W10188539 Contact Us For Availability
12
INSERT, ARM DOOR (TOP) MAY W10197748 Contact Us For Availability
12
INSERT, ARM DOOR(BOTTOM) MAY W10197766 Contact Us For Availability
12
TRIM, TOP DOOR MAY W10182684 Contact Us For Availability
12
MAY 2203075 MAY 2203075 Contact Us For Availability
12
SCREW MAY 487294 Contact Us For Availability
12
MAY W10139908 MAY W10139908 Contact Us For Availability
13
MAY 489399 MAY 489399 Contact Us For Availability
13
Diffuser Assembly MAY W10203322 Contact Us For Availability
13
MAY W10170085 MAY W10170085 Contact Us For Availability
13
MAY 8533929 MAY 8533929 Contact Us For Availability
13
ASSEMBLY, ICE BUCKET FRONT MAY 2266958 Contact Us For Availability
13
MAY W10323603 MAY W10323603 Contact Us For Availability
13
MAY 2256328 MAY 2256328 Contact Us For Availability
13
MAY W10432308 MAY W10432308 Contact Us For Availability
13
MAY 2221231 MAY 2221231 Contact Us For Availability
14
MAY W10234202 MAY W10234202 Contact Us For Availability
14
MAY W10001250 MAY W10001250 Contact Us For Availability
14
MAY W10170112 MAY W10170112 Contact Us For Availability
14
MAY W10407639 MAY W10407639 Contact Us For Availability
14
TRIM, BOTTOM DOOR MAY W10182691 Contact Us For Availability
14
MAY W10587113 MAY W10587113 Contact Us For Availability
14
GROMMET, AIR RETURN MAY W10413009 Contact Us For Availability
15
HINGE (TOP) (RIGHT HAND) MAY W10167397 Contact Us For Availability
15
HINGE (TOP) (LEFT HAND) MAY W10167398 Contact Us For Availability
15
MAY 1157158 MAY 1157158 Contact Us For Availability
15
MAY 2256249 MAY 2256249 Contact Us For Availability
15
END CAP (RIGHT HAND) MAY W10323172 Contact Us For Availability
15
END CAP (LEFT HAND) MAY W10323173 Contact Us For Availability
15
MAY W10169509 MAY W10169509 Contact Us For Availability
15
MAY 2208136 MAY 2208136 Contact Us For Availability
16
BRACKET, FILTER MAY W10348782 Contact Us For Availability
16
MAY W10129069 MAY W10129069 Contact Us For Availability
16
MAY W10170104 MAY W10170104 Contact Us For Availability
16
MAY W10170101 MAY W10170101 Contact Us For Availability
16
MAY 2307810 MAY 2307810 Contact Us For Availability
16
MAY W10323037 MAY W10323037 Contact Us For Availability
16
MAY W10591457 MAY W10591457 Contact Us For Availability
16
MAY 2320554 MAY 2320554 Contact Us For Availability
17
MAY W10171428 MAY W10171428 Contact Us For Availability
17
MAY 2307751 MAY 2307751 Contact Us For Availability
17
DEFLECTOR, AIR MAY 2317939 Contact Us For Availability
17
MAY 2257617 MAY 2257617 Contact Us For Availability
17
MAY W10483905 MAY W10483905 Contact Us For Availability
17
MAY W10160981 MAY W10160981 Contact Us For Availability
17
WIRE ASSEMBLY, ICE MAKER MAY W10508673 Contact Us For Availability
18
COVER, EVAP MAY W10428008 Contact Us For Availability
18
MAY W10323600 MAY W10323600 Contact Us For Availability
18
MAY W10495645 MAY W10495645 Contact Us For Availability
18
SEALER, INSULATION MAY 2169104 Contact Us For Availability
18
MAY W10289690 MAY W10289690 Contact Us For Availability
19
SCREW (STAINLESS) MAY 8281163 Contact Us For Availability
19
MAY W10323748 MAY W10323748 Contact Us For Availability
19
MAY W10279393 MAY W10279393 Contact Us For Availability
20
HINGE (BOTTOM) (RIGHT HAND) MAY W10182692 Contact Us For Availability
20
HINGE (BOTTOM) (LEFT HAND) MAY W10182693 Contact Us For Availability
20
AIR DEFLECTOR MAY 2266801 Contact Us For Availability
20
TIE, WIRE MAY 2155774 Contact Us For Availability
20
ASSEMBLY, MOLD AND HEATER MAY W10122527 Contact Us For Availability
21
MAY 8533913 MAY 8533913 Contact Us For Availability
21
MAY 1112260 MAY 1112260 Contact Us For Availability
21
MAY W10175593 MAY W10175593 Contact Us For Availability
22
MAY W10188551 MAY W10188551 Contact Us For Availability
22
ASSEMBLY, SHELF STUD MAY W10173127 Contact Us For Availability
22
ASSEMBLY, CONDENSER FAN WIRE MAY 2310207 Contact Us For Availability
22
MAY W10435665 MAY W10435665 Contact Us For Availability
23
GRILLE, PUSH FILTER BOTTOM (BLACK) MAY W10182718 Contact Us For Availability
23
MAY W10191952 MAY W10191952 Contact Us For Availability
23
MAY 2188875 MAY 2188875 Contact Us For Availability
23
MAY 627843 MAY 627843 Contact Us For Availability
24
EVAPORATOR, COVER RAIL (LEFT HAND) MAY W10135766 Contact Us For Availability
24
EVAPORATOR, COVER RAIL (RIGHT HAND) MAY W10141474 Contact Us For Availability
24
MAY W10139483 MAY W10139483 Contact Us For Availability
24
STRIPPER, ICE MAY W10122563 Contact Us For Availability
25
BRACKET, BASE SUPPORT MAY 2006617 Contact Us For Availability
25
GASKET EVAPORATOR COVER MAY 2220904 Contact Us For Availability
25
MAY W10415670 MAY W10415670 Contact Us For Availability
25
MAY 2194712 MAY 2194712 Contact Us For Availability
26
MAY W10141645 MAY W10141645 Contact Us For Availability
26
MAY W10482187 MAY W10482187 Contact Us For Availability
26
MAY W10624944 MAY W10624944 Contact Us For Availability
26
MAY 2315522 MAY 2315522 Contact Us For Availability
27
MAY 8533993 MAY 8533993 Contact Us For Availability
27
THERMOSTAT MAY 627985 Contact Us For Availability
28
MAY 2260503B MAY 2260503B Contact Us For Availability
28
MAY 2188820 MAY 2188820 Contact Us For Availability
28
MAY W10234133 MAY W10234133 Contact Us For Availability
28
MAY W10001280 MAY W10001280 Contact Us For Availability
29
SWITCH, LIGHT MAY C3680314 Contact Us For Availability
29
MAY 2317105 MAY 2317105 Contact Us For Availability
29
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
29
MAY 2320559 MAY 2320559 Contact Us For Availability
30
MAY W10167341 MAY W10167341 Contact Us For Availability
30
MAY W10167387 MAY W10167387 Contact Us For Availability
30
MAY 2001377 MAY 2001377 Contact Us For Availability
30
CONTROL, ELECTRONIC MAY W10184634 Contact Us For Availability
30
MAY 489276 MAY 489276 Contact Us For Availability
31
MAY W10213473 MAY W10213473 Contact Us For Availability
31
MAY W10528578 MAY W10528578 Contact Us For Availability
31
MAY 2304352 MAY 2304352 Contact Us For Availability
32
MAY 2215612 MAY 2215612 Contact Us For Availability
32
TOP COVER, CONDENSER MAY W10525175 Contact Us For Availability
32
ASSEMBLY, MODULE AND MOTOR MAY 626691 Contact Us For Availability
33
LEVELER, ADJUSTABLE MAY 2005032 Contact Us For Availability
33
MAY W10160570 MAY W10160570 Contact Us For Availability
33
Service Cord MAY 2310196 Contact Us For Availability
33
MAY W10141596 MAY W10141596 Contact Us For Availability
34
GROMMET, CROSSOVERTUBE MAY 2307584 Contact Us For Availability
34
MAY W10142283 MAY W10142283 Contact Us For Availability
34
MAY 2221070 MAY 2221070 Contact Us For Availability
35
MAY W10250963 MAY W10250963 Contact Us For Availability
35
Switch, Power Disconnect MAY 2266802 Contact Us For Availability
35
EXTENSION-SHUT OFF ARM MAY 2304353 Contact Us For Availability
37
MAY W10209510 MAY W10209510 Contact Us For Availability
37
Clamp, Power Cord MAY 549193 Contact Us For Availability
38
HARNESS, DC UNIT MAY W10209460 Contact Us For Availability
39
Ring, Retainer MAY 2006841 Contact Us For Availability
39
HARNESS, AC UNIT MAY W10209462 Contact Us For Availability
40
MAY 2314064 MAY 2314064 Contact Us For Availability
40
MAY W10528459 MAY W10528459 Contact Us For Availability
100
MAY W10277450 MAY W10277450 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, MAY N/P Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
MAY REFDEODOR MAY REFDEODOR Contact Us For Availability
NI
MAY W10234156 MAY W10234156 Contact Us For Availability
NI
KITCHEN AND APPLIANCE CLEANER MAY W10355010 Contact Us For Availability
NI
SS CLEANER MAY W10355016 Contact Us For Availability
NI
SS CLEANING WIPES MAY W10355049 Contact Us For Availability
NI
TEMPLATE, DOORS (WOOD PANEL) MAY W10488118 Contact Us For Availability
NI
MAY W10489178 MAY W10489178 Contact Us For Availability
NI
MAY W10553982 MAY W10553982 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MAY 20000008 MAY 20000008 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. ENAMEL, BLACK MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108``) MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MISCELLANEOUS, KIT, FOAM SLAB (30`` X 32 1/2` MAY 876029 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION KIT (14 PIECES, 3`` MAY 876305 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION (2 PIECES, 3`` X 24 MAY 876370 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION, FIBERGLASS (63 1/2 MAY 978941 Contact Us For Availability
× ![]()
