Model Maytag JS48NXFXDE01 REFRIGERATOR, SIDE-BY-SIDE, BUILT-IN, 48 INCH – Common Parts & Diagrams

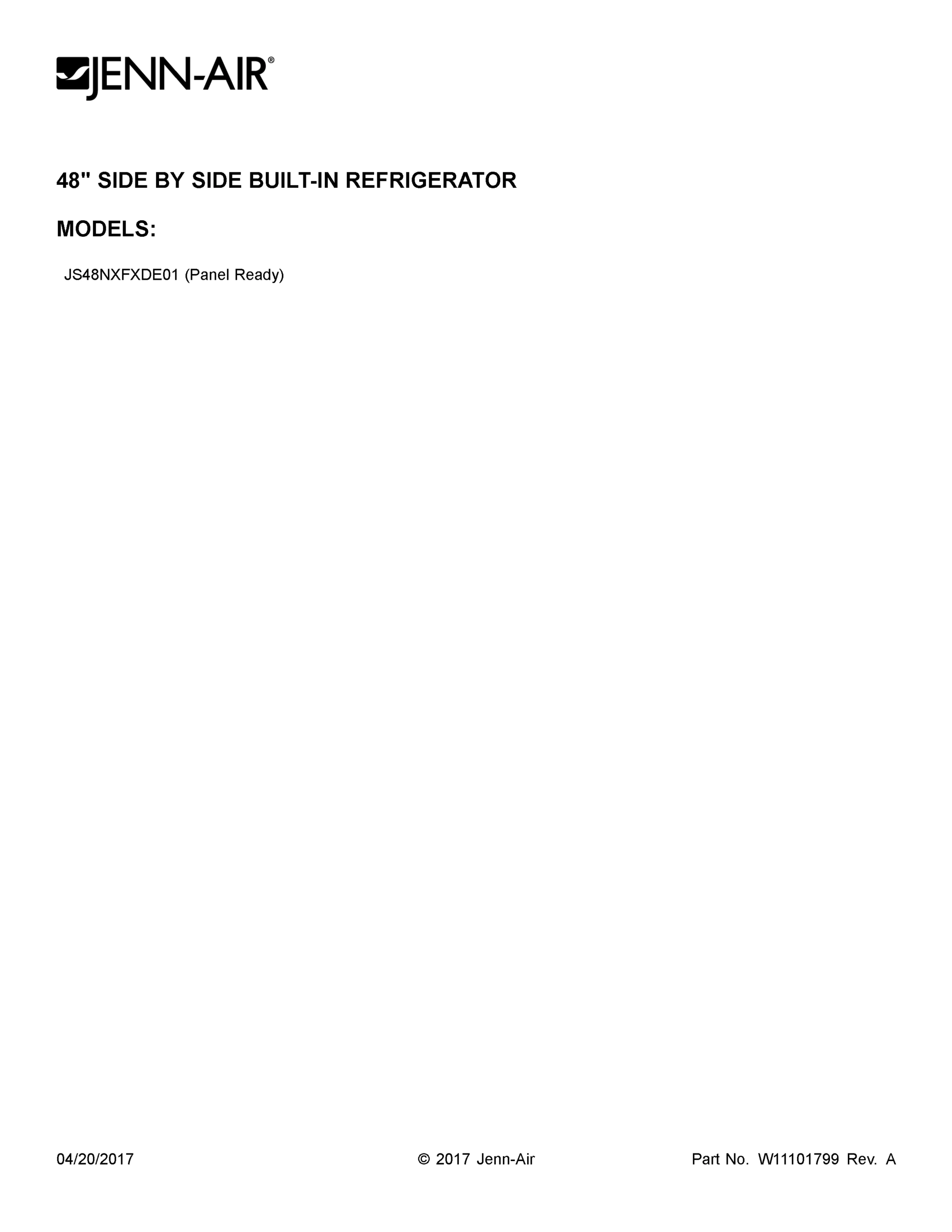

01 - COVER SHEET

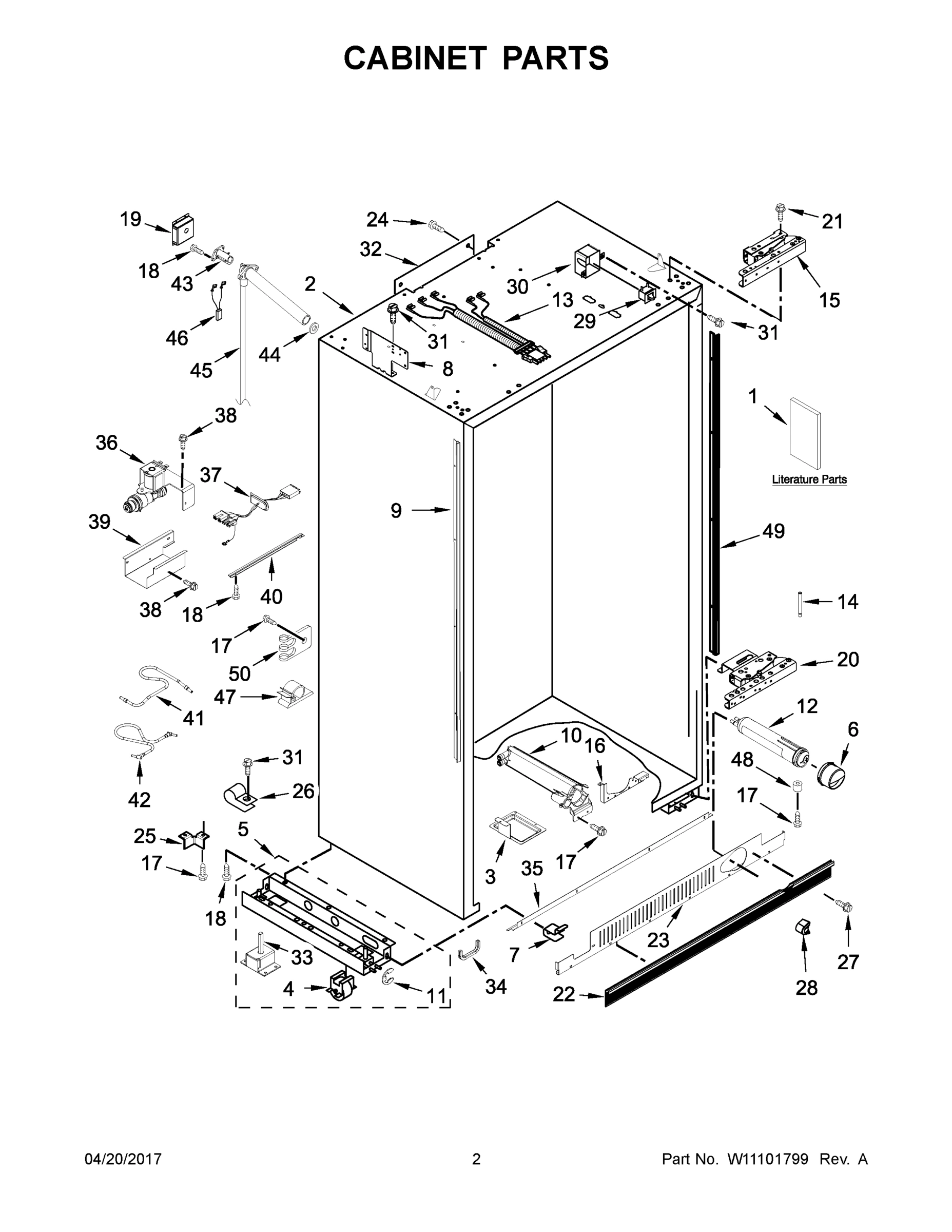

02 - CABINET PARTS

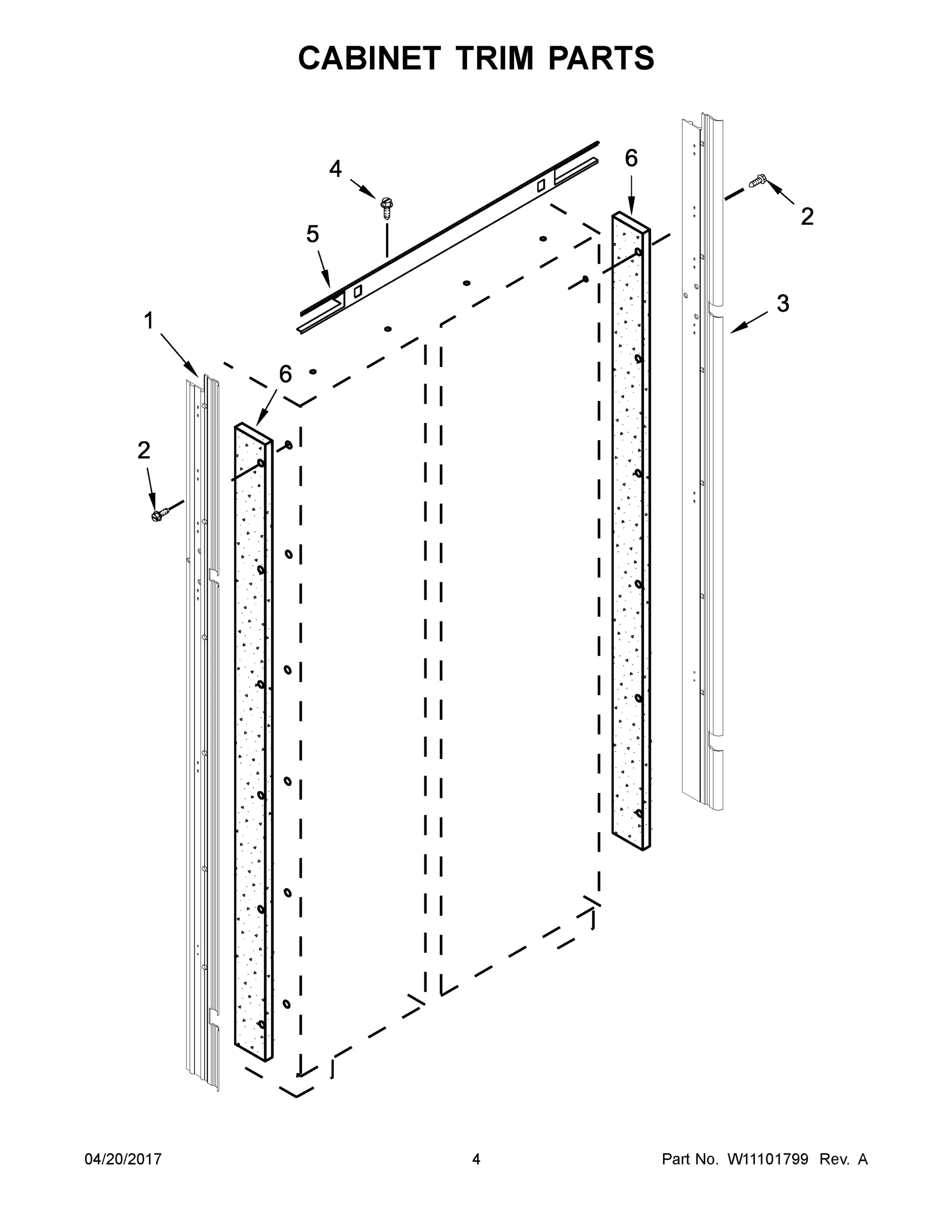

03 - CABINET TRIM PARTS

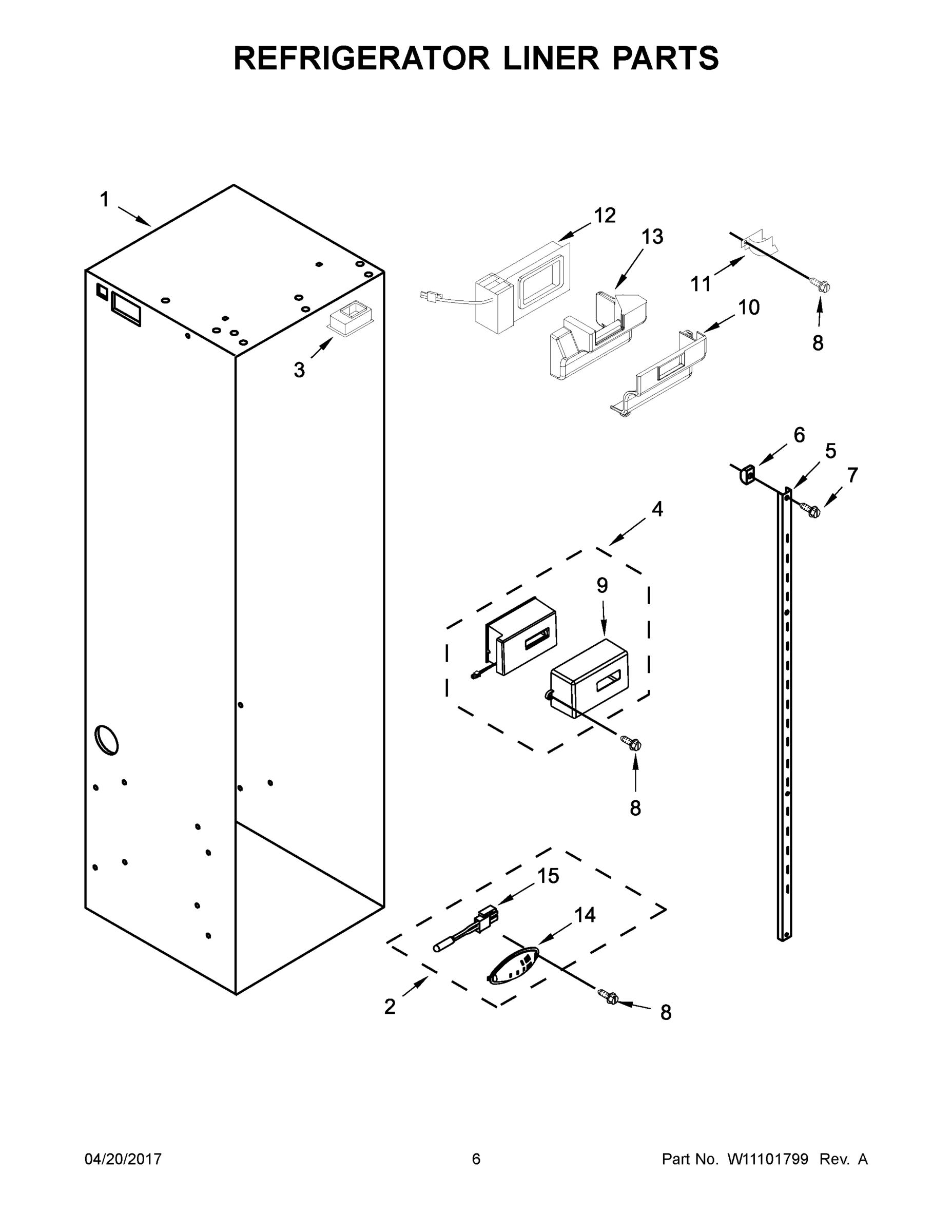

04 - REFRIGERATOR LINER PARTS

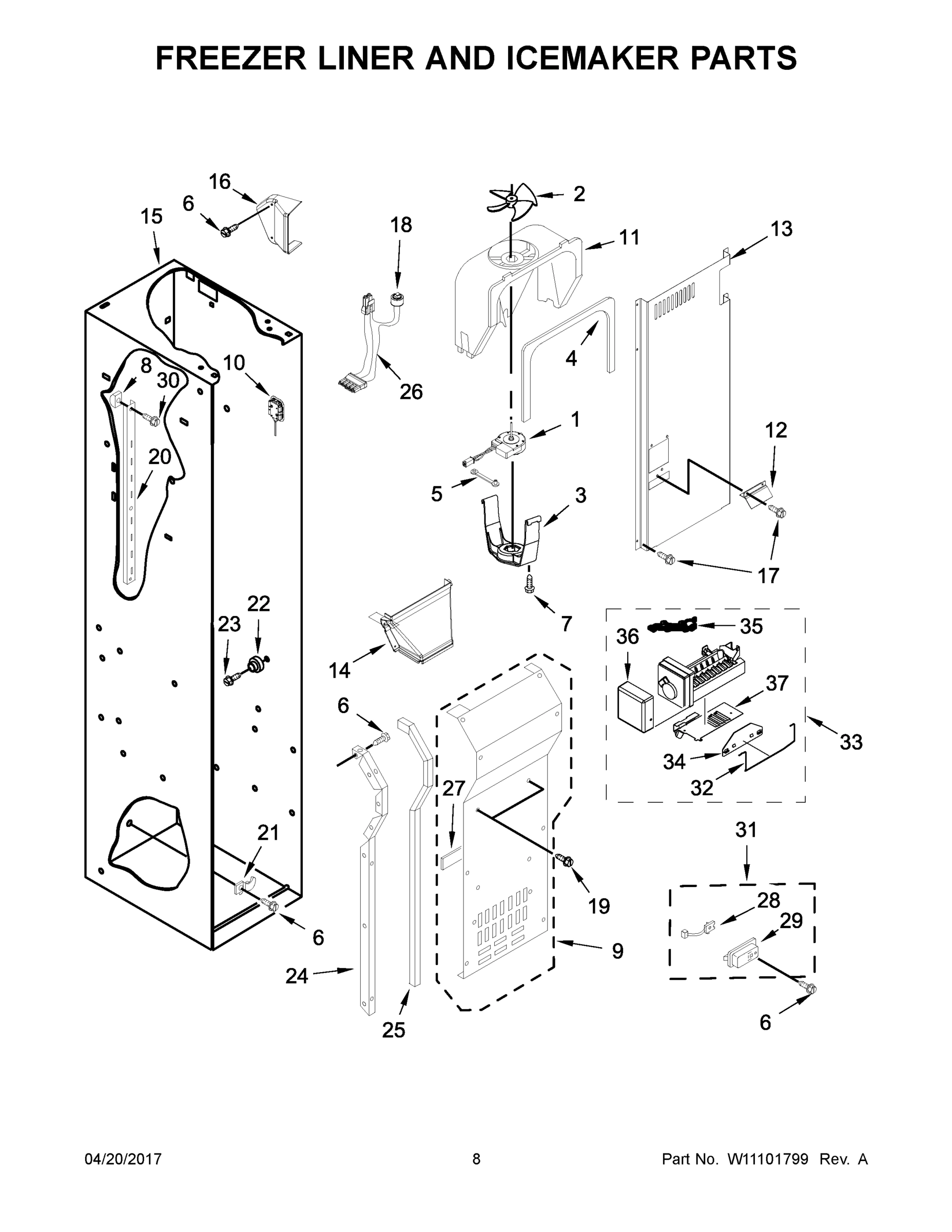

05 - FREEZER LINER AND ICEMAKER PARTS

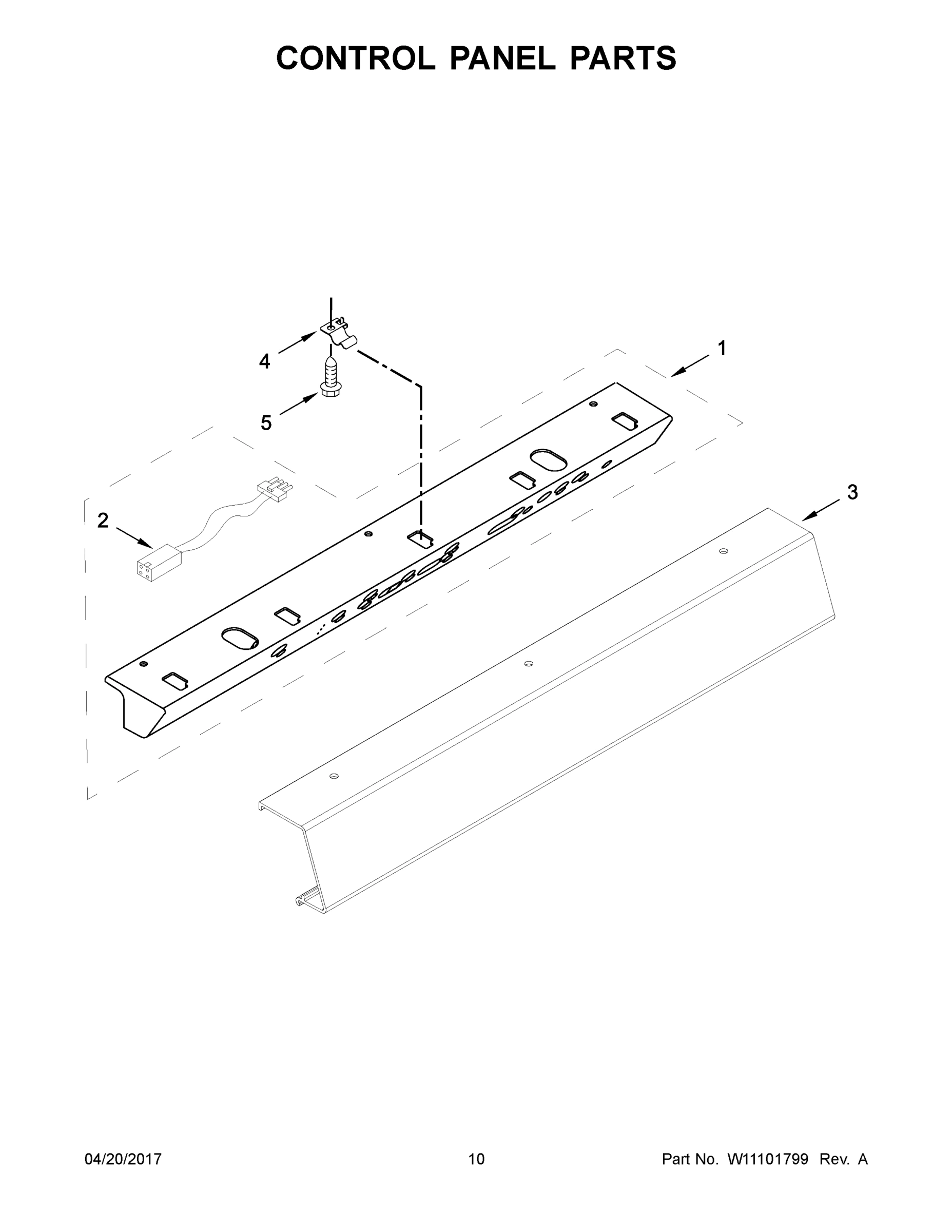

06 - CONTROL PANEL PARTS

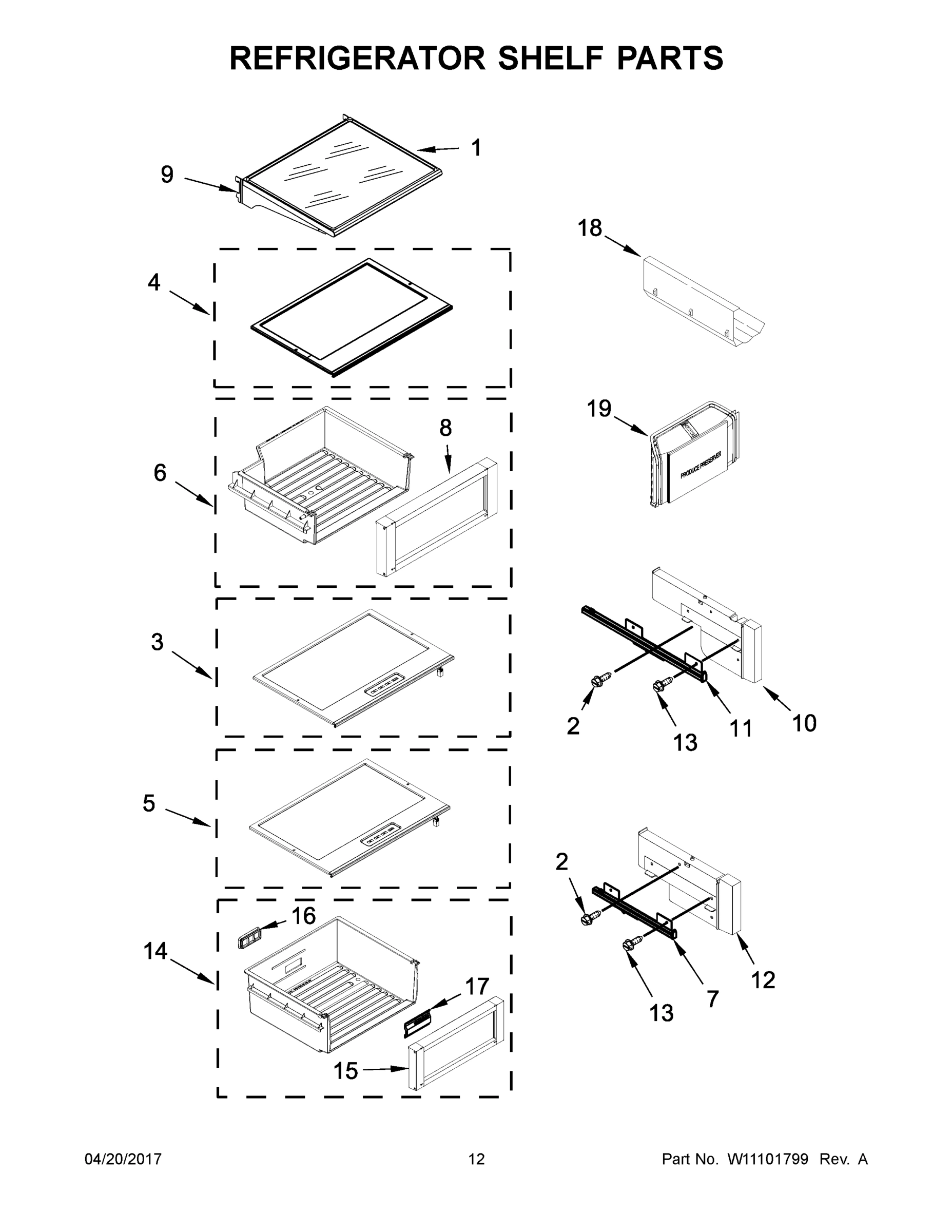

07 - REFRIGERATOR SHELF PARTS

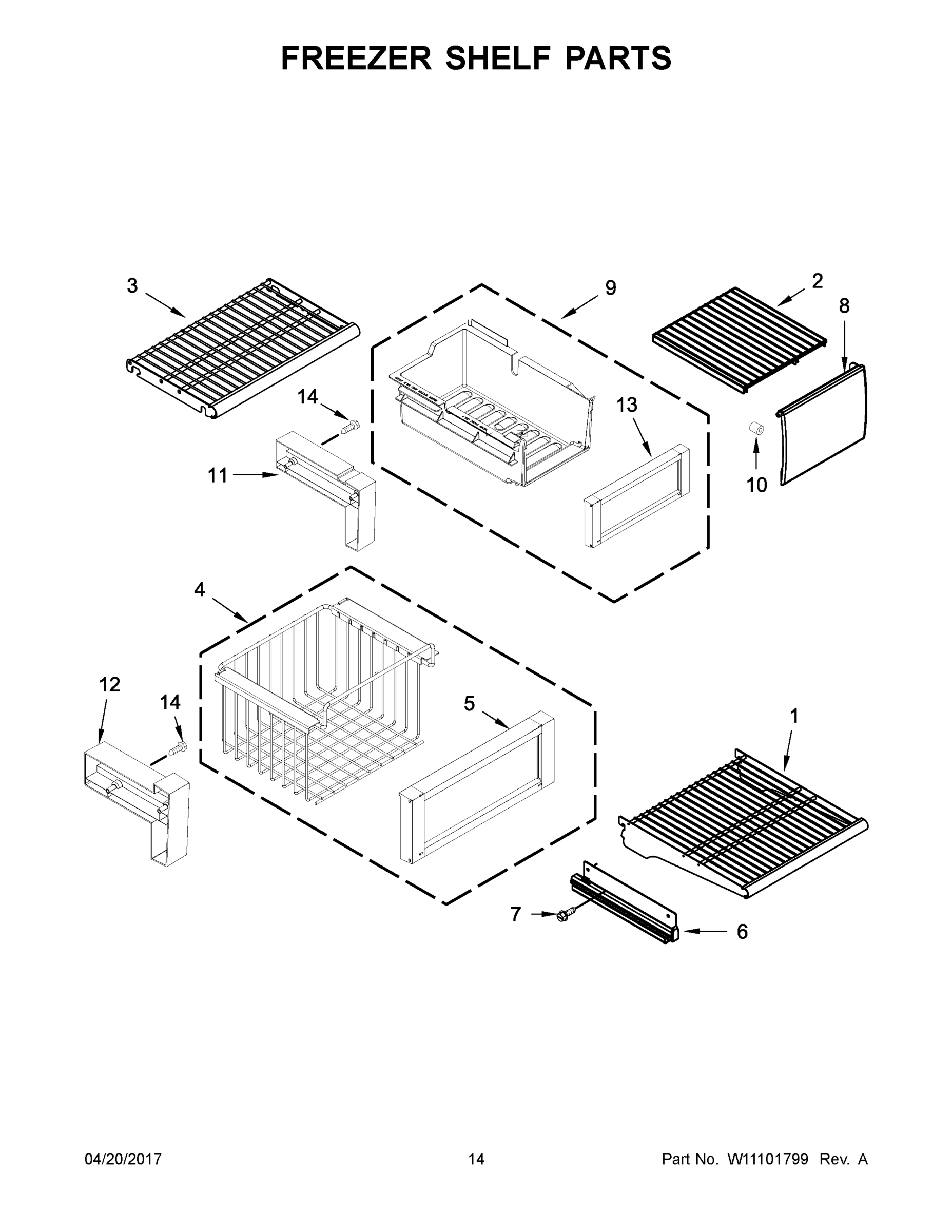

08 - FREEZER SHELF PARTS

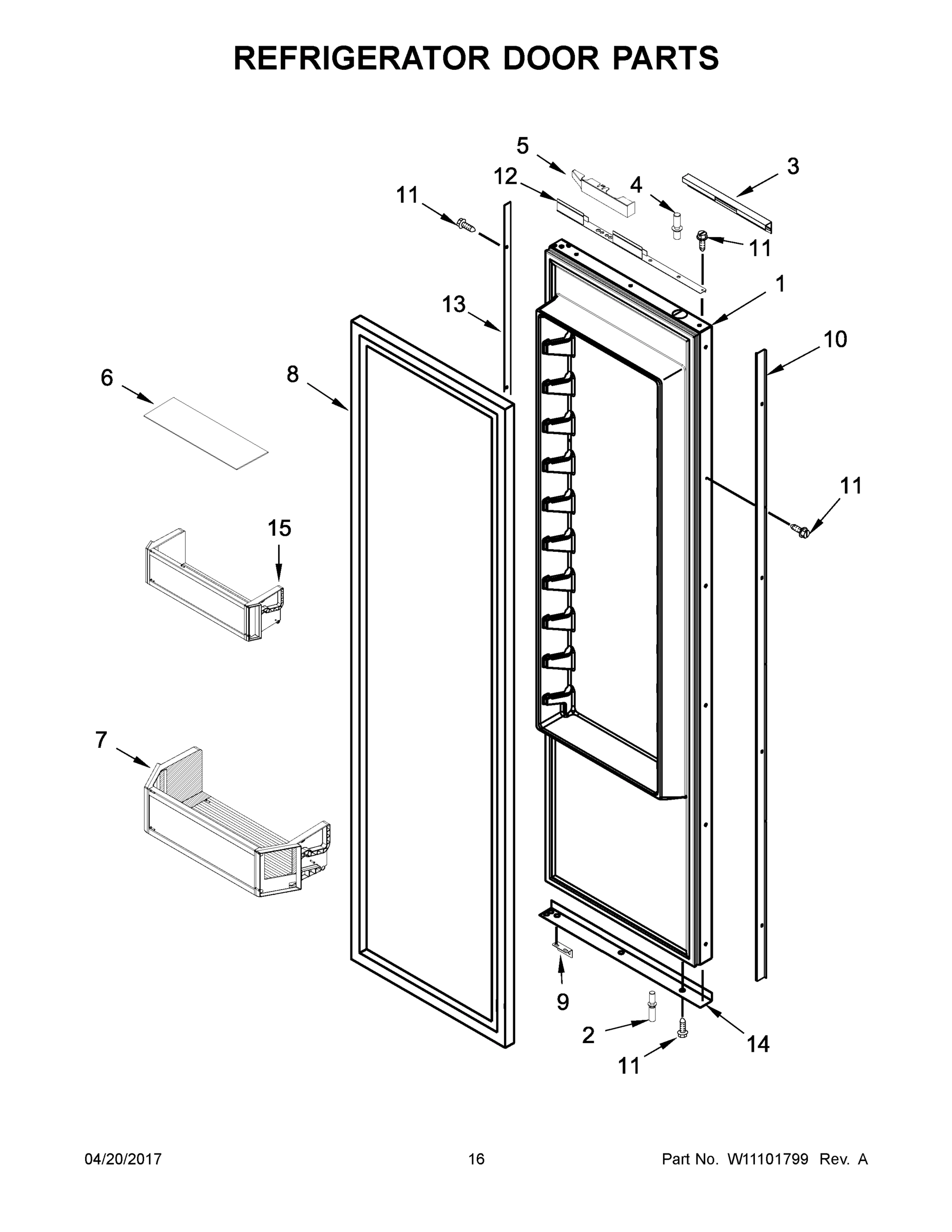

09 - REFRIGERATOR DOOR PARTS

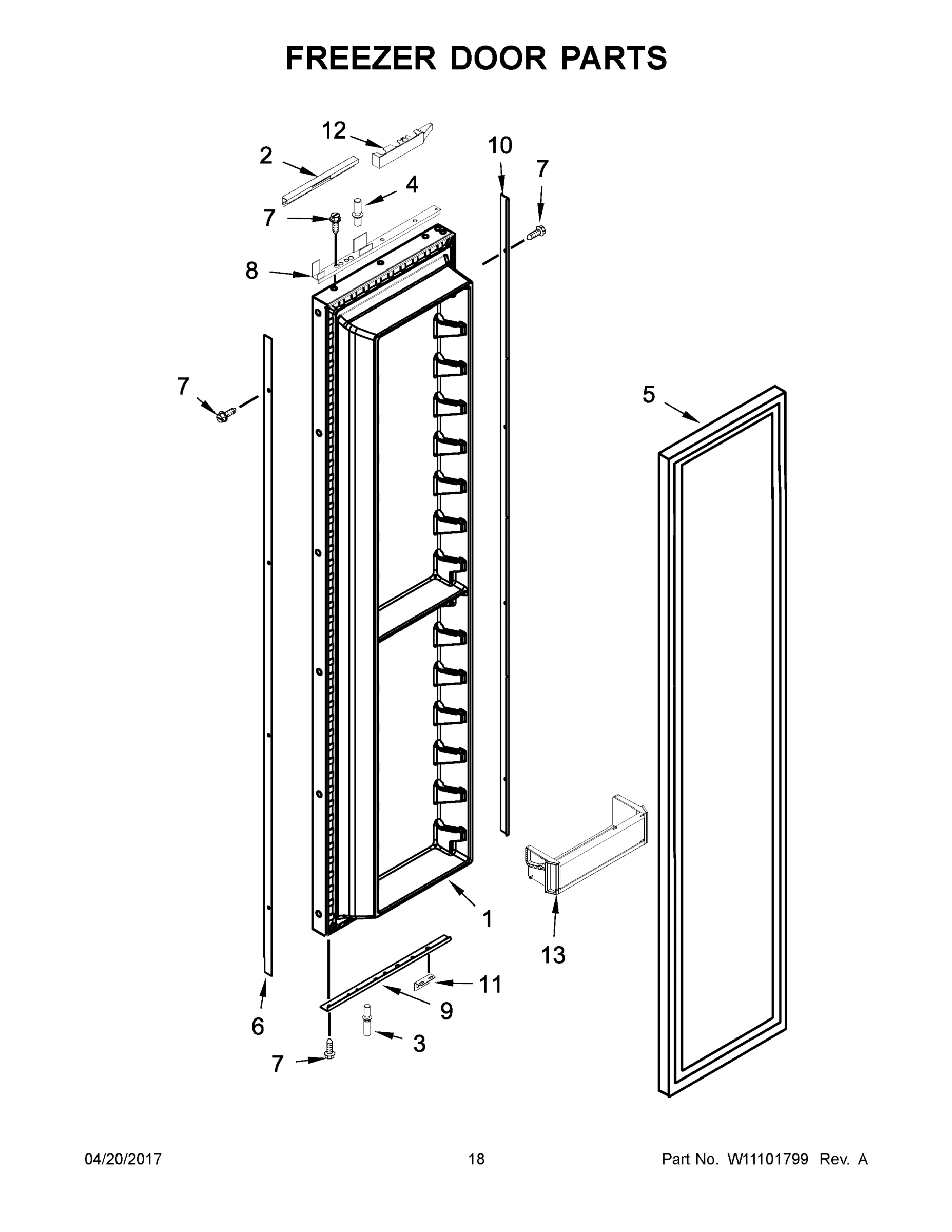

10 - FREEZER DOOR PARTS

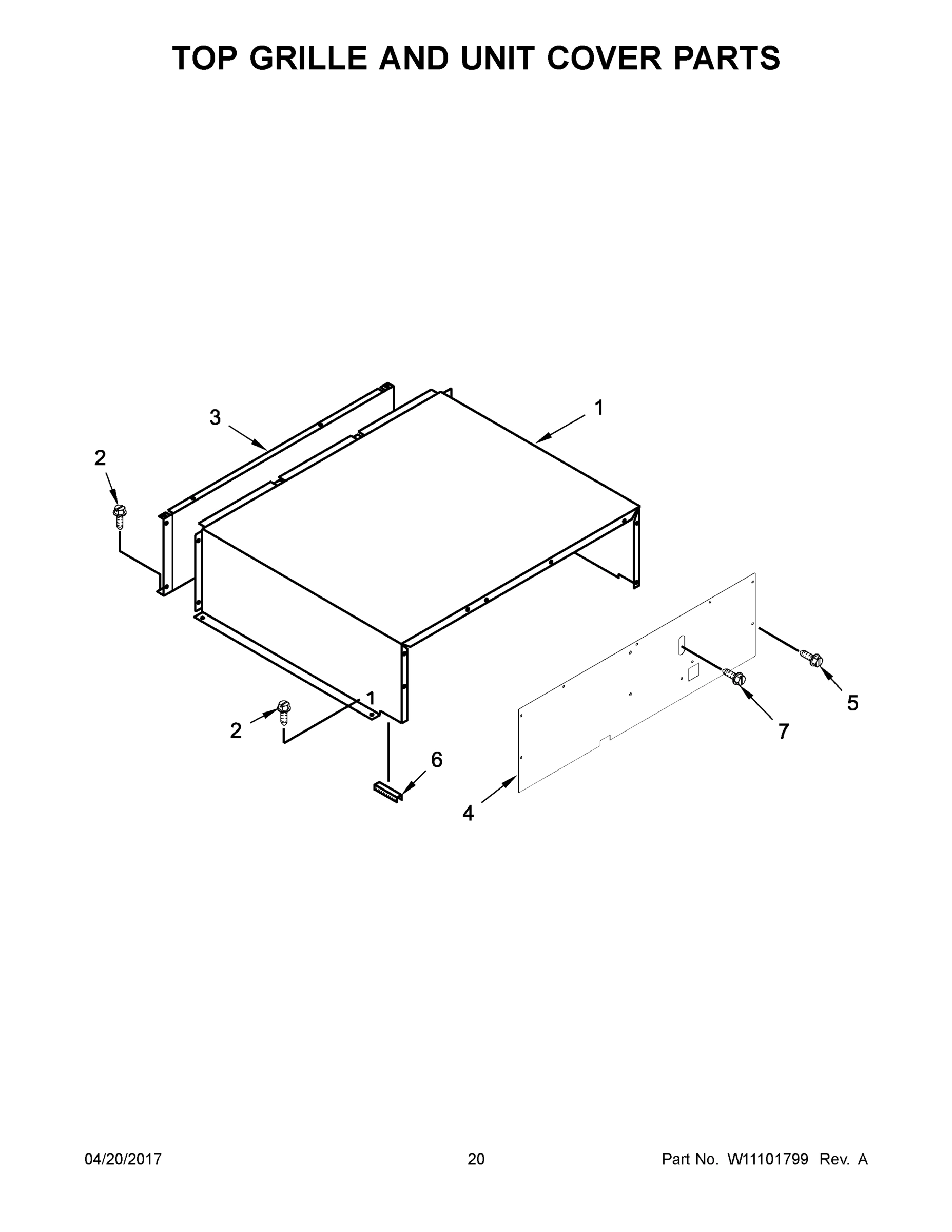

11 - TOP GRILLE AND UNIT COVER PARTS

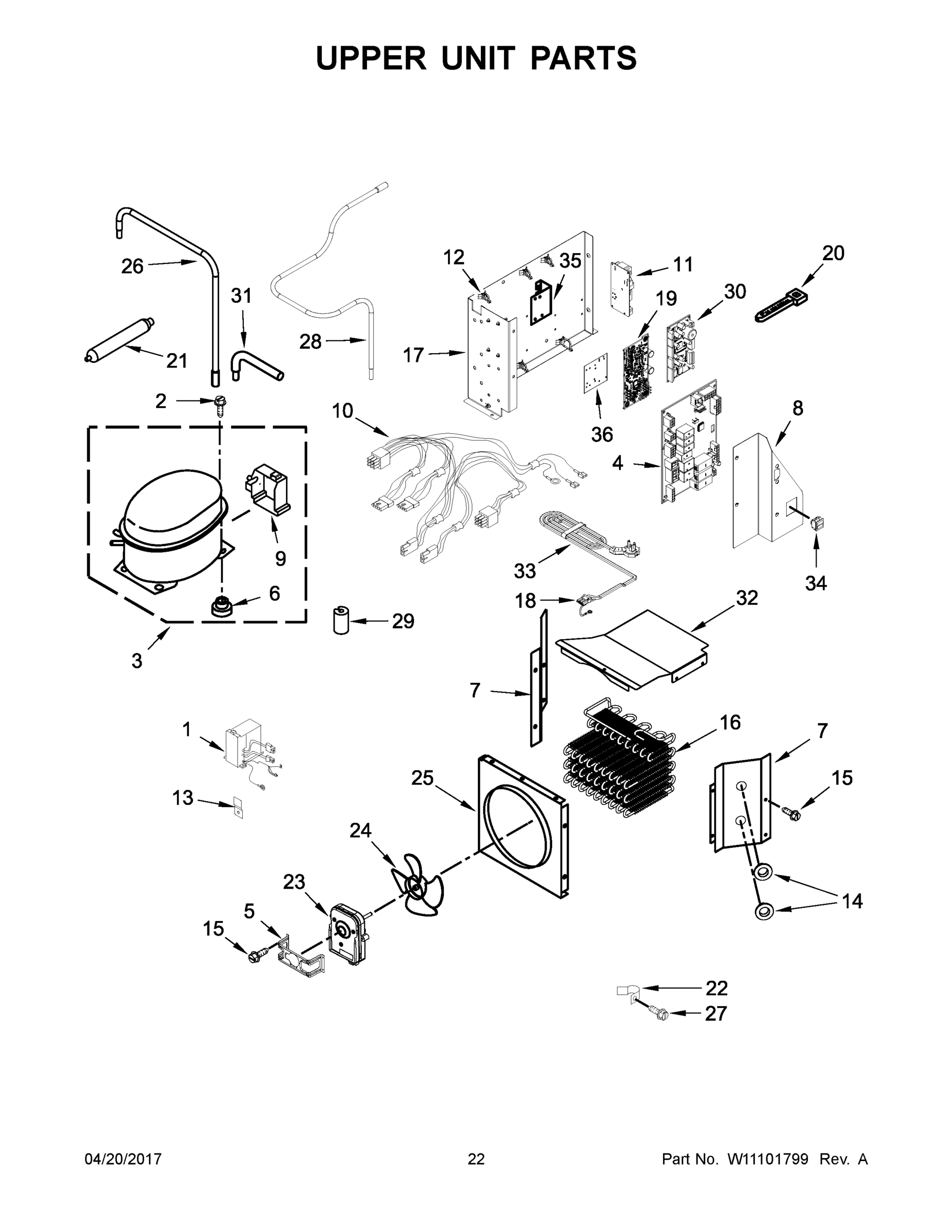

12 - UPPER UNIT PARTS

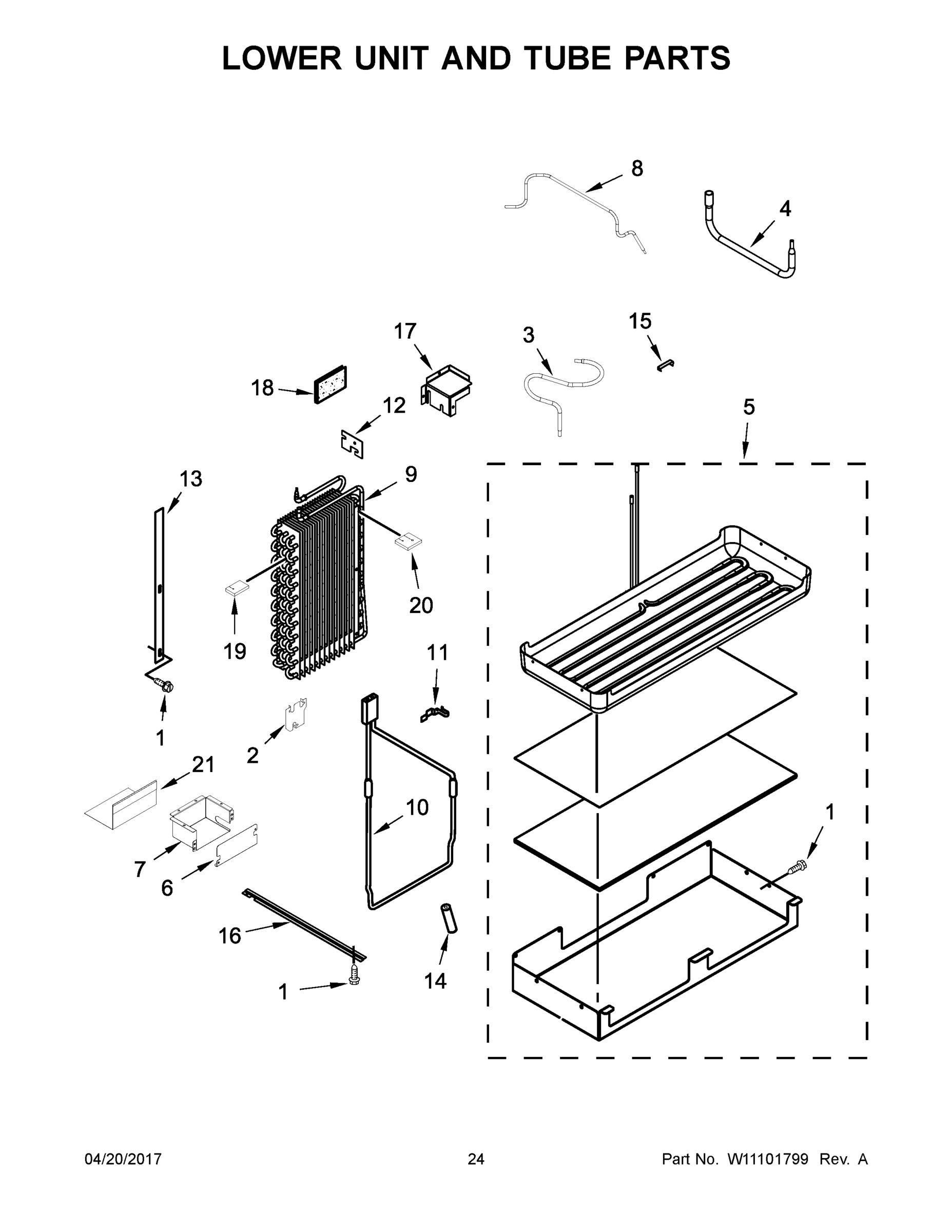

13 - LOWER UNIT AND TUBE PARTS
14 - OPTIONAL PARTS
Common parts from model Maytag JS48NXFXDE01 REFRIGERATOR, SIDE-BY-SIDE, BUILT-IN, 48 INCH
1
USE AND CARE GUIDE MAY W10779525 Contact Us For Availability
1
TRIM, CABINET SIDE LEFT HAND (BLACK) MAY W10775740 Contact Us For Availability
1
MOTOR, FAN MAY W10436861 Contact Us For Availability
1
ASSEMBLY, CONTROL BOX MAY W10785723 Contact Us For Availability
1
ASSEMBLY, SHELF MAY W10187538 Contact Us For Availability
1
SHELF, WIRE MAY W10759087 Contact Us For Availability
1
DOOR, REFRIGERATOR (INCLUDES ITEM 8) MAY W10783287 Contact Us For Availability
1
DOOR, FREEZER (INCLUDES ITEM 5) MAY W10783286 Contact Us For Availability
1
COVER, UNIT MAY W10545068 Contact Us For Availability
1
ASSEMBLY, INVERTER BOX MAY W10645666 Contact Us For Availability
1
SCREW MAY 304392 Contact Us For Availability
1A
ENERGY GUIDE MAY W10785751 Contact Us For Availability
1B
INSTALLATION INSTRUCTIONS MAY W10779523 Contact Us For Availability
1C
MAY W10785746 MAY W10785746 Contact Us For Availability
1D
MAY W10910735 MAY W10910735 Contact Us For Availability
1E
MAY W10910738 MAY W10910738 Contact Us For Availability
2
SCREW MAY 486194 Contact Us For Availability
2
SCREW MAY 1163283 Contact Us For Availability
2
BLADE, FAN MAY 2169142 Contact Us For Availability
2
WIRE, JUMPER MAY W10458299 Contact Us For Availability
2
COVER, SHELF MAY W10777655 Contact Us For Availability
2
COVER, TOP DOOR MAY W10775728 Contact Us For Availability
2
SCREW MAY 489373 Contact Us For Availability
2
BRACKET, HEATER MAY W10157752 Contact Us For Availability
3
TRAY, FILTER DRIP MAY 2318189 Contact Us For Availability
3
TRIM, CABINET SIDE RIGHT HAND (BLACK) MAY W10775741 Contact Us For Availability
3
MAY W10832844 MAY W10832844 Contact Us For Availability
3
RETAINER, FAN MOTOR MAY W10260421 Contact Us For Availability
3
BRACKET, CONTROL BOX MAY W10775707 Contact Us For Availability
3
ASSEMBLY, CRISPER COVER (UPPER) MAY W10789236 Contact Us For Availability
3
SHELF, FIXED MAY W10759067 Contact Us For Availability
3
PIN, BOTTOM DOOR MAY W10234206 Contact Us For Availability
3
COVER, TOP DOOR MAY W10775726 Contact Us For Availability
3
PANEL, UNIT BACK MAY 2256466 Contact Us For Availability
3
MAY W10913755 MAY W10913755 Contact Us For Availability
3
TUBE, OIL TRAP SUCTION MAY W10648568 Contact Us For Availability
4
ASSEMBLY, ROLLER MAY W10138054 Contact Us For Availability
4
ASSEMBLY, DIFFUSER MAY W10775715 Contact Us For Availability
4
GASKET, FAN SCROLL MAY W10203260 Contact Us For Availability
4
CLIP, CONTROL BOX MAY 2317000 Contact Us For Availability
4
ASSEMBLY, MEAT PAN COVER MAY W10785392 Contact Us For Availability
4
ASSEMBLY, FREEZER BASKET MAY W10794061 Contact Us For Availability
4
PIN, TOP DOOR MAY W10234194 Contact Us For Availability
4
COVER, UNIT FRONT MAY W10694109 Contact Us For Availability
4
CONTROL, ELECTRONIC MAY W10200659 Contact Us For Availability
4
TUBE, TRANSITION (DRIER/RESTRICTOR) MAY W10388653 Contact Us For Availability
5
ASSEMBLY, SUPPORT BASE (LEFT HAND) MAY W10279275 Contact Us For Availability
5
SCREW MAY 487415 Contact Us For Availability
5
TRIM, CABINET (TOP) MAY W10738279 Contact Us For Availability
5
LADDER, SHELF (SHORT) MAY W10749140 Contact Us For Availability
5
SCREW (BLACK) MAY W10678210 Contact Us For Availability
5
GROMMET, MOTOR MAY W10321090 Contact Us For Availability
5
ASSEMBLY, CRISPER COVER (LOWER) MAY W10789235 Contact Us For Availability
5
ASSEMBLY, BASKET FRONT MAY W10789203 Contact Us For Availability
5
GASKET, DOOR (BLACK) MAY W10749269 Contact Us For Availability
5
BRACKET, FAN MOTOR MAY W10414681 Contact Us For Availability
5
ASSEMBLY, DRAIN PAN MAY W10281063 Contact Us For Availability
5A
ASSEMBLY, SUPPORT BASE (RIGHT HAND) MAY W10138423 Contact Us For Availability
5A
LADDER, SHELF (LONG) MAY W10749139 Contact Us For Availability
6
CAP, WATER FILTER (BLACK) MAY W10797527 Contact Us For Availability
6
SEAL, SIDE TRIM MAY 2005925 Contact Us For Availability
6
MAY W10844019 MAY W10844019 Contact Us For Availability
6
SLIDE, BASKET (LEFT HAND) MAY 2259318 Contact Us For Availability
6
MAT, DOOR BIN (SHALLOW) MAY W10746024 Contact Us For Availability
6
TRIM, HANDLE SIDE DOOR (CHARCOAL) MAY W10749306 Contact Us For Availability
6
GROMMET, FLEXIBLE MAY 2215910 Contact Us For Availability
6
GROMMET MAY 1100826 Contact Us For Availability
6
COVER, WIRE BOX MAY W10321048 Contact Us For Availability
6A
SLIDE, BASKET (RIGHT HAND) MAY 2259317 Contact Us For Availability
6A
MAT, DOOR BIN (GALLON) MAY W10746029 Contact Us For Availability
7
BRACKET, GRILL MOUNTING MAY 2307640 Contact Us For Availability
7
SCREW MAY W10141604 Contact Us For Availability
7
SCREW MAY 8533928 Contact Us For Availability
7
MAY W10844011 MAY W10844011 Contact Us For Availability
7
BIN, GALLON DOOR MAY W10594313 Contact Us For Availability
7
SCREW (BLACK) MAY 8281252 Contact Us For Availability
7
SUPPORT, CONDENSER (LEFT HAND) MAY W10525177 Contact Us For Availability
7
COVER, WIRING MAY W10309012 Contact Us For Availability
7A
SLIDE, MEAT PAN (RIGHT HAND) MAY W10732727 Contact Us For Availability
7A
SUPPORT, CONDENSER (RIGHT HAND) MAY W10525179 Contact Us For Availability
8
MAY W11042558 MAY W11042558 Contact Us For Availability
8
SUPPORT, LADDER MAY 2259445 Contact Us For Availability
8
MAY W10843804 MAY W10843804 Contact Us For Availability
8
DOOR, ICE MAY W10786630 Contact Us For Availability
8
GASKET, DOOR (BLACK) MAY W10776012 Contact Us For Availability
8
TRIM, TOP DOOR MAY W10749275 Contact Us For Availability
8
BRACKET, CONTROL ASSEMBLY MAY W10321055 Contact Us For Availability
8
TUBE, DISCHARGE MAY W10499597 Contact Us For Availability
8A
MAY W11042559 MAY W11042559 Contact Us For Availability
9
TRIM, SIDE (LEFT) (GREY) MAY W10611999 Contact Us For Availability
9
COVER, AIR DIFFUSER MAY W10775714 Contact Us For Availability
9
ASSEMBLY, EVAPORATOR COVER MAY W10748855 Contact Us For Availability
9
SIDEARM, SHELF MAY W10605575 Contact Us For Availability
9

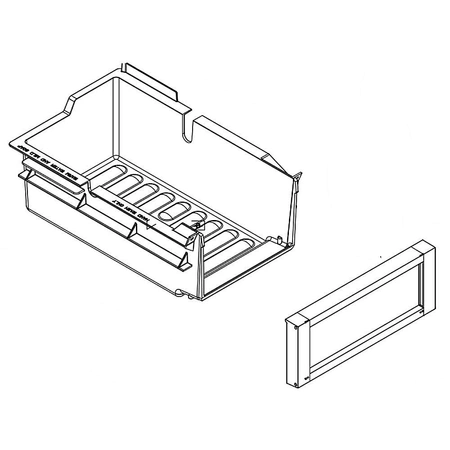

ASSEMBLY, ICE BUCKET MAY W10789209 Contact Us For Availability
9
TRIM, BOTTOM DOOR MAY W10749618 Contact Us For Availability
9
COVER, TERMINAL MAY 2215676 Contact Us For Availability
9
EVAPORATOR MAY W10427993 Contact Us For Availability
10
HOUSING, WATER FILTER MAY W10121140 Contact Us For Availability
10
COVER, DIFFUSER MAY W10775713 Contact Us For Availability
10
ASSEMBLY, LED MODULE MAY W10843339 Contact Us For Availability
10
SPACER, CRISPER MAY W10769876 Contact Us For Availability
10
SPACER, ICE DOOR MAY W10785704 Contact Us For Availability
10
TRIM, HANDLE SIDE DOOR (CHARCOAL) MAY W10755284 Contact Us For Availability
10
TRIM, HINGE SIDE DOOR (CHARCOAL) MAY W10749614 Contact Us For Availability
10
ASSEMBLY, UNIT WIRE MAY W10785721 Contact Us For Availability
10
HEATER, DEFROST MAY W10140162 Contact Us For Availability
11
RING, RETAINER MAY 2006841 Contact Us For Availability
11
GUARD, AIR RETURN MAY W10775705 Contact Us For Availability
11
SCROLL, FAN MAY W10170114 Contact Us For Availability
11
MAY W10844010 MAY W10844010 Contact Us For Availability
11
SPACER, ICE MAY W10769828 Contact Us For Availability
11
BRACKET, PANEL MOUNTING (GREY) MAY W10606841 Contact Us For Availability
11
SUPPLY, POWER MAY W10624574 Contact Us For Availability
11
CLAMP, HEATER MAY 1113048 Contact Us For Availability
11A
SLIDE, CRISPER (RIGHT HAND) MAY W10732303 Contact Us For Availability
12
FILTER, WATER MAY W10121146 Contact Us For Availability
12
ASSEMBLY, AIR BAFFLE MAY 2221296 Contact Us For Availability
12
DEFLECTOR, AIR MAY W10769273 Contact Us For Availability
12
SPACER, MEAT MAY W10769855 Contact Us For Availability
12
SPACER, BASKET MAY W10769705 Contact Us For Availability
12
INSERT, ARM DOOR TOP (GREY) MAY W10606813 Contact Us For Availability
12
TRIM, TOP DOOR MAY W10776481 Contact Us For Availability
12
SPACER MAY 2203075 Contact Us For Availability
12
COVER, EVAPORATOR SEAL MAY W10139908 Contact Us For Availability
13
ASSEMBLY, LIGHT SWITCH WIRE MAY W10780215 Contact Us For Availability
13
ASSEMBLY, DIFFUSER MAY W10203322 Contact Us For Availability
13
DUCT, AIR MAY W10769272 Contact Us For Availability
13
SCREW (RIGHT HAND) MAY W10215666 Contact Us For Availability
13
ASSEMBLY, ICE BUCKET FRONT MAY W10789211 Contact Us For Availability
13
BIN, SHALLOW MAY W10529451 Contact Us For Availability
13
BRACKET, INVERTER MOUNTING MAY 2256328 Contact Us For Availability
13
GASKET, EVAPORATOR MAY W10432308 Contact Us For Availability
14
PIN, DOOR STOP MAY W10234202 Contact Us For Availability
14
COVER, FAN SCROLL MAY W10170112 Contact Us For Availability
14
MAY W10844017 MAY W10844017 Contact Us For Availability
14
SCREW (BLACK) MAY W10784931 Contact Us For Availability
14
TRIM, BOTTOM DOOR MAY W10755292 Contact Us For Availability
14
GROMMET MAY W10587113 Contact Us For Availability
14
GROMMET, AIR RETURN MAY W10413009 Contact Us For Availability
15
HINGE (TOP) LEFT HAND (GREY) MAY W10691145 Contact Us For Availability
15
SCREW MAY 1157158 Contact Us For Availability
15
MAY W10843806 MAY W10843806 Contact Us For Availability
15

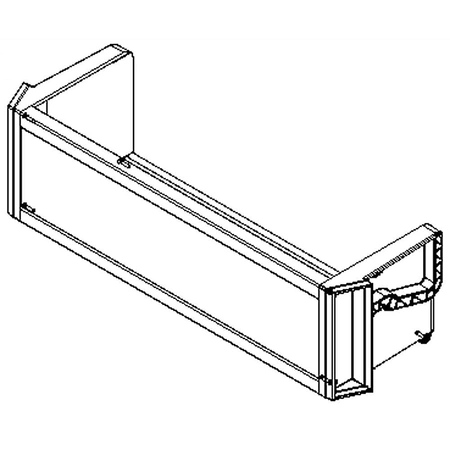

BIN, SHALLOW DOOR MAY W10529454 Contact Us For Availability
15
CLIP, HEAT EXCHANGER MAY W10169509 Contact Us For Availability
15A
HINGE (TOP) RIGHT HAND (GREY) MAY W10691136 Contact Us For Availability
16
BRACKET, FILTER MAY W10674648 Contact Us For Availability
16
COVER, AIR OUTLET MAY W10769274 Contact Us For Availability
16
DUCT, DELI PAN MAY 2307810 Contact Us For Availability
16
CONDENSER MAY W10591457 Contact Us For Availability
16
SUPPORT, DRAIN PAN MAY 2320554 Contact Us For Availability
17
SCREW MAY W10001250 Contact Us For Availability
17
SCREW (BLACK) MAY W10308487 Contact Us For Availability
17
DEFLECTOR, AIR MAY W10787391 Contact Us For Availability
17
HOUSING, CONTROL BOARD MOUNTING MAY W10550831 Contact Us For Availability
17
ASSEMBLY, AIR RETURN BRACKET MAY W10160981 Contact Us For Availability
18
BI-METAL, DEFROST MAY W10160570 Contact Us For Availability
18
RACK, WINE MAY W10701859 Contact Us For Availability
18
ASSEMBLY, JUMPER WIRE (POWER SWITCH TO POWER MAY 2310195 Contact Us For Availability
18
SEALER, INSULATION MAY 2169104 Contact Us For Availability
19
MAY W10831026 MAY W10831026 Contact Us For Availability
19
ASSEMBLY, PRODUCE PRESERVER MAY W10826105 Contact Us For Availability
19
SUPPLY, LED POWER MAY W10790783 Contact Us For Availability
19
BLOCK, EVAPORATOR SIDE MAY W10580754 Contact Us For Availability
20
HINGE (BOTTOM) LEFT HAND (GREY) MAY W10691533 Contact Us For Availability
20
LADDER, SHELF MAY W10775716 Contact Us For Availability
20
TIE, WIRE MAY 2155774 Contact Us For Availability
20
SEAL, RETURN AIR MAY W10686115 Contact Us For Availability
20A
HINGE (BOTTOM) RIGHT HAND (GREY) MAY W10691534 Contact Us For Availability
21
SCREW MAY 8533913 Contact Us For Availability
21
SUPPORT, EVAPORATOR MAY 1112260 Contact Us For Availability
21
DRIER MAY W10175593 Contact Us For Availability
21
SHELF, WIRING COVER MAY W10321050 Contact Us For Availability
22
SKIRT, BOTTOM GRILLE MAY W10188551 Contact Us For Availability
22
CLAMP, POWER CORD MAY 549193 Contact Us For Availability
22
ASSEMBLY, SHELF STUD (INCLUDES SCREW) MAY W10789219 Contact Us For Availability
23
GRILLE, BOTTOM (BLACK) MAY W10182718 Contact Us For Availability
23
SCREW (BLACK) MAY W10784949 Contact Us For Availability
23
MOTOR, CONDENSER FAN MAY W10527155 Contact Us For Availability
24
RAIL, EVAPORATOR COVER (LEFT HAND) MAY W10135766 Contact Us For Availability
24
BLADE, FAN MAY W10139483 Contact Us For Availability
24A
RAIL, EVAPORATOR COVER (RIGHT HAND) MAY W10141474 Contact Us For Availability
25
BRACKET, BASE SUPPORT (REAR) MAY 2006617 Contact Us For Availability
25
GASKET, EVAPORATOR COVER MAY W10782823 Contact Us For Availability
25
ORIFICE, FAN MAY W10415670 Contact Us For Availability
26
HARNESS, BI-METAL WIRE MAY W10482187 Contact Us For Availability
26
TUBE, DRIER TRANSITION MAY W10624944 Contact Us For Availability
27
SCREW MAY W10005050 Contact Us For Availability
27
SCREW MAY 487294 Contact Us For Availability
27
GASKET, EVAPORATOR COVER MAY W10581989 Contact Us For Availability
28
BUTTON, WATER FILTER (BLACK) MAY 2260503B Contact Us For Availability
28
THERMISTOR MAY 2188820 Contact Us For Availability
28
TUBE, HEAT LOOP TRANSITION MAY W10625009 Contact Us For Availability
29
SWITCH, LIGHT MAY W10606838 Contact Us For Availability
29
COVER, THERMISTOR MAY W10783891 Contact Us For Availability
29
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
30
COVER, SWITCH (LEFT HAND) MAY W10167387 Contact Us For Availability
30
MAY W10832438 MAY W10832438 Contact Us For Availability
30
CONTROL, ELECTRONIC MAY W10184634 Contact Us For Availability
30A
COVER, SWITCH (RIGHT HAND) MAY W10167341 Contact Us For Availability
31
ASSEMBLY, THERMISTOR MAY W10784036 Contact Us For Availability
31
TUBE, PROCESS MAY W10528578 Contact Us For Availability
32
COVER, AIR DUCT MAY 2215612 Contact Us For Availability
32
ARM, SHUT OFF MAY W10889530 Contact Us For Availability
32
COVER, CONDENSER SUPPORT MAY W10525175 Contact Us For Availability
33
LEVELER, ADJUSTABLE MAY 2005032 Contact Us For Availability
33

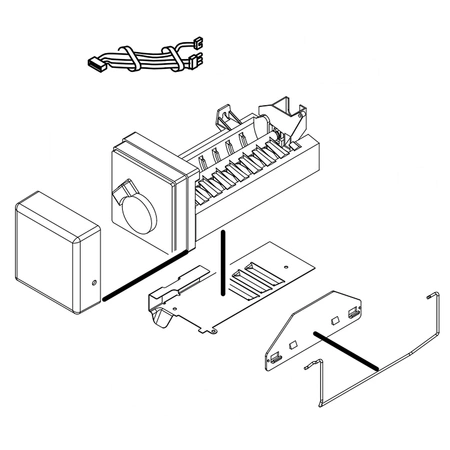

COMPLETE ICEMAKER ASSEMBLY MAY W10790812 Contact Us For Availability
33
CORD, POWER MAY 2310196 Contact Us For Availability
34
GROMMET, CROSSOVER TUBE MAY 2307584 Contact Us For Availability
34
EXTENSION, SHUT OFF ARM MAY W10802358 Contact Us For Availability
34
SWITCH, POWER DISCONNECT MAY 2266802 Contact Us For Availability
35
TRIM, TOP GRILLE MAY W10740171 Contact Us For Availability
35
ASSEMBLY, ICE MAKER WIRE MAY W10508673 Contact Us For Availability
35
PLATE, CIRCUIT BOARD MAY W10761479 Contact Us For Availability
36
VALVE, SOLENOID MAY 2307650 Contact Us For Availability
36
COVER, ICEMAKER MAY W10801567 Contact Us For Availability
36
PLATE, CIRCUIT BOARD (TOP) MAY W10770059 Contact Us For Availability
37
ASSEMBLY, WATER VALVE WIRE MAY W10279393 Contact Us For Availability
37
SHIELD, HEAT MAY 2221231 Contact Us For Availability
39
SHIELD, VALVE ELECTRICAL MAY W10129653 Contact Us For Availability
40
SUPPORT, VALVE MAY 2320559 Contact Us For Availability
41
TUBE, FILTER INLET MAY W10296807 Contact Us For Availability
42
TUBE, FILTER OUTLET MAY W10683737 Contact Us For Availability
43
HEATER, FILL TUBE MAY 2221240 Contact Us For Availability
44
GASKET, SEAL MAY 1106508 Contact Us For Availability
45
ASSEMBLY, WATER INLET TUBE MAY 2314049 Contact Us For Availability
46
ASSEMBLY, FILL TUBE HEATER MAY W10482373 Contact Us For Availability
47
MAY W10663352 MAY W10663352 Contact Us For Availability
48
MAY 2005433 MAY 2005433 Contact Us For Availability
49
MAY W10612000 MAY W10612000 Contact Us For Availability
50
MAY 2208136 MAY 2208136 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
INSTALLATION BLOCK MAY W10234156 Contact Us For Availability
NI
TEMPLATE, DOOR (WOOD PANEL) MAY W10488113 Contact Us For Availability
NI
KIT, INSTALLATION MAY W10613135 Contact Us For Availability
NI
TEMPLATE, GRILL (WOOD PANEL) MAY W10744761 Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MISCELLANEOUS, CLEANER, STAINLESS STEEL MAY 20000008 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. ENAMEL, BLAC MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, WATER INLET MAY 8003RP Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" MAY 876029 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION KIT (14 PIECES, 3" MAY 876305 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION (2 PIECES, 3" X 24" MAY 876370 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION, FIBERGLASS (63 1/2 MAY 978941 Contact Us For Availability
NI
MISCELLANEOUS MAY F2WC9I1 Contact Us For Availability
× ![]()
