Model Maytag JLRP548WP01 RANGE/OVEN, DUAL FUEL, COMMERCIAL-STYLE, 48 INCH – Common Parts & Diagrams
01 - COVER SHEET
02 - COOKTOP, BURNER AND GRATE PARTS

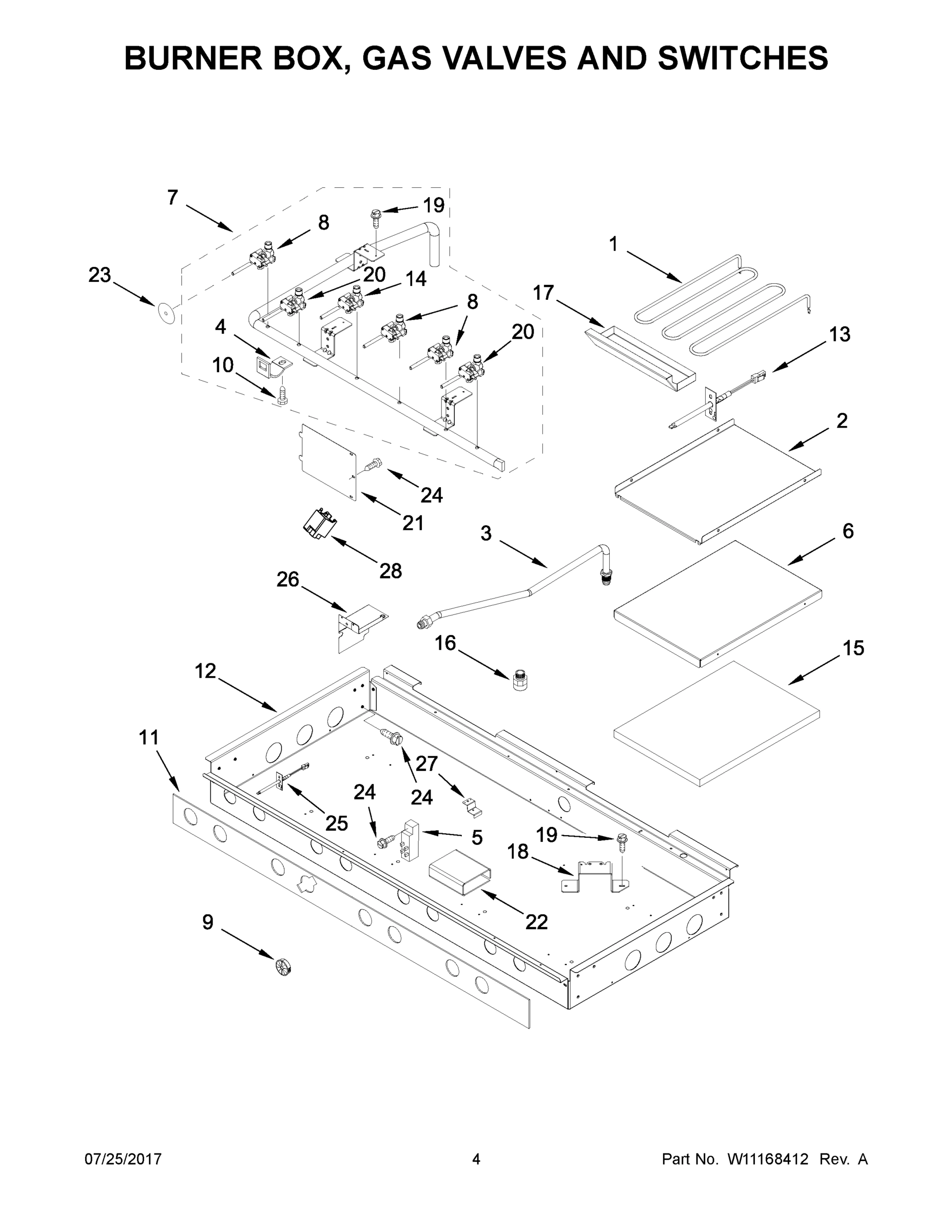

03 - BURNER BOX, GAS VALVES AND SWITCHES

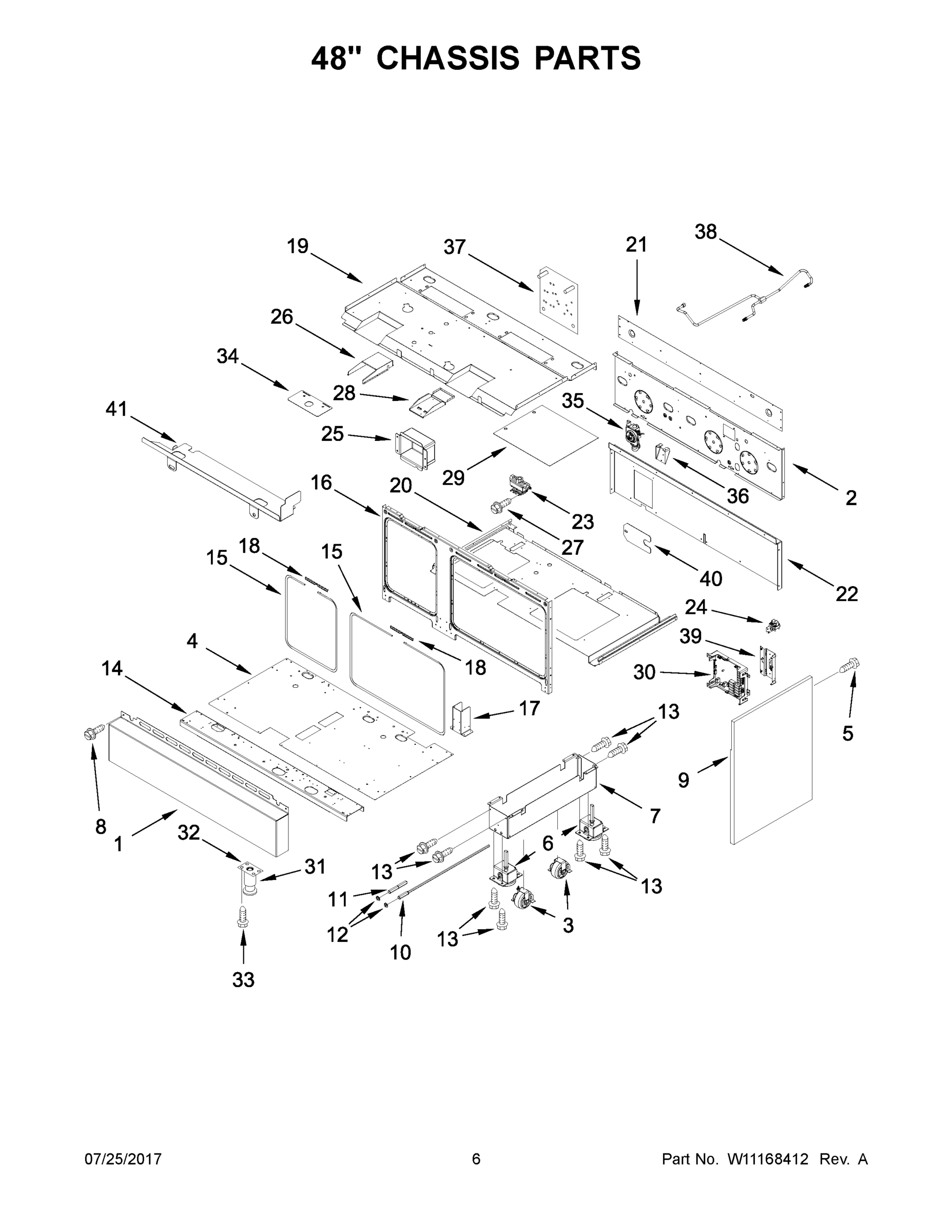

04 - 48" CHASSIS PARTS

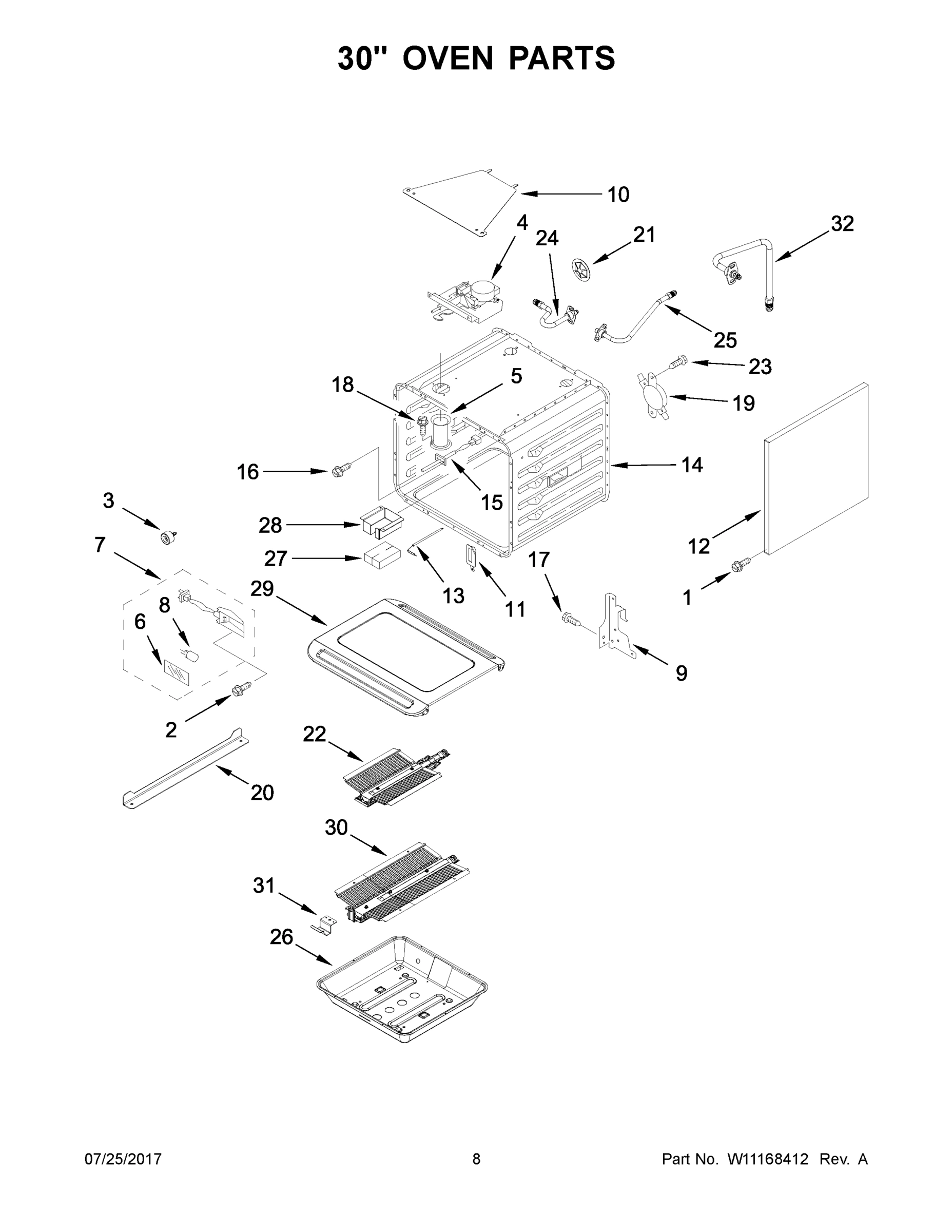

05 - 30" OVEN PARTS

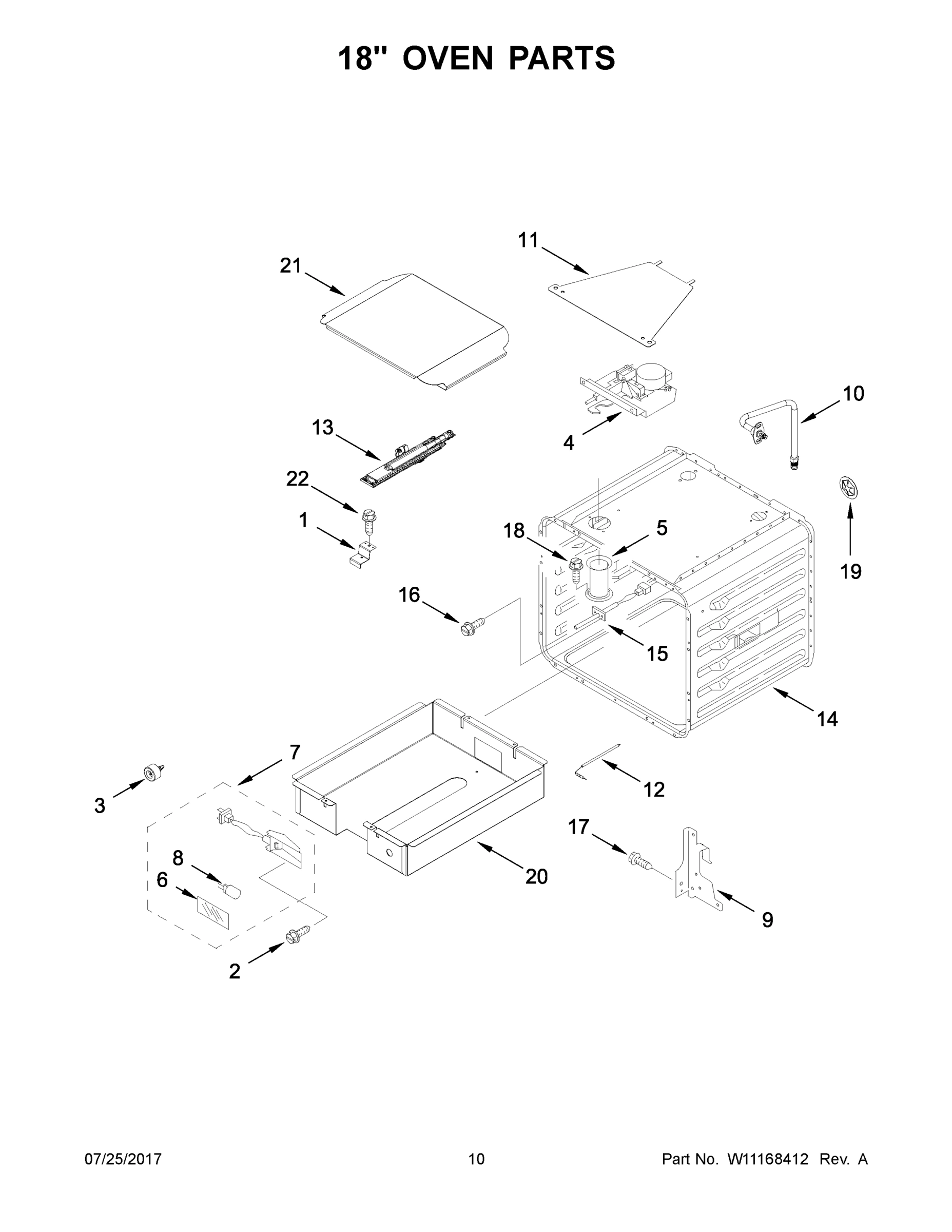

06 - 18" OVEN PARTS

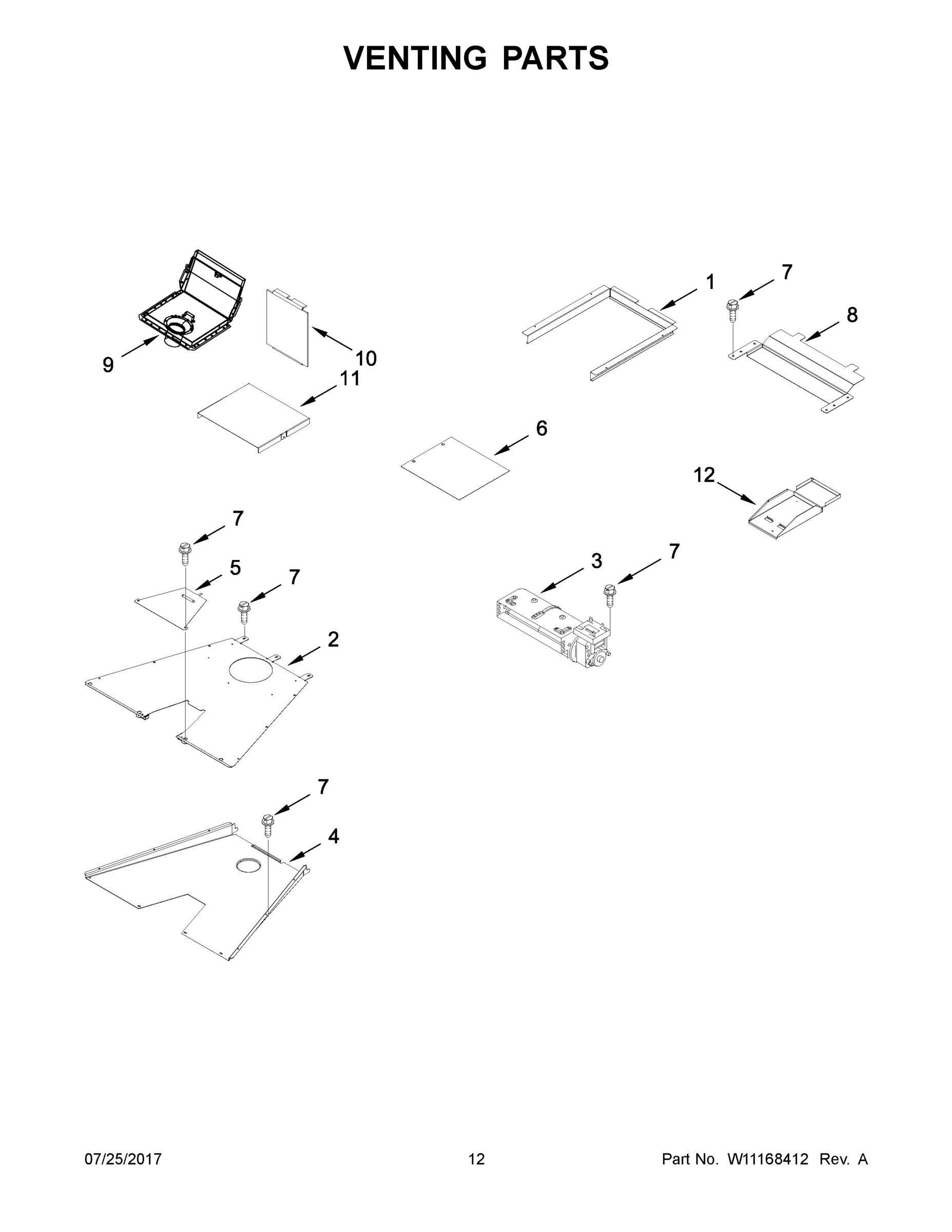

07 - VENTING PARTS

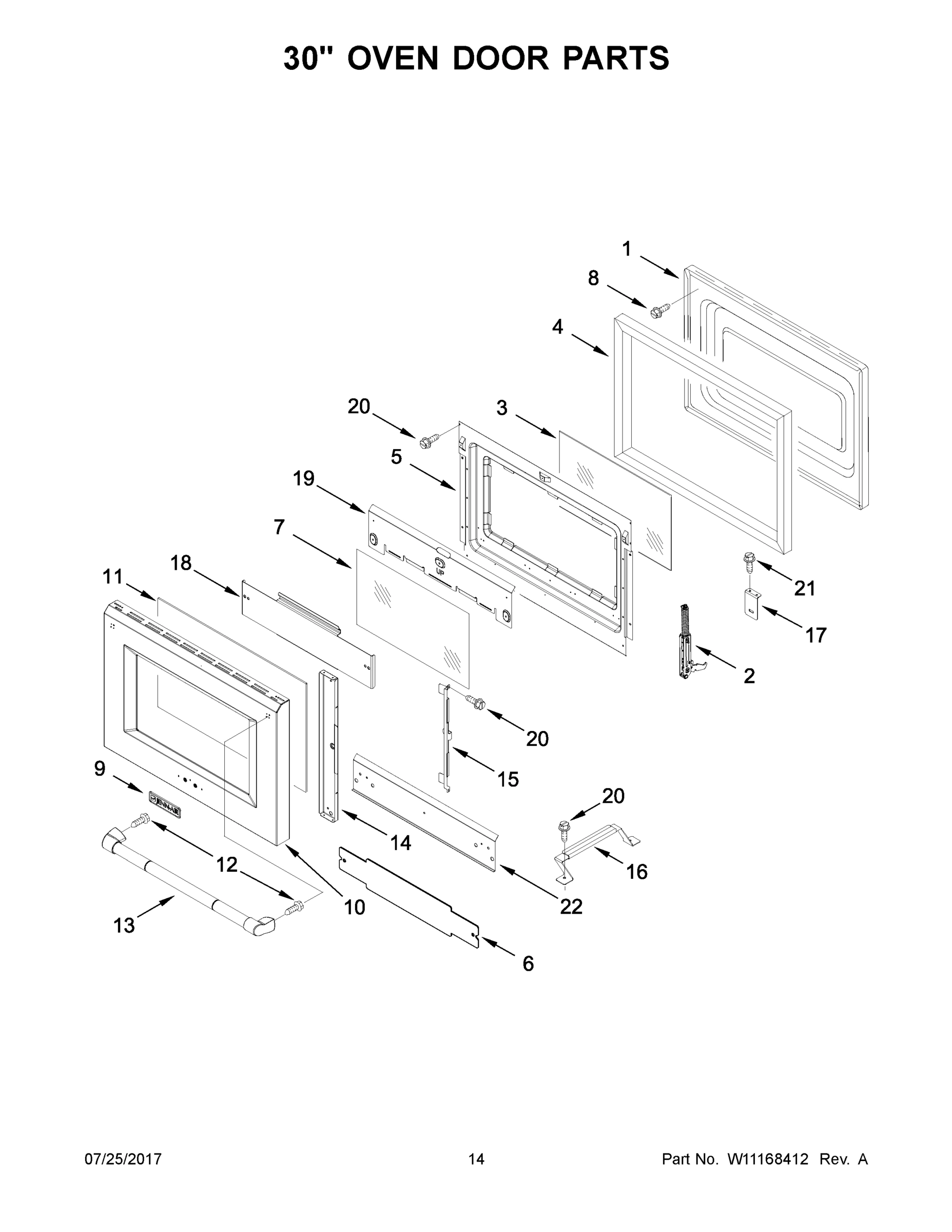

08 - 30" OVEN DOOR PARTS

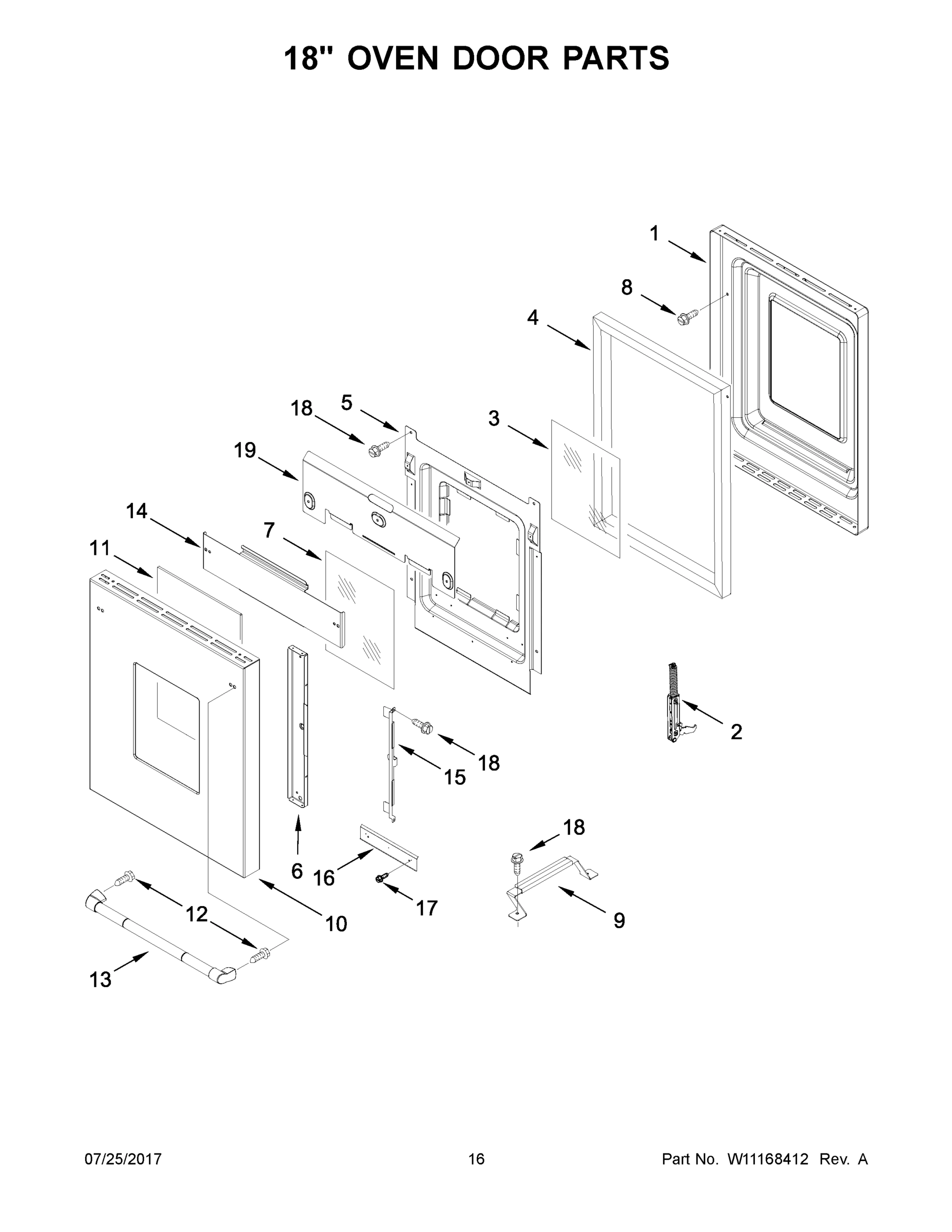

09 - 18" OVEN DOOR PARTS

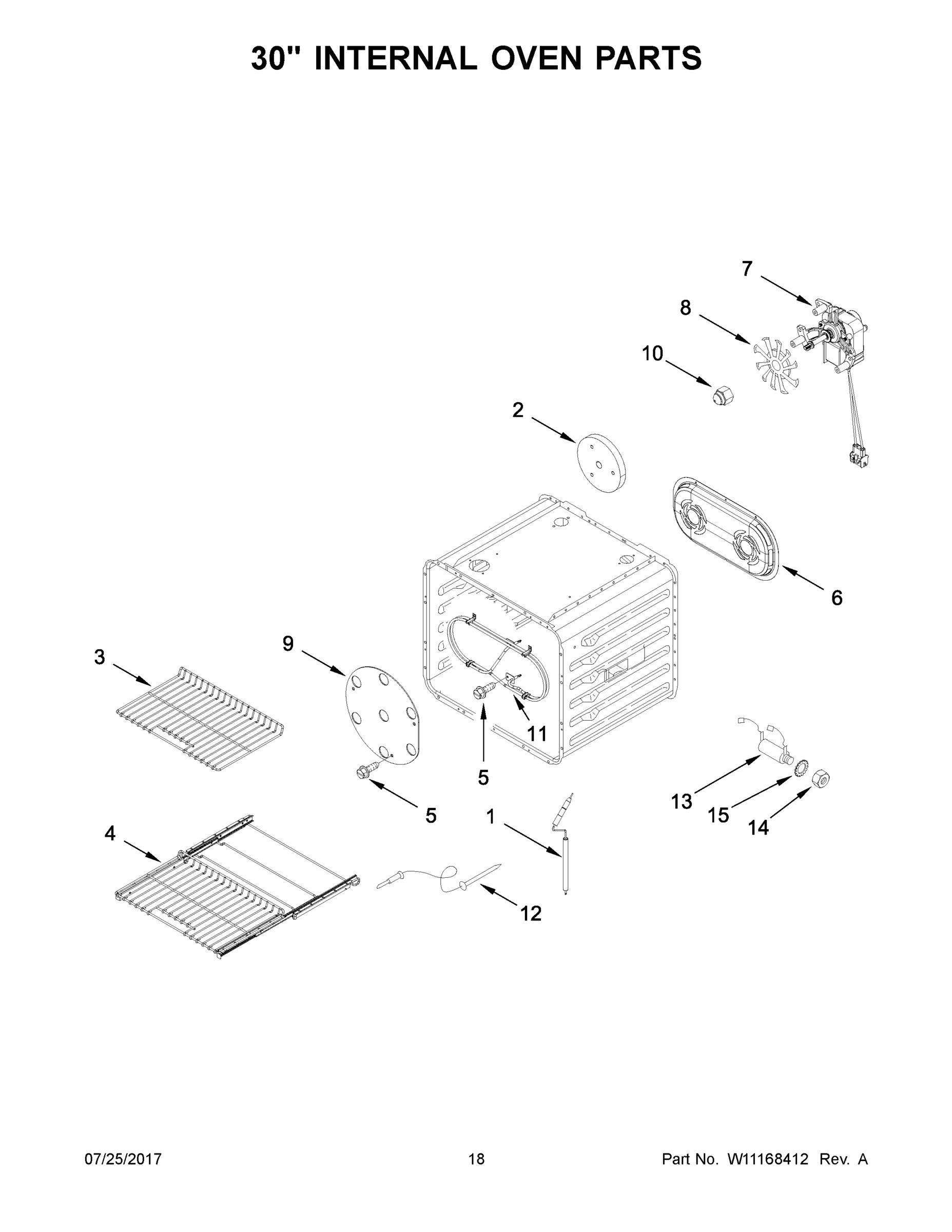

10 - 30" INTERNAL OVEN PARTS

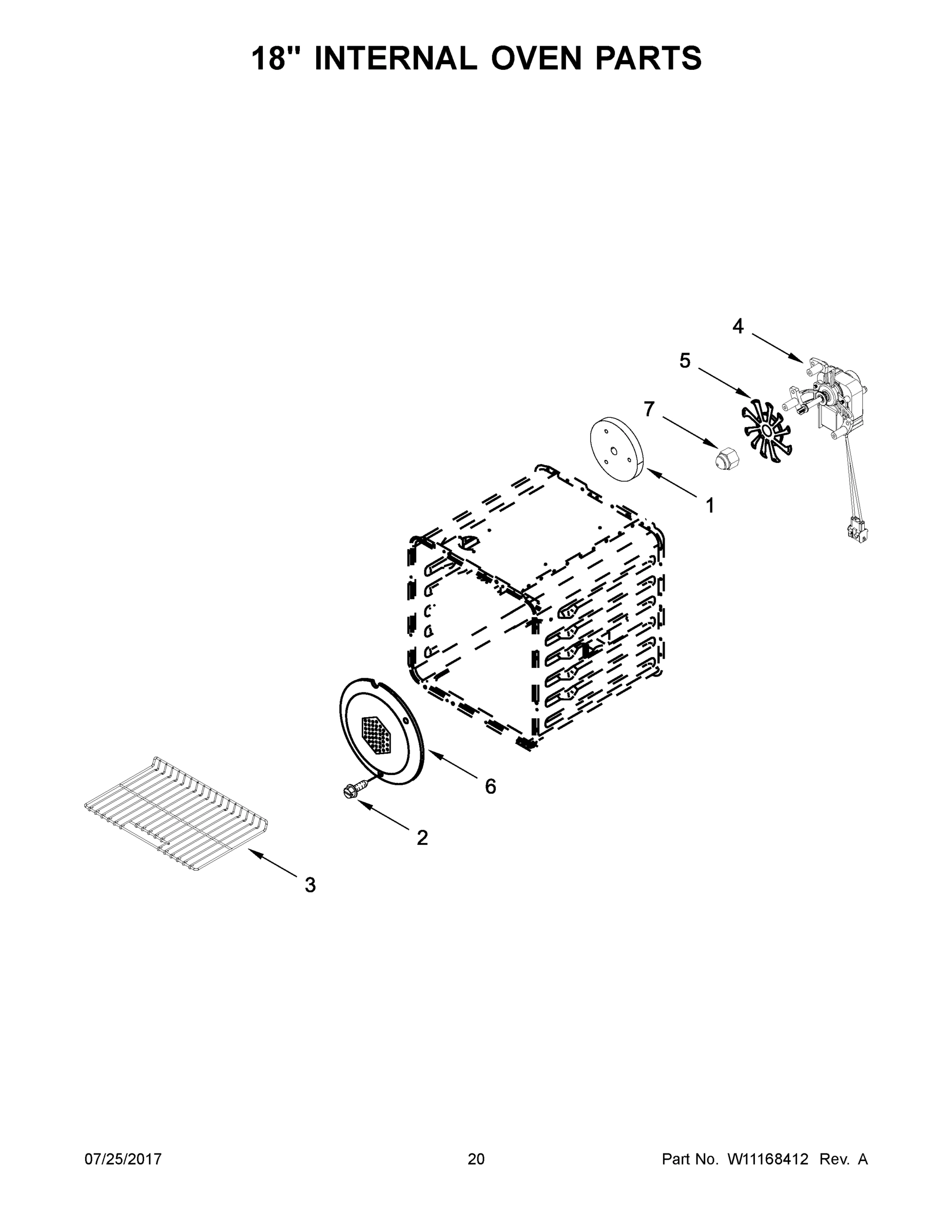

11 - 18" INTERNAL OVEN PARTS
12 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JLRP548WP01 RANGE/OVEN, DUAL FUEL, COMMERCIAL-STYLE, 48 INCH
1
INSTRUCTIONS, INSTALLATION MAY W11090455 Contact Us For Availability
1
ELEMENT, GRIDDLE MAY W10193014 Contact Us For Availability
1
KICKPLATE MAY W10454313 Contact Us For Availability
1
BRACKET, BAKE BURNER MAY W10308041 Contact Us For Availability
1
DUCT, PRIMARY AIR (30") MAY W10145363 Contact Us For Availability
1
LINER, DOOR MAY 9759413 Contact Us For Availability
1
PANEL, INTERIOR DOOR MAY W10188323 Contact Us For Availability
1
ELECTRODE, BROIL MAY W10332287 Contact Us For Availability
1
INSULATION, CONVECTION COVER MAY W10282821 Contact Us For Availability
1A
GUIDE, USE & CARE MAY W11090435 Contact Us For Availability
1A
DUCT, PRIMARY AIR (18") MAY W10145364 Contact Us For Availability
1B
SHEET, TECH (ENGLISH) MAY W10403310 Contact Us For Availability
1C
SHEET, TECH (FRENCH) MAY W10403311 Contact Us For Availability
2
ORIFICE (HIGH) (LEFT FRONT & RIGHT FRONT) MAY W10340425 Contact Us For Availability
2
TRAY, ELEMENT GRIDDLE MAY W10145620 Contact Us For Availability
2
BACK, CHASSIS MAY W10145354 Contact Us For Availability
2
SCREW MAY 4449748 Contact Us For Availability
2
SCREW MAY 4449154 Contact Us For Availability
2
VENT, COOLING TOP (30") MAY W10299182 Contact Us For Availability
2
HINGE, DOOR (LEFT) MAY W10774095 Contact Us For Availability
2
HINGE, DOOR (LEFT) MAY W10774091 Contact Us For Availability
2A
ORIFICE (LOW) (LEFT FRONT & RIGHT FRONT) MAY W10371246 Contact Us For Availability
2A
VENT, COOLING TOP (18") MAY W10246081 Contact Us For Availability
2A
HINGE, DOOR (RIGHT) MAY W10774094 Contact Us For Availability
2A
HINGE, DOOR (RIGHT) MAY W10774090 Contact Us For Availability
2B
ORIFICE (11K) (LEFT REAR, RIGHT REAR, CENTER MAY W10371247 Contact Us For Availability
2C
ORIFICE (3K) (CENTER REAR) MAY W10282664 Contact Us For Availability
3
MAY W10905356 MAY W10905356 Contact Us For Availability
3
TUBE, PRESSURE REGULATOR MAY W10348600 Contact Us For Availability
3
ASSEMBLY, ROLLER MAY W10138054 Contact Us For Availability
3
BUMPER & SCREW MAY W10105790 Contact Us For Availability
3
BLOWER 60MM MAY W10245511 Contact Us For Availability
3
GLASS, INNER (SINGLE COATED) MAY 4449259 Contact Us For Availability
3
GLASS, INNER DOOR MAY W10115693 Contact Us For Availability
3
RACK, OVEN MAY W10570887 Contact Us For Availability
3
RACK, OVEN (18") MAY W10570879 Contact Us For Availability
4
MAY W10905358 MAY W10905358 Contact Us For Availability
4
BRACKET, VALVE MAY W10432260 Contact Us For Availability
4
DUCT, BOTTOM (48") MAY W10774046 Contact Us For Availability
4
LATCH, MOTORIZED MAY W10830016 Contact Us For Availability
4
LATCH, MOTORIZED MAY W10195935 Contact Us For Availability
4
VENT, COOLING BOTTOM (30") MAY W10349015 Contact Us For Availability
4
INSULATION, DOOR MAY 4451722 Contact Us For Availability
4
INSULATION, DOOR MAY W10115737 Contact Us For Availability
4
RACK, OVEN (SLIDING) MAY W10570865 Contact Us For Availability
4
MOTOR, CONVECTION MAY W10631506 Contact Us For Availability
4A
VENT, COOLING BOTTOM (18") MAY W10349047 Contact Us For Availability
5
ASSEMBLY, GRATE (BLACK) MAY W10276551 Contact Us For Availability
5
MODULE, SPARK MAY W10475147 Contact Us For Availability
5
TUBE, VENT MAY W10145743 Contact Us For Availability
5
PLATE, COOLING LATCH MAY W10160875 Contact Us For Availability
5
RETAINER, GLASS MAY 4457132 Contact Us For Availability
5
RETAINER, GLASS MAY W10188325 Contact Us For Availability
5
BLADE, FAN MAY W10631503 Contact Us For Availability
6
TRIM, ISLAND MAY W10323251 Contact Us For Availability
6
TRAY, GRIDDLE INSULATION MAY W10246074 Contact Us For Availability
6
LEVELER MAY 9760860 Contact Us For Availability
6
SEAL, CONTROL MAY W10239444 Contact Us For Availability
6
LENS, LIGHT MAY W10169756 Contact Us For Availability
6
COUNTERBALANCE, DOOR MAY W10335955 Contact Us For Availability
6
BRACKET, OUTER GLASS SIDE MAY W10145761 Contact Us For Availability
6
BAFFLE, CONVECTION MAY W10246060 Contact Us For Availability
6
COVER, FAN MAY W10160821 Contact Us For Availability
7
GASKET, ORIFICE MAY 8286930 Contact Us For Availability
7
ASSEMBLY, MANIFOLD MAY W10815785 Contact Us For Availability
7
BASE, LEVELING LEG MAY W10249333 Contact Us For Availability
7
ASSEMBLY, OVEN LIGHT MAY W10307114 Contact Us For Availability
7
GLASS, INNER (DOUBLE COATED) MAY 9759225 Contact Us For Availability
7
GLASS, DOOR INNER MAY W10115695 Contact Us For Availability
7
NUT, ACORN MAY W10631504 Contact Us For Availability
8
BUMPER, GRATE MAY 9760219 Contact Us For Availability
8
VALVE, SINGLE MAY W10813922 Contact Us For Availability
8
SCREW MAY W10292297 Contact Us For Availability
8
BULB, LIGHT MAY W10169757 Contact Us For Availability
8
BRACKET, BLOWER (30") MAY W10145748 Contact Us For Availability
8A
BRACKET, BLOWER (18") MAY W10160844 Contact Us For Availability
9
TRIM, ISLAND INSERT MAY W10323252 Contact Us For Availability
9
BUSHING, BURNER BOX MAY W10189097 Contact Us For Availability
9
PANEL, SIDE (LEFT) MAY W10250467 Contact Us For Availability
9
RECEIVER, HINGE (LEFT) MAY 4455605 Contact Us For Availability
9
VENT, CHIMNEY BOX (30" / 36") MAY W10340579 Contact Us For Availability
9
BADGE (STAINLESS) MAY W10159578 Contact Us For Availability
9
BRACKET, CENTRAL MAY 9759230 Contact Us For Availability
9
PLATE, FAN MAY W10261523 Contact Us For Availability
9A
PANEL, SIDE (RIGHT) MAY W10250466 Contact Us For Availability
9A
RECEIVER, HINGE (RIGHT) MAY 4455606 Contact Us For Availability
9A
VENT, CHIMNEY BOX (18") MAY W10340583 Contact Us For Availability
10
SCREW MAY 3196160 Contact Us For Availability
10
SCREW MAY W10189140 Contact Us For Availability
10
SHAFT, LONG MAY W10115869 Contact Us For Availability
10
TUBE, BAKE (LEFT) MAY W10813897 Contact Us For Availability
10
INSULATION, CHIMNEY MAY W10246087 Contact Us For Availability
10
PANEL, EXTERIOR MAY W10145759 Contact Us For Availability
10
PANEL, EXTERIOR MAY W10145758 Contact Us For Availability
11
BEZEL MAY W10276494 Contact Us For Availability
11
INSULATION, BURNER BOX MAY W10160202 Contact Us For Availability
11
SHAFT, SHORT MAY W10115793 Contact Us For Availability
11
COVER, LATCH MAY W10160858 Contact Us For Availability
11
COVER, HINGE (LEFT) MAY W10115876 Contact Us For Availability
11
RETAINER, INSULATION MAY W10246086 Contact Us For Availability
11
GLASS, OUTER DOOR MAY W10145850 Contact Us For Availability
11
GLASS, OUTER DOOR MAY W10145849 Contact Us For Availability
11
ELEMENT, CONVECTION MAY W10145949 Contact Us For Availability
11A
COVER, HINGE (RIGHT) MAY W10115877 Contact Us For Availability
12
SPRING, ELECTRODE (CENTER REAR) MAY 8286863 Contact Us For Availability
12
BOX, BURNER MAY W10371521 Contact Us For Availability
12
E-RING MAY 489504 Contact Us For Availability
12
SUPPORT, CONTROL MAY W10853036 Contact Us For Availability
12
CHASSIS, SIDE (LEFT) MAY W10269206 Contact Us For Availability
12
ELECTRODE, BAKE MAY W10878506 Contact Us For Availability
12
SCREW MAY W10276043 Contact Us For Availability
12
PROBE, TEMPERATURE MAY 9755542 Contact Us For Availability
12A
CHASSIS, SIDE (RIGHT) MAY W10269205 Contact Us For Availability
13
CAP, BURNER (BLACK (LEFT FRONT & RIGHT FRONT) MAY W10256034 Contact Us For Availability
13
SENSOR, GRIDDLE MAY W10319835 Contact Us For Availability
13
BURNER, BAKE W/O SPREADER MAY W10878505 Contact Us For Availability
13
HANDLE, DOOR MAY 7701P475-60 Contact Us For Availability
13
HANDLE, DOOR MAY W10145768 Contact Us For Availability
13
JACK, MEAT PROBE MAY 9755543 Contact Us For Availability
13A
CAP, BURNER (BLACK (LEFT REAR, RIGHT REAR, CE MAY W10256032 Contact Us For Availability
13B
CAP, BURNER (BLACK (CENTER REAR)) MAY W10364463 Contact Us For Availability
14
SPREADER, FLAME (LEFT FRONT & RIGHT G20FRONT) MAY W10879806 Contact Us For Availability
14
VALVE, SIMMER MAY W10813921 Contact Us For Availability
14
SUPPORT, CHANNEL MAY W10145375 Contact Us For Availability
14
BRACKET, CENTER OUTER GLASS MAY W10145762 Contact Us For Availability
14
NUT, HIDDEN MAY 9755546 Contact Us For Availability
14A
SPREADER, FLAME (LEFT REAR, RIGHT REAR, CENTE MAY W10256027 Contact Us For Availability
14B
SPREADER, FLAME (CENTER REAR) MAY W10282515 Contact Us For Availability
15
SPRING, ELECTRODE (ALL EXCEPT CENTER G26REAR) MAY W10827923 Contact Us For Availability
15
INSULATION, GRIDDLE MAY W10145621 Contact Us For Availability
15
SENSOR MAY W10131825 Contact Us For Availability
15
GASKET, OVEN (30") MAY W10850858 Contact Us For Availability
15
BRACKET, SIDE MAY 9759229 Contact Us For Availability
15
WASHER, LOCK MAY 9755547 Contact Us For Availability
15A
GASKET, OVEN (18") MAY W10775946 Contact Us For Availability
16
SCREW MAY W10673618 Contact Us For Availability
16
ADAPTER, FEMALE MAY 4453115 Contact Us For Availability
16
FRAME, FRONT MAY W10160895 Contact Us For Availability
16
SHIELD, LOWER HEAT MAY W10115708 Contact Us For Availability
17
HOLDER, ORIFICE (AUX) (CENTER REAR) MAY W10813995 Contact Us For Availability
17
TRAY, GRIDDLE DRIP MAY W10276497 Contact Us For Availability
17
SCREW MAY 7101P426-60 Contact Us For Availability
17
COLUMN, CENTRAL MAY W10115819 Contact Us For Availability
17
SCREW MAY 4449040 Contact Us For Availability
17
BRACKET, DOOR TOP MAY W10115715 Contact Us For Availability
18
COOKTOP (BLACK (LEFT)) MAY W10352969 Contact Us For Availability
18
BRACKET, BURNER MAY W10560553 Contact Us For Availability
18
SCREW MAY 3196537 Contact Us For Availability
18
RETAINER, GASKET (30") MAY W10157511 Contact Us For Availability
18
SCREW MAY 3196176 Contact Us For Availability
18
BRACKET, CENTER OUTER GLASS MAY W10145763 Contact Us For Availability
18A
COOKTOP (BLACK (RIGHT)) MAY W10352963 Contact Us For Availability
18A
RETAINER, GASKET (18") MAY W10216520 Contact Us For Availability
18B
COOKTOP (BLACK (CENTER)) MAY W10352966 Contact Us For Availability
19
ELECTRODE, BURNER (CENTER REAR) MAY 8286724 Contact Us For Availability
19
SCREW, GROUNDING MAY 4450800 Contact Us For Availability
19
CHASSIS, TOP MAY W10145372 Contact Us For Availability
19
THERMOSTAT (TOD) MAY 4450249 Contact Us For Availability
19
NUT MAY 3400968 Contact Us For Availability
19
SHIELD, HEAT TOP MAY 4457104 Contact Us For Availability
19
SHIELD, TOP HEAT MAY W10115700 Contact Us For Availability
20
SCREW MAY 7101P338-60 Contact Us For Availability
20
VALVE, DUAL MAY W10371235 Contact Us For Availability
20
CHASSIS, BOTTOM MAY W10145369 Contact Us For Availability
20
BRACKET, BROIL STANDOFF MAY W10317437 Contact Us For Availability
20
SUPPORT, BAKE PAN MAY W10145651 Contact Us For Availability
21
BRACKET, MOVING CONSOLE (LEFT) MAY W10130760 Contact Us For Availability
21
COVER, IGNITION MAY W10115843 Contact Us For Availability
21
PANEL, BACK TOP MAY W10321816 Contact Us For Availability
21
COVER, GAS BAKE MAY W10246100 Contact Us For Availability
21A
BRACKET, MOVING CONSOLE (RIGHT) MAY W10130759 Contact Us For Availability
22
SCREW MAY 7101P500-60 Contact Us For Availability
22
INSULATION, SPARK MODULE MAY 8287102 Contact Us For Availability
22
PANEL, BACK BOTTOM MAY W10145390 Contact Us For Availability
22
BURNER, BAKE MAY W10878504 Contact Us For Availability
22
SHIELD, HEAT BOTTOM MAY 4457114 Contact Us For Availability
23
PANEL, CONTROL MAY W10789955 Contact Us For Availability
23
SEAL, SWITCH COVER MAY W10189177 Contact Us For Availability
23
VALVE, DUAL MAY W10145680 Contact Us For Availability
24
KNOB, DUAL (STAINLESS (LEFT FRONT & RIGHT FRO MAY W10145568 Contact Us For Availability
24
VALVE, SINGLE MAY W10311268 Contact Us For Availability
24
TUBE, BAKE (RIGHT) MAY W10813909 Contact Us For Availability
25
ASSEMBLY, KEYPAD MAY W10464534 Contact Us For Availability
25
BOX, BROIL MAY W10308051 Contact Us For Availability
25
TUBE, BROIL MAY W10813915 Contact Us For Availability
26
BEZEL, GRIDDLE MAY W10145453 Contact Us For Availability
26
BRACKET, SPARK MODULE MAY W10498404 Contact Us For Availability
26
ASSEMBLY, DRAWER MAY W10235557 Contact Us For Availability
26
SUPPORT, BAKE PAN MAY W10145744 Contact Us For Availability
27
SCREW, B MAY 8286921 Contact Us For Availability
27
BRACKET, BAKE ALIGNEMENT MAY W10308039 Contact Us For Availability
27
INSULATION, BROIL COVER MAY W10311009 Contact Us For Availability
28
MAY W10145454 MAY W10145454 Contact Us For Availability
28
REIGNITOR MAY W10116108 Contact Us For Availability
28
COVER, BROIL MAY W10310985 Contact Us For Availability
29
MAY 3177991 MAY 3177991 Contact Us For Availability
29
BOTTOM, OVEN MAY W10272546 Contact Us For Availability
30
MAY W10116114 MAY W10116114 Contact Us For Availability
30
MANAGER, APPLIANCE MAY W10859106 Contact Us For Availability
30
BURNER, BROIL MAY W10311335 Contact Us For Availability
31
MAY W10294500 MAY W10294500 Contact Us For Availability
31
FOOT, DUAL FUEL MAY 9759117 Contact Us For Availability
31
BRACKET, BAKE BURNER MAY W10308040 Contact Us For Availability
32
MAY W10291193 MAY W10291193 Contact Us For Availability
32
PLATE, MOUNTING MAY 9759118 Contact Us For Availability
33
MAY W10145531 MAY W10145531 Contact Us For Availability
33
SCREW MAY 3400518 Contact Us For Availability
34
MAY W10116113 MAY W10116113 Contact Us For Availability
34
HOLDER, STRAIN RELIEF MAY W10115855 Contact Us For Availability
35
MAY W10271524 MAY W10271524 Contact Us For Availability
35
REGULATOR, PRESSURE MAY W10813917 Contact Us For Availability
36
MAY W10145566 MAY W10145566 Contact Us For Availability
36
BRACKET, PRESSURE REGULATOR MAY W10308042 Contact Us For Availability
37
MAY W10625221 MAY W10625221 Contact Us For Availability
37
MODULE, SPARK DSI MAY W10511278 Contact Us For Availability
38
TUBE, VALVE DUAL MAY W10145704 Contact Us For Availability
39
BRACKET-BOARD, DSI MAY W10145362 Contact Us For Availability
40
COVER, CHANNEL MAY W10145381 Contact Us For Availability
41
MAY W10774048 MAY W10774048 Contact Us For Availability
NI
MAY 313438 MAY 313438 Contact Us For Availability
NI
MAY 7101P485-60 MAY 7101P485-60 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
MAY W10116146 MAY W10116146 Contact Us For Availability
NI
MAY W10116169 MAY W10116169 Contact Us For Availability
NI
MAY W10183556 MAY W10183556 Contact Us For Availability
NI
MAY W10253333 MAY W10253333 Contact Us For Availability
NI
MAY W10340850 MAY W10340850 Contact Us For Availability
NI
MAY W10344051 MAY W10344051 Contact Us For Availability
NI
MAY W10368807 MAY W10368807 Contact Us For Availability
NI
MAY W10399611 MAY W10399611 Contact Us For Availability
NI
MAY W10624584 MAY W10624584 Contact Us For Availability
NI
MAY W10763503 MAY W10763503 Contact Us For Availability
NI
MAY W10780278 MAY W10780278 Contact Us For Availability
NI
MAY W10830796 MAY W10830796 Contact Us For Availability
NI
MAY W10830797 MAY W10830797 Contact Us For Availability
NI
TUBE (CENTER REAR) MAY W10145492 Contact Us For Availability
NI
TUBE (LEFT REAR) MAY W10367095 Contact Us For Availability
NI
TUBE (LEFT FRONT, LOW) MAY W10367096 Contact Us For Availability
NI
TUBE (LEFT FRONT, HIGH) MAY W10367097 Contact Us For Availability
NI
TUBE (CENTER FRONT) MAY W10367098 Contact Us For Availability
NI
TUBE (RIGHT REAR) MAY W10367099 Contact Us For Availability
NI
TUBE (RIGHT FRONT, LOW) MAY W10367100 Contact Us For Availability
NI
TUBE (RIGHT FRONT, HIGH) MAY W10367101 Contact Us For Availability
NI
INSULATION, WRAP, 30" MAY W10282810 Contact Us For Availability
NI
INSULATION, BACK, 30" MAY W10299350 Contact Us For Availability
NI
INSULATION, BOTTOM MAY W10299354 Contact Us For Availability
NI
INSULATION, WRAP, 18" MAY W10282820 Contact Us For Availability
NI
INSULATION, BACK, 18" MAY W10299353 Contact Us For Availability
NI
INSULATION, BOTTOM MAY W10299355 Contact Us For Availability
NI
ACCESSORIES, PROTECTANT, COOKTOP MAY 31463 Contact Us For Availability
NI
ACCESSORIES, CLEANER, COOKTOP MAY 31464 Contact Us For Availability
NI
ACCESSORIES, CLEANER, GAS GRATE & DRIP PAN MAY 31617 Contact Us For Availability
NI
ACCESSORIES, APPLIANCE CLEANER MAY 31682 Contact Us For Availability
NI
ACCESSORIES, STONE, BRICK PIZZA MAY 4378577 Contact Us For Availability
NI
ACCESSORIES, GRIDDLE MAY 4396096RB Contact Us For Availability
NI
ACCESSORIES, STAINLESS STEEL CLEANER & POLISH MAY 4396920 Contact Us For Availability
NI
ACCESSORIES, WIPES, STAINLESS STEEL MAY 8212510 Contact Us For Availability
NI
ACCESSORIES, BACKSPLASH (ADJUSTABLE) MAY 8284755 Contact Us For Availability
NI
ACCESSORIES, BACKSPLASH MAY W10115777 Contact Us For Availability
NI
ACCESSORIES, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORIES, COVER, GRILL/GRIDDLE MAY W10160195 Contact Us For Availability
NI
ACCESSORIES, HANDLE KIT MAY W10188343 Contact Us For Availability
NI
ACCESSORIES, RING, WOK MAY W10216179 Contact Us For Availability
NI
ACCESSORIES, 48" WITH SOLID SHELF MAY W10225948 Contact Us For Availability
NI
ACCESSORIES, KIT, SS KNOBS MAY W10231704 Contact Us For Availability
× ![]()
