Model Maytag JJW3830DS03 RANGE/OVEN, ELECTRIC, BUILT-IN, DOUBLE, 30 INCH – Common Parts & Diagrams
01 - COVER SHEET
02 - CONTROL PANEL PARTS

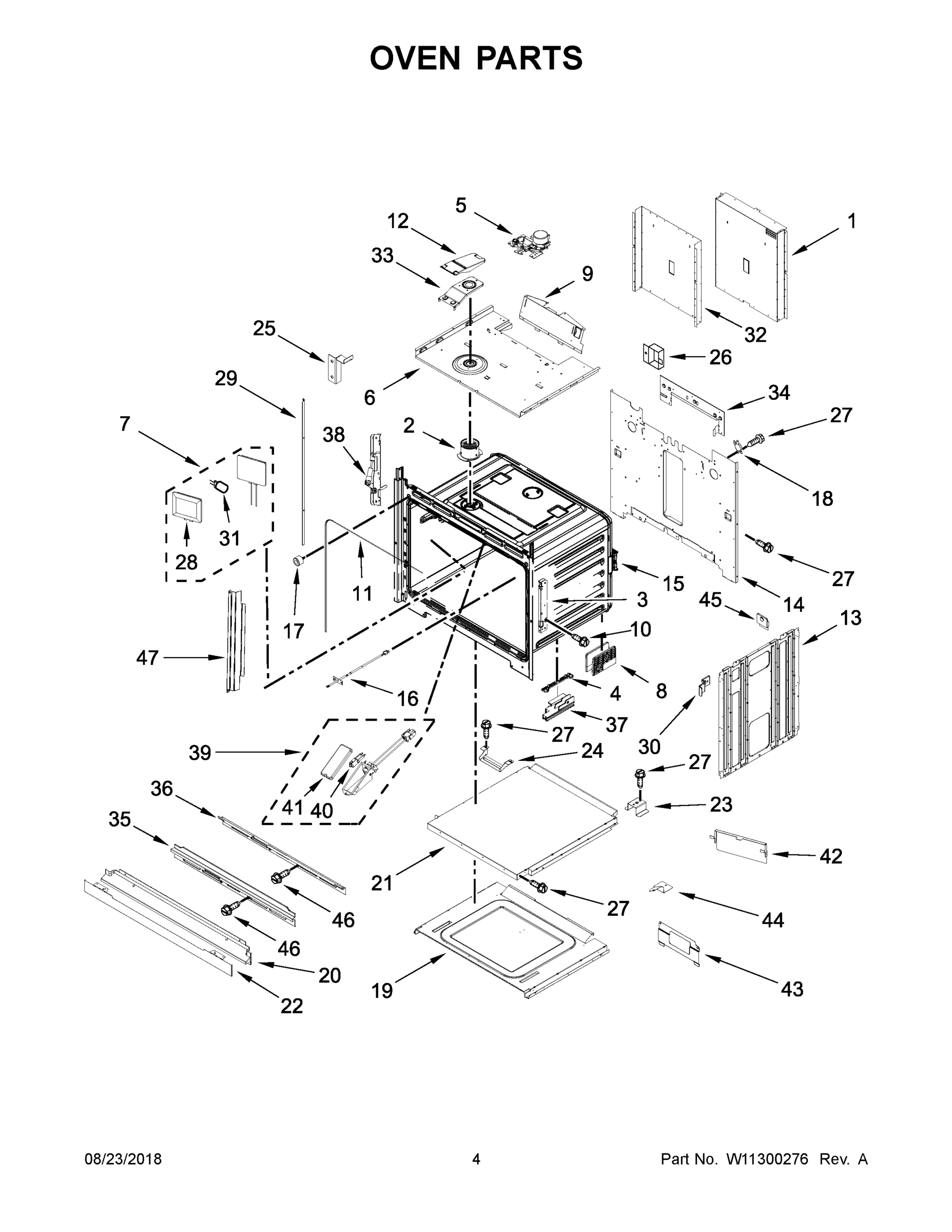

03 - OVEN PARTS

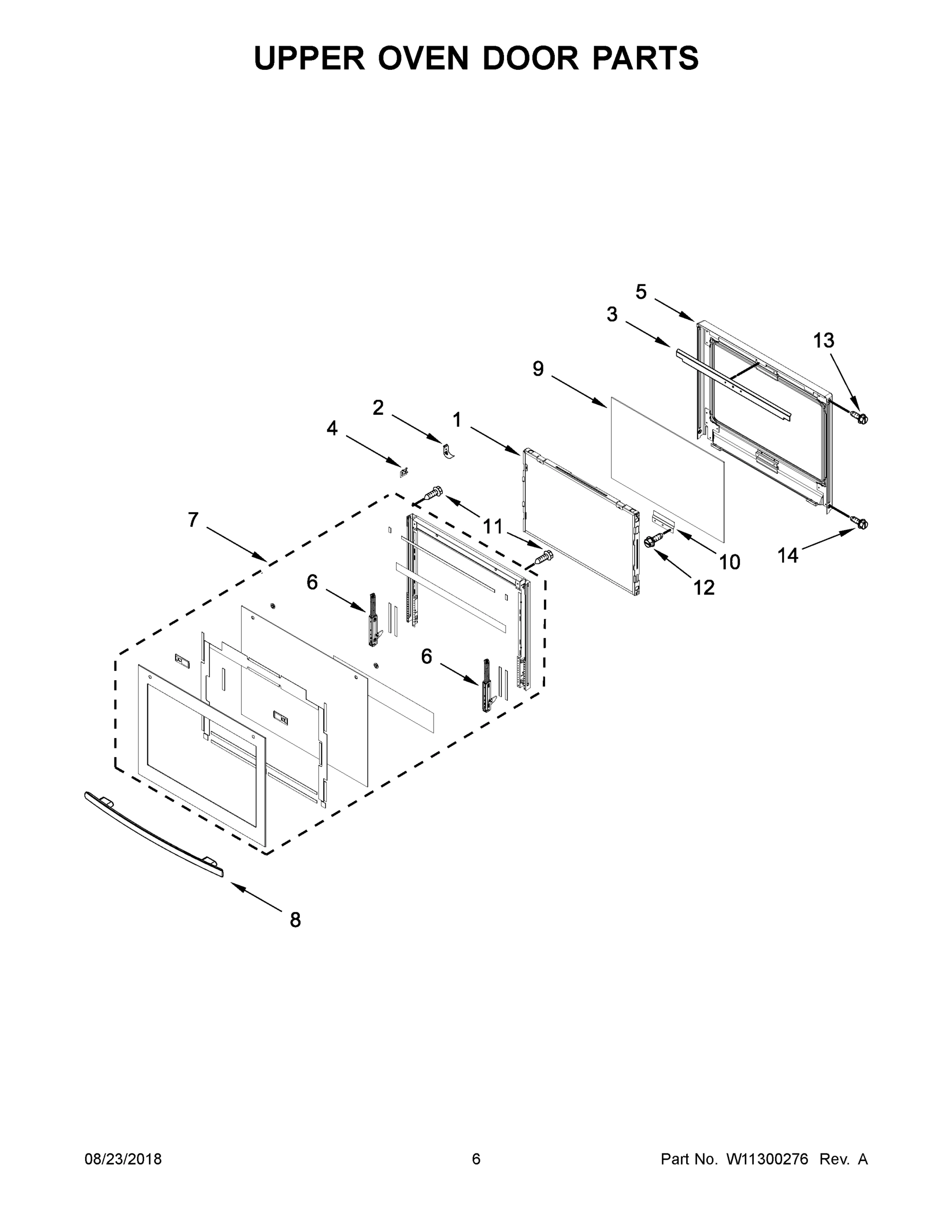

04 - UPPER OVEN DOOR PARTS

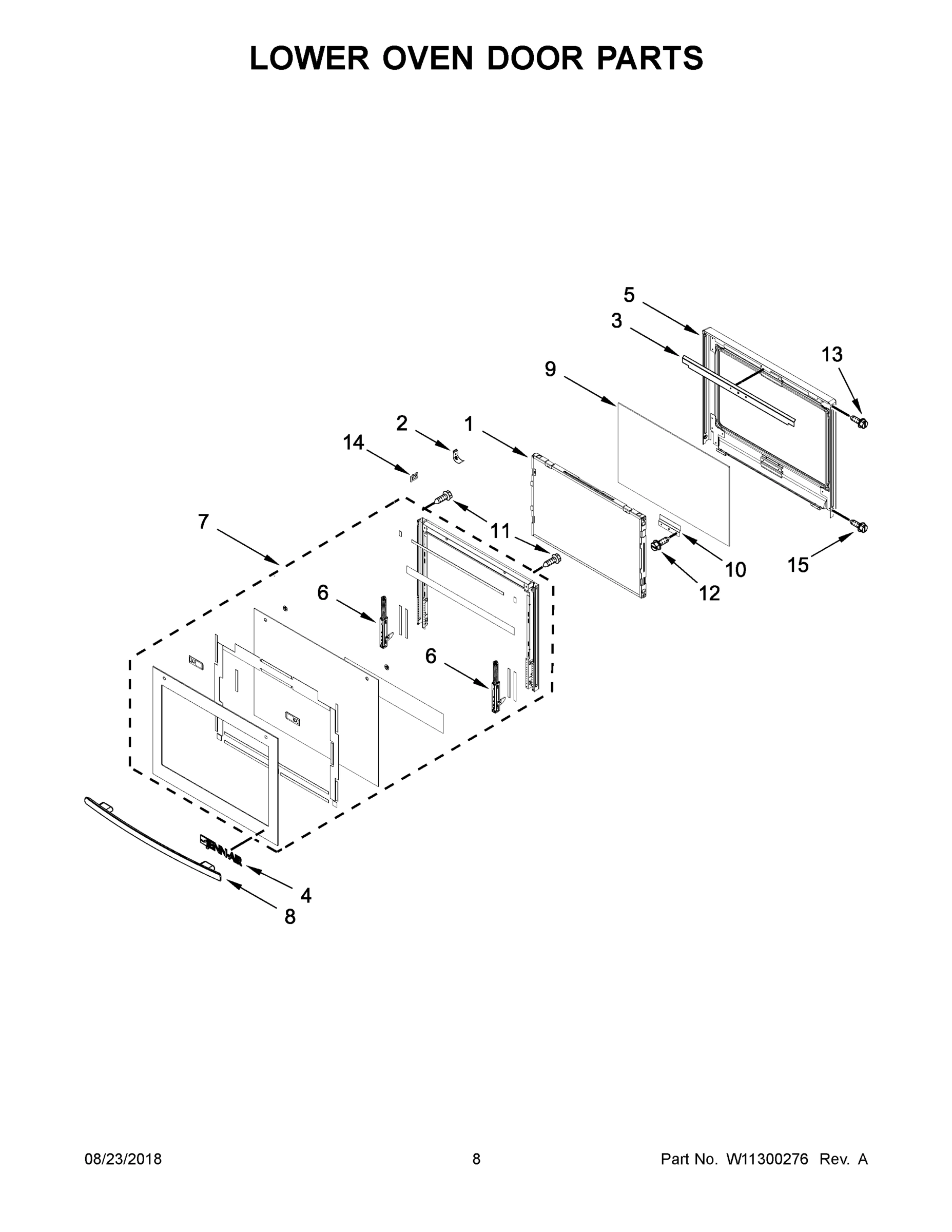

05 - LOWER OVEN DOOR PARTS

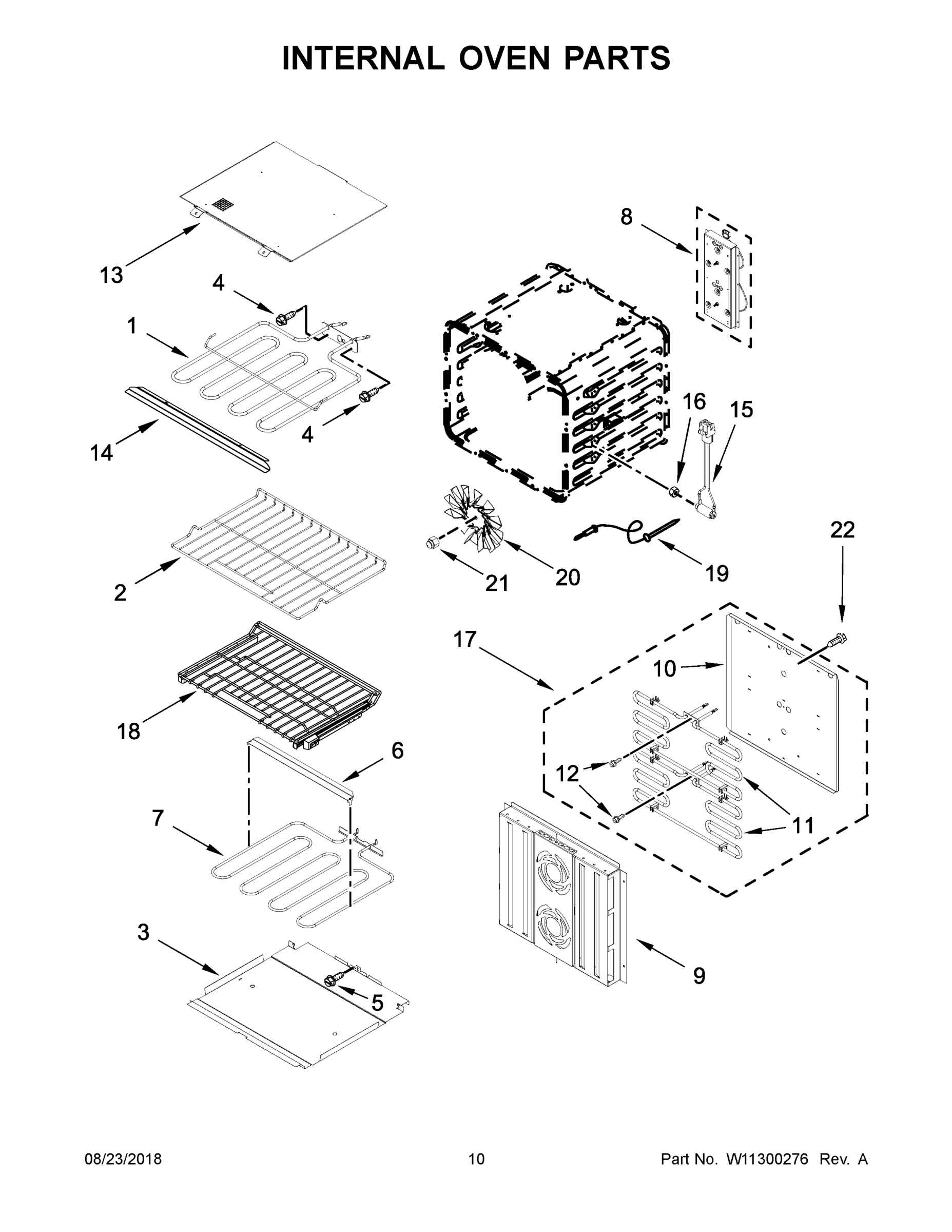

06 - INTERNAL OVEN PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JJW3830DS03 RANGE/OVEN, ELECTRIC, BUILT-IN, DOUBLE, 30 INCH
1
GUIDE, USE & CARE MAY W10754337 Contact Us For Availability
1
DUCT, CHASSIS BACK (UPPER) MAY W10318196 Contact Us For Availability
1
ASSEMBLY, WINDOW PACK MAY W10347596 Contact Us For Availability
1
ELEMENT, BROIL MAY W10764078 Contact Us For Availability
1A
INSTRUCTIONS, INSTALLATION MAY W10790014 Contact Us For Availability
1B
GUIDE, WIFI CONNECTIVITY MAY W10787928 Contact Us For Availability
1C
SHEET, TECH MAY W10767737 Contact Us For Availability
2
MAY W11102203 MAY W11102203 Contact Us For Availability
2
TUBE, VENT MAY W11085298 Contact Us For Availability
2
SPRING, DOOR GLASS FIXATION MAY W10284285 Contact Us For Availability
2
RACK, OVEN MAY W10554526 Contact Us For Availability
3
MANAGER, APPLIANCE MAY W10635086 Contact Us For Availability
3
RECEIVER, HINGE MAY W10616802 Contact Us For Availability
3
SHIELD, DOOR LINER MAY W10669415 Contact Us For Availability
3
TRAY, HIDDEN BAKE MAY W10318198 Contact Us For Availability
4
SCREW MAY W10489172 Contact Us For Availability
4
SCREW MAY 7101P434-60 Contact Us For Availability
4
SPACER, BASE MAY W10618102 Contact Us For Availability
4
BADGE (STAINLESS) MAY W10214168 Contact Us For Availability
5
BLOWER, DUAL SPEED MAY W11200130 Contact Us For Availability
5
SCREW MAY 7101P426-60 Contact Us For Availability
5
LATCH, MOTORIZED MAY W10618131 Contact Us For Availability
5
ASSEMBLY, LINER MAY W10709147 Contact Us For Availability
6
BUMPER MAY W10351295 Contact Us For Availability
6
HINGE, DOOR (NOT SERVICEABLE) MAY N/P Contact Us For Availability
6
TOP, CHASSIS MAY W10904158 Contact Us For Availability
6
CROSSBAR, HIDDEN BAKE TRAY MAY W10282957 Contact Us For Availability
7
FUSE, THERMAL MAY W10782120 Contact Us For Availability
7
ASSEMBLY, OVEN LIGHT MAY W11198684 Contact Us For Availability
7
ASSEMBLY, DOOR (STAINLESS) MAY W11110938 Contact Us For Availability
7
ELEMENT, BAKE MAY W10546517 Contact Us For Availability
8
FOOT, BASE MAY W10618101 Contact Us For Availability
8
ASSEMBLY, HANDLE (STAINLESS) MAY W10551013 Contact Us For Availability
8
ASSEMBLY, CONVECTION MOTOR MAY W11200176 Contact Us For Availability
9
DEFLECTOR, BLOWER MAY W10904163 Contact Us For Availability
9
GLASS, INNER MAY W10678524 Contact Us For Availability
9
ASSEMBLY, BAFFLE MAY W10559988 Contact Us For Availability
10
BRACKET, BLOWER (LEFT) MAY W10655463 Contact Us For Availability
10
SCREW MAY W10254050 Contact Us For Availability
10
BRACKET, GLASS MAY W10284297 Contact Us For Availability
10
SHIELD, CONVECTION MAY W10853277 Contact Us For Availability
10A
BRACKET, BLOWER (RIGHT) MAY W10655462 Contact Us For Availability
11
BLOCK, FOAM MAY 4451758 Contact Us For Availability
11
GASKET MAY W10739089 Contact Us For Availability
11
SCREW MAY W10480830 Contact Us For Availability
11
ELEMENT, CONVECTION MAY W10663735 Contact Us For Availability
12
TRAY, ELECTRONIC MAY W10864102 Contact Us For Availability
12
COVER, VENT EXHAUST MAY W10616810 Contact Us For Availability
12
SCREW MAY W10236129 Contact Us For Availability
13
CHASSIS, BACK DIVIDER MAY W10655465 Contact Us For Availability
13
SIDE, CHASSIS (LEFT) MAY W10663556 Contact Us For Availability
13
SCREW WITH WASHER MAY W10284411 Contact Us For Availability
13
SHIELD, BROIL ELEMENT MAY W10911205 Contact Us For Availability
13A
SIDE, CHASSIS (RIGHT) MAY W10318190 Contact Us For Availability
14
CHASSIS, COVER TOP FRONT 30" MAY W10444125 Contact Us For Availability
14
CLIP, SPRING METAL MAY W10653954 Contact Us For Availability
14
SHIELD, BROIL FRONT MAY W10588737 Contact Us For Availability
15
CHASSIS, COVER TOP BACK 30" MAY W10667383 Contact Us For Availability
15
SCREW (BLACK) MAY 7101P635-60 Contact Us For Availability
15
JACK, MEAT PROBE MAY W10696226 Contact Us For Availability
16
SKIN, CONTROL PANEL (STAINLESS) MAY W10444132 Contact Us For Availability
16
PROBE, SENSOR MAY W10622170 Contact Us For Availability
16
NUT, LOCKING MAY W11033111 Contact Us For Availability
17
HARNESS, KEYPAD (LEFT TO CENTER) MAY W10566973 Contact Us For Availability
17
BUMPER & SCREW MAY W10351278 Contact Us For Availability
17
ASSEMBLY, CONVECTION ELEMENT MAY W10854021 Contact Us For Availability
18
HARNESS, KEYPAD (RIGHT TO CENTER) MAY W10524350 Contact Us For Availability
18
THERMOSTAT (TOD) MAY 4449751 Contact Us For Availability
18
RACK, SLIDING MAY W10840297 Contact Us For Availability
19
ASSEMBLY, SPEAKER MAY W10568405 Contact Us For Availability
19
BASE, CHASSIS MAY W10834867 Contact Us For Availability
19
PROBE, TEMPERATURE MAY 9755542 Contact Us For Availability
20
HOUSING MAY W10668510 Contact Us For Availability
20
ASSEMBLY, BOTTOM VENT (STAINLESS) MAY W10327374 Contact Us For Availability
20
MAY W10803141 MAY W10803141 Contact Us For Availability
21
JUMPER HARNESS, POWER SUPPLY MAY W10575307 Contact Us For Availability
21
CHASSIS, BOTTOM DUCT MAY W10283008 Contact Us For Availability
21
NUT, ACORN (LH) MAY W10631504 Contact Us For Availability
21A
MAY W10803140 MAY W10803140 Contact Us For Availability
22
GASKET, RUBBER MAY W10728475 Contact Us For Availability
22
TRIM, BOTTOM VENT (STAINLESS) MAY W10327377 Contact Us For Availability
22
SCREW MAY W10739592 Contact Us For Availability
23
SHIELD, WIFI ACCESS MAY W10810292 Contact Us For Availability
23
SUPPORT, AIR CHANNEL MAY W10213759 Contact Us For Availability
24
SPACER, CHASSIS BOTTOM DUCT MAY W10351308 Contact Us For Availability
25
BRACKET, SIDE COVER (LEFT) MAY W10737716 Contact Us For Availability
25A
BRACKET, SIDE COVER (RIGHT) MAY W10737715 Contact Us For Availability
26
COVER, CONNECTOR MAY 8285593 Contact Us For Availability
28
LENS, LIGHT MAY W10472386 Contact Us For Availability
29
COVER, SIDE TRIM (LEFT) MAY W10327369 Contact Us For Availability
29A
COVER, SIDE TRIM (RIGHT) MAY W10327368 Contact Us For Availability
30
SPACERS, FRONT MAY W10834501 Contact Us For Availability
31
BULB, LIGHT MAY W10472384 Contact Us For Availability
32
DUCT, CHASSIS BACK (LOWER) MAY W10542857 Contact Us For Availability
33
BASE, VENT EXHAUST MAY W10616809 Contact Us For Availability
34
BRACKET, U-SHAPE MAY W10588736 Contact Us For Availability
35
VENT, CENTER 30" MAY W10283040 Contact Us For Availability
36
VENT, TOP 30" MAY W10283036 Contact Us For Availability
37
FOOT, FRONT (LEFT) MAY W10618103 Contact Us For Availability
37A
FOOT, FRONT (RIGHT) MAY W10618104 Contact Us For Availability
38
RECEIVER, SLOW CLOSE HINGE MAY W11045086 Contact Us For Availability
39
ASSEMBLY, LIGHT (TOP) MAY W11223933 Contact Us For Availability
40
BULB, LIGHT MAY W10169757 Contact Us For Availability
41
LENS, LIGHT MAY W10169756 Contact Us For Availability
42
SHIELD, INNER MAY W10753663 Contact Us For Availability
43
SHIELD, OUTER MAY W10846765 Contact Us For Availability
44
SHIELD. BOTTOM (LEFT) MAY W10832249 Contact Us For Availability
44A
SHIELD. BOTTOM (RIGHT) MAY W10832250 Contact Us For Availability
45
SPACER, CENTER MAY W10834286 Contact Us For Availability
46
SCREW MAY 7101P427-60 Contact Us For Availability
47
SHIELD, FRONT FRAME HEAT MAY W10791505 Contact Us For Availability
NI
CLIP, HARNESS MAY 313438 Contact Us For Availability
NI
CLAMP, CONDUIT MAY 4448664 Contact Us For Availability
NI
SCREW, GROUNDING MAY 4450800 Contact Us For Availability
NI
TIE, CABLE MAY 4454842 Contact Us For Availability
NI
HARNESS, EOL MAY W10562910 Contact Us For Availability
NI
BRACKET, HARNESS MAY W10655464 Contact Us For Availability
NI
STRAP, LEAD GROUND MAY W11132988 Contact Us For Availability
NI
HARNESS, DOOR LATCH MAY W11132989 Contact Us For Availability
NI
HARNESS, SIGNAL MAY W11132990 Contact Us For Availability
NI
MAY W11132997 MAY W11132997 Contact Us For Availability
NI
JUMPER TOD MAY W11229447 Contact Us For Availability
NI
ASSEMBLY, ANTENNA & HOUSING MAY W11234542 Contact Us For Availability
NI
INSULATION, CONTROL KNOB MAY W10464568 Contact Us For Availability
NI
MAY W10520715 MAY W10520715 Contact Us For Availability
NI
MAY W10566640 MAY W10566640 Contact Us For Availability
NI
PAINT, SPRAY (BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, SPRAY (GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
ACCESSORIES, GRID, BROILER PAN AND MAY 4396923 Contact Us For Availability
NI
ADHESIVE, SEALER, SILASTIC MAY 482338 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
ACCESSORIES, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORIES, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
NI
ACCESSORIES, WIPES, STAINLESS STEEL CLEANING MAY W10355049 Contact Us For Availability
× ![]()
