Model Maytag JGRP430WP02 RANGE/OVEN, DUAL FUEL, FREESTANDING, 30 INCH – Common Parts & Diagrams
01 - COVER SHEET
02 - COOKTOP, BURNER AND GRATE PARTS

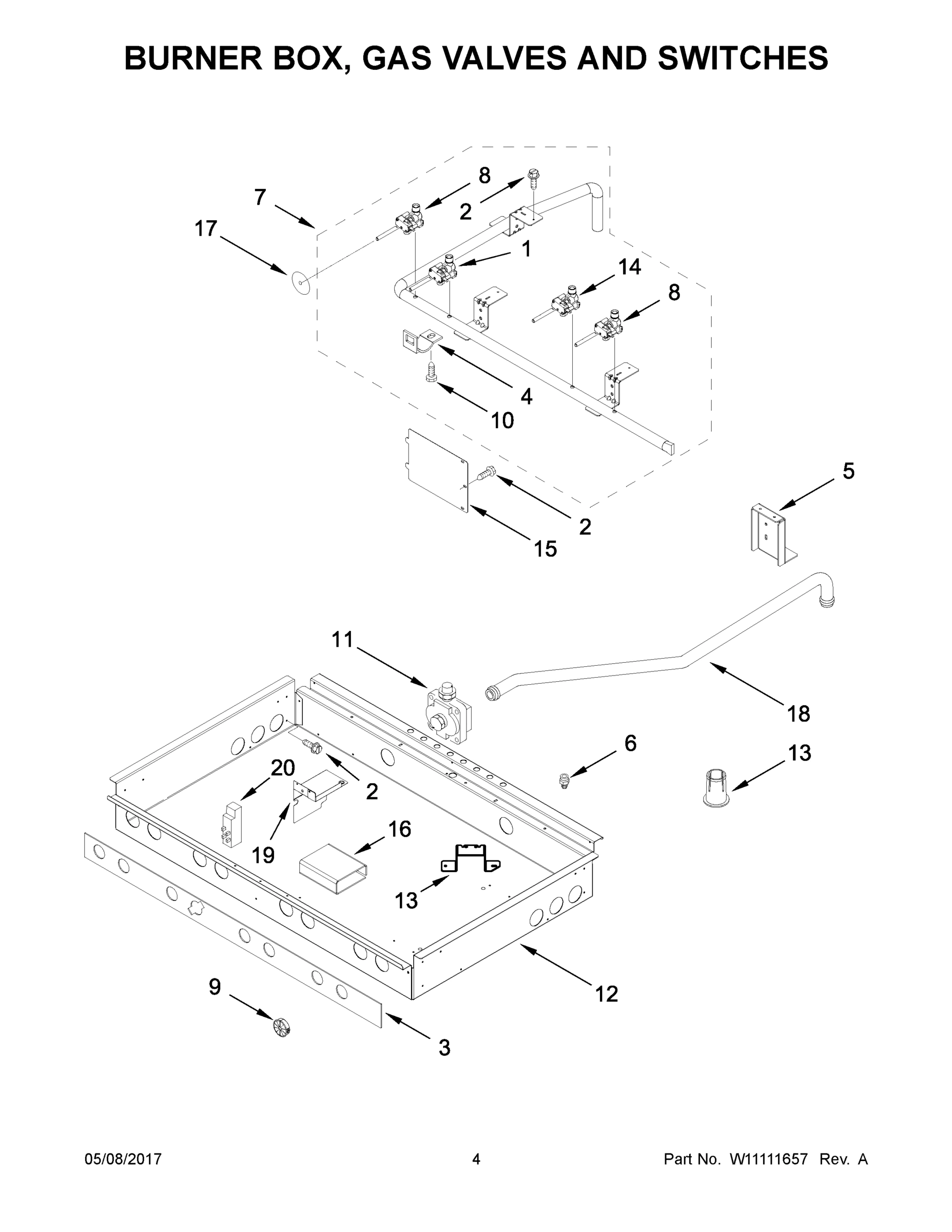

03 - BURNER BOX, GAS VALVES AND SWITCHES

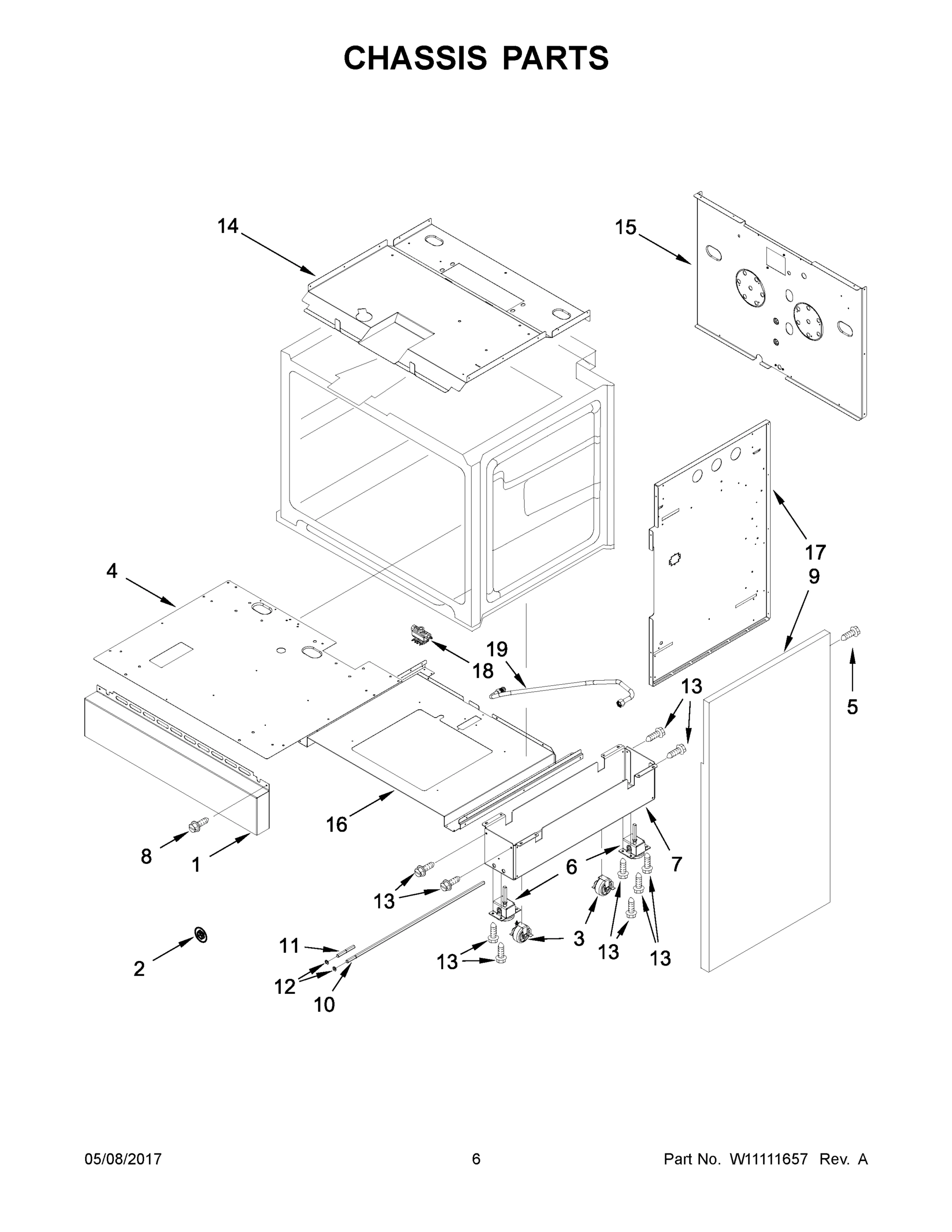

04 - CHASSIS PARTS

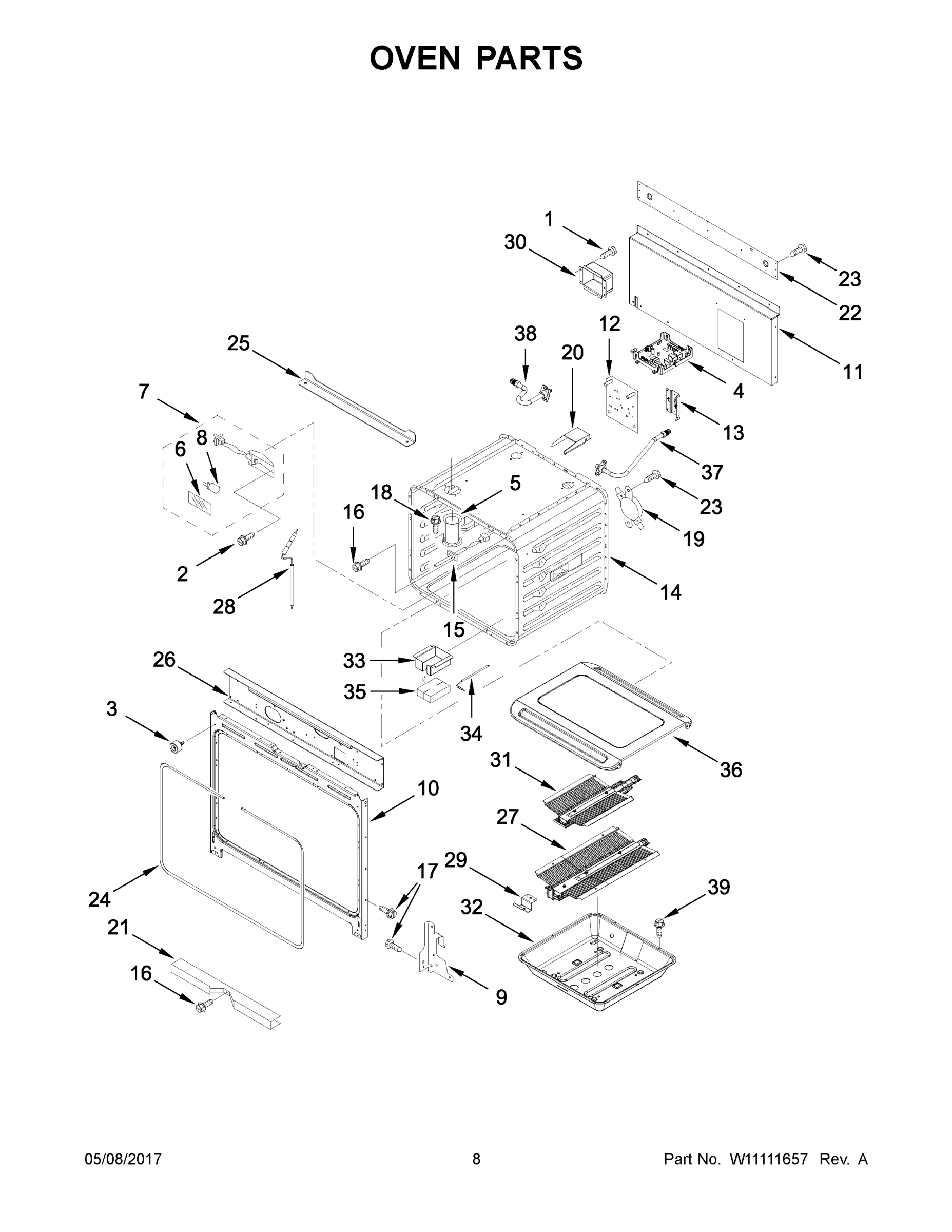

05 - OVEN PARTS

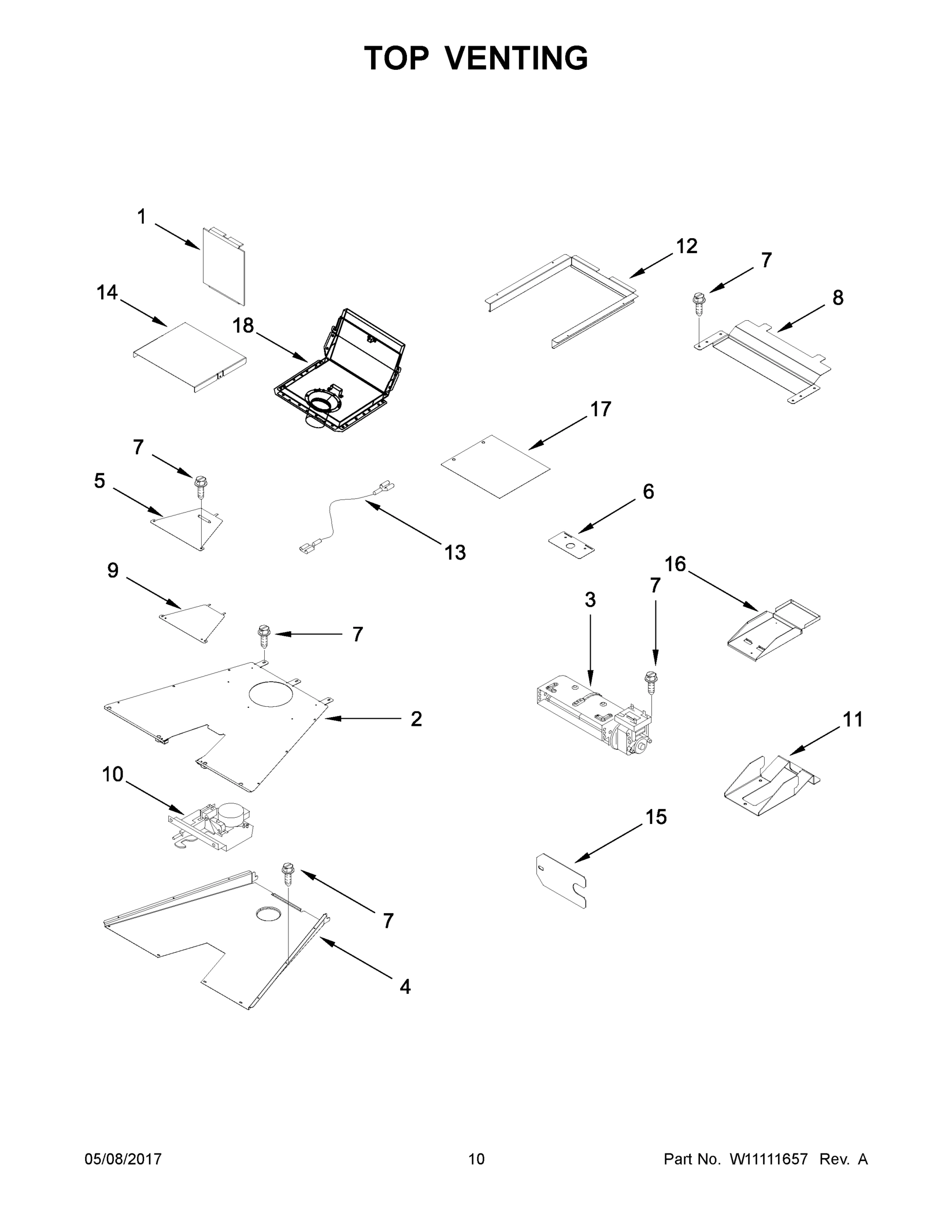

06 - TOP VENTING

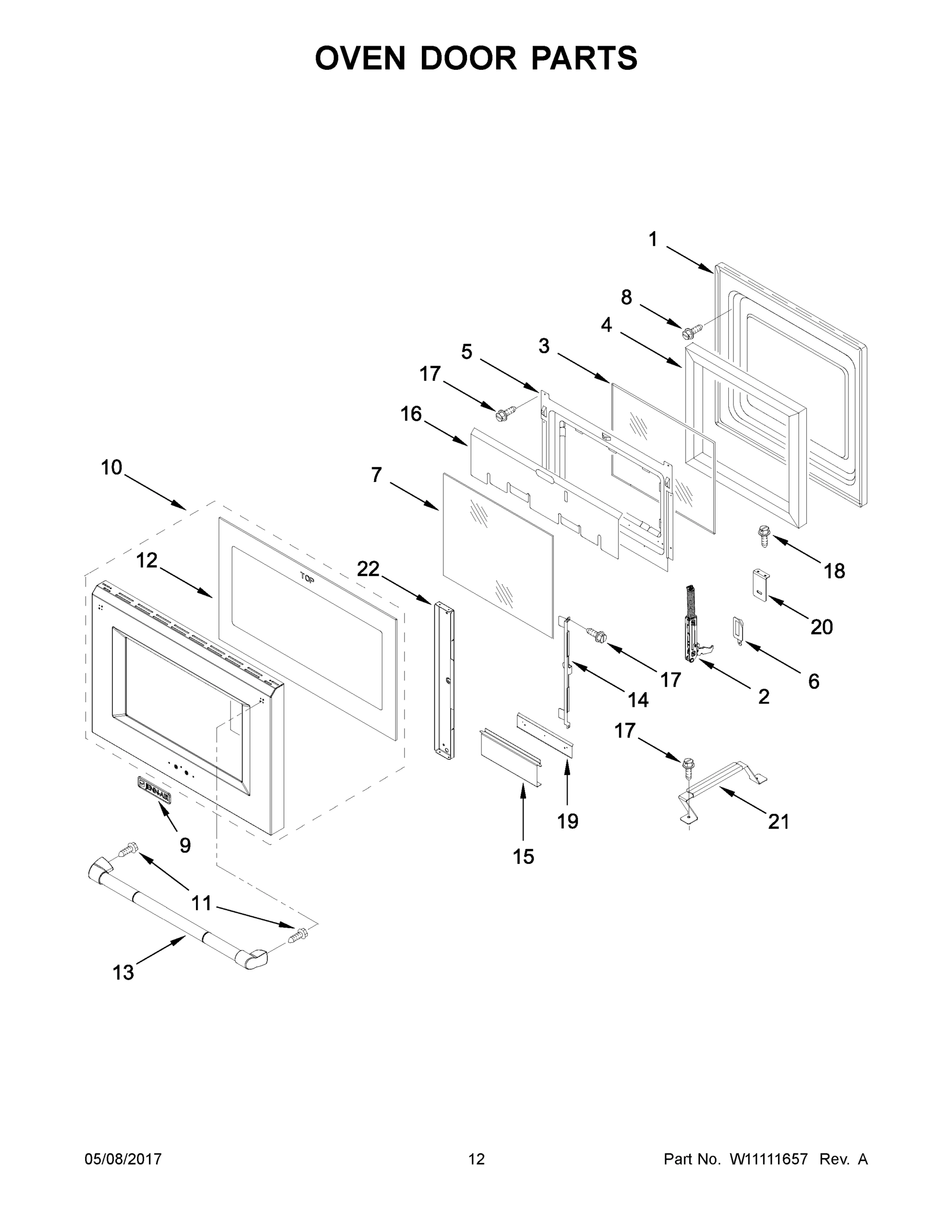

07 - OVEN DOOR PARTS

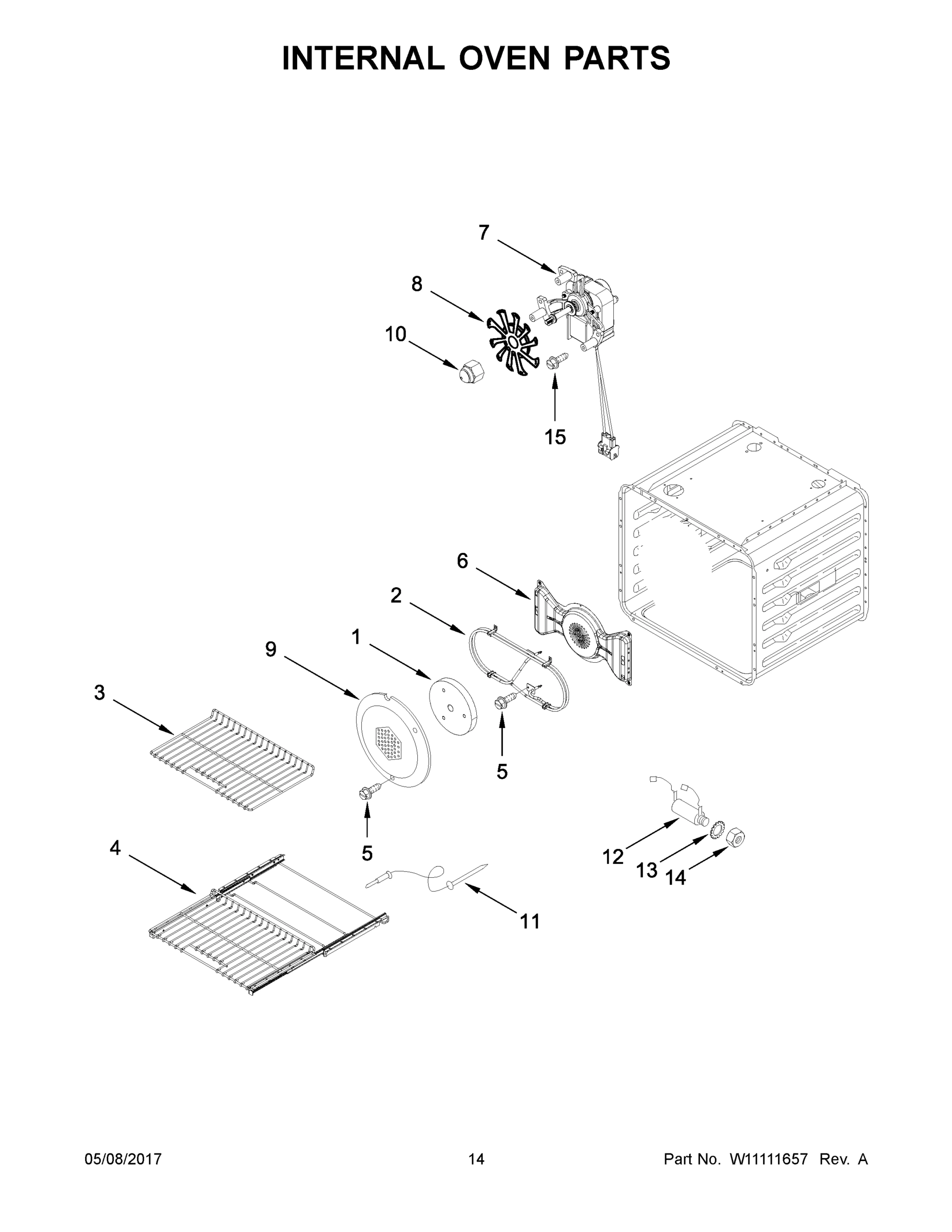

08 - INTERNAL OVEN PARTS
09 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JGRP430WP02 RANGE/OVEN, DUAL FUEL, FREESTANDING, 30 INCH
1
GUIDE, USE & CARE MAY W10837388 Contact Us For Availability
1
VALVE, DUAL MAY W10371235 Contact Us For Availability
1
KICKPLATE MAY W10145765 Contact Us For Availability
1
SCREW MAY 7101P434-60 Contact Us For Availability
1
INSULATION, CHIMNEY MAY W10246087 Contact Us For Availability
1
LINER, DOOR MAY 9759413 Contact Us For Availability
1
INSULATION, CONVECTION COVER MAY W10282821 Contact Us For Availability
1A
INSTRUCTIONS, INSTALLATION MAY W10821591 Contact Us For Availability
1B
SHEET, TECH (ENGLISH) MAY W10403308 Contact Us For Availability
1C
SHEET, TECH (FRENCH) MAY W10403309 Contact Us For Availability
1D
TIPS, SAFE COOKING (ENGLISH) MAY 9762761 Contact Us For Availability
1E
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
2
MAY W10657945 MAY W10657945 Contact Us For Availability
2
NUT MAY 3400968 Contact Us For Availability
2
SCREW MAY 4449748 Contact Us For Availability
2
VENT, COOLING TOP (30") MAY W10299182 Contact Us For Availability
2
HINGE, DOOR (LEFT) MAY W10774095 Contact Us For Availability
2
ELEMENT, CONVECTION MAY W10145949 Contact Us For Availability
2A
ORIFICE (1.2K) (LEFT FRONT, LOW) MAY W10256132 Contact Us For Availability
2A
HINGE, DOOR (RIGHT) MAY W10774094 Contact Us For Availability
2B
ORIFICE (15K) (LEFT REAR & RIGHT FRONT) MAY W10364221 Contact Us For Availability
2C
ORIFICE (5K) (RIGHT REAR) MAY W10282663 Contact Us For Availability
3
MAY W10846622 MAY W10846622 Contact Us For Availability
3
INSULATION, BURNER BOX MAY W10276534 Contact Us For Availability
3
ASSEMBLY, ROLLER MAY W10138054 Contact Us For Availability
3
BUMPER & SCREW MAY W10105790 Contact Us For Availability
3
BLOWER 60MM MAY W10245511 Contact Us For Availability
3
GLASS, INNER (SINGLE COATED) MAY 4449259 Contact Us For Availability
3
RACK, OVEN MAY W10570887 Contact Us For Availability
4
MAY W10846623 MAY W10846623 Contact Us For Availability
4
BRACKET, VALVE MAY W10432260 Contact Us For Availability
4
DUCT, BOTTOM MAY W10145380 Contact Us For Availability
4
MANAGER, APPLIANCE MAY W10859106 Contact Us For Availability
4
VENT, COOLING BOTTOM (30") MAY W10349015 Contact Us For Availability
4
INSULATION, DOOR MAY 4451722 Contact Us For Availability
4
RACK, OVEN (SLIDING) MAY W10570865 Contact Us For Availability
5
MAY W10883622 MAY W10883622 Contact Us For Availability
5
BRACKET, PRESSURE REGULATOR MAY W10308042 Contact Us For Availability
5
TUBE, VENT MAY W10145743 Contact Us For Availability
5
PLATE, COOLING LATCH MAY W10160875 Contact Us For Availability
5
RETAINER, GLASS MAY 4457132 Contact Us For Availability
5
SCREW MAY 7101P500-60 Contact Us For Availability
6
TRIM, ISLAND MAY W10323247 Contact Us For Availability
6
ADAPTER, FEMALE MAY 4453115 Contact Us For Availability
6
LEVELER MAY 9760860 Contact Us For Availability
6
LENS, LIGHT MAY W10169756 Contact Us For Availability
6
HOLDER, STRAIN RELIEF MAY W10115855 Contact Us For Availability
6
COVER, HINGE (LEFT) MAY W10115876 Contact Us For Availability
6
BAFFLE, CONVECTION MAY W10246060 Contact Us For Availability
6A
COVER, HINGE (RIGHT) MAY W10115877 Contact Us For Availability
7
GRATE, BURNER (BLACK) MAY W10276551 Contact Us For Availability
7
ASSEMBLY, MANIFOLD MAY W10402605 Contact Us For Availability
7
BASE, LEVELING LEG MAY W10249333 Contact Us For Availability
7
ASSEMBLY, OVEN LIGHT MAY W10307114 Contact Us For Availability
7
GLASS, INNER (DOUBLE COATED) MAY 9759225 Contact Us For Availability
7
MOTOR, CONVECTION MAY W10631506 Contact Us For Availability
8
PAD, GRATE MAY 9759322 Contact Us For Availability
8
VALVE, SINGLE MAY W10385582 Contact Us For Availability
8
BULB, LIGHT MAY W10169757 Contact Us For Availability
8
BRACKET, BLOWER (30") MAY W10145748 Contact Us For Availability
8
SCREW MAY W10292297 Contact Us For Availability
8
BLADE, FAN MAY W10631503 Contact Us For Availability
9
BEZEL MAY W10276494 Contact Us For Availability
9
BUSHING, BURNER BOX MAY W10189097 Contact Us For Availability
9
PANEL, SIDE (LEFT) MAY W10250465 Contact Us For Availability
9
RECEIVER, HINGE (LEFT) MAY 4455605 Contact Us For Availability
9
COVER, LATCH MAY W10160858 Contact Us For Availability
9
BADGE (STAINLESS) MAY W10159578 Contact Us For Availability
9
PLATE, FAN MAY W10261523 Contact Us For Availability
9A
PANEL, SIDE (RIGHT) MAY W10250464 Contact Us For Availability
9A
RECEIVER, HINGE (RIGHT) MAY 4455606 Contact Us For Availability
10
FILLER, COOKTOP MAY W10189105 Contact Us For Availability
10
SCREW MAY W10189140 Contact Us For Availability
10
SHAFT, LONG MAY W10115869 Contact Us For Availability
10
FRAME, FRONT MAY W10115831 Contact Us For Availability
10
LATCH, MOTORIZED MAY W10830016 Contact Us For Availability
10
PANEL, EXTERIOR MAY W10145759 Contact Us For Availability
10
NUT, ACORN (LH) MAY W10631504 Contact Us For Availability
11
BRACKET, MOVING CONSOLE (LEFT) MAY W10130760 Contact Us For Availability
11
REGULATOR, PRESSURE MAY W10145584 Contact Us For Availability
11
SHAFT, SHORT MAY W10115793 Contact Us For Availability
11
PANEL, BACK BOTTOM MAY W10145392 Contact Us For Availability
11
BRACKET, BAKE ALIGNEMENT MAY W10308039 Contact Us For Availability
11
SCREW MAY W10276043 Contact Us For Availability
11
PROBE, TEMPERATURE MAY 9755542 Contact Us For Availability
11A
BRACKET, MOVING CONSOLE (RIGHT) MAY W10130759 Contact Us For Availability
12
ASSEMBLY, KEYPAD MAY W10464535 Contact Us For Availability
12
E-RING MAY 489504 Contact Us For Availability
12
MODULE, SPARK DSI MAY W10511278 Contact Us For Availability
12
DUCT, PRIMARY AIR (30") MAY W10145363 Contact Us For Availability
12
GLASS, OUTER DOOR MAY W10145850 Contact Us For Availability
12
JACK, MEAT PROBE MAY 9755543 Contact Us For Availability
13
CAP, BURNER (BLACK (LEFT FRONT)) MAY W10256034 Contact Us For Availability
13
BRACKET, BURNER MAY W10560553 Contact Us For Availability
13
SCREW MAY 4449743 Contact Us For Availability
13
BRACKET-BOARD, DSI MAY W10145362 Contact Us For Availability
13
MAY W10830796 MAY W10830796 Contact Us For Availability
13
HANDLE, DOOR MAY 7701P475-60 Contact Us For Availability
13
WASHER, LOCK MAY 9755547 Contact Us For Availability
13A
CAP, BURNER (BLACK (LEFT REAR & RIGHT FRONT)) MAY W10256032 Contact Us For Availability
13B
CAP, BURNER (BLACK (RIGHT REAR)) MAY W10364463 Contact Us For Availability
14
SPREADER, FLAME (LEFT FRONT) MAY W10879806 Contact Us For Availability
14
VALVE, SIMMER MAY W10385583 Contact Us For Availability
14
CHASSIS, TOP MAY W10145374 Contact Us For Availability
14
RETAINER, INSULATION MAY W10246086 Contact Us For Availability
14
BRACKET, SIDE MAY 9759229 Contact Us For Availability
14
NUT, HIDDEN MAY 9755546 Contact Us For Availability
14A
SPREADER, FLAME (LEFT REAR & RIGHT FRONT) MAY W10256027 Contact Us For Availability
14B
SPREADER, FLAME (RIGHT REAR) MAY W10282515 Contact Us For Availability
15
SPRING, ELECTRODE (LEFT FRONT, LEFT REAR, RIG MAY W10827923 Contact Us For Availability
15
COVER, IGNITION MAY W10115843 Contact Us For Availability
15
CHASSIS, BACK MAY W10145356 Contact Us For Availability
15
SENSOR MAY W10131825 Contact Us For Availability
15
COVER, CHANNEL MAY W10145381 Contact Us For Availability
15
BRACKET, CENTER OUTER GLASS MAY W10145763 Contact Us For Availability
15
SCREW MAY W10720084 Contact Us For Availability
16
ELECTRODE, BURNER (RIGHT REAR) MAY 8286725 Contact Us For Availability
16
INSULATION, SPARK MODULE MAY 8287102 Contact Us For Availability
16
CHASSIS, BOTTOM MAY W10145371 Contact Us For Availability
16
SCREW MAY 4449154 Contact Us For Availability
16
SUPPORT, CONTROL MAY W10853036 Contact Us For Availability
16
SHIELD, HEAT TOP MAY 4457104 Contact Us For Availability
17
ASSEMBLY, POWER SUPPLY MAY W10145531 Contact Us For Availability
17
SEAL, SWITCH COVER MAY W10189177 Contact Us For Availability
17
SCREW MAY 3196537 Contact Us For Availability
17
CHASSIS, SIDE (LEFT) MAY W10269206 Contact Us For Availability
17
SCREW MAY 4449040 Contact Us For Availability
17
SEAL, CONTROL MAY W10239444 Contact Us For Availability
17A
CHASSIS, SIDE (RIGHT) MAY W10269205 Contact Us For Availability
18
COOKTOP (BLACK (LEFT)) MAY W10352969 Contact Us For Availability
18
SCREW MAY 7101P426-60 Contact Us For Availability
18
TUBE, PRESSURE REGULATOR MAY W10348600 Contact Us For Availability
18
VALVE, DUAL MAY W10145680 Contact Us For Availability
18
SCREW MAY 3196176 Contact Us For Availability
18
ASSEMBLY, CHIMNEY BOX MAY W10340579 Contact Us For Availability
18A
COOKTOP (BLACK (RIGHT)) MAY W10352968 Contact Us For Availability
19
SCREW MAY 3400099 Contact Us For Availability
19
BRACKET, SPARK MODULE MAY W10498404 Contact Us For Availability
19
TUBE, VALVE MAY W10145701 Contact Us For Availability
19
THERMOSTAT (TOD) MAY 4450249 Contact Us For Availability
19
SHIELD, HEAT BOTTOM MAY 4457114 Contact Us For Availability
20
T-STRIP MAY W10271524 Contact Us For Availability
20
MODULE, SPARK MAY W10475147 Contact Us For Availability
20
ASSEMBLY, DRAWER MAY W10235557 Contact Us For Availability
20
BRACKET, DOOR TOP MAY W10115715 Contact Us For Availability
21
INSERT, ISLAND TRIM MAY W10323248 Contact Us For Availability
21
RETAINER, GASKET (30") MAY W10157511 Contact Us For Availability
21
BRACKET, CENTRAL MAY 9759230 Contact Us For Availability
22
GRATE, FILLER MAY W10276495 Contact Us For Availability
22
PANEL, BACK TOP MAY W10321813 Contact Us For Availability
22
BRACKET, OUTER GLASS SIDE MAY W10145761 Contact Us For Availability
23
PANEL, CONTROL MAY W10789952 Contact Us For Availability
24
KNOB, DUAL (STAINLESS) MAY W10145568 Contact Us For Availability
24
GASKET, OVEN (30") MAY W10850858 Contact Us For Availability
25
SCREW, BURNER RAIL (M4) MAY 8286921 Contact Us For Availability
25
BRACKET, BROIL STANDOFF MAY W10317437 Contact Us For Availability
26
GASKET, ORIFICE MAY 8286930 Contact Us For Availability
26
SUPPORT, CHANNEL MAY W10145377 Contact Us For Availability
27
SPRING, ELECTRODE (RIGHT REAR) MAY 8286863 Contact Us For Availability
27
BURNER, BROIL MAY W10311335 Contact Us For Availability
28
KNOB, SINGLE (STAINLESS) MAY W10145454 Contact Us For Availability
28
ELECTRODE, BROIL MAY W10332287 Contact Us For Availability
29
SCREW MAY 3177991 Contact Us For Availability
29
BRACKET, BAKE BURNER MAY W10308040 Contact Us For Availability
30
SCREW MAY 3196160 Contact Us For Availability
30
BOX, BROIL MAY W10308051 Contact Us For Availability
31
SCREW MAY W10673618 Contact Us For Availability
31
MAY W10878504 MAY W10878504 Contact Us For Availability
32
SCREW MAY 7101P338-60 Contact Us For Availability
32
SUPPORT, BAKE PAN MAY W10145744 Contact Us For Availability
33
COVER, BROIL MAY W10310985 Contact Us For Availability
34
MAY W10878506 MAY W10878506 Contact Us For Availability
35
INSULATION, BROIL COVER MAY W10311009 Contact Us For Availability
36
BOTTOM, OVEN MAY W10272546 Contact Us For Availability
37
TUBE, BROIL MAY W10145716 Contact Us For Availability
38
TUBE, BAKE MAY W10145715 Contact Us For Availability
NI
CLIP, HARNESS MAY 313438 Contact Us For Availability
NI
SCREW, GROUNDING MAY 4450800 Contact Us For Availability
NI
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
MAY W10116168 MAY W10116168 Contact Us For Availability
NI
MAY W10145988 MAY W10145988 Contact Us For Availability
NI
MAY W10183556 MAY W10183556 Contact Us For Availability
NI
MAY W10253333 MAY W10253333 Contact Us For Availability
NI
MAY W10344051 MAY W10344051 Contact Us For Availability
NI
MAY W10368807 MAY W10368807 Contact Us For Availability
NI
MAY W10624584 MAY W10624584 Contact Us For Availability
NI
MAY W10763500 MAY W10763500 Contact Us For Availability
NI
MAY W10780278 MAY W10780278 Contact Us For Availability
NI
TUBE (RIGHT REAR) MAY W10276501 Contact Us For Availability
NI
TUBE (LEFT REAR) MAY W10368165 Contact Us For Availability
NI
TUBE (LEFT FRONT, LOW) MAY W10368166 Contact Us For Availability
NI
TUBE (LEFT FRONT, HIGH) MAY W10368167 Contact Us For Availability
NI
TUBE (RIGHT FRONT) MAY W10368335 Contact Us For Availability
NI
INSULATION, WRAP, 30" MAY W10282810 Contact Us For Availability
NI
INSULATION, BACK, 30" MAY W10299350 Contact Us For Availability
NI
INSULATION, BOTTOM MAY W10299354 Contact Us For Availability
NI
MISCELLANEOUS, CLEANER, STAINLESS STEEL MAY 31462 Contact Us For Availability
NI
MISCELLANEOUS, APPLIANCE CLEANER MAY 31682 Contact Us For Availability
NI
ADHESIVE, SEAL, ACCESS PANEL MAY 4453191 Contact Us For Availability
NI
ADHESIVE, SEAL, RIBBON CABLE MAY 4453192 Contact Us For Availability
NI
ADHESIVE, SEALER, SILASTIC MAY 482338 Contact Us For Availability
NI
ADHESIVE, ADHESIVE, LOCTITE MAY 591014 Contact Us For Availability
NI
MISCELLANEOUS, 30" WITHOUT SHELVES MAY 8285148 Contact Us For Availability
NI
MISCELLANEOUS, STAINLESS STEEL WALLSPLASH MAY JXA9003CDP Contact Us For Availability
NI
MISCELLANEOUS, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
MISCELLANEOUS, COVER, GRILL/GRIDDLE MAY W10160195 Contact Us For Availability
NI
MISCELLANEOUS, RACK, OVEN (SLIDING) MAY W10208155 Contact Us For Availability
NI
MISCELLANEOUS, RING, WOK MAY W10216179 Contact Us For Availability
× ![]()
