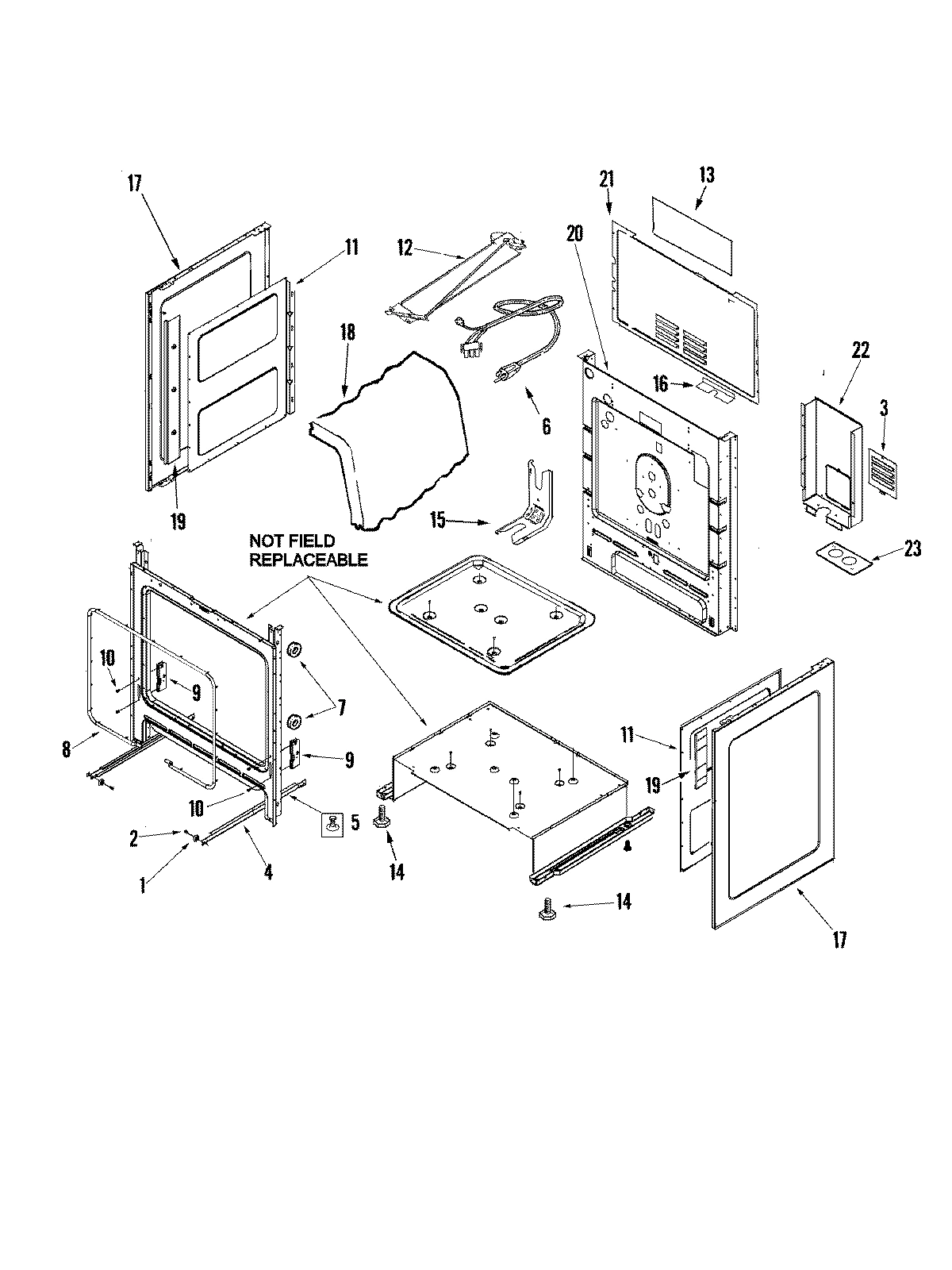

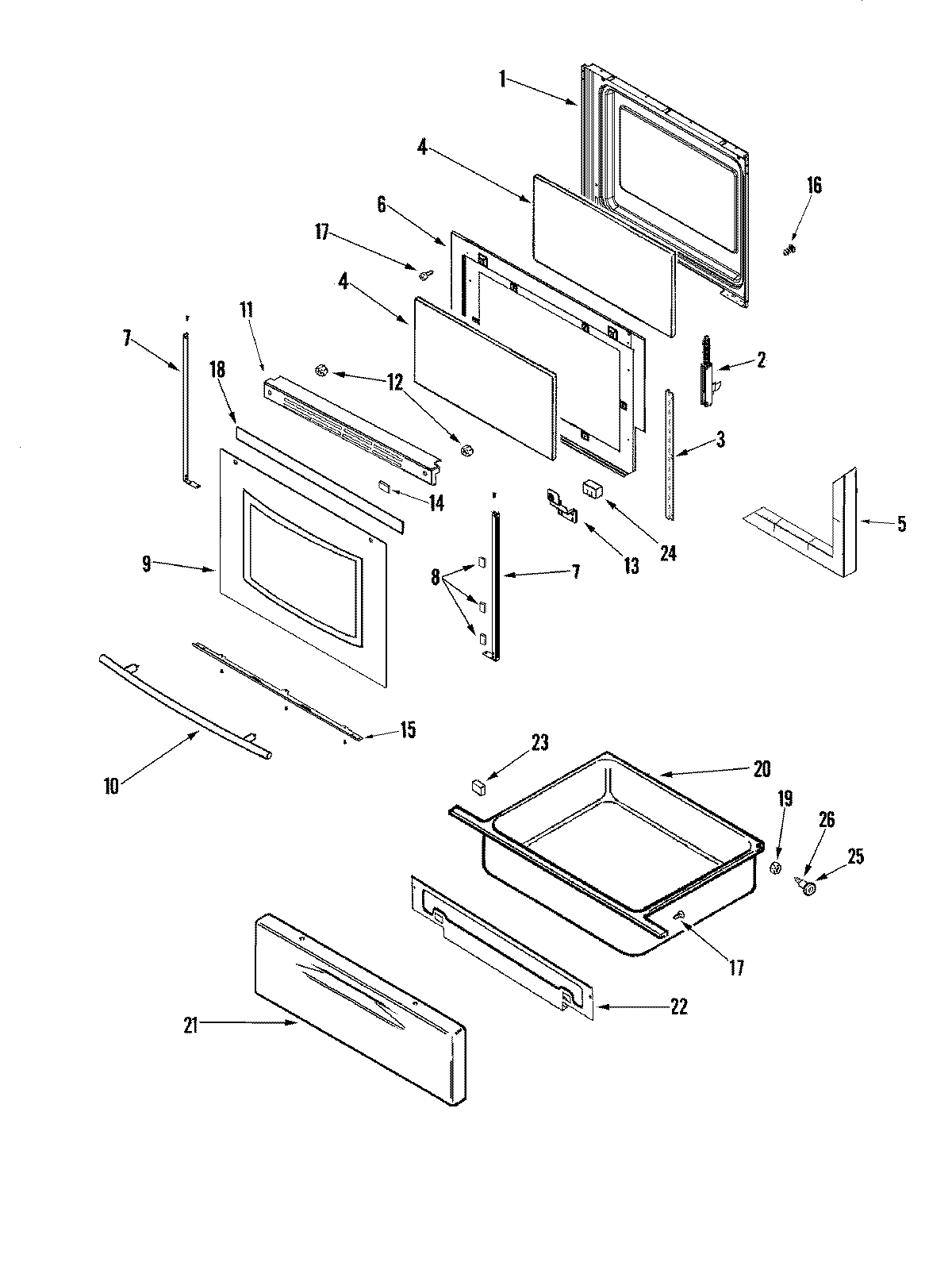

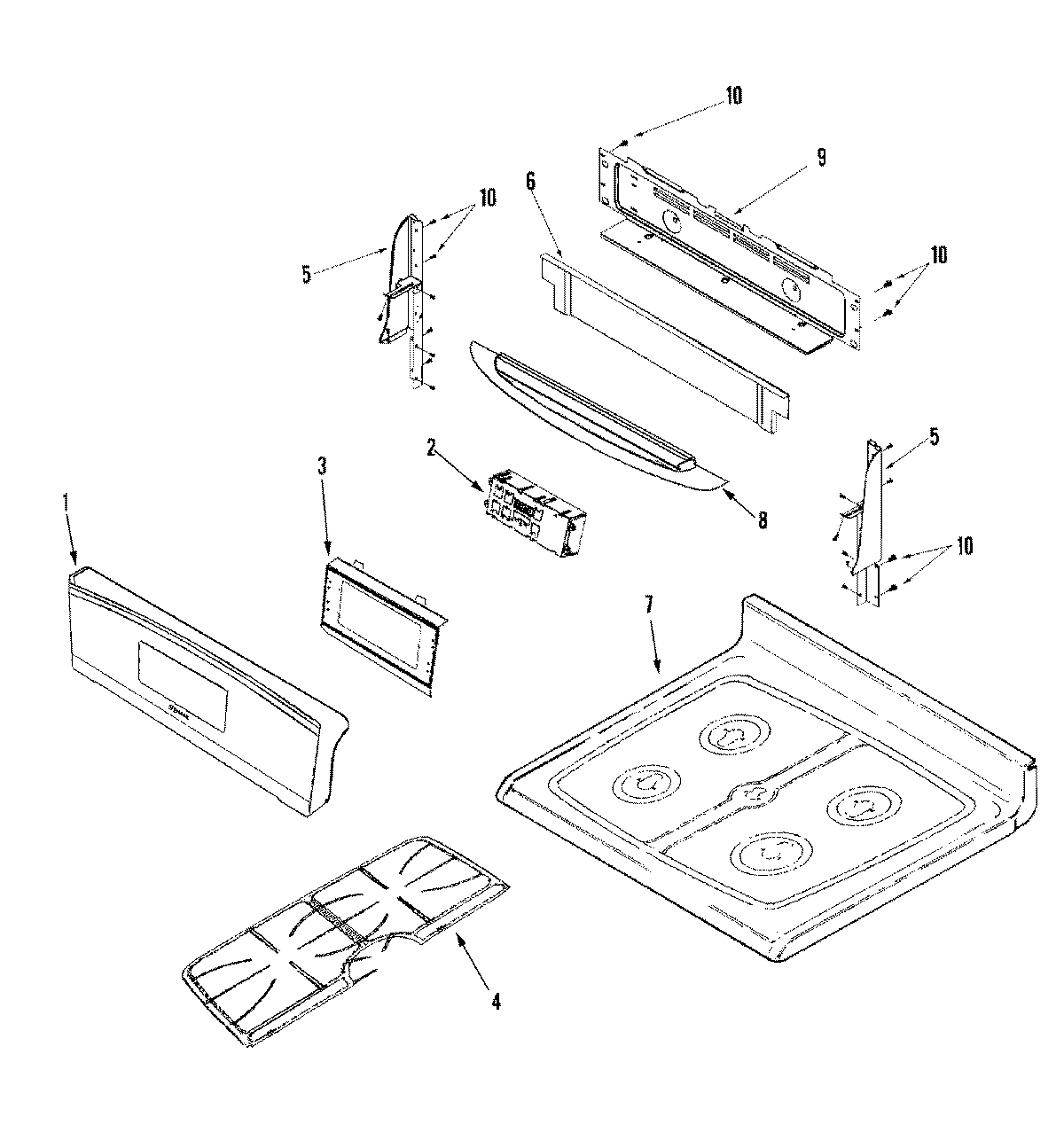

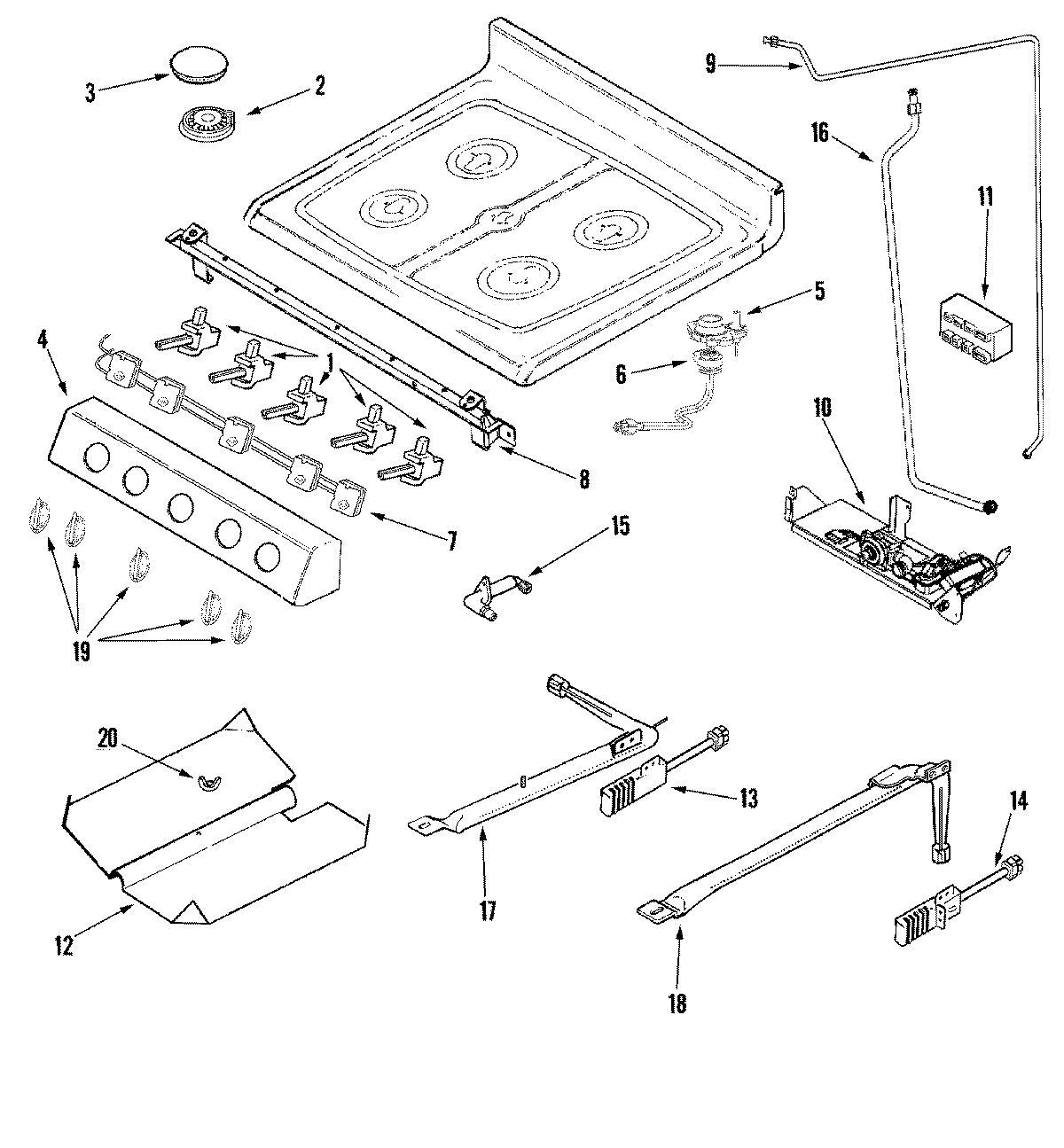

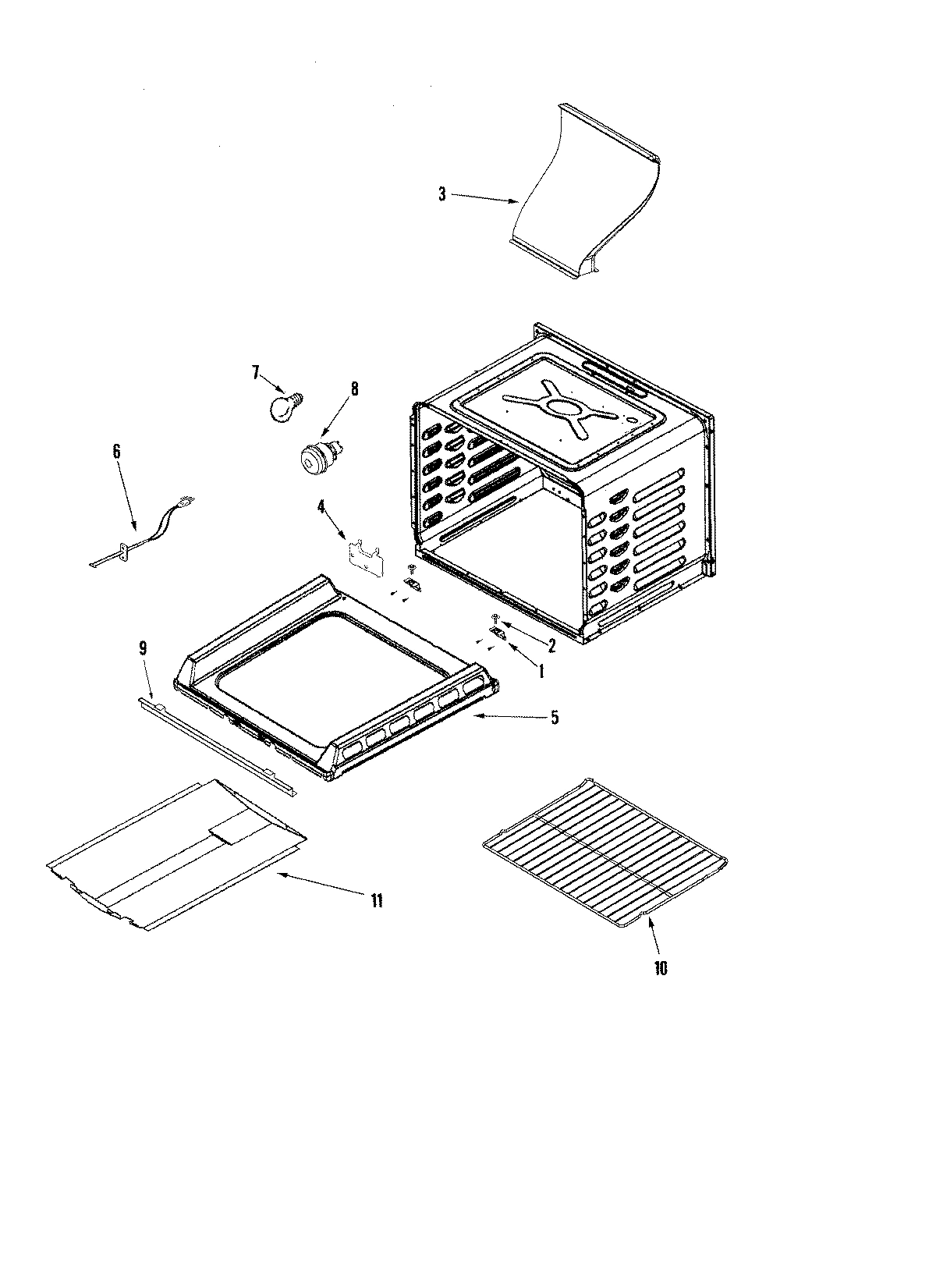

Model Whirlpool JGR8775RDB GAS RANGE – Common Parts &amp; Diagrams

1

WP74004078 Whirlpool Door Roller In Stock WPL WP74004078 $5.19

1

WP74009857 Whirlpool Screw Backorder WPL WP74009857 $2.47

1

WP7502P499-60 Whirlpool Burner Valve Backorder WPL WP7502P499-60 $170.88

1

LINING, DOOR WPL 74008926 Contact Us For Availability

1

MANUAL, USE & CARE WPL 8113P62160 Contact Us For Availability

1

MANUAL, USE & CARE WPL 8113P71460 Contact Us For Availability

1

SUPPORT, OVEN BOTTOM (REAR) WPL 74008694 Contact Us For Availability

1

VALVE, 12K (COPRECI) WPL 74010752 Contact Us For Availability

2

74010546 Whirlpool Range Oven Door Hinge In Stock WPL 74010546 $54.00

2

W11772394 Whirlpool Screw In Stock WPL W11772394 $8.02

2

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $2.60

2

WPW10406243 Whirlpool Burner Head Auxiliary 6 In Stock WPL WPW10406243 $14.73

2

WPW10406797 Whirlpool Range Burner Base (12K In Stock WPL WPW10406797 $38.08

2

WPW10406878 Whirlpool Burner Base (16K) In Stock WPL WPW10406878 $43.21

2

SHAFT, STORAGE DRAWER ROLLER WPL 74005231 Contact Us For Availability

2

HARNESS, MAIN WPL 5171P80260 Contact Us For Availability

3

WP3191898 Whirlpool Surface Burner Cap Black In Stock WPL WP3191898 $48.72

3

WP74007925 Whirlpool Burner Cap Backorder WPL WP74007925 $59.24

3

PANEL, ACCESS WPL 74008340 Contact Us For Availability

3

HARNESS, IGN/LOCK WPL 5171P83960 Contact Us For Availability

3

VENT, OVEN WPL 74008817 Contact Us For Availability

4

74003645 Whirlpool Range Oven Door Inner Glas In Stock WPL 74003645 $99.83

4

74008761 Whirlpool Spacer Snap-In Backorder WPL 74008761 $5.93

4

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.42

4

RUNNER, SERVICE DRAWER WPL 74008687 Contact Us For Availability

4

KIT, LP WPL 5789A60460 Contact Us For Availability

4

COVER, IGNITER WPL 4005F42145 Contact Us For Availability

4

PANEL, MANIFOLD (BLK) WPL 74009138 Contact Us For Availability

5

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $32.66

5

WP74009958 Whirlpool Spark Electrode Assembly In Stock WPL WP74009958 $9.91

5

WPW10211368 Whirlpool Range Bottom In Stock WPL WPW10211368 $194.02

5

INSULATION, OVEN DOOR WPL 74003647 Contact Us For Availability

5

STOP, DRAWER WPL 74008688 Contact Us For Availability

6

12001655 Whirlpool Oven Sensor In Stock WPL 12001655 $20.63

6

W10154209 Whirlpool Orifice Holder Backorder WPL W10154209 $68.45

6

SHIELD, VENT WPL 74009444 Contact Us For Availability

6

BAFFLE/INSULATION RETAINER WPL 3601F38051 Contact Us For Availability

6

CORD, POWER WPL 74008876 Contact Us For Availability

6

ORIFICE HOLDER/TUBE ASY (CTR) WPL 7527P09760 Contact Us For Availability

6

ORIFICE HOLDER/TUBE ASY (LR) WPL 7527P10060 Contact Us For Availability

6

ORIFICE HOLDER/TUBE ASY (LF) WPL 7527P10160 Contact Us For Availability

7

74008690 Whirlpool Range Spacer Backorder WPL 74008690 $10.64

7

WP74010753 Whirlpool Harness Assembly Backorder WPL WP74010753 $98.94

7

SCREW W/SHOULDER (No.8) WPL 74008798 Contact Us For Availability

7

TOP, MAIN 5 BURNER (BLK) WPL 74009086 Contact Us For Availability

7

TRIM, SIDE (BLK) WPL 74010560 Contact Us For Availability

7

BULB-OVEN WPL 7407P10360 Contact Us For Availability

8

W11562931 Whirlpool Door Gasket In Stock WPL W11562931 $30.52

8

WP74011278 Whirlpool Light Backorder WPL WP74011278 $72.19

8

SCREW, SHOULDER WPL 74003640 Contact Us For Availability

8

SHIELD, HEAT VISOR (BLK) WPL 74010577 Contact Us For Availability

8

PIPE, MANIFOLD (5 VALVE) WPL 74008815 Contact Us For Availability

9

WP74010551 Whirlpool Receiver In Stock WPL WP74010551 $7.64

9

SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability

9

INSULATION, FOIL (BKGD) WPL 74008836 Contact Us For Availability

9

COVER, REAR WIRE WPL 74010983 Contact Us For Availability

9

GLASS, DOOR (BLK) WPL 74008686 Contact Us For Availability

9

SUPPORT, OVEN BOTTOM (FRONT) WPL 74008695 Contact Us For Availability

9

TUBING, SUPPLY WPL 74008829 Contact Us For Availability

WP74008763 Whirlpool Range Rack Backorder WPL WP74008763 $114.42

HANDLE, DOOR WPL 74008920 Contact Us For Availability

SCREW WPL 7101P11260 Contact Us For Availability

VALVE/REGULATOR ASSEMBLY WPL 74010218 Contact Us For Availability

74009098 Whirlpool Spark Module In Stock WPL 74009098 $150.87

SCREW (1/2``) WPL 7101P04060 Contact Us For Availability

TRIM, TOP (BLK) WPL 74008890 Contact Us For Availability

RETAINER, SIDE WPL 3804F31651 Contact Us For Availability

INSULATION, SIDE PANEL WPL 7002P49460 Contact Us For Availability

RETAINER, SIDE WPL 74008701 Contact Us For Availability

BAFFLE, BAKE BURNER WPL 74008846 Contact Us For Availability

3601P336-45 Whirlpool Burner Baffle Backorder WPL 3601P336-45 $126.23

74003975 Whirlpool Screw P1 (8ABX3/8-BLK) Backorder WPL 74003975 $9.96

WP3400029 Whirlpool Dishwasher Nut In Stock WPL WP3400029 $3.84

LATCH, DOOR LOCK WPL 74011896 Contact Us For Availability

Latch Assembly WPL 8002P10460 Contact Us For Availability

74007498 Whirlpool Range Flat Igniter In Stock WPL 74007498 $36.44

BRACKET, DOOR HANDLE (LT) WPL 74009412 Contact Us For Availability

BRACKET, DOOR HANDLE (RT) WPL 74009413 Contact Us For Availability

SHIELD, VENT EXTENSION WPL 74008858 Contact Us For Availability

74008835 Whirlpool Clip Retainer Backorder WPL 74008835 $5.04

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $10.89

WP7432P136-60 Whirlpool Range Igniter In Stock WPL WP7432P136-60 $50.56

TAPE, SINGLE SIDED (WHT) WPL 74004224 Contact Us For Availability

SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability

74008818 Whirlpool Broil Burner Fitting Backorder WPL 74008818 $33.29

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.96

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $3.33

TRIM, BOTTOM (BLK) WPL 74008889 Contact Us For Availability

SCREW WPL 7101P35260 Contact Us For Availability

16

74008830 Whirlpool Range Broil Tubing Backorder WPL 74008830 $36.35

16

BOTTOM, REAR COVER WPL 74008867 Contact Us For Availability

17

SCREW W/WASHER WPL 7101P12460 Contact Us For Availability

17

PANEL, SIDE (BLK) WPL 74008710 Contact Us For Availability

17

BURNER, BROIL WPL 74008820 Contact Us For Availability

TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability

INSULATION, BACK WPL 74008698 Contact Us For Availability

INSULATION, WRAPPER WPL 74008700 Contact Us For Availability

BURNER, BAKE WPL 31945701 Contact Us For Availability

19

WP74009147 Whirlpool Control Knob In Stock WPL WP74009147 $21.25

19

NUT WPL 7103P08260 Contact Us For Availability

19

INSULATION, SIDE BAFFLE WPL 74009956 Contact Us For Availability

20

WP3405F037-80 Whirlpool Utility Drawer Backorder WPL WP3405F037-80 $193.91

20

BACK, MAIN WPL 74008828 Contact Us For Availability

20

NUT, WING WPL 7103P03060 Contact Us For Availability

21

PANEL, DRAWER (BLK) WPL 74009035 Contact Us For Availability

21

COVER, MAIN WIRE (GAS) WPL 74009652 Contact Us For Availability

22

SHIELD, DRAWER HEAT WPL 74009519 Contact Us For Availability

22

COVER, WIRE (LWR) WPL 74008760 Contact Us For Availability

23

WP74005546 Whirlpool RU Spacer Backorder WPL WP74005546 $4.37

23

PLATE, CONDUIT REINFORCEMENT WPL 3605F14651 Contact Us For Availability

24

INSULATION, CORNER (DOOR) WPL 7002P48460 Contact Us For Availability

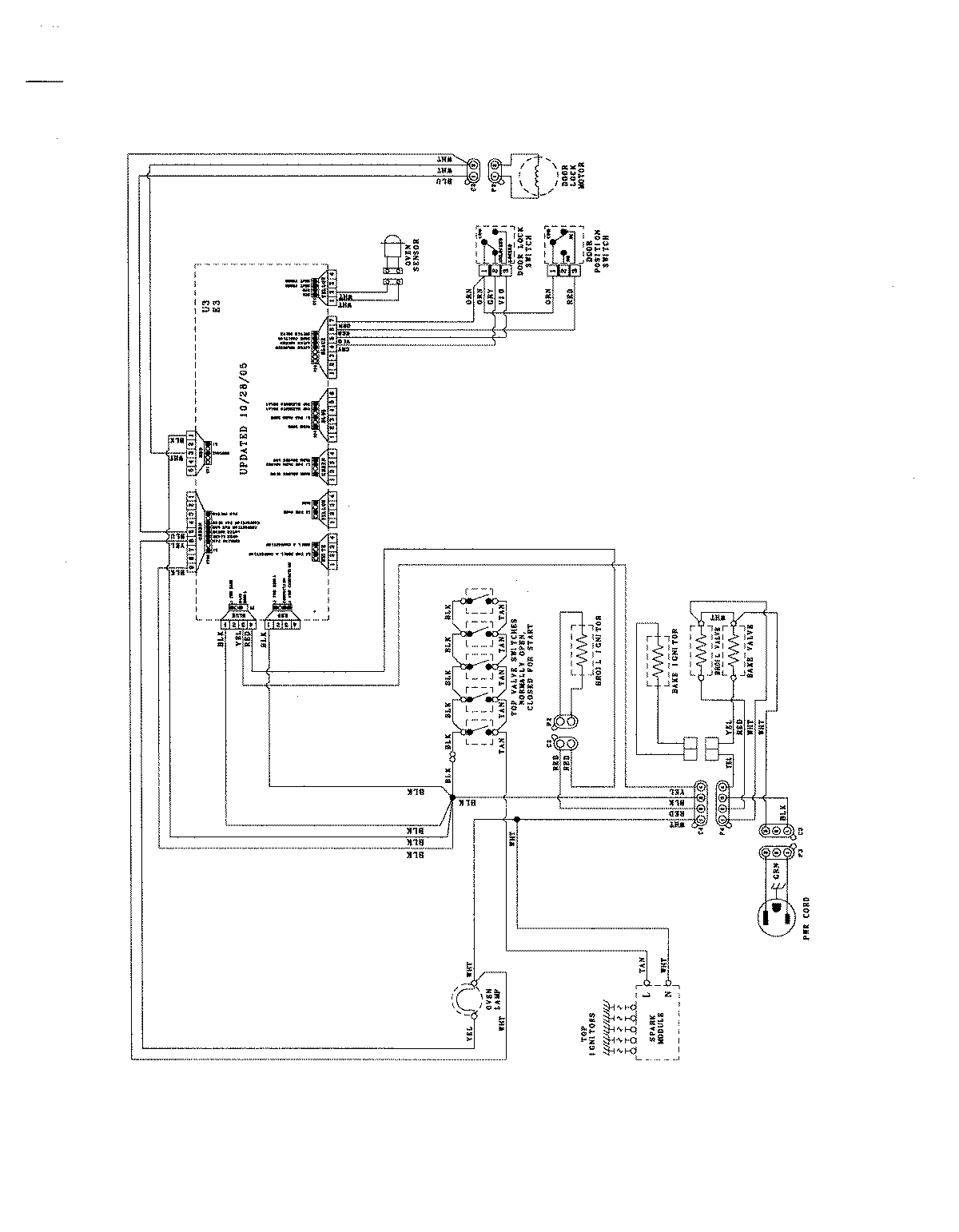

NI

WIRING INFORMATION WPL 8119P37260 Contact Us For Availability
