Model GE JGP333DET3WW – Common Parts & Diagrams

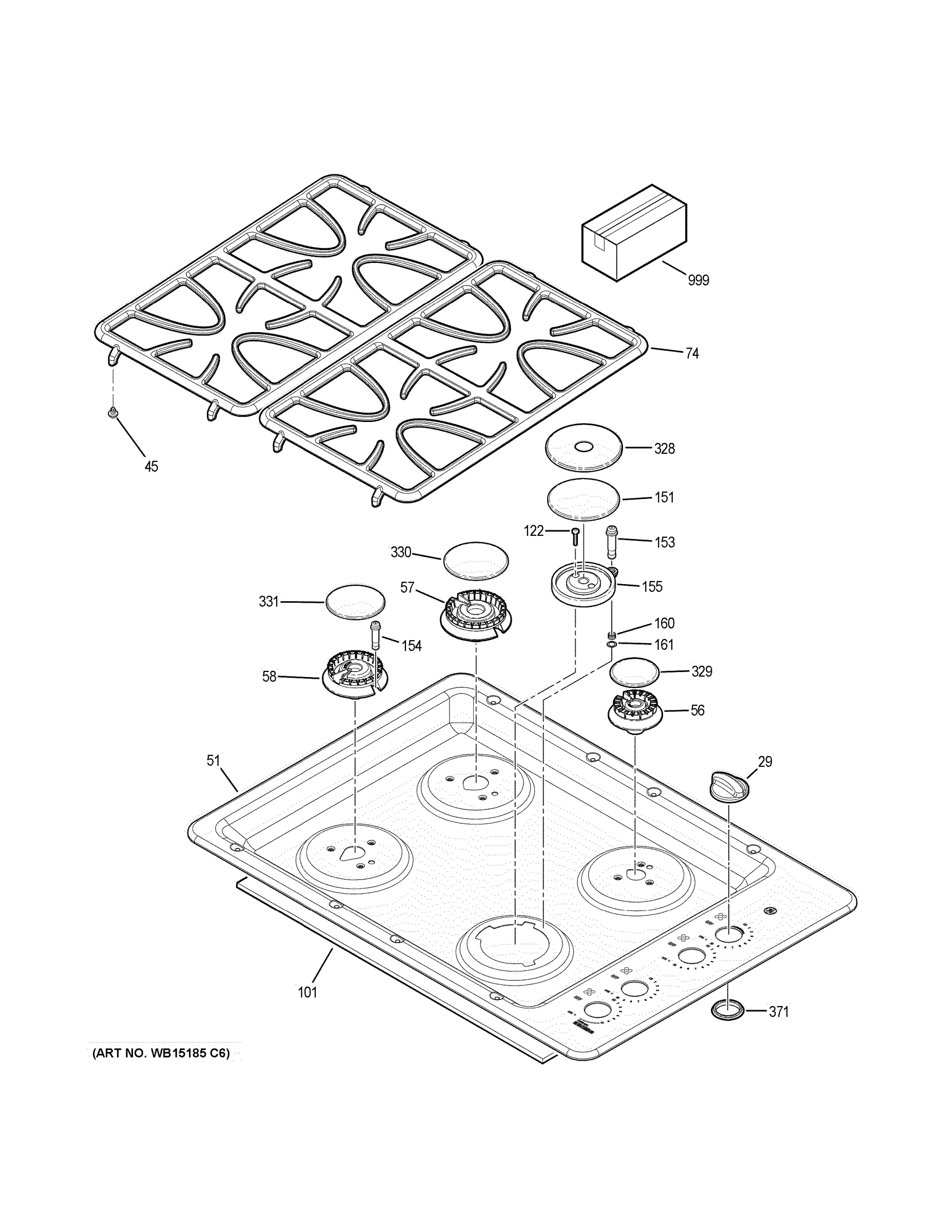

CONTROL PANEL & COOKTOP

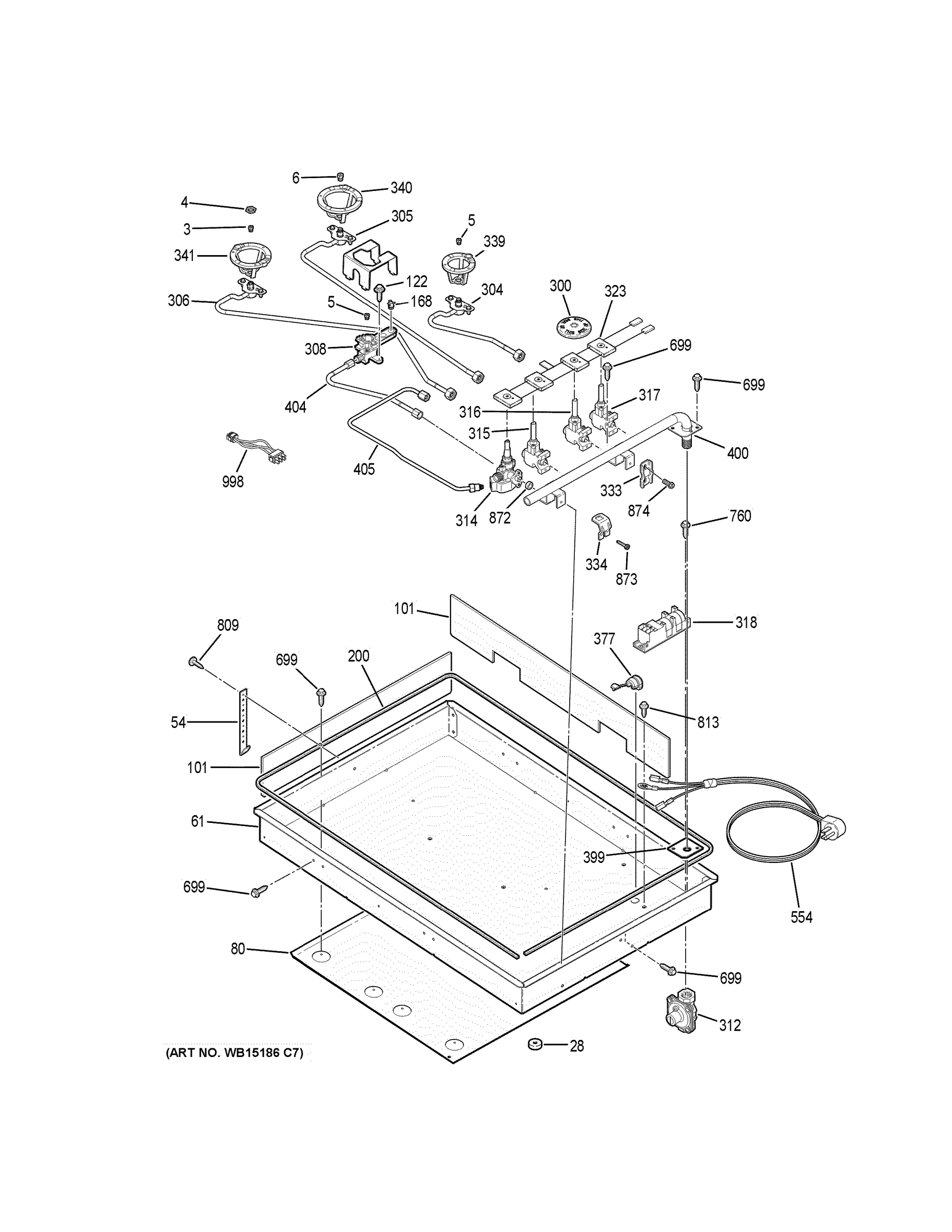

GAS & BURNER PARTS
Common parts from model GE JGP333DET3WW
3
ORIFICE SPUD LP 86L GEN WB28K10215 Contact Us For Availability
3
ORIFICE SPUD LP MAIN GEN WB28T10118 Contact Us For Availability
3
ORIFICE SPUD LP 84MM GEN WB28K10107 Contact Us For Availability
3
HIGH ALT ORIFICE LP MAIN GEN WB28T10147 Contact Us For Availability
4
ECONOMIC NUT GEN WB01K10037 Contact Us For Availability
5
ORIFICE SPUD LP 88L GEN WB28K10214 Contact Us For Availability
5
ORIFICE SPUD NG SIMMER GEN WB28T10116 Contact Us For Availability
6
ORIFICE-LP 63MM GEN WB28K10031 Contact Us For Availability
29
KNOB GEN WB03T10324 Contact Us For Availability
45
GRATE FOOT GEN WB02T10461 Contact Us For Availability
56
SMALL BURNER V 5K GEN WB16K10070 Contact Us For Availability
57
BURNER 12K GEN WB16T10046 Contact Us For Availability
58
BURNER MEDIUM (9500) GEN WB16K10055 Contact Us For Availability
74
GRATE ASM GEN WB31T10154 Contact Us For Availability
122
SCR 8-32 CA PNT15 1/2 S GEN WB01T10116 Contact Us For Availability
151
HEAD BURNER MAIN GEN WB16T10038 Contact Us For Availability
153
ELECTRODE TOP GEN WB13T10065 Contact Us For Availability
154
ELECTRODE TOP GEN WB13K10014 Contact Us For Availability
160
SPRING IGNITER GEN WB09T10011 Contact Us For Availability
161
WASHER IGNITER GEN WB02T10323 Contact Us For Availability
168
CLIP ELECTRODE GEN WB01K10114 Contact Us For Availability
305
TUBE BURNER ASM LT FRT GEN WB28T10227 Contact Us For Availability
308
INJET BURNER 18K GEN WB28T10114 Contact Us For Availability
312
REGULATOR CONVERT PRESS GEN WB19T10078 Contact Us For Availability
314
VALVE GAS RF GEN WB19T10094 Contact Us For Availability
329
ASM BURNER CAP (5000) GEN WB29K10022 Contact Us For Availability
330
ASM BURNER CAP (12000) GEN WB29K10024 Contact Us For Availability
331
ASM BURNER CAP (9500) GEN WB29K10023 Contact Us For Availability
339
CKT BRACKET SMALL GEN WB02K10360 Contact Us For Availability
340
CKT BRACKET MDM & LGE GEN WB02K10362 Contact Us For Availability
341
CKT BRACKET MDM & LGE GEN WB02K10361 Contact Us For Availability
371
SEAL CNTL (WHT) GEN WB04T10040 Contact Us For Availability
404
TUBE BURNER (MAIN) GEN WB28T10112 Contact Us For Availability
405
TUBE BURNER (SIMMER) GEN WB28T10113 Contact Us For Availability
999
HI ALT & BUTANE KIT GEN WB28T10283 Contact Us For Availability
× ![]()
