Model Whirlpool JGD8130ADB GAS COOK-TOP – Common Parts &amp; Diagrams

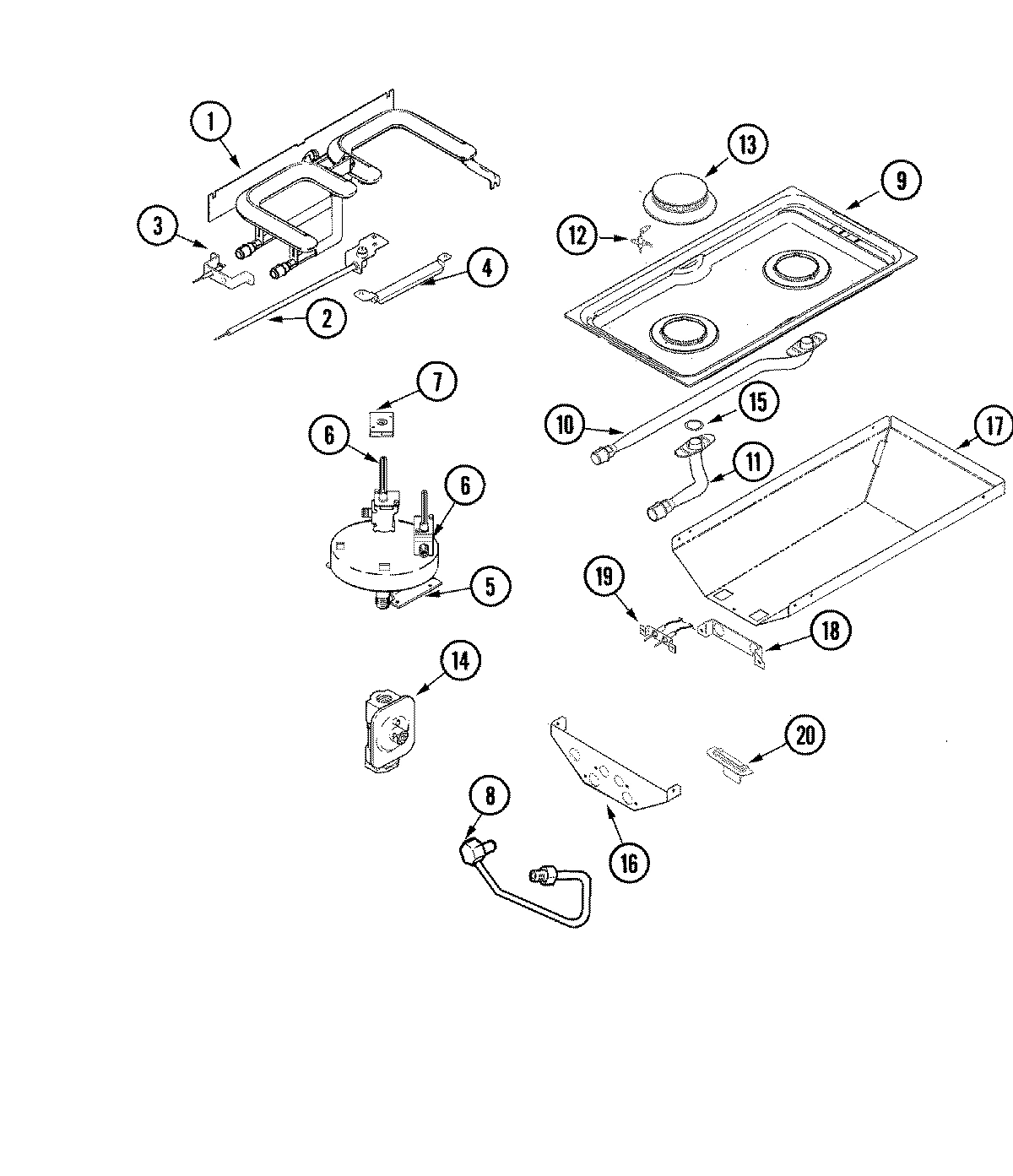

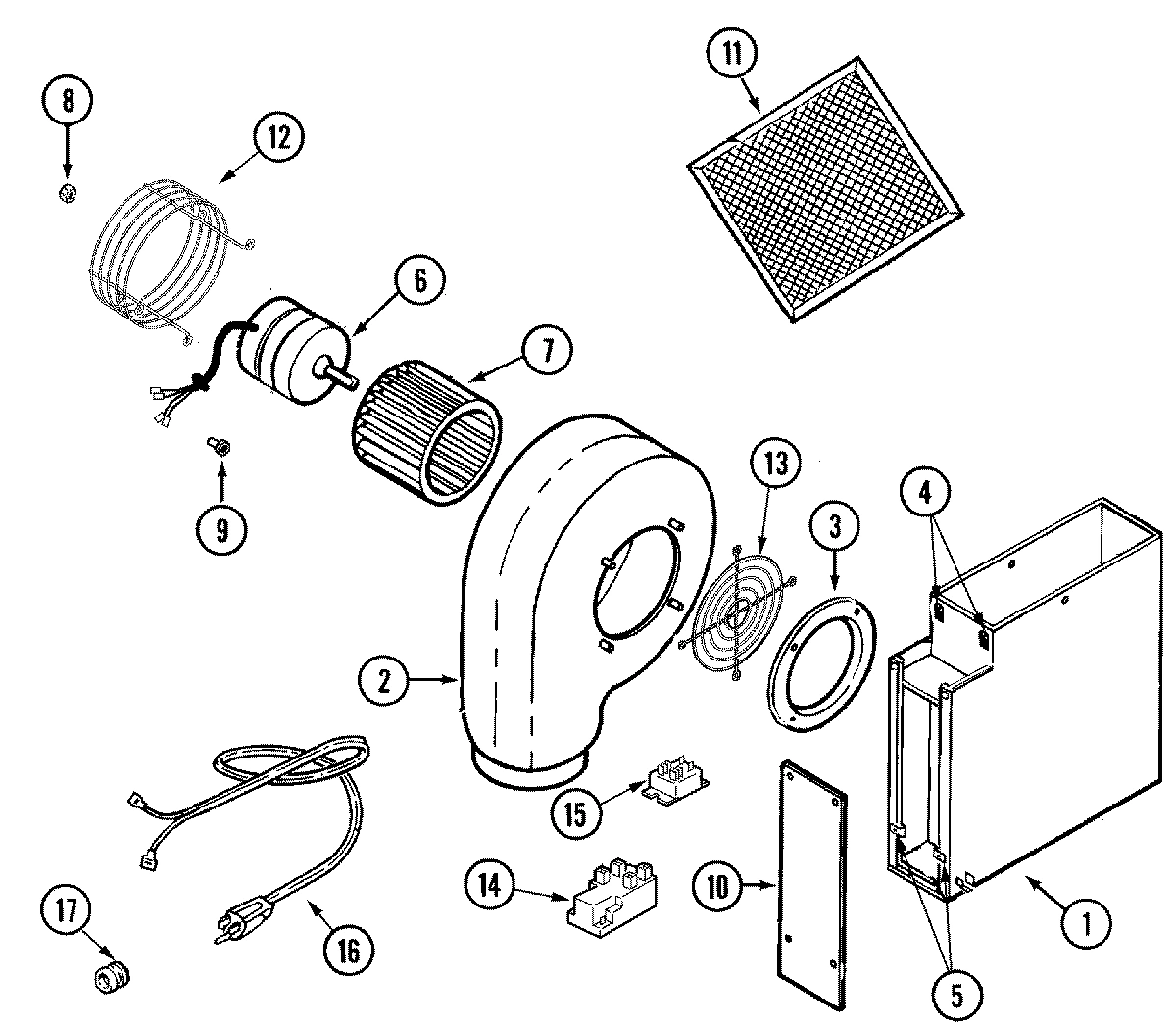

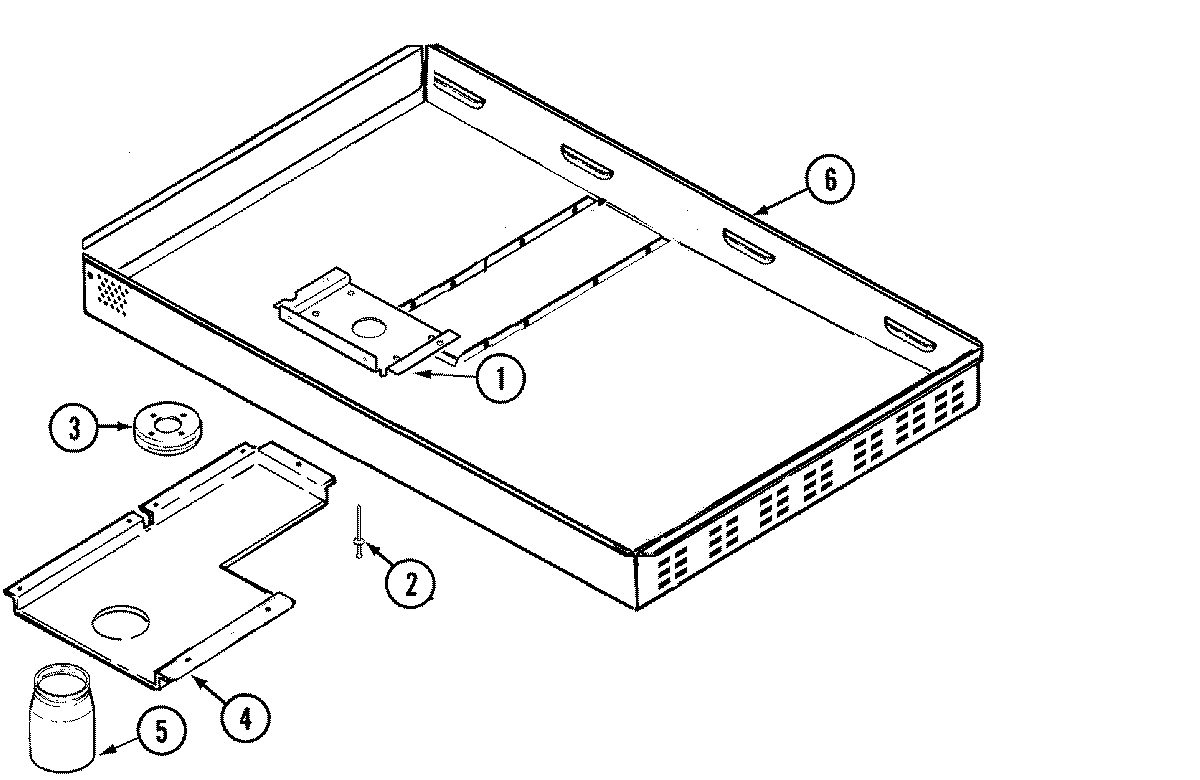

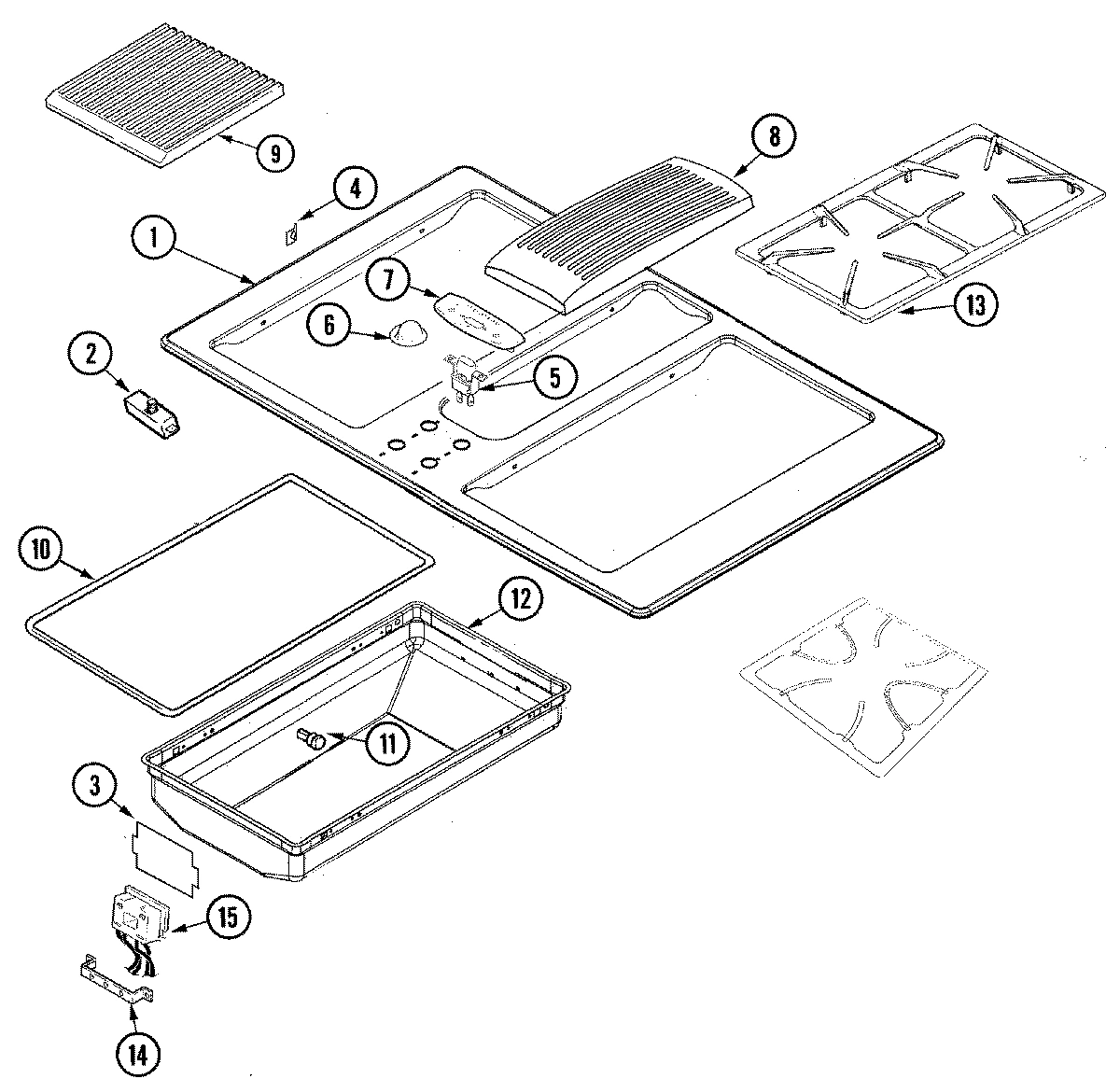

1

COVER, GAS WPL 74006147 Contact Us For Availability

1

COVER, GAS WPL 74006611 Contact Us For Availability

1

TOP, MAIN (BLK) WPL 74005870 Contact Us For Availability

2

WP210720 Whirlpool Rivet Backorder WPL WP210720 $9.75

2

WP74006072 Whirlpool Spark Electrode Backorder WPL WP74006072 $72.48

2

WP7450P012-60 Whirlpool Burner Top Backorder WPL WP7450P012-60 $61.55

2

WASHER WPL Y707664 Contact Us For Availability

2

INSULATOR, SWITCH WPL 74006095 Contact Us For Availability

2

HARNESS, PAN SWITCH WPL 74006100 Contact Us For Availability

2

HARNESS, PAN SWITCH WPL 74006890 Contact Us For Availability

3

M0282009 Whirlpool Air Conditioner Nut Backorder WPL M0282009 $9.75

3

WP74006073 Whirlpool Oven Igniter In Stock WPL WP74006073 $74.91

3

SCREW WPL Y707121 Contact Us For Availability

3

LID, JAR ----S WPL Y707870 Contact Us For Availability

3

INSULATOR, CERAMIC BLOCK WPL 74005866 Contact Us For Availability

4

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

4

BAFFLE, BURNER BOX WPL 74006148 Contact Us For Availability

4

SHIELD, IGNITOR BRACKET WPL 74006071 Contact Us For Availability

4

SCREW, BLACK WPL 7101P27060 Contact Us For Availability

4

CLIP, RETAINER WPL Y700503 Contact Us For Availability

5

WPY707869 Whirlpool Drain Jar Backorder WPL WPY707869 $35.95

5

MANIFOLD WPL 74006155 Contact Us For Availability

5

SWITCH, FAN (BLK) WPL 71001564 Contact Us For Availability

5

SCREW WPL 7101P29060 Contact Us For Availability

6

71003131 Whirlpool Oven Screw Backorder WPL 71003131 $4.93

6

M0282005 Whirlpool Nut Backorder WPL M0282005 $4.43

6

WP74006156 Whirlpool Top Valve In Stock WPL WP74006156 $122.39

6

WP7733P314-60 Whirlpool Knob In Stock WPL WP7733P314-60 $3.70

6

WPY04100188 Whirlpool Burner Valve In Stock WPL WPY04100188 $127.04

6

BLOWER MOTOR W/CAGE WPL 74005785 Contact Us For Availability

6

SCREW WPL Y707150 Contact Us For Availability

6

BOX, BURNER WPL 74005867 Contact Us For Availability

7

W10341820 Whirlpool Fan Switch Backorder WPL W10341820 $202.14

7

WP74006955 Whirlpool Voltage Adjust Switch Backorder WPL WP74006955 $53.80

7

WP74006956 Whirlpool Switch VA Backorder WPL WP74006956 $59.73

7

WPY707985 Whirlpool Wheel Assembly Backorder WPL WPY707985 $84.38

8

7506P261-60 Whirlpool Venturi Backorder WPL 7506P261-60 $45.64

8

7506P263-60 Whirlpool Venturi Backorder WPL 7506P263-60 $49.59

8

WPY707702 Whirlpool Locknut Backorder WPL WPY707702 $2.55

8

TUBE, BURNER (RF) WPL 74006176 Contact Us For Availability

8

TUBE, BURNER (RR) WPL 74006178 Contact Us For Availability

8

WASHER WPL Y704947 Contact Us For Availability

8

GRILL, AIR (BLK) WPL 74005794 Contact Us For Availability

9

WP2001F175-09 Whirlpool Cooktop Backorder WPL WP2001F175-09 $130.10

9

WP71001171 Whirlpool Screw Backorder WPL WP71001171 $2.55

9

GRATE, GRILL WPL 71003267 Contact Us For Availability

WP59002061 Whirlpool Microwave Screw Backorder WPL WP59002061 $2.51

WP7538P009-60 Whirlpool Venturi In Stock WPL WP7538P009-60 $95.98

PLATE, COVER WPL 71001759 Contact Us For Availability

PLATE, WIRE COVER WPL 74005868 Contact Us For Availability

COVER, PLENUM ACCESS WPL 74006609 Contact Us For Availability

SEAL, PAN WPL Y704979 Contact Us For Availability

71001764 Whirlpool Locator PIN Backorder WPL 71001764 $5.12

WP707929 Whirlpool Grease Filter In Stock WPL WP707929 $14.27

WP7538P008-60 Whirlpool Burner Venturi Backorder WPL WP7538P008-60 $83.17

Y052721 Whirlpool Nut Backorder WPL Y052721 $14.77

RETAINER, FILTER WPL Y707688 Contact Us For Availability

74004053 Whirlpool Range Cooktop Top Burner E In Stock WPL 74004053 $14.46

CAGE, MOTOR WPL 74005787 Contact Us For Availability

PLUG, HOLE WPL Y706193 Contact Us For Availability

PAN, GRILL (RT) WPL 74006089 Contact Us For Availability

PAN, GRILL (LT) WPL 74006090 Contact Us For Availability

814323 Whirlpool Range Burner Grate Foot Pads In Stock WPL 814323 $5.40

WP3403M075-10 Whirlpool Burner Head In Stock WPL WP3403M075-10 $92.25

WP7518P483-60 Whirlpool Burner Grate Backorder WPL WP7518P483-60 $158.70

GUARD, BLOWER WPL 71001534 Contact Us For Availability

WASHER (1``) WPL 74001521 Contact Us For Availability

14

8215557 Whirlpool Gas Stove Range Oven Cookto In Stock WPL 8215557 $63.17

14

W11106948 Whirlpool Pressure Regulator In Stock WPL W11106948 $118.64

14

CLIP, TERMINAL BLOCK WPL 74006093 Contact Us For Availability

15

12001452 Whirlpool Relay Change Backorder WPL 12001452 $83.28

15

RECEPTACLE W/HARNESS WPL 74006153 Contact Us For Availability

16

3188867 Whirlpool Oven Power Cord Backorder WPL 3188867 $75.09

16

COVER, CARTRIDGE WPL 74005887 Contact Us For Availability

16

COVER, CARTRIDGE WPL 74006935 Contact Us For Availability

RELIEF, STRAIN WPL Y04100254 Contact Us For Availability

HOUSING, CARTRIDGE WPL 74005888 Contact Us For Availability

COOKBOOK----NA WPL 16008409 Contact Us For Availability

MANUAL, USE & CARE WPL 74005528 Contact Us For Availability

MANUAL, USE & CARE WPL 8111P53060 Contact Us For Availability

18

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

18

BRACKET, VENTURI ALIGNMENT WPL 74005889 Contact Us For Availability

19

WP74005890 Whirlpool Terminal Block In Stock WPL WP74005890 $49.65

20

GUARD, CORNER WPL 74006934 Contact Us For Availability

21

74006048 Whirlpool Dishwasher LP Orifice Kit Backorder WPL 74006048 $32.09

21

HARNESS, SPARK SUPPLY WPL 74006179 Contact Us For Availability

21

HARNESS, SPARK SUPPLY WPL 74006953 Contact Us For Availability

23

NOT REQUIRED PART OR SEE NOTE FOR A COMPLETE WPL W10124350 Contact Us For Availability

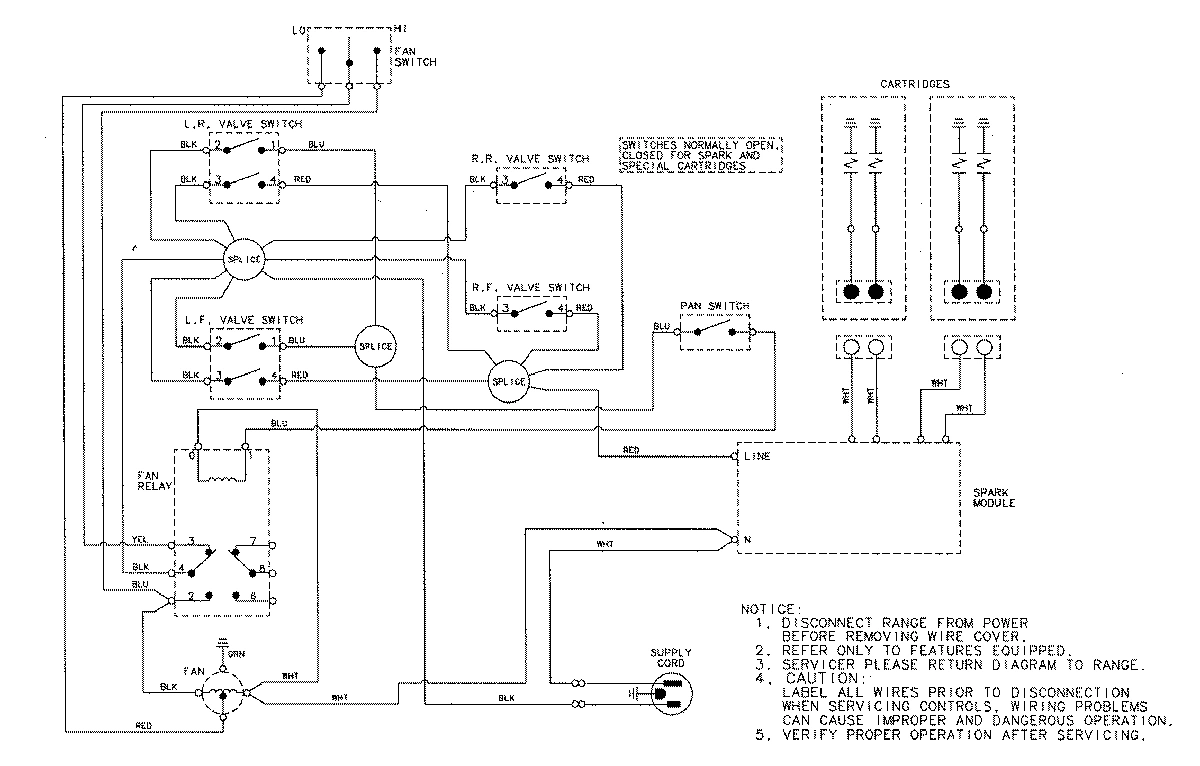

NI

WIRING INFORMATION WPL 15002837 Contact Us For Availability
