Model GE JGBS21PEA1WH – Common Parts & Diagrams

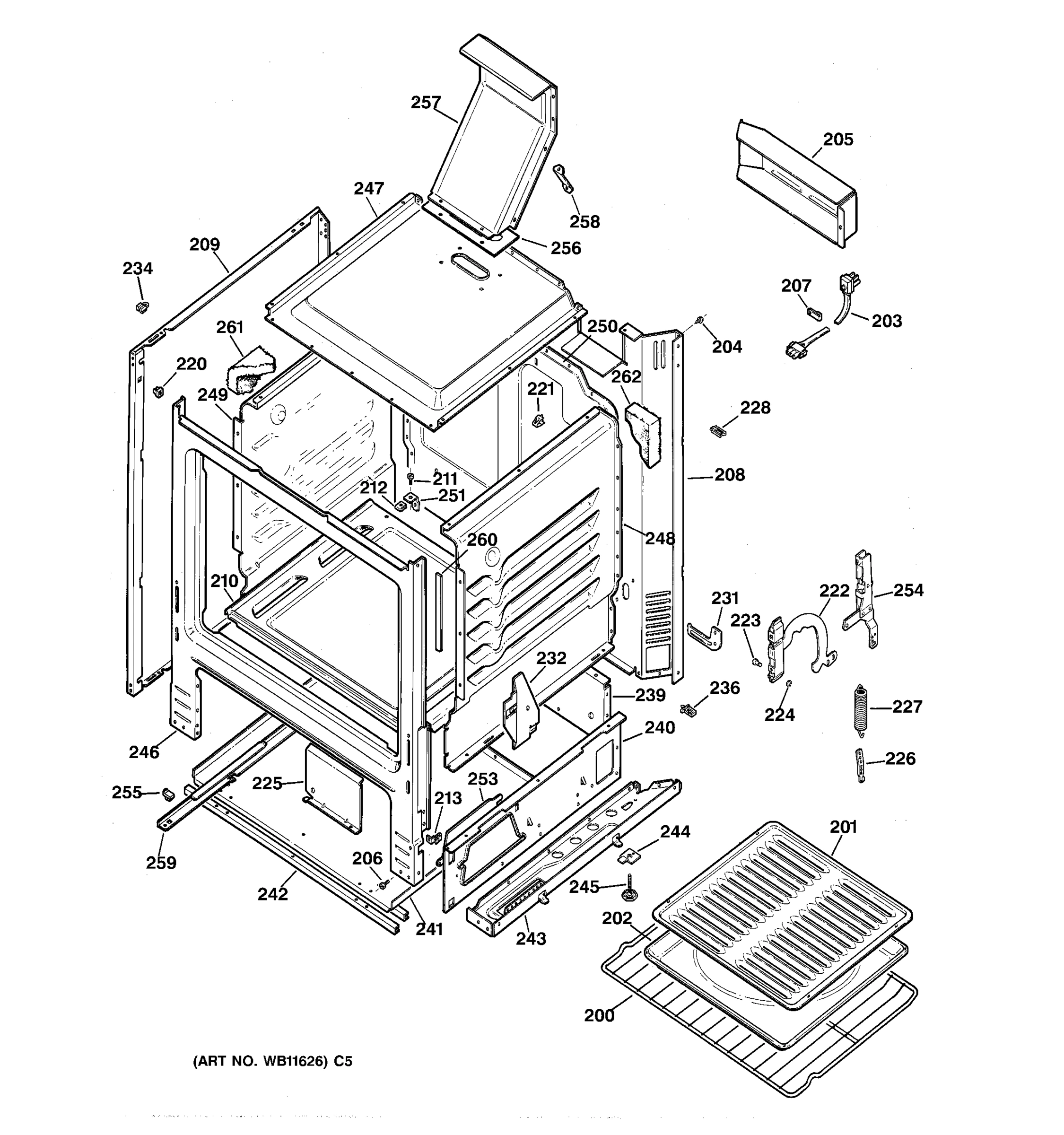

BODY PARTS

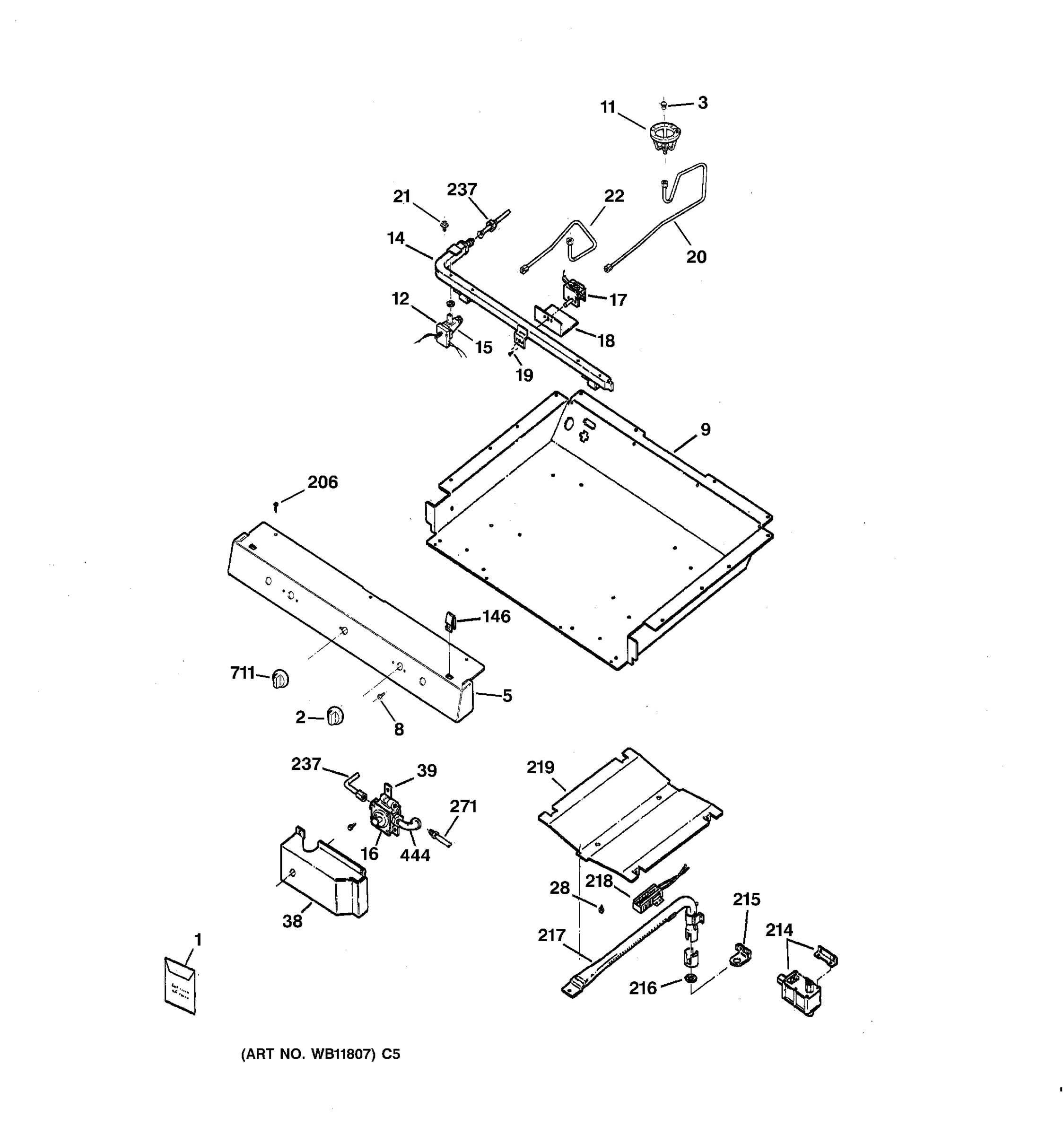

BURNER PARTS

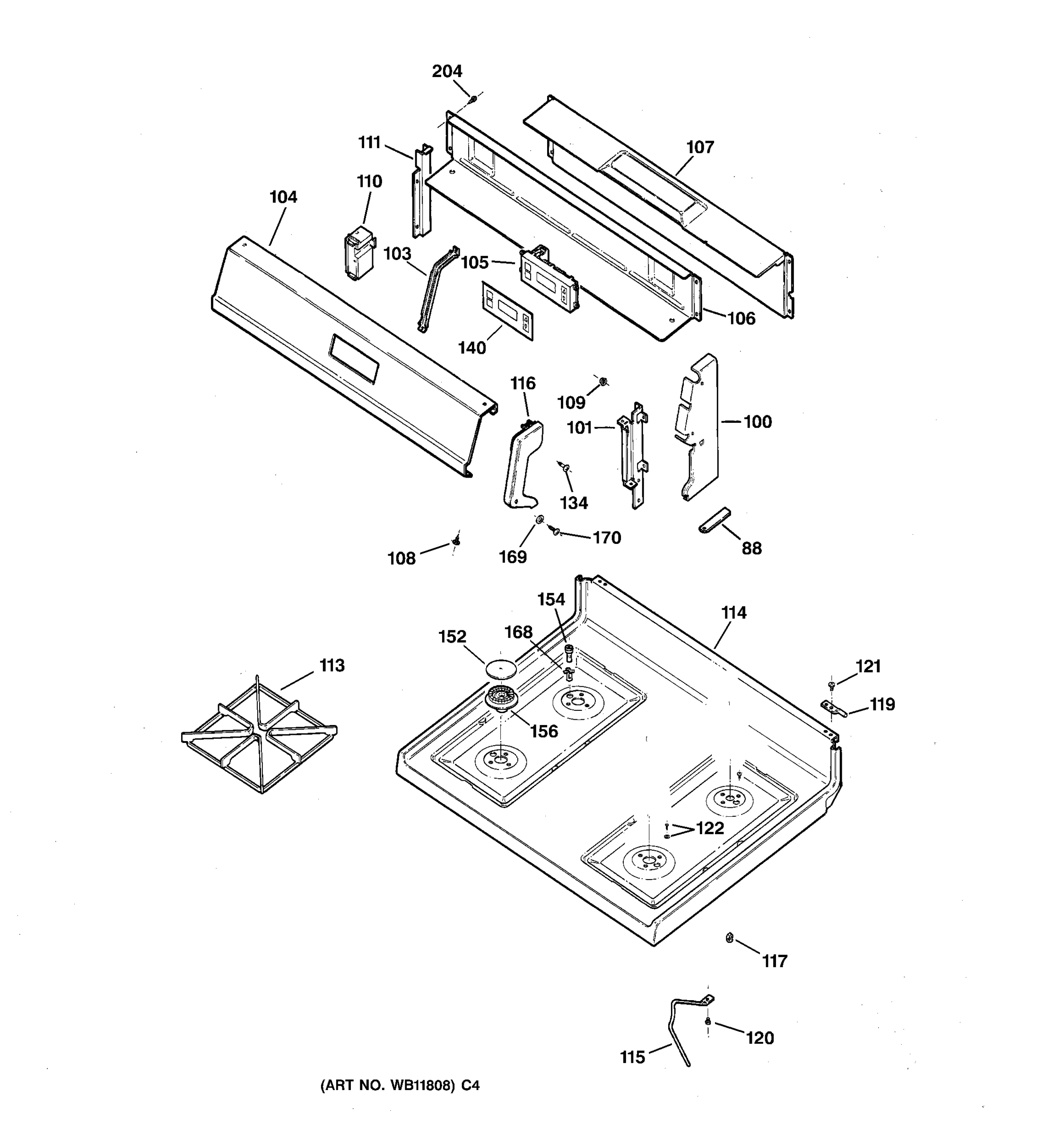

CONTROL PANEL & COOKTOP

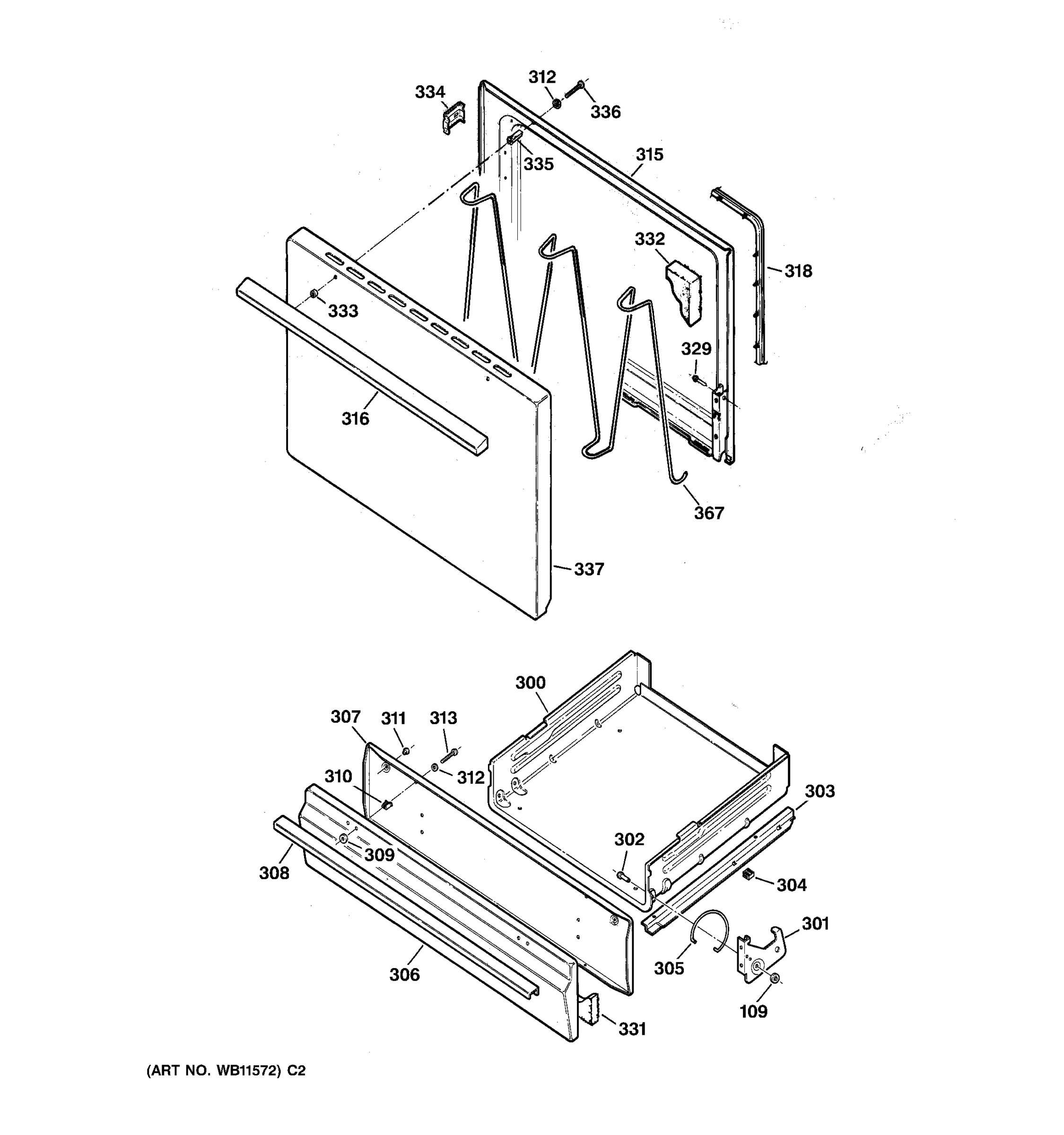

DOOR & DRAWER PARTS
Common parts from model GE JGBS21PEA1WH
1
GEN WB28K10046 GEN WB28K10046 Contact Us For Availability
1
GEN 31-20626 GEN 31-20626 Contact Us For Availability
1
GEN 49-5584 GEN 49-5584 Contact Us For Availability
1
GEN WB02K0020 GEN WB02K0020 Contact Us For Availability
2
GEN WB03K10038 GEN WB03K10038 Contact Us For Availability
3
ORIFICE-NG GEN WB28K10022 Contact Us For Availability
5
GEN WB31K10029 GEN WB31K10029 Contact Us For Availability
9
BOX BURNER GEN WB63K0024 Contact Us For Availability
11
BRACKET-BURNER GEN WB02K10006 Contact Us For Availability
12
SWITCH BURNER VALVE GEN WB24K10002 Contact Us For Availability
14
GEN WB28K10020 GEN WB28K10020 Contact Us For Availability
16
GEN WB19K10001 GEN WB19K10001 Contact Us For Availability
18
GEN WB02K0006 GEN WB02K0006 Contact Us For Availability
20
GEN WB28K10027 GEN WB28K10027 Contact Us For Availability
20
GEN WB28K10026 GEN WB28K10026 Contact Us For Availability
38
GEN WB34K0029 GEN WB34K0029 Contact Us For Availability
39
GEN WB02K0088 GEN WB02K0088 Contact Us For Availability
88
GEN WB02K0085 GEN WB02K0085 Contact Us For Availability
100
GEN WB07K10001 GEN WB07K10001 Contact Us For Availability
100
GEN WB07K10002 GEN WB07K10002 Contact Us For Availability
101
GEN WB37K0017 GEN WB37K0017 Contact Us For Availability
101
GEN WB37K0018 GEN WB37K0018 Contact Us For Availability
103
GEN WB02K10005 GEN WB02K10005 Contact Us For Availability
104
GEN WB36K10059 GEN WB36K10059 Contact Us For Availability
109
GEN WB01X5743 GEN WB01X5743 Contact Us For Availability
110
GEN WB13K0025 GEN WB13K0025 Contact Us For Availability
111
GEN WB34K0005 GEN WB34K0005 Contact Us For Availability
114
GEN WB62K10005 GEN WB62K10005 Contact Us For Availability
115
GEN WB02K0091 GEN WB02K0091 Contact Us For Availability
116
GEN WB07K10004 GEN WB07K10004 Contact Us For Availability
117
GEN WB02K0017 GEN WB02K0017 Contact Us For Availability
122
GEN WB01K10008 GEN WB01K10008 Contact Us For Availability
134
GEN WB01K10003 GEN WB01K10003 Contact Us For Availability
140
GEN WB27K10004 GEN WB27K10004 Contact Us For Availability
146
GEN WB02K0052 GEN WB02K0052 Contact Us For Availability
154
GEN WB13K10003 GEN WB13K10003 Contact Us For Availability
156
BURNER-SURFACE GEN WB16K10005 Contact Us For Availability
169
GEN WB01K0057 GEN WB01K0057 Contact Us For Availability
170
GEN WB01X5716 GEN WB01X5716 Contact Us For Availability
216
GEN WB01K0006 GEN WB01K0006 Contact Us For Availability
219
GEN WB49K0044 GEN WB49K0044 Contact Us For Availability
227
GEN WB09K0001 GEN WB09K0001 Contact Us For Availability
228
GEN WB02X7066 GEN WB02X7066 Contact Us For Availability
231
GEN WB02K0012 GEN WB02K0012 Contact Us For Availability
232
GEN WB34K0003 GEN WB34K0003 Contact Us For Availability
232
GEN WB34K0004 GEN WB34K0004 Contact Us For Availability
234
GEN WB02K0066 GEN WB02K0066 Contact Us For Availability
236
GEN WB02K0022 GEN WB02K0022 Contact Us For Availability
237
GEN WB28K10021 GEN WB28K10021 Contact Us For Availability
239
GEN WB63K0025 GEN WB63K0025 Contact Us For Availability
240
GEN WB63K0002 GEN WB63K0002 Contact Us For Availability
241
RANGE BOTTOM GEN WB63K0004 Contact Us For Availability
242
GEN WB63K0005 GEN WB63K0005 Contact Us For Availability
243
GEN WB63K0006 GEN WB63K0006 Contact Us For Availability
243
GEN WB63K0007 GEN WB63K0007 Contact Us For Availability
244
GEN WB02K0001 GEN WB02K0001 Contact Us For Availability
245
GEN WB02X7701 GEN WB02X7701 Contact Us For Availability
246
GEN WB63K0031 GEN WB63K0031 Contact Us For Availability
248
GEN WB53K0002 GEN WB53K0002 Contact Us For Availability
249
GEN WB53K0003 GEN WB53K0003 Contact Us For Availability
250
GEN WB53K0010 GEN WB53K0010 Contact Us For Availability
254
GEN WB01K0053 GEN WB01K0053 Contact Us For Availability
254
GEN WB10K0013 GEN WB10K0013 Contact Us For Availability
254
GEN WB10K0014 GEN WB10K0014 Contact Us For Availability
256
GEN WB32K0001 GEN WB32K0001 Contact Us For Availability
259
GEN WB39K0001 GEN WB39K0001 Contact Us For Availability
259
GEN WB39K0002 GEN WB39K0002 Contact Us For Availability
261
GEN WB35K0001 GEN WB35K0001 Contact Us For Availability
271
GEN WB28K0149 GEN WB28K0149 Contact Us For Availability
302
GEN WB01K0007 GEN WB01K0007 Contact Us For Availability
303
GEN WB39K0007 GEN WB39K0007 Contact Us For Availability
303
GEN WB39K0008 GEN WB39K0008 Contact Us For Availability
304
GEN WB39K0009 GEN WB39K0009 Contact Us For Availability
305
GEN WB09K0002 GEN WB09K0002 Contact Us For Availability
307
GEN WB39K0005 GEN WB39K0005 Contact Us For Availability
308
GEN WB15K0003 GEN WB15K0003 Contact Us For Availability
309
WASHER GEN WB01X0560 Contact Us For Availability
315
GEN WB55K0002 GEN WB55K0002 Contact Us For Availability
331
GEN WB35K0003 GEN WB35K0003 Contact Us For Availability
332
GEN WB35K0004 GEN WB35K0004 Contact Us For Availability
334
GEN WB02K0013 GEN WB02K0013 Contact Us For Availability
335
GEN WB02K0002 GEN WB02K0002 Contact Us For Availability
336
SCREW HANDLE GEN WZ04X0423 Contact Us For Availability
337
GEN WB56K0002 GEN WB56K0002 Contact Us For Availability
367
GEN WB33K0001 GEN WB33K0001 Contact Us For Availability
444
GEN WB28K0061 GEN WB28K0061 Contact Us For Availability
711
GEN KNOB-THERMOSTAT (WH) GEN KNOB-THERMOSTAT (WH) Contact Us For Availability
× ![]()
