Model GE JGB920BEC4BB – Common Parts & Diagrams

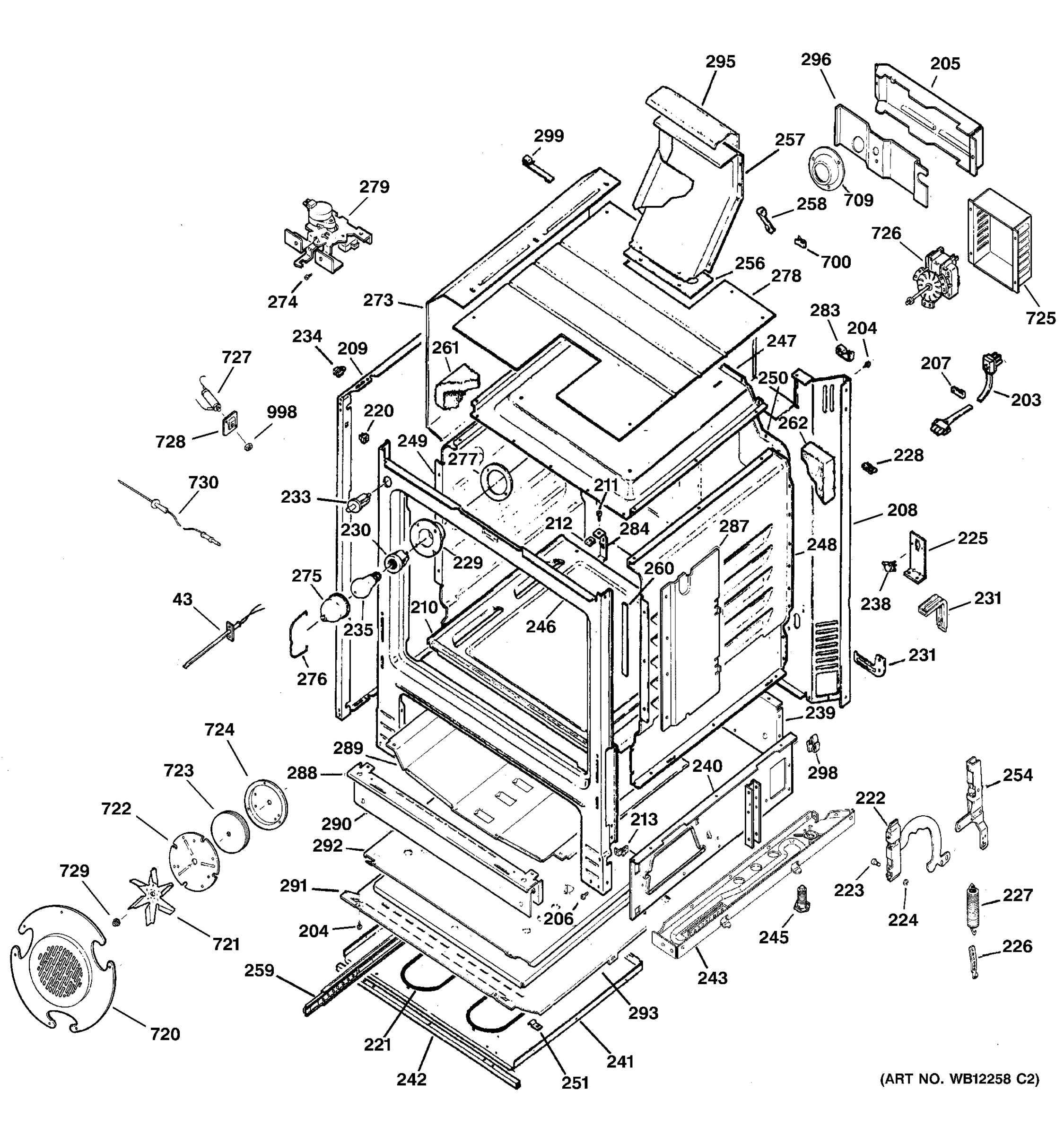

BODY PARTS

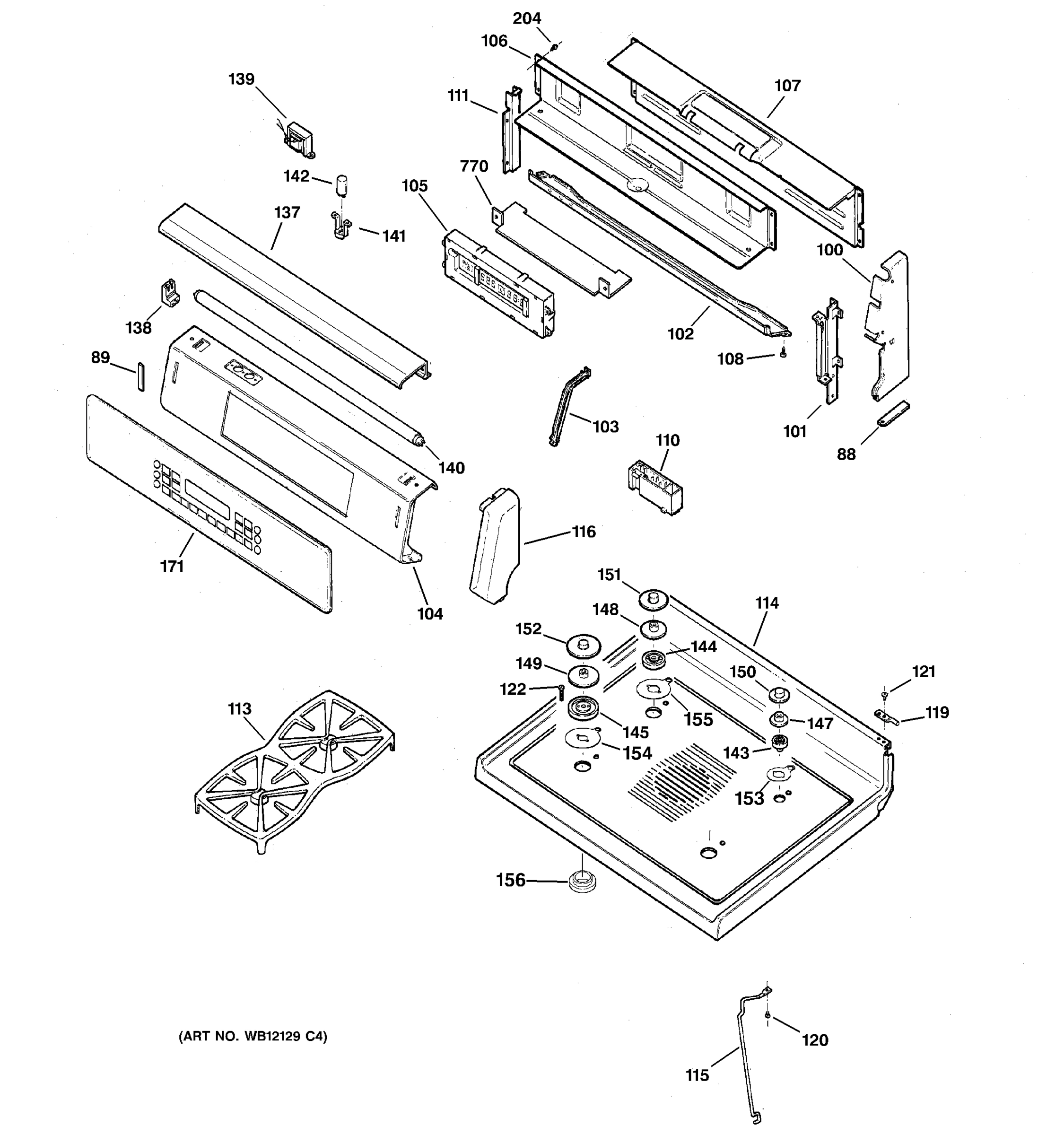

CONTROL PANEL & COOKTOP

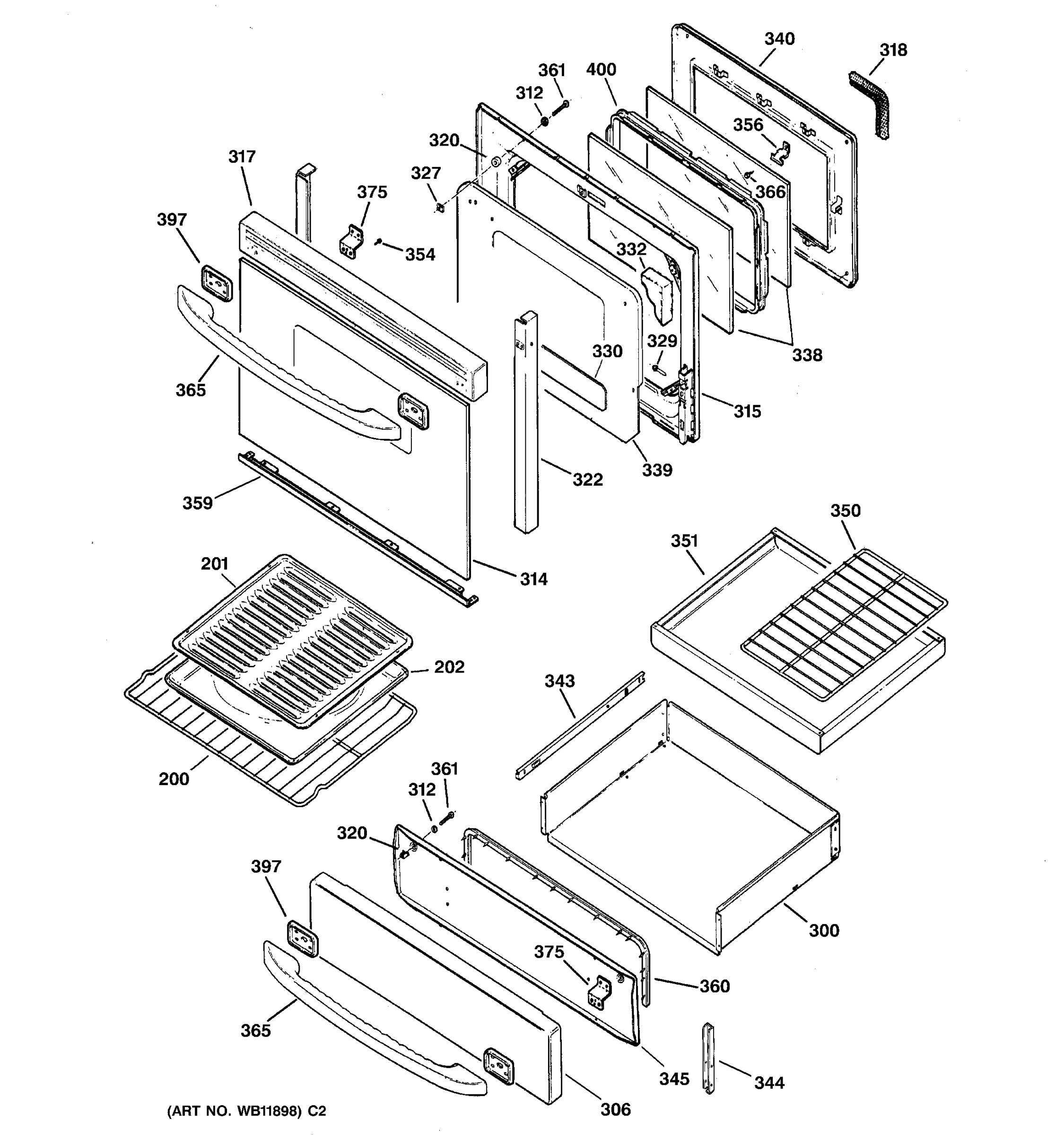

DOOR & DRAWER PARTS

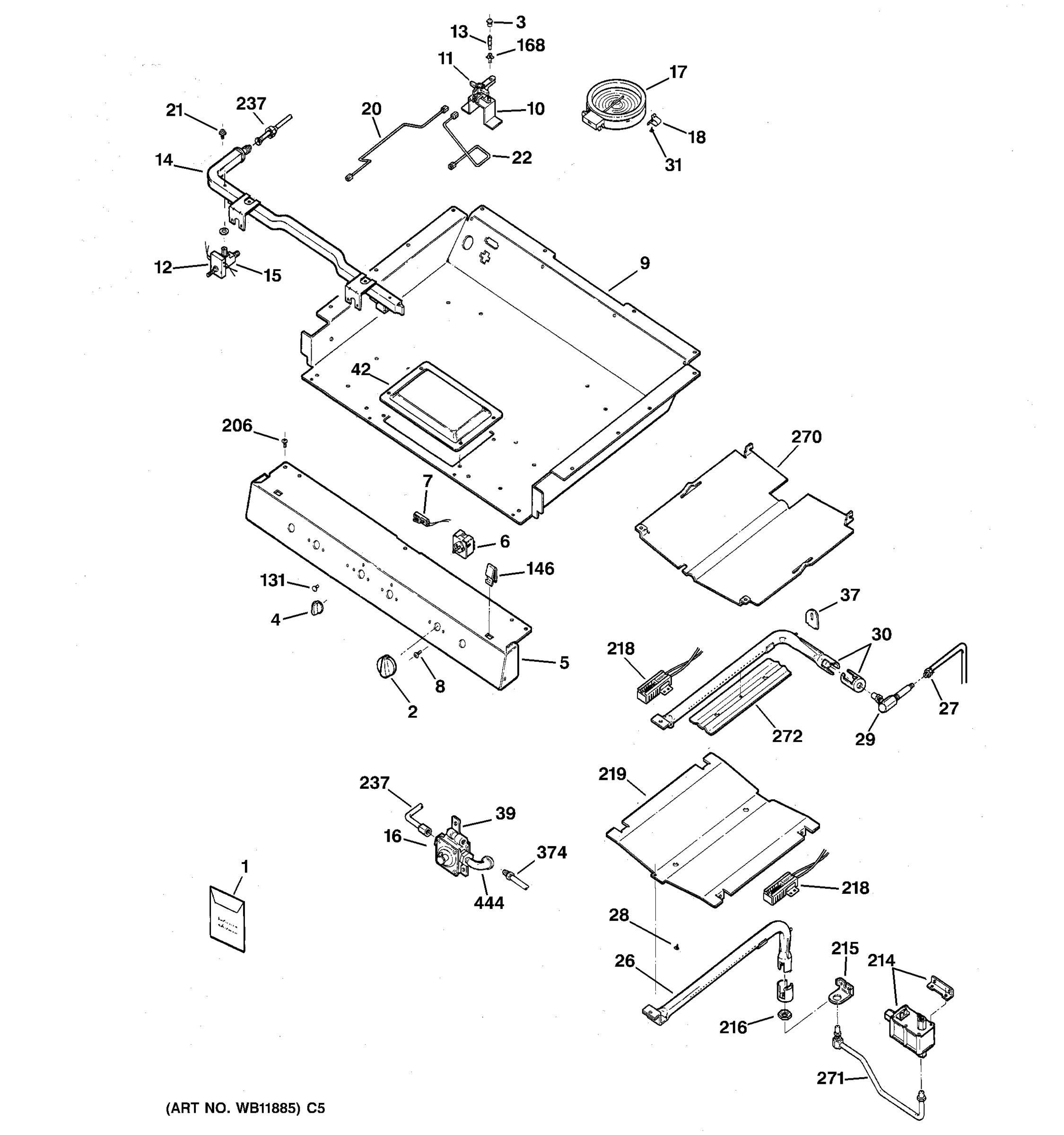

GAS & BURNER PARTS
Common parts from model GE JGB920BEC4BB
1
GEN 31-21029 GEN 31-21029 Contact Us For Availability
1
GEN 49-85035 GEN 49-85035 Contact Us For Availability
1
GEN WB28K10117 GEN WB28K10117 Contact Us For Availability
3
GEN WB28K10086 GEN WB28K10086 Contact Us For Availability
3
GEN WB28K10087 GEN WB28K10087 Contact Us For Availability
3
ORIFICE SPUD NG 1.52MM GEN WB28K10088 Contact Us For Availability
3
GEN WB28K10090 GEN WB28K10090 Contact Us For Availability
3
ORIFICE SPUD NG 1.75MM GEN WB28K10091 Contact Us For Availability
4
GEN WB03K10077 GEN WB03K10077 Contact Us For Availability
5
GEN WB36K10205 GEN WB36K10205 Contact Us For Availability
6
GEN WB24K10006 GEN WB24K10006 Contact Us For Availability
6
INFINITE SWITCH TOP ELEM GEN WB24K10012 Contact Us For Availability
7
GEN WB25K10005 GEN WB25K10005 Contact Us For Availability
9
GEN WB63K0023 GEN WB63K0023 Contact Us For Availability
10
GEN WB02K10035 GEN WB02K10035 Contact Us For Availability
11
GEN WB28K10082 GEN WB28K10082 Contact Us For Availability
11
GEN WB28K10083 GEN WB28K10083 Contact Us For Availability
11
GEN WB28K10084 GEN WB28K10084 Contact Us For Availability
12
SWITCH-VALVE SERVICE GEN WB24K10003 Contact Us For Availability
14
GEN WB28K10081 GEN WB28K10081 Contact Us For Availability
15
GEN WB28K10098 GEN WB28K10098 Contact Us For Availability
15
GEN WB28K10097 GEN WB28K10097 Contact Us For Availability
15
GEN WB28K10096 GEN WB28K10096 Contact Us For Availability
16
GEN WB19K10001 GEN WB19K10001 Contact Us For Availability
17
GEN WB30K10007 GEN WB30K10007 Contact Us For Availability
18
GEN WB02K0006 GEN WB02K0006 Contact Us For Availability
20
TUBE BURNER REAR GEN WB28K10094 Contact Us For Availability
20
GEN WB28K10095 GEN WB28K10095 Contact Us For Availability
22
GEN WB28K10092 GEN WB28K10092 Contact Us For Availability
22
GEN WB28K10093 GEN WB28K10093 Contact Us For Availability
27
GEN WB28K0055 GEN WB28K0055 Contact Us For Availability
29
GEN WB28K10018 GEN WB28K10018 Contact Us For Availability
29
GEN WB28K10019 GEN WB28K10019 Contact Us For Availability
30
GEN WB16K10004 GEN WB16K10004 Contact Us For Availability
31
GEN WB01K10028 GEN WB01K10028 Contact Us For Availability
39
GEN WB02K0088 GEN WB02K0088 Contact Us For Availability
42
GEN WB63K0022 GEN WB63K0022 Contact Us For Availability
89
GEN WB02K0062 GEN WB02K0062 Contact Us For Availability
100
GEN WB07K10051 GEN WB07K10051 Contact Us For Availability
100
GEN WB07K10052 GEN WB07K10052 Contact Us For Availability
101
GEN WB37K0017 GEN WB37K0017 Contact Us For Availability
101
GEN WB37K0018 GEN WB37K0018 Contact Us For Availability
102
GEN WB07K10056 GEN WB07K10056 Contact Us For Availability
103
GEN WB02K10005 GEN WB02K10005 Contact Us For Availability
104
GEN WB36K10196 GEN WB36K10196 Contact Us For Availability
105
GEN WB27K10059 GEN WB27K10059 Contact Us For Availability
106
GEN WB34K10041 GEN WB34K10041 Contact Us For Availability
107
GEN WB34K10036 GEN WB34K10036 Contact Us For Availability
108
GEN WB01X5716 GEN WB01X5716 Contact Us For Availability
110
GEN WB13K0025 GEN WB13K0025 Contact Us For Availability
110
GEN WB18K10019 GEN WB18K10019 Contact Us For Availability
111
GEN WB34K0005 GEN WB34K0005 Contact Us For Availability
113
GEN WB31K10054 GEN WB31K10054 Contact Us For Availability
114
GEN WB61K10004 GEN WB61K10004 Contact Us For Availability
115
GEN WB06K0008 GEN WB06K0008 Contact Us For Availability
116
GEN WB07K10053 GEN WB07K10053 Contact Us For Availability
116
GEN WB07K10054 GEN WB07K10054 Contact Us For Availability
122
GEN WB01K10021 GEN WB01K10021 Contact Us For Availability
137
GEN WB34K10005 GEN WB34K10005 Contact Us For Availability
138
GEN WB08K0006 GEN WB08K0006 Contact Us For Availability
139
GEN WB08K0003 GEN WB08K0003 Contact Us For Availability
140
GEN WB08K0008 GEN WB08K0008 Contact Us For Availability
141
GEN WB08K0010 GEN WB08K0010 Contact Us For Availability
142
GEN WB06K0007 GEN WB06K0007 Contact Us For Availability
144
GEN WB16K10031 GEN WB16K10031 Contact Us For Availability
145
GEN WB16K10032 GEN WB16K10032 Contact Us For Availability
146
GEN WB02K0052 GEN WB02K0052 Contact Us For Availability
147
GEN WB16T10014 GEN WB16T10014 Contact Us For Availability
148
BURNER HEAD-MED GEN WB16T10008 Contact Us For Availability
149
BURNER HEAD-LG GEN WB16T10005 Contact Us For Availability
150
BURNER CAP SMALL (BLK) GEN WB13T10012 Contact Us For Availability
151
BURNER CAP MED (BLK) GEN WB13T10008 Contact Us For Availability
152
BURNER CAP LARGE (BLK) GEN WB13T10006 Contact Us For Availability
153
GEN WB16T10011 GEN WB16T10011 Contact Us For Availability
155
GEN WB04T10011 GEN WB04T10011 Contact Us For Availability
156
GEN WB04K10004 GEN WB04K10004 Contact Us For Availability
156
GEN WB04K10005 GEN WB04K10005 Contact Us For Availability
171
HARNESS CNTRL-GLASS TOUC GEN WB08K10001 Contact Us For Availability
171
GEN WB57K10045 GEN WB57K10045 Contact Us For Availability
201
GEN WB48K0002 GEN WB48K0002 Contact Us For Availability
202
GEN WB49K0002 GEN WB49K0002 Contact Us For Availability
216
GEN WB01K0006 GEN WB01K0006 Contact Us For Availability
219
GEN WB49K0044 GEN WB49K0044 Contact Us For Availability
237
GEN WB28K10021 GEN WB28K10021 Contact Us For Availability
238
GEN WB20K10006 GEN WB20K10006 Contact Us For Availability
250
GEN WB53K10009 GEN WB53K10009 Contact Us For Availability
254
GEN WB01K0053 GEN WB01K0053 Contact Us For Availability
254
GEN WB10K0013 GEN WB10K0013 Contact Us For Availability
254
GEN WB10K0014 GEN WB10K0014 Contact Us For Availability
256
GEN WB32K0001 GEN WB32K0001 Contact Us For Availability
259
SLIDE AND BEARING ASM GEN WB39K10008 Contact Us For Availability
259
SLIDE AND BEARING ASM GEN WB39K10009 Contact Us For Availability
261
GEN WB35K0007 GEN WB35K0007 Contact Us For Availability
262
GEN WB35K10012 GEN WB35K10012 Contact Us For Availability
270
DEFLECTOR GEN WB49K10003 Contact Us For Availability
271
GEN WB28K0060 GEN WB28K0060 Contact Us For Availability
271
GEN WB28K0202 GEN WB28K0202 Contact Us For Availability
273
GEN WB53K0011 GEN WB53K0011 Contact Us For Availability
273
GEN WB53K0012 GEN WB53K0012 Contact Us For Availability
274
GEN WB01K0044 GEN WB01K0044 Contact Us For Availability
277
GEN WB32K0005 GEN WB32K0005 Contact Us For Availability
278
GEN NOT-STOCKED GEN NOT-STOCKED Contact Us For Availability
287
GEN WB34K0031 GEN WB34K0031 Contact Us For Availability
288
BRACE GEN WB63K0015 Contact Us For Availability
290
GEN WB34K0012 GEN WB34K0012 Contact Us For Availability
292
GEN WB63K0017 GEN WB63K0017 Contact Us For Availability
293
GEN WB63K0018 GEN WB63K0018 Contact Us For Availability
295
GEN WB35K10015 GEN WB35K10015 Contact Us For Availability
298
GEN WB02K0037 GEN WB02K0037 Contact Us For Availability
299
GEN WB02K0038 GEN WB02K0038 Contact Us For Availability
300
GEN WB58K10005 GEN WB58K10005 Contact Us For Availability
306
GEN WB55K10006 GEN WB55K10006 Contact Us For Availability
314
GEN WB57K10028 GEN WB57K10028 Contact Us For Availability
315
GEN WB55K0025 GEN WB55K0025 Contact Us For Availability
317
GEN WB07K10055 GEN WB07K10055 Contact Us For Availability
322
GEN WB07K10016 GEN WB07K10016 Contact Us For Availability
322
GEN WB07K10019 GEN WB07K10019 Contact Us For Availability
330
GEN WB35K0022 GEN WB35K0022 Contact Us For Availability
332
GEN WB35K0024 GEN WB35K0024 Contact Us For Availability
332
GEN WB35K0025 GEN WB35K0025 Contact Us For Availability
338
GEN WB56K0020 GEN WB56K0020 Contact Us For Availability
345
COVER DRAWER GEN WB55K10005 Contact Us For Availability
350
GEN WB48K10002 GEN WB48K10002 Contact Us For Availability
351
GEN WB48K10005 GEN WB48K10005 Contact Us For Availability
356
GEN WB02K0056 GEN WB02K0056 Contact Us For Availability
360
GEN WB04K10003 GEN WB04K10003 Contact Us For Availability
365
GEN WB15X5227 GEN WB15X5227 Contact Us For Availability
374
GEN WB28K0150 GEN WB28K0150 Contact Us For Availability
375
BRACKET DRAWER GEN NOT STOCKED Contact Us For Availability
375
GEN WB02K10009 GEN WB02K10009 Contact Us For Availability
397
GEN WB07K10057 GEN WB07K10057 Contact Us For Availability
444
GEN WB28K0061 GEN WB28K0061 Contact Us For Availability
700
RETAINER-INSULATION GEN WB02K0030 Contact Us For Availability
709
GEN WB08K0004 GEN WB08K0004 Contact Us For Availability
725
GEN WB34K10039 GEN WB34K10039 Contact Us For Availability
726
GEN WB26K10001 GEN WB26K10001 Contact Us For Availability
727
HARNESS-MEAT PROBE GEN WB18K10006 Contact Us For Availability
728
GEN WB02X8309 GEN WB02X8309 Contact Us For Availability
730
GEN WB34K5140 GEN WB34K5140 Contact Us For Availability
770
GEN WB35K10014 GEN WB35K10014 Contact Us For Availability
× ![]()
